82 1−3. Adjustable components (seats, mirrors, steering wheel)
NOTICE
nIf ice should jam the mirror
Do not operate the control or scrape the mirror face. Use a spray de−icer to
free the mirror.

83
1
Before driving
1−4. Opening and closing the windows and moon roof

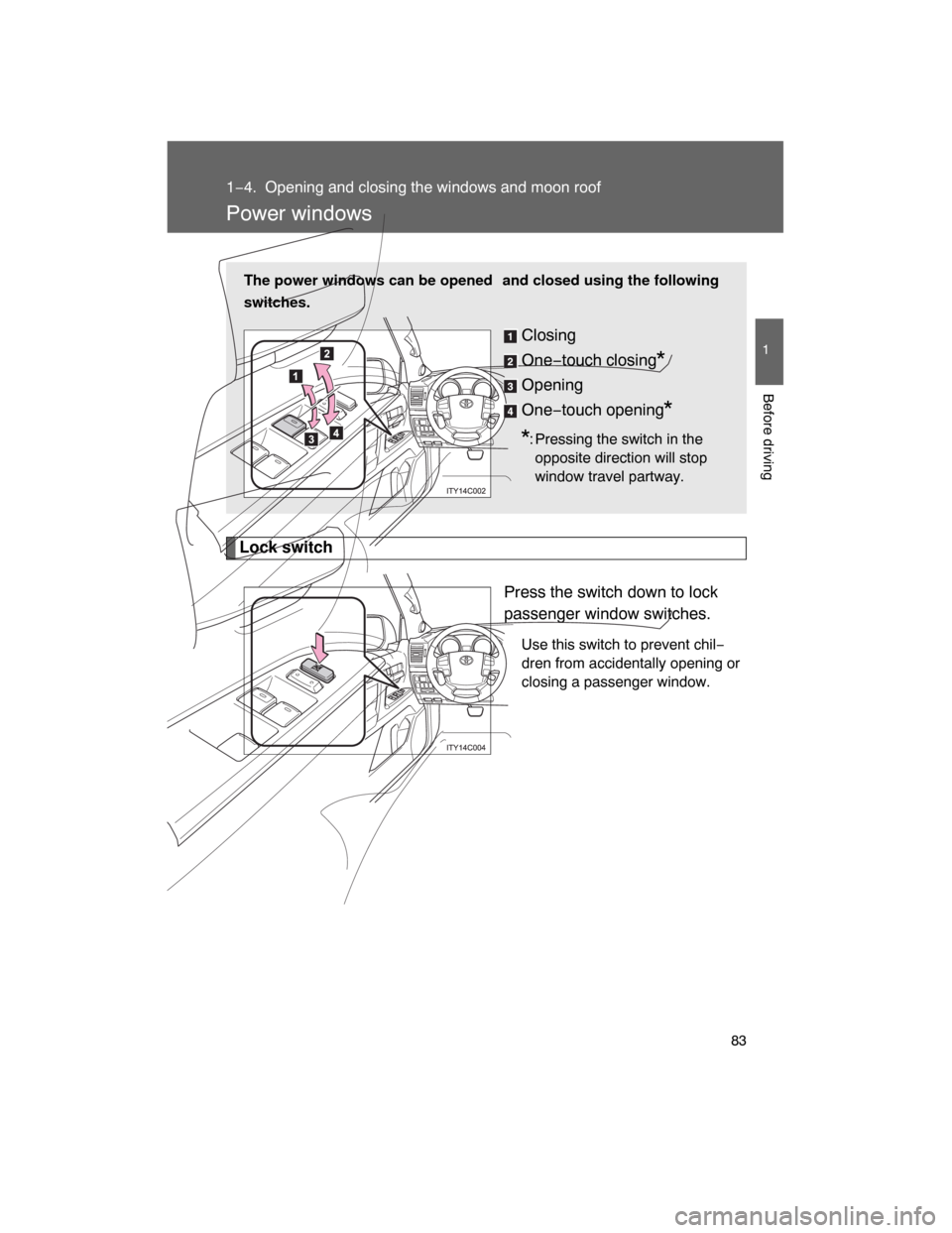

Power windows
Lock switch
Press the switch down to lock
passenger window switches.
Use this switch to prevent chil−
dren from accidentally opening or
closing a passenger window. The power windows can be opened and closed using the following
switches.
Closing
One−touch closing
*
Opening
One−touch opening
*
*
: Pressing the switch in the
opposite direction will stop
window travel partway.

84 1−4. Opening and closing the windows and moon roof
nThe power windows can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
nLinked door lock window operation
lThe power windows can be opened and closed using the mechanical
key. ( P. 43)
lThe power windows can be opened using the wireless remote control.
(P. 40)
lThe power windows can be closed using the smart key system.
nOperating the power windows after turning the “ENGINE START STOP”
switch OFF
The power windows can be operated for approximately 45 seconds even
after the “ENGINE START STOP” switch is turned ACCESSORY mode or
turned OFF. They cannot, however, be operated once the driver ’s or front
passenger ’s door is opened.
nJam protection function
If an object becomes caught between the window and the window frame,
window travel is stopped and the window is opened slightly.
nCustomization that can be configured at Toyota dealer
Settings (e.g. linked door lock operation) can be changed. (Customizable
features P. 519)

85
1−4. Opening and closing the windows and moon roof
1
Before driving
CAUTION
nClosing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
lCheck to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
lDo not allow children to operate the power windows.
Closing a power window on someone can cause death or serious injury.
nJam protection function
lNever try jamming any part of your body to activate the jam protection
function intentionally.
l
The jam protection function may not work if something gets caught just
before the window fully closes.

86
1−4. Opening and closing the windows and moon roof

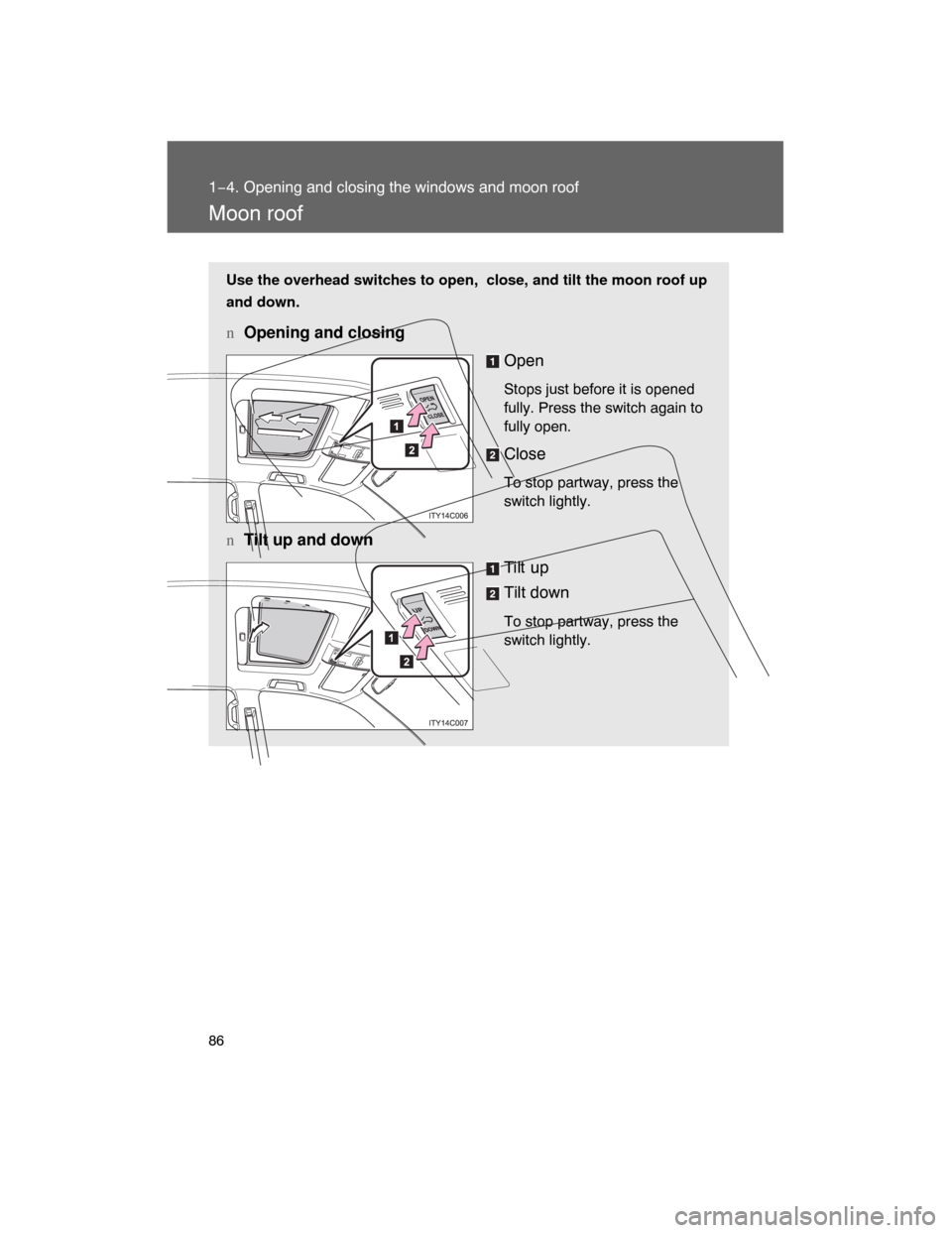

Moon roof
Use the overhead switches to open, close, and tilt the moon roof up
and down.
nOpening and closing
Open
Stops just before it is opened
fully. Press the switch again to
fully open.
Close
To stop partway, press the
switch lightly.
nTilt up and down
Ti lt u p
Tilt down
To stop partway, press the
switch lightly.

87
1−4. Opening and closing the windows and moon roof
1
Before driving
nThe moon roof can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
nLinked door lock moon roof operation
lThe moon roof can be opened and closed using the mechanical key.
(P. 43)
lThe moon roof can be opened using the wireless remote control.
(P. 40)
lThe moon roof can be closed using the smart key system.
n
Operating the moon roof after tu rning the “ENGINE START STOP”
switch OFF
The moon roof can be operated for approximately 45 seconds even after the
“ENGINE START STOP” switch is turned to ACCESSORY mode or turned
OFF. It cannot, however, be operated once the driver ’s or front passenger ’s
door is opened.
nJam protection function
If an object is detected between the moon roof and the frame while closing
or tilting down, travel is stopped and the moon roof opens slightly.
nIf the moon roof cannot be closed automatically
Keep the switch depressed.
nTo reduce moon roof wind noise
Drive with the moon roof opened automatically (just before fully opened
position).
nSunshade
The sunshade can be opened and closed manually. However, the sunshade
will open automatically when the moon roof is opened.

88 1−4. Opening and closing the windows and moon roof
nMoon roof open warning buzzer
The buzzer sounds and message is shown on the multi−information display
in the instrument panel when the “E NGINE START STOP” switch is turned
OFF and the driver ’s door is opened with the moon roof open.
nCustomization that can be configured at Toyota dealer
Settings (e.g. linked door lock operation) can be changed. (Customizable
features
P. 519)
CAUTION
nOpening the moon roof
Observe the following precautions.
Failing to do so may cause death or serious injury.
lDo not allow any passengers to put their hands or heads outside the vehi−
cle while it is moving.
lDo not sit on top of the moon roof.
nClosing the moon roof
Observe the following precautions.
Failing to do so may result in death or serious injury.
lCheck to make sure that all passengers do not have any part of their bod−
ies in a position where they could be caught when the moon roof is being
operated.
lDo not allow children to operate the moon roof.
Closing the moon roof on someone can cause death or serious injury.
nJam protection function
lNever try jamming any part of your body to activate the jam protection
function intentionally.
l
The jam protection function may not work if something gets caught just
before the moon roof fully closes.

89
1
Before driving
1−5. Refueling

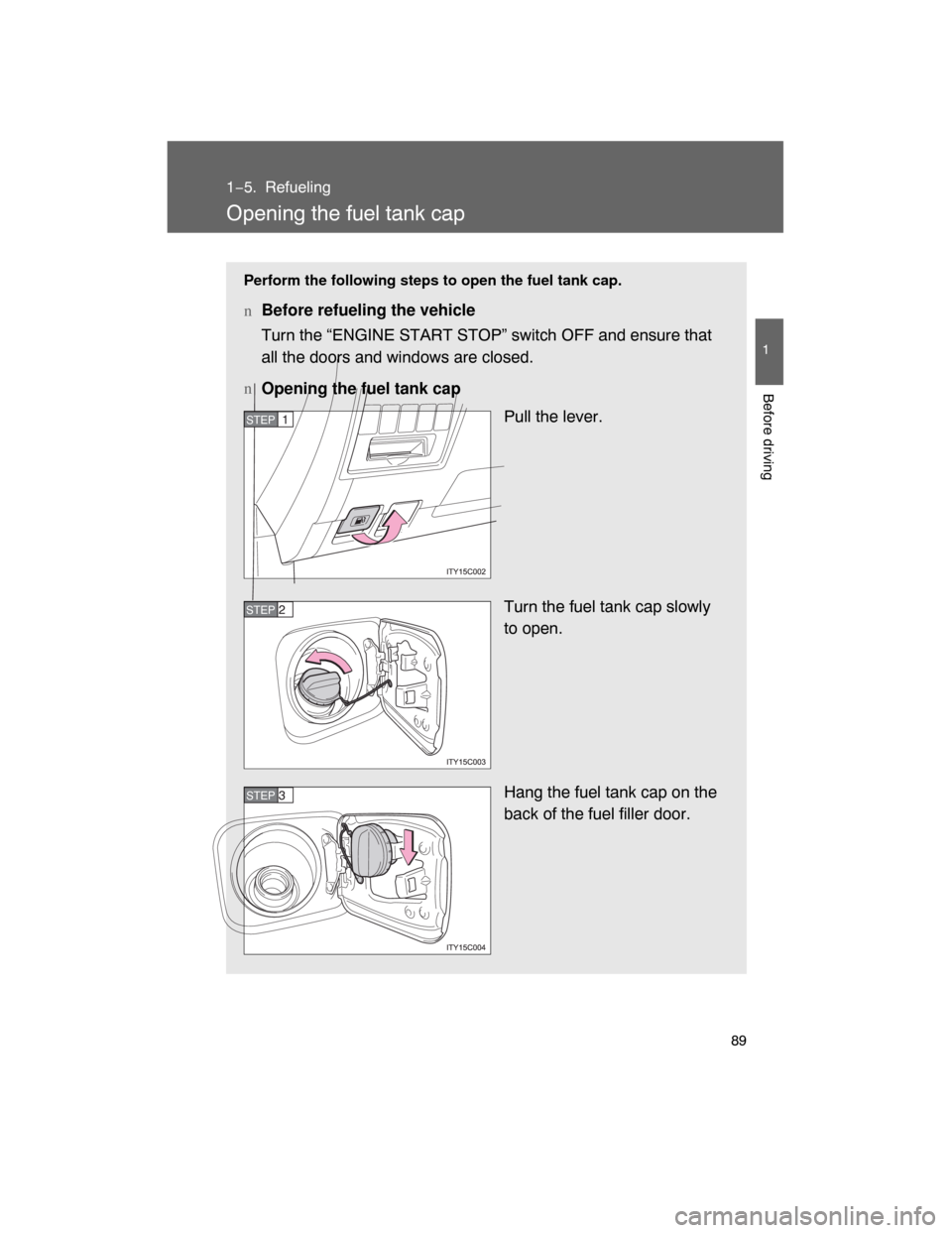

Opening the fuel tank cap
Perform the following steps to open the fuel tank cap.
nBefore refueling the vehicle
Turn the “ENGINE START STOP” switch OFF and ensure that
all the doors and windows are closed.
n
Opening the fuel tank cap
Pull the lever.
Turn the fuel tank cap slowly
to open.
Hang the fuel tank cap on the
back of the fuel filler door.
STEP1
STEP 2
STEP 3

90 1−5. Refueling
Closing the fuel tank cap
When replacing the fuel tank
cap, turn it until a clicking sound
is heard.
After releasing your hand, the cap
will turn slightly to the opposite
direction.
nFuel types
Use unleaded gasoline. (87 Octane Rating [Research Octane Number 91] or
higher)
nFuel tank capacity
Approximately 24.6 gal. (93 L, 20.5 Imp. gal.)

91
1−5. Refueling
1
Before driving
CAUTION
nRefueling the vehicle
Observe the following precautions while refueling the vehicle.
Failure to do so, may result in death or serious injury.
lTouch the vehicle or some other metal surface to discharge any static
electricity.
Sparks resulting from discharging static electricity may cause the fuel
vapors to ignite.
lAlways hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap.
In hot weather, pressurized fuel may spray out the filler neck and cause
injury.
lDo not allow anyone that has not discharged static electricity from their
bodies to come close to an open fuel tank.
lDo not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
lDo not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
lDo not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
nWhen replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Failure to do so may cause a fire or other incident which may result
in death or serious injury.
