1−3. Adjustable components (seats, mirrors, steering wheel)

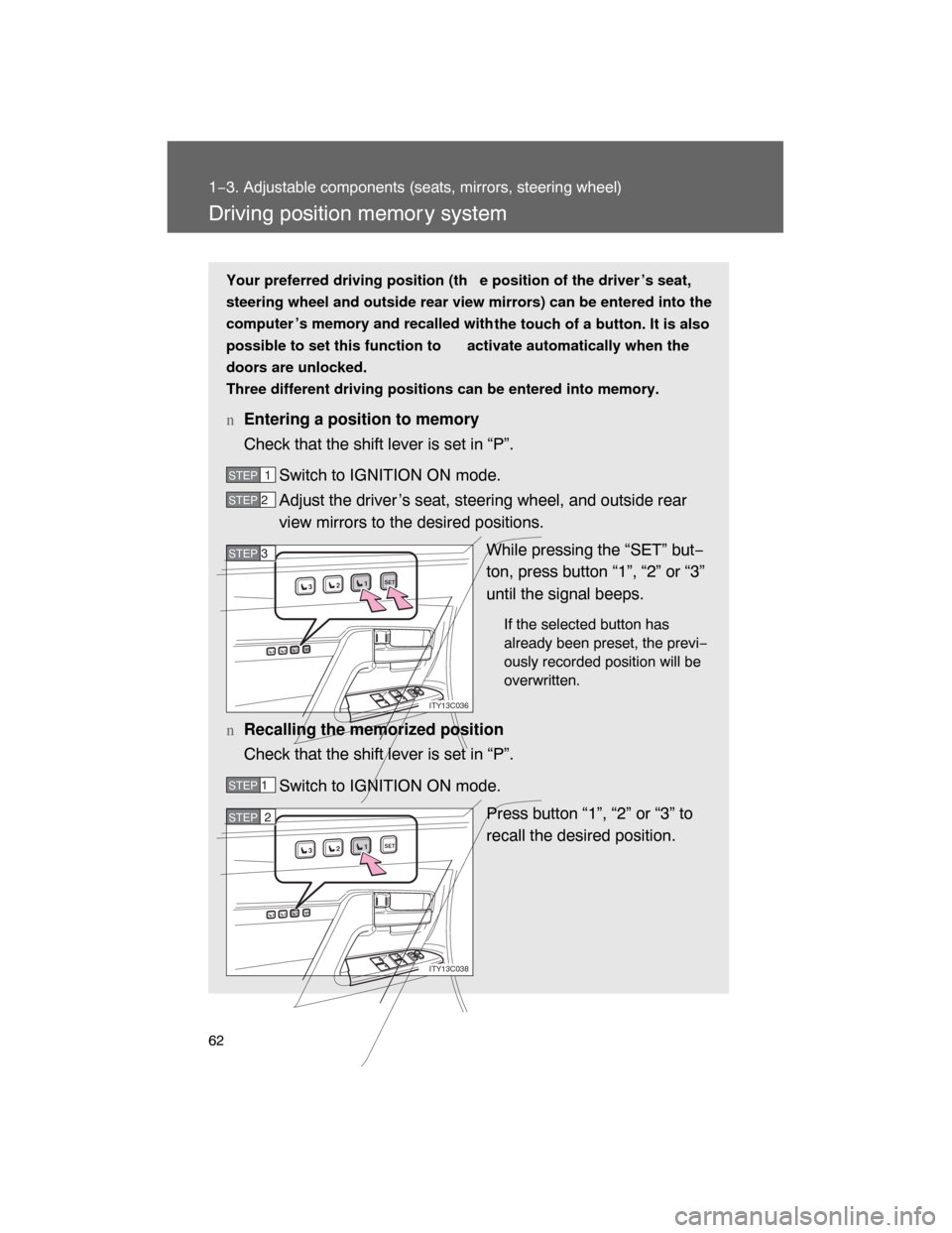

Driving position memor y system
Your preferred driving position (th e position of the driver ’s seat,
steering wheel and outside rear view mirrors) can be entered into the
computer ’s memory and recalled with
the touch of a button. It is also
possible to set this function to activate automatically when the
doors are unlocked.
Three different driving positions can be entered into memory.
nEntering a position to memory
Check that the shift lever is set in “P”.
Switch to IGNITION ON mode.
Adjust the driver ’s seat, steering wheel, and outside rear
view mirrors to the desired positions.
While pressing the “SET” but−
ton, press button “1”, “2” or “3”
until the signal beeps.
If the selected button has
already been preset, the previ−
ously recorded position will be
overwritten.
nRecalling the memorized position
Check that the shift lever is set in “P”.
Switch to IGNITION ON mode.
Press button “1”, “2” or “3” to
recall the desired position.
STEP1
STEP 2
1SET23
1SET23
ITY13C036
STEP3STEP 3
STEP 1
1SET23
1SET23
ITY13C038
STEP2

63
1−3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
Linking driving position memory with door unlock operation
Record your driving position to button “1”, “2” or “3” before performing
the following:
Using the wireless remote control
Turn the “ENGINE START STOP” switch to OFF and close
the driver ’s door.
While pressing the desired but−
ton (“1”, “2” or “3”), press
on the wireless remote control
until the signal beeps.
The driving position is recalled
when the driver ’s door is
unlocked using the entry function
or wireless remote control and the
driver ’s door is opened.
STEP1
1SET23
ITY13C130
STEP2
nCanceling the linked door unlock operation
Turn the “ENGINE START STOP” switch to OFF and close the
driver ’s door.
Using the wireless remote control: While pressing “SET” button,
press button on the wireless remote control until the signal
beeps.
STEP1
STEP 2

64 1−3. Adjustable components (seats, mirrors, steering wheel)
nRetained accessory power
Each memorized position (except for the steering wheel position) can be
activated within 30 seconds after the driver ’s door is opened, even if the
“ENGINE START STOP” switch turns off.
nTo cancel seat position recall
Perform any one of the following operations.
lPress the “SET” button
lPress button “1”, “2” or “3”.
lAdjust the seat using the switches (only cancels seat position recall)
nIf the battery is disconnected
The memorized positions must be reset because the computer ’s memory is
erased when the battery is disconnected.
CAUTION
nSeat adjustment caution
Take care during seat adjustment that the seat does not strike the rear pas−
senger or squeeze your body against the steering wheel.

65
1
1−3. Adjustable components (seats, mirrors, steering wheel)
Before driving

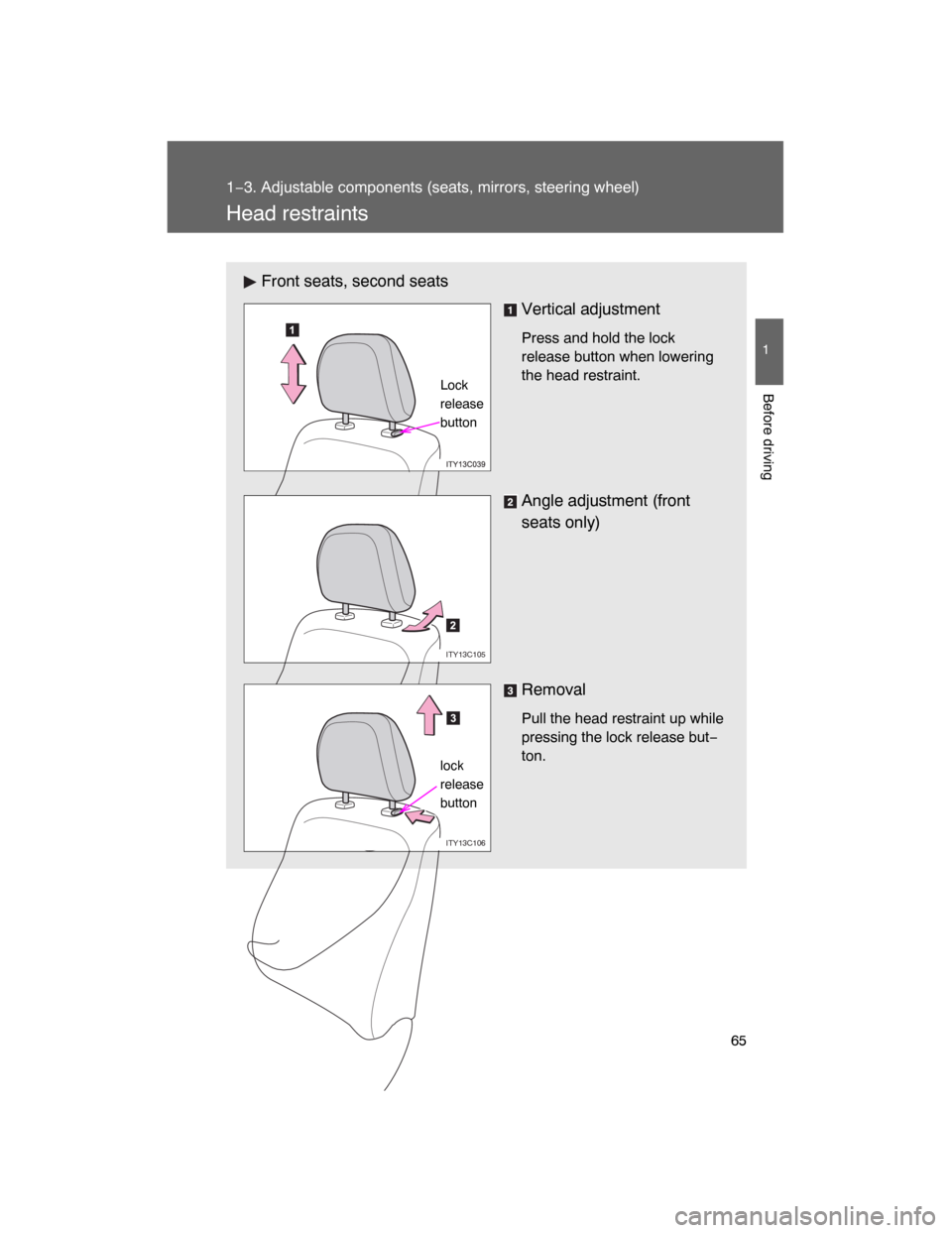

Head restraints
Front seats, second seats
Vertical adjustment
Press and hold the lock
release button when lowering
the head restraint.
Angle adjustment (front
seats only)
Removal
Pull the head restraint up while
pressing the lock release but−
ton.
Lock
release
button
ITY13C105
ITY13C106
lock
release
button

66 1−3. Adjustable components (seats, mirrors, steering wheel)

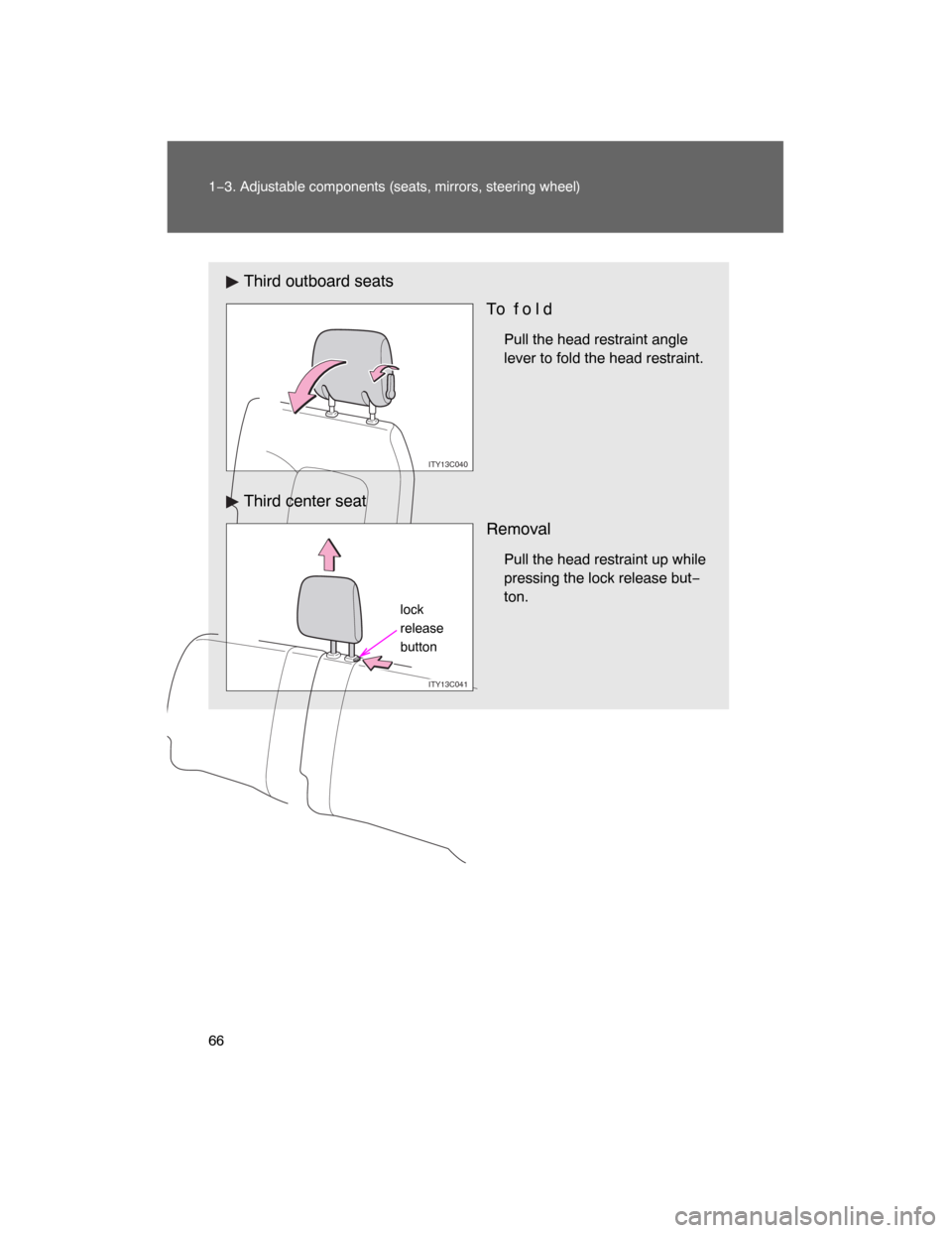

Third outboard seats
To f o l d
Pull the head restraint angle
lever to fold the head restraint.
Third center seat
Removal
Pull the head restraint up while
pressing the lock release but−
ton.
ITY13C040
ITY13C041
lock
release
button

67
1−3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
nAdjusting the height of the head restraints
nAdjusting the second center seat head restraint
Always raise the head restraint one level from the stowed position when
using.
nRemoving the third outboard seat head restraints
While pressing in the screwdriver, pull up the head restraint.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
Push a flathead screwdriver into the slot.
The slot is located on the left side of the
left head restraint anchor.
ITY13C035
STEP1
STEP 2

68 1−3. Adjustable components (seats, mirrors, steering wheel)
nInstalling the third outboard seat head restraints
Align the head restraint with the installation holes.
Push down the head restraint to the lock position.
nWhen not using the third center seat head restraint
CAUTION
nHead restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
lUse the head restraints designed for each respective seat.
lAdjust the head restraints to the correct position at all times.
lAfter adjusting the head restraints, push down on them and make sure
they are locked in position.
l
Do not drive with the head restraints removed.
STEP1
STEP 2
Open the zipper on the back of the third
seat and stow the head restraint inside.
ITY13C043

69
1
1−3. Adjustable components (seats, mirrors, steering wheel)
Before driving

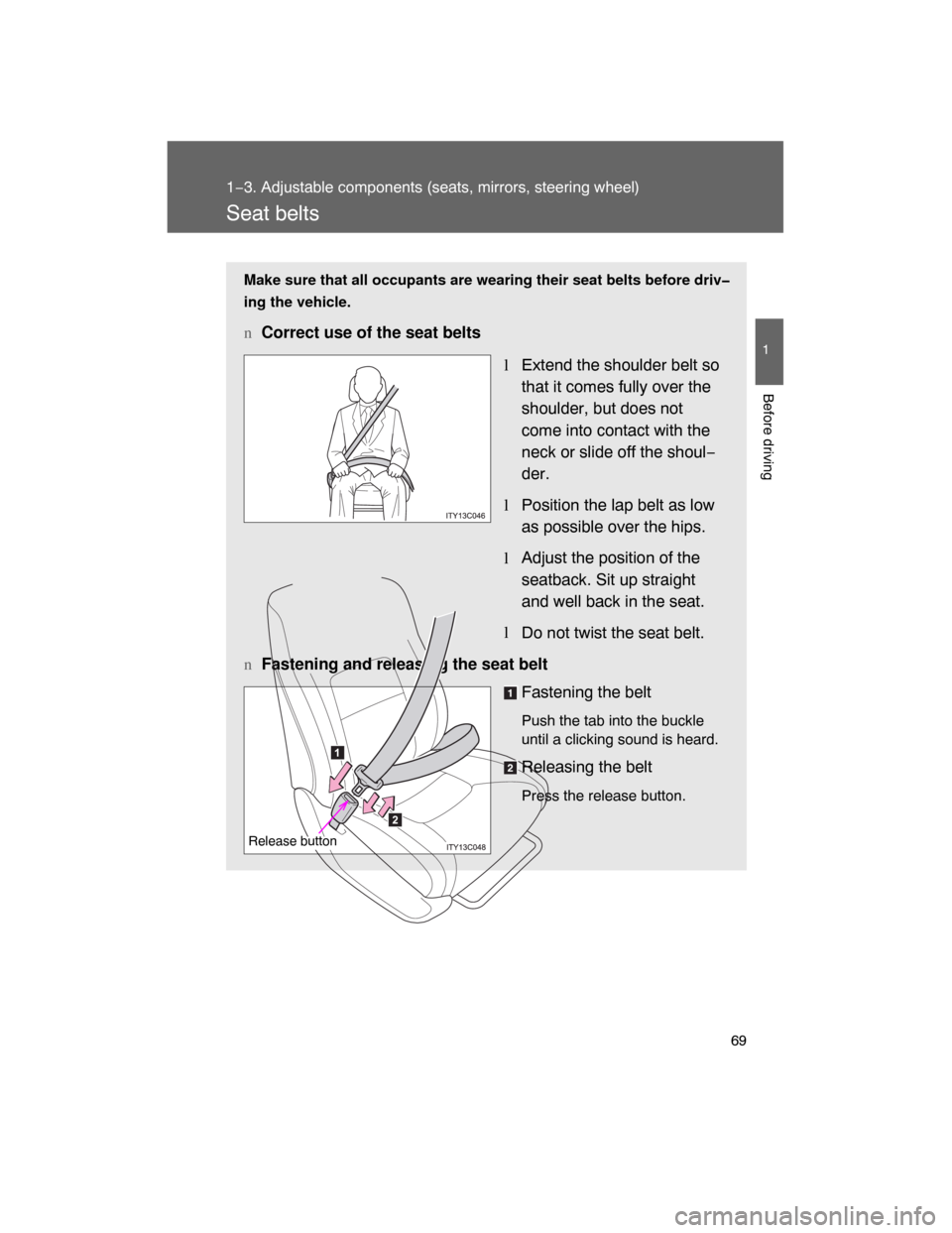

Seat belts
Make sure that all occupants are wearing their seat belts before driv
ing the vehicle.
nCorrect use of the seat belts
lExtend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul−
der.
lPosition the lap belt as low
as possible over the hips.
lAdjust the position of the
seatback. Sit up straight
and well back in the seat.
l
Do not twist the seat belt.
nFastening and releasing the seat belt
Fastening the belt
Push the tab into the buckle
until a clicking sound is heard.
Releasing the belt
Press the release button.
Release button

70 1−3. Adjustable components (seats, mirrors, steering wheel)
\
Third center seat belt
The third center seat belt is a 3−point type restraint with 2 buckles.
Both seat belt buckles must be co
rrectly located and securely latched
for proper operation.
Make sure that the buckle with
the gray buckle release button is
securely latched for ready use of
the center seat belt. nAdjusting the height of th e belt (front, second outboard
seat)
Down
Up
Move the height adjuster up
and down as needed until you
hear a click.
1
2
ITY13C055
ITY13C049

71
1−3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
nRelease method
The belt can be completely released when not required, such as
when removing the third seat.
To release the hooked tab, insert
the mechanical key into the hole
on the buckle with the light gray
buckle release button.
Stow the seat belt tabs in the
cover set in the roof as shown.
n
Extracting the belt
Pull the belt out partially, then remove the tabs from the cover.
STEP1
STEP 2
