52 1−3. Adjustable components (seats, mirrors, steering wheel)
nActive head restraint
Even small forces applied to the seatback may cause the head restraint to
move. This does not indicate a problem.
CAUTION
nSeat adjustment
lBe careful that the seat does not hit passengers or luggage.
l
Do not recline the seat more than necessary when the vehicle is in motion
to reduce the risk of sliding under the lap belt.
If the seat is too reclined, during an accident the lap belt may slide past the
hips and apply restraint forces directly to the abdomen or your neck may
contact the shoulder belt, increasing the risk of death or serious injury.

53
1
1−3. Adjustable components (seats, mirrors, steering wheel)
Before driving

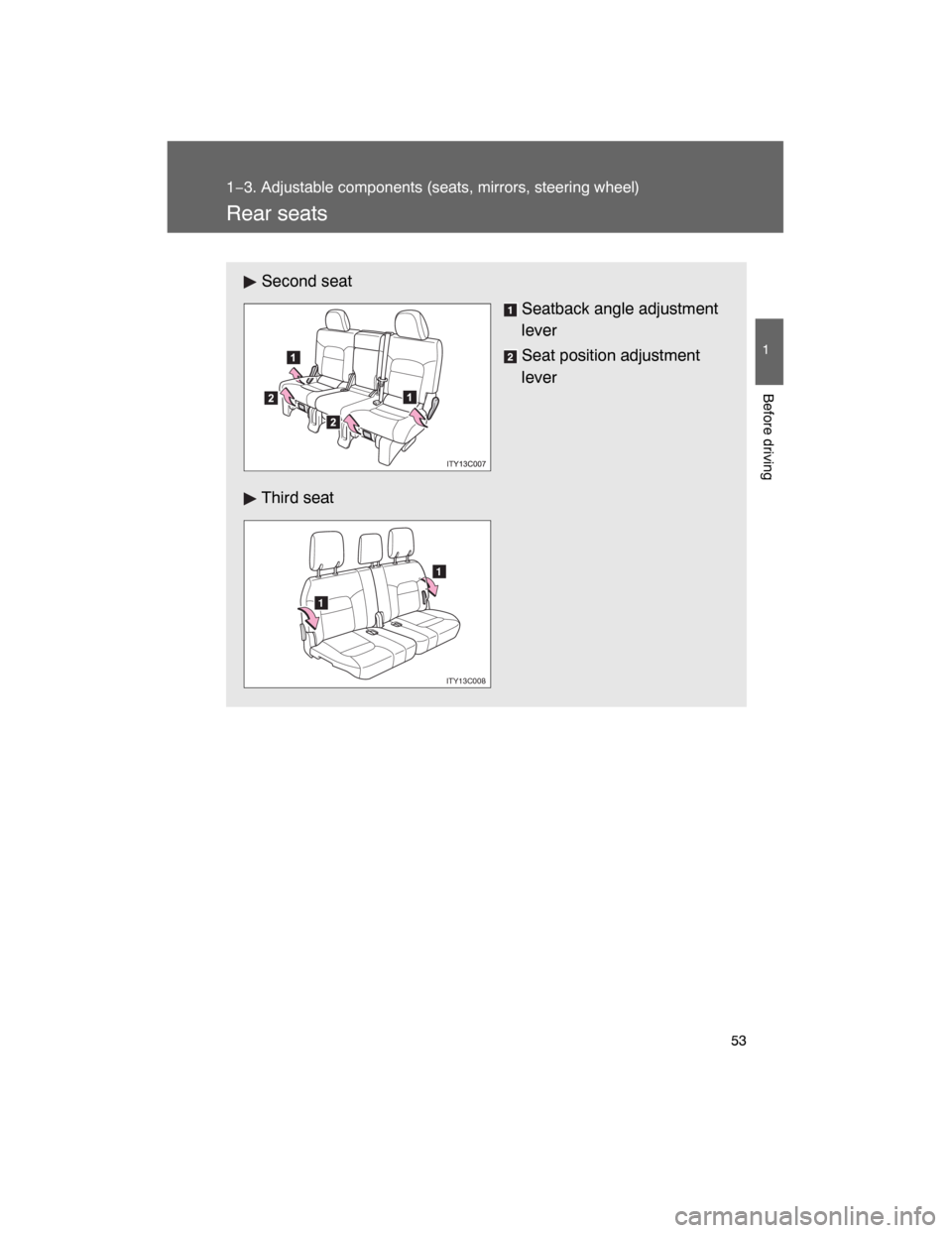

Rear seats
Second seat
Seatback angle adjustment
lever
Seat position adjustment
lever
Third seat
1
1
ITY13C008

54 1−3. Adjustable components (seats, mirrors, steering wheel)

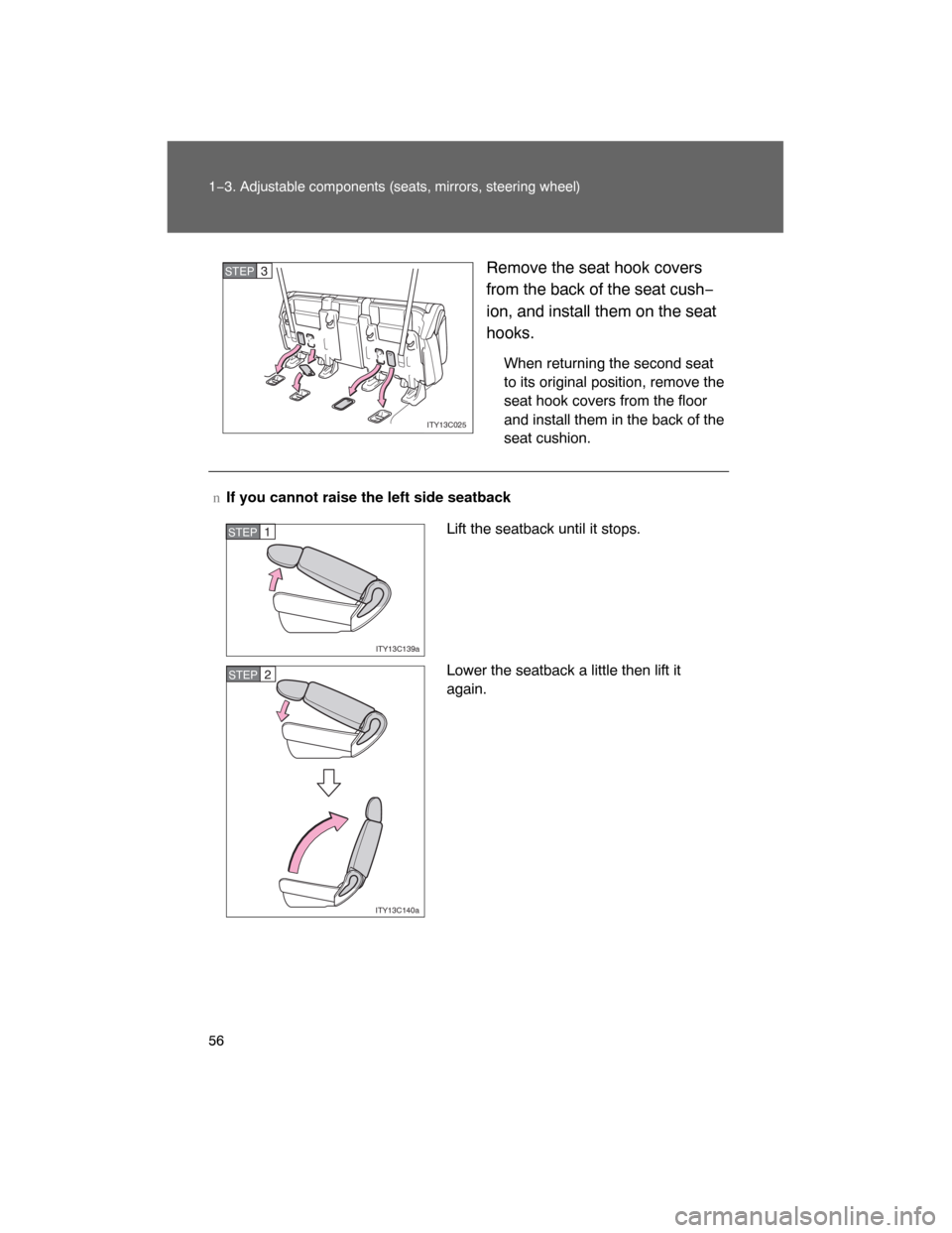

Tumbling the second seats and third seat entry
For easy access to the third seat, perform in “Tumbling sec−
ond seats”. ( P. 5 5 )
n
Before tumbling second seats
Stow the seat belt buckles and
lower the head restraints to the
lowest position.
Pass the outer seat belts through
the seat belt hangers and secure
the seat belt plates.
This prevents the shoulder belt
from being damage.
Make sure that the seat belts are
removed from the hangers before
using them.

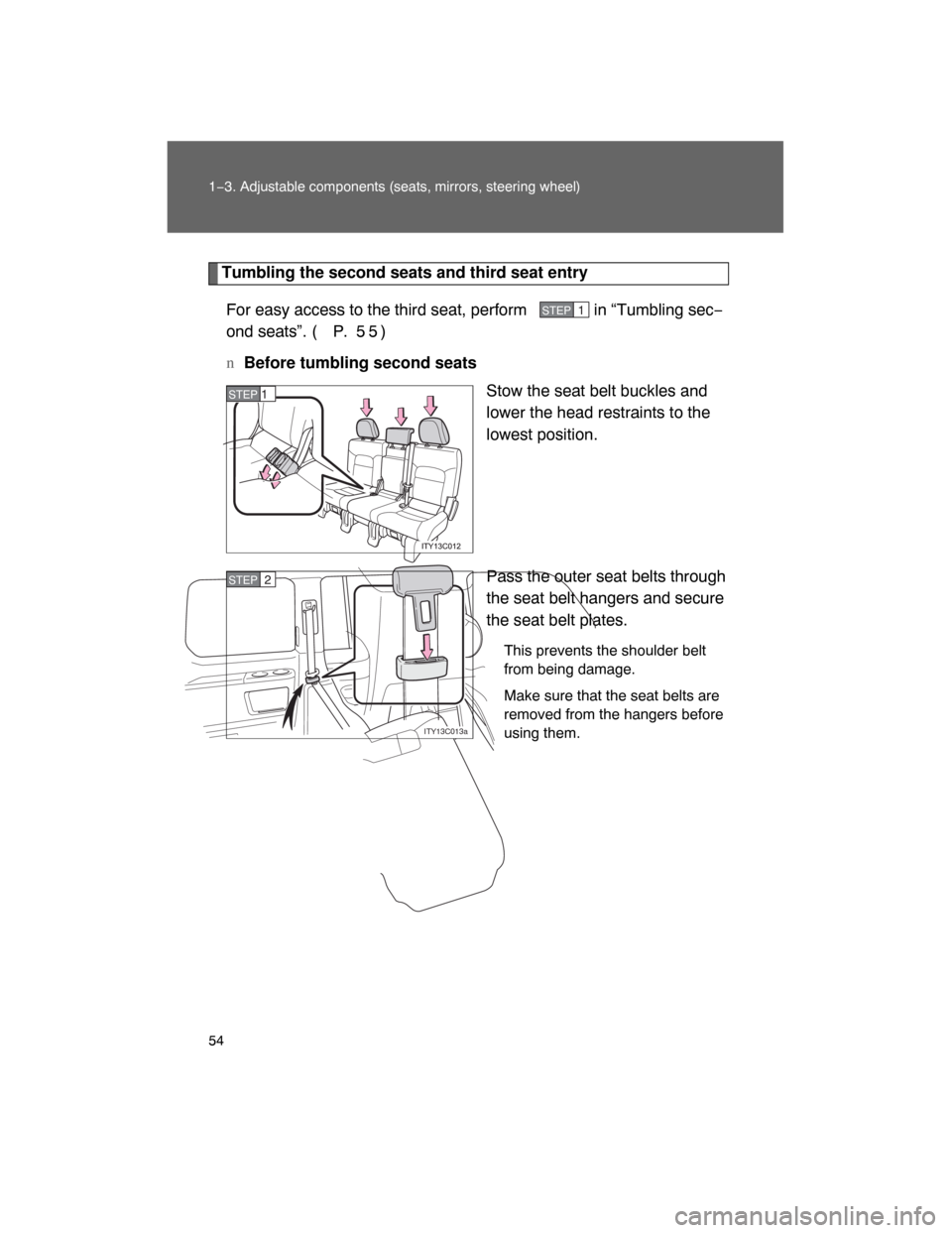

STEP1
STEP 1
ITY13C013a
STEP2

55
1−3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving

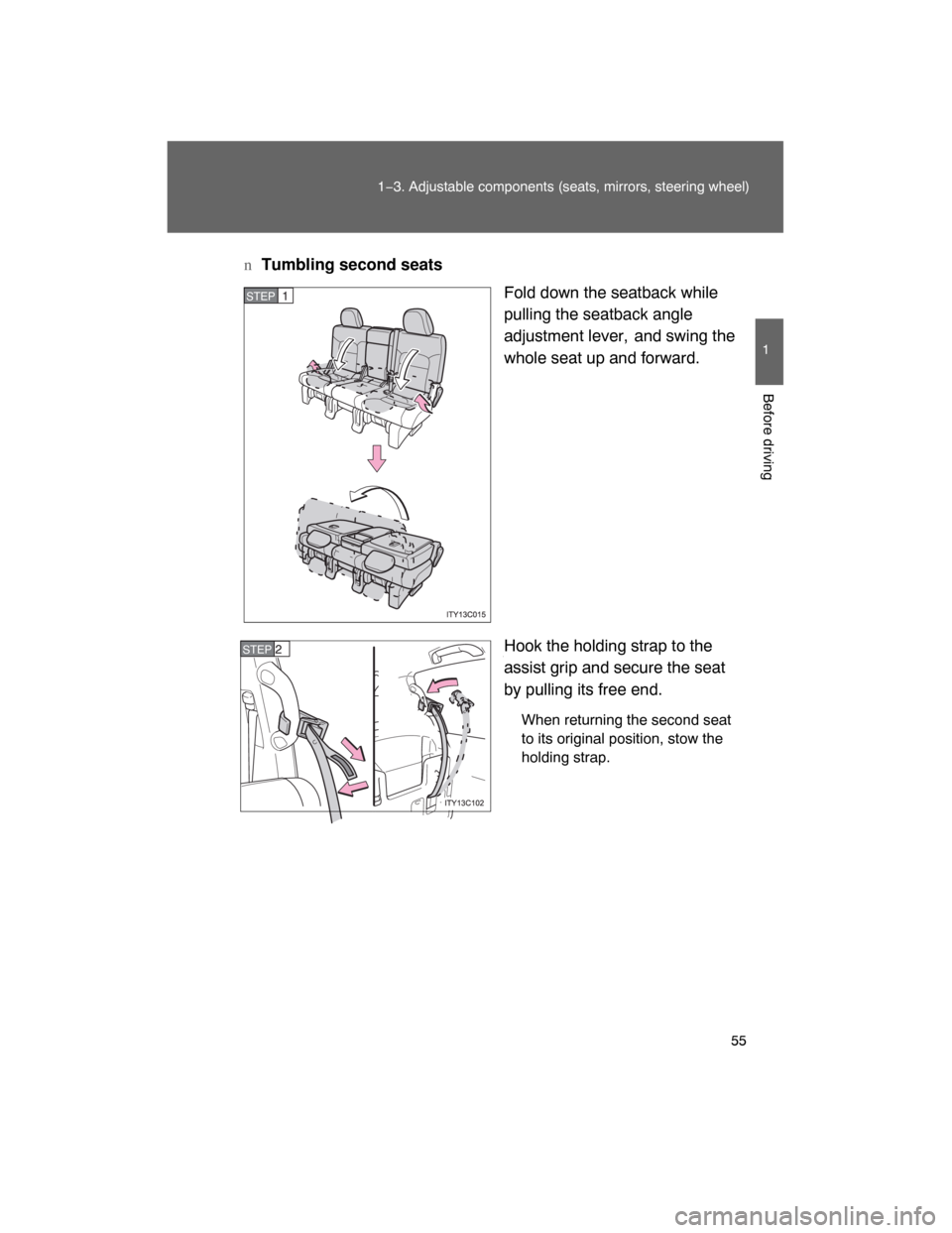

nTumbling second seats
Fold down the seatback while
pulling the seatback angle
adjustment lever, and swing the
whole seat up and forward.
Hook the holding strap to the
assist grip and secure the seat
by pulling its free end.
When returning the second seat
to its original position, stow the
holding strap.
STEP1
STEP 2

56 1−3. Adjustable components (seats, mirrors, steering wheel)
Remove the seat hook covers
from the back of the seat cush−
ion, and install them on the seat
hooks.
When returning the second seat
to its original position, remove the
seat hook covers from the floor
and install them in the back of the
seat cushion.
ITY13C025
STEP3
nIf you cannot raise the left side seatback
Lift the seatback until it stops.
Lower the seatback a little then lift it
again.
ITY13C139a
STEP1
ITY13C140a
STEP2

57
1−3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
Tumbling the third seats

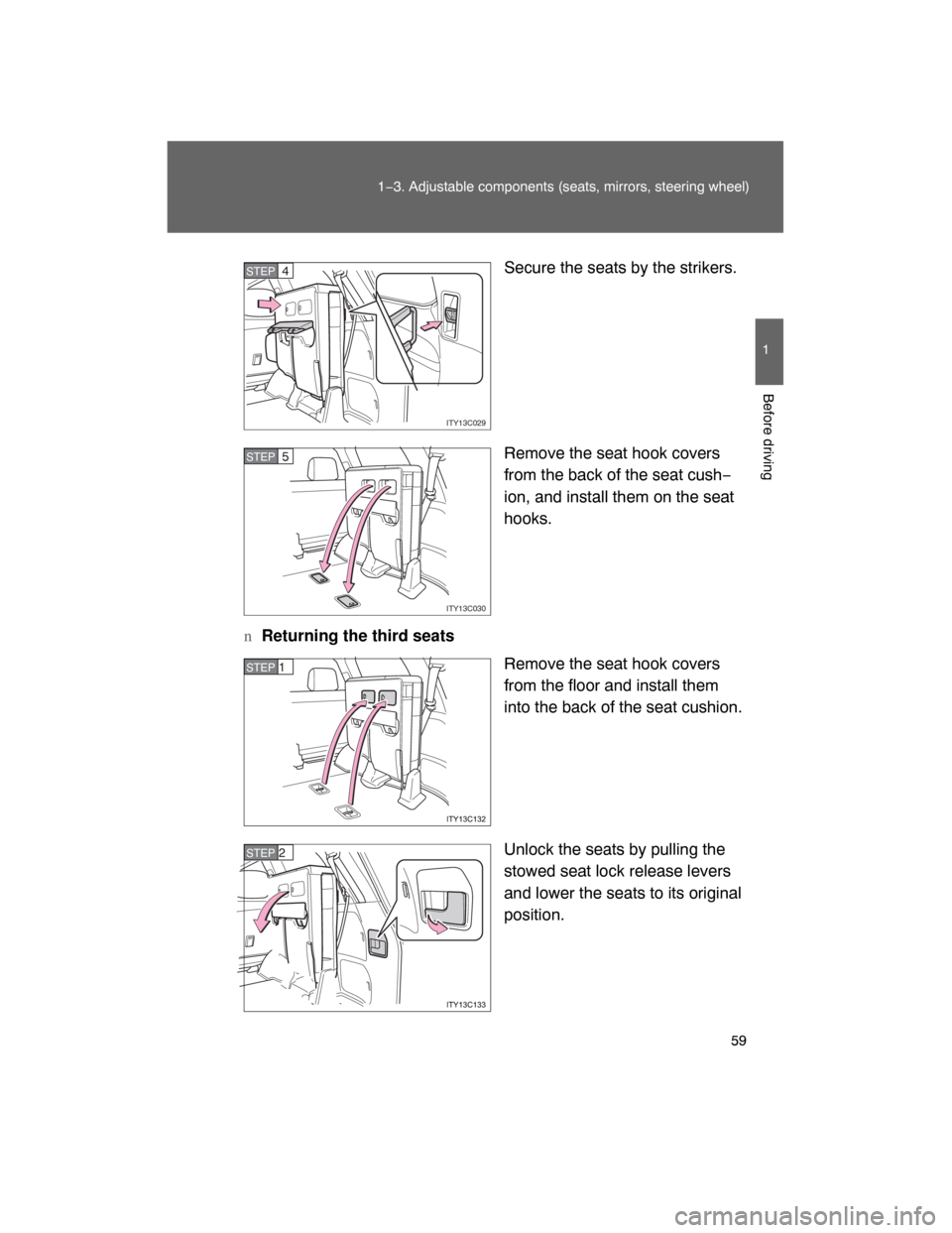

nBefore tumbling third seats
Stow the seat belts buckles.
Stow the center head restraint in the seat back. (P. 6 8 )
Pass the outer seat belts through
the seat belt hangers and secure
the seat belt plates.
This prevents the shoulder belt
from being damage.
Make sure that the seat belts are
removed from the hangers before
using them.
Stow the center seat belt tabs in the cover set in the roof.
(
P. 71)
ITY13C018
STEP1
STEP 2
ITY13C021a
STEP3
STEP 4

58 1−3. Adjustable components (seats, mirrors, steering wheel)

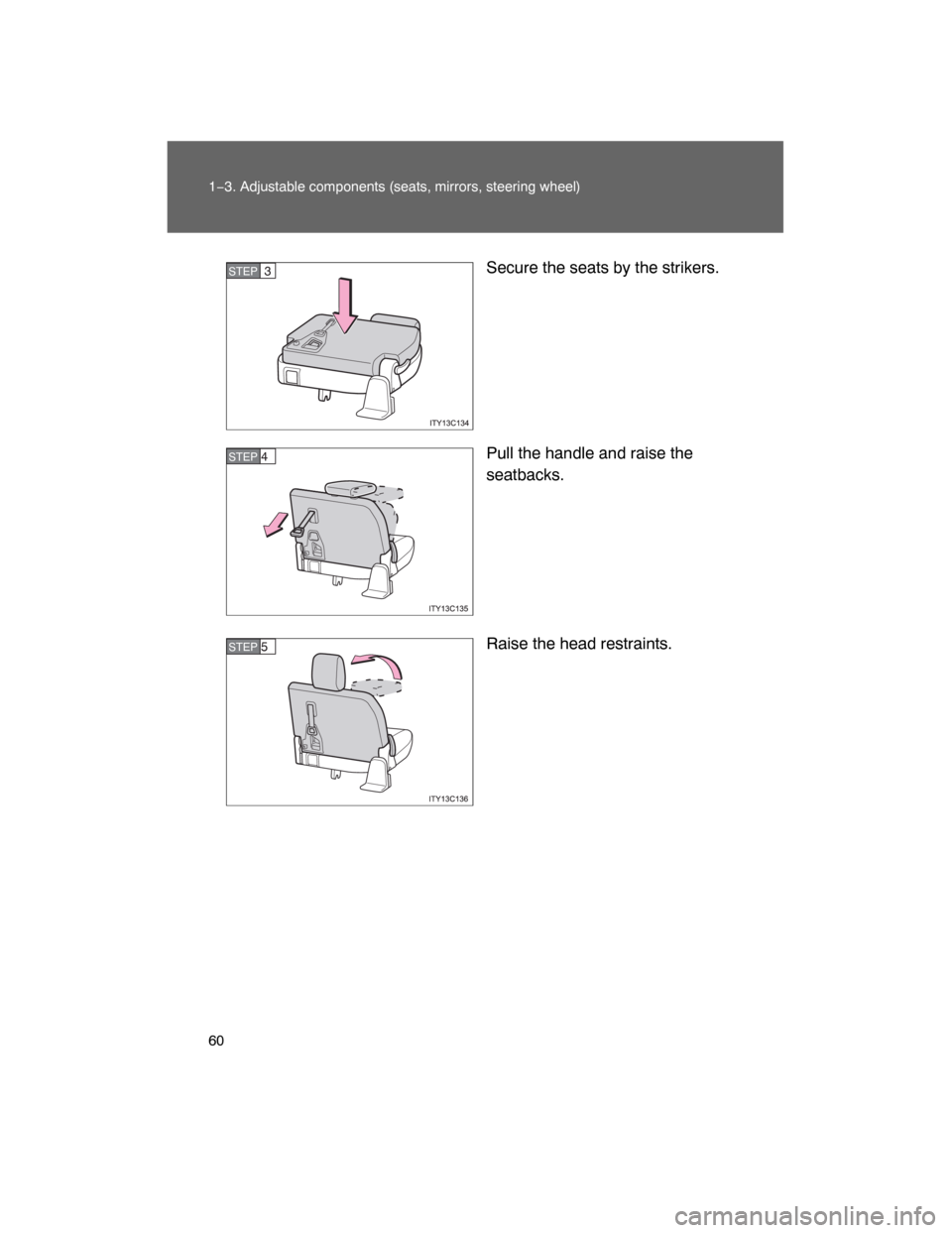

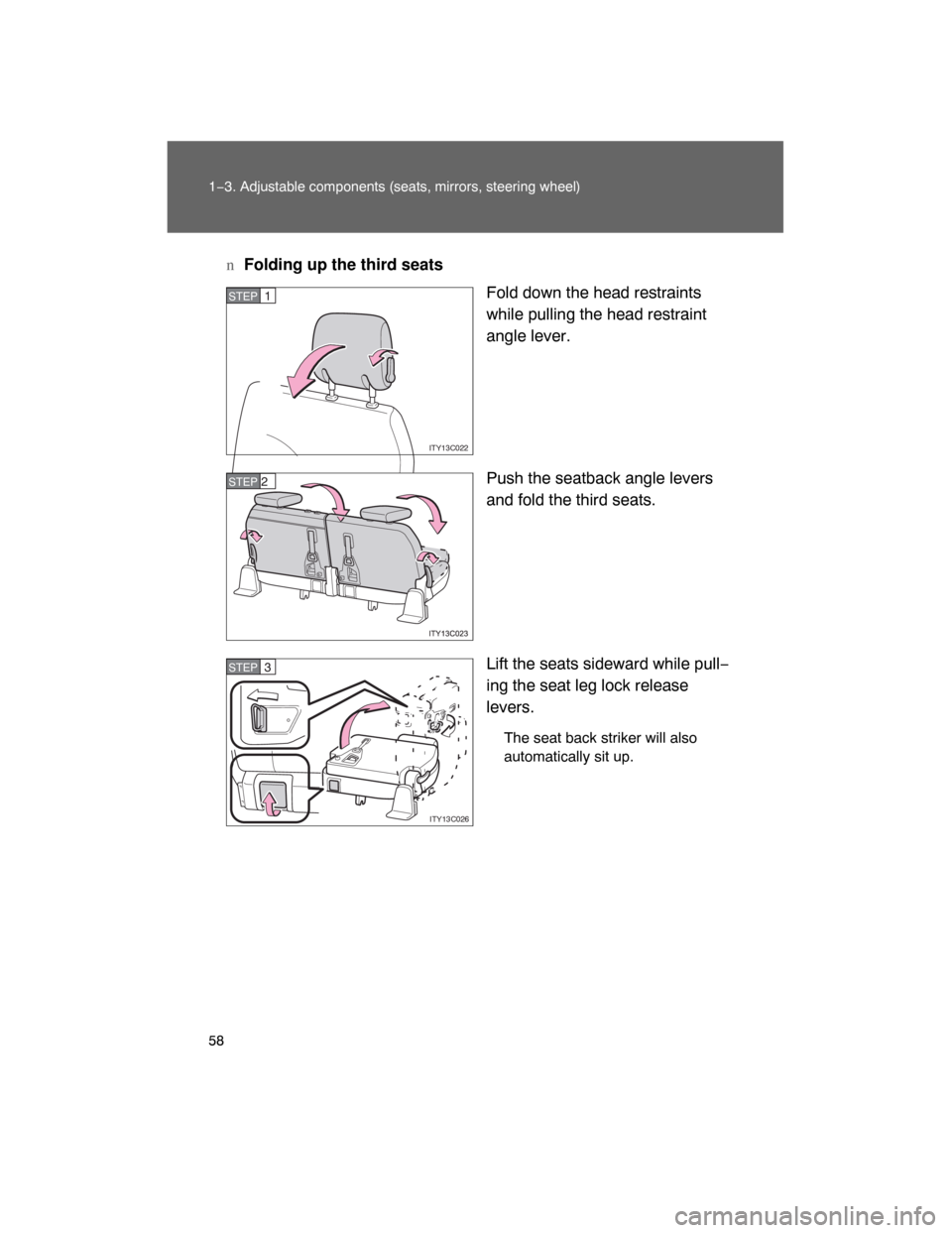

nFolding up the third seats
Fold down the head restraints
while pulling the head restraint
angle lever.
Push the seatback angle levers
and fold the third seats.
Lift the seats sideward while pull−
ing the seat leg lock release
levers.
The seat back striker will also
automatically sit up.
ITY13C022
STEP1
STEP 2
ITY13C026
STEP3

59
1−3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
Secure the seats by the strikers.
Remove the seat hook covers
from the back of the seat cush−
ion, and install them on the seat
hooks.
nReturning the third seats
Remove the seat hook covers
from the floor and install them
into the back of the seat cushion.
Unlock the seats by pulling the
stowed seat lock release levers
and lower the seats to its original
position.
ITY13C029
STEP4
ITY13C030
STEP5
STEP 1
STEP 2

60 1−3. Adjustable components (seats, mirrors, steering wheel)
Secure the seats by the strikers.
Pull the handle and raise the
seatbacks.
Raise the head restraints.
STEP3
STEP 4
STEP 5

61
1−3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
CAUTION
nSeat adjustment
Do not recline the seat more than necessary when the vehicle is in motion,
to reduce the risk of sliding under the lap belt.
If the seat is too reclined, during an accident the lap belt may slide past the
hips and apply restraint forces directly to the abdomen or your neck may
contact the shoulder belt, increasing the risk of death or serious injury.
nWhen the seatback is folded
lDo not sit on or place anything on the seatback while driving.
lBe sure to install the seat hook covers on the seat hooks, or you may get
burned when they become hot.
nWhen returning the seatbacks to their original position
Observe the following precautions. Failure to do so may result in death or
serious injury.
lBe careful not to get your hands or feet pinched in the seat.
lMake sure the seats are securely locked. Failure to do so will prevent the
seat belt from operating properly.
lCheck that the seat belts are not twisted or caught under the seat.
lArrange the seat belts in the proper positions for ready use.
nAvoiding damage to seat components
Do not hang or attach anything on the seat back striker.
NOTICE
nBefore tumbling, folding up the seats
The seat belts and buckles must be stowed.
