TOYOTA LAND CRUISER 2010 J200 Owners Manual

171
2-2. Instrument cluster
2
When driving
L/C200_U
Switch the display
Display items can be switched
by pressing the “DISP” button.
Trip information■ Current fuel consumption
Displays the current rate of fuel consumption.
■ Average fuel consumption
Displays the average fuel consum ption since the vehicle was last
refueled.

172 2-2. Instrument cluster
L/C200_U■
Driving range
Displays the estimated maximum di stance that can be driven with
the quantity of fuel remaining.
● This distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis-
played.
● When only a small amount of fuel is added to the tank, the display may
not be updated.
■Average vehicle speed
Displays the average vehicle speed since the engine was started.
■ Driving distance
Displays the driving distance since the engine was started.
■ Tire inflation pressure
Displays inflation pressure of ea ch tire. There is no correlation
between the order of the display ed values and the tire positions.
It may take a few minutes to display the tire inflation pressure after the
“ENGINE START STOP” switch is turned to IGNITION ON mode. It may
also take a few minutes to display the tire inflation pressure after inflation
pressure has been adjusted.

173
2-2. Instrument cluster
2
When driving
L/C200_U
■
System check display
After switching the “ENGINE START STOP” switch to IGNITION ON mode,
“LAND CRUISER” is displayed while system operation is checked. When the
system check is complete, the normal screen will return.
■ Tire inflation pressure
Tire inflation pressure changes with temperature. The displayed values may
also be different from the values measured using other gauges.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem to continue
using the display.
NOTICE
■The multi-information disp lay at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

174
L/C200_U
2-3. Operating the lights and wipers

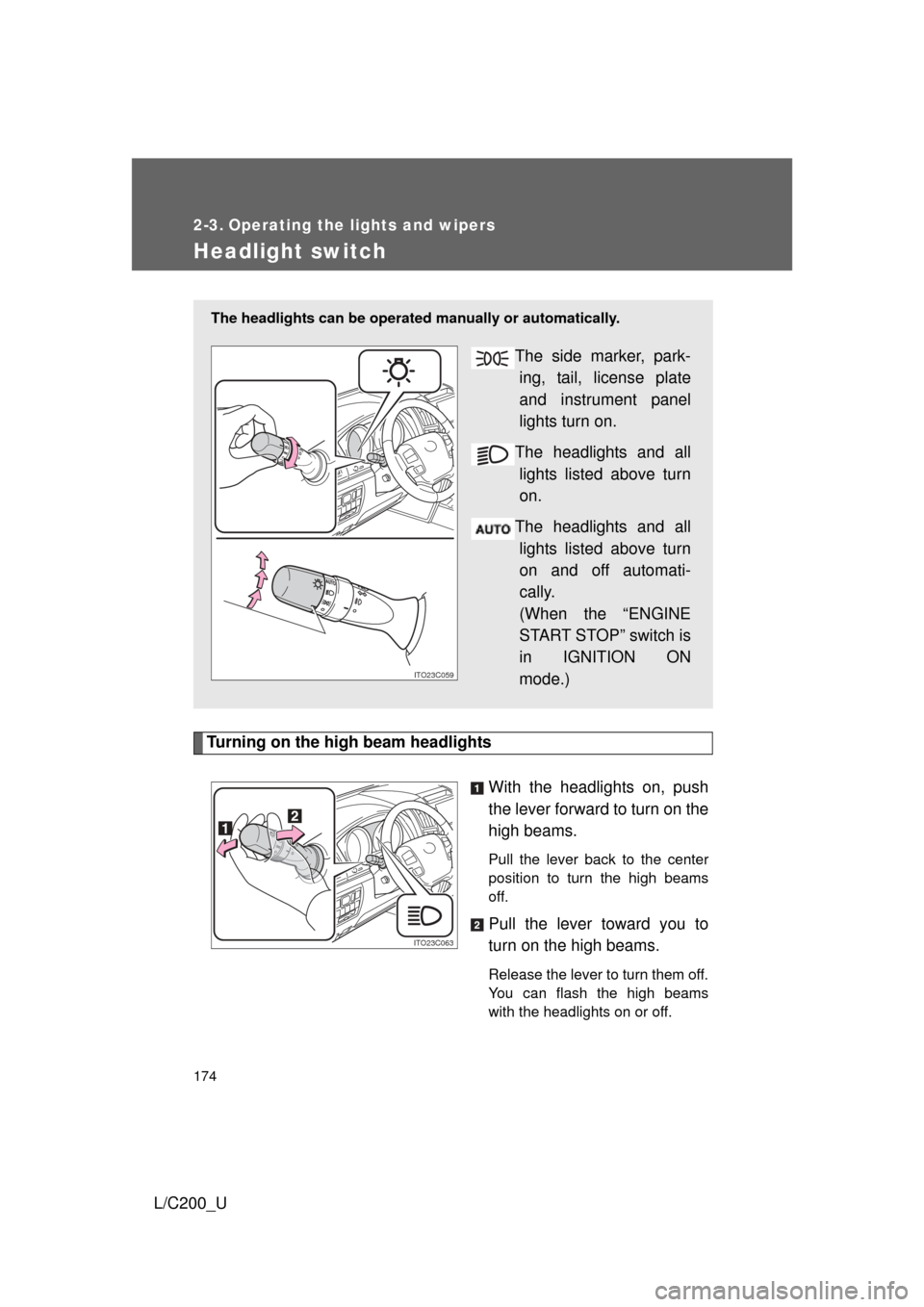

Headlight switch
Turning on the high beam headlightsWith the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release the lever to turn them off.
You can flash the high beams
with the headlights on or off.
The headlights can be operated manually or automatically.
The side marker, park-
ing, tail, license plate
and instrument panel
lights turn on.
The headlights and all lights listed above turn
on.
The headlights and all lights listed above turn
on and off automati-
cally.
(When the “ENGINE
START STOP” switch is
in IGNITION ON
mode.)
ITO23C059
ITO23C063

175
2-3. Operating the lights and wipers
2
When driving
L/C200_U
■
Daytime running light system
To make your vehicle more visible to other drivers, the headlights turn on
automatically (at a reduced intensity) whenever the engine is started and the
parking brake is released. Daytime running lights are not designed for use at
night.
■ Headlight control sensor
■ Automatic light off system
● When the headlights are on: The headlights and tail lights turn off 30 sec-
onds after a door is opened and closed if the “ENGINE START STOP”
switch has been switched to ACCESSORY or OFF mode.
● When only the tail lights are on: The tail lights turn off automatically if the
“ENGINE START STOP” switch is switched to ACCESSORY or OFF
mode and driver’s door is opened.
To turn the lights on again, turn the “ENGINE START STOP” switch to IGNI-
TION ON mode, or turn the light switch off once and then back to the
or
position.
■ Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features P. 567)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.
The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

176
2-3. Operating the lights and wipers
L/C200_U

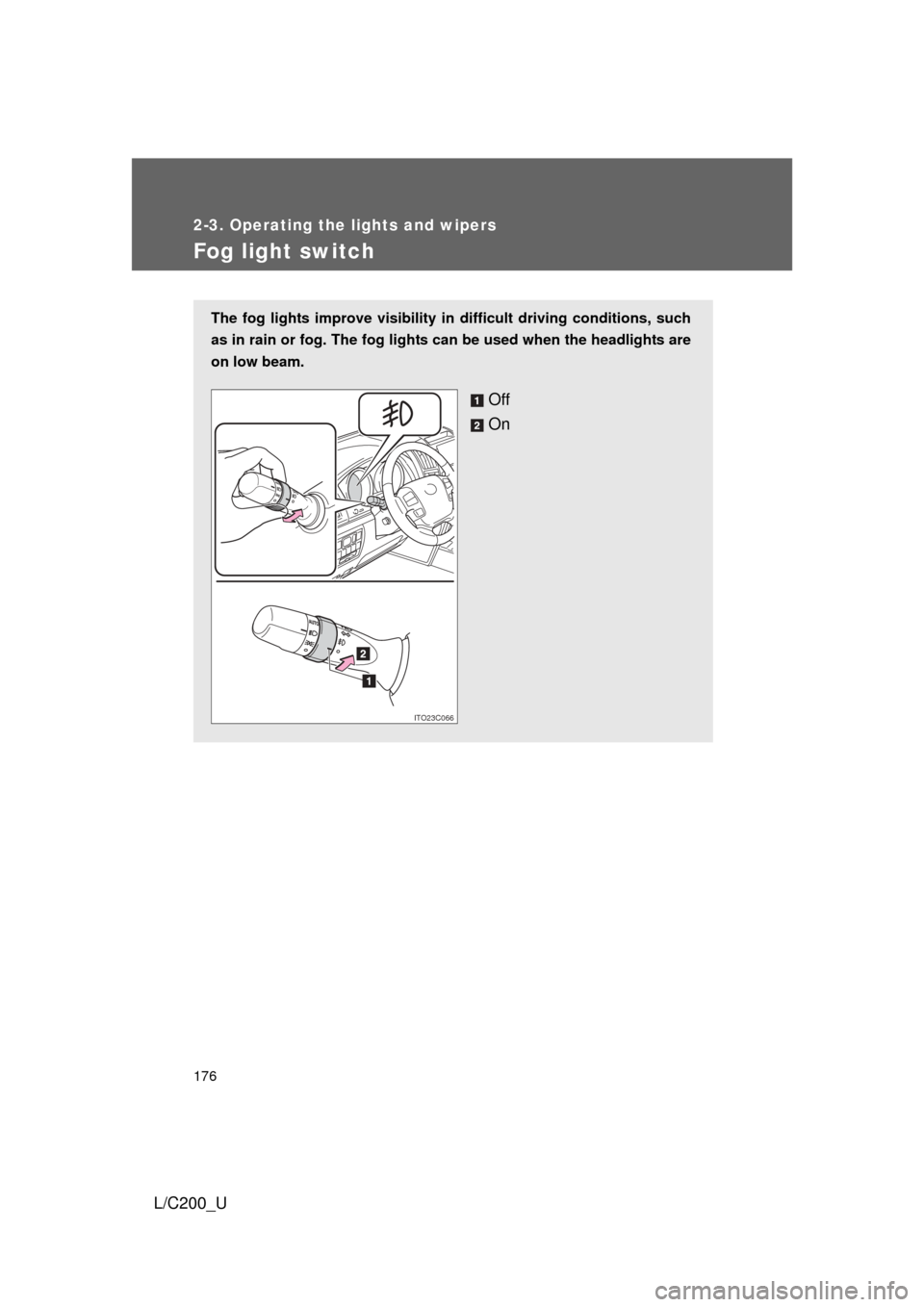

Fog light switch
The fog lights improve visibility in difficult driving conditions, such
as in rain or fog. The fog lights can be used when the headlights are
on low beam.
Off
On
ITO23C066

177
2-3. Operating the lights and wipers
2
When driving
L/C200_U

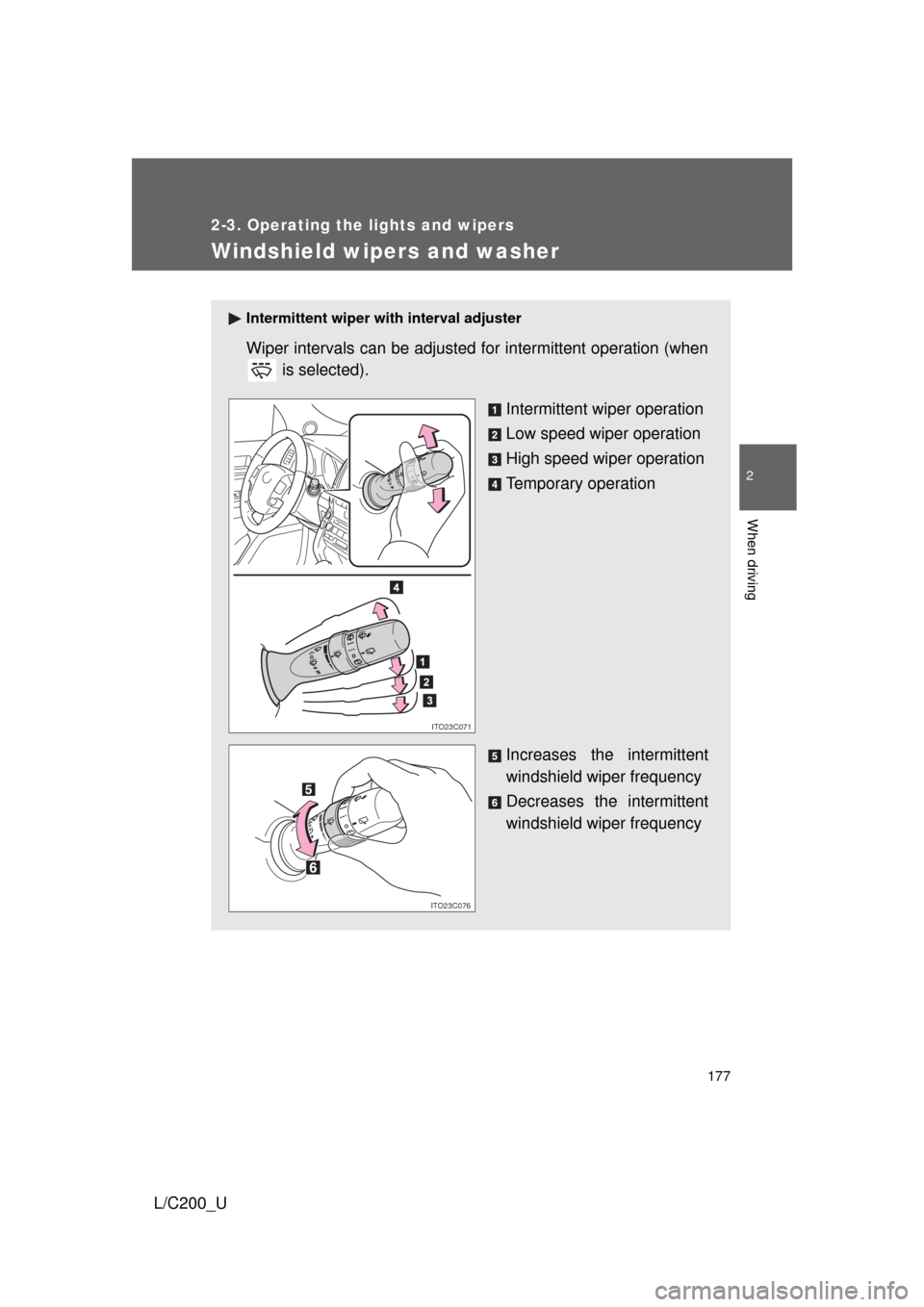

Windshield wipers and washer
Intermittent wiper with interval adjuster
Wiper intervals can be adjusted for intermittent operation (when is selected).
Intermittent wiper operation
Low speed wiper operation
High speed wiper operation
Temporary operation
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency
ITO23C071
ITO23C076

178 2-3. Operating the lights and wipers
L/C200_U

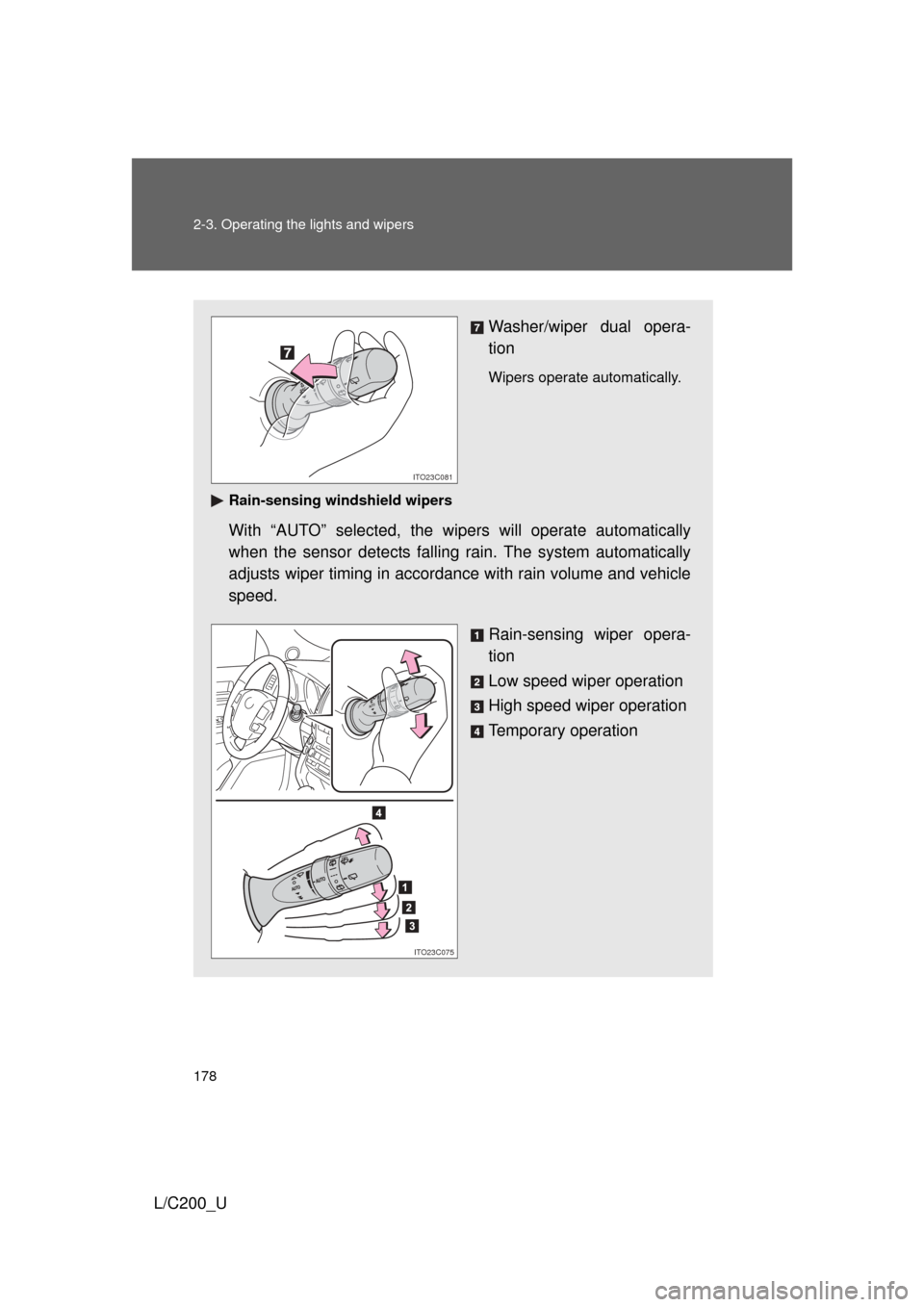

Washer/wiper dual opera-
tion
Wipers operate automatically.
Rain-sensing windshield wipers
With “AUTO” selected, the wi pers will operate automatically
when the sensor detects falling rain. The system automatically
adjusts wiper timing in accordance with rain volume and vehicle
speed.
Rain-sensing wiper opera-
tion
Low speed wiper operation
High speed wiper operation
Temporary operation
ITO23C081
ITO23C075

179
2-3. Operating the lights and wipers
2
When driving
L/C200_U

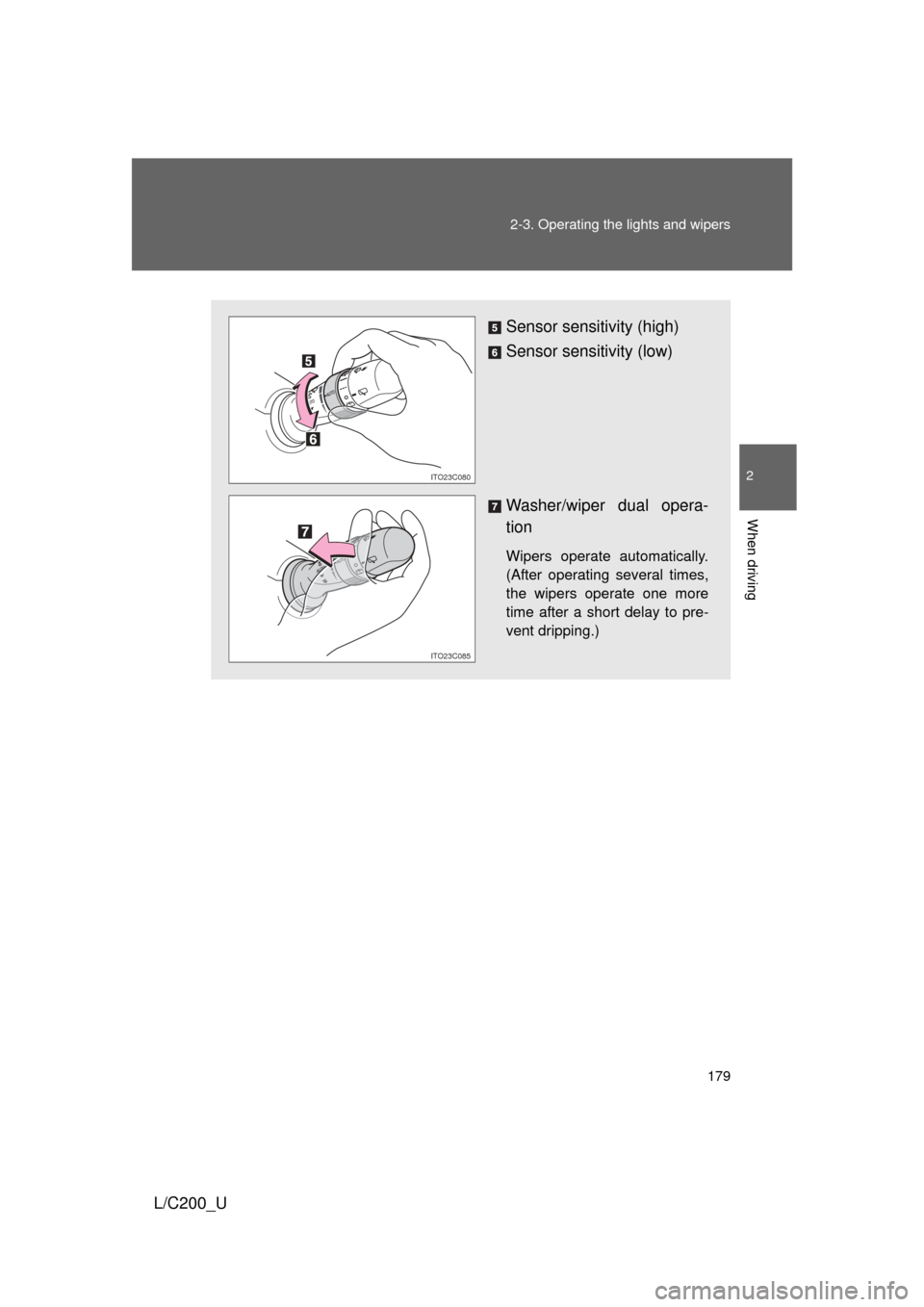

Sensor sensitivity (high)
Sensor sensitivity (low)
Washer/wiper dual opera-
tion
Wipers operate automatically.
(After operating several times,
the wipers operate one more
time after a short delay to pre-
vent dripping.)
ITO23C080
ITO23C085

180 2-3. Operating the lights and wipers
L/C200_U
■The windshield wiper and washer can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■ Effects of vehicle speed on wiper operation (vehicles equipped with
rain-sensing windshield wipers)
Vehicle speed affects the wiper operation when the washer is being used
(delay until drip prevention wiper sweep occurs) even when the wipers are
not in “AUTO” mode.
With “ ” selected, wiper operation will be switched from low speed to inter-
mittent wiper operation only when the vehicle is stationary.
(However, when the sensor sensitivity is adjusted to the highest level, the
mode cannot be switched.)
■ Rain drop sensor (vehicles with rain-sensing windshield wipers)
If the wiper switch is turned to “AUTO” position while the “ENGINE START
STOP” switch is in IGNITION ON mode, the wiper will operate once to show
that “AUTO” mode is activated.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
The sensor judges the amount of rain-
drops.
