TOYOTA LAND CRUISER 2010 J200 Owners Manual

181
2-3. Operating the lights and wipers
2
When driving
L/C200_U
■
In extremely hot or cold weather
The system will turn off if the windshield gets extremely hot (at more than
176 F [80 C]) or cold (at less than -14 F [-10 C]).
■ Windshield wiper features
The rear window and outside rear view mirror defoggers automatically turn
on when you operate the wipers.
CAUTION
■Caution regarding the use of windshield wipers in “AUTO” mode
The windshield wipers may operate unexpec tedly if the sensor is touched or
the windshield is subject to vibration in “AUTO” mode. Take care that your
fingers or anything else do not become caught in the windshield wipers.
NOTICE
■ When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
■ When a nozzle becomes blocked
Do not try to clear it with a pin or other object. The nozzle will be damaged.

182
2-3. Operating the lights and wipers
L/C200_U

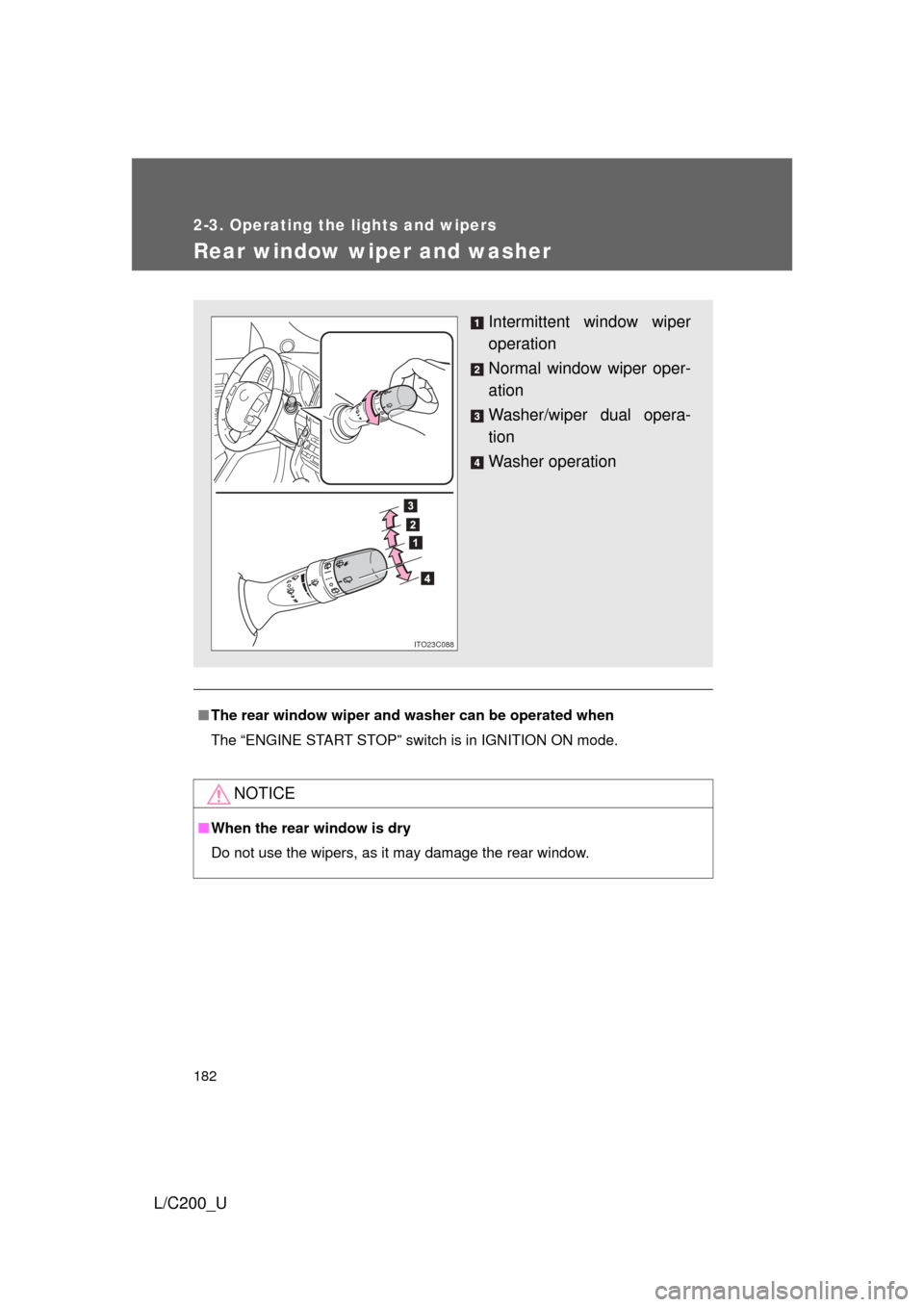

Rear window wiper and washer
■The rear window wiper and w asher can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
NOTICE
■ When the rear window is dry
Do not use the wipers, as it may damage the rear window.
Intermittent window wiper
operation
Normal window wiper oper-
ation
Washer/wiper dual opera-
tion
Washer operation
ITO23C088

183
2-3. Operating the lights and wipers
2
When driving
L/C200_U

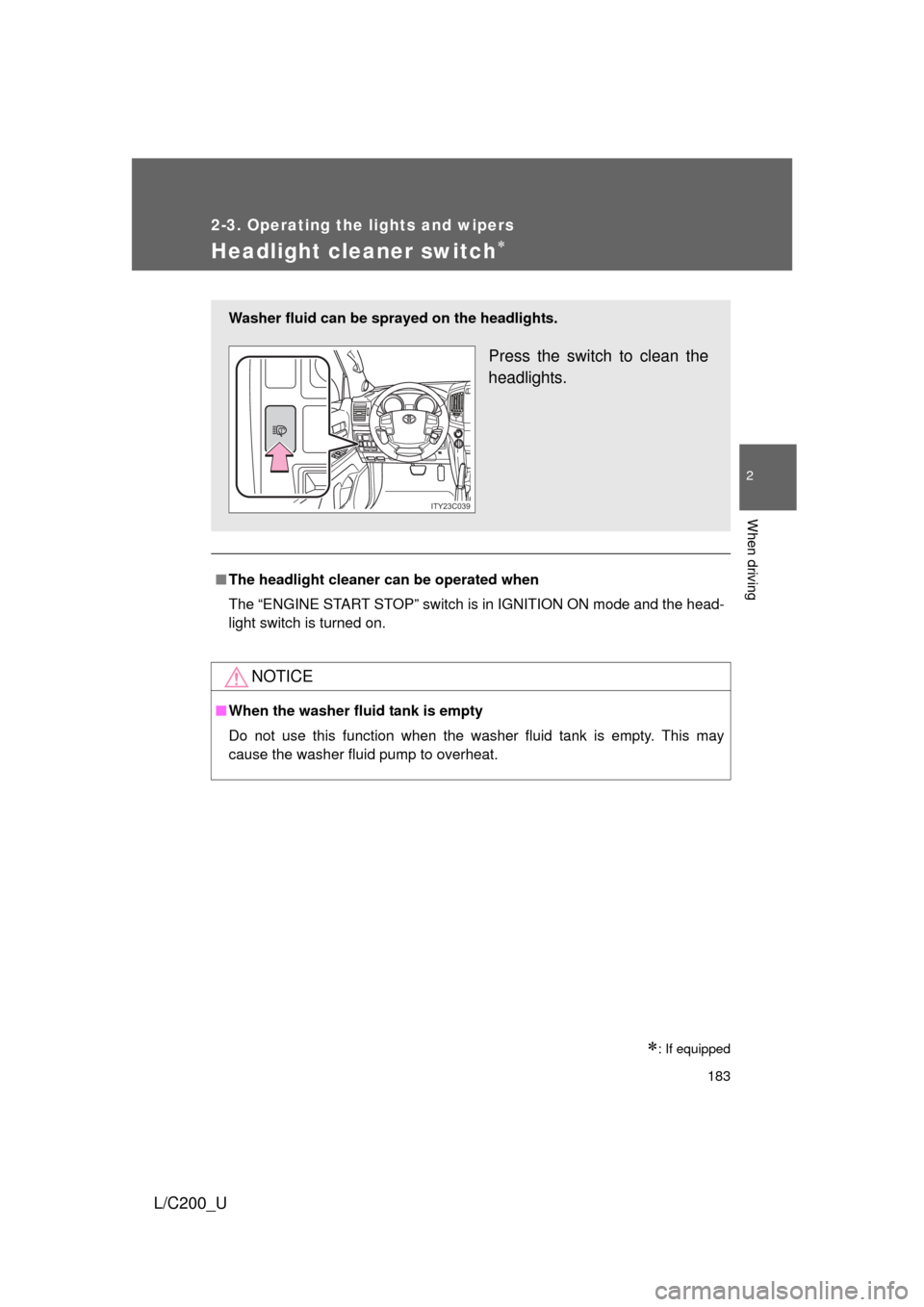

Headlight cleaner switch
: If equipped
■The headlight cleaner can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode and the head-
light switch is turned on.
NOTICE
■When the washer fluid tank is empty
Do not use this function when the washer fluid tank is empty. This may
cause the washer fluid pump to overheat.
Washer fluid can be sprayed on the headlights.
Press the switch to clean the
headlights.
ITY23C039

184
L/C200_U
2-4. Using other driving systems

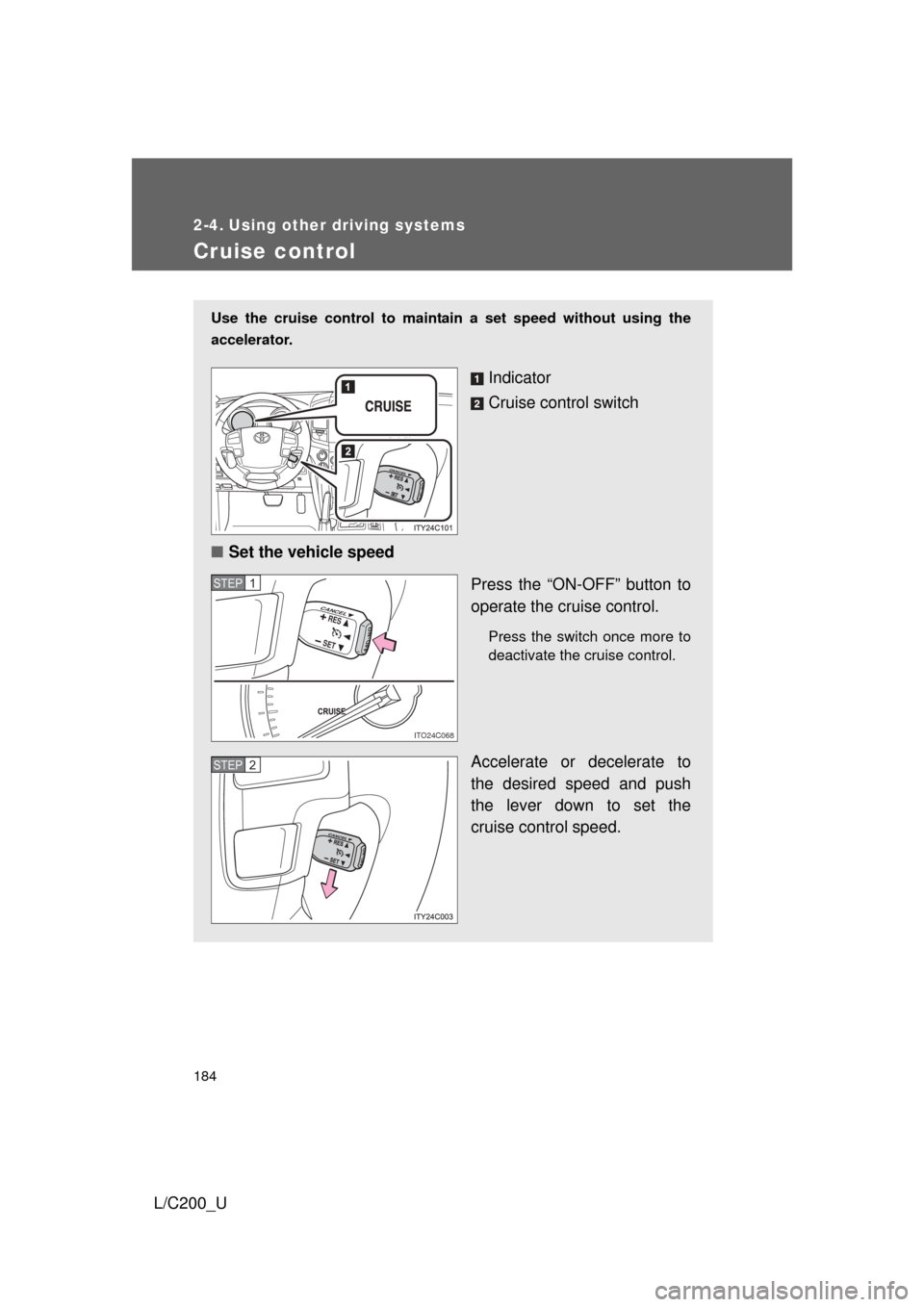

Cruise control
Use the cruise control to maintain a set speed without using the
accelerator.
Indicator
Cruise control switch
■ Set the vehicle speed
Press the “ON-OFF” button to
operate the cruise control.
Press the switch once more to
deactivate the cruise control.
Accelerate or decelerate to
the desired speed and push
the lever down to set the
cruise control speed.
ITO24C068
RES
SET
CANCEL
STEP1
STEP2

185
2-4. Using other
driving systems
2
When driving
L/C200_U

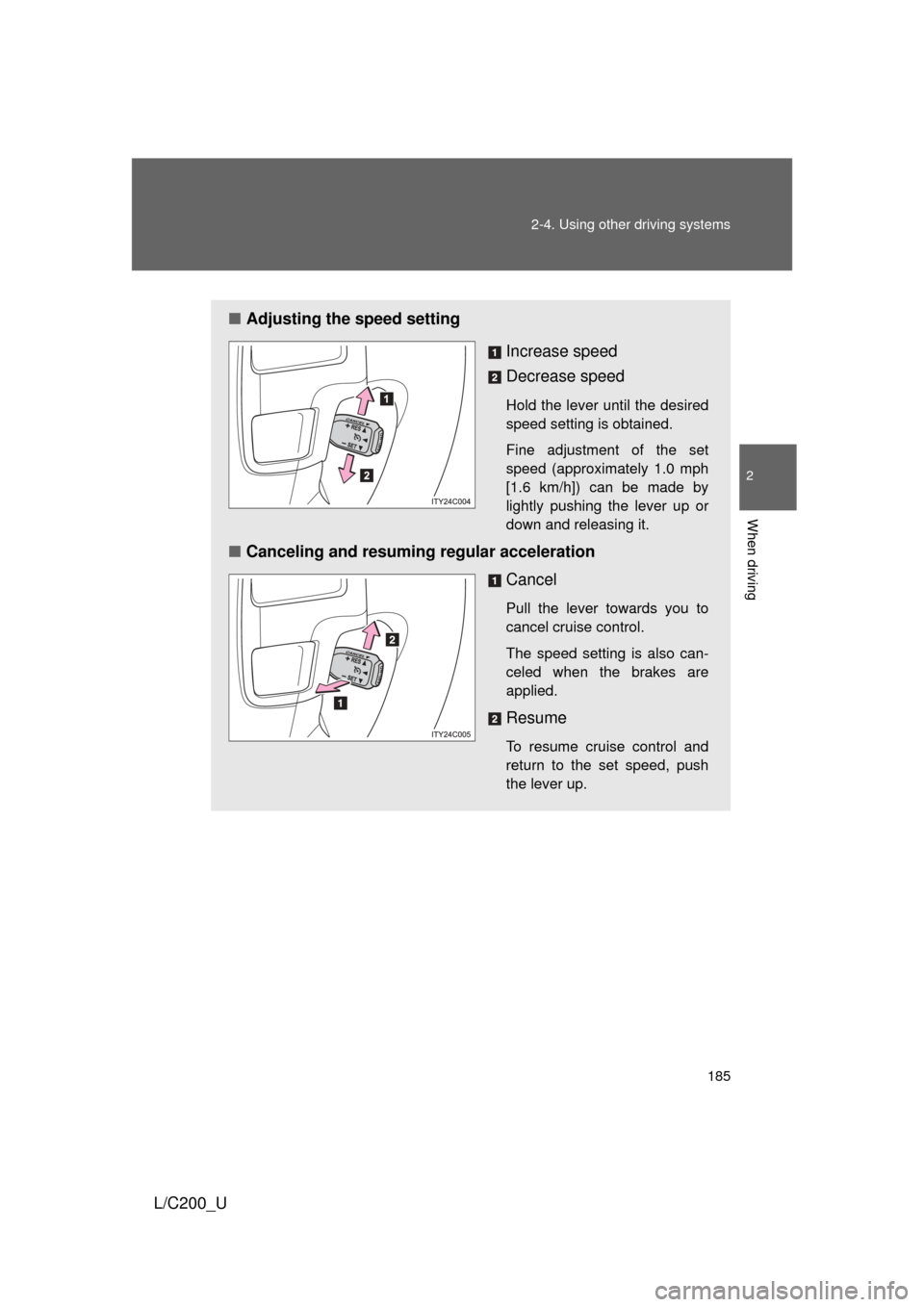

■Adjusting the speed setting
Increase speed
Decrease speed
Hold the lever until the desired
speed setting is obtained.
Fine adjustment of the set
speed (approximately 1.0 mph
[1.6 km/h]) can be made by
lightly pushing the lever up or
down and releasing it.
■Canceling and resuming regular acceleration
Cancel
Pull the lever towards you to
cancel cruise control.
The speed setting is also can-
celed when the brakes are
applied.
Resume
To resume cruise control and
return to the set speed, push
the lever up.

186 2-4. Using other driving systems
L/C200_U
■Cruise control can be set when
● The shift lever is in the “D” or “4”, “5” or “6” range of “S”.
● Vehicle speed is more than approximately 25 mph (40 km/h).
■ Accelerating
The vehicle can be accelerated normally. After acceleration, the set speed
resumes.
■ Automatic cruise control cancelation
The set speed is automatically canceled in any of the following situations.
● Actual vehicle speed falls more than approximately 10 mph (16 km/h)
below the preset vehicle speed.
At this time, the memorized set speed is not retained.
● VSC is activated.
● Actual vehicle speed is below approximately 25 mph (40 km/h).
● The operation cannot be switched for 5 seconds or more after operating
the center differential lock switch.
■ If the cruise control indicator light flashes
Press the “ON-OFF” button once, and then press the button again to reacti-
vate the system.
If the cruise control speed cannot be set or if the cruise control cancels
immediately after being activated, there may be a malfunction in the cruise
control system. Contact your Toyota dealer, and have your Toyota inspected.

187
2-4. Using other
driving systems
2
When driving
L/C200_U
CAUTION
■To avoid operating the cruise control by mistake
Keep the “ON-OFF” button off when not in use.
■ Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in control of the vehicle being lost and could cause an
accident resulting in death or serious injury.
● In heavy traffic
● On roads with sharp bends
● On slippery roads, such as those covered with rain, ice or snow
● On steep hills
Vehicle speed may exceed the set speed when driving down a steep hill.
● On winding roads
● When towing a trailer or emergency towing

188
2-4. Using other driving systems
L/C200_U

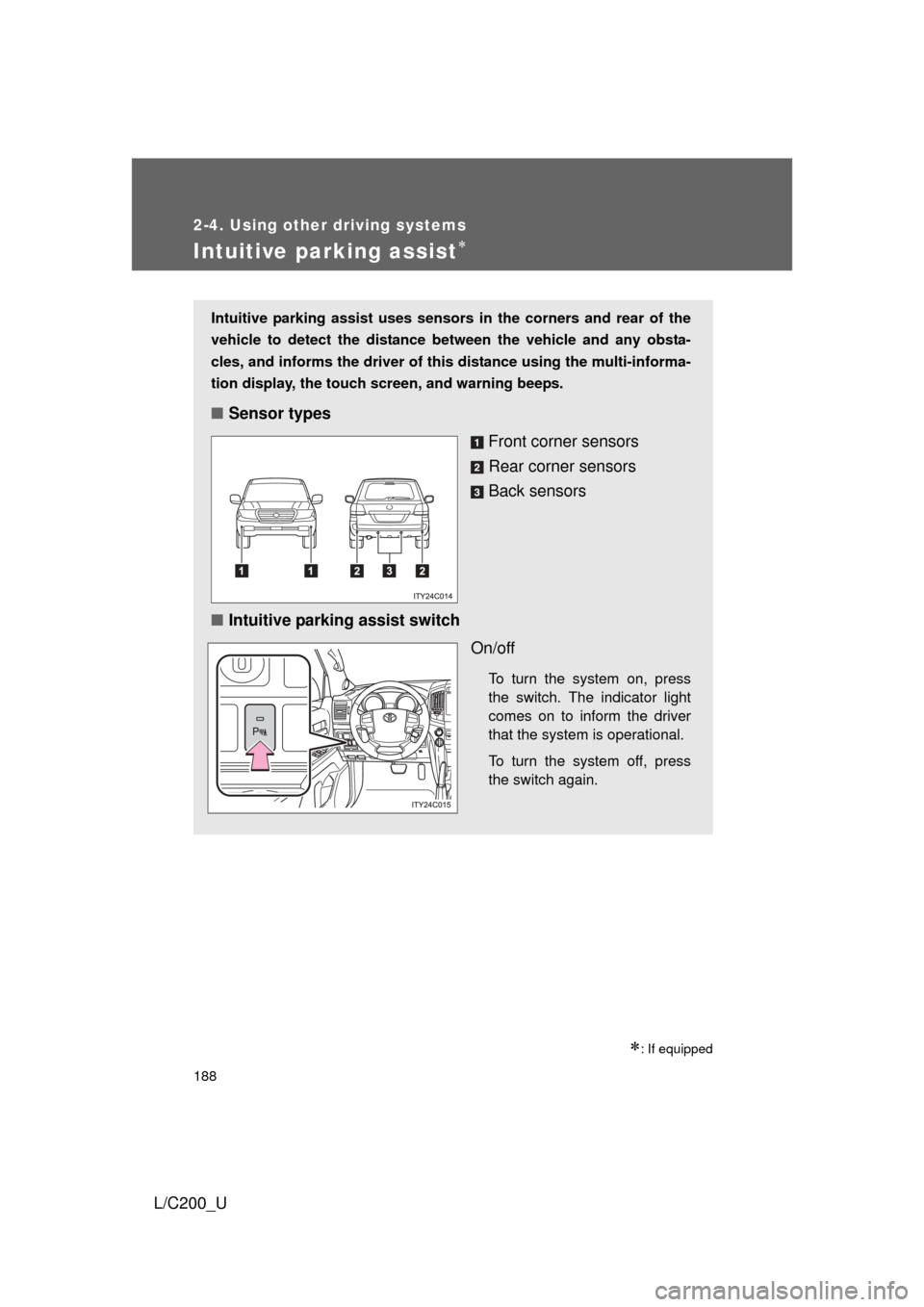

Intuitive parking assist
: If equipped
Intuitive parking assist uses sensors in the corners and rear of the
vehicle to detect the distance between the vehicle and any obsta-
cles, and informs the driver of th is distance using the multi-informa-
tion display, the touch screen, and warning beeps.
■Sensor types
Front corner sensors
Rear corner sensors
Back sensors
■ Intuitive parking assist switch
On/off
To turn the system on, press
the switch. The indicator light
comes on to inform the driver
that the system is operational.
To turn the system off, press
the switch again.

189
2-4. Using other
driving systems
2
When driving
L/C200_U

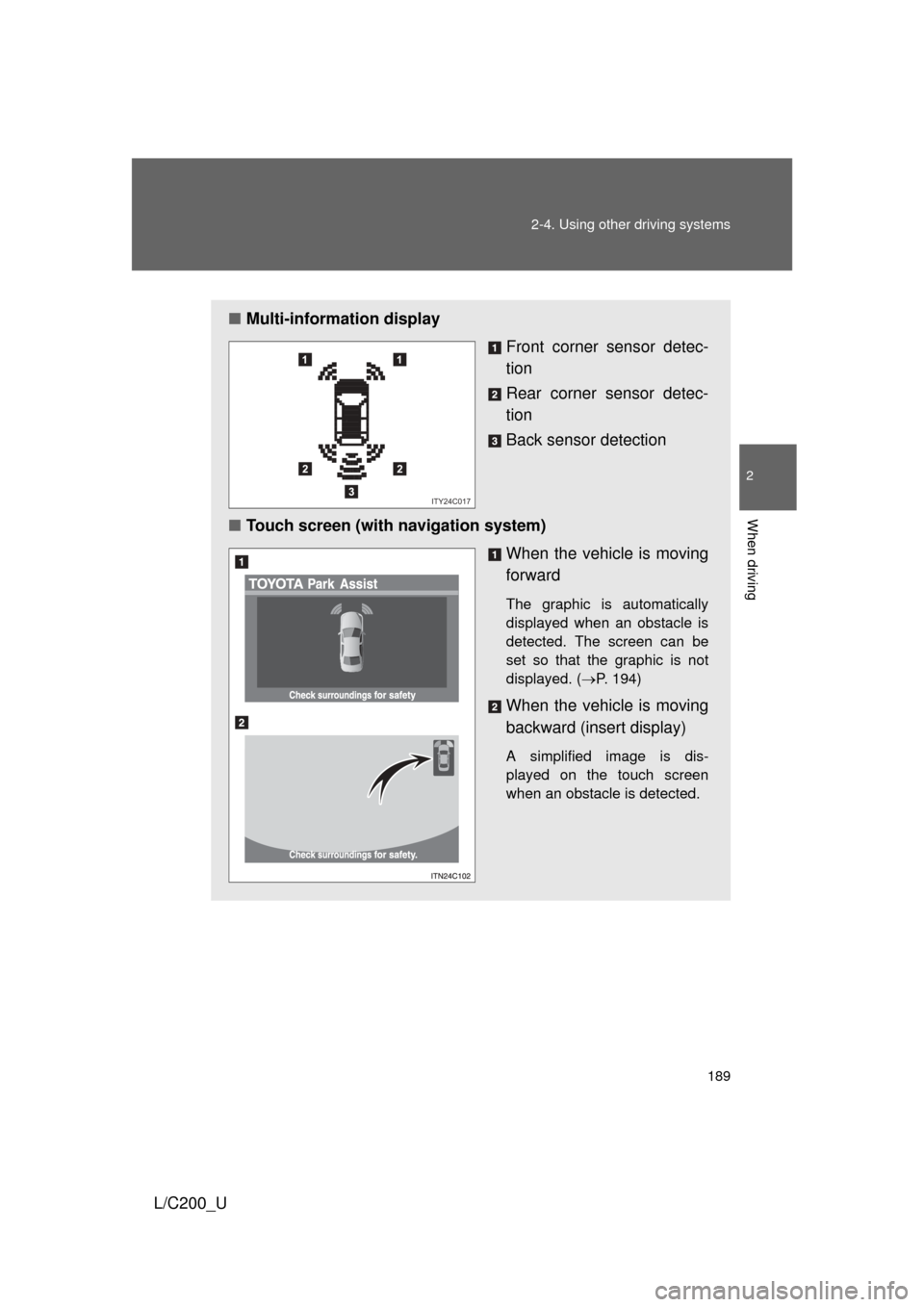

■Multi-information display
Front corner sensor detec-
tion
Rear corner sensor detec-
tion
Back sensor detection
■ Touch screen (with navigation system)
When the vehicle is moving
forward
The graphic is automatically
displayed when an obstacle is
detected. The screen can be
set so that the graphic is not
displayed. (P. 194)
When the vehicle is moving
backward (insert display)
A simplified image is dis-
played on the touch screen
when an obstacle is detected.
ITY24C017

190 2-4. Using other driving systems
L/C200_U
Sensor detection display, obstacle distance■ Corner sensors
Approximate
distance to obstacleMulti-
information displayTouch screen
Insert display
Front:
2.0 ft. (60 cm) to
1.6 ft. (47.5 cm)
Rear:
2.0 ft. (60 cm) to
1.2 ft. (37.5 cm) (continuous) (continuous) (blinking)
Front:
1.6 ft. (47.5 cm) to
1.1 ft. (35 cm)
Rear:
1.2 ft. (37.5 cm) to
1.0 ft. (30 cm) (continuous) (continuous) (blinking
rapidly)
Front:
Less than 1.1 ft.
(35 cm)
Rear:
Less than 1.0 ft.
(30 cm) (blinking) (continuous) (continuous)
