TOYOTA LAND CRUISER 2010 J200 Owner's Manual

21
L/C200_U
Symbols used throughout this manual
Cautions & Notices
Symbols used in illustrations
CAUTION
This is a warning against anything which may cause injury to people if the
warning is ignored. You are informed about what you must or must not do in
order to reduce the risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause damage to the vehicle or
its equipment if the warning is ignored. You are informed about what you must
or must not do in order to avoid or reduce the risk of damage to your Toyota
and its equipment.
Safety symbol
The symbol of a circle with a slash through it means “Do not”, “Do
not do this”, or “Do not let this happen”.
Arrows indicating operations
Indicates the action (pushing, turning,etc.) used to operate switches and
other devices.
Indicates the outcome of an operation (e.g. a lid opens).

22
L/C200_U

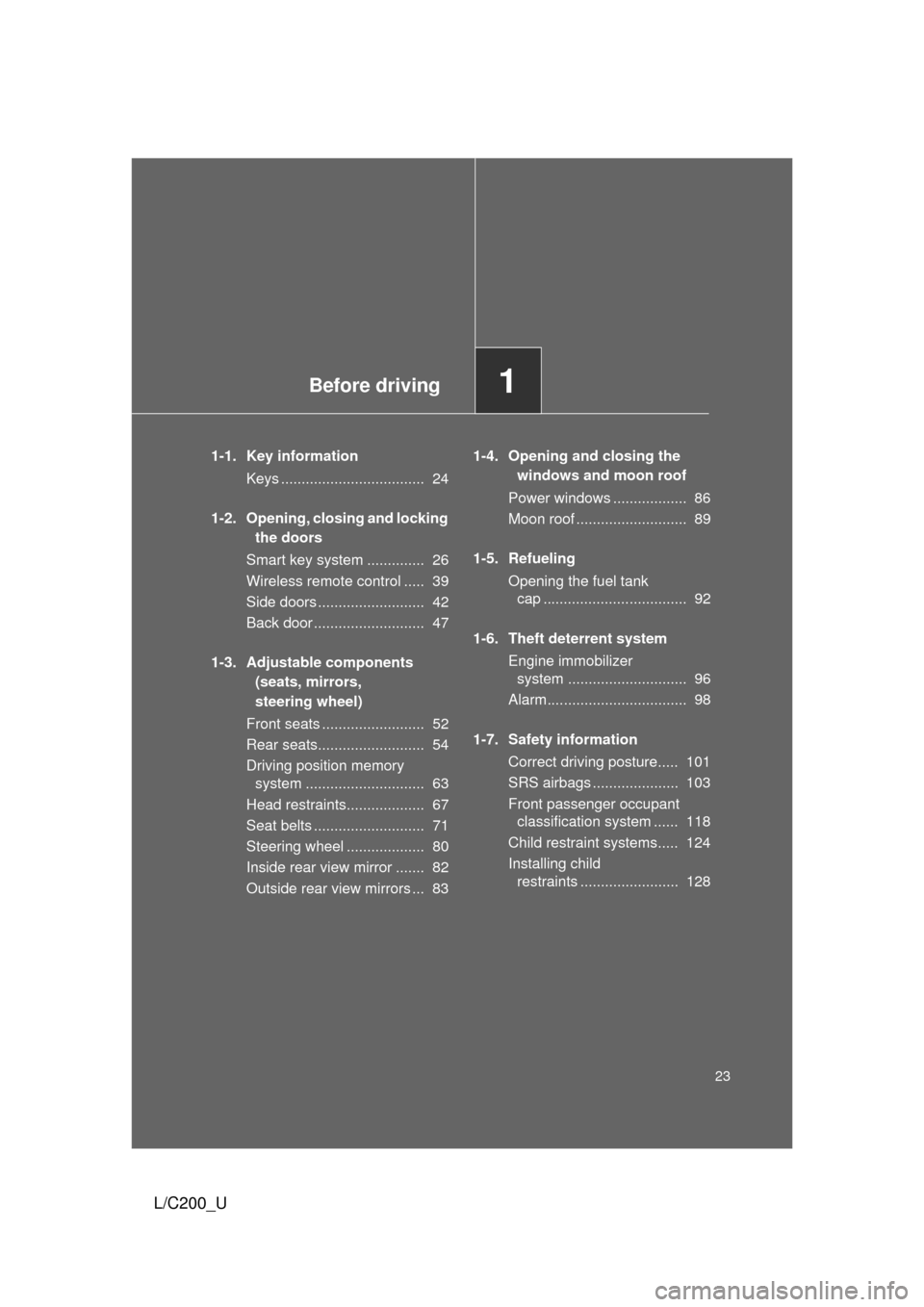

Before driving1
23
L/C200_U
1-1. Key informationKeys ................................... 24
1-2. Opening, closing and locking the doors
Smart key system .............. 26
Wireless remote control ..... 39
Side doors .......................... 42
Back door ........................... 47
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats ......................... 52
Rear seats.......................... 54
Driving position memory system ............................. 63
Head restraints................... 67
Seat belts ........................... 71
Steering wheel ................... 80
Inside rear view mirror ....... 82
Outside rear view mirrors ... 83 1-4. Opening and closing the
windows and moon roof
Power windows .................. 86
Moon roof ........................... 89
1-5. Refueling Opening the fuel tank cap ................................... 92
1-6. Theft deterrent system Engine immobilizer system ............................. 96
Alarm.................................. 98
1-7. Safety information Correct driving posture..... 101
SRS airbags ..................... 103
Front passenger occupant classification system ...... 118
Child restraint systems..... 124
Installing child restraints ........................ 128

24
L/C200_U
1-1. Key information

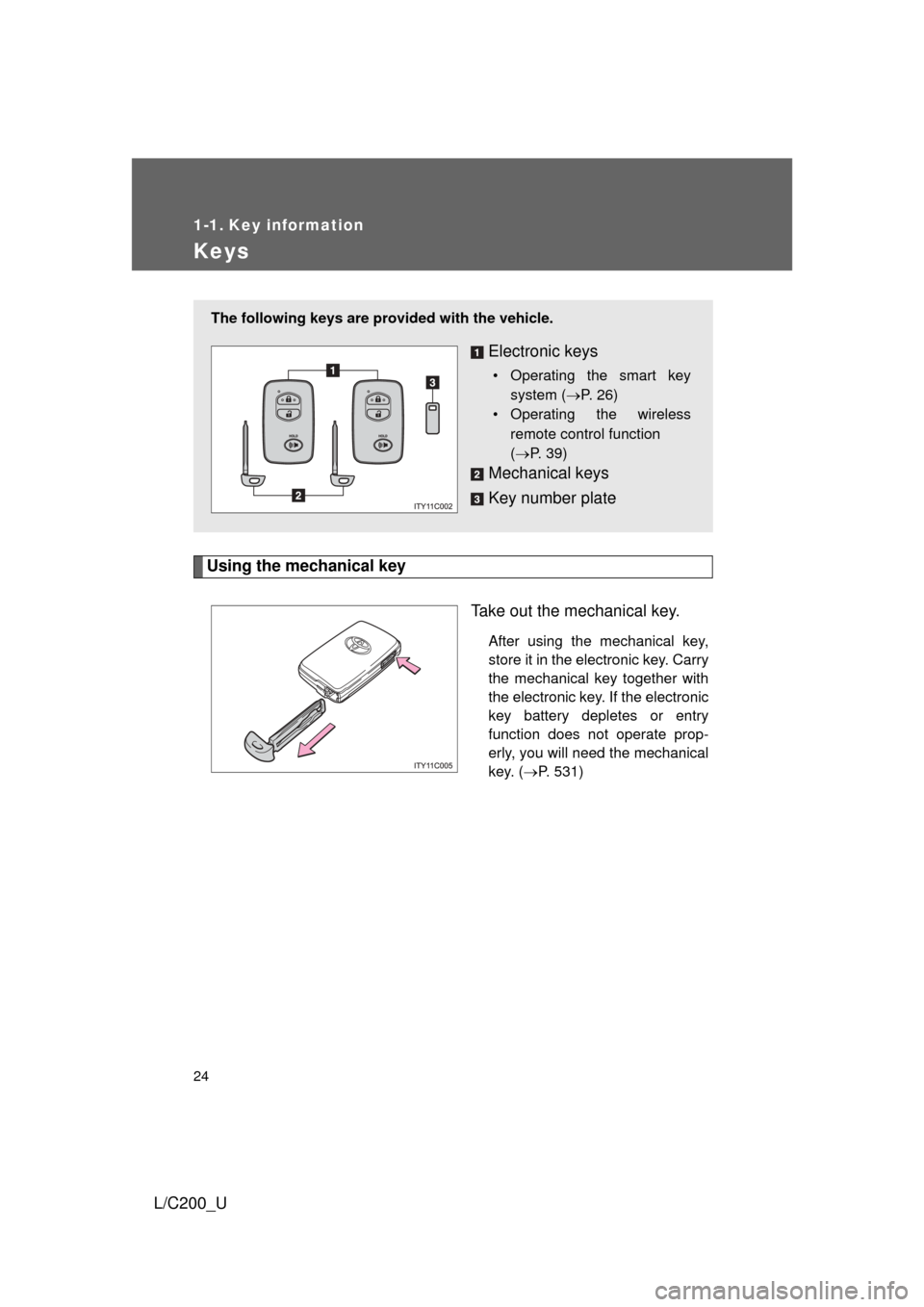

Keys
Using the mechanical keyTake out the mechanical key.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery depletes or entry
function does not operate prop-
erly, you will need the mechanical
key. (P. 531)
The following keys are prov ided with the vehicle.
Electronic keys
• Operating the smart key
system ( P. 26)
• Operating the wireless
remote control function
(P. 39)
Mechanical keys
Key number plate

25
1-1. Key information
1
Before driving
L/C200_U
■
When required to leave the vehicle’s key with a parking attendant
Lock the glove box as circumstances demand. (P. 373)
Remove the mechanical key for your own use and provide the attendant with
the electronic key only.
■ Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key is lost, a new key can be made at your Toyota dealer using
the key number plate. ( P. 529)
■ When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not
press any buttons on the electronic key while inside the aircraft cabin. If you
are carrying an electronic key in your bag etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the elec-
tronic key to emit radio waves that could interfere with the operation of the
aircraft.
NOTICE
■ To prevent key damage
● Do not subject the keys to strong shocks, expose them to high tempera-
tures by placing them in direct sunlight, or get them wet.
● Do not expose the keys to electromagnetic materials or attach any mate-
rial that blocks electromagnetic waves to the key surface.
● Do not disassemble the electronic key.

26
L/C200_U
1-2. Opening, closing and locking the doors

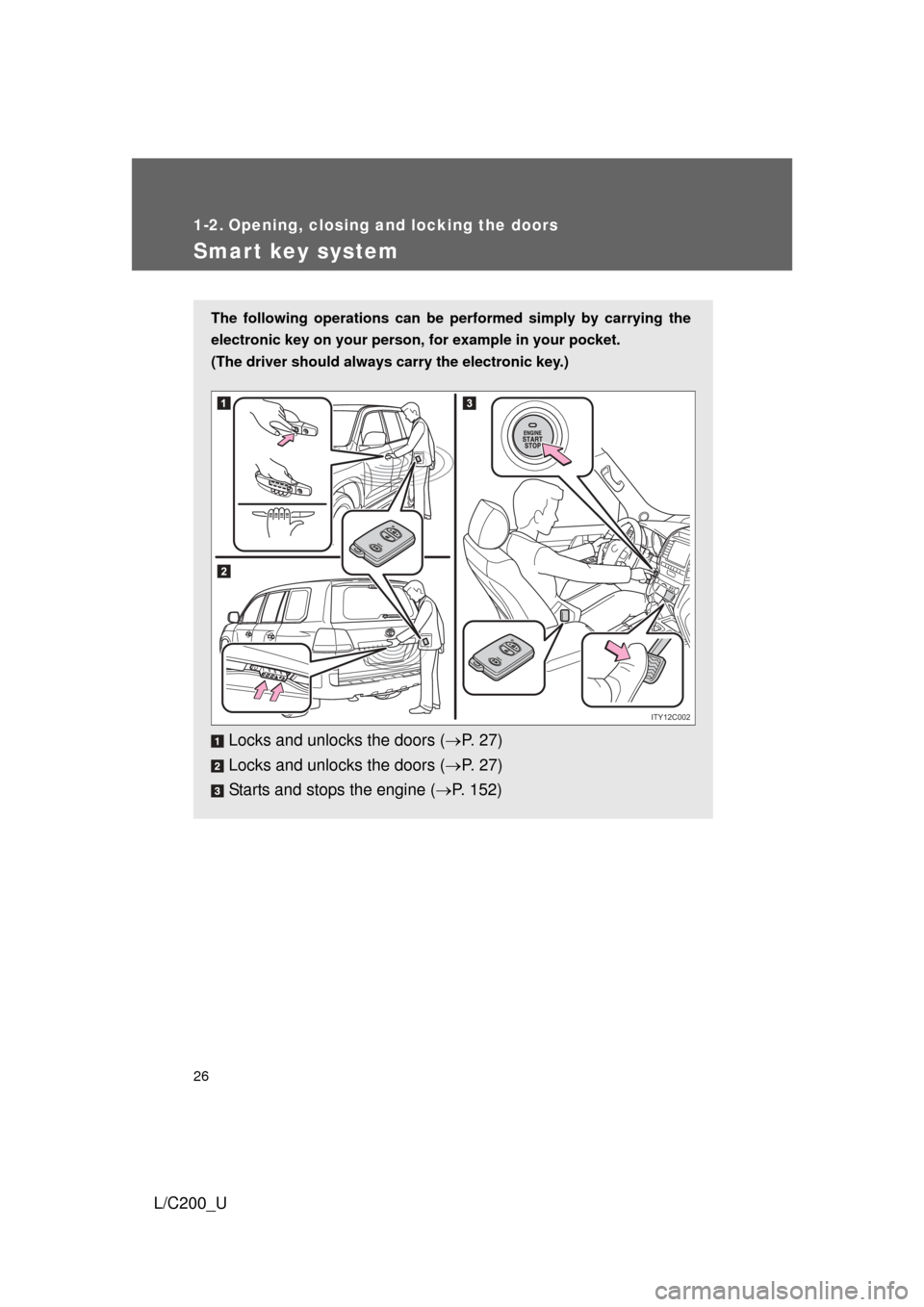

Smart key system
The following operations can be performed simply by carrying the
electronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)
Locks and unlocks the doors ( P. 2 7 )
Locks and unlocks the doors ( P. 2 7 )
Starts and stops the engine ( P. 152)
ITY12C002

27
1-2. Opening, closing and locking the doors
1
Before driving
L/C200_U

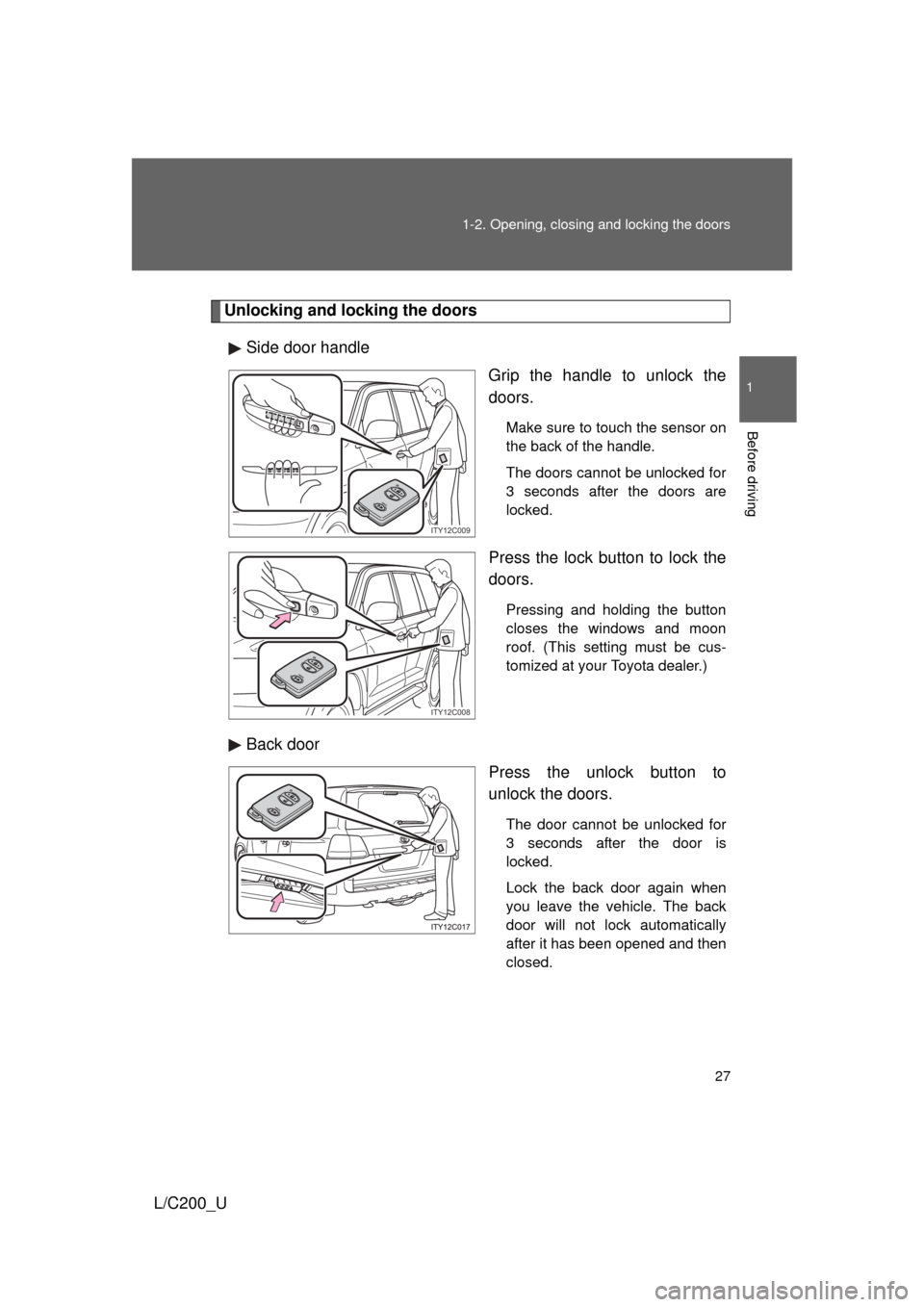

Unlocking and locking the doors
Side door handle Grip the handle to unlock the
doors.
Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for
3 seconds after the doors are
locked.
Press the lock button to lock the
doors.
Pressing and holding the button
closes the windows and moon
roof. (This setting must be cus-
tomized at your Toyota dealer.)
Back door
Press the unlock button to
unlock the doors.
The door cannot be unlocked for
3 seconds after the door is
locked.
Lock the back door again when
you leave the vehicle. The back
door will not lock automatically
after it has been opened and then
closed.
ITY12C009
ITY12C008

28 1-2. Opening, closing and locking the doors

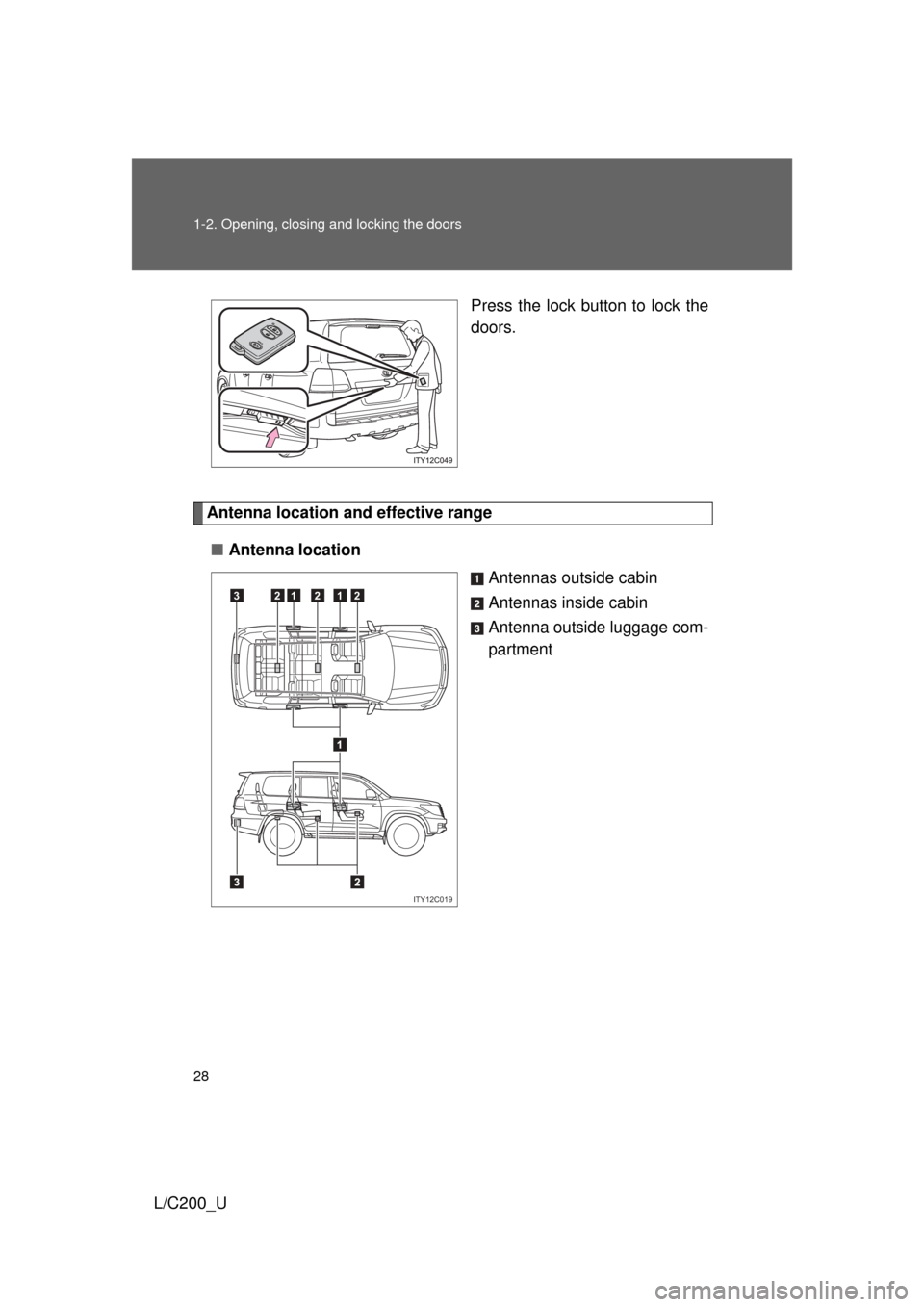

L/C200_UPress the lock button to lock the
doors.
Antenna location a
nd effective range
■ Antenna location
Antennas outside cabin
Antennas inside cabin
Antenna outside luggage com-
partment
321212
ITY12C019

29
1-2. Opening, closing and locking the doors
1
Before driving
L/C200_U
■
Effective range (areas within which the electronic key is
detected)
When locking or unlock-
ing the doors
The system can be oper-
ated when the electronic
key is within about 2.3 ft.
(0.7 m) of an outside door
handle.
When starting the engine
or changing “ENGINE
START STOP” switch
modes
The system can be oper-
ated when the electronic
key is inside the vehicle.

30 1-2. Opening, closing and locking the doors
L/C200_U
■Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
■ Conditions affecting operation
The smart key system uses weak radio waves. In the following situations,
the communication between the electronic key and the vehicle may be
affected, preventing the smart key system and wireless remote control from
operating properly. (Ways of coping P. 531)
● When the electronic key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise
● When carrying a portable radio, ce llular phone, cordless phone or other
wireless communication devices
● When the electronic key has come into contact with, or is covered by a
metallic object
● When multiple electronic keys are in the vicinity
● When carrying or using the electronic key together with the following
devices that emit radio waves
• Another vehicle’s electronic key
• A wireless key that emits radio waves
• Personal computer
● If window tint with a metallic content or metallic objects are attached to
the rear window
