TOYOTA LAND CRUISER 2013 J200 Owners Manual

171
2-1. Driving procedures
2
When driving
LC200_OM_OM60F57U_(U)

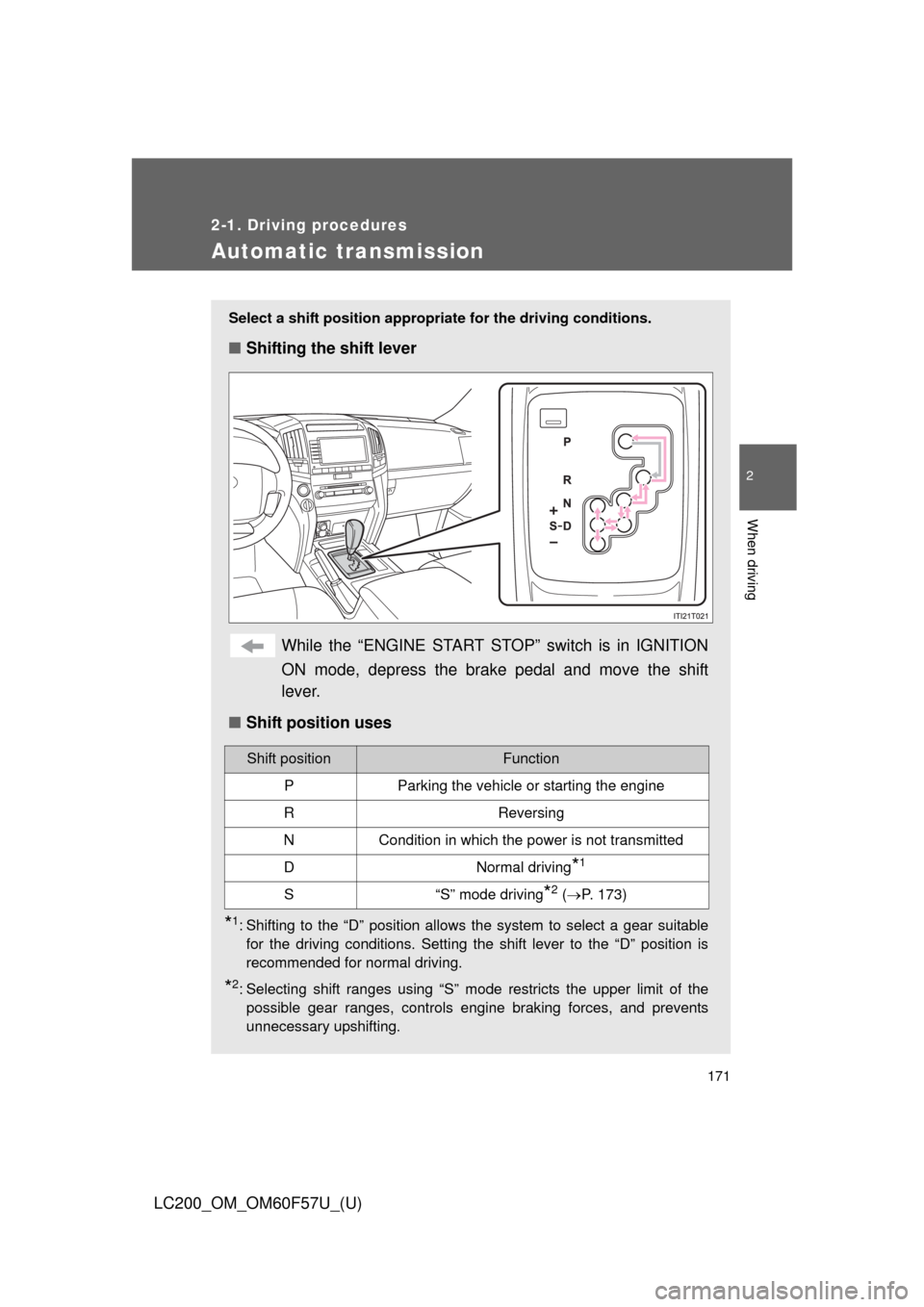

Automatic transmission
Select a shift position appropriate for the driving conditions.
■Shifting the shift lever
While the “ENGINE START STOP” switch is in IGNITION
ON mode, depress the brake pedal and move the shift
lever.
■Shift position uses
*1: Shifting to the “D” position allows the system to select a gear suitable
for the driving conditions. Setting the shift lever to the “D” position is
recommended for normal driving.
*2: Selecting shift ranges using “S” mode restricts the upper limit of the
possible gear ranges, controls engine braking forces, and prevents
unnecessary upshifting.
Shift positionFunction
PParking the vehicle or starting the engine
RReversing
NCondition in which the power is not transmitted
DNormal driving*1
S“S” mode driving*2 (P. 173)

172 2-1. Driving procedures
LC200_OM_OM60F57U_(U)

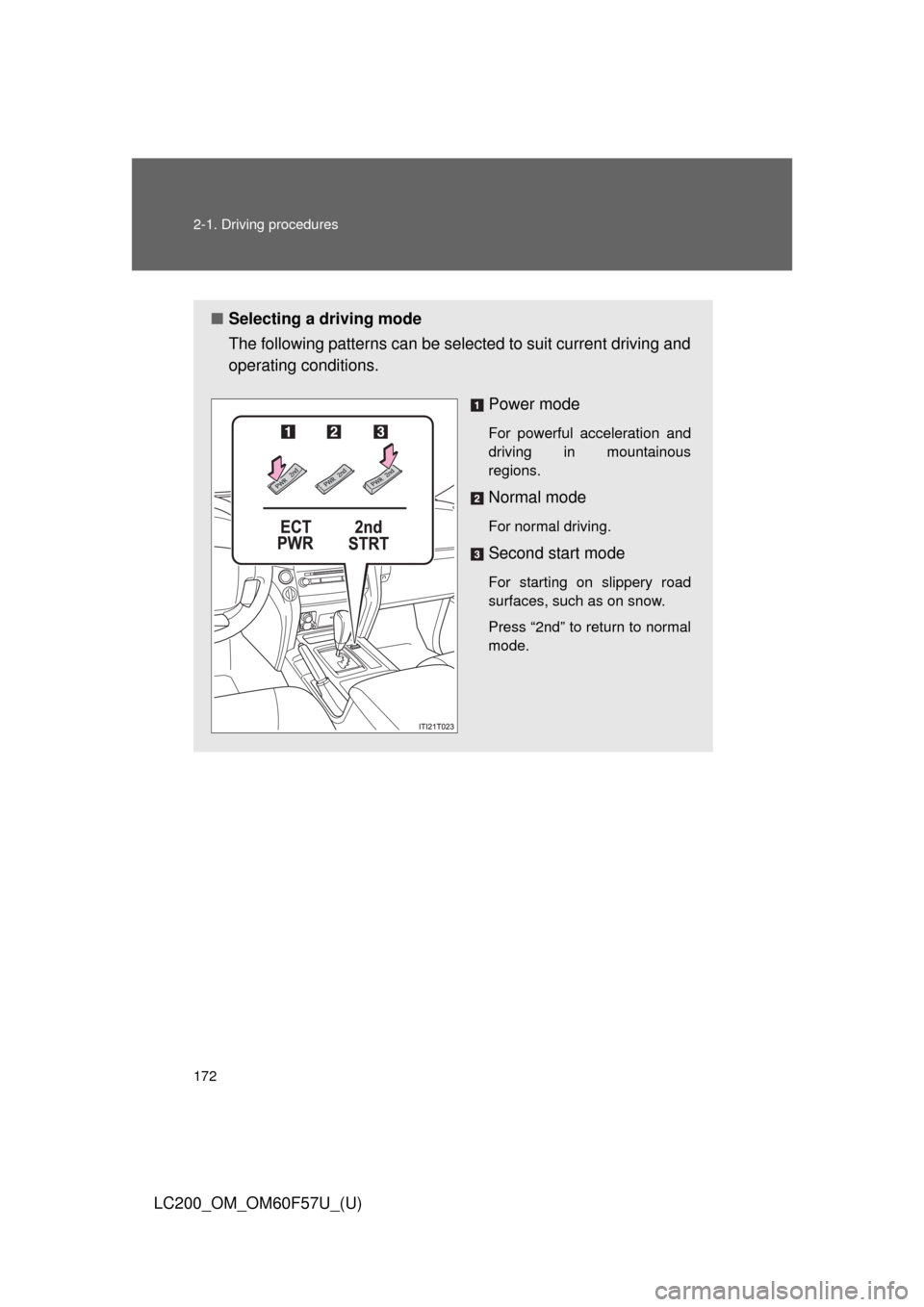

■Selecting a driving mode
The following patterns can be selected to suit current driving and
operating conditions.
Power mode
For powerful acceleration and
driving in mountainous
regions.
Normal mode
For normal driving.
Second start mode
For starting on slippery road
surfaces, such as on snow.
Press “2nd” to return to normal
mode.

173 2-1. Driving procedures
2
When driving
LC200_OM_OM60F57U_(U)
Changing shift ranges in “S” mode
Shift the shift lever to the “S” position and operate the shift lever.
Upshifting
Downshifting
The initial shift range in “S” mode is automatically set to “5” or “4”
according to the vehicle’s speed. However, the initial shift range may
be set to “3” or “2” if the AI-SHIFT has operated while the shift lever
was in the “D” position. (P. 175)
P
R
N
+
-S-D

174 2-1. Driving procedures
LC200_OM_OM60F57U_(U)■Shift ranges and their functions
●Automatically selecting gears between 1 and 6 according to
vehicle speed and driving conditions. But, the gear is limited
according to selected shift range.
●You can choose from 6 levels of engine braking force.
●A lower shift range will provide greater engine braking force than
a higher shift range, and the engine revolutions will also
increase.
■“S” mode
●When the shift range is “5” or lower, holding the shift lever toward “+” sets
the shift range to “6”.
●To prevent excessive engine speed, a function was adopted that auto-
matically selects a higher shift range before the engine speed becomes
too high.
●To protect the automatic transmission, a function is adopted that auto-
matically selects a higher shift range when the fluid temperature is high.
■Downshifting restrictions warning buzzer (in the “S” mode)
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever is operated. (The warning buzzer will
sound twice.)
■When driving with the cruise control or radar cruise control activated
Even when performing the following actions with the intent of enabling
engine braking, engine braking will not activate because cruise control or
radar cruise control will not be canceled.
●While driving in “S” mode, downshifting to “5” or “4”. (P. 210, 214)
●When switching the driving mode to power mode while driving in “D”
position. (P. 172)

175 2-1. Driving procedures
2
When driving
LC200_OM_OM60F57U_(U)
■Second start mode automatic deactivation
Second start mode is automatically deactivated if the engine is turned off
after driving in second start mode.
■If the shift lever cannot be shifted from “P”
P. 6 4 9
■If the “S” indicator does not come on even after shifting the shift lever
to “S”
This may indicate a malfunction in the automatic transmission system. Have
the vehicle inspected by your Toyota dealer immediately.
(In this situation, the vehicle will operate as if the shift lever is in “D”.)
■AI-SHIFT
The AI-SHIFT automatically shifts the gear to the suitable position according
to the driver performance and driving conditions.
The AI-SHIFT automatically operates when the shift lever is in the “D” posi-
tion. (Shifting the shift lever to the “S” position cancels the function.)

176
2-1. Driving procedures
LC200_OM_OM60F57U_(U)

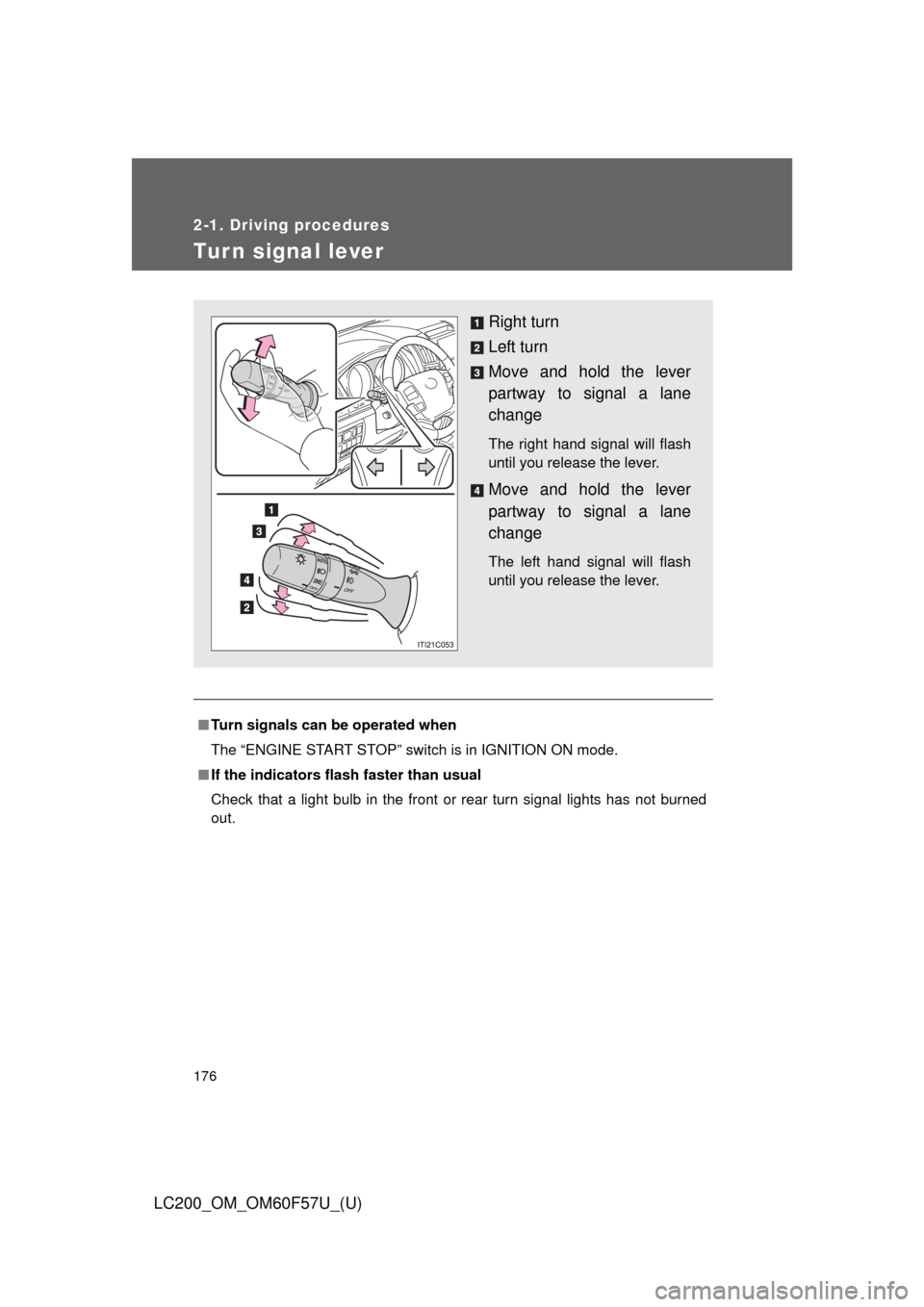

Tur n signal lever
■Turn signals can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Right turn
Left turn
Move and hold the lever
partway to signal a lane
change
The right hand signal will flash
until you release the lever.
Move and hold the lever
partway to signal a lane
change
The left hand signal will flash
until you release the lever.

177
2-1. Driving procedures
2
When driving
LC200_OM_OM60F57U_(U)

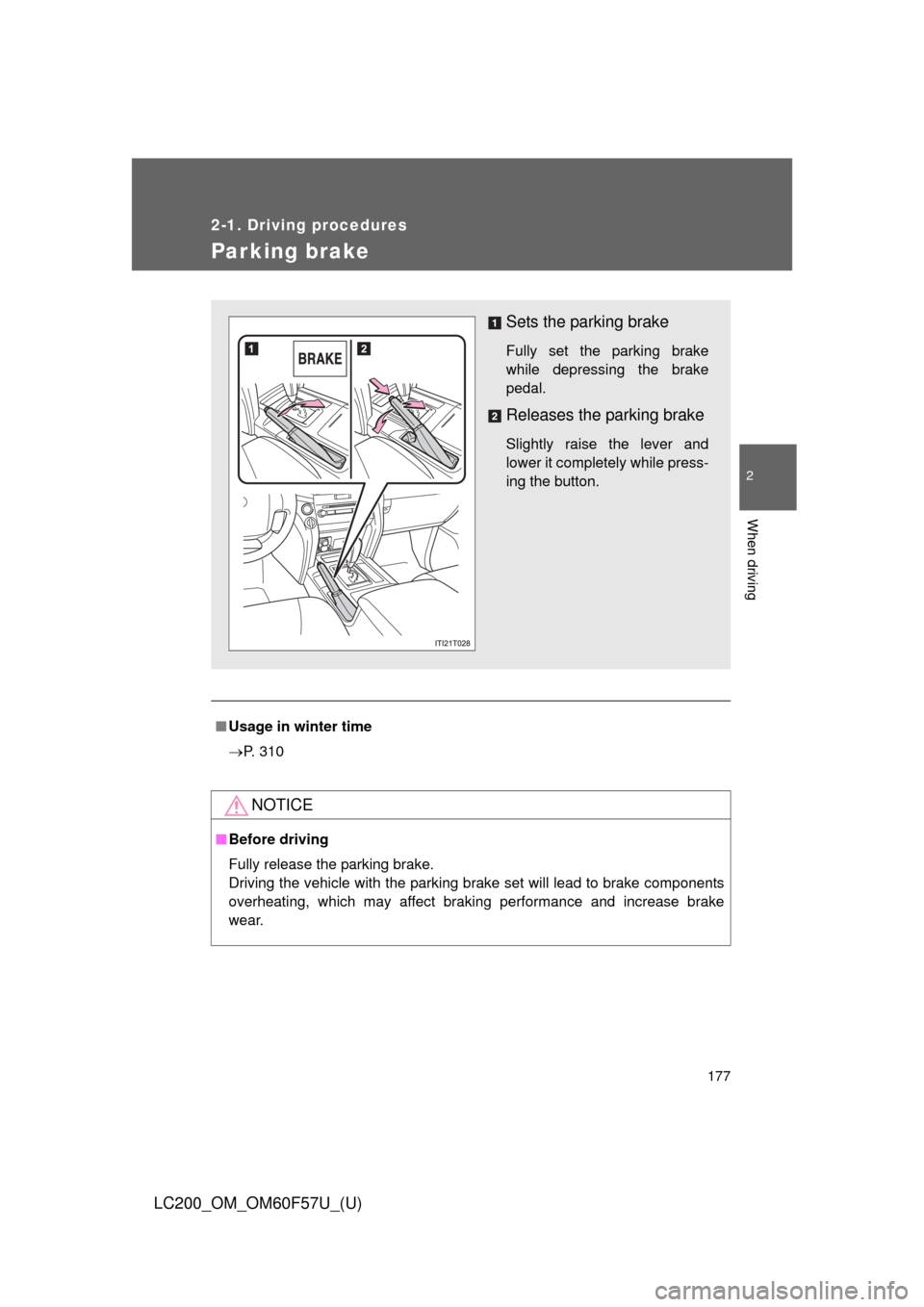

Parking brake
■Usage in winter time
P. 310
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
Sets the parking brake
Fully set the parking brake
while depressing the brake
pedal.
Releases the parking brake
Slightly raise the lever and
lower it completely while press-
ing the button.

178
2-1. Driving procedures
LC200_OM_OM60F57U_(U)

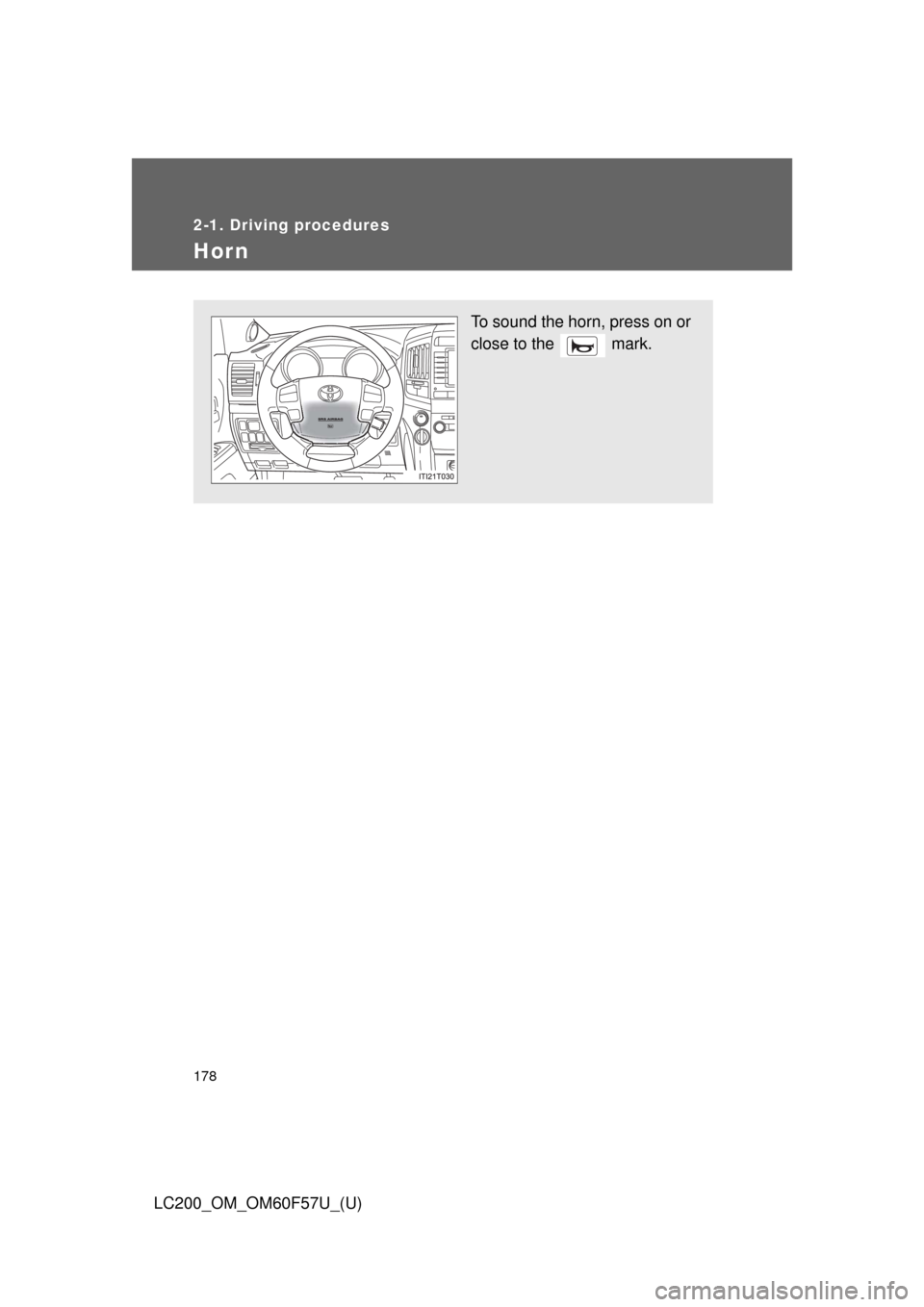

Hor n
To sound the horn, press on or
close to the mark.

179
2
When driving
LC200_OM_OM60F57U_(U)
2-2. Instrument cluster

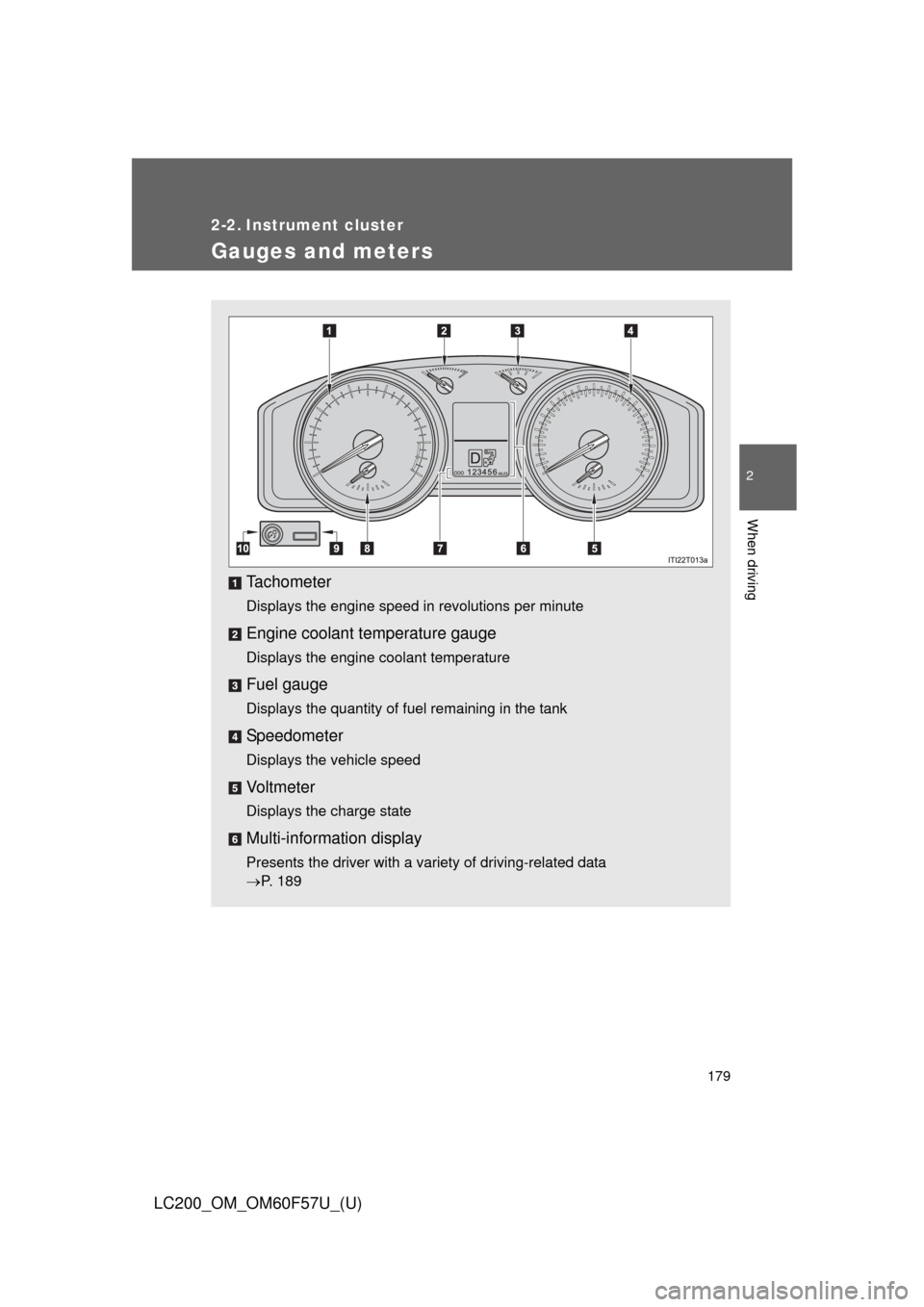

Gauges and meters
Tachometer
Displays the engine speed in revolutions per minute
Engine coolant temperature gauge
Displays the engine coolant temperature
Fuel gauge
Displays the quantity of fuel remaining in the tank
Speedometer
Displays the vehicle speed
Vo l t m e t e r
Displays the charge state
Multi-information display
Presents the driver with a variety of driving-related data
P. 189

180 2-2. Instrument cluster
LC200_OM_OM60F57U_(U)
Switching the display
Pressing this button switches between odometer and trip meter.
Odometer
Trip meter A
*
Trip meter B*
*: Pushing and holding the button
will reset the trip meter.
Odometer and trip meter
Odometer: Displays the total distance the vehicle has been driven
Trip meter: Displays the distance the vehicle has been driven since the
meter was last reset. Trip meters A and B can be used to record and
display different distances independently.
Engine oil pressure gauge
Displays the engine oil pressure
Odometer/trip meter display change button
Switches between odometer and trip meter displays
Instrument panel light control dial
The brightness of the instrument panel light can be adjusted
