TOYOTA LAND CRUISER 2013 J200 Owners Manual

201
2-3. Operating the lights and wipers
2
When driving
LC200_OM_OM60F57U_(U)

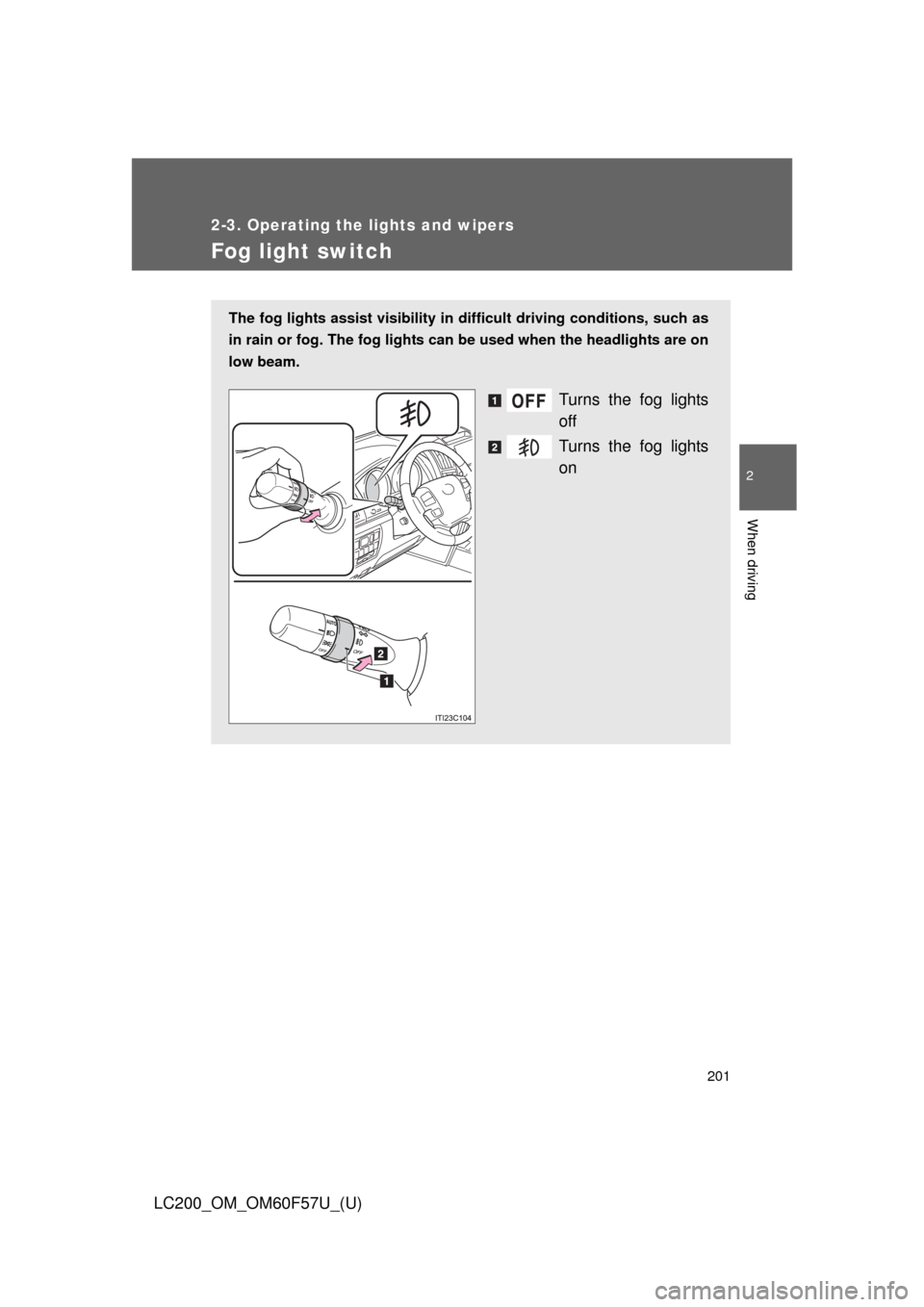

Fog light switch
The fog lights assist visibility in difficult driving conditions, such as
in rain or fog. The fog lights can be used when the headlights are on
low beam.
Turns the fog lights
off
Turns the fog lights
on

202
2-3. Operating the lights and wipers
LC200_OM_OM60F57U_(U)

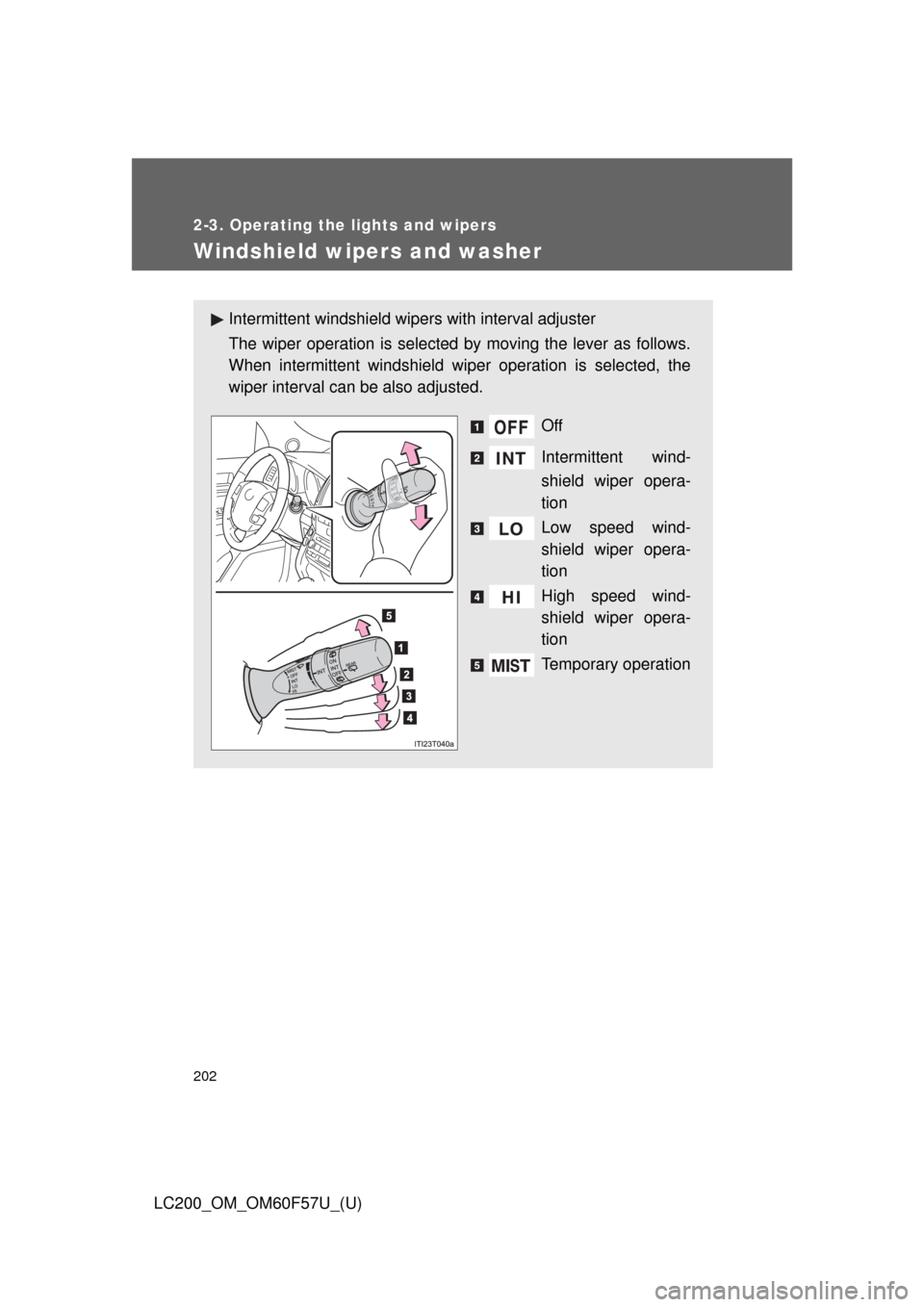

Windshield wipers and washer
Intermittent windshield wipers with interval adjuster
The wiper operation is selected by moving the lever as follows.
When intermittent windshield wiper operation is selected, the
wiper interval can be also adjusted.
Off
Intermittent wind-
shield wiper opera-
tion
Low speed wind-
shield wiper opera-
tion
High speed wind-
shield wiper opera-
tion
Temporary operation

203 2-3. Operating the lights and wipers
2
When driving
LC200_OM_OM60F57U_(U)

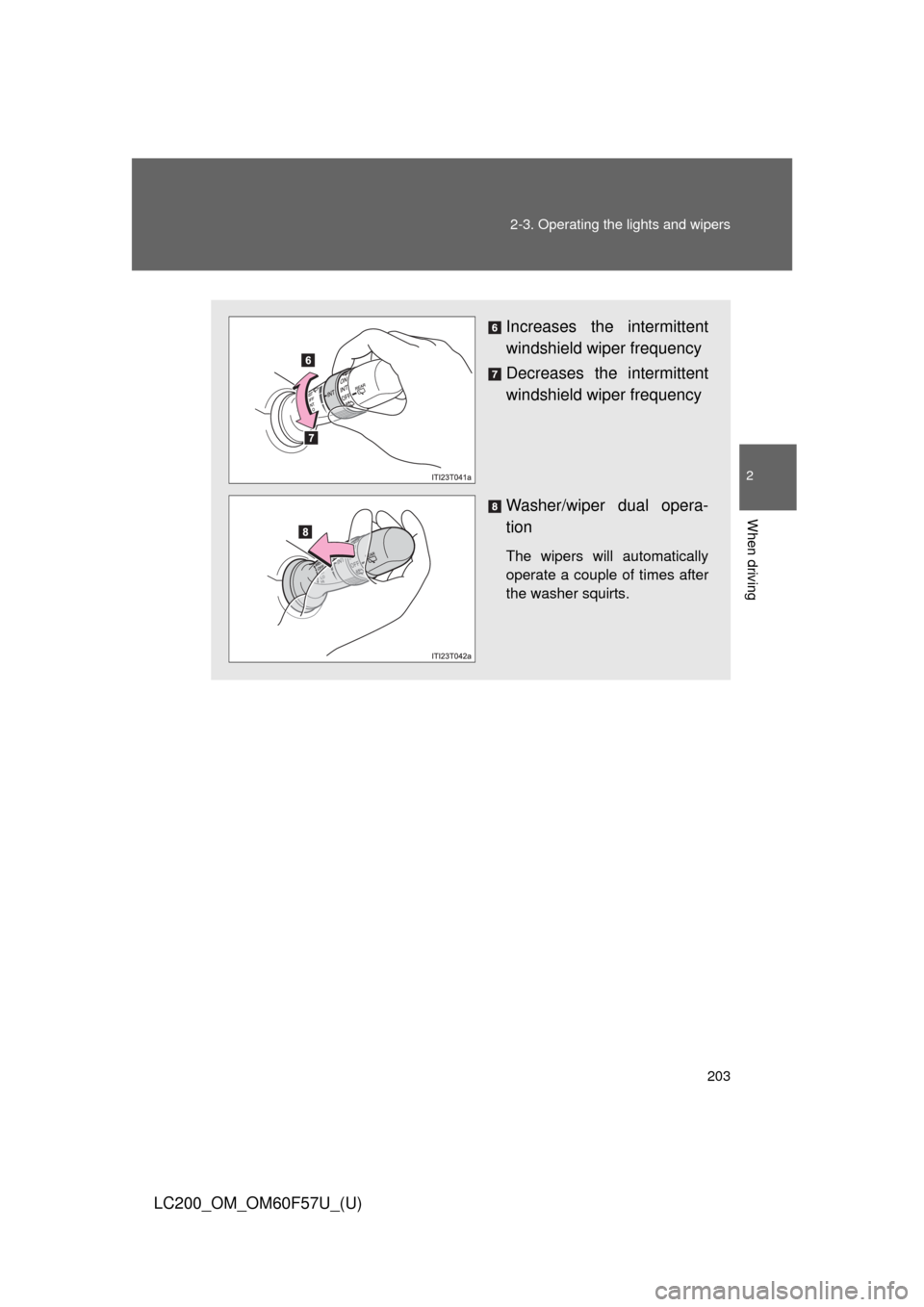

Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency
Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.

204 2-3. Operating the lights and wipers
LC200_OM_OM60F57U_(U)

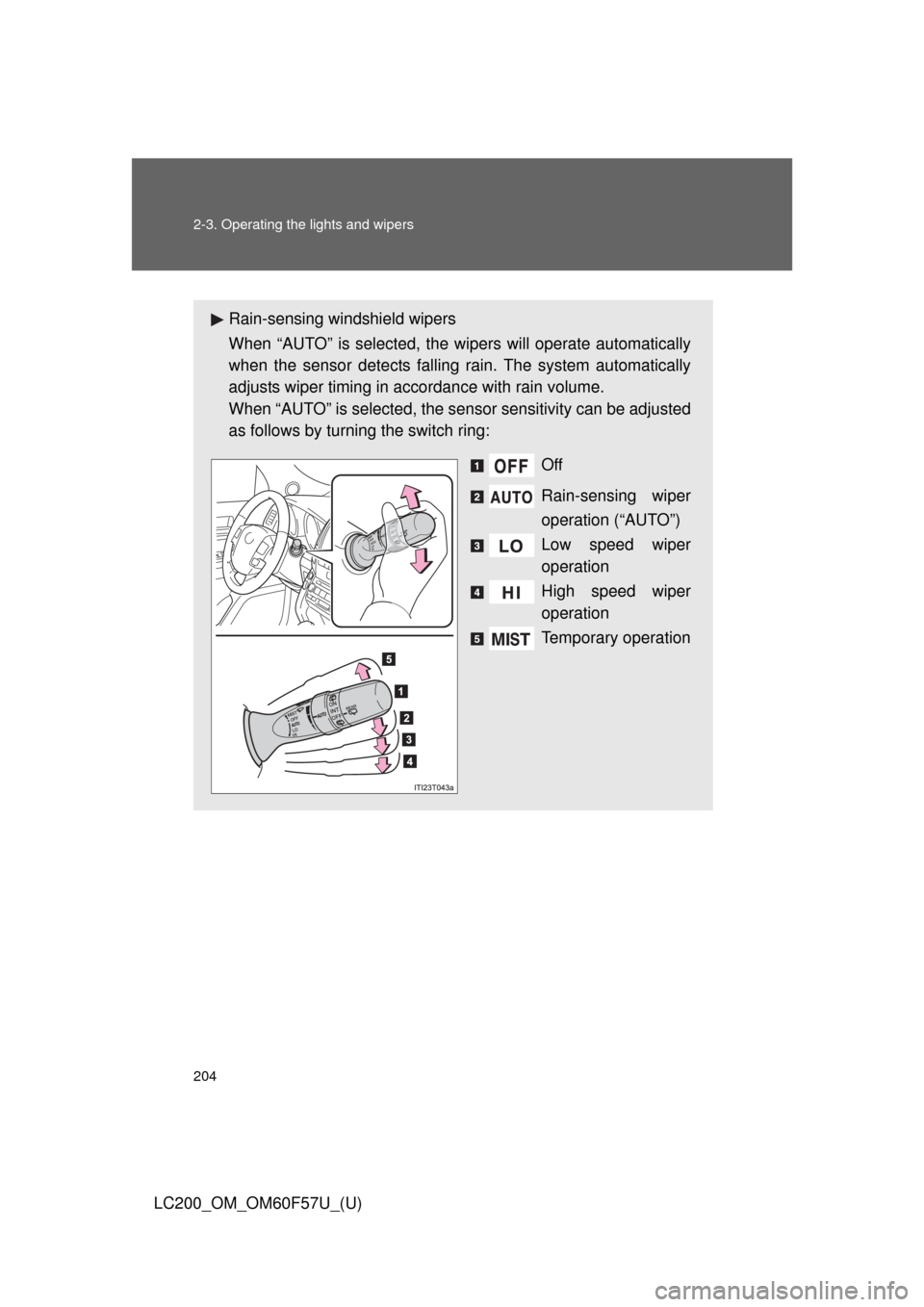

Rain-sensing windshield wipers
When “AUTO” is selected, the wipers will operate automatically
when the sensor detects falling rain. The system automatically
adjusts wiper timing in accordance with rain volume.
When “AUTO” is selected, the sensor sensitivity can be adjusted
as follows by turning the switch ring:
Off
Rain-sensing wiper
operation (“AUTO”)
Low speed wiper
operation
High speed wiper
operation
Temporary operation

205 2-3. Operating the lights and wipers
2
When driving
LC200_OM_OM60F57U_(U)

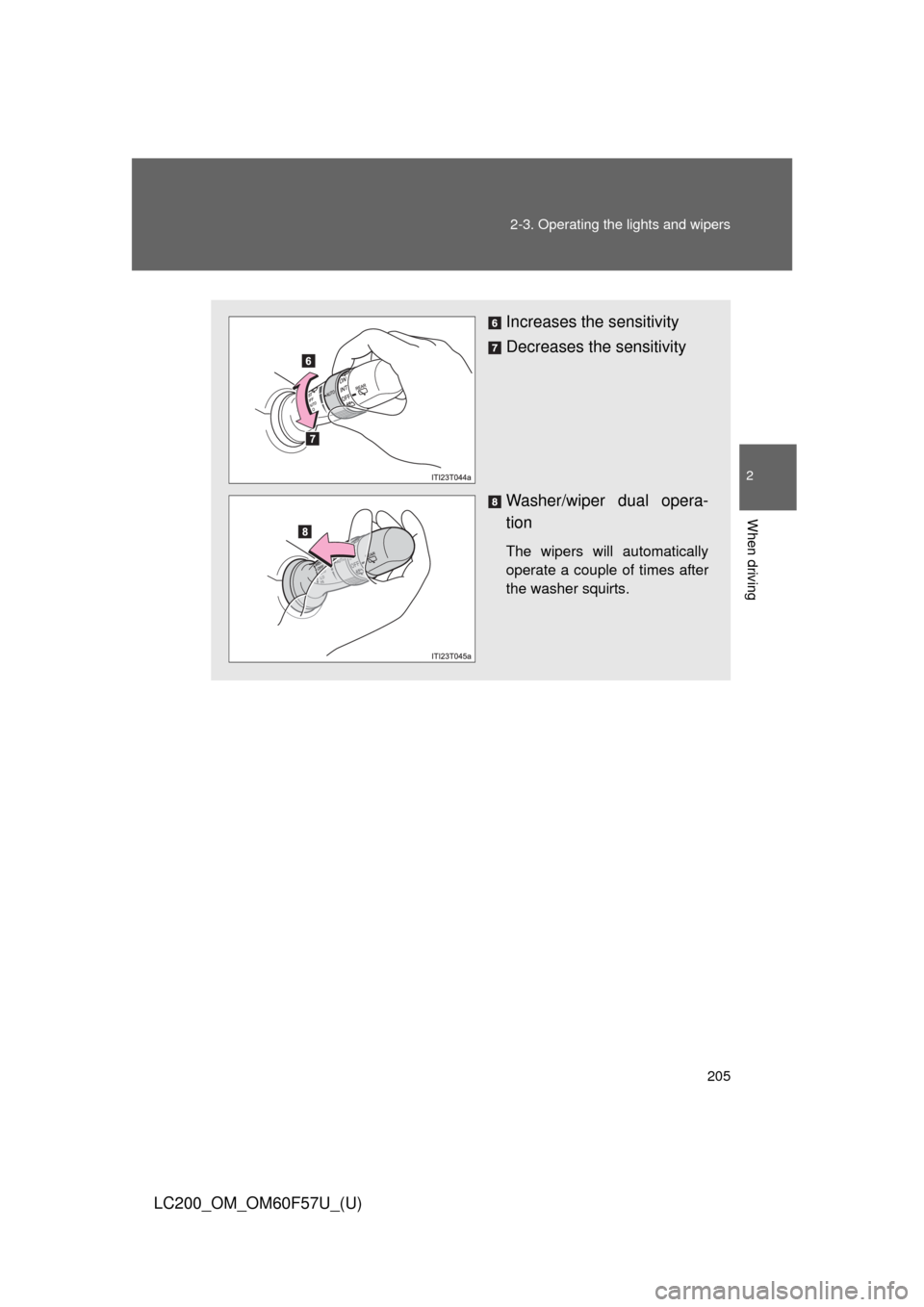

Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual opera-
tion
The wipers will automatically
operate a couple of times after
the washer squirts.

206 2-3. Operating the lights and wipers
LC200_OM_OM60F57U_(U)
■The windshield wiper and washer can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Effects of vehicle speed on wiper operation (vehicles with rain-sensing
windshield wipers)
Vehicle speed affects the wiper operation when the washer is being used
(delay until drip prevention wiper sweep occurs) even when the wipers are
not in “AUTO” mode.
With “ ” selected, wiper operation will be switched from low speed to
intermittent wiper operation only when the vehicle is stationary.
(However, when the sensor sensitivity is adjusted to the highest level, the
mode cannot be switched.)
■Rain drop sensor (vehicles with rain-sensing windshield wipers)
●If the wiper switch is turned to “AUTO” position while the “ENGINE
START STOP” switch is in IGNITION ON mode, the wiper will operate
once to show that “AUTO” mode is activated.
●If the temperature of the rain drop sensor is 176F (80C) or higher, or
14F (-10C) or lower, automatic operation may not occur. In this case,
operate the wipers in any mode other than “AUTO”.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
●The sensor judges the amount of rain-
drops.

207 2-3. Operating the lights and wipers
2
When driving
LC200_OM_OM60F57U_(U)
CAUTION
■Caution regarding the use of windshield wipers in “AUTO” mode (vehi-
cles with rain-sensing windshield wipers)
The windshield wipers may operate unexpectedly if the sensor is touched or
the windshield is subject to vibration in “AUTO” mode. Take care that your
fingers or anything else do not become caught in the windshield wipers.
■Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
NOTICE
■When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
■When a nozzle becomes blocked
Do not try to clear it with a pin or other object. The nozzle will be damaged.

208
2-3. Operating the lights and wipers
LC200_OM_OM60F57U_(U)

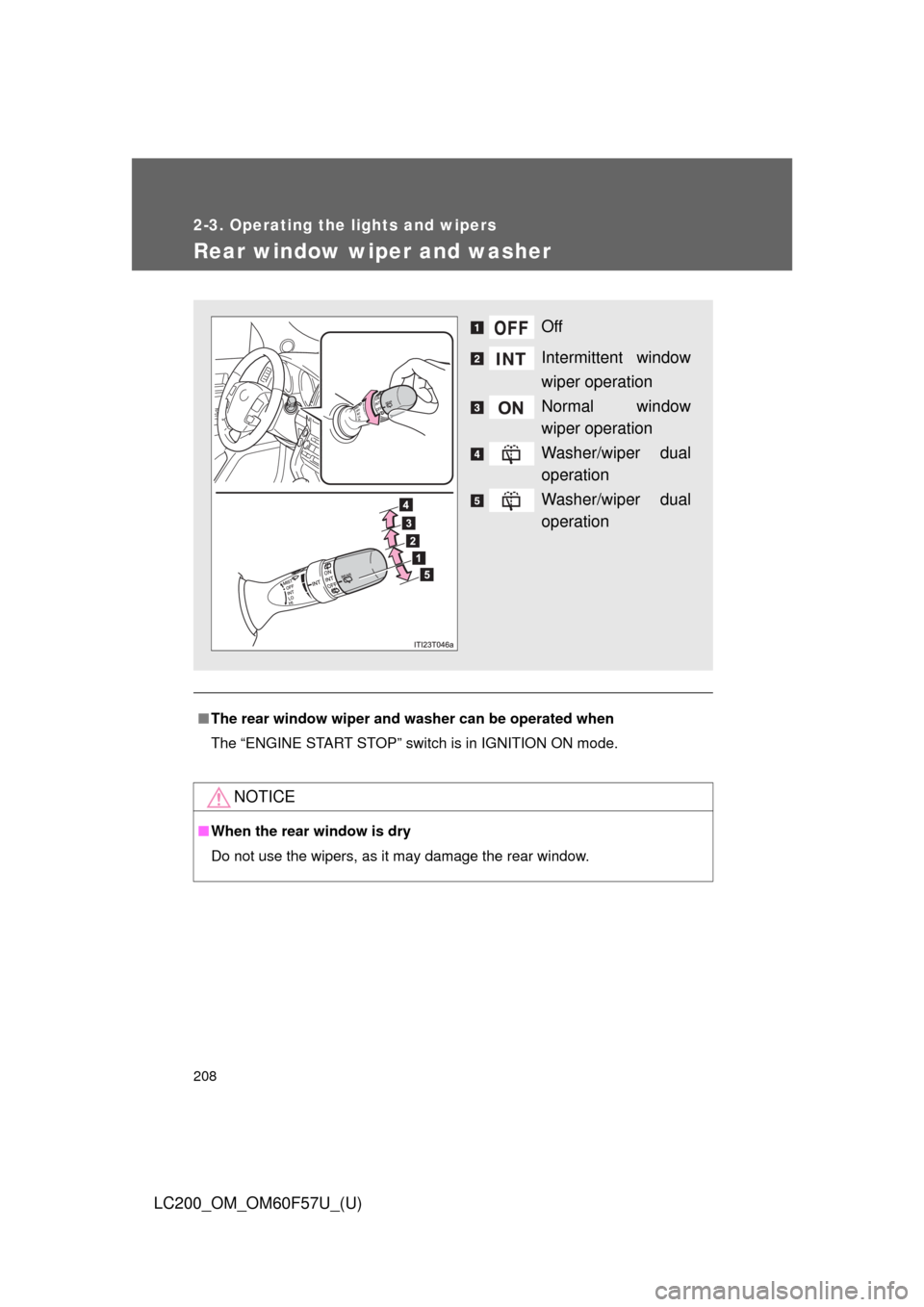

Rear window wiper and washer
■The rear window wiper and washer can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
NOTICE
■When the rear window is dry
Do not use the wipers, as it may damage the rear window.
Off
Intermittent window
wiper operation
Normal window
wiper operation
Washer/wiper dual
operation
Washer/wiper dual
operation

209
2-3. Operating the lights and wipers
2
When driving
LC200_OM_OM60F57U_(U)

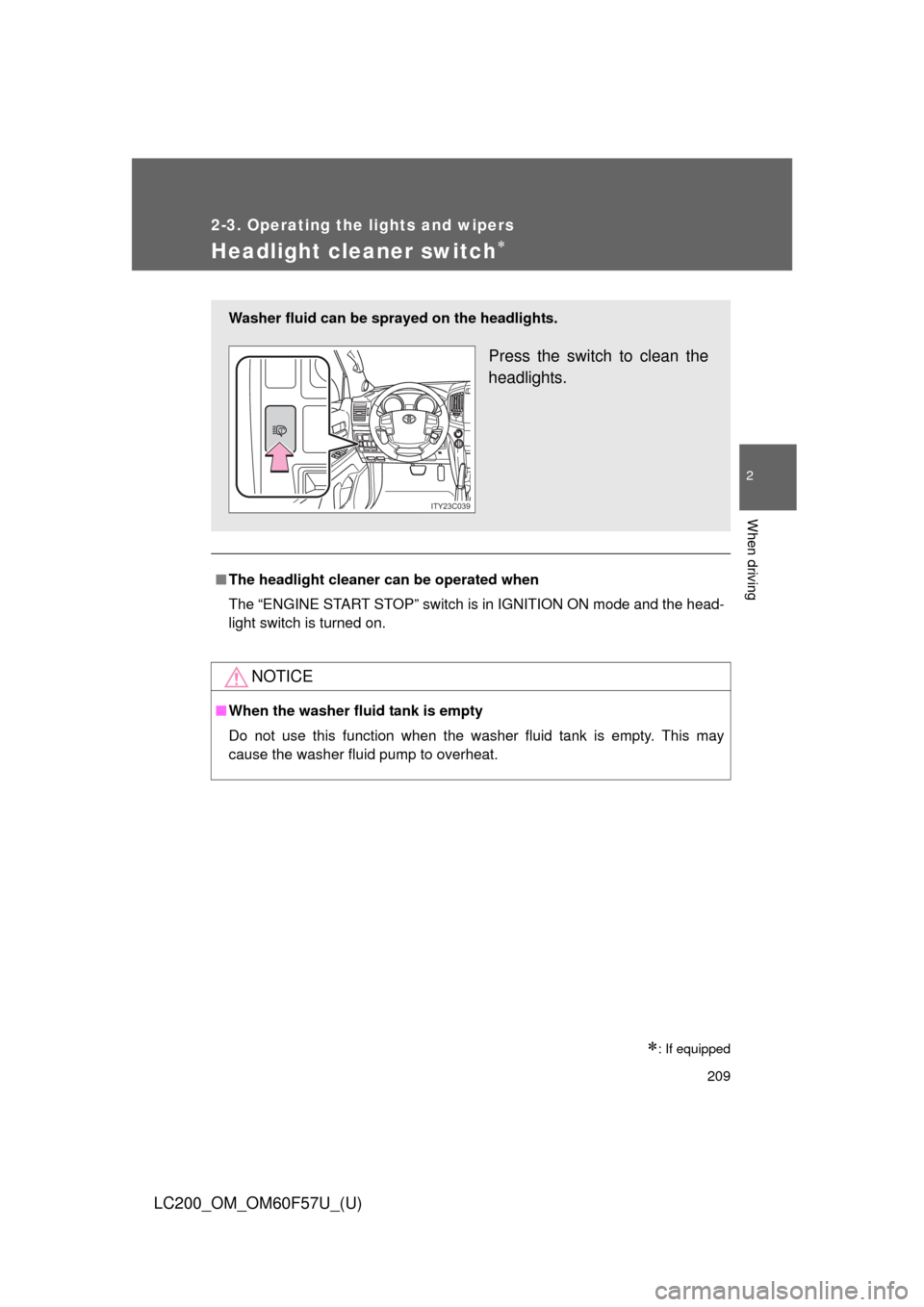

Headlight cleaner switch
: If equipped
■The headlight cleaner can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode and the head-
light switch is turned on.
NOTICE
■When the washer fluid tank is empty
Do not use this function when the washer fluid tank is empty. This may
cause the washer fluid pump to overheat.
Washer fluid can be sprayed on the headlights.
Press the switch to clean the
headlights.
ITY23C039

210
LC200_OM_OM60F57U_(U)
2-4. Using other driving systems

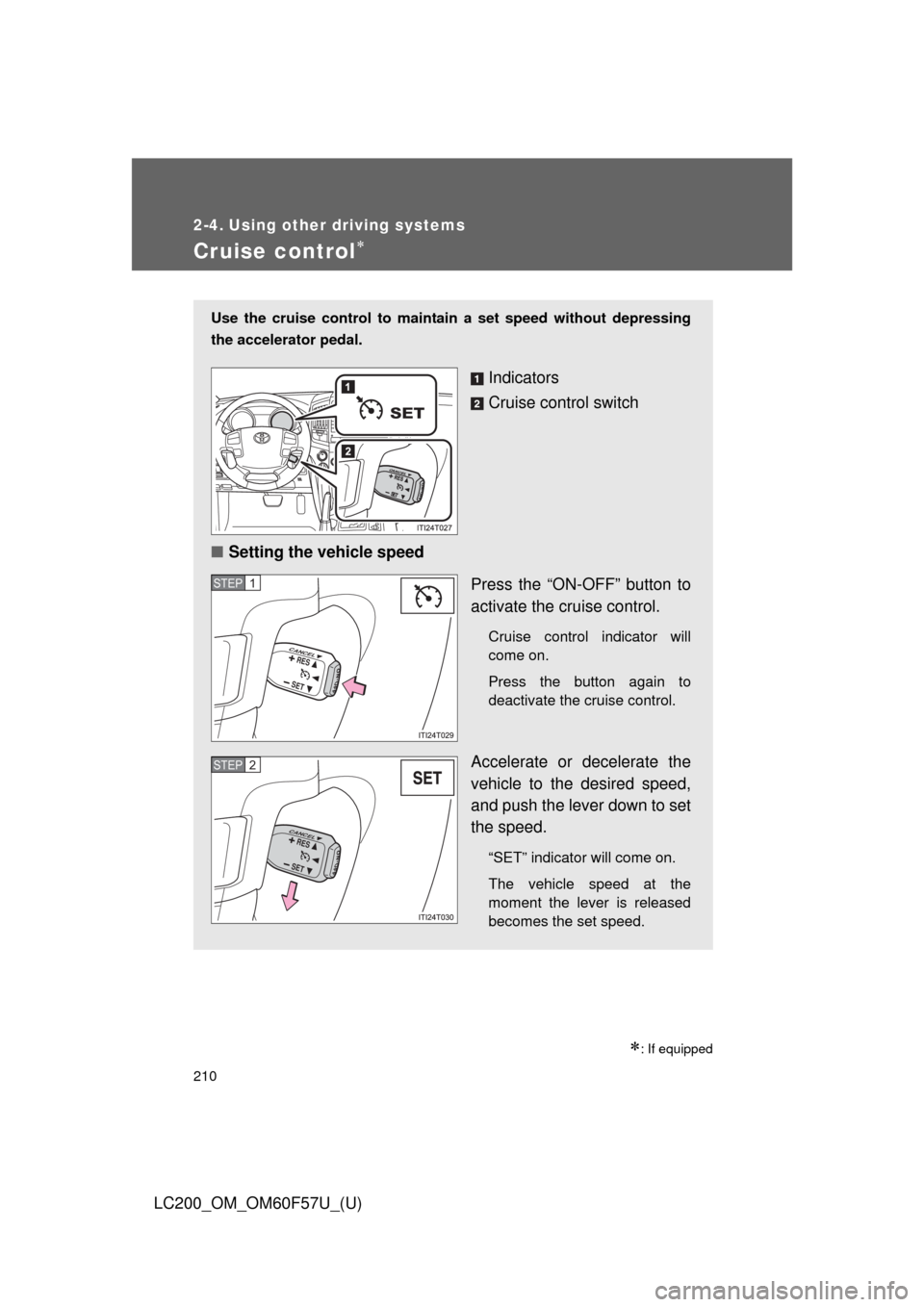

Cruise control
: If equipped
Use the cruise control to maintain a set speed without depressing
the accelerator pedal.
Indicators
Cruise control switch
■Setting the vehicle speed
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator will
come on.
Press the button again to
deactivate the cruise control.
Accelerate or decelerate the
vehicle to the desired speed,
and push the lever down to set
the speed.
“SET” indicator will come on.
The vehicle speed at the
moment the lever is released
becomes the set speed.
RES
SET
CANCE
L
STEP1
RES
SET
CANCE
L
STEP2
