TOYOTA LAND CRUISER 2013 J200 Owners Manual

331 2-5. Driving information
2
When driving
LC200_OM_OM60F57U_(U)
CAUTION
■To avoid accident or injury
●Do not exceed the trailer hitch assembly weight, gross vehicle weight,
gross axle weight and trailer tongue weight capacities.
●Do not use cruise control when towing.
●Slow down and downshift before descending steep or long downhill
grades. Do not make sudden downshifts while descending steep or long
downhill grades.
●Vehicle-trailer instability is more likely on steep long down hills. Before
descending steep or long downhill grades, slow down and downshift. Do
not make sudden downshifts when descending steep or long downhill
grades. Avoid holding the brake pedal down too long or applying the
brakes too frequently. This could cause the brakes to overheat and result
in reduced braking efficiency.
■Hitch
Trailer hitch assemblies have different weight capacities established by the
hitch manufacturer. Even though the vehicle may be physically capable of
towing a higher weight, the operator must determine the maximum weight
rating of the particular hitch assembly and never exceed the maximum
weight rating specified for the trailer-hitch. Exceeding the maximum weight
rating set by the trailer-hitch manufacturer can cause an accident resulting in
death or serious personal injuries.
■When towing a trailer
Toyota recommends trailers with brakes that conform to any applicable fed-
eral and state/provincial regulations.
●If the gross trailer weight exceeds unbraked TWR, trailer brakes are
required. Toyota recommends trailers with brakes that conform to all appli-
cable federal and state/provincial regulations.
●Never tap into your vehicle’s hydraulic system, as this will lower the vehi-
cle’s braking effectiveness.
●Never tow a trailer without using a safety chain securely attached to both
the trailer and the vehicle. If damage occurs to the coupling unit or hitch
ball, there is danger of the trailer wandering into another lane.

332 2-5. Driving information
LC200_OM_OM60F57U_(U)
NOTICE
■When installing a trailer hitch
Use only the position recommended by your Toyota dealer. Do not install the
trailer hitch on the bumper; this may cause body damage.
■Do not directly splice trailer lights
Do not directly splice trailer lights. Directly splicing trailer lights may damage
your vehicle’s electrical system and cause a malfunction.

333
2-5. Driving information
2
When driving
LC200_OM_OM60F57U_(U)
Dinghy towing
NOTICE
■To avoid serious damage to your vehicle
Do not tow your vehicle with four wheels on the ground.
Your vehicle is not designed to be dinghy towed (with 4 wheels
on the ground) behind a motor home.

334
LC200_OM_OM60F57U_(U)
3-1. Using the air conditioning
system and defogger
Front air conditioning
system ........................... 336
Rear air conditioning
system ........................... 347
Rear window and
outside rear view
mirror defoggers ............ 351
Windshield wiper
de-icer ............................ 352
3-2. Using the audio system
Audio system type............ 353
Using the radio ................. 356
Using the CD player ......... 365
Playing back MP3 and
WMA discs ..................... 373
Operating an iPod ............ 380
Operating a
USB memory ................. 387
Optimal use of the
audio system .................. 395
Using the AUX port .......... 397
Using the steering
switches ......................... 398

Interior features3
335
LC200_OM_OM60F57U_(U)

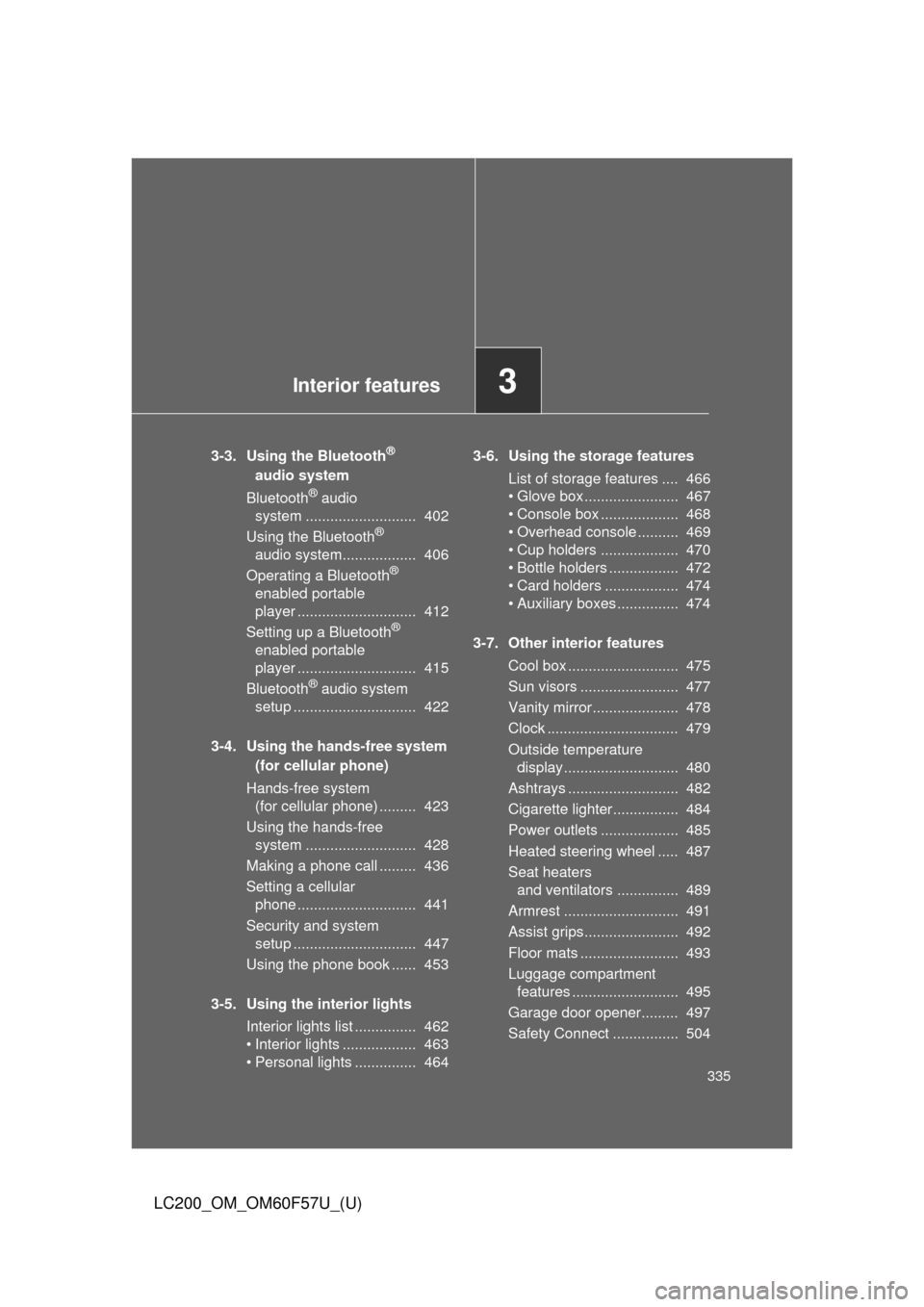

3-3. Using the Bluetooth®
audio system
Bluetooth
® audio
system ........................... 402
Using the Bluetooth
®
audio system.................. 406
Operating a Bluetooth
®
enabled portable
player ............................. 412
Setting up a Bluetooth
®
enabled portable
player ............................. 415
Bluetooth
® audio system
setup .............................. 422
3-4. Using the hands-free system
(for cellular phone)
Hands-free system
(for cellular phone) ......... 423
Using the hands-free
system ........................... 428
Making a phone call ......... 436
Setting a cellular
phone ............................. 441
Security and system
setup .............................. 447
Using the phone book ...... 453
3-5. Using the interior lights
Interior lights list ............... 462
• Interior lights .................. 463
• Personal lights ............... 4643-6. Using the storage features
List of storage features .... 466
• Glove box....................... 467
• Console box ................... 468
• Overhead console .......... 469
• Cup holders ................... 470
• Bottle holders ................. 472
• Card holders .................. 474
• Auxiliary boxes ............... 474
3-7. Other interior features
Cool box ........................... 475
Sun visors ........................ 477
Vanity mirror..................... 478
Clock ................................ 479
Outside temperature
display............................ 480
Ashtrays ........................... 482
Cigarette lighter................ 484
Power outlets ................... 485
Heated steering wheel ..... 487
Seat heaters
and ventilators ............... 489
Armrest ............................ 491
Assist grips....................... 492
Floor mats ........................ 493
Luggage compartment
features .......................... 495
Garage door opener......... 497
Safety Connect ................ 504

336
LC200_OM_OM60F57U_(U)
3-1. Using the air conditioning system and defogger

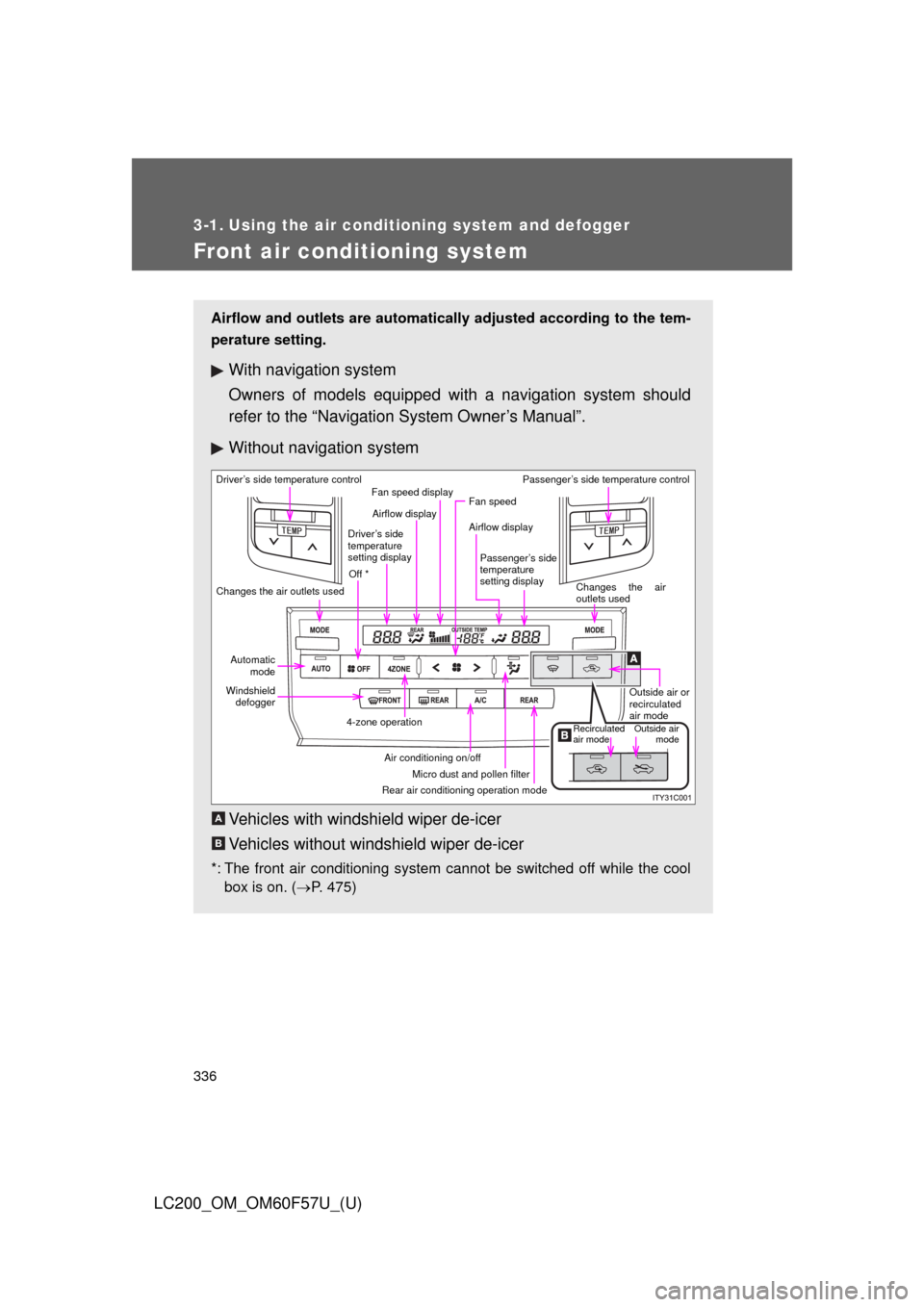

Front air conditioning system
Airflow and outlets are automatically adjusted according to the tem-
perature setting.
With navigation system
Owners of models equipped with a navigation system should
refer to the “Navigation System Owner’s Manual”.
Without navigation system
Vehicles with windshield wiper de-icer
Vehicles without windshield wiper de-icer
*: The front air conditioning system cannot be switched off while the cool
box is on. (P. 475)
Driver’s side temperature control
Changes the air outlets usedOff *Airflow display Fan speed display
Fan speed
Airflow display
Passenger’s side
temperature
setting displayPassenger’s side temperature control
Changes the air
outlets used
Outside air or
recirculated
air mode
Outside air
mode Recirculated
air mode
Rear air conditioning operation modeMicro dust and pollen filter Air conditioning on/off 4-zone operation Windshield
defogger Automatic
mode
Driver’s side
temperature
setting display
A
B

337 3-1. Using the air conditioning system and defogger
3
Interior features
LC200_OM_OM60F57U_(U)
Using the automatic mode
Press .
The air conditioning system will begin to operate. Air outlets and fan
speed are automatically adjusted according to the temperature set-
ting.
Press “” to increase the temperature and “” to decrease the
temperature on .
The temperature for the driver’s and front passenger’s seats can be
set separately.
STEP1
STEP2
6'/2

338 3-1. Using the air conditioning system and defogger
LC200_OM_OM60F57U_(U)
Adjusting the settings
■Adjusting the temperature setting
Press “” to increase the temperature and “” to decrease the tem-
perature on .
The air conditioning system switches between individual and simul-
taneous modes each time is pressed.
Individual mode (the indicator on is on.): The temperature for
the driver’s, front passenger’s and rear seats (P. 341) can be set
separately. Operating the passenger’s side or rear temperature con-
trol will enter individual mode.
Simultaneous mode (the indicator on is off.): Only
(driver’s side) can be used to adjust the temperature for all seats.
■Adjusting the fan speed
Press “” (increase) or “” (decrease) on .
The fan speed is shown on the display. (7 levels)
Press to turn the fan off.
6'/2
6'/2

339 3-1. Using the air conditioning system and defogger
3
Interior features
LC200_OM_OM60F57U_(U)■Changing the air outlets
Press .
For driver’s seat
For front passenger’s seat
The air outlets switch each time
the button is pressed.
Different air outlets for the driver’s
and front passenger’s seats can
be chosen.
*: Driver side only
Air flows to the upper body.
*1: Depending on the rear air con-
ditioning setting.
*2: Only in the automatic mode
Air flows to the upper body and
feet.
*1: Depending on the rear air con-
ditioning setting.
ITO31C050
*

340 3-1. Using the air conditioning system and defogger
LC200_OM_OM60F57U_(U)Air flows to the feet.
*1: Depending on the rear air con-
ditioning setting.
Air flows to the feet and the
windshield defogger operates.
■Switching between outside air and recirculated air modes
Vehicles with windshield wiper de-icer
Press .
The mode switches between outside air mode (indicator off) and
recirculated air mode (indicator on) each time the button is pressed.
Vehicles without windshield wiper de-icer
Press to switch to recirculated air mode and press
to switch to outside air mode.
ITY31C014
