TOYOTA LAND CRUISER 2013 J200 Owners Manual

441
3-4. Using the hands-free system (for cellular phone)
3
Interior features
LC200_OM_OM60F57U_(U)
Setting a cellular phone
Registering a cellular phone in the hands-free system allows the
system to function. The following functions can be used for regis-
tered cellular phones:
■Functions and operation procedures
To enter the menu for each function, follow the steps below.
Press the off-hook switch and select “Setup” using voice
command or .
Select “Phone Setup” using voice command or .
Select one of the following items using voice command or
.
●Registering a cellular phone
“Pair Phone”
●Selecting a cellular phone to be used
“Select Phone”
●Changing the registered name
“Change Name”
●Listing the registered cellular phones
“List Phones”
●Changing the passkey
“Set Passkey”
●Deleting a registered cellular phone
“Delete”
STEP1
STEP2
STEP3

442 3-4. Using the hands-free system (for cellular phone)
LC200_OM_OM60F57U_(U)
Registering a cellular phone
Select “Pair Phone” using a voice command or , and perform
the procedure for registering a cellular phone. (P. 430)
Selecting a cellular phone to be used
Select “Connect Phone (Connect)” using a voice command or
.
Pattern A
Select a cellular phone to be used by either of the following
methods, and select “Confirm” using a voice command or
:
a. Press the talk switch and say the name of the desired
phone.
b. Press the talk switch and say “List Phones”. When the
name of the desired cellular phone is read aloud, press the
talk switch.
Pattern B
Select a cellular phone to be used using .
STEP1
STEP2
STEP2

443 3-4. Using the hands-free system (for cellular phone)
3
Interior features
LC200_OM_OM60F57U_(U)
Changing the registered name of a cellular phone
Select “Change Name” using a voice command or .
Pattern A
Select a name of cellular phone to be changed by either of the
following methods, and select “Confirm” using a voice com-
mand or .
a. Press the talk switch and say the name of the desired
phone.
b. Press the talk switch and say “List phones”. When the
name of the desired phone is being read aloud, press the
talk switch.
Pattern B
Select the desired phone name to be changed by using
.
Press the talk switch or select “Record Name” using ,
and say a new name.
Select “Confirm” using a voice command or .
STEP1
STEP2
STEP2
STEP3
STEP4

444 3-4. Using the hands-free system (for cellular phone)
LC200_OM_OM60F57U_(U)
Listing the registered cellular phones
Selecting “List Phones” using a voice command or . The list of
registered cellular phones to be read aloud.
When listing is complete, the system returns to “Phone Setup”.
Pressing the talk switch while a name of cellular phone is being read
selects the cellular phone, and the following functions will become
available:
●Selecting a cellular phone: “Connect Phone (Connect)”
●Changing a registered name: “Change Name”
●Deleting a cellular phone: “Delete Phone”

445 3-4. Using the hands-free system (for cellular phone)
3
Interior features
LC200_OM_OM60F57U_(U)
Changing the passkey
Select “Set Passkey” using a voice command or .
Pattern A
Press the talk switch, say a 4 to 8-digit number, and select
“Confirm” using a voice command or .
Pattern B
Select a 4 to 8-digit number using .
The number should be input 1 digit at a time.
When the entire number to be registered as a passkey has
been input, press again.
If the number to be registered has 8 digits, pressing of the knob is
not necessary.
STEP1
STEP2
STEP2
STEP3

446 3-4. Using the hands-free system (for cellular phone)
LC200_OM_OM60F57U_(U)
Deleting a registered cellular phone
Select “Delete Phone” using a voice command or .
Pattern A
Select the cellular phone to be deleted by either of the follow-
ing methods and select “Confirm” using a voice command or
:
a. Press the talk switch and say the name of the desired cel-
lular phone.
b. Press the talk switch and say “List Phones”. While the
name of the desired cellular phone is read aloud, press the
talk switch.
Pattern B
Select a desired cellular phone to be deleted using .
If the cellular phone to be deleted is paired as a Bluetooth
® audio
player, the registration of the audio player can be deleted at the same
time. A voice guidance instruction to delete a Bluetooth
® audio player
is heard.
Select “Yes” or “No” by using a voice command or .
(Bluetooth
® audio player P. 402)
■The number of cellular phone that can be registered
Up to 6 cellular phones can be registered in the system.
STEP1
STEP2
STEP2
STEP3

447
3-4. Using the hands-free system (for cellular phone)
3
Interior features
LC200_OM_OM60F57U_(U)

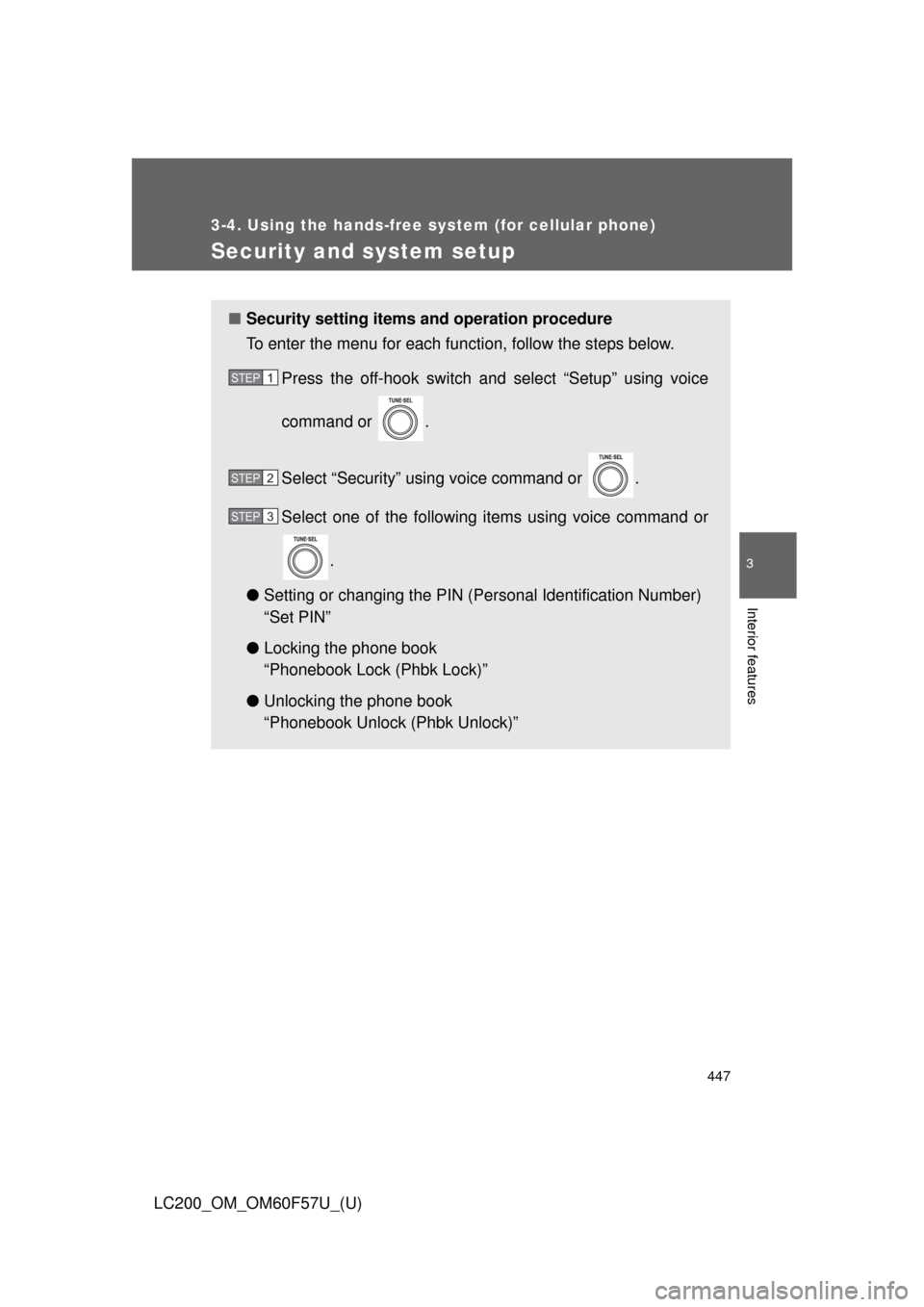

Security and system setup
■Security setting items and operation procedure
To enter the menu for each function, follow the steps below.
Press the off-hook switch and select “Setup” using voice
command or .
Select “Security” using voice command or .
Select one of the following items using voice command or
.
●Setting or changing the PIN (Personal Identification Number)
“Set PIN”
●Locking the phone book
“Phonebook Lock (Phbk Lock)”
●Unlocking the phone book
“Phonebook Unlock (Phbk Unlock)”
STEP1
STEP2
STEP3

448 3-4. Using the hands-free system (for cellular phone)
LC200_OM_OM60F57U_(U)
■System setup items and operation procedure
To enter the menu for each function, follow the steps below.
Press the off-hook switch and select “Setup” using .
Select “System Setup” using .
Select one of the following items using .
●Setting voice guidance volume
“Guidance Vol”
●Displaying the Bluetooth
® device address and name
“Device Name”
●Initializing the system
“Initialize”
STEP1
STEP2
STEP3

449 3-4. Using the hands-free system (for cellular phone)
3
Interior features
LC200_OM_OM60F57U_(U)
Setting or changing the PIN
■Setting a PIN
Select “Set PIN” using a voice command or .
Enter a PIN using a voice command or .
When using , input the code 1 digit at a time.
■Changing the PIN
Select “Set PIN” using a voice command or .
Enter the registered PIN using a voice command or .
Enter a new PIN using a voice command or .
When using , input the code 1 digit at a time.
STEP1
STEP2
STEP1
STEP2
STEP3

450 3-4. Using the hands-free system (for cellular phone)
LC200_OM_OM60F57U_(U)
Locking or unlocking the phone book
Select “Phonebook Lock (Phbk Lock)” or “Phonebook Unlock
(Phbk Unlock)” using a voice command or .
Input the PIN by either of the following methods and select
“Confirm” using a voice command or :
a. Press the talk switch and say the registered PIN.
b. Input a new PIN using .
Setting voice guidance volume
Select “Guidance Vol” using .
Change the voice guidance volume.
To decrease the volume: Turn counterclockwise.
To increase the volume: Turn clockwise.
STEP1
STEP2
STEP1
STEP2
