TOYOTA LAND CRUISER 2013 J200 Owners Manual

411 3-3. Using the Bluetooth
® audio system
3
Interior features
LC200_OM_OM60F57U_(U)
■When using a voice command
For numbers, say a combination of single digits from zero to nine.
Say the command correctly and clearly.
■Situations that the system may not recognize your voice
●When driving on rough roads
●When driving at high speeds
●When air is blowing out of the vents onto the microphone
●When the air conditioning fan emits a loud noise
■Operations that cannot be performed while driving
●Operating the system with
●Registering a portable player to the system
■Changing the passkey
P. 420

412
3-3. Using the Bluetooth® audio system
LC200_OM_OM60F57U_(U)
Operating a Bluetooth® enabled portable player
Selecting an album
To select the desired album, press () or ().
Selecting tracks
Press “” or “” on to select the desired track.

Power Volume
Random playbackRepeat play
Selecting an album
BT•A menu knob Text button
Playback
Selecting a trackPlayback/pause
Search playback

413 3-3. Using the Bluetooth
® audio system
3
Interior features
LC200_OM_OM60F57U_(U)
Playing and pausing tracks
To play or pause a track, press ( ).
Fast-forwarding and rewinding tracks
To fast-forward or rewind, press and hold “
” or “” on
until you hear a beep.
Random playback
Press (RAND).
To cancel, press (RAND) again.
Repeat play
Press (RPT).
To cancel, press (RPT) again.
Scanning tracks
Press .
To cancel, press again.

414 3-3. Using the Bluetooth
® audio system
LC200_OM_OM60F57U_(U)
Switching the display
Press .
Each time the button is pressed, the display changes in the following
order: Elapsed time  Album title  Track title  Artist name
Using the steering wheel audio switches
P. 3 9 8
■Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain
functions may not be available.
■Display
P. 369
■Error messages
“Memory Error”: This indicates a problem in the system.

415
3-3. Using the Bluetooth® audio system
3
Interior features
LC200_OM_OM60F57U_(U)

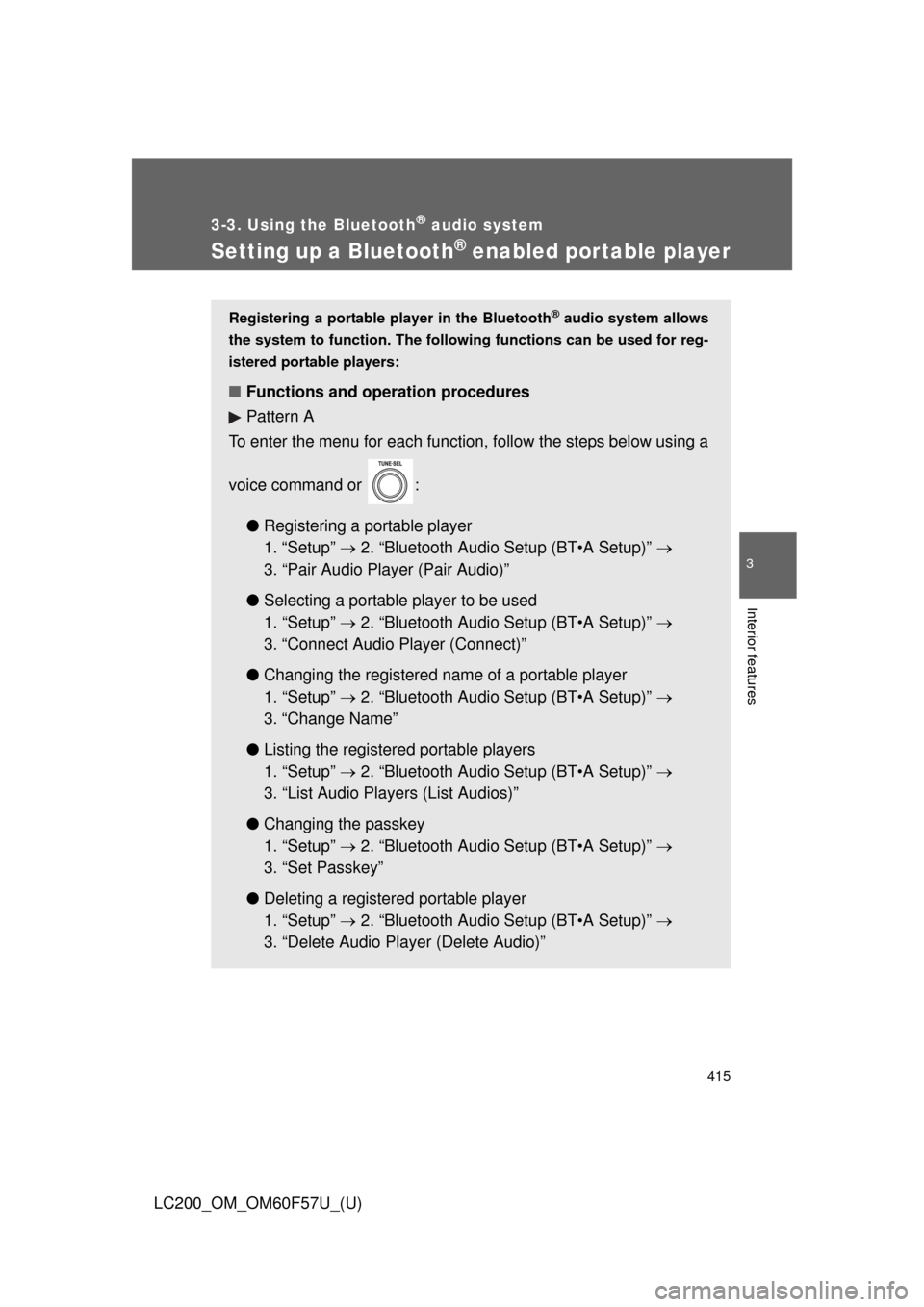

Setting up a Bluetooth® enabled por table player
Registering a portable player in the Bluetooth® audio system allows
the system to function. The following functions can be used for reg-
istered portable players:
■Functions and operation procedures
Pattern A
To enter the menu for each function, follow the steps below using a
voice command or :
●Registering a portable player
1. “Setup”  2. “Bluetooth Audio Setup (BT•A Setup)” 
3. “Pair Audio Player (Pair Audio)”
●Selecting a portable player to be used
1. “Setup”  2. “Bluetooth Audio Setup (BT•A Setup)” 
3. “Connect Audio Player (Connect)”
●Changing the registered name of a portable player
1. “Setup”  2. “Bluetooth Audio Setup (BT•A Setup)” 
3. “Change Name”
●Listing the registered portable players
1. “Setup”  2. “Bluetooth Audio Setup (BT•A Setup)” 
3. “List Audio Players (List Audios)”
●Changing the passkey
1. “Setup”  2. “Bluetooth Audio Setup (BT•A Setup)” 
3. “Set Passkey”
●Deleting a registered portable player
1. “Setup”  2. “Bluetooth Audio Setup (BT•A Setup)” 
3. “Delete Audio Player (Delete Audio)”

416 3-3. Using the Bluetooth
® audio system
LC200_OM_OM60F57U_(U)
Pattern B
Press to select “BT•A MENU”.
Press the talk switch or select “BT•A Setup” using .
Select one of the following functions using a voice com-
mand or .
●Registering a portable player
“Pair Audio Player (Pair Audio)”
●Selecting a portable player to be used
“Connect Audio Player (Connect)”
●Changing the registered name
“Change Name”
●Listing the registered portable players
“List Audio Players (List Audios)”
●Changing the passkey
“Set Passkey”
●Deleting a registered portable player
“Delete Audio Player (Delete Audio)”
STEP1
STEP2
STEP3

417 3-3. Using the Bluetooth
® audio system
3
Interior features
LC200_OM_OM60F57U_(U)
Registering a portable player
Select “Pair Audio Player (Pair Audio)” using a voice command or
, and perform the procedure for registering a portable player.
(P. 408)
Selecting a portable player to be used
Select “Connect Audio Player (Connect)” using a voice com-
mand or .
Pattern A
Select the portable player to be used by either of the following
methods, and select “Confirm” by using a voice command or
:
a. Press the talk switch and say the name of the desired por-
table player.
b. Press the talk switch and say “List Audio Players”. When
the name of the desired portable player is read aloud, press
the talk switch.
Pattern B
Select the portable player to be used using .
STEP1
STEP2
STEP2

418 3-3. Using the Bluetooth
® audio system
LC200_OM_OM60F57U_(U)Pattern A
Press the talk switch and say “From Car” or “From Audio
player”, and select “Confirm” by using a voice command or
.
Pattern B
Select “From Car” or “From Audio”, using .
If “From Car” is selected, the portable player will be automatically
connected whenever the “ENGINE START STOP” switch is in either
ACCESSORY or IGNITION ON mode.
Changing the registered name of a portable player
Select “Change Name” using a voice command or .
Pattern A
Select the name of the portable player to be changed by
either of the following methods, and select “Confirm” using a
voice command or :
a. Press the talk switch and say the name of desired portable
player.
b. Press the talk switch and say “List Audio Players”. When
the name of the desired portable player is read aloud, press
the talk switch.
STEP3
STEP3
STEP1
STEP2

419 3-3. Using the Bluetooth
® audio system
3
Interior features
LC200_OM_OM60F57U_(U)Pattern B
Select the desired portable player name to be changed using
.
Press the talk switch or select “Record Name” using ,
and say the new name.
Select “Confirm” using a voice command or .
Listing the registered portable players
Select “List Audio Players (List Audios)” using a voice command or
. The list of registered portable players will be read aloud.
When listing is complete, the system returns to “BT•A Setup”.
Pressing the talk switch while the name of a portable player is being
read aloud selects the portable player, and the following functions will
become available:
●Selecting a portable player: “Connect Audio Player (Connect)”
●Changing a registered name: “Change Name”
●Deleting a portable player: “Delete Audio Player (Delete Audio)”
STEP2
STEP3
STEP4

420 3-3. Using the Bluetooth
® audio system
LC200_OM_OM60F57U_(U)
Changing the passkey
Select “Set Passkey” using a voice command or .
Pattern A
Press the talk switch, say a 4 to 8-digit number, and select
“Confirm” using a voice command or .
Pattern B
Select a 4 to 8-digit number using .
The number should be input 1 digit at a time.
When the entire number to be registered as a passkey has
been input, press again.
If the number to be registered has 8 digits, pressing of the knob is
not necessary.
Deleting a registered portable player
Select “Delete Audio Player (Delete Audio)” using a voice
command or .
STEP1
STEP2
STEP2
STEP3
STEP1
