5
When trouble arises
631 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)
Other messages
If the following message is displayed, take appropriate action and
confirm that the message has disappeared. (P. 245)
MessageCorrection procedure
Select the four-wheel drive control switch in L4
and shift the shift lever to “D” or “R”.
Confirm the operating conditions.
Confirm the operating conditions to operate
Turn Assist function.
Turn on the Crawl Control switch to operate
Turn Assist function.

632 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)
■Warning message in vehicle-to-vehicle distance control mode of the
dynamic radar cruise control (if equipped)
In the following cases, the warning message may not be displayed even if
vehicle-to-vehicle distance decreases:
●When your vehicle and the vehicle ahead are traveling at the same
speed or the vehicle ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed
■Resetting the tire pressure warning data
After adjusting the tire inflation pressure, be sure to initialize the data.
(P. 545)
If the message remains on, the system may have malfunctioned. Have the
vehicle inspected by your Toyota dealer as soon as possible.

5
When trouble arises
633
5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)

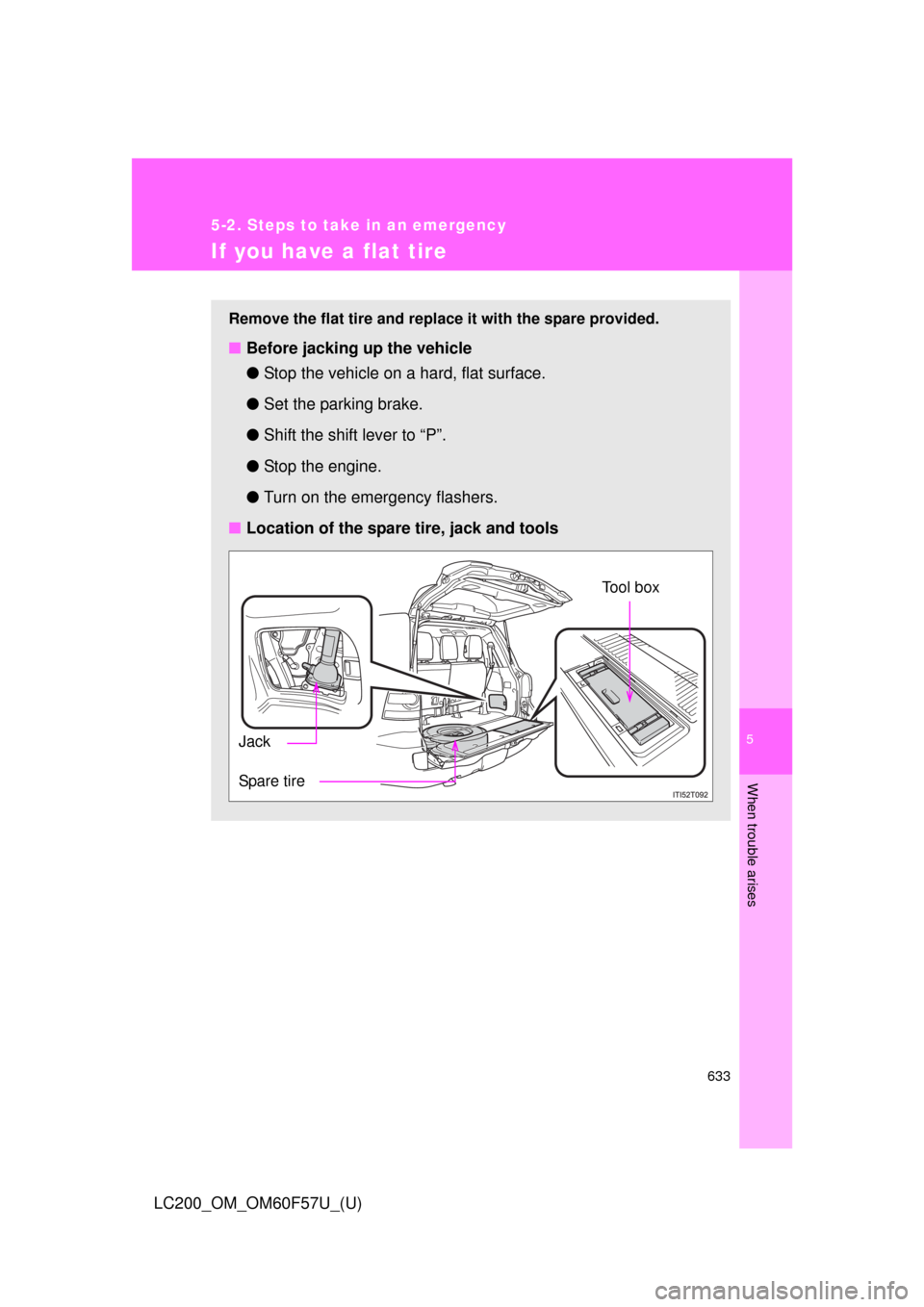

If you have a flat tire
Remove the flat tire and replace it with the spare provided.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to “P”.
●Stop the engine.
●Turn on the emergency flashers.
■Location of the spare tire, jack and tools
Tool box
Spare tire Jack

634 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)
Taking out the jack
Remove the cover.
Unhook the rubber band and
take out the jack.
Loosen
Tighten
Loosen and remove the jack.
STEP1
STEP2

5
When trouble arises
635 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)
Taking out the tool box
Remove the cover.
Take out the tool box.
STEP1
STEP2

636 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)
Taking out the spare tire
Assembling the jack handle.
Remove the jack handle and the jack extension bar from the tool
box and assemble by following these steps.
Loosen the screw using a
screwdriver.
Assemble the jack handle and
the jack handle extension bar
and tighten the screw.
Check that the screw is firmly
tightened.
STEP1

5
When trouble arises
637 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)Open the cover.
Insert the jack handle extension
into the lowering screw.
Lower
Raise
Place a rag under the jack han-
dle extension to protect the
back door.
Lower the spare tire completely
to the ground.
STEP2
STEP3
STEP4

638 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)Pull out the spare tire and
remove the holding bracket.
Replacing a flat tire
Chock the tires.
STEP5
STEP1
Flat tireWheel chock position
FrontLeft-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
RearLeft-hand side In front of the front right-hand side tire
Right-hand side In front of the front left-hand side tire

5
When trouble arises
639 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)Pry off the wheel ornament,
using the beveled end of the
wheel ornament remover as
shown.
Slightly loosen the wheel nuts
(one turn).
STEP2
STEP3

640 5-2. Steps to take in an emergency
LC200_OM_OM60F57U_(U)Assembling the jack handle.
Remove the jack handle, jack extension bar and jack handle bar
from the tool box and assemble by following these steps.
Loosen the bolts and the
screw using either the jack
handle or a screwdriver.
Assemble the jack handle
extension bar and the jack
handle bar and tighten the
bolts.
Check that the bolts are firmly
tightened.
Assemble the jack handle
extension bar and the jack
handle and tighten the screw.
Check that the screw is firmly
tightened.
STEP4
