fuel TOYOTA LAND CRUISER 2013 J200 Owners Manual
[x] Cancel search | Manufacturer: TOYOTA, Model Year: 2013, Model line: LAND CRUISER, Model: TOYOTA LAND CRUISER 2013 J200Pages: 720, PDF Size: 21.46 MB
Page 2 of 720
TABLE OF CONTENTSIndex
2
LC200_OM_OM60F57U_(U)
1-1. Key information
Keys ..................................... 30
1-2. Opening, closing and
locking the doors
Smart key system................. 32
Wireless remote control ....... 44
Side doors ............................ 46
Back door ............................. 51
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats ........................... 57
Rear seats ............................ 59
Driving position memory
system ................................ 68
Head restraints ..................... 72
Seat belts ............................. 76
Steering wheel ..................... 86
Inside rear view mirror.......... 88
Outside rear view mirrors ..... 901-4. Opening and closing the
windows and moon roof
Power windows..................... 93
Moon roof ............................. 97
1-5. Refueling
Opening the fuel tank
cap .................................... 101
1-6. Theft deterrent system
Engine immobilizer
system .............................. 105
Alarm .................................. 107
1-7. Safety information
Correct driving posture ....... 111
SRS airbags ....................... 113
Front passenger occupant
classification system ......... 129
Child restraint systems ....... 135
Installing child restraints ..... 140
1Before driving
For vehicles with a navigation system, refer to the “Navigation System Owner’s
Manual” for information regarding the equipment listed below.
• Navigation system
• Air conditioning
• Climate control• Audio/video system
• Rear view monitor system
Page 6 of 720
TABLE OF CONTENTSIndex
6
LC200_OM_OM60F57U_(U)
5-1. Essential information
Emergency flashers ........... 598
If your vehicle needs
to be towed ...................... 599
If you think something
is wrong ............................ 604
Fuel pump shut off
system .............................. 605
5-2. Steps to take in an emergency
If a warning light turns
on or a warning
buzzer sounds... .............. 606
If a warning message is
displayed .......................... 617
If you have a flat tire ........... 633
If the engine will not
start .................................. 647
If the shift lever cannot be
shifted from P ................... 649
If you lose your keys .......... 650
If the electronic key does not
operate properly ............... 651
If the battery is
discharged ....................... 654
If your vehicle overheats .... 658
If the vehicle becomes
stuck................................. 661
If your vehicle has to be
stopped in an
emergency ....................... 6636-1. Specifications
Maintenance data
(fuel, oil level, etc.) ........... 666
Fuel information .................. 676
Tire information................... 680
6-2. Customization
Customizable features ........ 692
6-3. Initialization
Items to initialize ................. 701
5When trouble arises6Vehicle specifications
Page 9 of 720
9
LC200_OM_OM60F57U_(U)
Tires
●Rotation
●Replacement
●Inflation pressure
●Information
P. 544
P. 633
P. 553
P. 680
Rear window defogger P. 351
Rear window wiper
P. 208Stop/tail lights P. 196
Side doors P. 46
Rear turn signal lights P. 176
License plate lights
P. 196
Roof luggage carrier P. 302
Back door P. 51
: If equipped
Fuel filler door
P. 101
Rear side marker lights P. 196
Page 14 of 720
14
LC200_OM_OM60F57U_(U)
Pictorial indexInstrument panel
Headlight switch
Turn signal lever
Fog light switch P. 196
P. 176
P. 201
Windshield wipers and washer switch
Rear window wiper and washer switch P. 202
P. 208
Gauges and meters P. 179
Glove box P. 467
Fuel filler door opener P. 101
Hood opener P. 527
SRS knee airbags P. 113
Tire pressure warning reset switch P. 544
Cup holders P. 470
Multi-information display P. 189
Bottle holder P. 472
Page 22 of 720
22
LC200_OM_OM60F57U_(U)
For your information
Main Owner’s Manual
Please note that this manual applies to all models and explains all equip-
ment, including options. Therefore, you may find some explanations for
equipment not installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustration may differ
from your vehicle in terms of equipment.
Noise from under vehicle after turning off the engine
Approximately five hours after the engine is turned off, you may hear sound
coming from under the vehicle for several minutes. This is the sound of a fuel
evaporation leakage check and, it does not indicate a malfunction.
Accessories, spare parts and modification of your Toyota
A wide variety of non-genuine spare parts and accessories for Toyota vehi-
cles are currently available in the market. You should know that Toyota does
not warrant these products and is not responsible for their performance,
repair, or replacement, or for any damage they may cause to, or adverse
effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non-genuine Toyota products. Mod-
ification with non-genuine Toyota products could affect its performance,
safety or durability, and may even violate governmental regulations. In addi-
tion, damage or performance problems resulting from the modification may
not be covered under warranty.
Page 23 of 720
23
LC200_OM_OM60F57U_(U)
Installation of a mobile two-way radio system
The installation of a mobile two-way radio system in your vehicle could affect
electronic systems such as:
●Multiport fuel injection system/sequential multiport fuel injection system
●Cruise control system
●Dynamic radar cruise control system
●Anti-lock brake system
●SRS airbag system
●Seat belt pretensioner system
Be sure to check with your Toyota dealer for precautionary measures or spe-
cial instructions regarding installation of a mobile two-way radio system.
Page 29 of 720
Before driving1
29
LC200_OM_OM60F57U_(U)
1-1. Key information
Keys ................................... 30
1-2. Opening, closing and
locking the doors
Smart key system .............. 32
Wireless remote control ..... 44
Side doors .......................... 46
Back door ........................... 51
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats ......................... 57
Rear seats.......................... 59
Driving position memory
system ............................. 68
Head restraints................... 72
Seat belts ........................... 76
Steering wheel ................... 86
Inside rear view mirror ....... 88
Outside rear view
mirrors.............................. 901-4. Opening and closing the
windows and moon roof
Power windows .................. 93
Moon roof ........................... 97
1-5. Refueling
Opening the fuel tank
cap ................................. 101
1-6. Theft deterrent system
Engine immobilizer
system ........................... 105
Alarm................................ 107
1-7. Safety information
Correct driving posture..... 111
SRS airbags ..................... 113
Front passenger occupant
classification system ...... 129
Child restraint systems..... 135
Installing child
restraints ........................ 140
Page 101 of 720
101
1
Before driving
LC200_OM_OM60F57U_(U)
1-5. Refueling

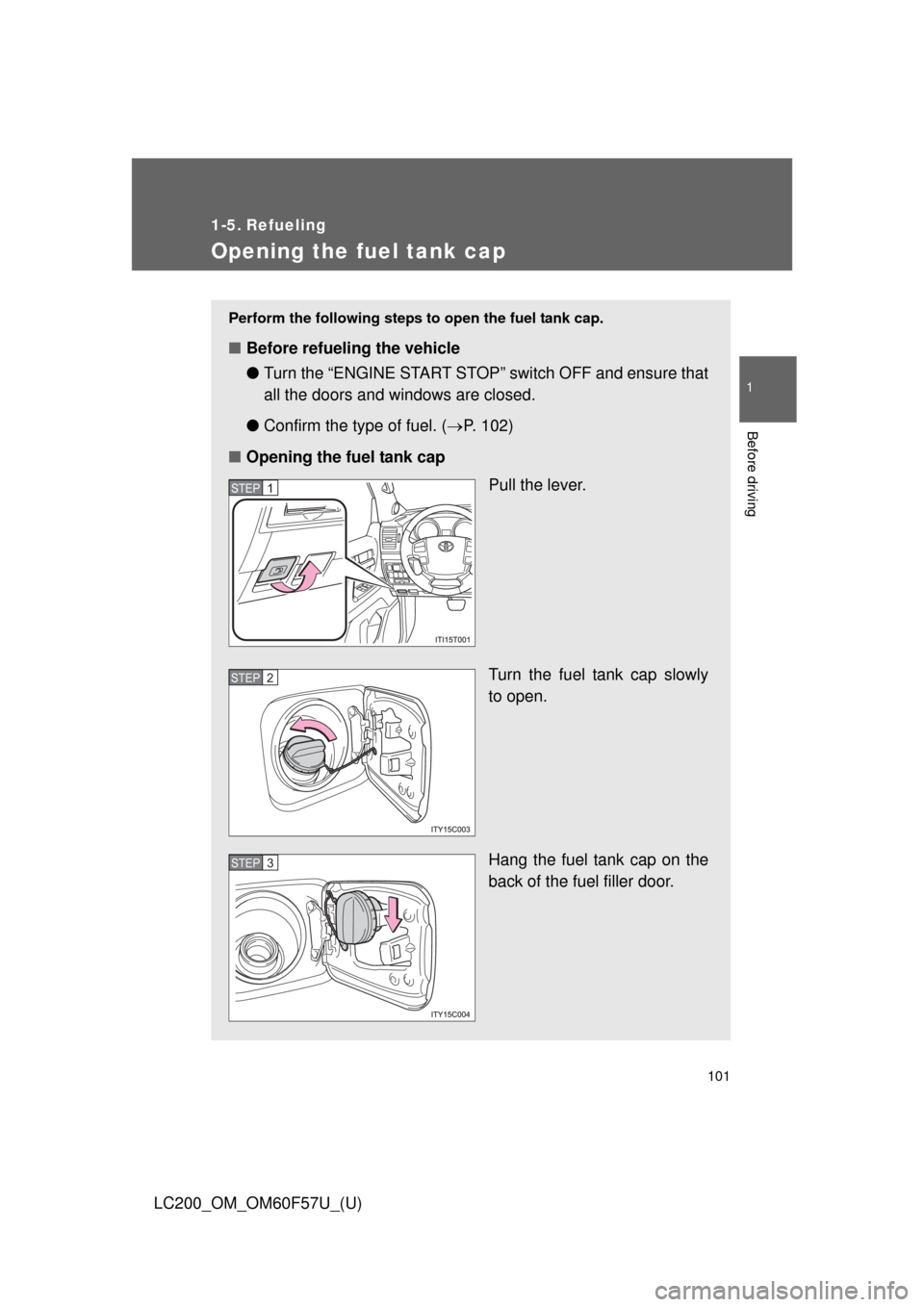

Opening the fuel tank cap
Perform the following steps to open the fuel tank cap.
■Before refueling the vehicle
●Turn the “ENGINE START STOP” switch OFF and ensure that
all the doors and windows are closed.
●Confirm the type of fuel. (P. 102)
■Opening the fuel tank cap
Pull the lever.
Turn the fuel tank cap slowly
to open.
Hang the fuel tank cap on the
back of the fuel filler door.
STEP1
STEP2
STEP3
Page 102 of 720
102 1-5. Refueling
LC200_OM_OM60F57U_(U)
Closing the fuel tank cap
When replacing the fuel tank
cap, turn it until a clicking sound
is heard.
After releasing your hand, the cap
will turn slightly to the opposite
direction.
■Fuel types
Use unleaded gasoline. (Octane Rating 87 [Research Octane Number 91] or
higher)
Page 103 of 720
103 1-5. Refueling
1
Before driving
LC200_OM_OM60F57U_(U)
CAUTION
■Refueling the vehicle
Observe the following precautions while refueling the vehicle.
Failure to do so, may result in death or serious injury.
●Touch the vehicle or some other metal surface to discharge any static
electricity.
Sparks resulting from discharging static electricity may cause the fuel
vapors to ignite.
●Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap.
In hot weather, pressurized fuel may spray out the filler neck and cause
injury.
●Do not allow anyone that has not discharged static electricity from their
bodies to come close to an open fuel tank.
●Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
●Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
●Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
■When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Failure to do so may cause a fire or other incident which may result
in death or serious injury.
