TOYOTA LAND CRUISER 2013 J200 Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

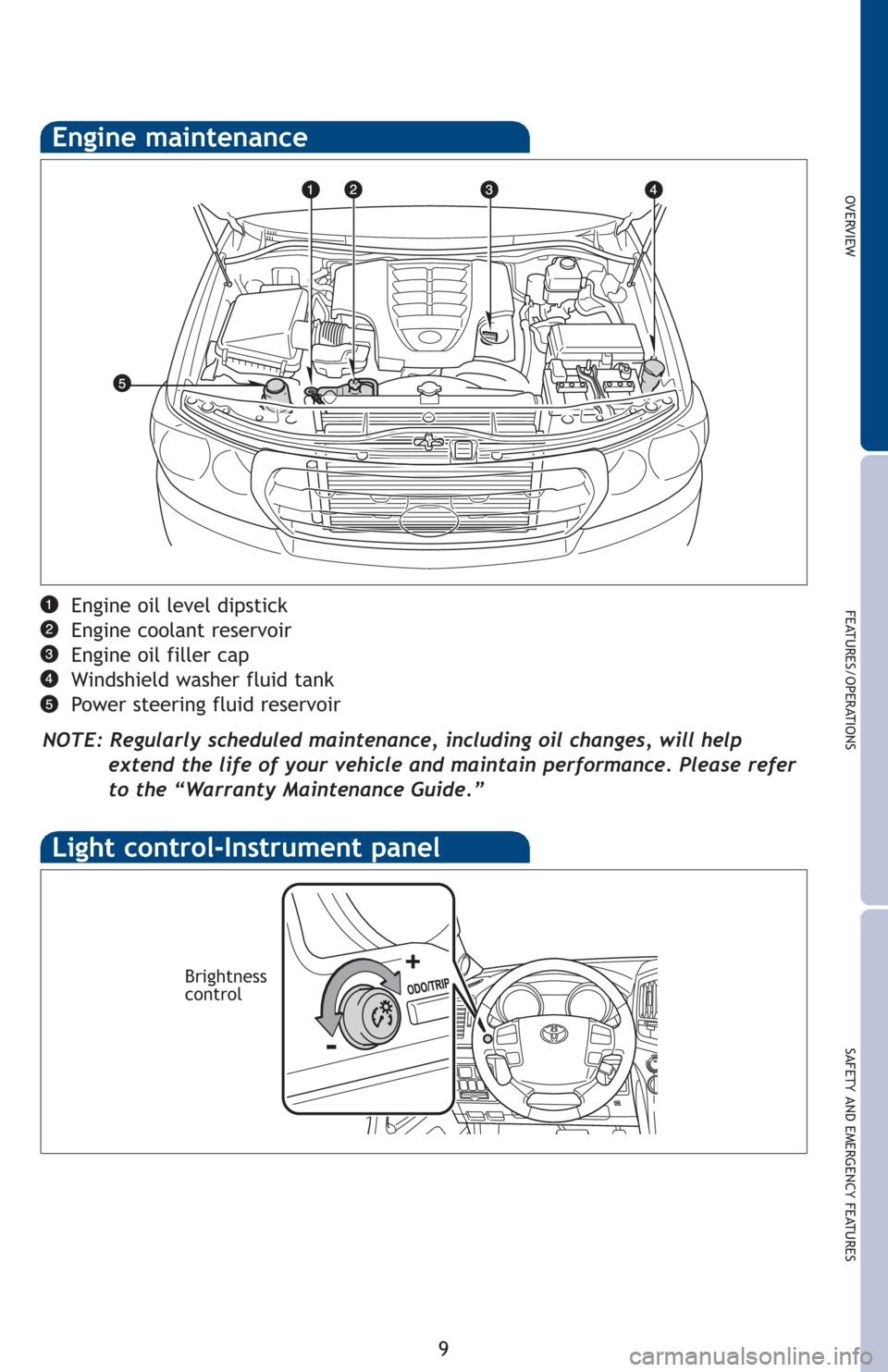

9 Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
Windshield washer fluid tank
Power steering fluid reservoir
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
Engine maintenance
Light control-Instrument panel
Brightness
control
-
+

10
FEATURES/OPERATIONS

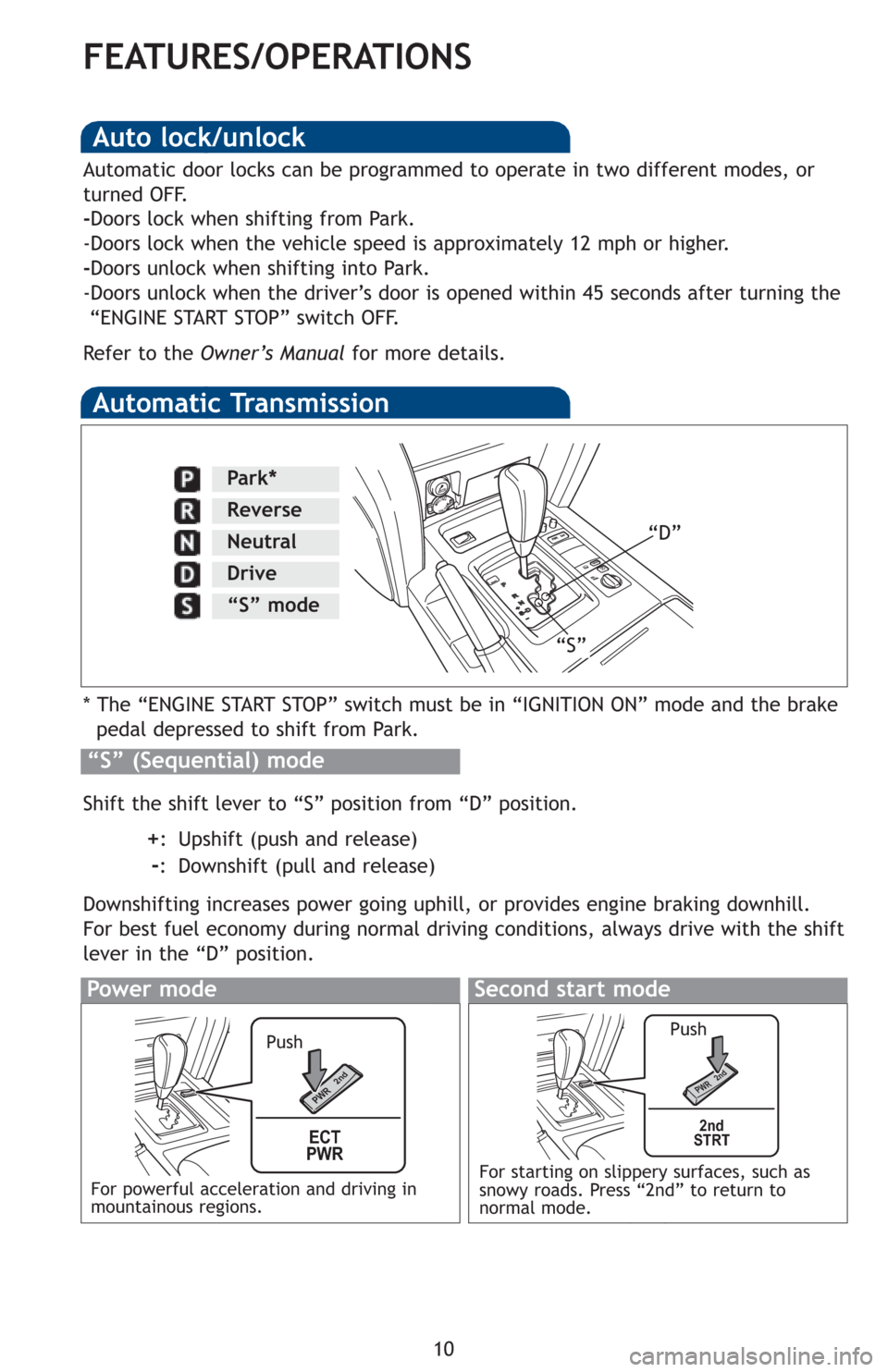

Automatic Transmission
* The “ENGINE START STOP” switch must be in “IGNITION ON” mode and the brake
pedal depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+: Upshift (push and release)
-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
“S” (Sequential) mode

Park*
Reverse
Neutral
Drive
“S” mode
“S”“D”
Auto lock/unlock
Automatic door locks can be programmed to operate in two different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 45 seconds after turning the
“ENGINE START STOP” switch OFF.
Refer to the Owner’s Manualfor more details.
R W Pd n 2
ECT
PWR
R
W Pd n 2
2nd
STRT
R W Pd n
2R W Pd n 2
Power modeSecond start mode
For powerful acceleration and driving in
mountainous regions.For starting on slippery surfaces, such as
snowy roads. Press “2nd” to return to
normal mode. PushPush

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11

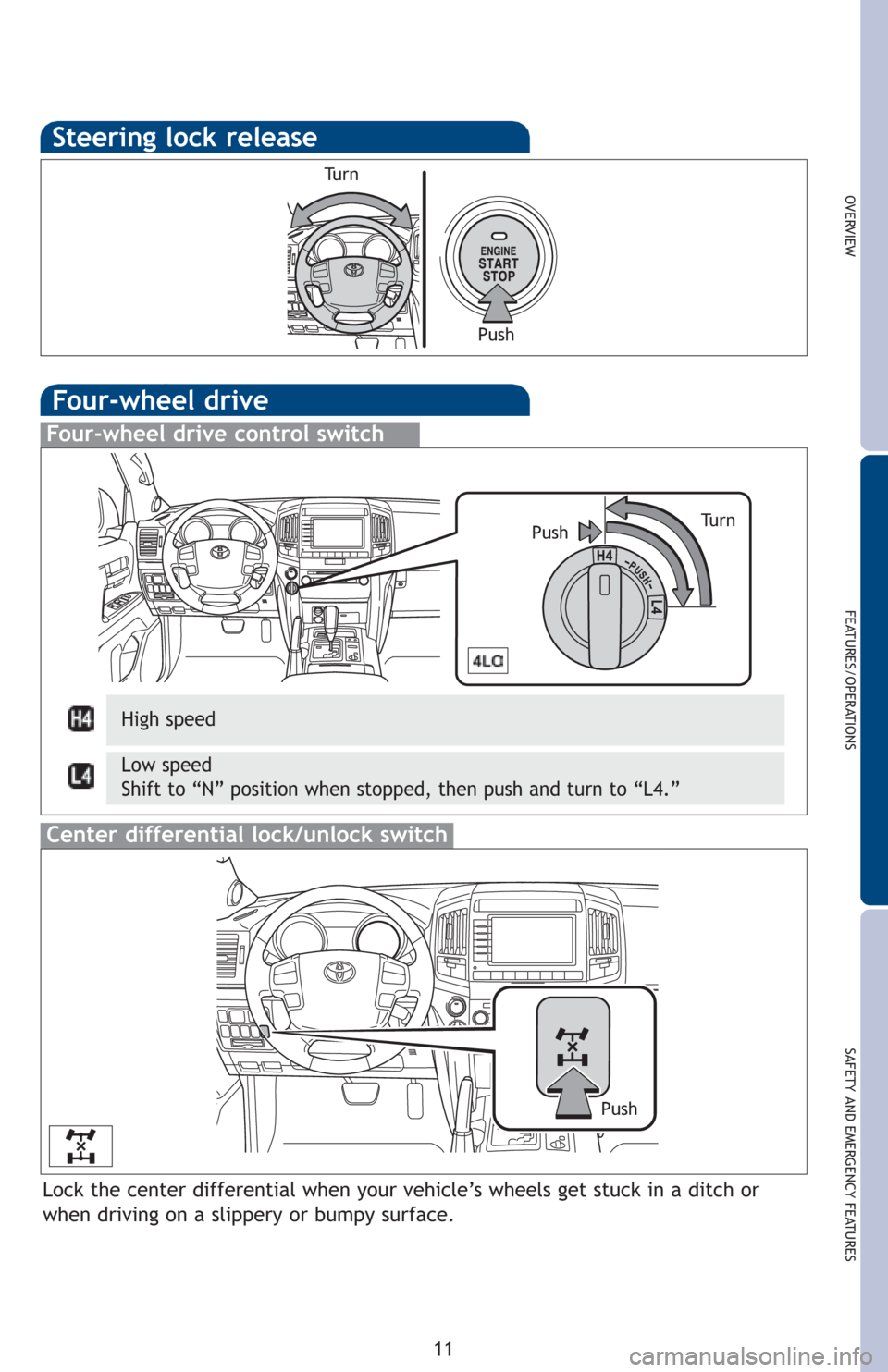

Steering lock release
Tu r n
Push
4
4
Four-wheel drive
High speed
Low speed
Shift to “N” position when stopped, then push and turn to “L4.”
Lock the center differential when your vehicle’s wheels get stuck in a ditch or
when driving on a slippery or bumpy surface.
Tu r n
Four-wheel drive control switch
Push
Center differential lock/unlock switch
Push

12
FEATURES/OPERATIONS

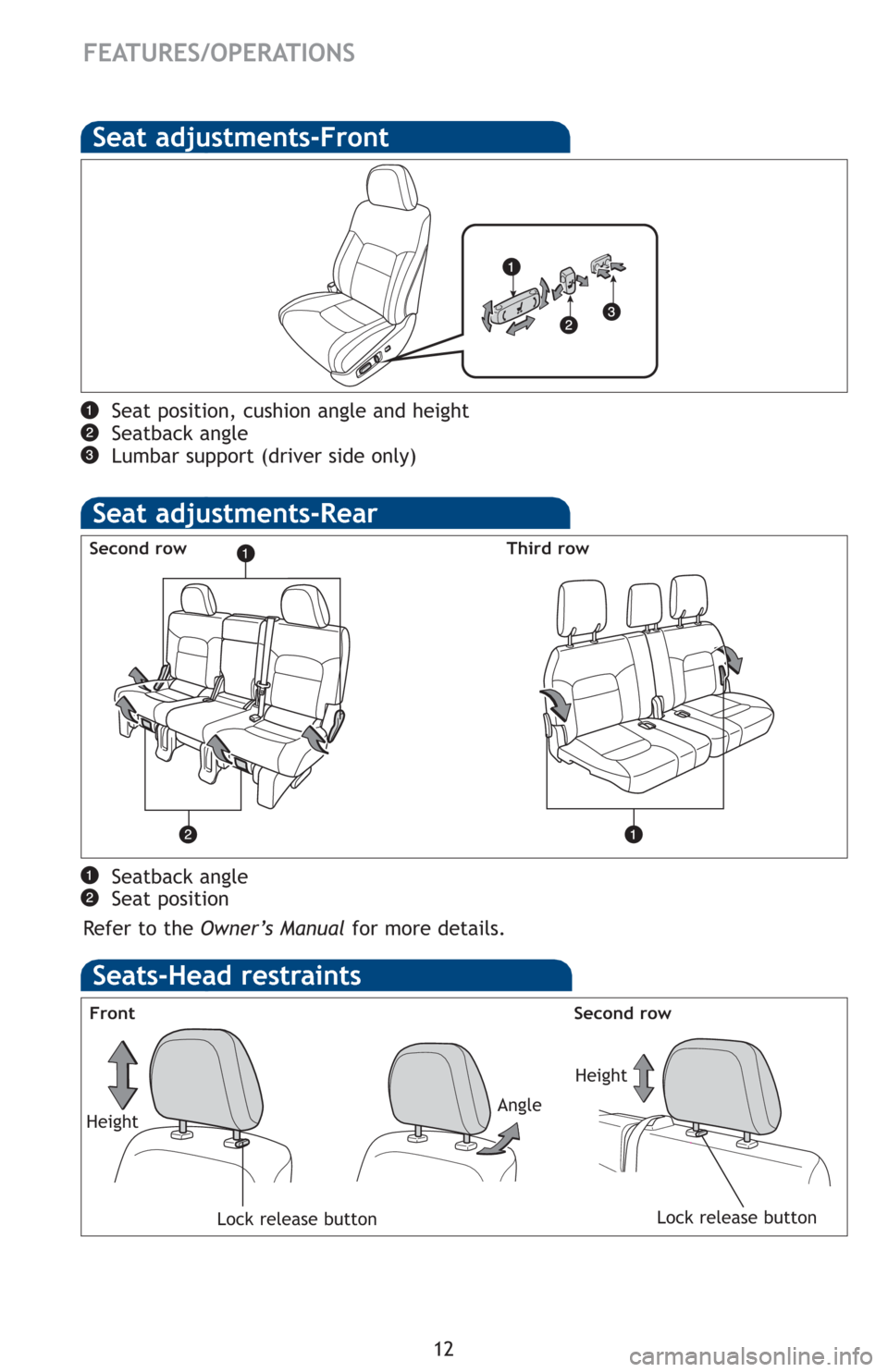

Seat adjustments-Rear
Seatback angle
Seat position
Refer to the Owner’s Manualfor more details.
Seat adjustments-Front
Seat position, cushion angle and height
Seatback angle
Lumbar support (driver side only)
Second row Third row
Seats-Head restraints
Front Second row
Lock release buttonLock release button
HeightAngle
Height

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
13

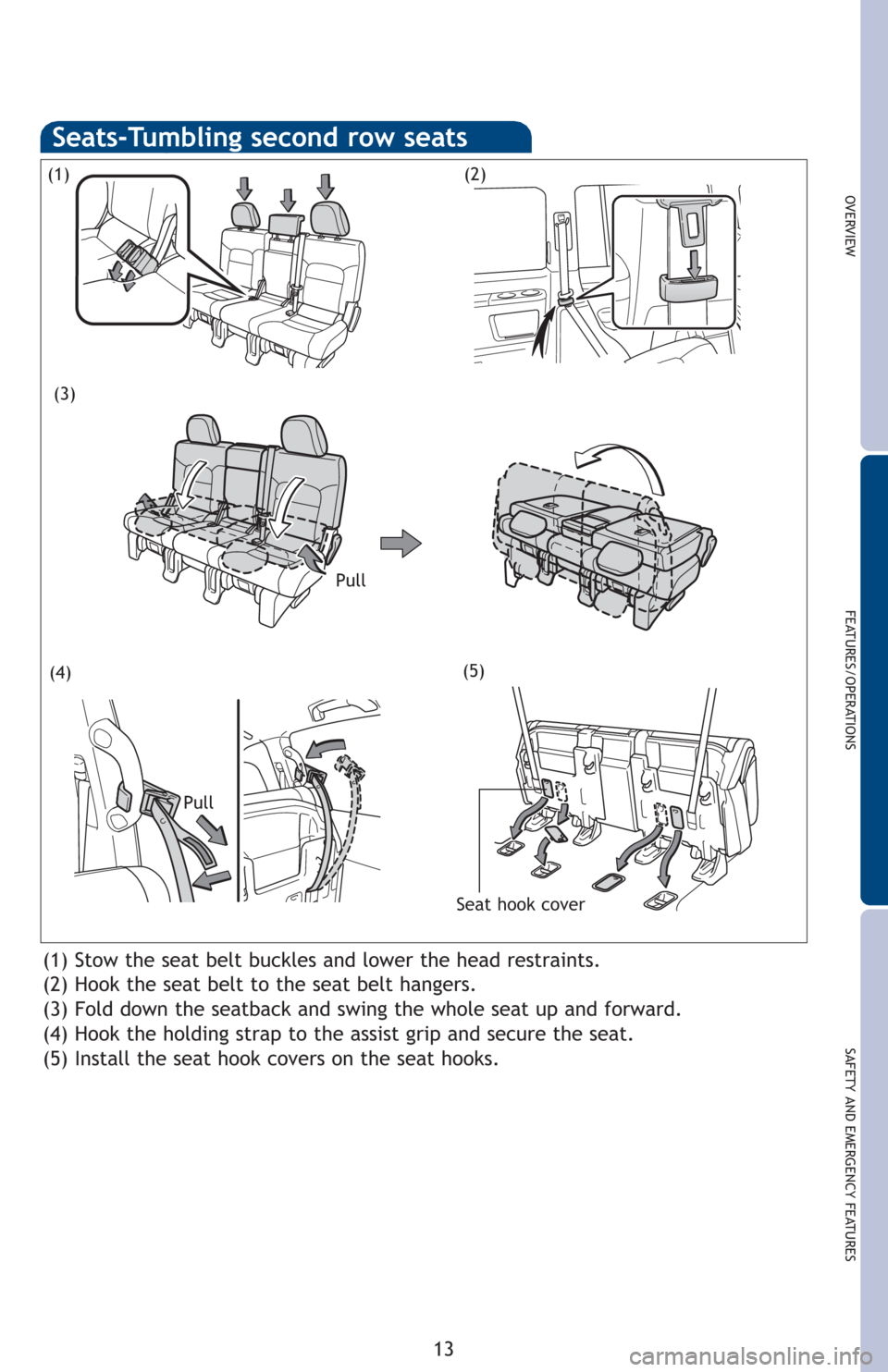

(1) Stow the seat belt buckles and lower the head restraints.
(2) Hook the seat belt to the seat belt hangers.
(3) Fold down the seatback and swing the whole seat up and forward.
(4) Hook the holding strap to the assist grip and secure the seat.
(5) Install the seat hook covers on the seat hooks.
(1)
(5)
(3)
(2)
Seats-Tumbling second row seats
(4)
Pull
Seat hook cover
Pull

14
FEATURES/OPERATIONS

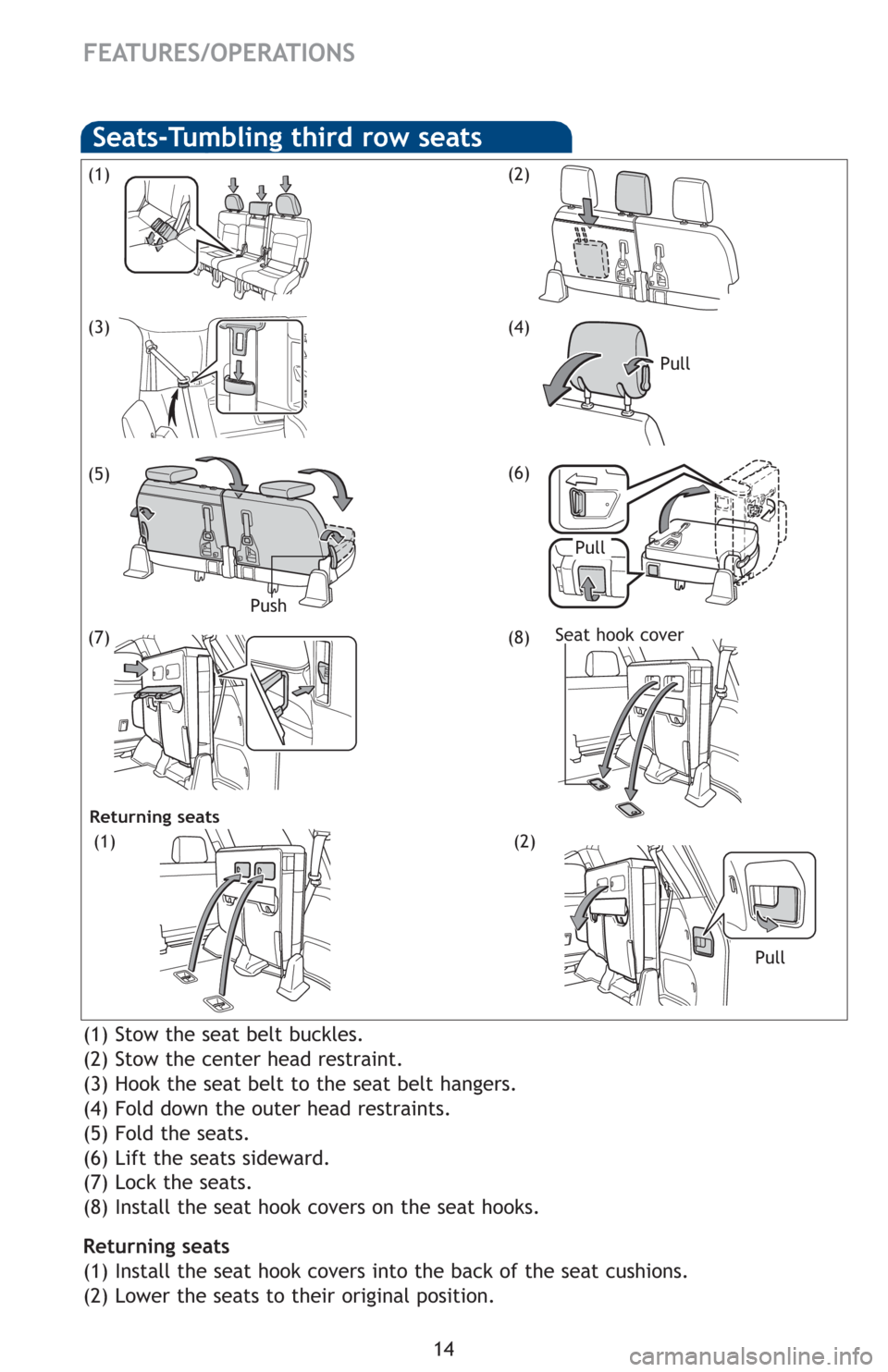

(1) Stow the seat belt buckles.
(2) Stow the center head restraint.
(3) Hook the seat belt to the seat belt hangers.
(4) Fold down the outer head restraints.
(5) Fold the seats.
(6) Lift the seats sideward.
(7) Lock the seats.
(8) Install the seat hook covers on the seat hooks.
(1)
(5)
(3)
(2)
Seats-Tumbling third row seats
(4)
Push
(6)
Pull
(7)(8)Seat hook cover
Pull Pull
Returning seats
(1)(2)
Returning seats
(1) Install the seat hook covers into the back of the seat cushions.
(2) Lower the seats to their original position.

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
15

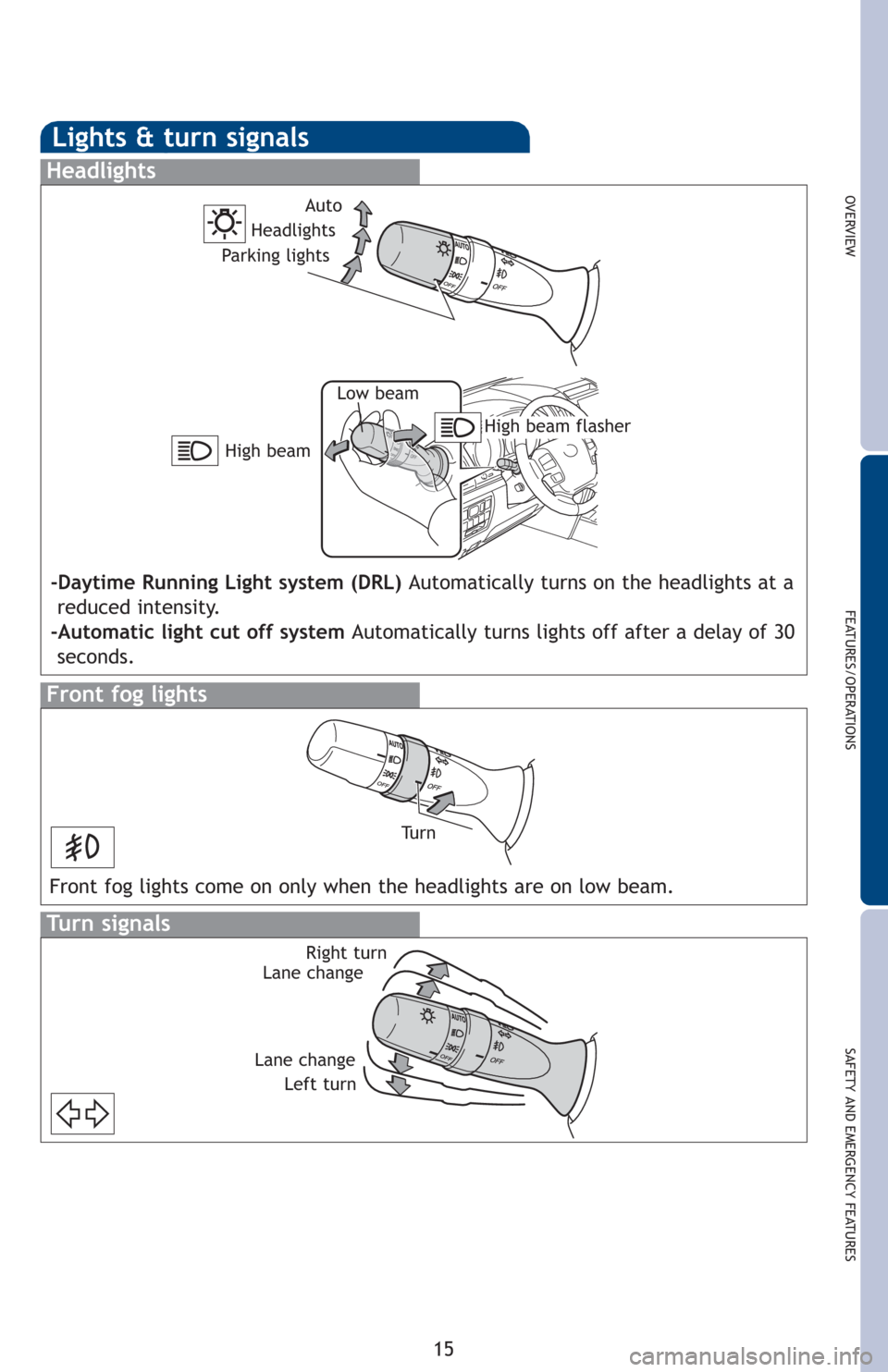

Lights & turn signals
Turn signals
Headlights
High beam flasher Low beam
Front fog lights
-Daytime Running Light system (DRL) Automatically turns on the headlights at a
reduced intensity.
-Automatic light cut off system Automatically turns lights off after a delay of 30
seconds.
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change
Left turn High beam
Auto
Headlights
Parking lights
Tu r n

16

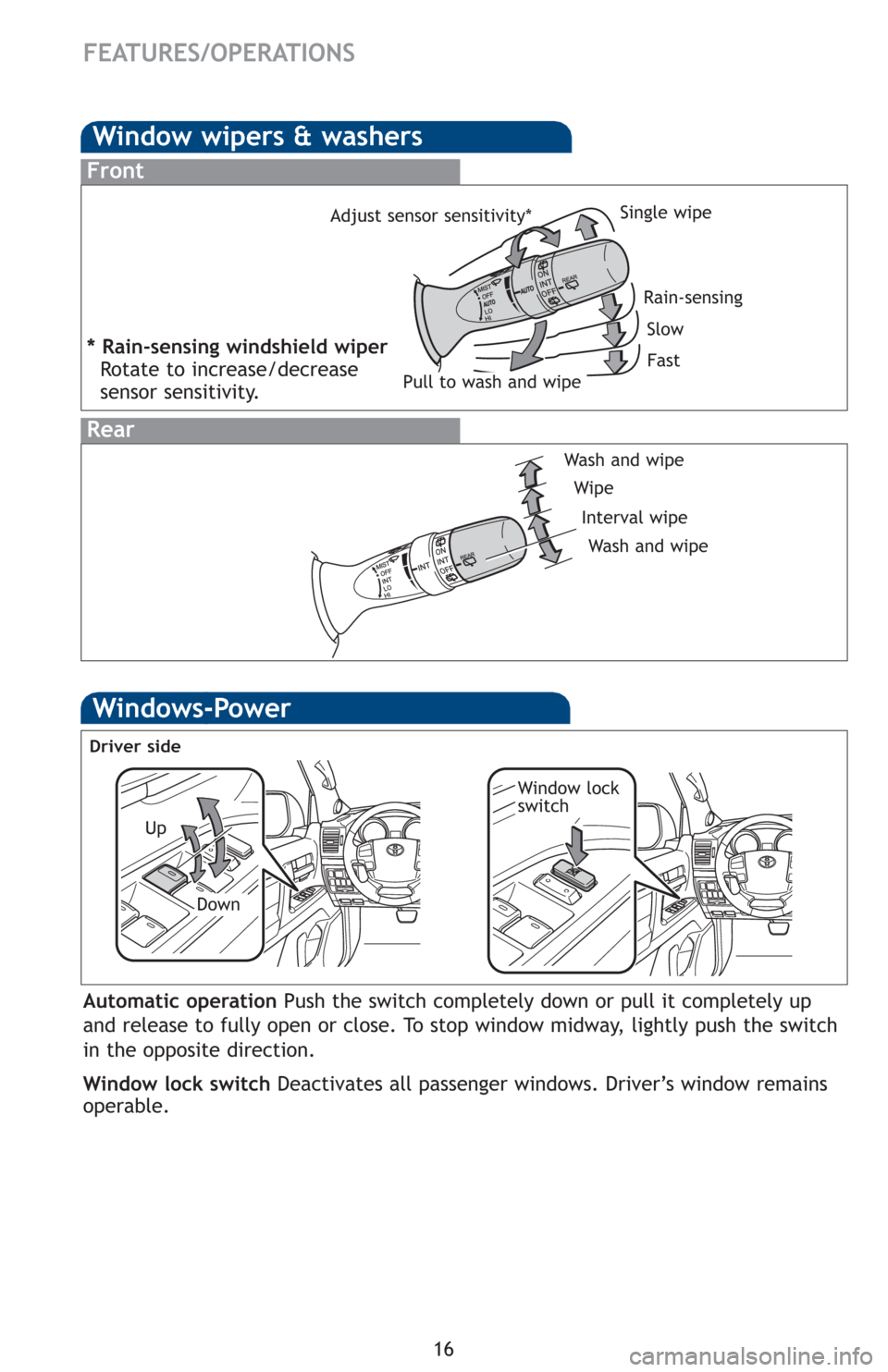

Window wipers & washers
FEATURES/OPERATIONS
Windows-Power
Up
Down
Driver side
Window lock
switch
Automatic operation Push the switch completely down or pull it completely up
and release to fully open or close. To stop window midway, lightly push the switch
in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Front
Rear
Wash and wipe
Wipe
Interval wipe
Wash and wipe
* Rain-sensing windshield wiper
Rotate to increase/decrease
sensor sensitivity.
Rain-sensing
Slow
FastPull to wash and wipe
Single wipe
Adjust sensor sensitivity*

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
17

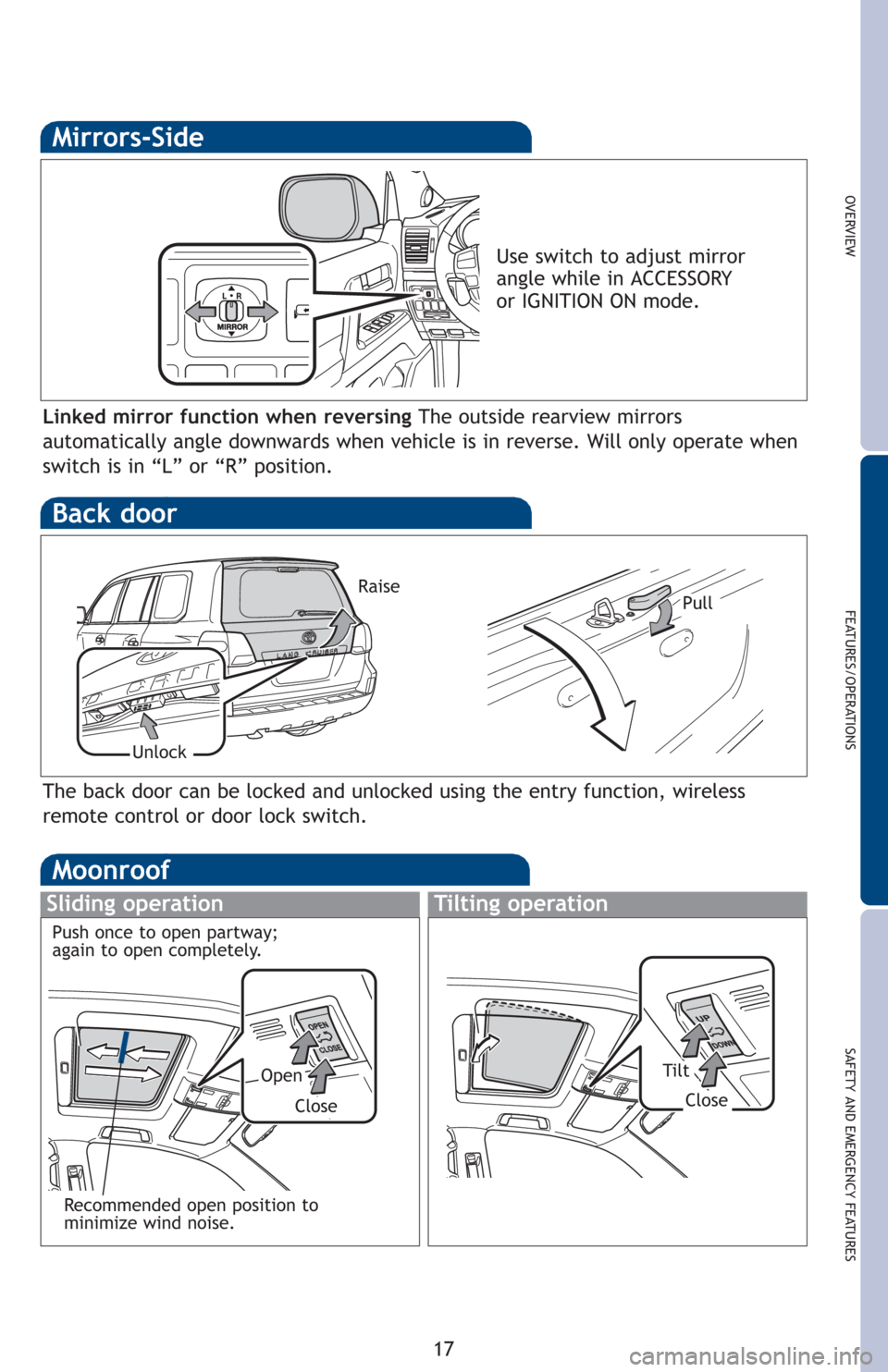

Back door
Pull
Unlock
The back door can be locked and unlocked using the entry function, wireless
remote control or door lock switch.
Raise
Moonroof
Sliding operationTilting operation
OpenTilt
CloseClose
Recommended open position to
minimize wind noise. Push once to open partway;
again to open completely.
Mirrors-Side
Linked mirror function when reversingThe outside rearview mirrors
automatically angle downwards when vehicle is in reverse. Will only operate when
switch is in “L” or “R” position.Use switch to adjust mirror
angle while in ACCESSORY
or IGNITION ON mode.

18
FEATURES/OPERATIONS

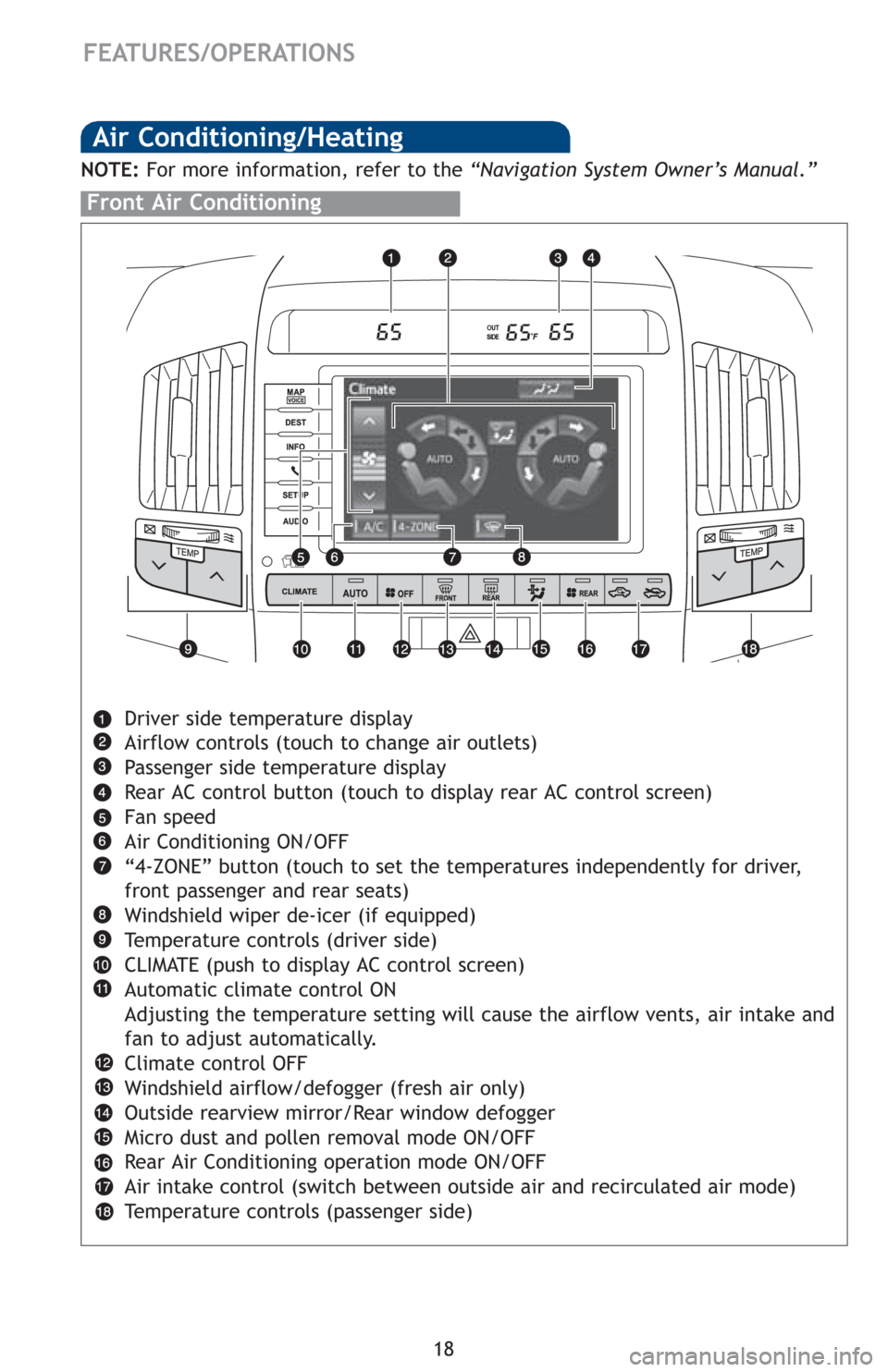

Air Conditioning/Heating
Front Air Conditioning
Driver side temperature display
Airflow controls (touch to change air outlets)
Passenger side temperature display
Rear AC control button (touch to display rear AC control screen)
Fan speed
Air Conditioning ON/OFF
“4-ZONE” button (touch to set the temperatures independently for driver,
front passenger and rear seats)
Windshield wiper de-icer (if equipped)
Temperature controls (driver side)
CLIMATE (push to display AC control screen)
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake and
fan to adjust automatically.
Climate control OFF
Windshield airflow/defogger (fresh air only)
Outside rearview mirror/Rear window defogger
Micro dust and pollen removal mode ON/OFF
Rear Air Conditioning operation mode ON/OFF
Air intake control (switch between outside air and recirculated air mode)
Temperature controls (passenger side)
NOTE:For more information, refer to the “Navigation System Owner’s Manual.”
