Page 21 of 36
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
19
Rear Air Conditioning
Temperature selector (left side)
Temperature selector (right side)
Climate control OFF
Airflow vent
Fan speed
Automatic climate control ON
Seat heaters and ventilators
Front seats
Push knob to pop the controller out. Turn
clockwise for heater; counterclockwise
for airflow.
Push
Second seats
AUTO TEMP
OFFTEMP
HI
LO
OFF
HI
LO
OFF
HI
LO
OFF
HI
LOLeft
second seatRight
second seat
OFF
Blows air from the seat
Turns the seat heater on
Page 22 of 36
20
FEATURES/OPERATIONS

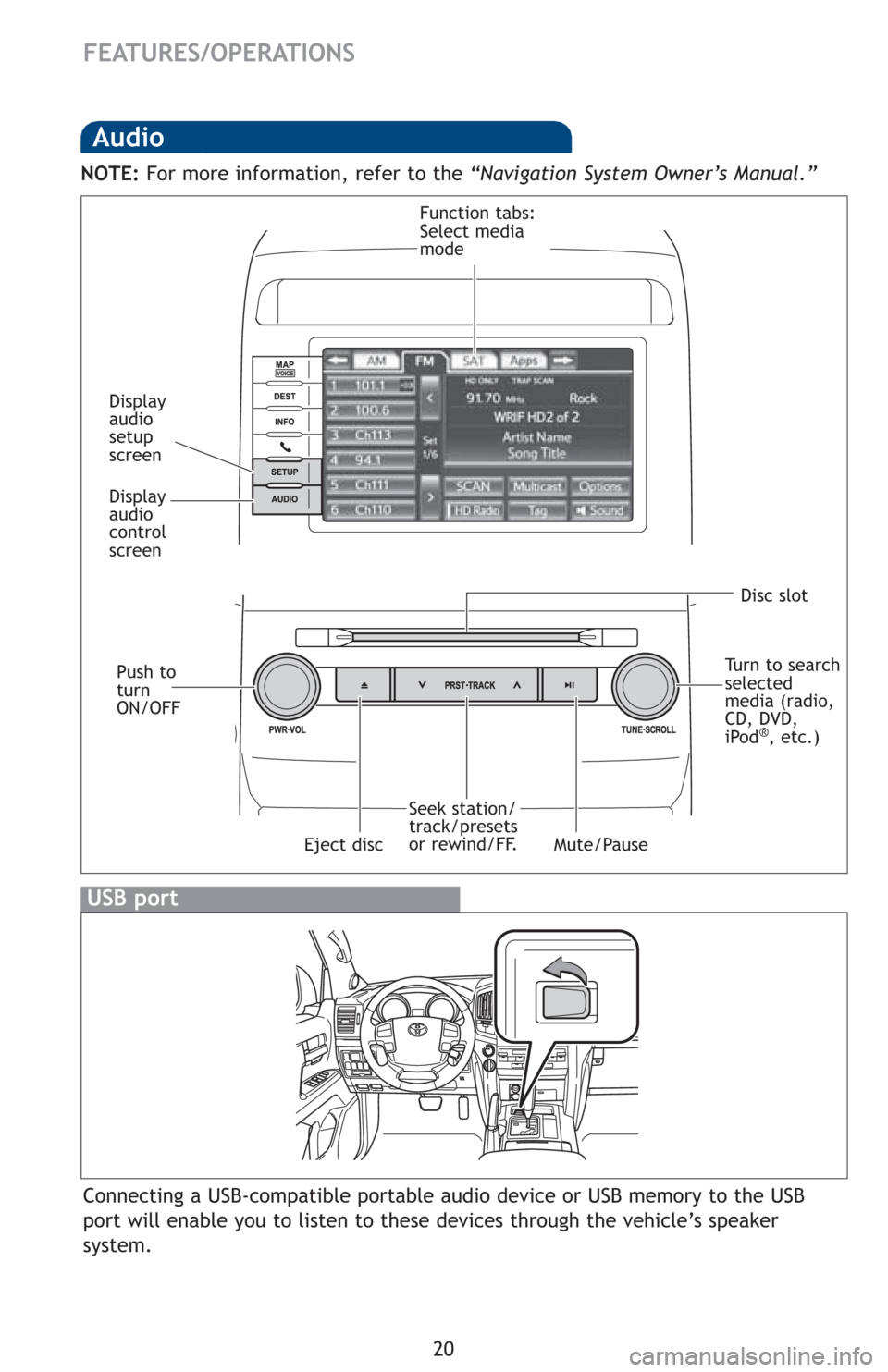

Audio
USB port
Connecting a USB-compatible portable audio device or USB memory to the USB
port will enable you to listen to these devices through the vehicle’s speaker
system.
Push to
turn
ON/OFF
Eject disc Mute/PauseDisc slotTurn to search
selected
media (radio,
CD, DVD,
iPod
®, etc.) Display
audio
control
screenDisplay
audio
setup
screen
Function tabs:
Select media
mode
NOTE:For more information, refer to the “Navigation System Owner’s Manual.”
Seek station/
track/presets
or rewind/FF.
Page 23 of 36
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
21“ ”
Use to search within the
selected audio medium
(radio, CD, iPod
®, etc.).
“MODE”
Push to turn audio ON and to
select an audio mode. Push and
hold to turn audio system OFF.

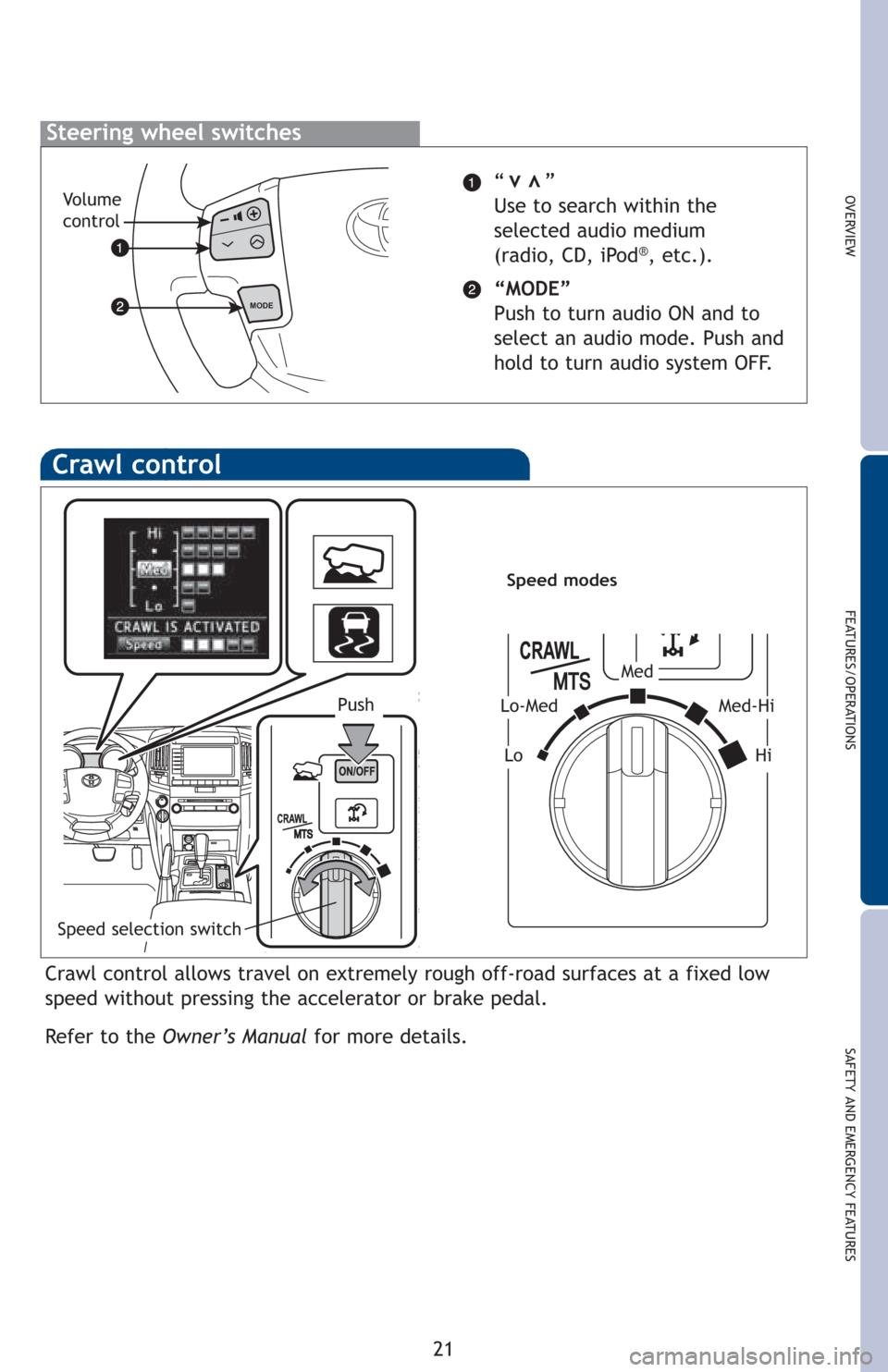

Steering wheel switches
MODE
Vo l u m e
control
Crawl control
Crawl control allows travel on extremely rough off-road surfaces at a fixed low
speed without pressing the accelerator or brake pedal.
Refer to the Owner’s Manualfor more details.
Speed selection switch
LoHi
Med
PushLo-MedMed-Hi
Speed modes
vv
Page 24 of 36

22
FEATURES/OPERATIONS

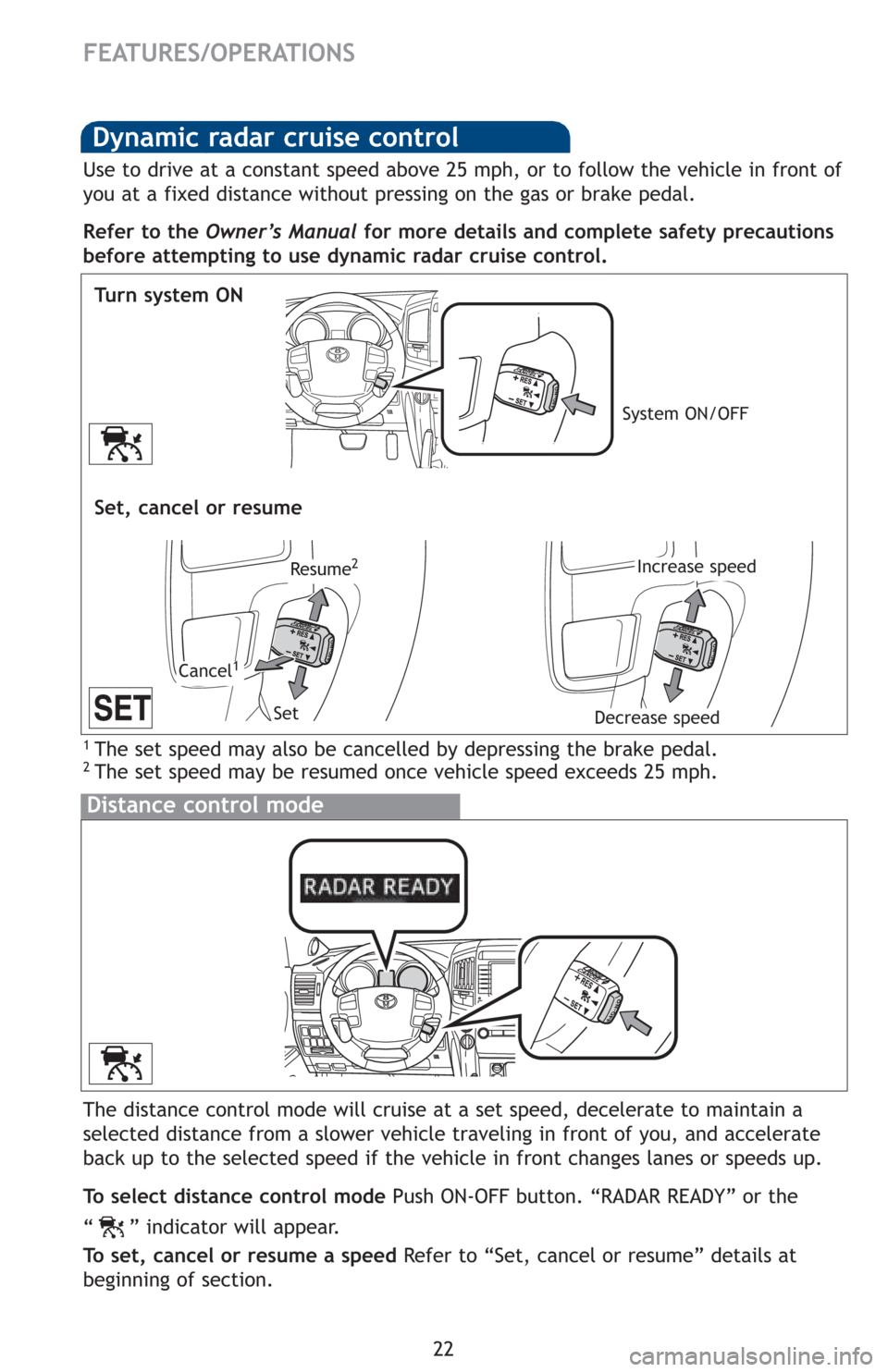

Dynamic radar cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Set
Use to drive at a constant speed above 25 mph, or to follow the vehicle in front of
you at a fixed distance without pressing on the gas or brake pedal.
Refer to the Owner’s Manualfor more details and complete safety precautions
before attempting to use dynamic radar cruise control.
Distance control mode
The distance control mode will cruise at a set speed, decelerate to maintain a
selected distance from a slower vehicle traveling in front of you, and accelerate
back up to the selected speed if the vehicle in front changes lanes or speeds up.
To select distance control mode Push ON-OFF button. “RADAR READY” or the
“ ” indicator will appear.
To set, cancel or resume a speed Refer to “Set, cancel or resume” details at
beginning of section.
Turn system ON
Set, cancel or resume
Page 25 of 36

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
23
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 3-7 in the Owner’s Manualfor more
details.
For programming assistance, contact HomeLink
®at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink®is a registered trademark of Johnson Controls, Inc.
Garage door opener (HomeLink®)*

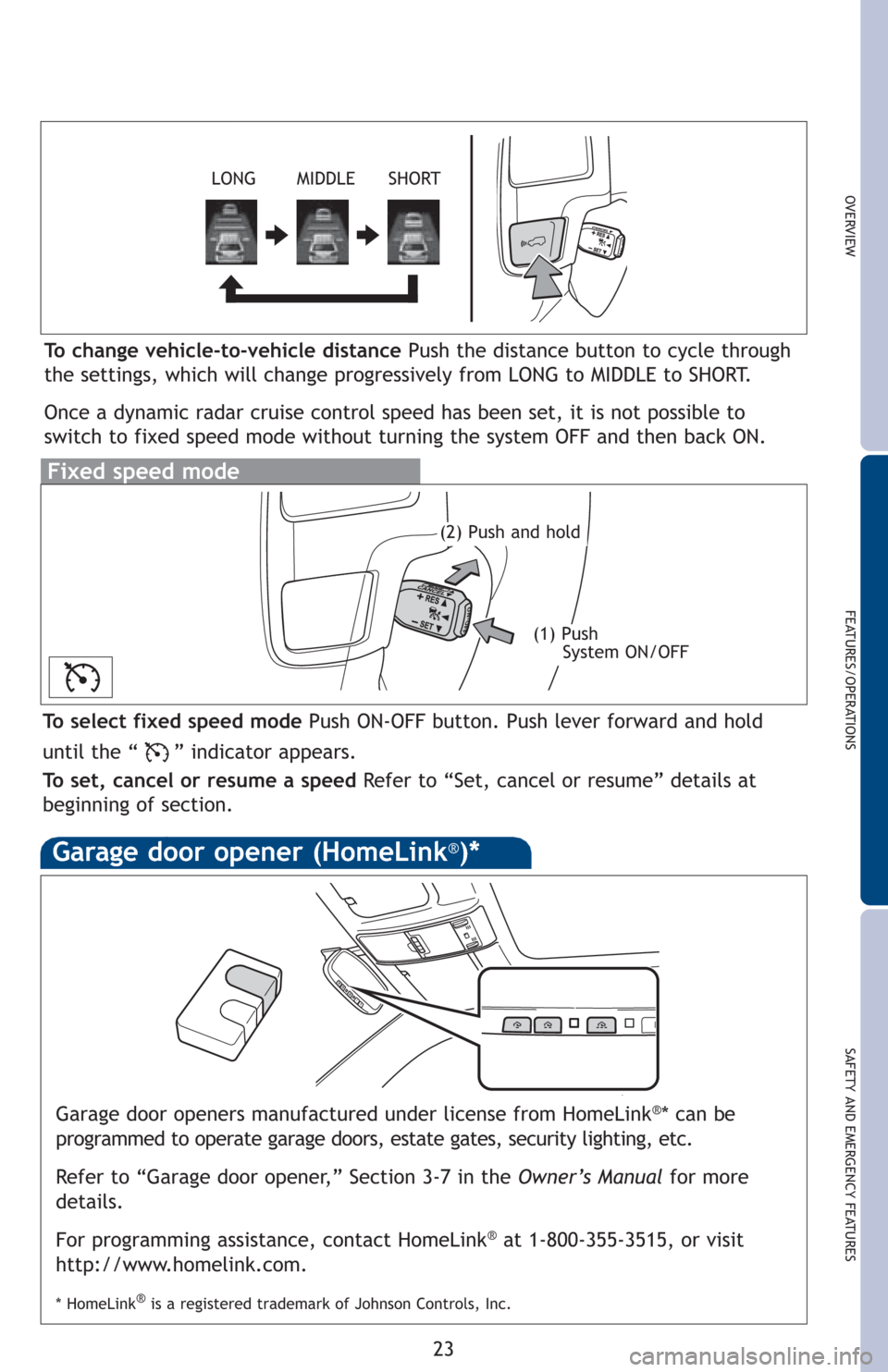

To change vehicle-to-vehicle distance Push the distance button to cycle through
the settings, which will change progressively from LONG to MIDDLE to SHORT.
Once a dynamic radar cruise control speed has been set, it is not possible to
switch to fixed speed mode without turning the system OFF and then back ON.
LONG MIDDLE SHORT
Fixed speed mode
To select fixed speed mode Push ON-OFF button. Push lever forward and hold
until the “ ” indicator appears.
To set, cancel or resume a speed Refer to “Set, cancel or resume” details at
beginning of section.
(1) Push
System ON/OFF
(2) Push and hold
Page 26 of 36
24
FEATURES/OPERATIONS

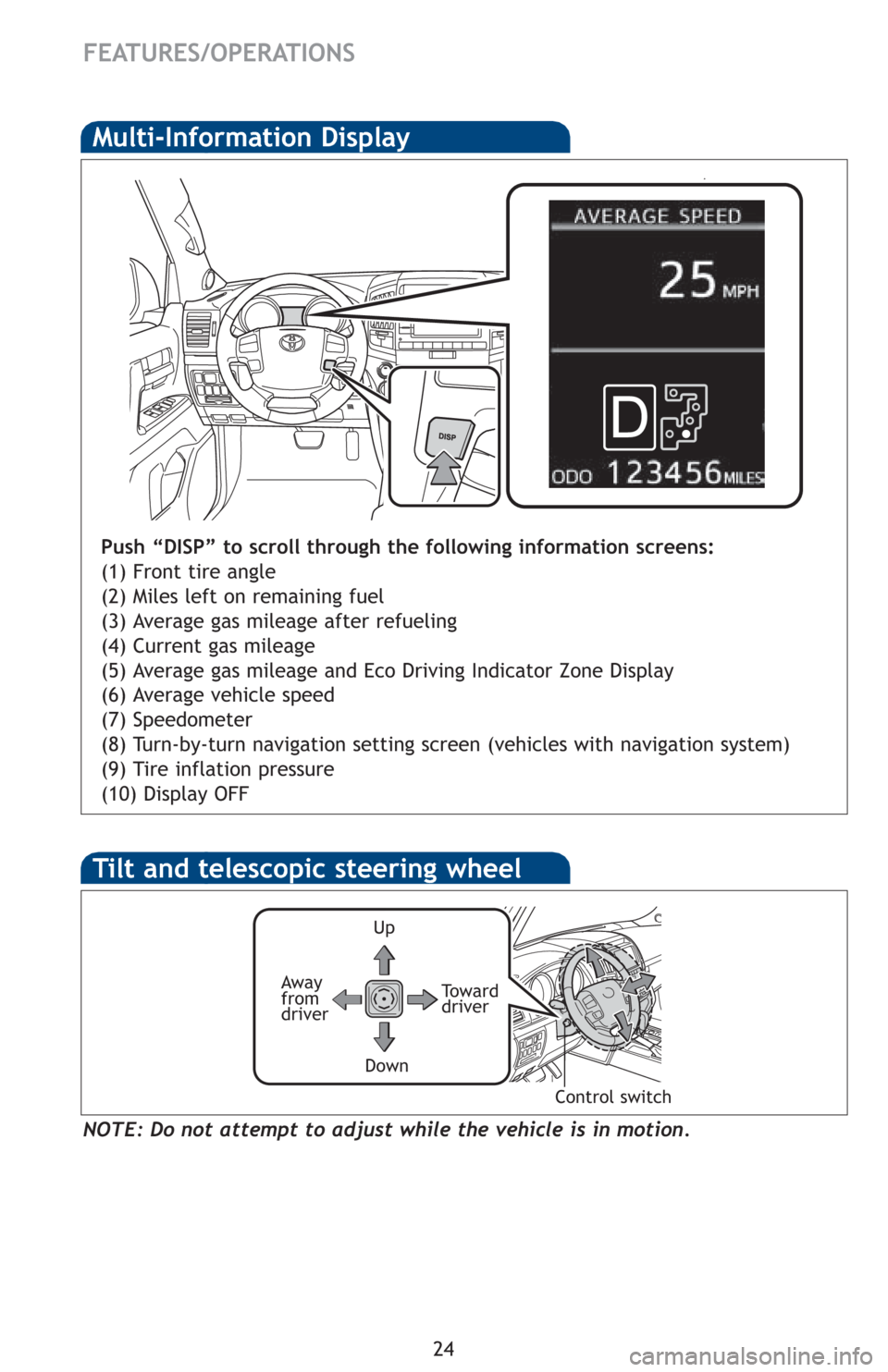

Multi-Information Display
Push “DISP” to scroll through the following information screens:
(1) Front tire angle
(2) Miles left on remaining fuel
(3) Average gas mileage after refueling
(4) Current gas mileage
(5) Average gas mileage and Eco Driving Indicator Zone Display
(6) Average vehicle speed
(7) Speedometer
(8) Turn-by-turn navigation setting screen (vehicles with navigation system)
(9) Tire inflation pressure
(10) Display OFF
Up
To w a r d
driver
Down
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Away
from
driver
Control switch
Page 27 of 36
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
25

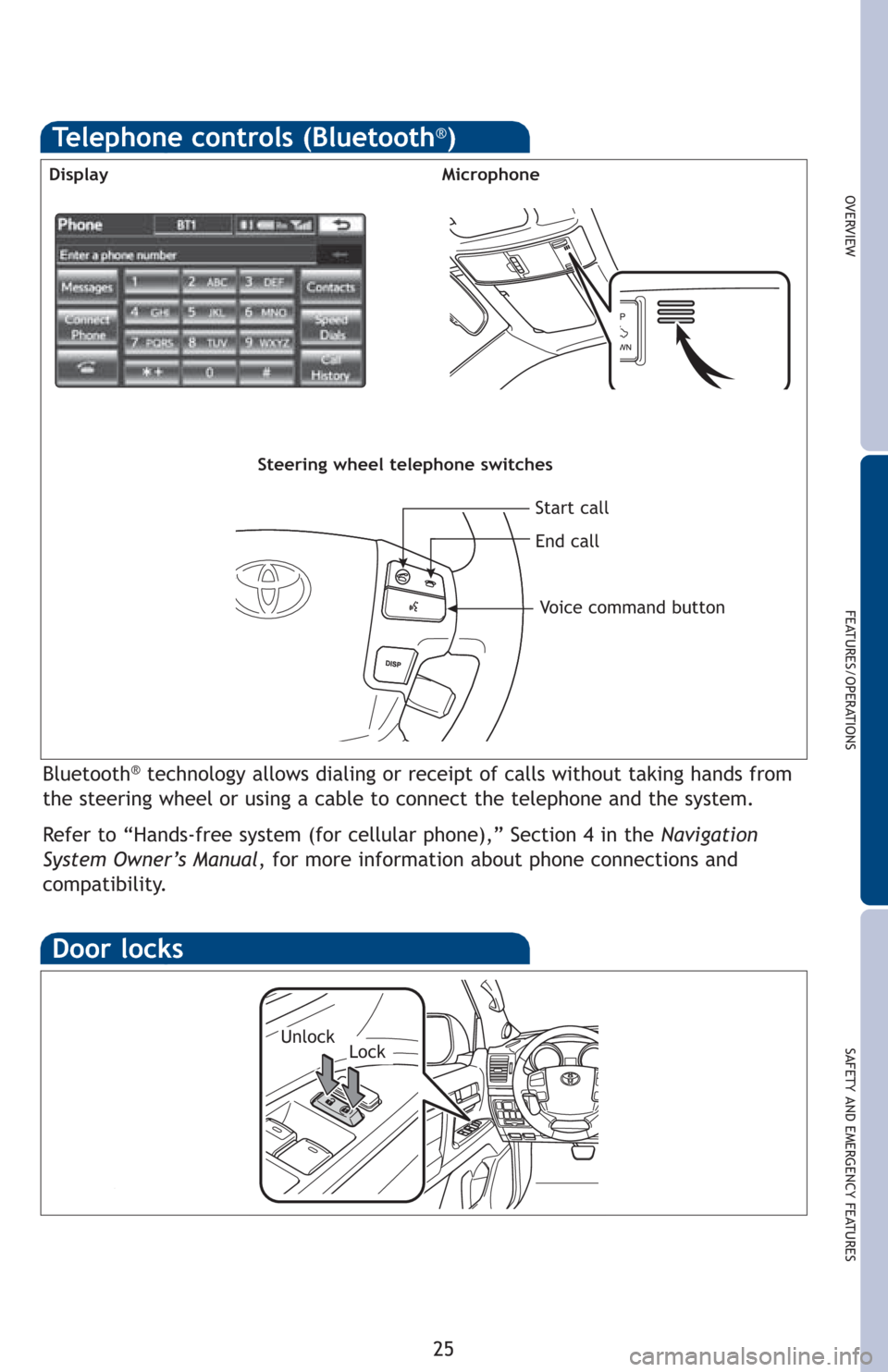

Bluetooth®technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the telephone and the system.
Refer to “Hands-free system (for cellular phone),” Section 4 in the Navigation
System Owner’s Manual, for more information about phone connections and
compatibility.
MicrophoneDisplay
Steering wheel telephone switches
Start call
End call
Voice command button
Door locks
LockUnlock
Telephone controls (Bluetooth®)
Page 28 of 36
26
FEATURES/OPERATIONS

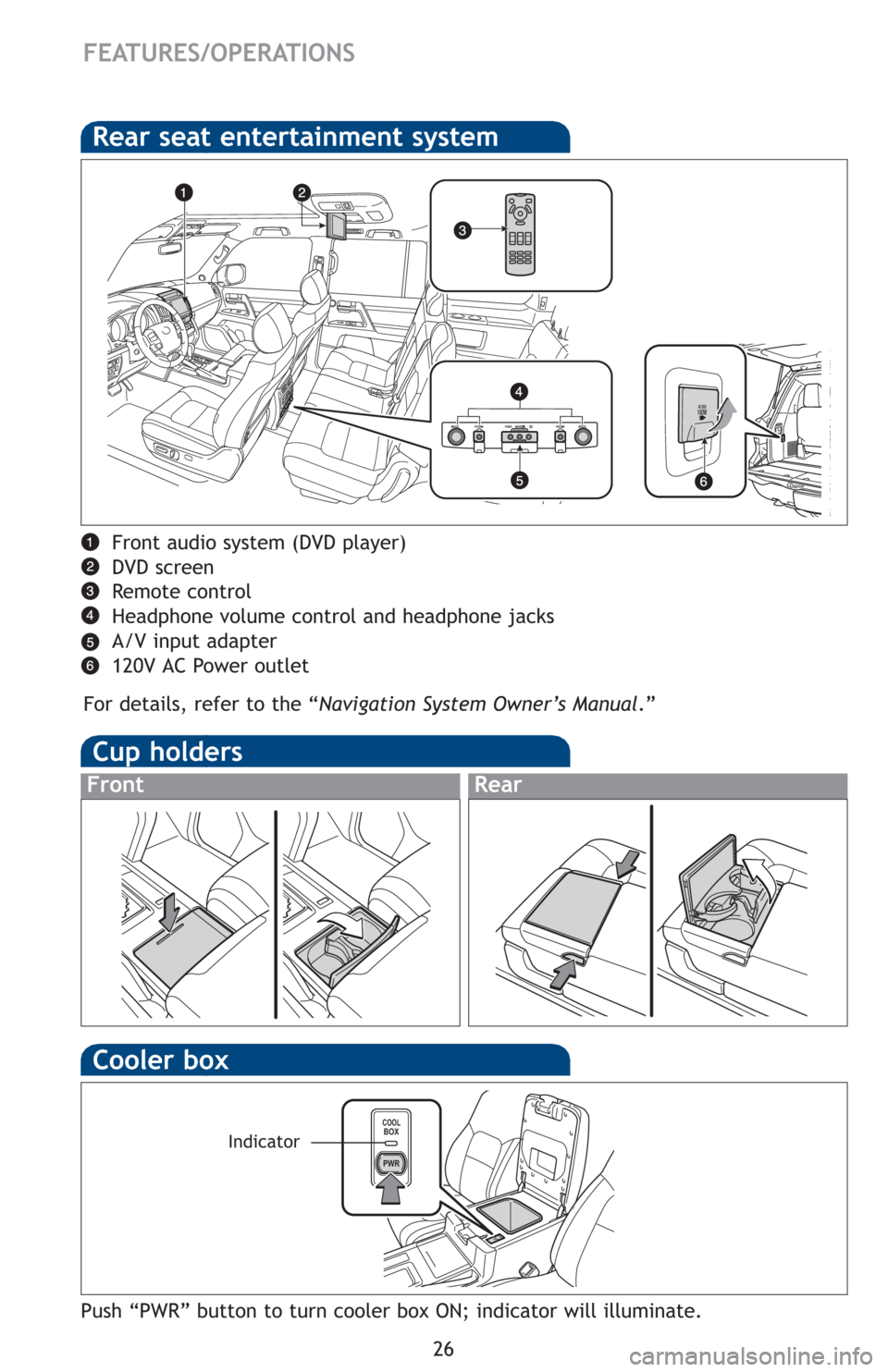

Cup holders
COOLBOX
PWR
Cooler box
Push “PWR” button to turn cooler box ON; indicator will illuminate.
Indicator
Front audio system (DVD player)
DVD screen
Remote control
Headphone volume control and headphone jacks
A/V input adapter
120V AC Power outlet
For details, refer to the “Navigation System Owner’s Manual.”
RearFront
Rear seat entertainment system
Page 29 of 36
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
27

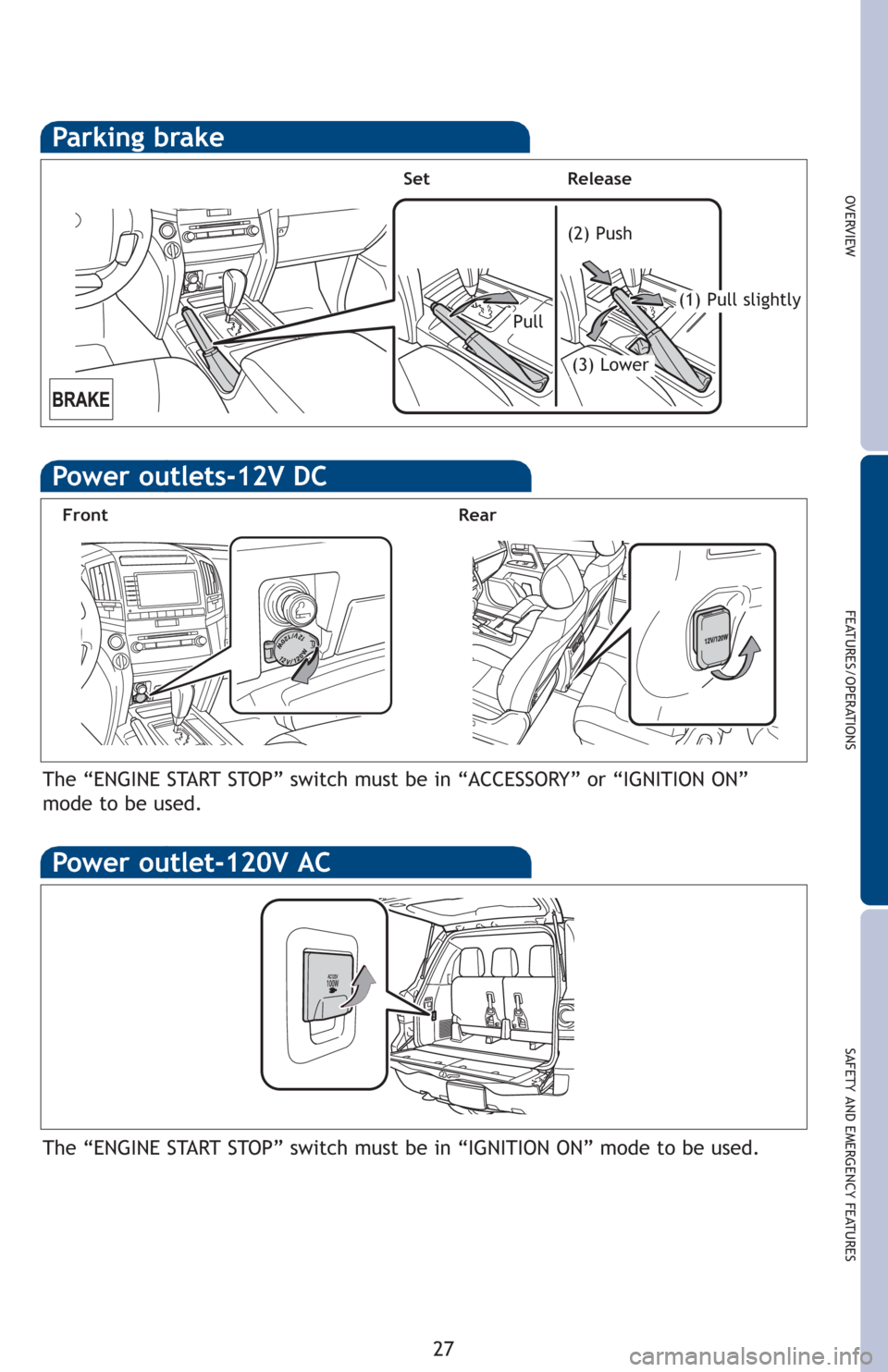

Parking brake
(2) Push
SetRelease
(1) Pull slightly
(3) Lower
Pull
Power outlets-12V DC
The “ENGINE START STOP” switch must be in “ACCESSORY” or “IGNITION ON”
mode to be used.
Power outlet-120V AC
The “ENGINE START STOP” switch must be in “IGNITION ON” mode to be used.
FrontRear
Page 30 of 36

28
SAFETY AND EMERGENCY FEATURES

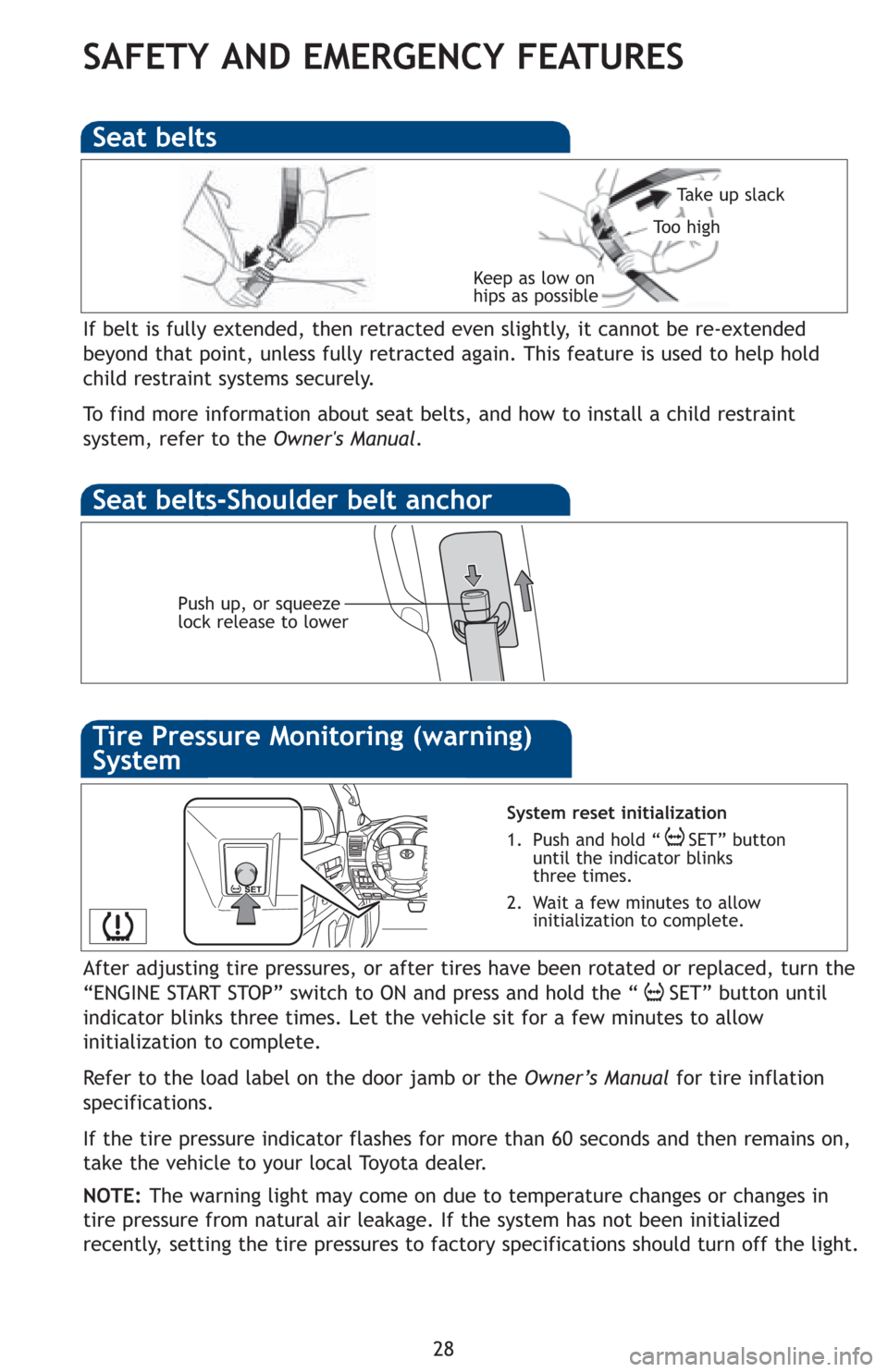

If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Push up, or squeeze
lock release to lower
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks
three times.
2. Wait a few minutes to allow
initialization to complete.
Seat belts-Shoulder belt anchor
After adjusting tire pressures, or after tires have been rotated or replaced, turn the
“ENGINE START STOP” switch to ON and press and hold the “ SET” button until
indicator blinks three times. Let the vehicle sit for a few minutes to allow
initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then remains on,
take the vehicle to your local Toyota dealer.
NOTE:The warning light may come on due to temperature changes or changes in
tire pressure from natural air leakage. If the system has not been initialized
recently, setting the tire pressures to factory specifications should turn off the light.
Tire Pressure Monitoring (warning)
