4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L83U_(U)
Passenger’s side instrument panel
Remove the cover.
Remove the lid.
After a system failure, see “Fuse layout and amperage rat-
ings” ( P. 574) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
ITY43C033
ITY43C034
STEP3
ITY42C027
STEP4

572 4-3. Do-it-yourself maintenance
LC200_OM_OM60L83U_(U)

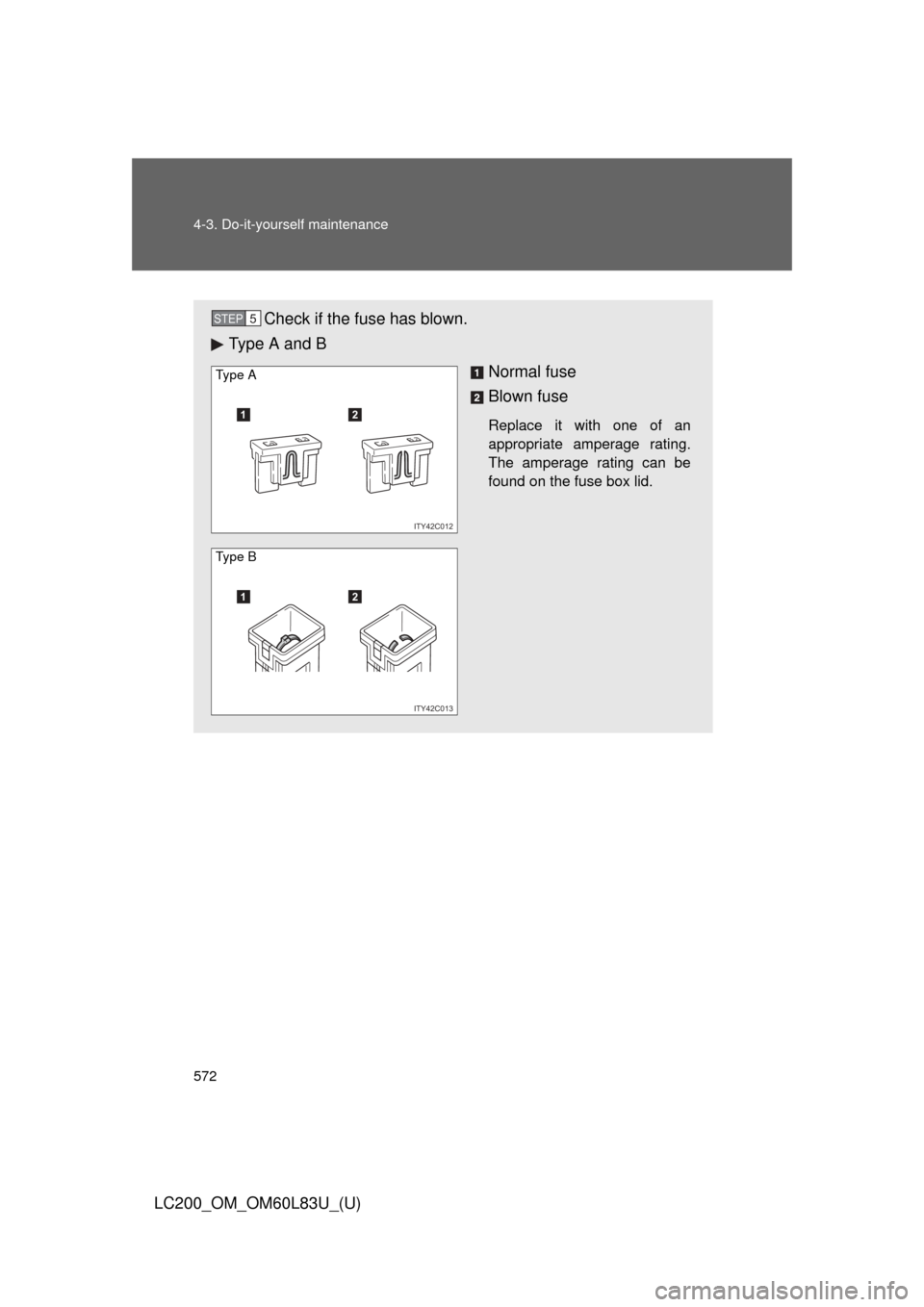

Check if the fuse has blown.
Type A and B
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
STEP5
12
ITY42C012
Ty pe A
12
ITY42C013
Ty pe B

573
4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L83U_(U)

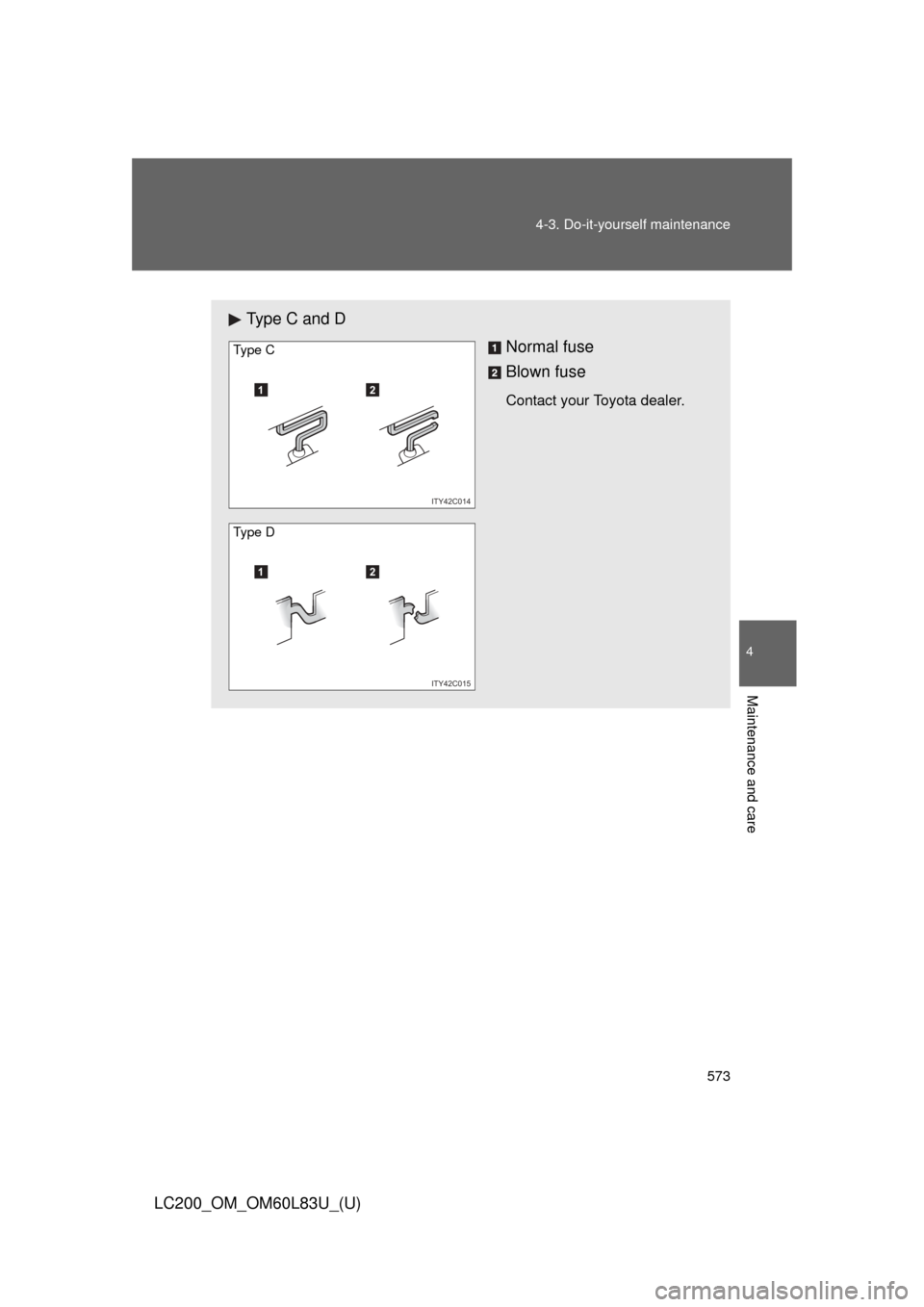

Type C and D
Normal fuse
Blown fuse
Contact your Toyota dealer.12
ITY42C014
Ty pe C
12
ITY42C015
Ty pe D

574 4-3. Do-it-yourself maintenance
LC200_OM_OM60L83U_(U)

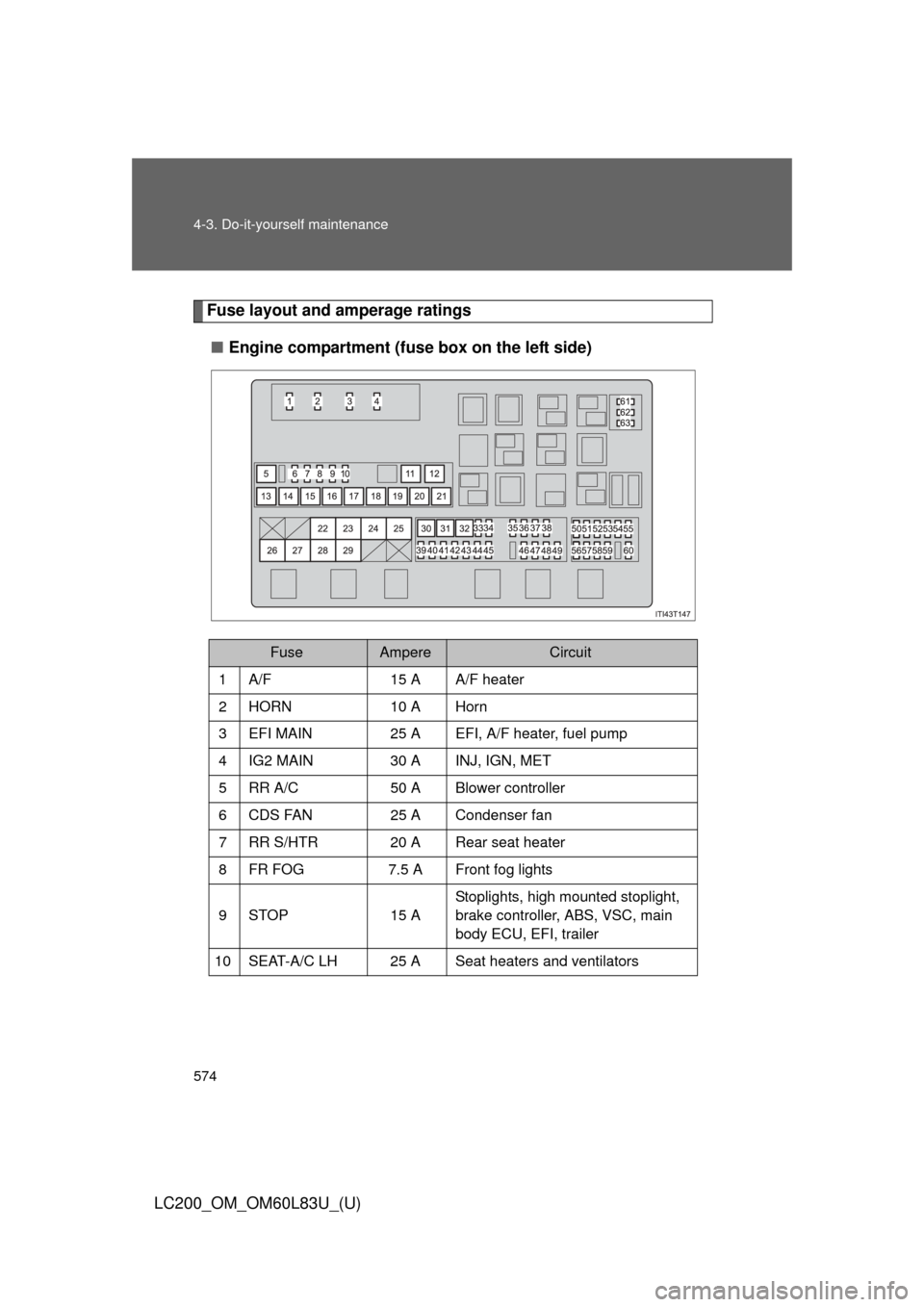

Fuse layout and amperage ratings■ Engine compartment (fuse box on the left side)
FuseAmpereCircuit
1A/F15 A A/F heater
2 HORN 10 A Horn
3 EFI MAIN 25 A EFI, A/F heater, fuel pump
4 IG2 MAIN 30 A INJ, IGN, MET
5 RR A/C 50 A Blower controller
6 CDS FAN 25 A Condenser fan
7 RR S/HTR 20 A Rear seat heater
8 FR FOG 7.5 A Front fog lights
9 STOP 15 AStoplights, high mounted stoplight,
brake controller, ABS, VSC, main
body ECU, EFI, trailer
10 SEAT-A/C LH 25 A Seat heaters and ventilators

575
4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L83U_(U)
11 HWD4
30 A No circuit
12 HWD3 30 A No circuit
13 AHC 50 A No circuit
14 PTC-1 50 A PTC heater
15 PTC-2 50 A PTC heater
16 PTC-3 50 A PTC heater
17 RH-J/B 50 A RH-J/B
18 SUB BATT 40 A Towing
19 VGRS 40 A VGRS ECU
20 H-LP CLN 30 A Headlight cleaner
21 DEFOG 30 A Rear window defogger
22 SUB-R/B 100 A SUB-R/B
23 HTR 50 A Front air conditioning system
24 PBD 30 A No circuit
25 LH-J/B 150 A LH-J/B
26 ALT 180 A Alternator
27 A/PUMP NO.1 50 A AI DRIVER
28 A/PUMP NO.2 50 A AI DRIVER 2
29 MAIN 40 AHeadlight, daytime running light
system, HEAD LL, HEAD RL,
HEAD LH, HEAD RH
30 ABS1 50 A ABS
FuseAmpereCircuit

576 4-3. Do-it-yourself maintenance
LC200_OM_OM60L83U_(U)
31 ABS230 A ABS
32 ST 30 A Starter system
33 IMB 7.5 AID code box, smart key system,
GBS
34 AM2 5 A Main body ECU
35 DOME2 7.5 AVanity lights, overhead module,
rear interior light
36 ECU-B2 5 A Driving position memory system
37 AMP 2 30 A Audio system
38 RSE 7.5 A Rear seat entertainment
39 TOWING 30 A Towing
40 DOOR NO.2 25 A Main body ECU
41 STR LOCK 20 A Steering lock system
42 TURN-HAZ 15 A Meter, front turn signal lights, side
turn signal lights, rear turn signal
lights, trailer
43 EFI MAIN2 20 A Fuel pump
44 ETCS 10 A EFI
45 ALT-S 5 A IC-ALT
46 AMP 1 30 A Audio system
47 RAD NO.1 10 A Navigation system, audio system,
parking assist system
FuseAmpereCircuit

577
4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L83U_(U)
48 ECU-B1
5 ASmart key system, overhead mod-
ule, tilt and telescopic steering,
meter, cool box, gateway ECU,
steering sensor
49 DOME1 10 A Illuminated entry system, clock
50 HEAD LH 15 A Headlight high beam (left)
51 HEAD LL 15 A Headlight low beam (left)
52 INJ 10 A Injector, ignition system
53 MET 5 A Meter
54 IGN 10 ACircuit open, SRS airbag system,
gateway ECU, smart key system,
ABS, VSC, steering lock system,
GBS
55 DRL 5 A Daytime running light
56 HEAD RH 15 A Headlight high beam (right)
57 HEAD RL 15 A Headlight low beam (right)
58 EFI NO.2 7.5 A Air injection system, air flow meter
59 RR A/C NO.2 7.5 A No circuit
60 DEF NO.2 5 A Outside rear view mirror defoggers
61 SPARE 5 A Spare fuse
62 SPARE 15 A Spare fuse
63 SPARE 30 A Spare fuse
FuseAmpereCircuit

578 4-3. Do-it-yourself maintenance
LC200_OM_OM60L83U_(U)■

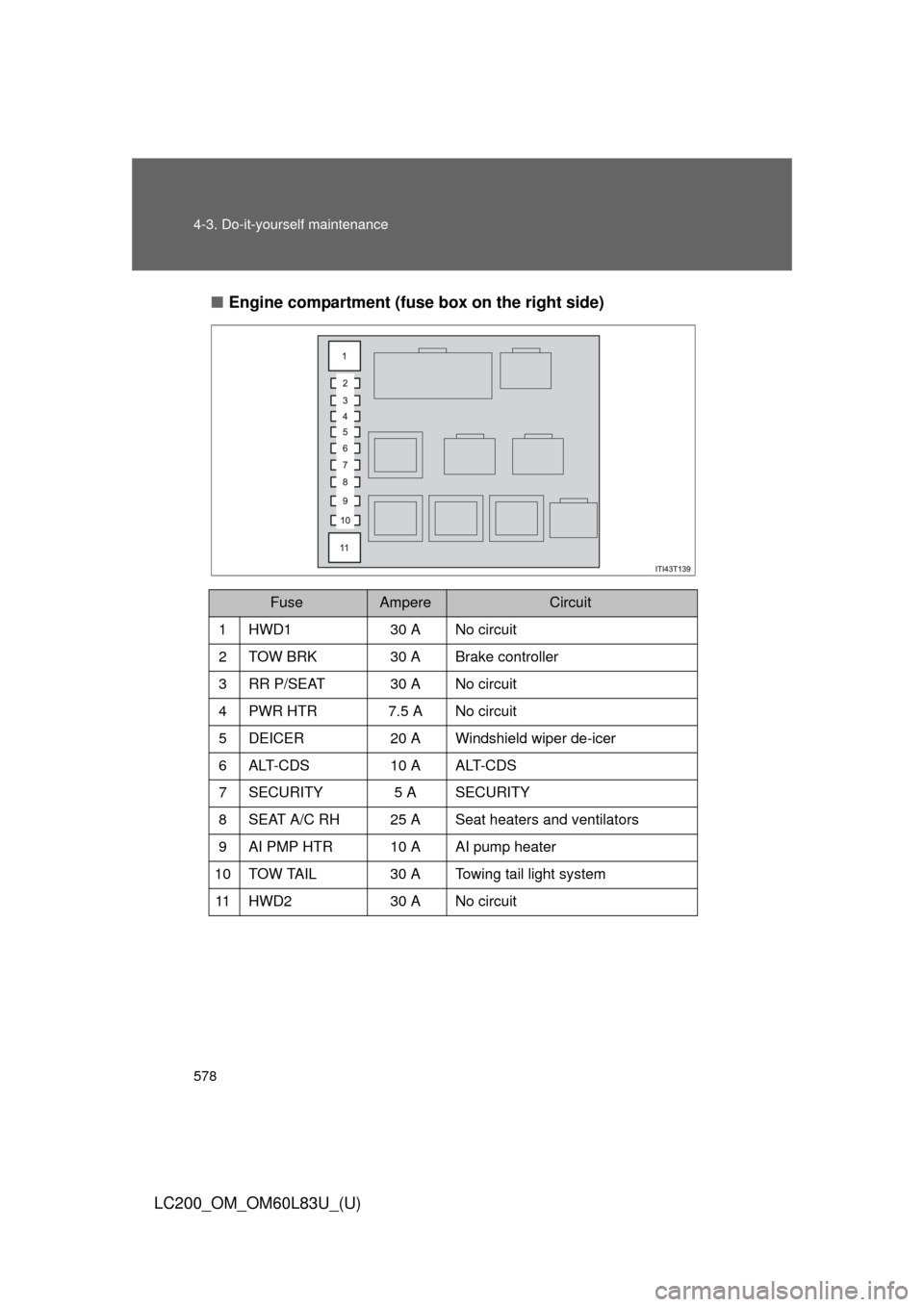

Engine compartment (fuse box on the right side)
FuseAmpereCircuit
1HWD130 ANo circuit
2 TOW BRK 30 A Brake controller
3 RR P/SEAT 30 A No circuit
4 PWR HTR 7.5 A No circuit
5 DEICER 20 A Windshield wiper de-icer
6 A LT- C D S 1 0 A A LT- C D S
7 SECURITY 5 A SECURITY
8 SEAT A/C RH 25 A Seat heaters and ventilators
9 AI PMP HTR 10 A AI pump heater
10 TOW TAIL 30 A Towing tail light system
11 HWD2 30 A No circuit

579
4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L83U_(U)
■

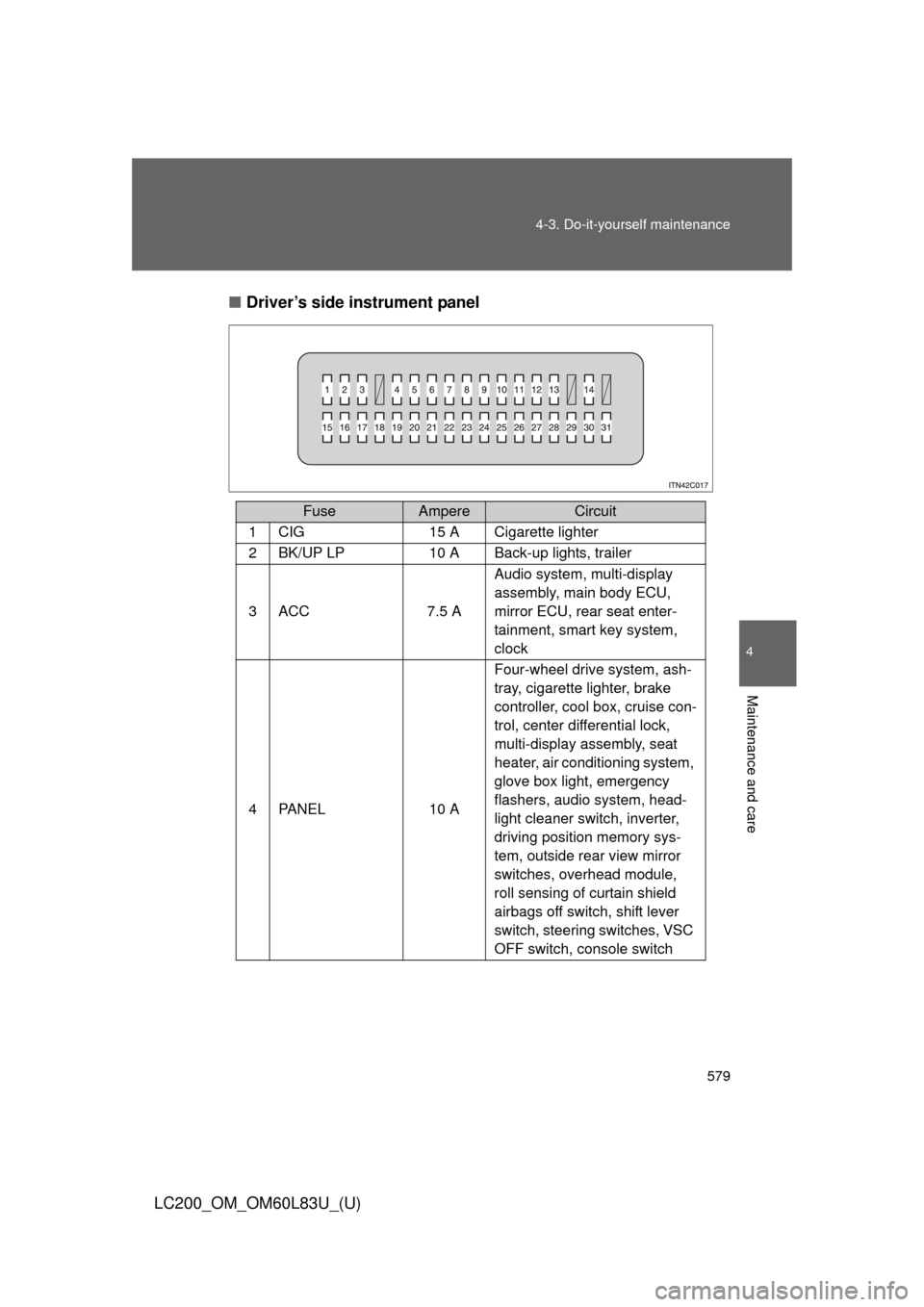

Driver’s side instrument panel
FuseAmpereCircuit
1CIG15 A Cigarette lighter
2BK/UP LP10 A Back-up lights, trailer
3ACC7.5 A Audio system, multi-display
assembly, main body ECU,
mirror ECU, rear seat enter-
tainment, smart key system,
clock
4PA N E L10 AFour-wheel drive system, ash-
tray, cigarette lighter, brake
controller, cool box, cruise con-
trol, center differential lock,
multi-display assembly, seat
heater, air conditioning system,
glove box light, emergency
flashers, audio system, head-
light cleaner switch, inverter,
driving position memory sys-
tem, outside rear view mirror
switches, overhead module,
roll sensing of curtain shield
airbags off switch, shift lever
switch, steering switches, VSC
OFF switch, console switch

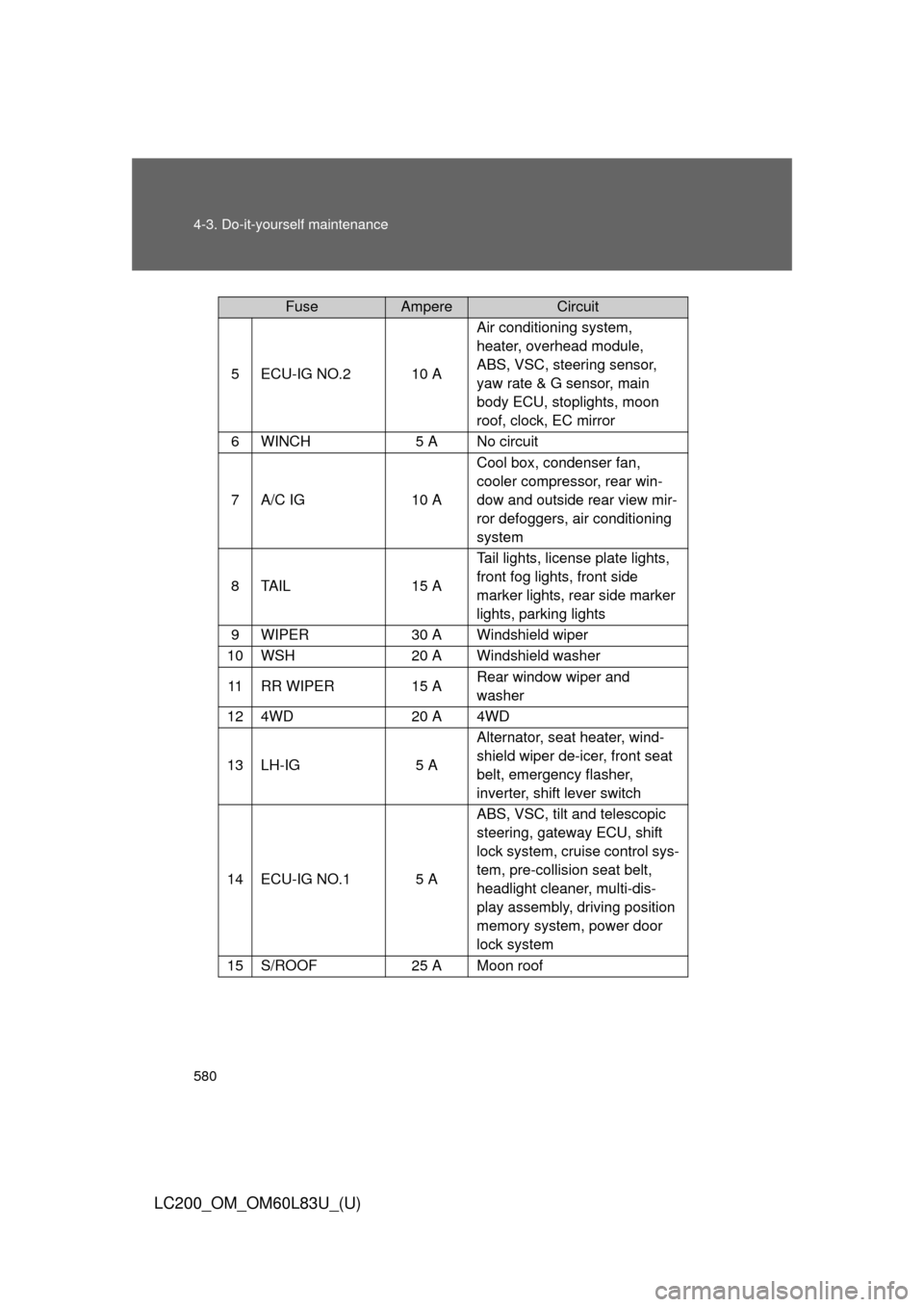

580 4-3. Do-it-yourself maintenance
LC200_OM_OM60L83U_(U)
5ECU-IG NO.210 AAir conditioning system,
heater, overhead module,
ABS, VSC, steering sensor,
yaw rate & G sensor, main
body ECU, stoplights, moon
roof, clock, EC mirror
6WINCH5 A No circuit
7A/C IG10 A
Cool box, condenser fan,
cooler compressor, rear win-
dow and outside rear view mir-
ror defoggers, air conditioning
system
8TA I L15 A
Tail lights, license plate lights,
front fog lights, front side
marker lights, rear side marker
lights, parking lights
9WIPER30 A Windshield wiper
10WSH20 A Windshield washer
11RR WIPER15 A
Rear window wiper and
washer
124WD20 A 4WD
13LH-IG5 AAlternator, seat heater, wind-
shield wiper de-icer, front seat
belt, emergency flasher,
inverter, shift lever switch
14ECU-IG NO.15 AABS, VSC, tilt and telescopic
steering, gateway ECU, shift
lock system, cruise control sys-
tem, pre-collision seat belt,
headlight cleaner, multi-dis-
play assembly, driving position
memory system, power door
lock system
15S/ROOF25 A Moon roof
FuseAmpereCircuit
