4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L83U_(U)

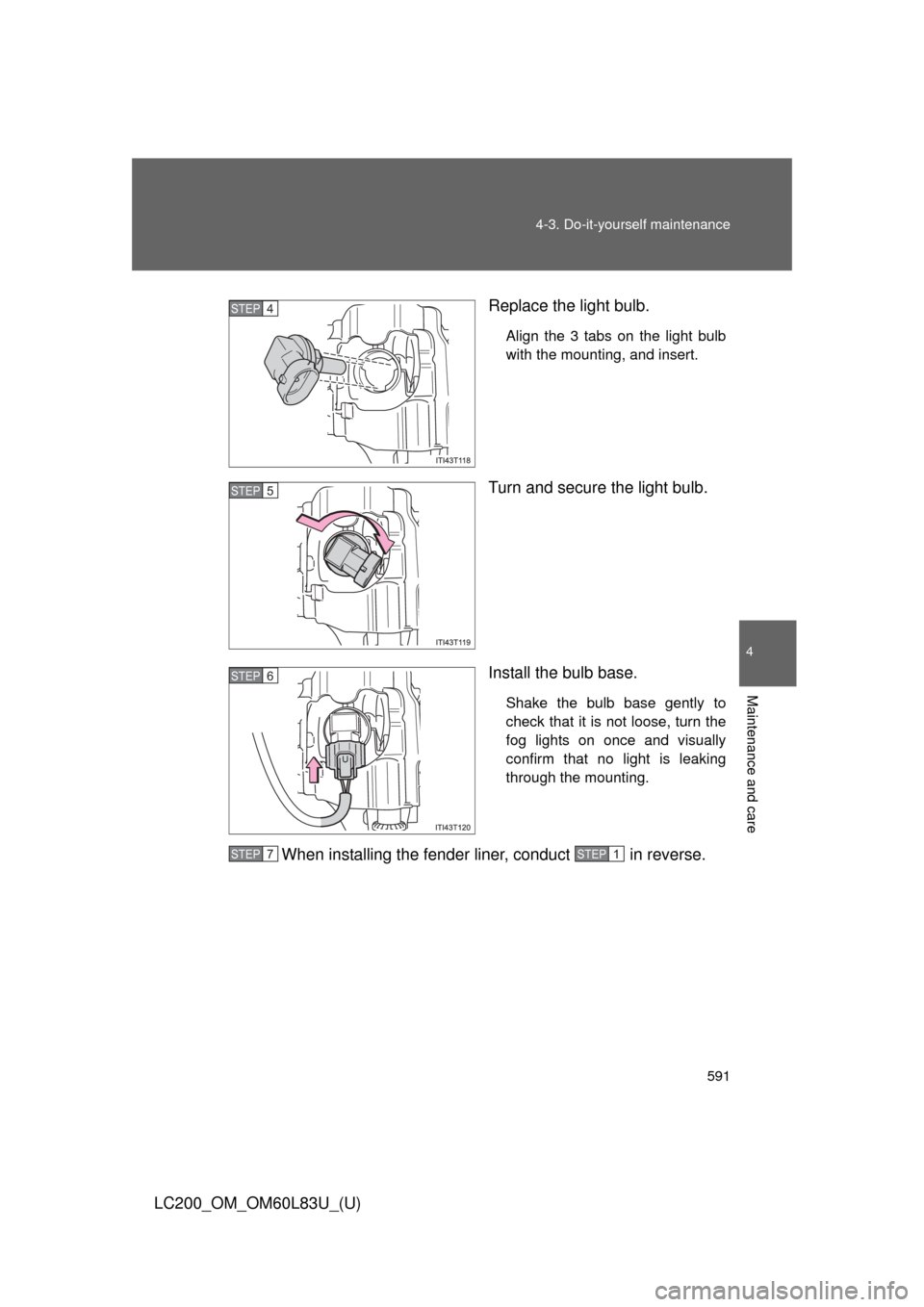

Replace the light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the light bulb.
Install the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
fog lights on once and visually
confirm that no light is leaking
through the mounting.
When installing the fender liner, conduct in reverse.
STEP4
STEP5
STEP6
STEP7STEP1

592 4-3. Do-it-yourself maintenance
LC200_OM_OM60L83U_(U)■

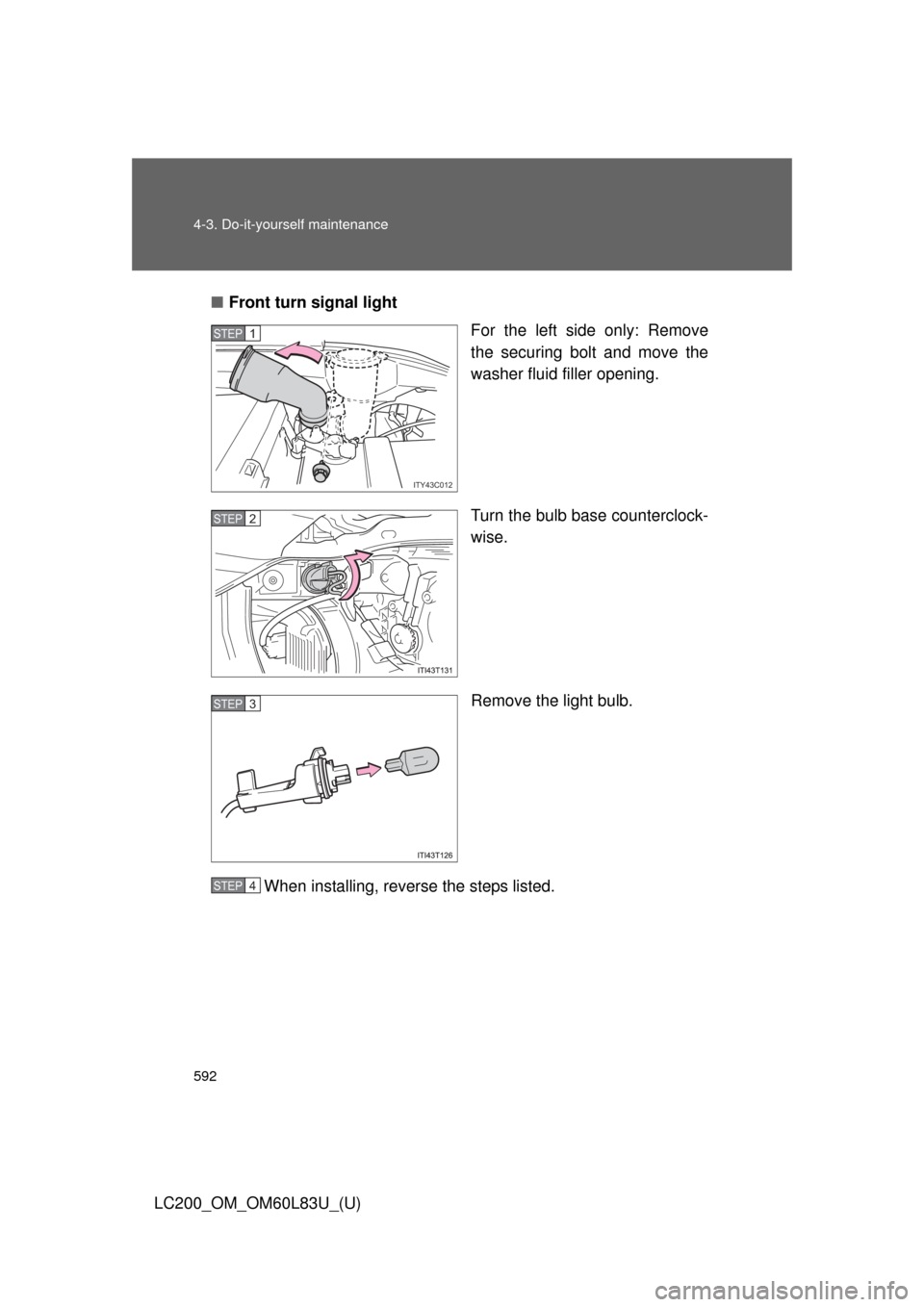

Front turn signal light

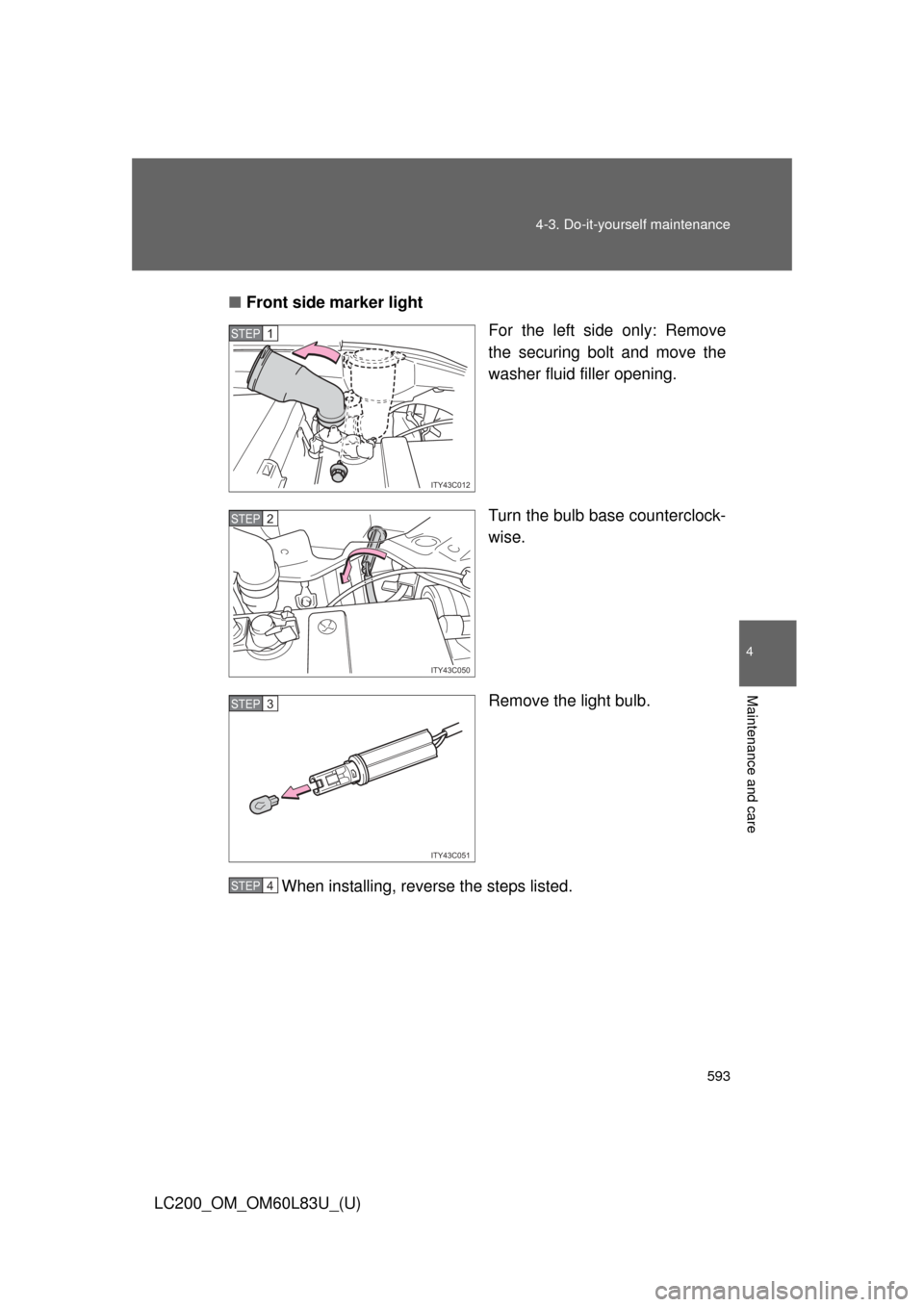

For the left side only: Remove
the securing bolt and move the
washer fluid filler opening.
Turn the bulb base counterclock-
wise.

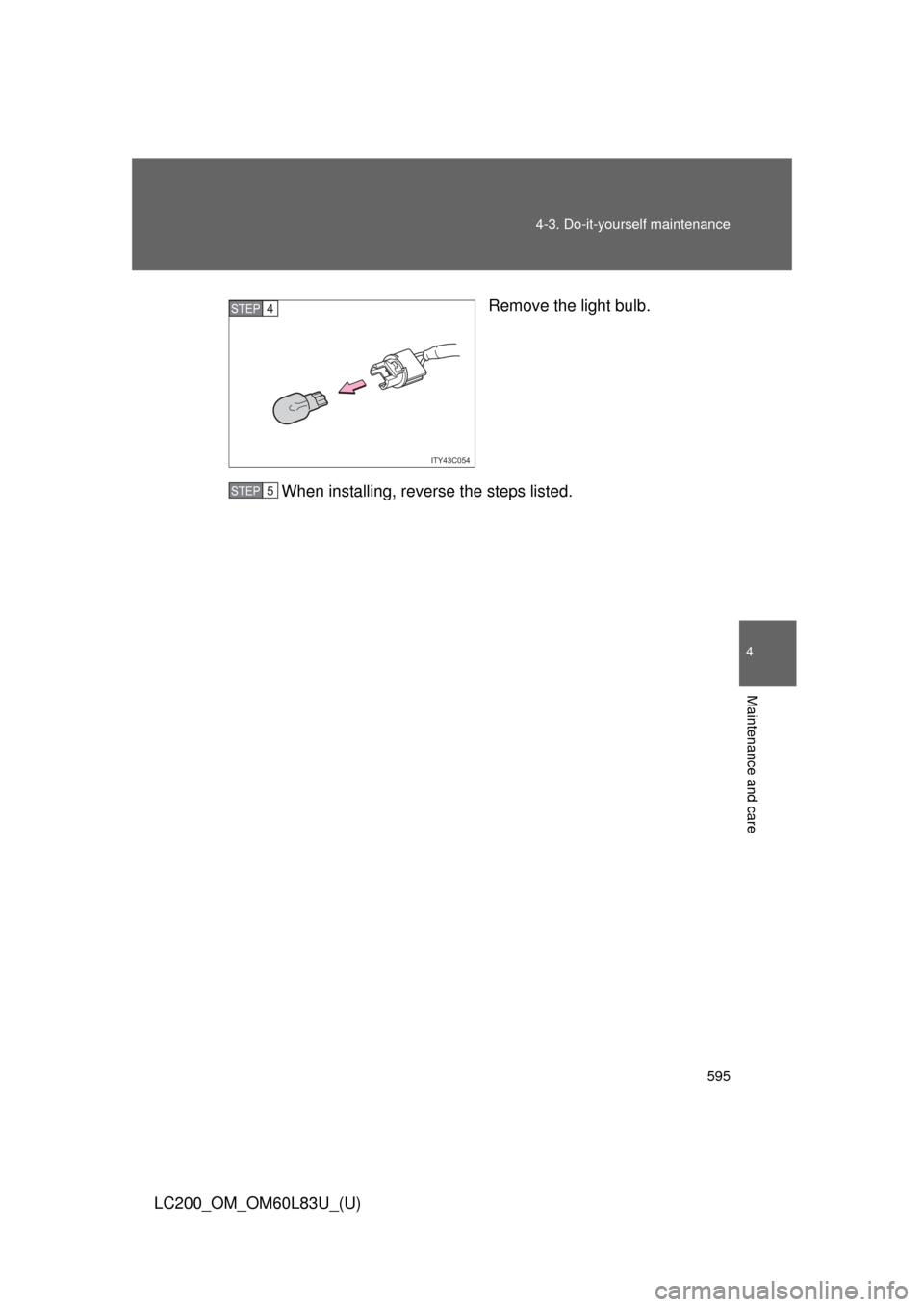

Remove the light bulb.
When installing, reverse the steps listed.
ITY43C012
STEP1
STEP2
STEP3
STEP4

593
4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L83U_(U)
■
Front side marker light
For the left side only: Remove
the securing bolt and move the
washer fluid filler opening.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
ITY43C012
STEP1
ITY43C050
STEP2
ITY43C051
STEP3
STEP4

594 4-3. Do-it-yourself maintenance
LC200_OM_OM60L83U_(U)■
Back-up light
Open the back door and remove
the nuts and lamp assembly.
Remove the cover.
Unclip the connector wire and
turn the bulb bases counter-
clockwise.
STEP1
STEP2
STEP3

595
4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L83U_(U)
Remove the light bulb.
When installing, reverse the steps listed.
ITY43C054
STEP4
STEP5

596 4-3. Do-it-yourself maintenance
LC200_OM_OM60L83U_(U)■
Rear turn signal light

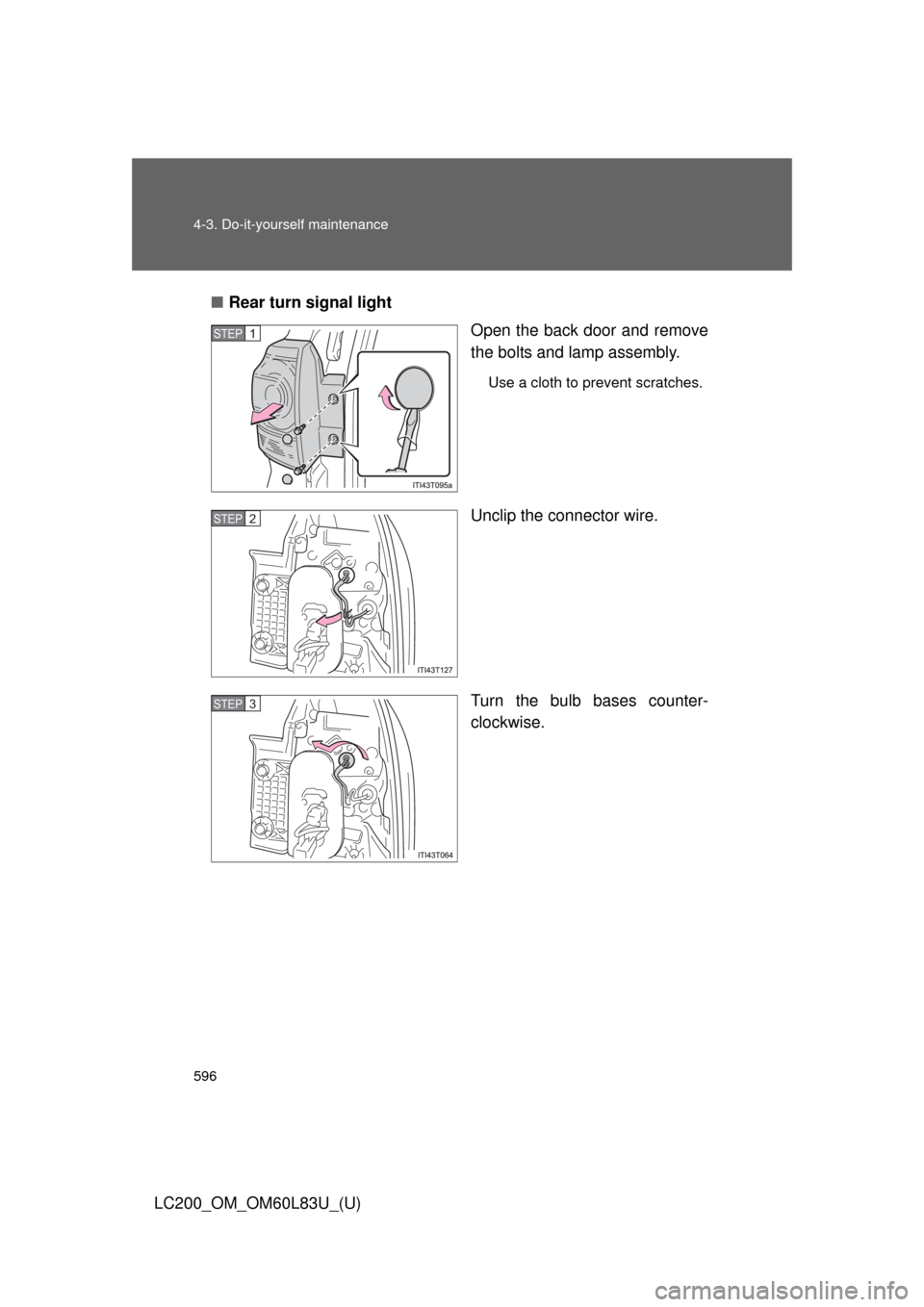

Open the back door and remove
the bolts and lamp assembly.
Use a cloth to prevent scratches.
Unclip the connector wire.
Turn the bulb bases counter-
clockwise.
STEP1
STEP2
STEP3

597
4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L83U_(U)
Remove the light bulb.
When installing, reverse the steps listed.
STEP4
STEP5

598 4-3. Do-it-yourself maintenance
LC200_OM_OM60L83U_(U)■
License plate light

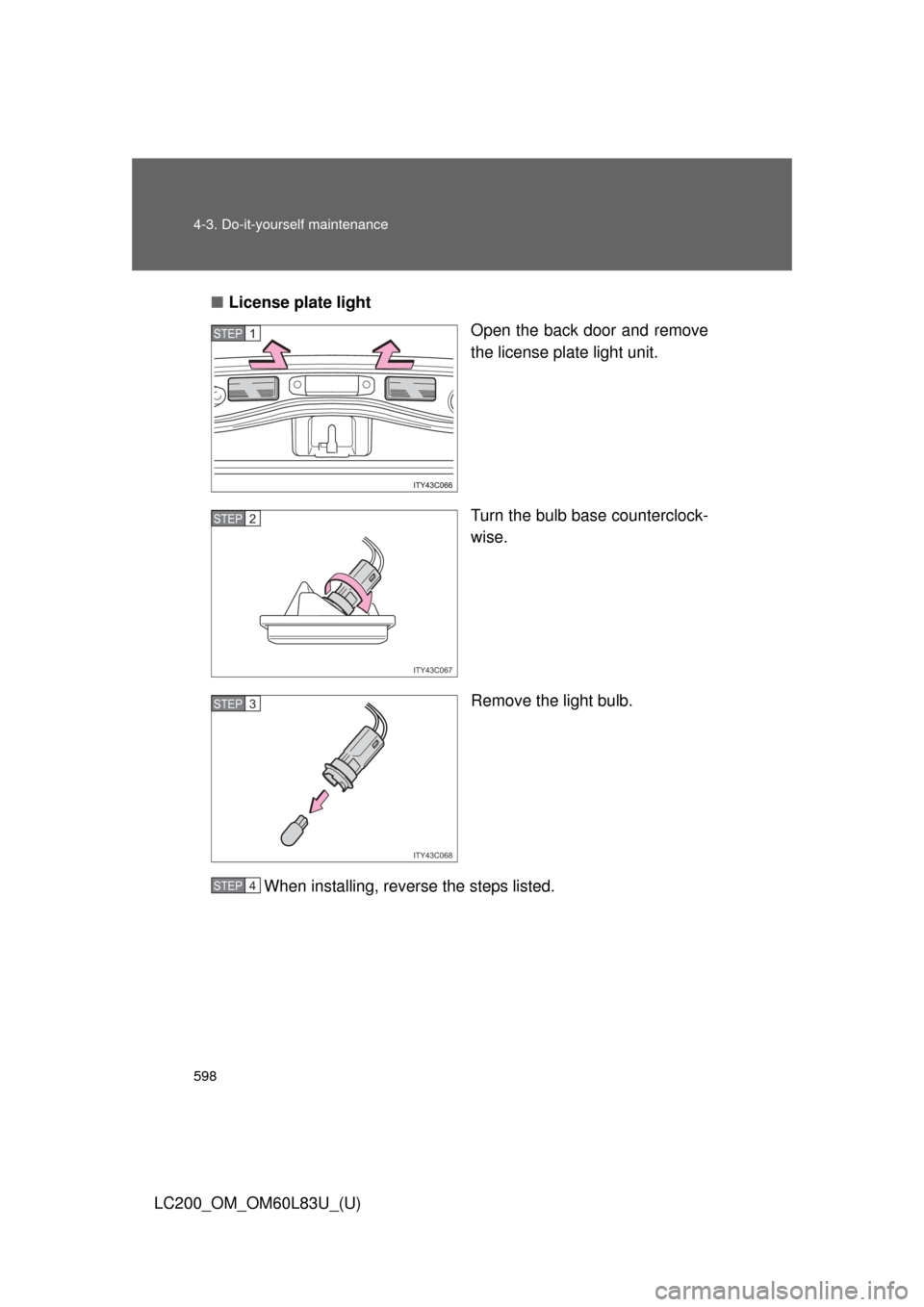

Open the back door and remove
the license plate light unit.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP1
ITY43C067
STEP2
ITY43C068
STEP3
STEP4

599
4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L83U_(U)
■
Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Toyota
dealer replace it.
● Headlight low beam
● Parking light
● Side turn signal light
● Stop/tail lights
● Tail lights
● High mounted stoplight
● Rear side marker lights
■Discharge headlights
If voltage to the discharge bulbs is insufficient, the bulbs may not come on,
or may go out temporarily. The discharge bulbs will come on when normal
power is restored.
■ Condensation build-up on th e inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction. Contact your Toyota dealer for more information
in the following situations:
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED lights
The parking light, side turn signal light, stop/tail lights, tail lights, high
mounted stoplight and rear side marker lights consist of a number of LEDs. If
any LEDs burn out, take your vehicle to your Toyota dealer to have the light
replaced.

600 4-3. Do-it-yourself maintenance
LC200_OM_OM60L83U_(U)
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When i\
t is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.

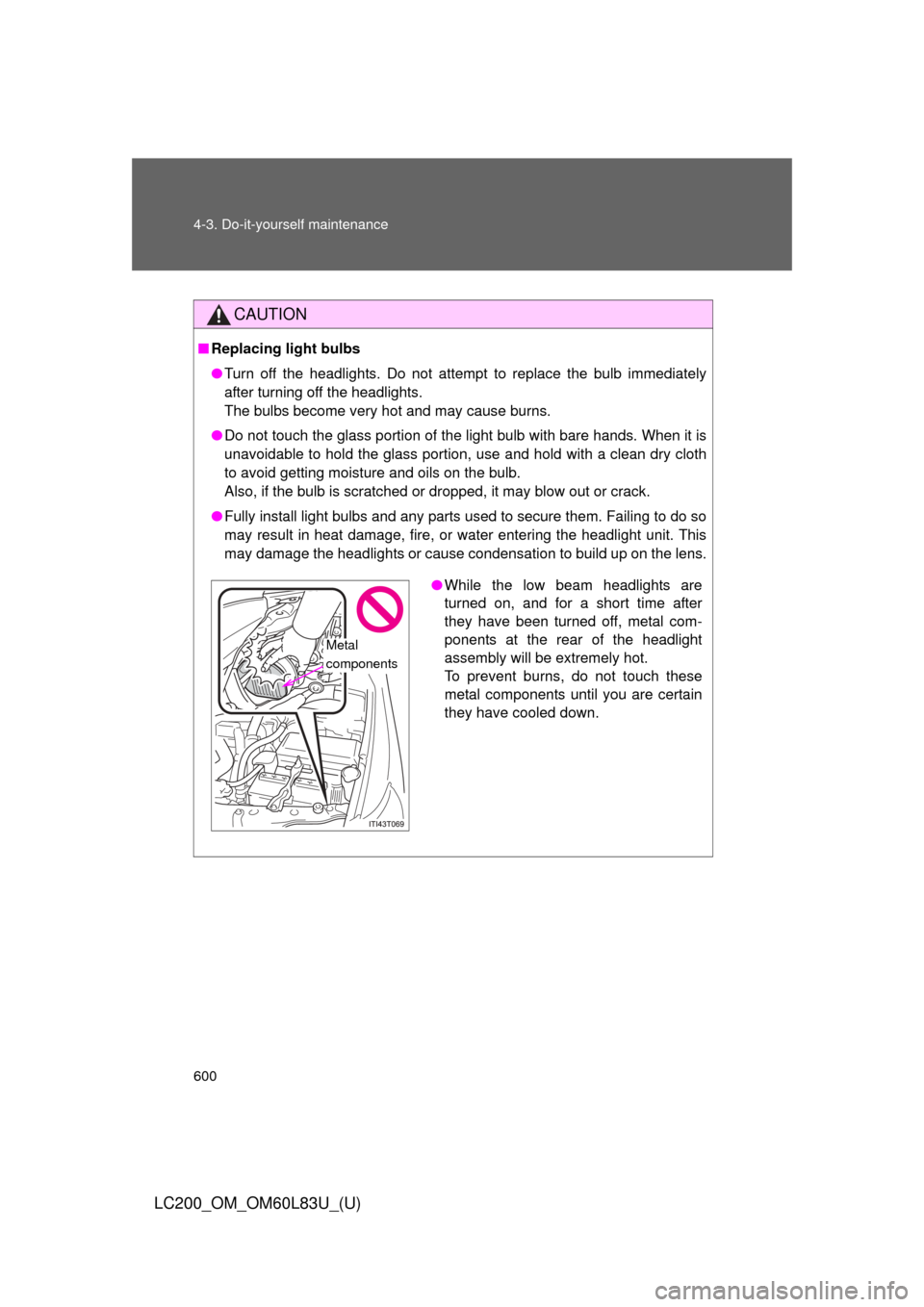

●While the low beam headlights are
turned on, and for a short time after
they have been turned off, metal com-
ponents at the rear of the headlight
assembly will be extremely hot.
To prevent burns, do not touch these
metal components until you are certain
they have cooled down.
Metal
components
