check engine TOYOTA LAND CRUISER 2016 J200 Quick Reference Guide

4
OVERVIEW

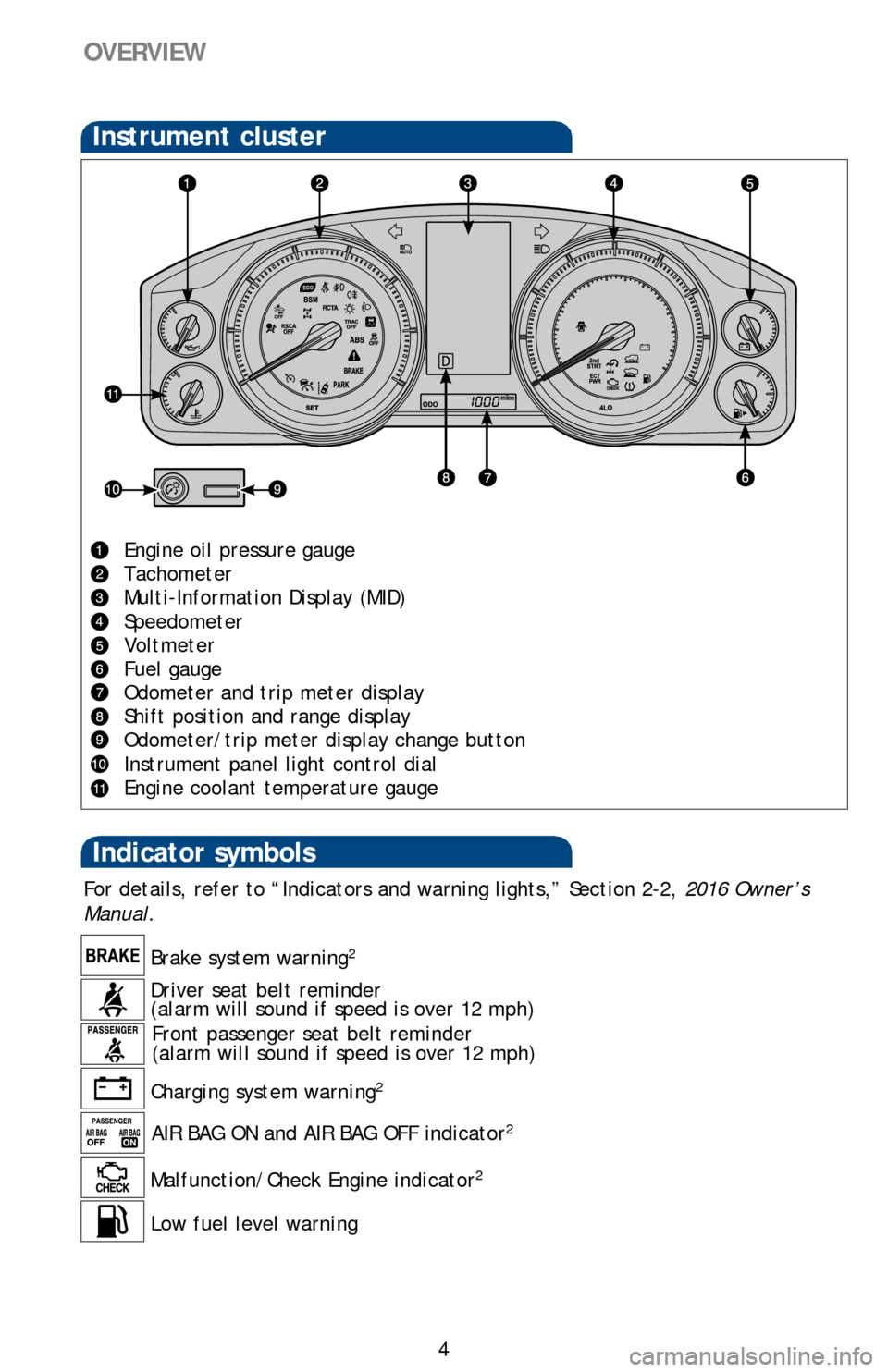

Indicator symbols
Instrument cluster
Engine oil pressure gauge
Tachometer
Multi-Information Display (MID)
Speedometer
Voltmeter
Fuel gauge
Odometer and trip meter display
Shift position and range display
Odometer/trip meter display change button
Instrument panel light control dial
Engine coolant temperature gauge
Charging system warning2
Brake system warning2
AIR BAG ON and AIR BAG OFF indicator2
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator
2
Low fuel level warning
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2016 Owner’s
Manual .

8
Hood release
Pull up latch and
raise hood
Fuel tank door release and cap
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “
” indicator
may illuminate.
Pull
Turn to open
Store
Pull
OVERVIEW

22

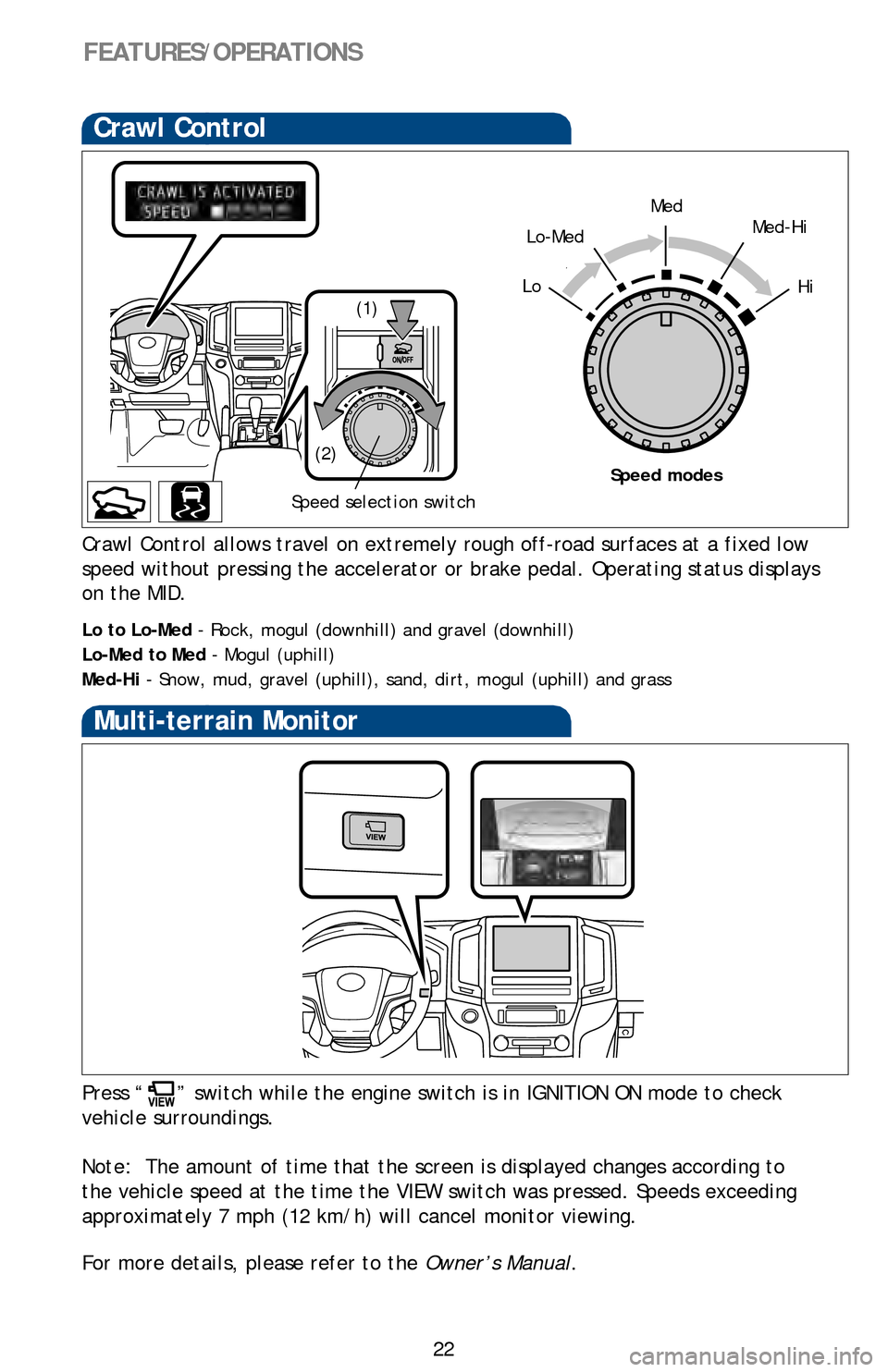

Crawl Control
Multi-terrain Monitor
Speed selection switch
LoHi(1)
(2)
Med
Lo-MedMed-Hi
Speed modes
FEATURES/OPERATIONS
Press “” switch while the engine switch is in IGNITION ON mode to check
vehicle surroundings.
Note: The amount of time that the screen is displayed changes according\
to
the vehicle speed at the time the VIEW switch was pressed. Speeds exceed\
ing
approximately 7 mph (12 km/h) will cancel monitor viewing.
For more details, please refer to the Owner’s Manual.
Crawl Control allows travel on extremely rough off-road surfaces at a fi\
xed low
speed without pressing the accelerator or brake pedal. Operating status \
displays
on the MID.
Lo to Lo-Med - Rock, mogul (downhill) and gravel (downhill)
Lo-Med to Med - Mogul (uphill)
Med-Hi - Snow, mud, gravel (uphill), sand, dirt, mogul (uphill) and grass
