TOYOTA LAND CRUISER 2017 J200 Owners Manual

LC200_OM_OM60P24U_(U)
5718-1. Specifications
8
Vehicle specifications

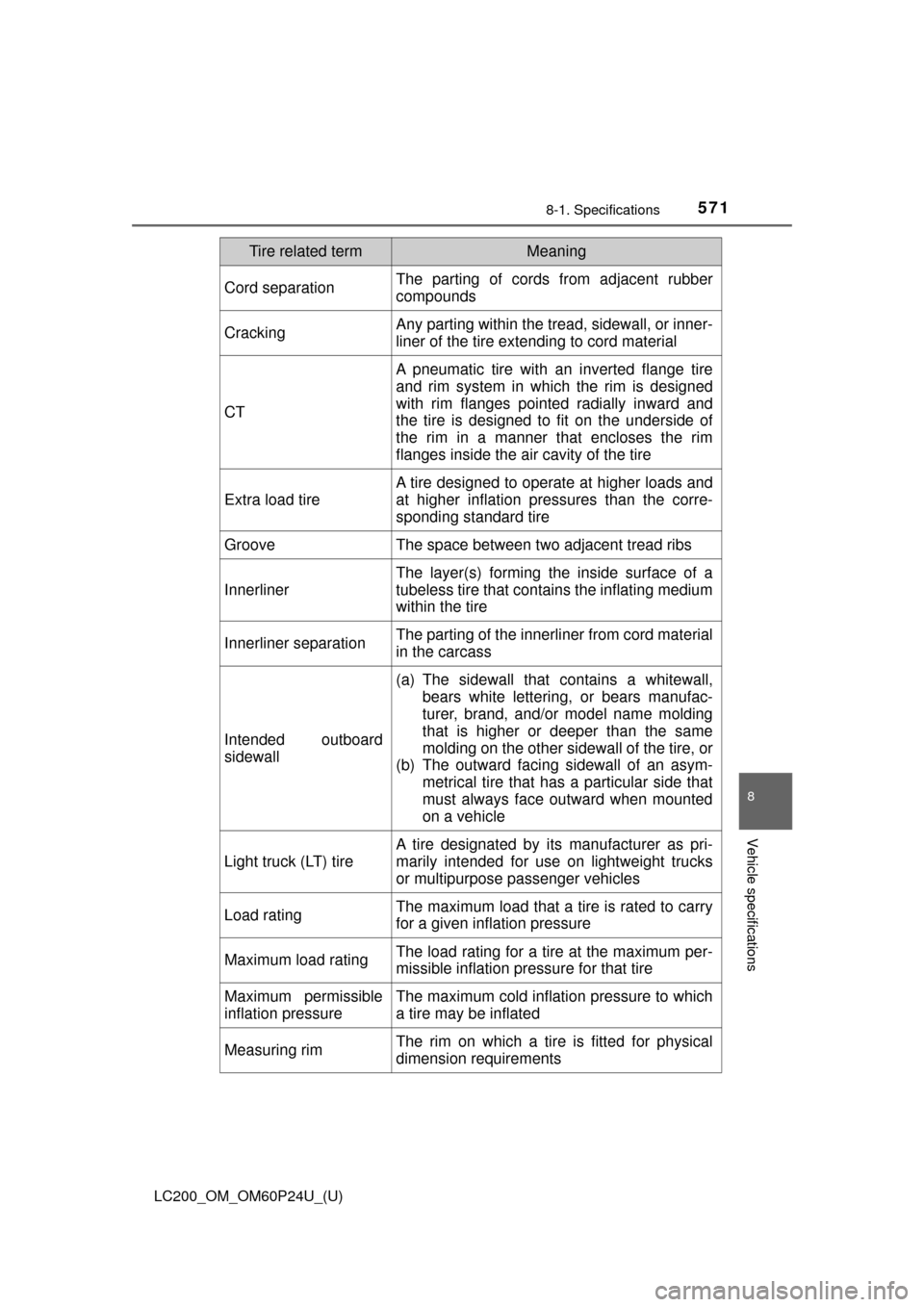

Cord separationThe parting of cords from adjacent rubber
compounds
CrackingAny parting within the tread, sidewall, or inner-
liner of the tire extending to cord material
CT
A pneumatic tire with an inverted flange tire
and rim system in which the rim is designed
with rim flanges pointed radially inward and
the tire is designed to fit on the underside of
the rim in a manner that encloses the rim
flanges inside the air cavity of the tire
Extra load tire
A tire designed to operate at higher loads and
at higher inflation pressures than the corre-
sponding standard tire
GrooveThe space between two adjacent tread ribs
Innerliner
The layer(s) forming the inside surface of a
tubeless tire that contains the inflating medium
within the tire
Innerliner separationThe parting of the innerliner from cord material
in the carcass
Intended outboard
sidewall
(a) The sidewall that contains a whitewall,
bears white lettering, or bears manufac-
turer, brand, and/or model name molding
that is higher or deeper than the same
molding on the other sidewall of the tire, or
(b) The outward facing sidewall of an asym-
metrical tire that has a particular side that
must always face outward when mounted
on a vehicle
Light truck (LT) tire
A tire designated by its manufacturer as pri-
marily intended for use on lightweight trucks
or multipurpose passenger vehicles
Load ratingThe maximum load that a tire is rated to carry
for a given inflation pressure
Maximum load ratingThe load rating for a tire at the maximum per-
missible inflation pressure for that tire
Maximum permissible
inflation pressureThe maximum cold inflat ion pressure to which
a tire may be inflated
Measuring rimThe rim on which a tire is fitted for physical
dimension requirements
Tire related termMeaning

572
LC200_OM_OM60P24U_(U)
8-1. Specifications

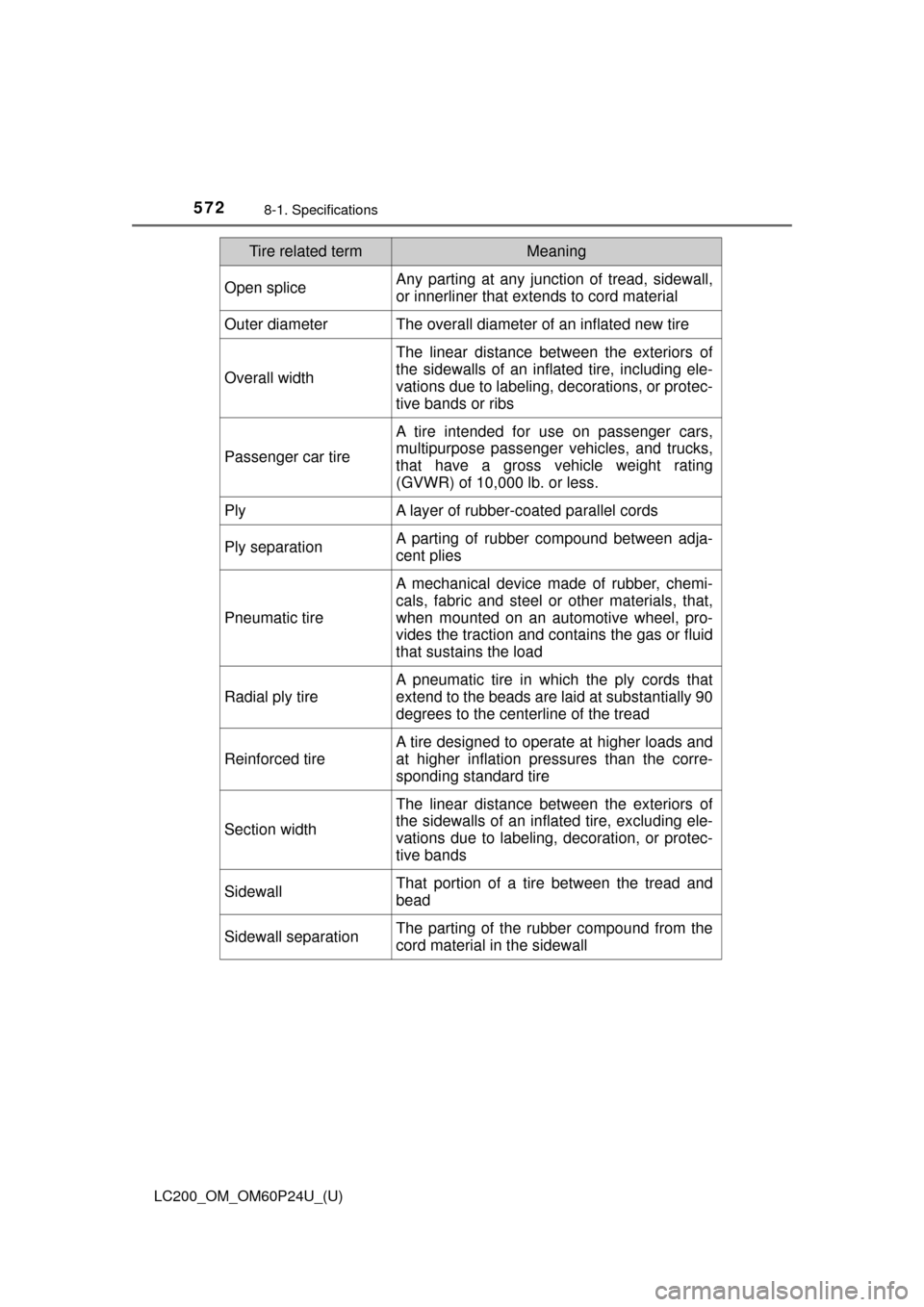

Open spliceAny parting at any junction of tread, sidewall,
or innerliner that extends to cord material
Outer diameterThe overall diameter of an inflated new tire
Overall width
The linear distance between the exteriors of
the sidewalls of an inflated tire, including ele-
vations due to labeling, decorations, or protec-
tive bands or ribs
Passenger car tire
A tire intended for use on passenger cars,
multipurpose passenger vehicles, and trucks,
that have a gross vehicle weight rating
(GVWR) of 10,000 lb. or less.
PlyA layer of rubber-coated parallel cords
Ply separationA parting of rubber compound between adja-
cent plies
Pneumatic tire
A mechanical device made of rubber, chemi-
cals, fabric and steel or other materials, that,
when mounted on an automotive wheel, pro-
vides the traction and contains the gas or fluid
that sustains the load
Radial ply tire
A pneumatic tire in which the ply cords that
extend to the beads are laid at substantially 90
degrees to the centerline of the tread
Reinforced tire
A tire designed to operate at higher loads and
at higher inflation pressures than the corre-
sponding standard tire
Section width
The linear distance between the exteriors of
the sidewalls of an inflated tire, excluding ele-
vations due to labeling, decoration, or protec-
tive bands
SidewallThat portion of a tire between the tread and
bead
Sidewall separationThe parting of the rubber compound from the
cord material in the sidewall
Tire related termMeaning

LC200_OM_OM60P24U_(U)
5738-1. Specifications
8
Vehicle specifications

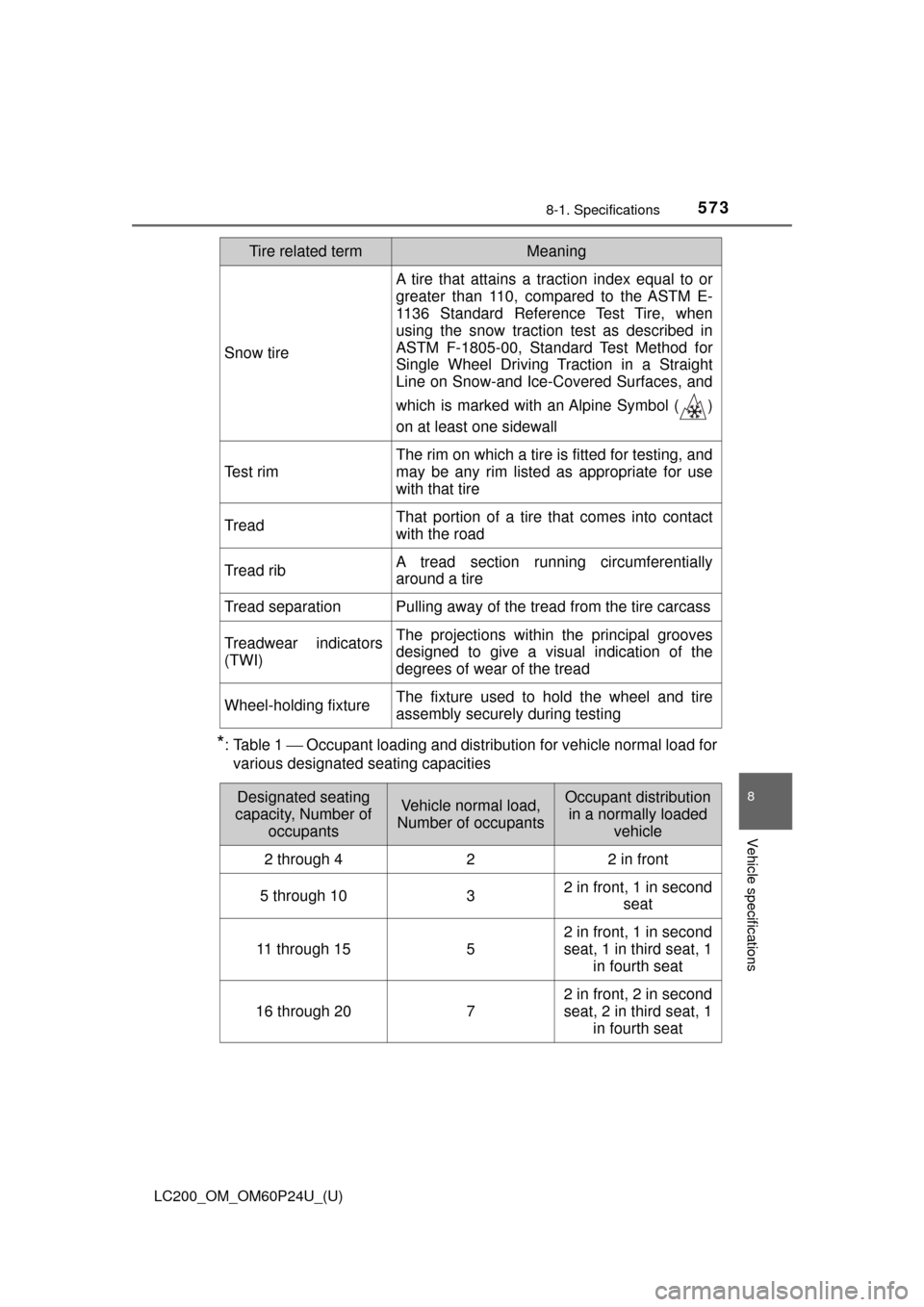

*: Table 1 ⎯ Occupant loading and distribution for vehicle normal load for
various designated seating capacities
Snow tire
A tire that attains a traction index equal to or
greater than 110, compared to the ASTM E-
1136 Standard Reference Test Tire, when
using the snow traction test as described in
ASTM F-1805-00, Standard Test Method for
Single Wheel Driving Traction in a Straight
Line on Snow-and Ice-Covered Surfaces, and
which is marked with an Alpine Symbol ( )
on at least one sidewall
Test rim
The rim on which a tire is fitted for testing, and
may be any rim listed as appropriate for use
with that tire
TreadThat portion of a tire that comes into contact
with the road
Tread ribA tread section running circumferentially
around a tire
Tread separationPulling away of the tread from the tire carcass
Treadwear indicators
(TWI)The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire
assembly securely during testing
Tire related termMeaning
Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution
in a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second seat
11 through 155
2 in front, 1 in second
seat, 1 in third seat, 1 in fourth seat
16 through 207
2 in front, 2 in second
seat, 2 in third seat, 1
in fourth seat

574
LC200_OM_OM60P24U_(U)
8-2. Customization
Customizable features
When customizing vehicle features, ensure that the vehicle is parked
in a safe place with the shift lever in P and the parking brake set.
■Changing by using the navigation system
Press the “SETUP” button on the navigation system.
Select “Vehicle” on the “Setup” screen.
Various setting can be changed. Refer to the list of settings that can
be changed for details.
■Changing by using the mu lti-information display
Use the meter control switches to select on the multi-infor-
mation display.
Choose the desired item using , and then press .
Select the desired setting by operating , and then press
.
To stop the selection, press to return to the previous screen.
Your vehicle includes a variety of electronic features that can be
personalized to suit your prefer ences. The settings of these fea-
tures can be changed by using the navigation system, the multi-
information display, or at your Toyota dealer.
Customizing vehicle features
1
2
1
2
3

LC200_OM_OM60P24U_(U)
5758-2. Customization
8
Vehicle specifications
Some function settings are changed simultaneously with other func-
tions being customized. Contact your Toyota dealer for further details.
Settings that can be changed using the navigation system
Settings that can be changed using the multi-information display
Settings that can be changed by your Toyota dealer
Definition of symbols: O = Available, – =Not available
■
Smart key system (→ P. 120)
■Wireless remote control ( →P. 102)
Customizable features
1
2
3
FunctionDefault settingCustomized
setting
Smart key system OnOffO—O
Smart door unlockingDriver’s doorAll the doorsO—O
123
FunctionDefault settingCustomized
setting
Wireless remote control On Off——O
Unlocking operation
Driver’s door
unlocked in one
step, all doors
unlocked in two steps
All doors
unlocked in one step
O—O
Alarm (panic mode)OnOff——O
123

576
LC200_OM_OM60P24U_(U)
8-2. Customization
■Smart key system (→P. 120) and wireless remote control
( → P. 102)
■Door lock ( →P. 106)
FunctionDefault settingCustomized
setting
Operation signal (Emer-
gency flashers) On OffO—O
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked
60 secondsOffO—O30 seconds
120 seconds
Operation signal
(Buzzers)5OffO—O1 to 7
Open door warning
function (when locking
the vehicle)
On Off
——O
123
FunctionDefault settingCustomized
setting
Unlocking using a
mechanical key
Driver’s door
unlocked in one step, all doors
unlocked in two
steps
All doors
unlocked in one step
——O
Automatic door lock Shifting the shift
lever to position other than P OffO—O
Vehicle speed is
approximately
12 mph
(20 km/h) or higher
Automatic door unlock Shifting the shift
lever to P OffO—O
Driver’s door is
opened
123

LC200_OM_OM60P24U_(U)
5778-2. Customization
8
Vehicle specifications
■Power windows (→P. 150)
■Moon roof ( →P. 154)
*1: The settings can be changed when the mechanical key linked operation of
the power window is set to on.
*2: The settings can be changed when the wireless remote control linkedoperation of the power window is set to on.
FunctionDefault settingCustomized setting
Mechanical key linked
operation (close) Off On——O
Mechanical key linked
operation (open)Off On——O
Wireless remote control
linked operation (open)Off On——O
Open door reminder
buzzerOn Off——O
Buzzer sounds if oper-
ated using wireless
remote controlOn Off
——O
123
FunctionDefault settingCustomized
setting
Mechanical key linked
operation (open)
*1Off On——O
Mechanical key linked
operation (close)
*1OffOn——O
Linked operation of
components when door
key is used
Slide onlyTilt only——O
Wireless remote control
linked operation
(open)
*2OffOn——O
Linked operation of
components when wire-
less remote control
used
Slide onlyTilt only——O
Open moon roof
reminder buzzerOnOff——O
123

578
LC200_OM_OM60P24U_(U)
8-2. Customization
■Illumination (→P. 393)
FunctionDefault settingCustomized
setting
Interior lights illumina-
tion control On Off——O
Time period before the
interior lights turn off 15 secondsOff
O—O
7.5 seconds
30 seconds
Operation after the
engine switch is turned
off On Off
——O
Operation when the
doors are unlocked
On Off——O
Operation when you
approach the vehicle
with the electronic key
on your person (When
the interior light switch
is door position)On
Off
——O
Footwell lights OnOff——O
Door trim lights and
footwell lights illumina-
tion control On Off
——O
Door trim lights
OnOff——O
Sensitivity of the ambi-
ent light sensor used for
dimming the meter
lights etc.
Standard-2 to 2——O
Sensitivity of the ambi-
ent light sensor used for
brightening the meter
lights etc.
Standard-2 to 2——O
123

LC200_OM_OM60P24U_(U)
5798-2. Customization
8
Vehicle specifications
■Automatic light control system (→P. 207)
■Intuitive parking assist (→ P. 273)
■Automatic air conditioning system (→P. 374)
FunctionDefault settingCustomized
setting
Light sensor sensitivityStandard-2 to 2O—O
Daytime running light
system On OffO—O
Time elapsed before
headlights automati-
cally turn off after doors
are closed
30 secondsOffO—O60 seconds
90 seconds
Welcome lighting illumi-
nation control
On Off——O
123
FunctionDefault settingCustomized
setting
Detection distance of
the rear center sensor Far NearO—O
Alert Volume (alert vol-
ume can be adjusted) 3 1 to 5
O—O
Display setting (when
intuitive parking assist is
operating) All sensors dis-
played Display off
O—O
123
FunctionDefault settingCustomized
setting
A/C Auto switch opera-
tion Auto ManualO—O
123

580
LC200_OM_OM60P24U_(U)
8-2. Customization
■Outside rear view mirrors (→P. 147)
■Front seat heaters and ventilators ( →P. 390)
■Driving position memory ( →P. 136)
FunctionDefault settingCustomized
setting
Linked mirror function
when reversing On Off——O
123
FunctionDefault settingCustomized
setting
Adjustment of the front
seat heater tempera-
ture or the ventilator fan
speed during automatic
operation (individual
seat adjustment avail-
able) Level 3
(standard) Level 1 (low) to
level 5 (high)
——O
123
FunctionDefault settingCustomized setting
Selection the door link-
ing driving position
memory with door
unlock operation Driver’s door All doors
——O
123
