611-1. For safe use
LC200_OM_OM60P24U_(U)
1
For safety and security
WARNING
■Child restraint precautions
● For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.
● Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
● Never install a rear-facing child restraint system on the front passenger
seat even if the “AIR BAG OFF” indicator light is illuminated.
In the event of an accident, the force of the rapid inflation of the front pas-
senger airbag can cause death or serious injury to the child if the rear-fac-
ing child restraint system is installed on the front passenger seat.
● A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. A child restraint system that
requires a top tether strap should not be used in the front passenger seat
since there is no top tether strap anchor for the front passenger seat.
Adjust the seatback as upright as possible and always move the seat as
far back as possible even if the “AIR BAG OFF” indicator light is illumi-
nated, because the front passenger airbag could inflate with considerable
speed and force. Otherwise, the child may be killed or seriously injured.
● Do not use the seat belt extender when installing a child restraint system
on the front or rear passenger seat. If installing a child restraint system
with the seat belt extender connected to the seat belt, the seat belt will not
securely hold the child restraint system, which could cause death or seri-
ous injury to the child or other passengers in the event of a sudden stop,
sudden swerve or accident.
● Do not allow the child to lean his/her head or any part of his/her body
against the door or the area of the seat, front, side and rear pillars or roof
side rails from which the SRS side airbags or SRS curtain shield airbags
deploy even if the child is seated in the child restraint system. It is danger-
ous if the SRS side airbags and curtain shield airbags inflate, and the
impact could cause death or serious injury to the child.
● Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or accident.

621-1. For safe use
LC200_OM_OM60P24U_(U)
WARNING
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■ When the child restraint system is not in use
● Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. This will prevent it
from injuring passengers in the event of a sudden stop, sudden swerve or
accident.

631-1. For safe use
LC200_OM_OM60P24U_(U)
1
For safety and security

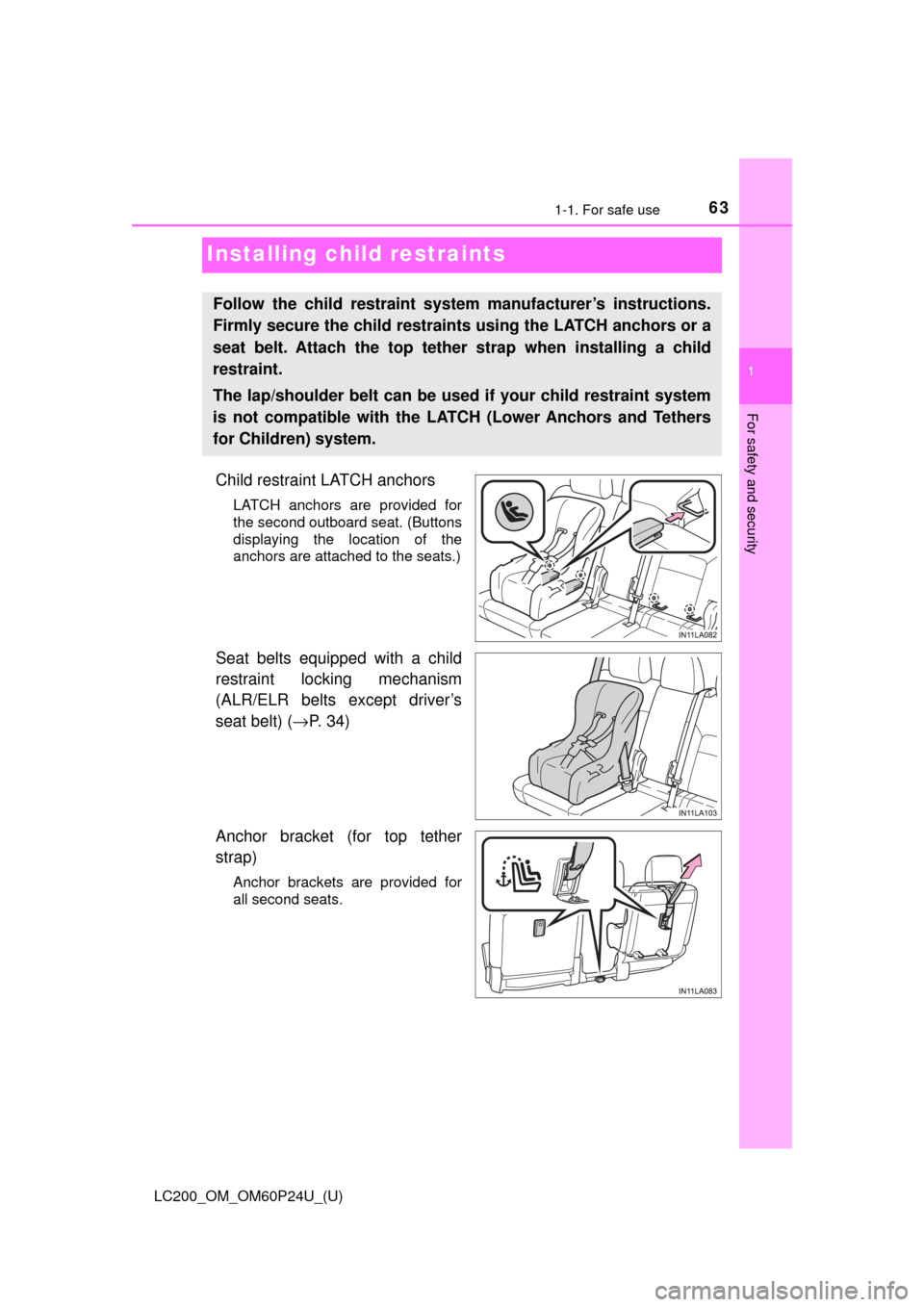

Installing child restraints
Child restraint LATCH anchors
LATCH anchors are provided for
the second outboard seat. (Buttons
displaying the location of the
anchors are attached to the seats.)
Seat belts equipped with a child
restraint locking mechanism
(ALR/ELR belts except driver’s
seat belt) (→P. 34)
Anchor bracket (for top tether
strap)
Anchor brackets are provided for
all second seats.
Follow the child restraint system manufacturer’s instructions.
Firmly secure the child restraints using the LATCH anchors or a
seat belt. Attach the top tether strap when installing a child
restraint.
The lap/shoulder belt can be used if your child restraint system
is not compatible with the LATCH (Lower Anchors and Tethers
for Children) system.

641-1. For safe use
LC200_OM_OM60P24U_(U)

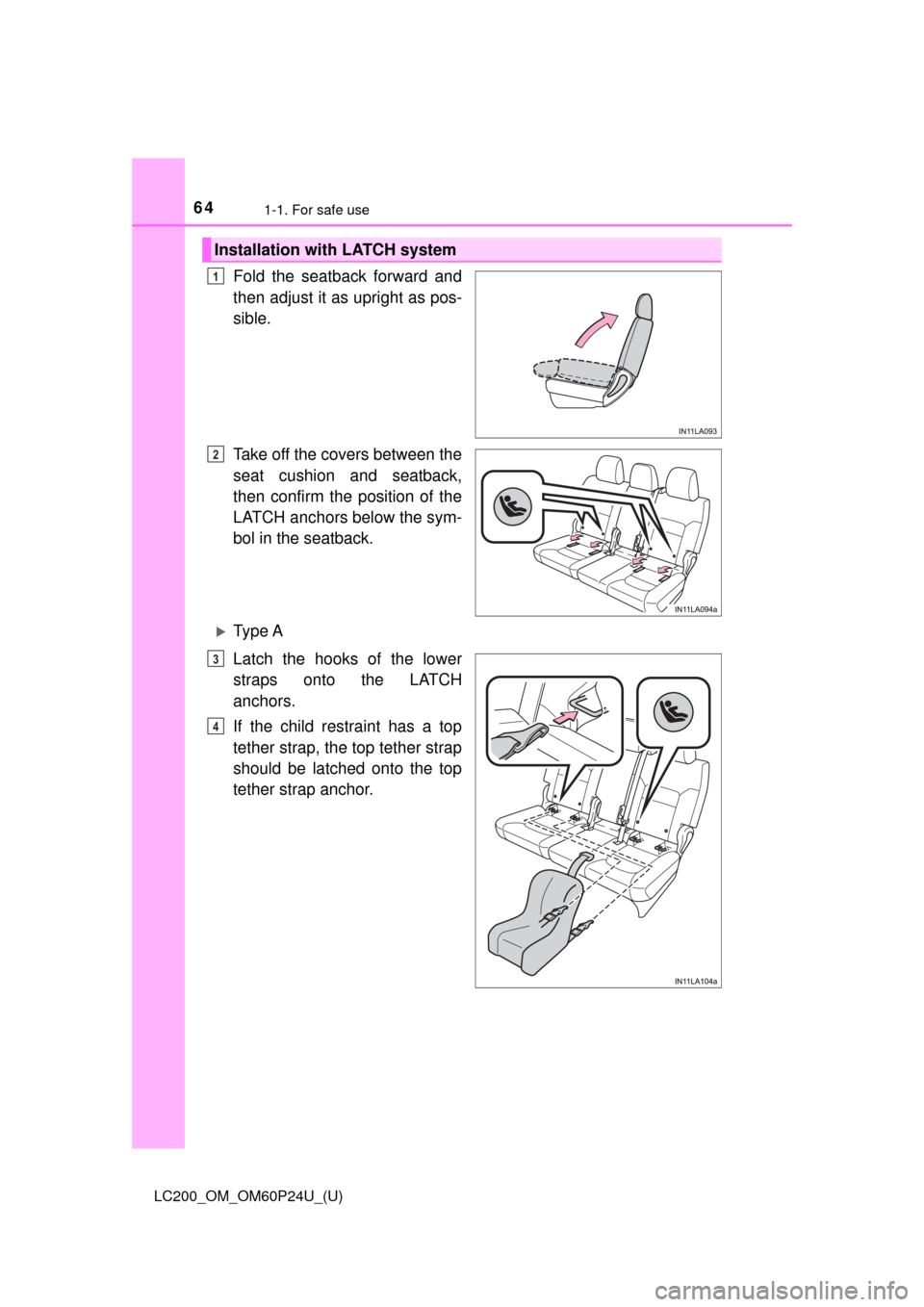

Fold the seatback forward and
then adjust it as upright as pos-
sible.
Take off the covers between the
seat cushion and seatback,
then confirm the position of the
LATCH anchors below the sym-
bol in the seatback.
Ty p e A
Latch the hooks of the lower
straps onto the LATCH
anchors.
If the child restraint has a top
tether strap, the top tether strap
should be latched onto the top
tether strap anchor.
Installation with LATCH system
1
2
3
4

651-1. For safe use
LC200_OM_OM60P24U_(U)
1
For safety and security

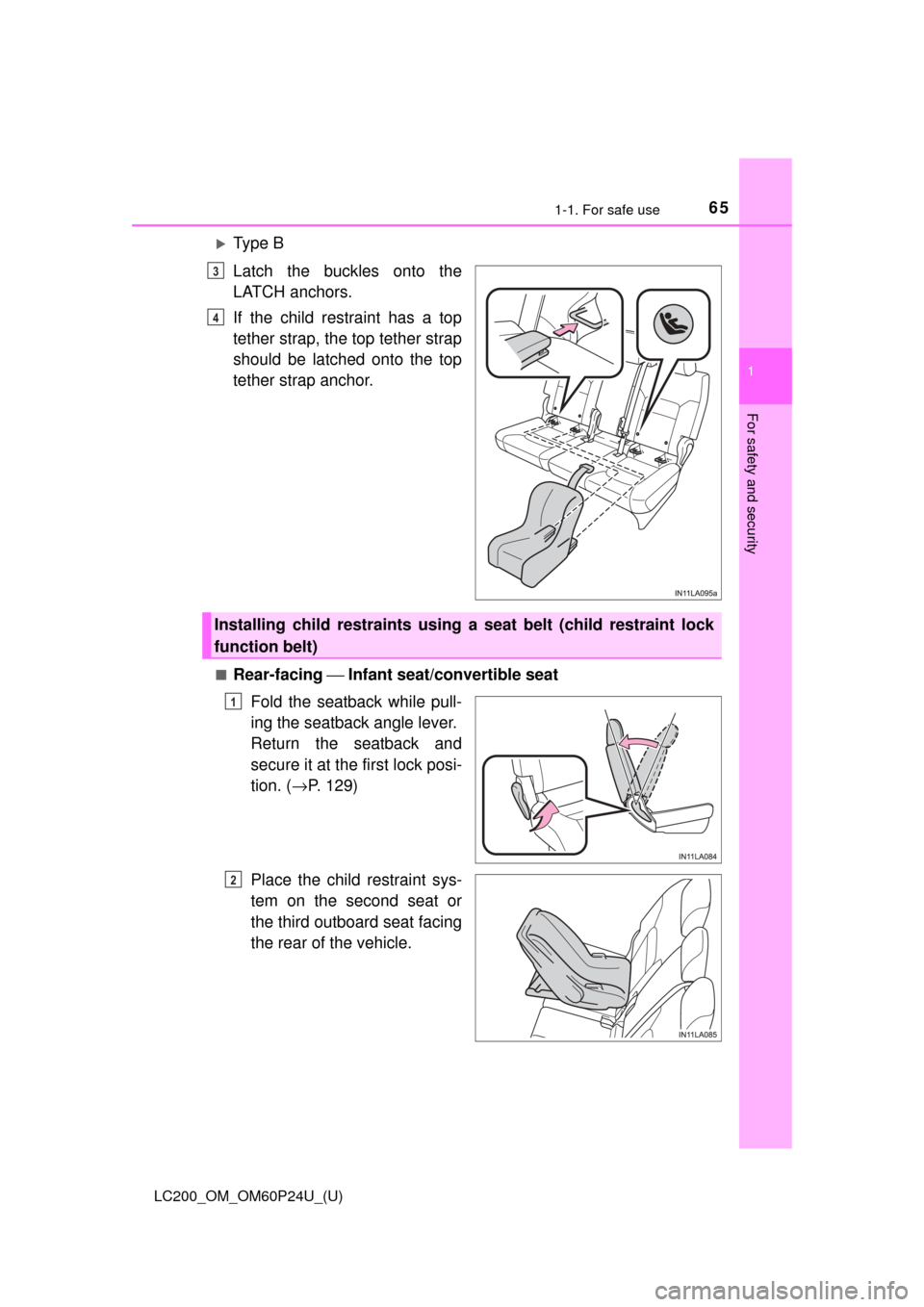

Ty p e B
Latch the buckles onto the
LATCH anchors.
If the child restraint has a top
tether strap, the top tether strap
should be latched onto the top
tether strap anchor.
■Rear-facing ⎯ Infant seat/convertible seat
Fold the seatback while pull-
ing the seatback angle lever.
Return the seatback and
secure it at the first lock posi-
tion. ( →P. 129)
Place the child restraint sys-
tem on the second seat or
the third outboard seat facing
the rear of the vehicle.
3
4
Installing child restraints using a seat belt (child restraint lock
function belt)
1
2

661-1. For safe use
LC200_OM_OM60P24U_(U)

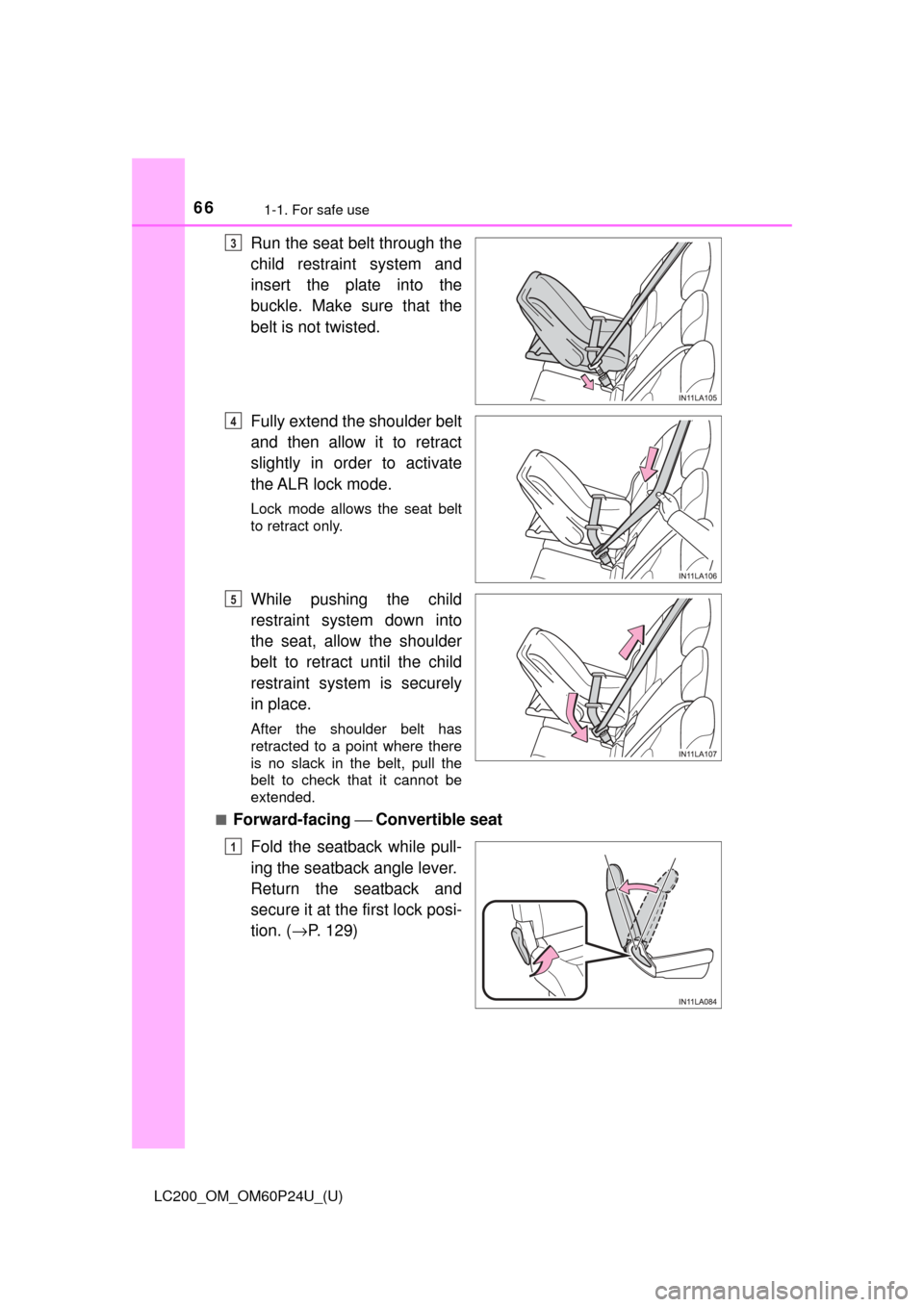

Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Fully extend the shoulder belt
and then allow it to retract
slightly in order to activate
the ALR lock mode.
Lock mode allows the seat belt
to retract only.
While pushing the child
restraint system down into
the seat, allow the shoulder
belt to retract until the child
restraint system is securely
in place.
After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.
■
Forward-facing ⎯ Convertible seat
Fold the seatback while pull-
ing the seatback angle lever.
Return the seatback and
secure it at the first lock posi-
tion. ( →P. 129)
3
4
5
1

671-1. For safe use
LC200_OM_OM60P24U_(U)
1
For safety and security

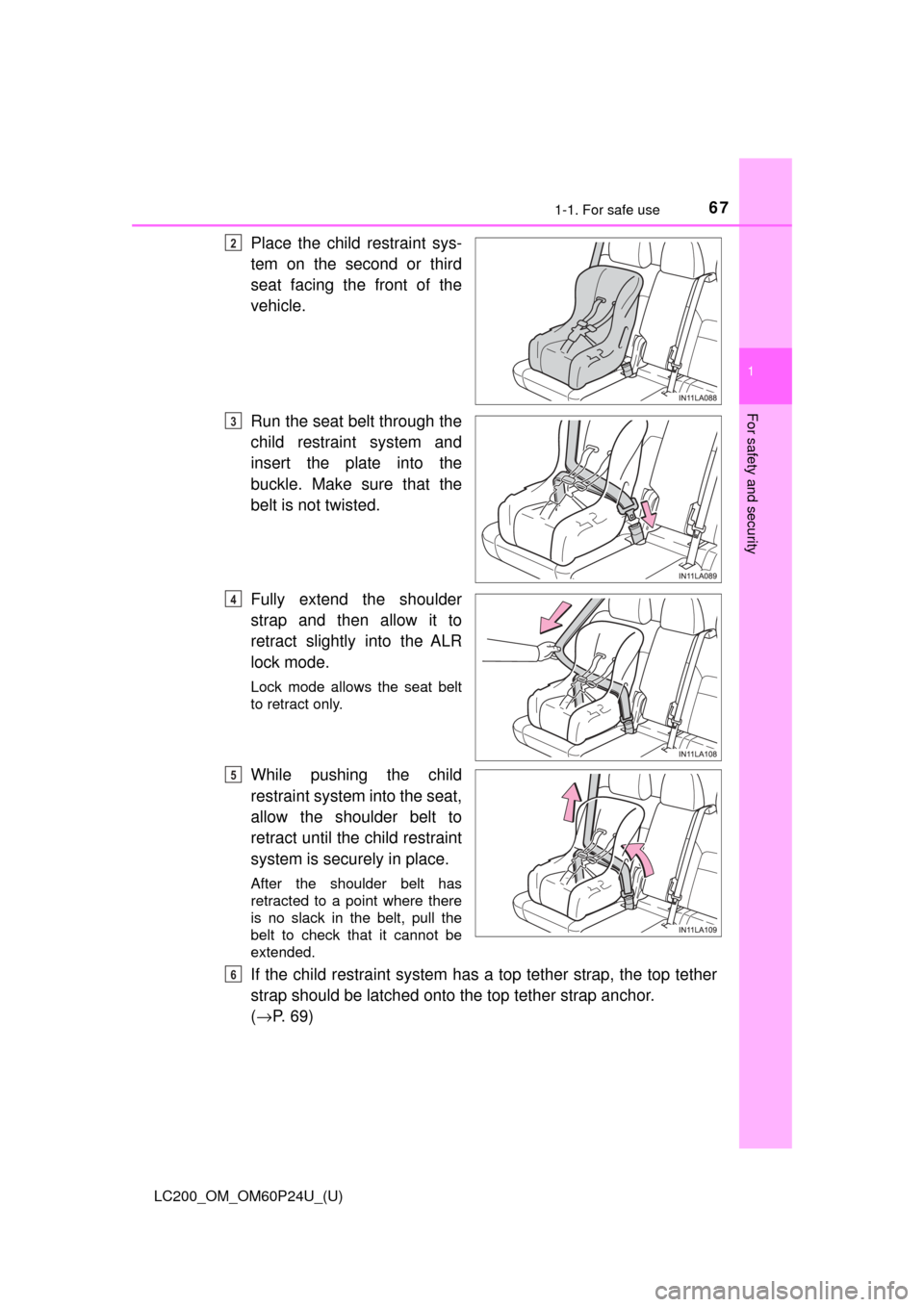

Place the child restraint sys-
tem on the second or third
seat facing the front of the
vehicle.
Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Fully extend the shoulder
strap and then allow it to
retract slightly into the ALR
lock mode.
Lock mode allows the seat belt
to retract only.
While pushing the child
restraint system into the seat,
allow the shoulder belt to
retract until the child restraint
system is securely in place.
After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.
If the child restraint system has a top tether strap, the top tether
strap should be latched onto the top tether strap anchor.
(→ P. 69)
2
3
4
5
6

681-1. For safe use
LC200_OM_OM60P24U_(U)■

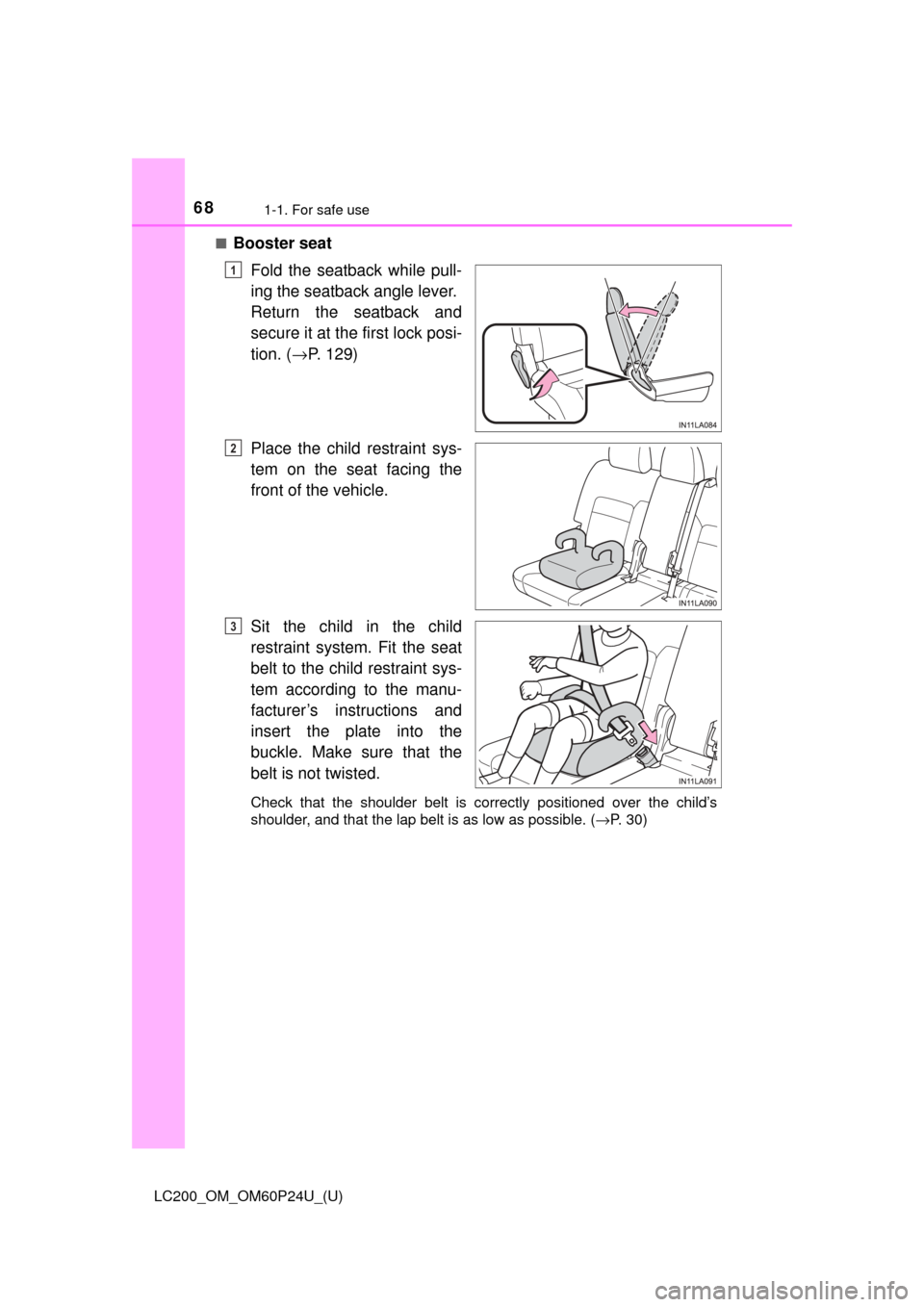

Booster seat
Fold the seatback while pull-
ing the seatback angle lever.
Return the seatback and
secure it at the first lock posi-
tion. ( →P. 129)
Place the child restraint sys-
tem on the seat facing the
front of the vehicle.
Sit the child in the child
restraint system. Fit the seat
belt to the child restraint sys-
tem according to the manu-
facturer’s instructions and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Check that the shoulder belt is correctly positioned over the child’s
shoulder, and that the lap belt is as low as possible. ( →P. 30)
1
2
3

691-1. For safe use
LC200_OM_OM60P24U_(U)
1
For safety and security

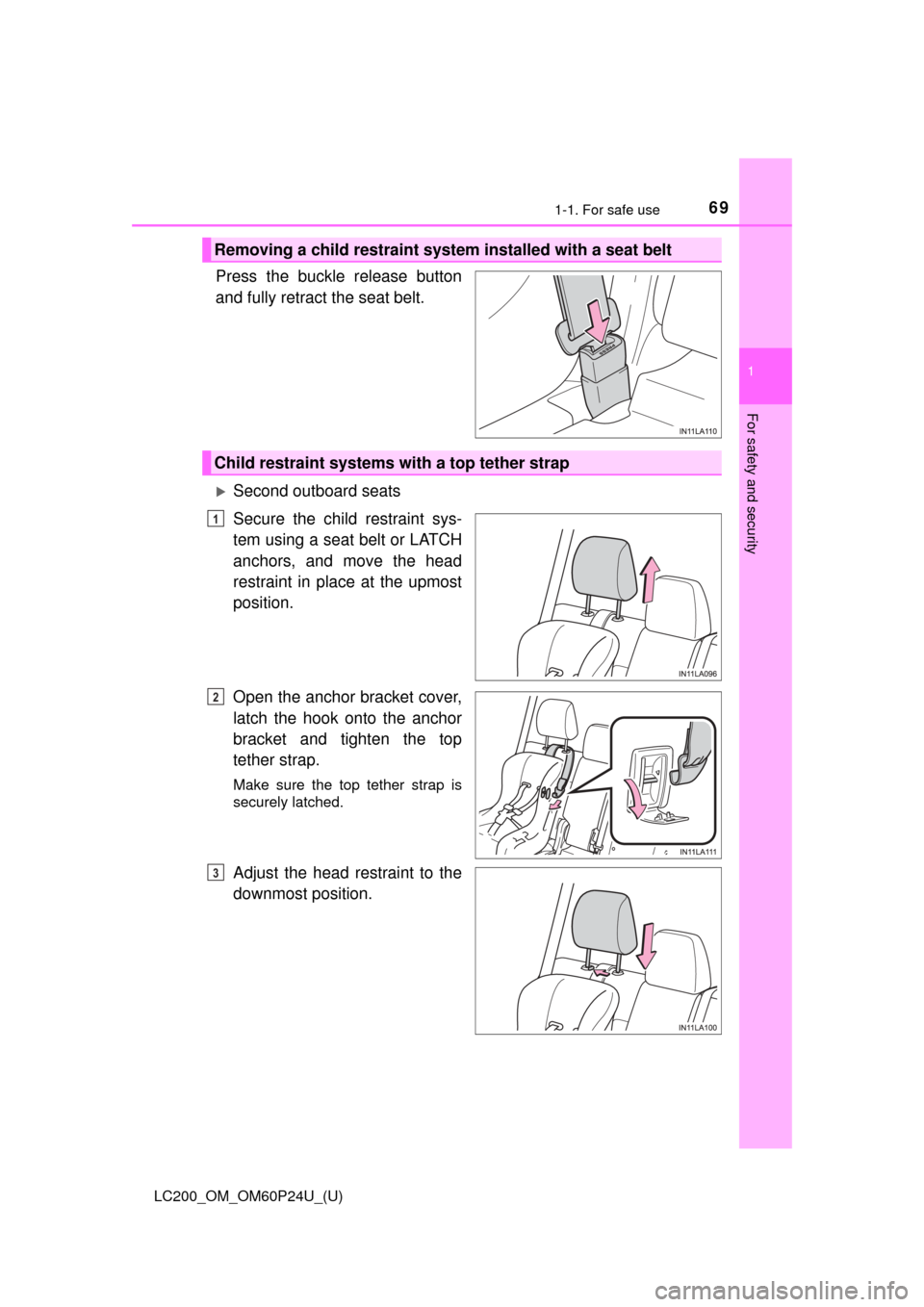

Press the buckle release button
and fully retract the seat belt.
Second outboard seats
Secure the child restraint sys-
tem using a seat belt or LATCH
anchors, and move the head
restraint in place at the upmost
position.
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top
tether strap.
Make sure the top tether strap is
securely latched.
Adjust the head restraint to the
downmost position.
Removing a child restraint system installed with a seat belt
Child restraint systems with a top tether strap
1
2
3

701-1. For safe use
LC200_OM_OM60P24U_(U)

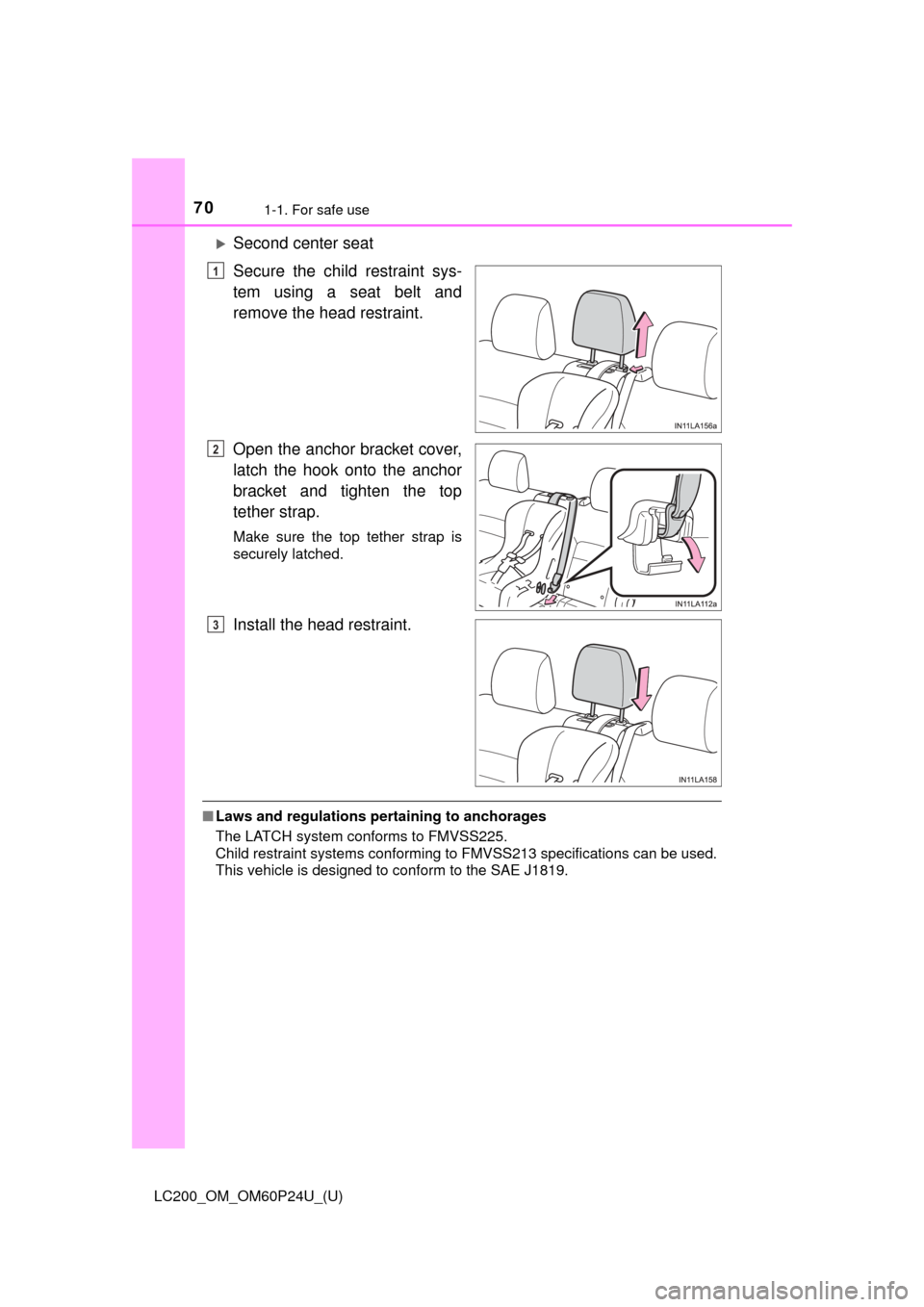

Second center seat
Secure the child restraint sys-
tem using a seat belt and
remove the head restraint.
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top
tether strap.
Make sure the top tether strap is
securely latched.
Install the head restraint.
■Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225.
Child restraint systems conforming to FMVSS213 specifications can be used.
This vehicle is designed to conform to the SAE J1819.
1
2
3
