TOYOTA LAND CRUISER 2017 J200 Quick Reference Guide

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
9

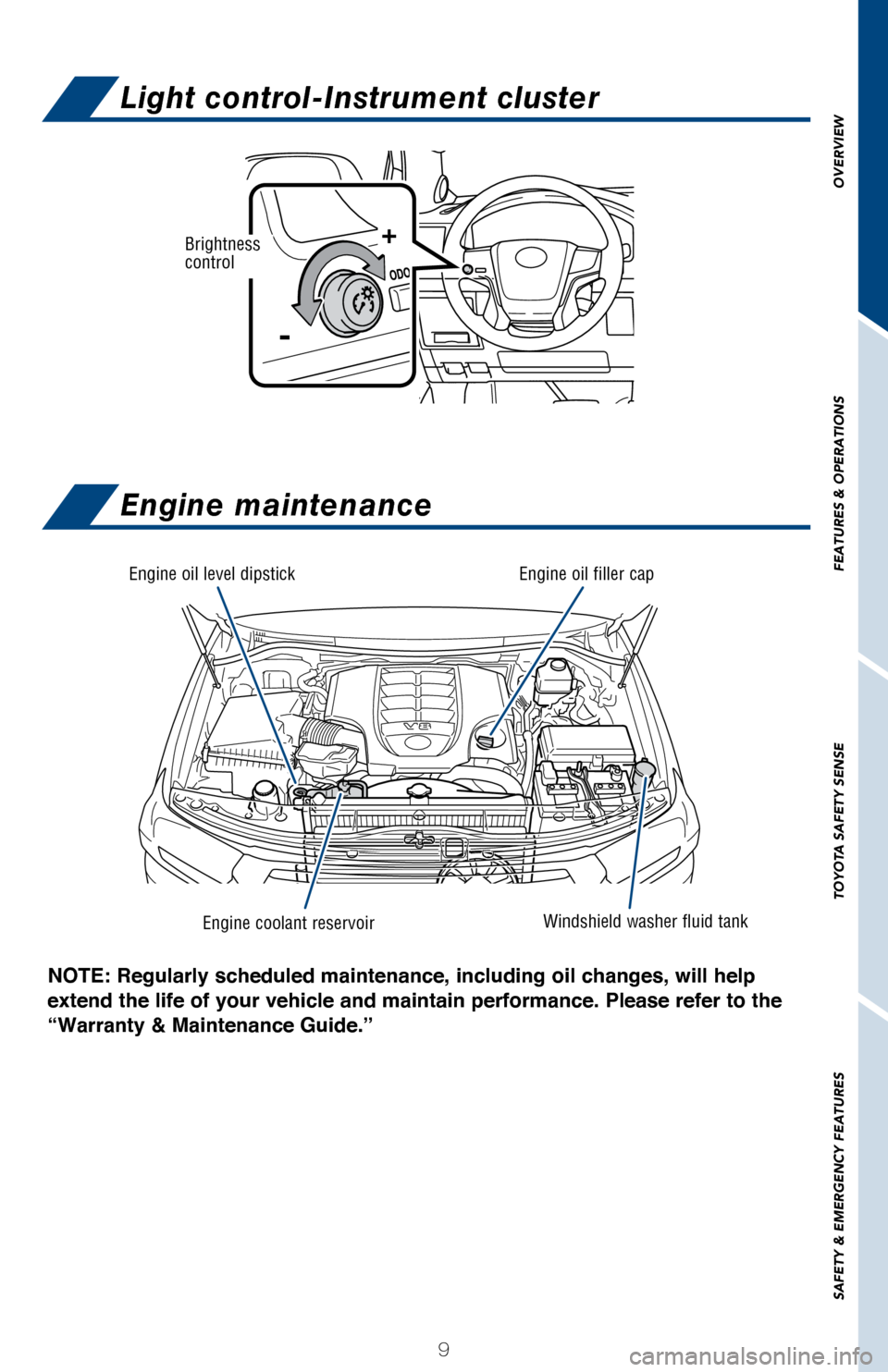

Engine oil level dipstick
Engine coolant reservoirWindshield washer fluid tank
Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”
Brightness
control
-
+
Light control-Instrument cluster
Engine maintenance

10
Auto lock/unlock
Automatic transmission
Automatic door locks can be programmed to operate in four different mode\
s, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 45 seconds after\
turning the “ENGINE START STOP” switch OFF. (Vehicles with a Smart Key system\
)
-Doors unlock when the driver’s door is opened within 45 seconds afte\
r turning the ignition switch to the “ACC” or “LOCK” position. (Vehic\
les without a Smart Key
system)
Refer to the Owner’s Manual for more details.
* The “ENGINE START STOP” switch/ignition switch must be “ON”\
and the brake pedal depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+ : Upshift (push and release)
- : Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking do\
wnhill. For
best fuel economy during normal driving conditions, always drive with th\
e shift lever
in the “D” position.
Park*
Reverse
Neutral
Drive
P
R
N
D
S“S” mode
For powerful acceleration and driving in
mountainous regions.For starting on slippery surfaces, such as snowy
roads. Press “2nd” to return to normal mode.
POWER MODE SECOND GEAR START MODE
FEATURES & OPERATIONS
“S” (SEQUENTIAL) MODE

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
11
Four-wheel drive
Steering lock release
Turn
Push
High speed
Low speed
Shift to “N” position when stopped, then push and turn to “L4.”\
H4
L4
Lock the center differential when your vehicle’s wheels get stuck in \
a ditch or when
driving on a slippery or bumpy surface.
Push
Turn
FOUR-WHEEL DRIVE CONTROL SWITCH
CENTER DIFFERENTIAL LOCK/UNLOCK SWITCH

12
Seat adjustments-Front
Seat adjustments-Rear
Seats-Head restraints
FEATURES & OPERATIONS
Seat positionSeatback angleLumbar support
(driver’s side only)
Seat position, cushion
angle and height Seatback angle
Refer to the Owner’s Manual for more details.
Second row
Third row (fold down)
Front Second rowThird row
Lock release button
Height
AngleLock release button
Height
Fold down
Lock release lever
Seatback angle

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
13
Seats-Tumbling 2nd row seats
(1)
(5)
(3)
(2)
(4)
Pull Seat hook cover
Pull
Stow the seat belt buckles and
lower the head restraints.
Hook the seat belt to the seat
belt hangers.
Hook the holding strap to the assist
grip and secure the seat. Install the seat hook covers on the
seat hooks.
Fold down the seatback and swing the whole seat up and forward.

14
Seats-Tumbling 3rd row seats
FEATURES & OPERATIONS
Stow the seat belt buckles.Stow the center head restraint.
Hook the seat belt to the seat belt
hangers. Fold down the outer head restraints.
Fold the seats. Lift the seats sideward.
Lock the seats. Install the seat hook covers on the
seat hooks.
Install the seat hook covers into
the back of the seat cushions. Lower the seats to their
original
position.
(1)
(5)
(3)
(2)
(4)
Push
(6)
Pull
(7)(8)
Seat hook cover
Pull
Pull
Returning seats
(1)(2)

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
15
Seats-Stowing 3rd row seats
MANUAL
POWER
Lower
An alarm will sound for 10 seconds and the indicator will light up on the
instrument panel if the seat is not fully open or stowed when vehicle is\
shifted out
of Park.
Refer to the Owner’s Manual for more details.
Third seat fold incomplete warning light
Stow the seat belt buckles
(2)
(1)
(3)Lower
Push down
Stow the seat belt buckles
Pull
(2)
(1)
(3)
Push and hold

16
FEATURES & OPERATIONSDoors-Power sliding
(if equipped)
ON/OFF SWITCH
OPENING/CLOSING
Power
• Sliding doors will not fully open if the sliding door window is open.
• Power sliding doors will open only when gear selector is in the “P”\
(Park) position,
and doors are unlocked. Refer to the Owner’s Manual for more details.
• An alarm will sound if a sliding door is open and the vehicle is shifted\
out of Park.
• Left sliding door will not open if gas door is open.
• If battery is disconnected, the power sliding doors need to be reinitial\
ized.
Refer to the Owner’s Manual for more details.
Manual
• Sliding doors will not lock into the open position if the sliding door w\
indow is open.
Front overhead console Instrument panel
Push
Center pillar
On Off
Open: Push
Close: Push againOpen: Push
Close: Push again

OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
17
Daytime Running Light system (DRL) Automatically turns on the headlights at a
reduced intensity. Automatic light cut off system Automatically turns lights off after a delay of 30
seconds.
Right turn
Lane change
Lane change Left turn
Auto
OFF
Parking lights
Headlights
TurnOFF
ON
Front fog lights come on only when the headlights are on low beam.
Low beam
High beam flasher
High beam
Lights & turn signals
HEADLIGHTS
FRONT FOG LIGHTS
TURN SIGNALS

18
FEATURES & OPERATIONS
Up
Down
Driver sideWindow lock switch
Automatic operation Push the switch completely down or pull it completely up and
release to fully open or close. To stop window midway, lightly push the \
switch in the
opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Intermittent
Normal
Adjust sensor sensitivity2
Pull to wash and wipe
Push to wash
and wipe
Single wipe
Auto wipe
Slow
Fast
1 Intermittent windshield wiper frequency adjustment Rotate to increase/
decrease wipe frequency.
2 Rain-sensing windshield wiper Rotate to increase/decrease sensor sensitivity.
With intermittent wiper
With AUTO rain-sensing wiper
Pull to wash
and wipe
Single wipe
Interval wipe
Slow
Fast
Adjust
frequency1
Turn end
to activate
FRONT
REAR
Windshield wipers & washers
Windows-Power
