3314-5. Using the driving support systems
4
Driving
Observe the following precautions. Failure to do so may result in an
unexpected accident. Also , when driving, make sure to directly con-
firm the safety of your surroundings and the area to the rear of the
vehicle.
When using the Multi-terrain Monitor
WARNING
■ Conditions under which the Multi-terrain Monitor should not be used
Do not use the Multi-terrain Monitor in the following situations. The system
may not operate properly, resulting in an unexpected accident.
● When driving on an icy, snow-covered or otherwise slippery road surface
● When using tire chains or a spare tire
● When either front door or the back door is not completely closed
● When driving on an uneven road, such as a hill
● When tires or suspension parts other than those specified are equipped
When the tires are replaced, the position indicated by the guide lines dis-
played on the screen may differ.
■ Guide lines
The tire position indicator lines and vehicle position indicator lines m\
ay differ
from actual vehicle positions depending on the number of passengers,
cargo weight, road grade, road surface conditions, brightness of the sur-
rounding environment, etc. Always drive the vehicle while confirming the
safety of your surroundings.

332
LC200_OM_OM60Q26U_(U)
4-5. Using the driving support systems
NOTICE
■Panoramic view
● In the panoramic view, the system combines images taken from the front,
back, left and right side cameras into a single image. There are limits to
the range and content that can be displayed. Understand the characteris-
tics of this system before using.
● Image clarity may decline at the four corners of the panoramic view. How-
ever, this is not a malfunction, as these are the regions along the border of
each camera image where the images are combined.
● Depending on lighting conditions near each of the cameras, bright and
dark patches may appear on the panoramic view.
● The panoramic view display does not extend higher than the installation
position and image capture range of each camera.
● There are blind spots around the vehicle and there are regions that are not
displayed in the panoramic view.
● Three-dimensional objects displayed in wide front view or rear view may
not be displayed in the panoramic view.
● People and other three-dimensional obstacles may appear differently
when displayed in the panoramic view. (These differences include, among
others, cases in which displayed objects appear to have fallen over, disap-
pear near image processing areas, appear from image processing areas,
or when the actual distance to an object differs from the displayed posi-
tion.)
● The panoramic view will not be properly displayed when either front door
or the back door is open.
● The vehicle icon displayed in the panoramic view is a computer generated
image, and properties such as the color, shape and size will differ from the
actual vehicle. Therefore, nearby th ree-dimensional objects may appear to
be touching the vehicle, and actual distances to three-dimensional objects
may differ from those displayed.

LC200_OM_OM60Q26U_(U)
3334-5. Using the driving support systems
4
Driving

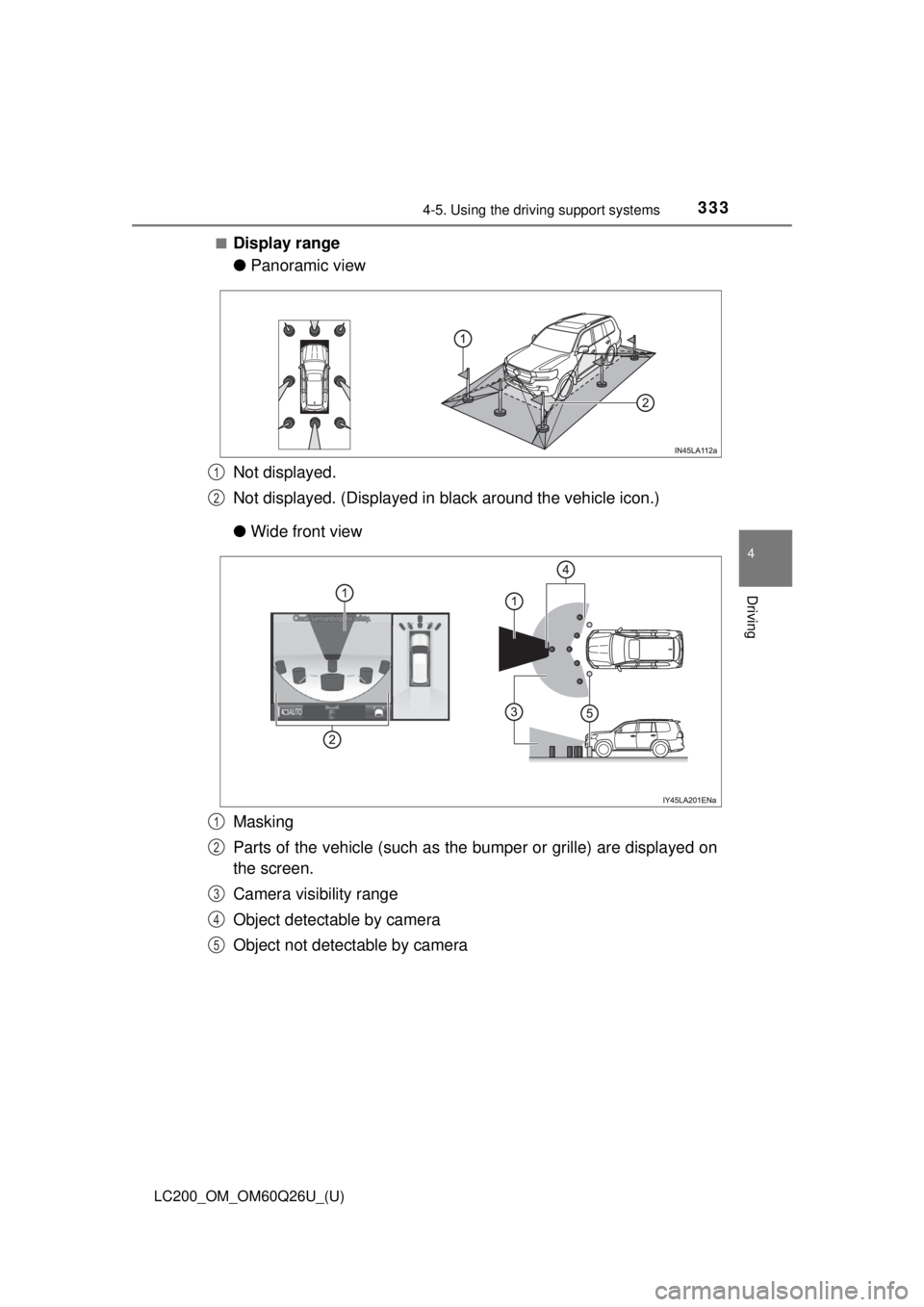

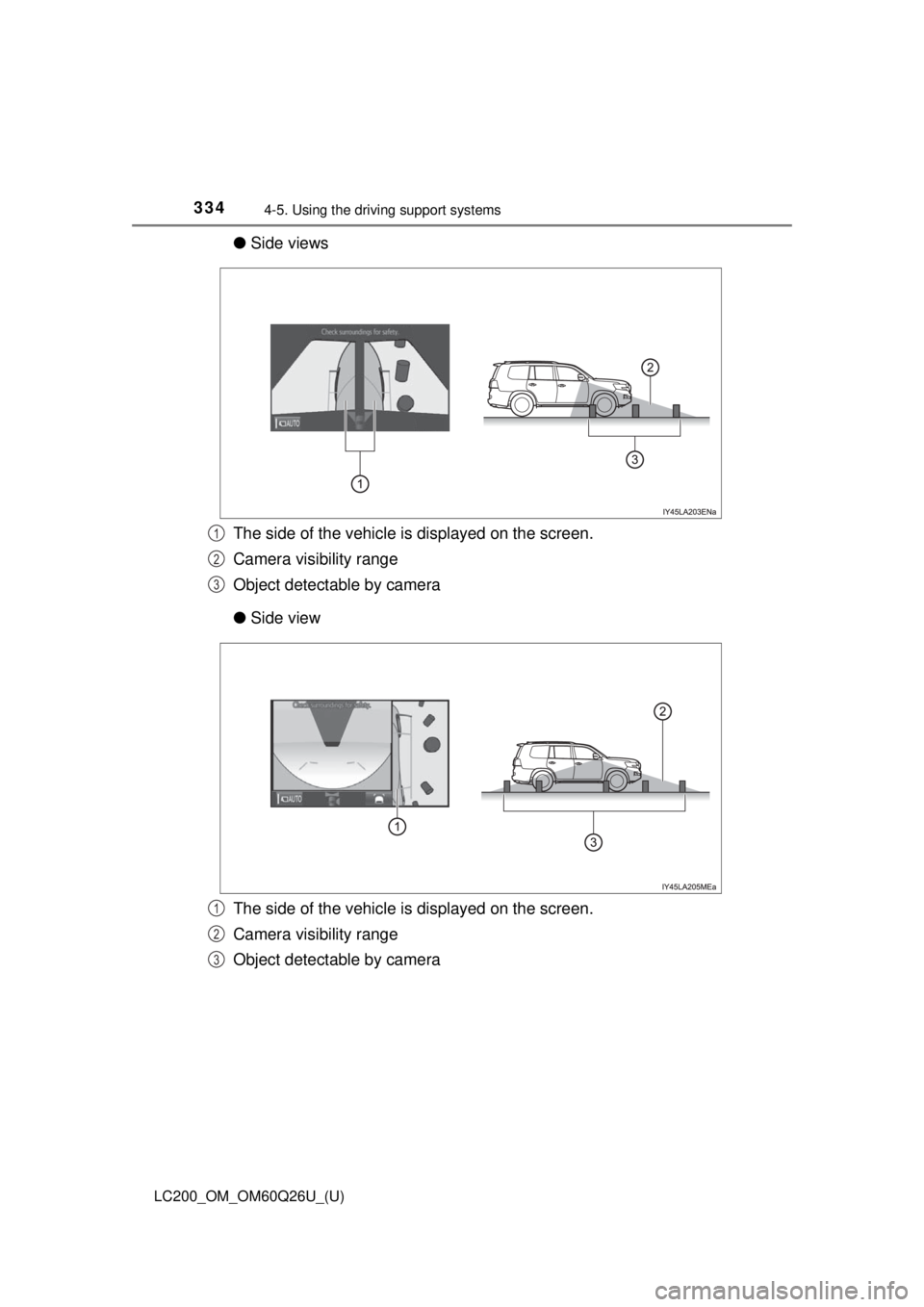

■Display range
●Panoramic view
Not displayed.
Not displayed. (Displayed in black around the vehicle icon.)
● Wide front view
Masking
Parts of the vehicle (such as the bumper or grille) are displayed on
the screen.
Camera visibility range
Object detectable by camera
Object not detectable by camera
1
2
1
2
3
4
5

334
LC200_OM_OM60Q26U_(U)
4-5. Using the driving support systems
●Side views

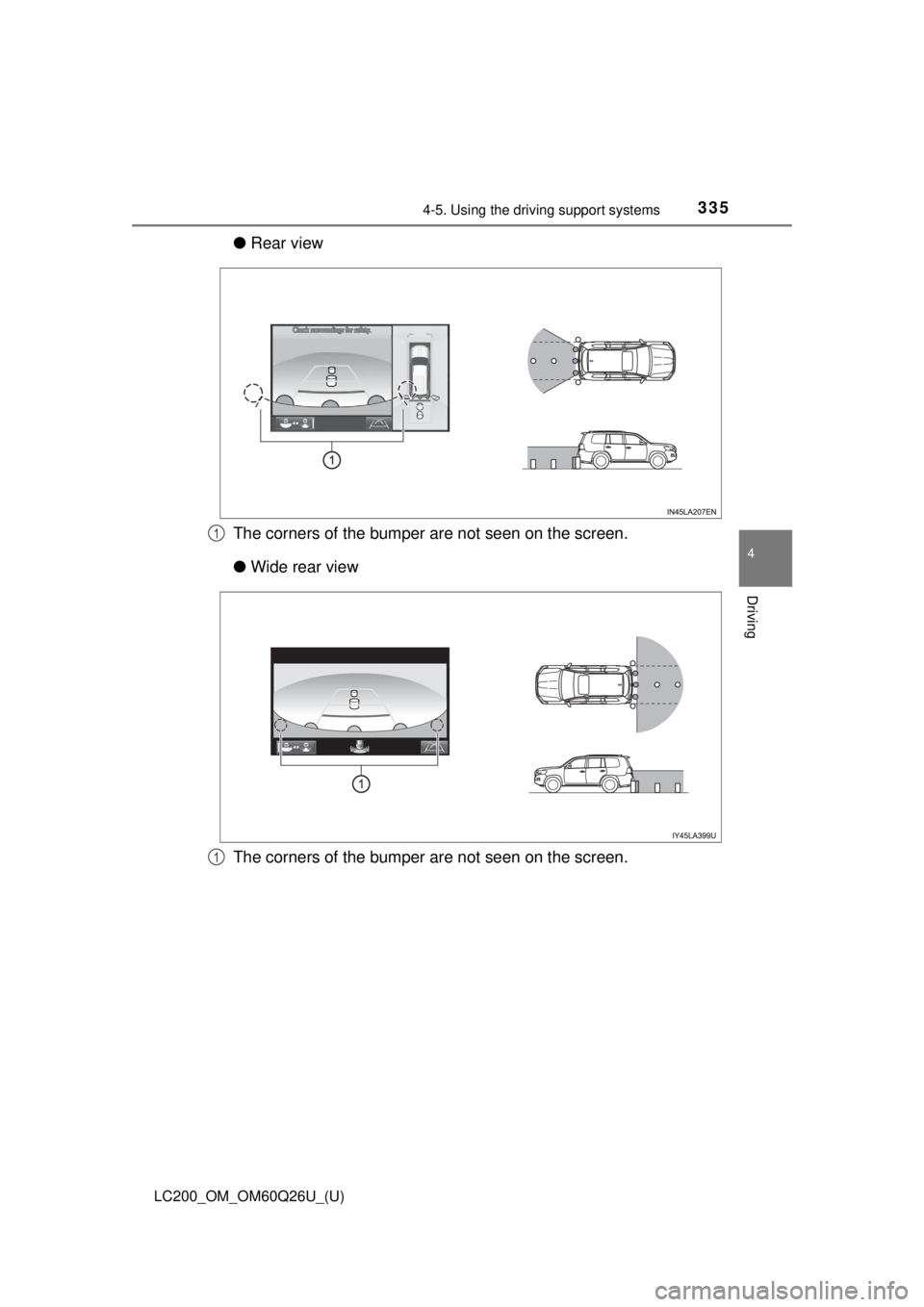

The side of the vehicle is displayed on the screen.
Camera visibility range
Object detectable by camera
● Side view
The side of the vehicle is displayed on the screen.
Camera visibility range
Object detectable by camera
1
2
3
1
2
3

LC200_OM_OM60Q26U_(U)
3354-5. Using the driving support systems
4
Driving
●Rear view
The corners of the bumper are not seen on the screen.
● Wide rear view
The corners of the bumper are not seen on the screen.
1
1

336
LC200_OM_OM60Q26U_(U)
4-5. Using the driving support systems
■Panoramic view display range
●In the panoramic view, the system processes and displays images acquired
form the 4 cameras under the assumption that the vehicle is on a flat road
surface. Therefore, the display may appear as follows.
• Three-dimensional objects may appear to have fallen over, and be long
and thin or bigger than they actually are
• Three-dimensional objects at a point higher than the surface of the road
may appear further away than they actually are, or may not appear
• Tall objects may appear to emerge from the image processing seams
● Inconsistencies in the brightness of images from each camera may occur
depending on lighting conditions.
● The displayed image may not be aligned when the tilt or height of the vehi-
cle changed due to the number of passengers, cargo weight or remaining
quantity of gasoline.
● Images and guide lines may not be properly displayed when the doors are
not completely closed.
● The relative distances between the vehicle icon and road surface or an
obstacle displayed in the panoramic view may differ from the actual state.
● If an illuminated license plate is used, it may appear on the screen.
● The black area around the vehicle icon is an area that is not appear in the
camera. Check these areas directly.
■ Wide front view display range
●Certain areas at the front of the vehicle have a different sense of distance,
and are masked in black so that they do not appear on the screen.
● There are limits to the range displayed on the screen. Objects at either cor-
ner of the bumper or directly below the bumper are not displayed.
● The perceived distance in images displayed on the screen differs from the
actual distance.

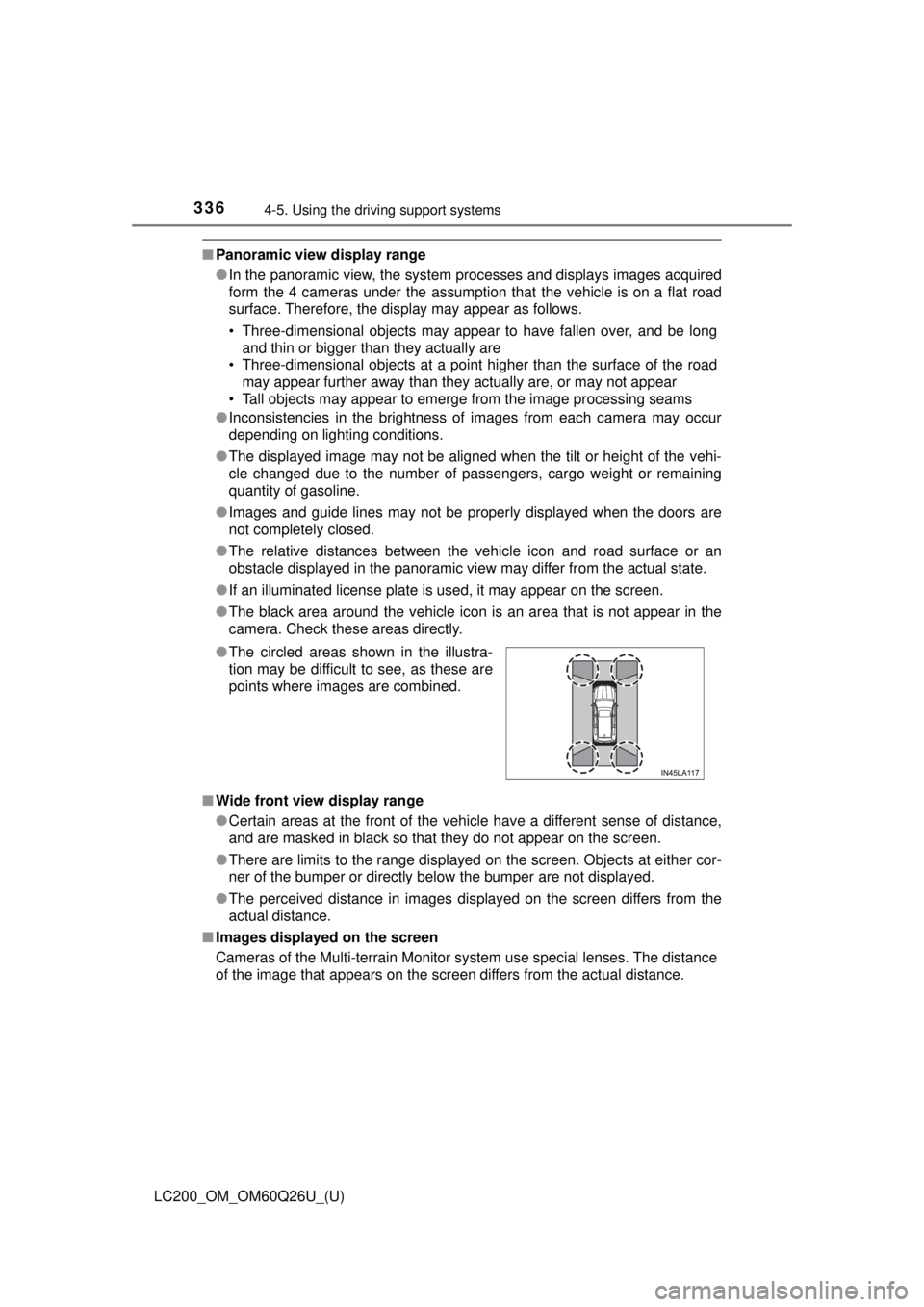

■ Images displayed on the screen
Cameras of the Multi-terrain Monitor system use special lenses. The distance
of the image that appears on the screen differs from the actual distance. ●The circled areas shown in the illustra-
tion may be difficult to see, as these are
points where images are combined.

LC200_OM_OM60Q26U_(U)
3374-5. Using the driving support systems
4
Driving

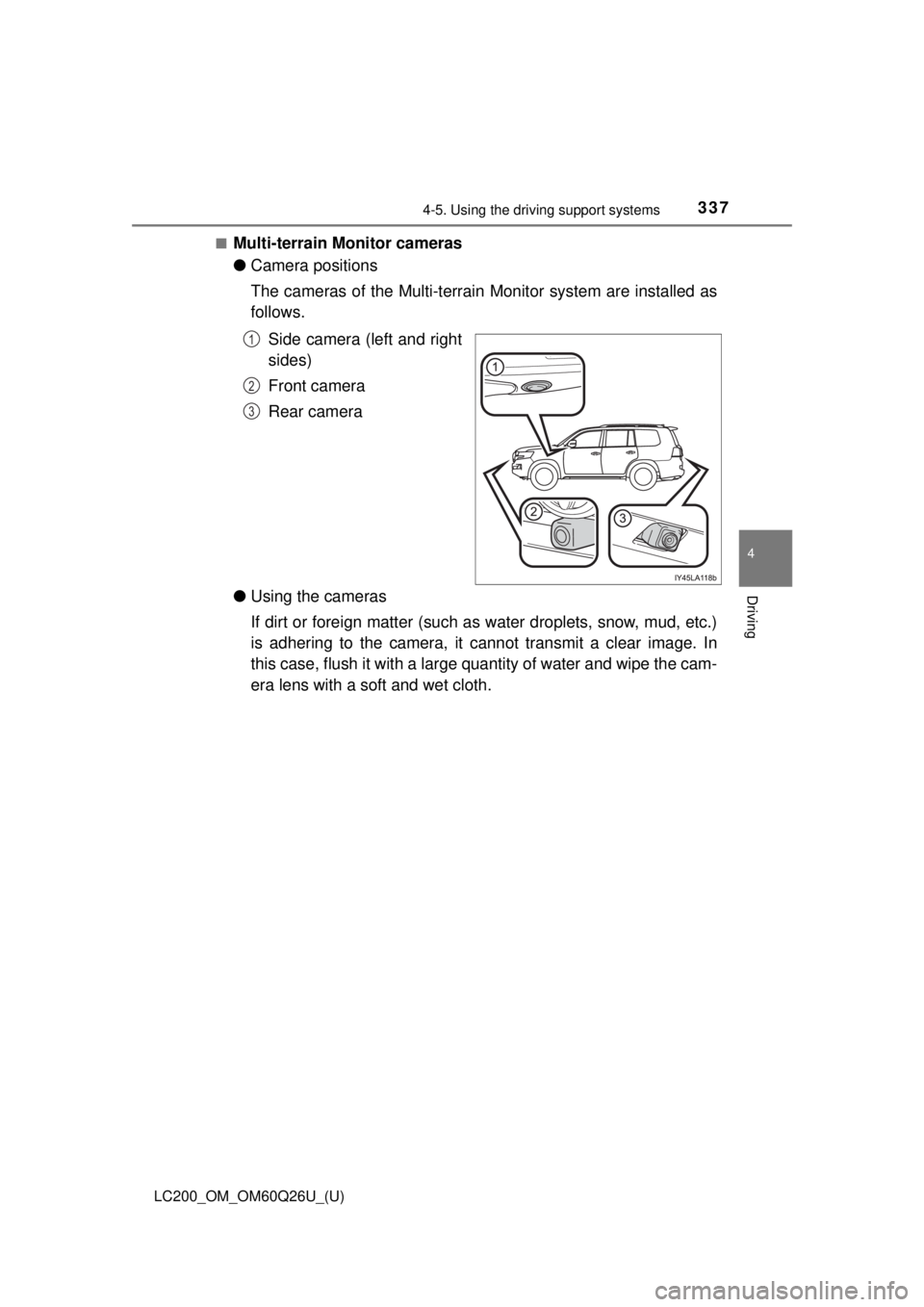

■Multi-terrain Monitor cameras
●Camera positions
The cameras of the Multi-terrain Monitor system are installed as
follows.
Side camera (left and right
sides)
Front camera
Rear camera
● Using the cameras
If dirt or foreign matter (such as water droplets, snow, mud, etc.)
is adhering to the camera, it cannot transmit a clear image. In
this case, flush it with a large quantity of water and wipe the cam-
era lens with a soft and wet cloth.
1
2
3

338
LC200_OM_OM60Q26U_(U)
4-5. Using the driving support systems
NOTICE
■How to use the cameras
● Observe the following precautions. Failure to do so may prevent the Multi-
terrain Monitor from operating properly.
• Do not strike the camera area, or allow any objects to bump into it
If the camera or surrounding area has received a strong impact, the
camera position, installation angle, etc., may deviate. If the camera is
accidentally subjected to an impact, have the vehicle inspected at your
Toyota dealer.
• Do not remove, disassemble or modify the camera or surrounding parts Doing so may result in the camera malfunctioning. This also may result
in a loss of waterproof performance.
• If the camera lens is dirty, follow the above procedures to clean it If the camera lens is damaged it cannot transmit a clear image.
Do not allow organic solvent, car wax, oil film remover, glass coating,
etc. to contact the camera cover
Doing so will negatively affect the camera cover (resin). If this happens,
wipe it off immediately.
• When the outside temperature is cold, do not cause any sudden changes in temperature, such as by applying hot water
● When washing the vehicle, do not apply water with a high-pressure
washer to the camera or surrounding area. Doing so may cause the cam-
era to receive a strong impact, and the camera may not operate properly

LC200_OM_OM60Q26U_(U)
3394-5. Using the driving support systems
4
Driving
■Differences between the panoramic view screen and the actual
road
The distance guide lines, the combined panoramic view image,
guide lines, etc., indicate estimated distances on a flat road sur-
face. In the following situations, actual distances and vehicle course
will differ from the guide lines on the screen.

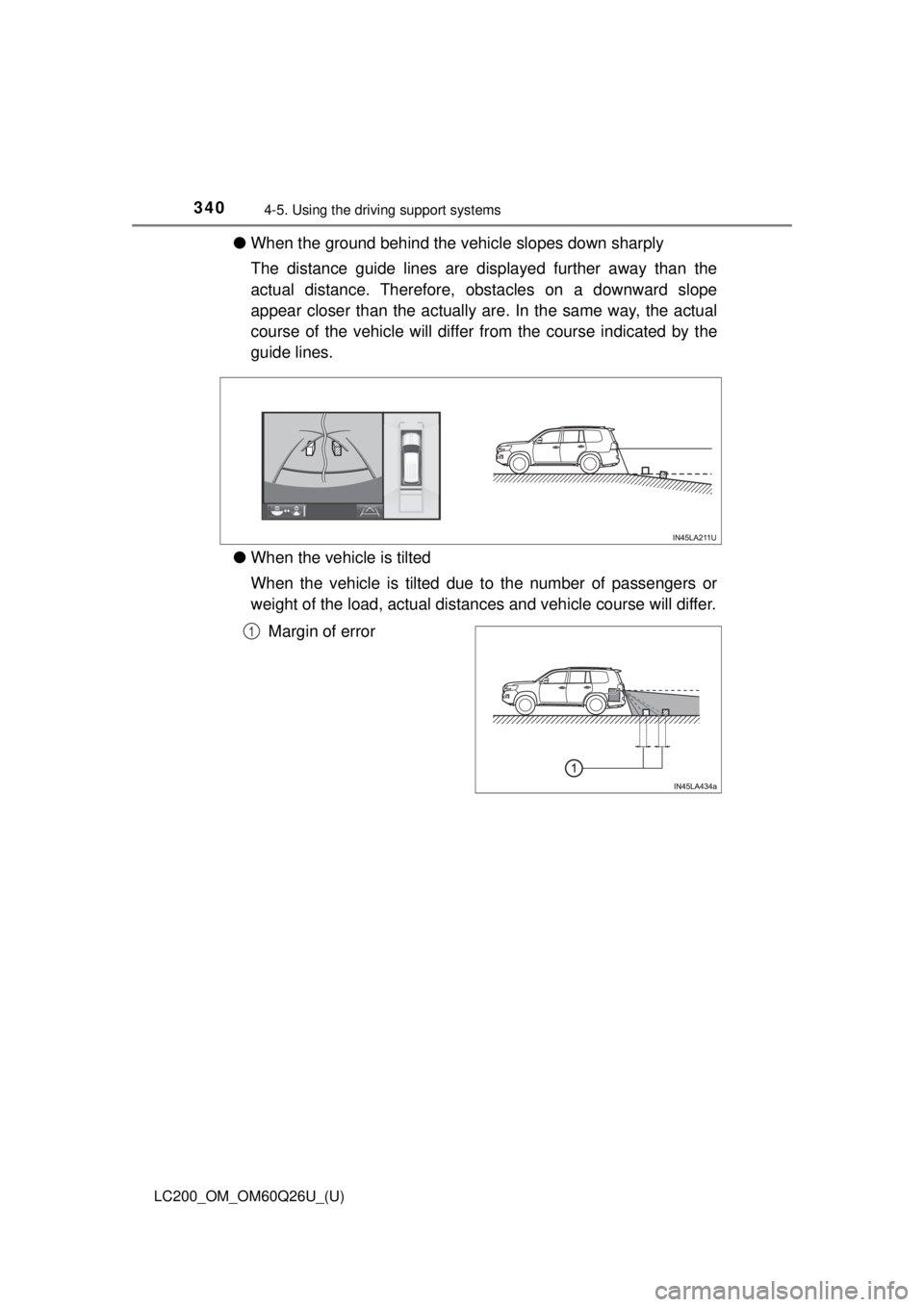

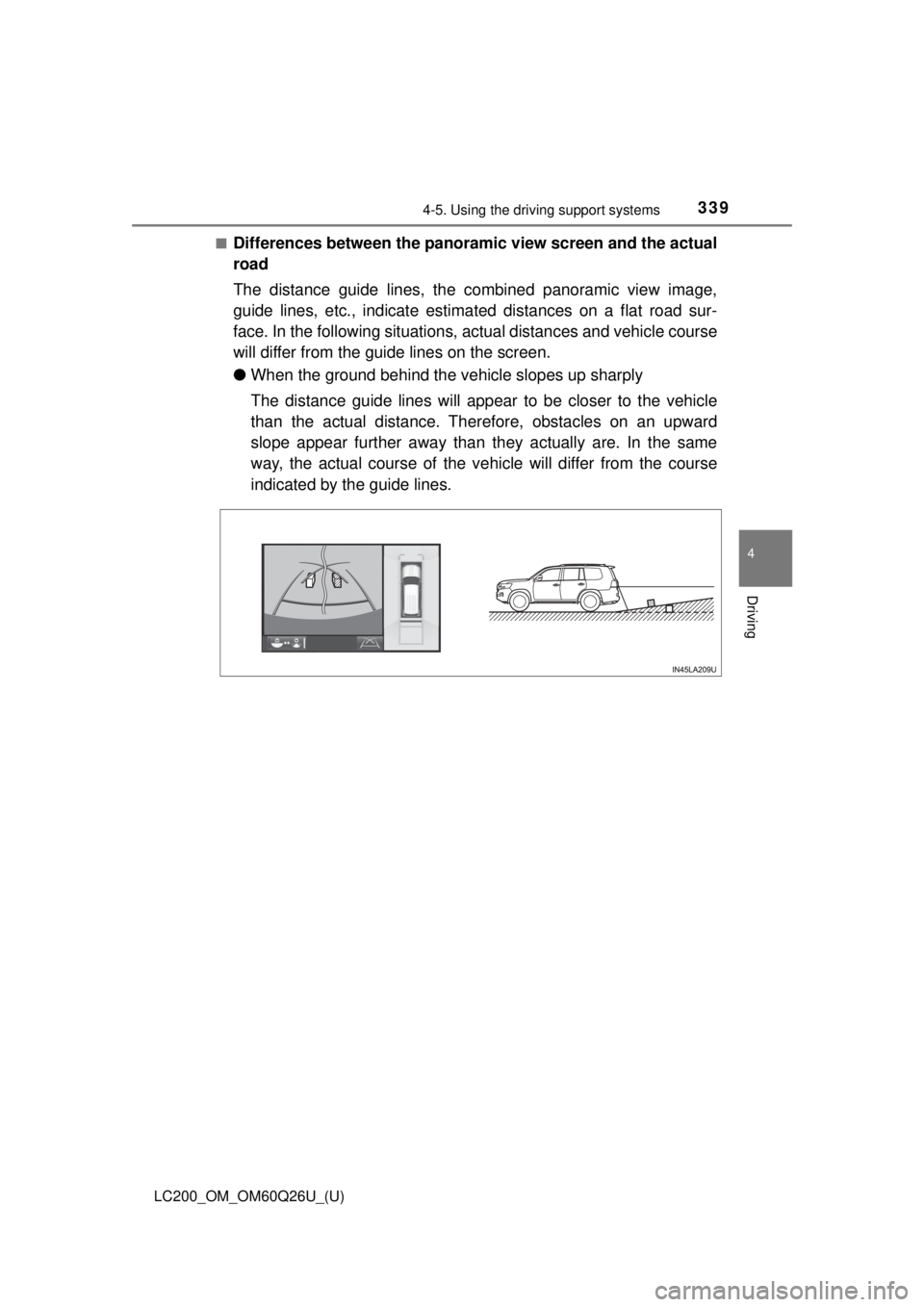

●When the ground behind the vehicle slopes up sharply
The distance guide lines will appear to be closer to the vehicle
than the actual distance. T herefore, obstacles on an upward
slope appear further away than they actually are. In the same
way, the actual course of the ve hicle will differ from the course
indicated by the guide lines.

340
LC200_OM_OM60Q26U_(U)
4-5. Using the driving support systems
●When the ground behind the vehi cle slopes down sharply
The distance guide lines are displayed further away than the
actual distance. Ther efore, obstacles on a downward slope
appear closer than the actually ar e. In the same way, the actual
course of the vehicle will differ from the course indicated by the
guide lines.
● When the vehicle is tilted
When the vehicle is tilted due to the number of passengers or
weight of the load, actu al distances and vehicle course will differ.
Margin of error
1
