TOYOTA LAND CRUISER 2019 Owners Manual (in English)

491
LC200_OM_OM60Q99U_(U)
6-3. Do-it-yourself maintenance
6
Maintenance and care

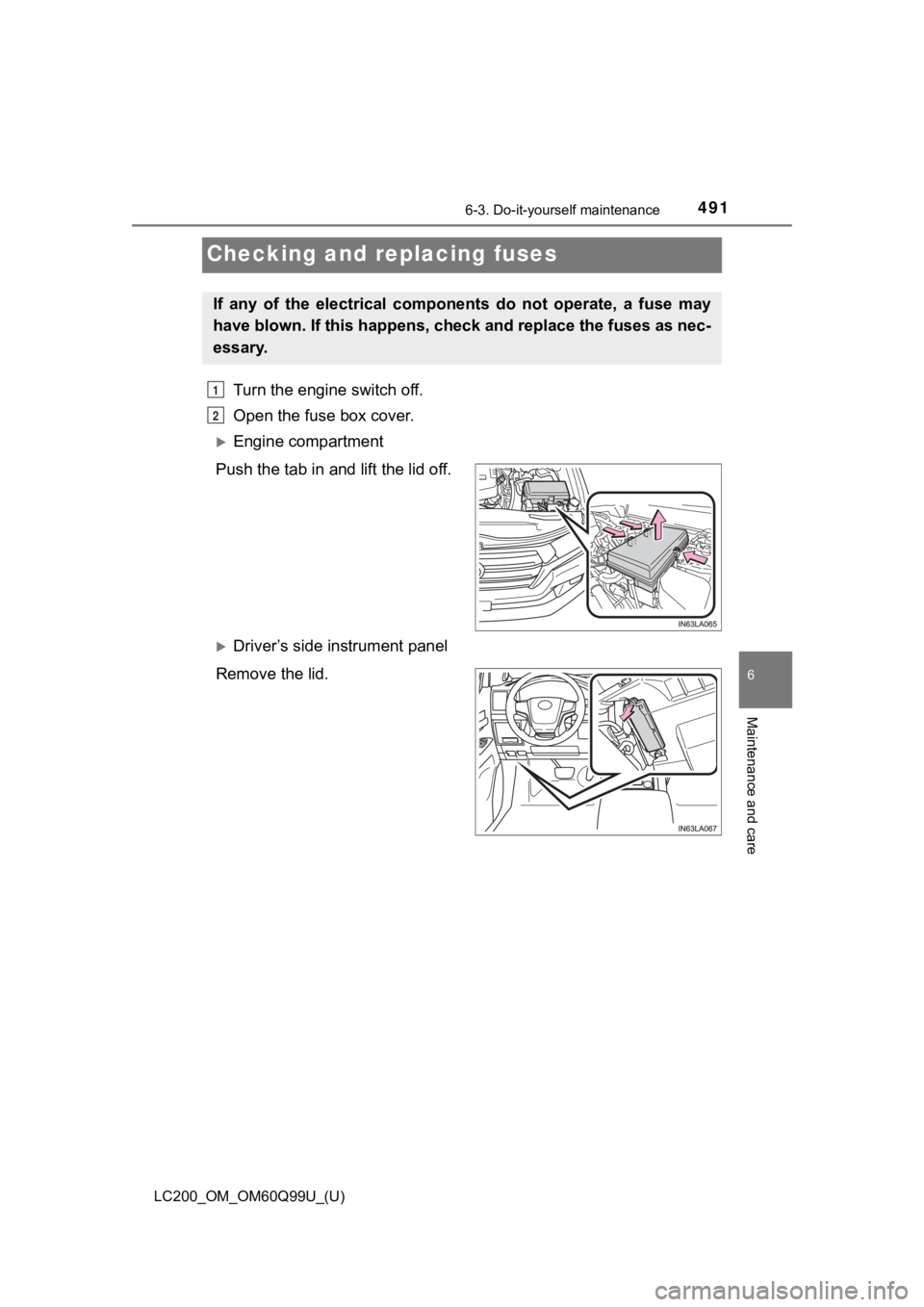

Checking and replacing fuses
Turn the engine switch off.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid off.
Driver’s side instrument panel
Remove the lid.
If any of the electrical components do not operate, a fuse may
have blown. If this happens, che ck and replace the fuses as nec-
essary.
1
2

492
LC200_OM_OM60Q99U_(U)
6-3. Do-it-yourself maintenance

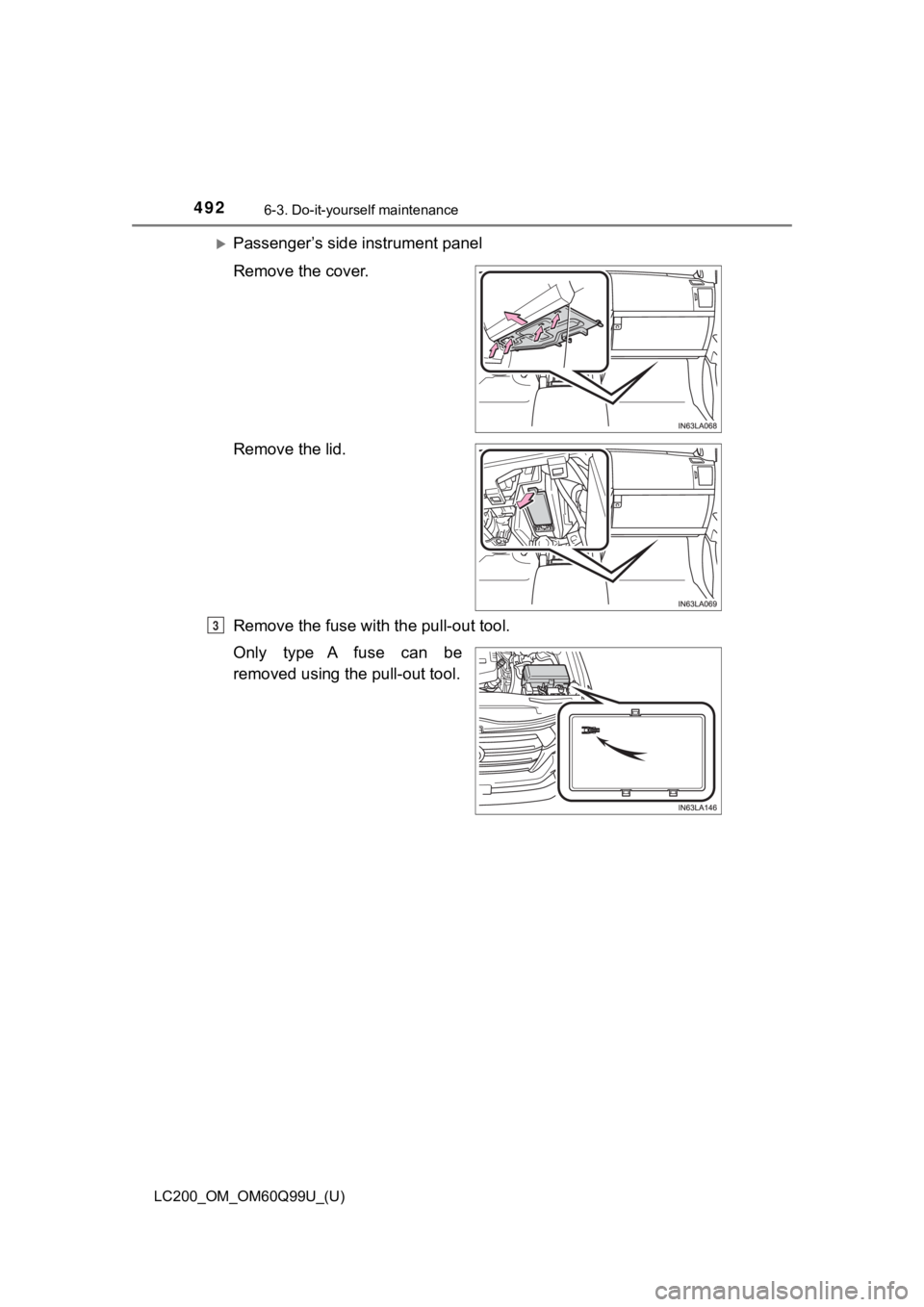

Passenger’s side instrument panel
Remove the cover.
Remove the lid.
Remove the fuse with the pull-out tool.
Only type A fuse can be
removed using the pull-out tool.
3

LC200_OM_OM60Q99U_(U)
4936-3. Do-it-yourself maintenance
6
Maintenance and care

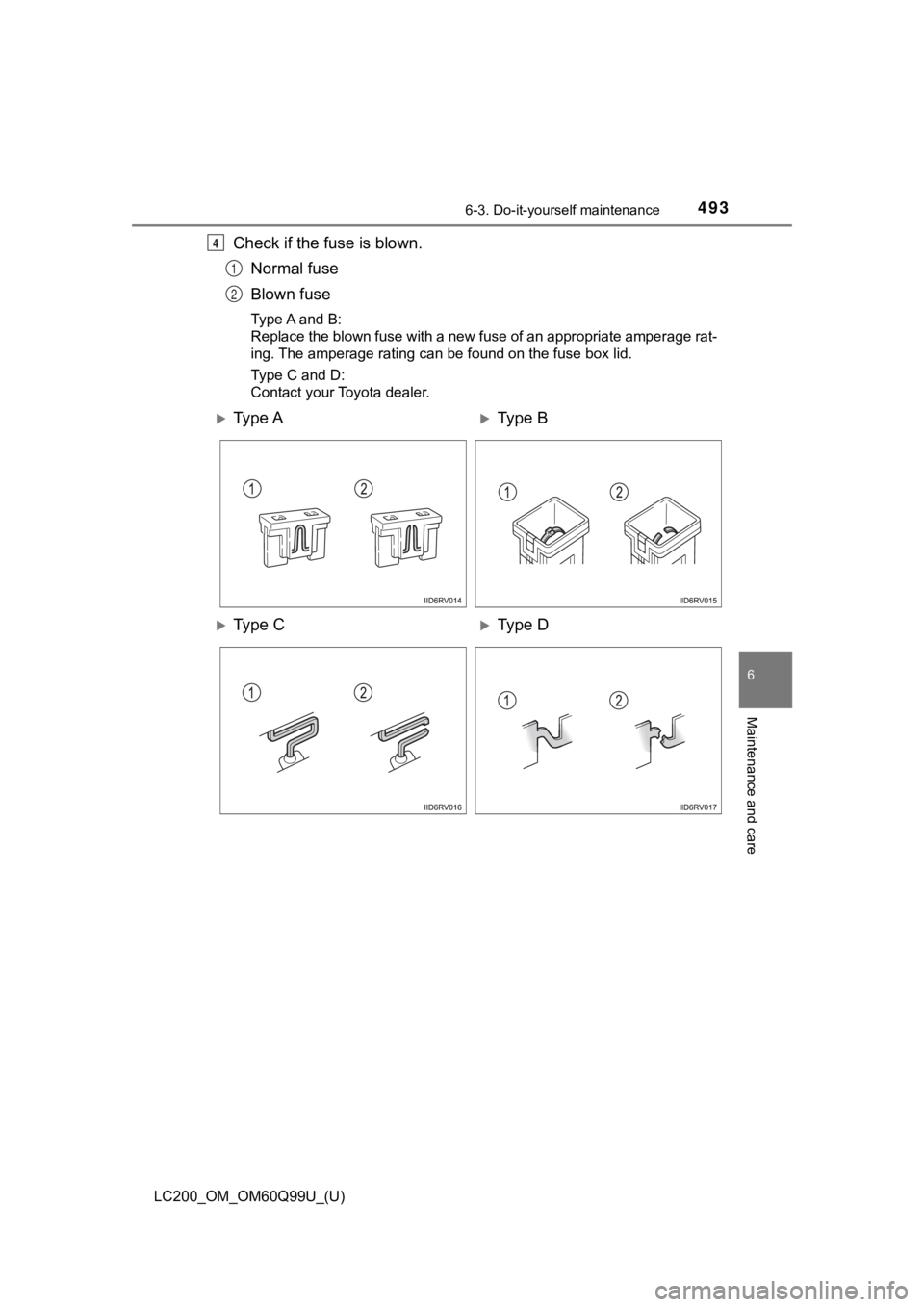

Check if the fuse is blown.Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate ampera ge rat-
ing. The amperage rating can be found on the fuse box lid.
Type C and D:
Contact your Toyota dealer.
4
1
2
Ty p e AType B
Ty p e CType D

494
LC200_OM_OM60Q99U_(U)
6-3. Do-it-yourself maintenance
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been repla ced, a bulb may
need replacement. ( P. 497)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness f rom damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
WARNING
■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or the fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired b y your
Toyota dealer, as soon as possible.

495
LC200_OM_OM60Q99U_(U)
6-3. Do-it-yourself maintenance
6
Maintenance and care

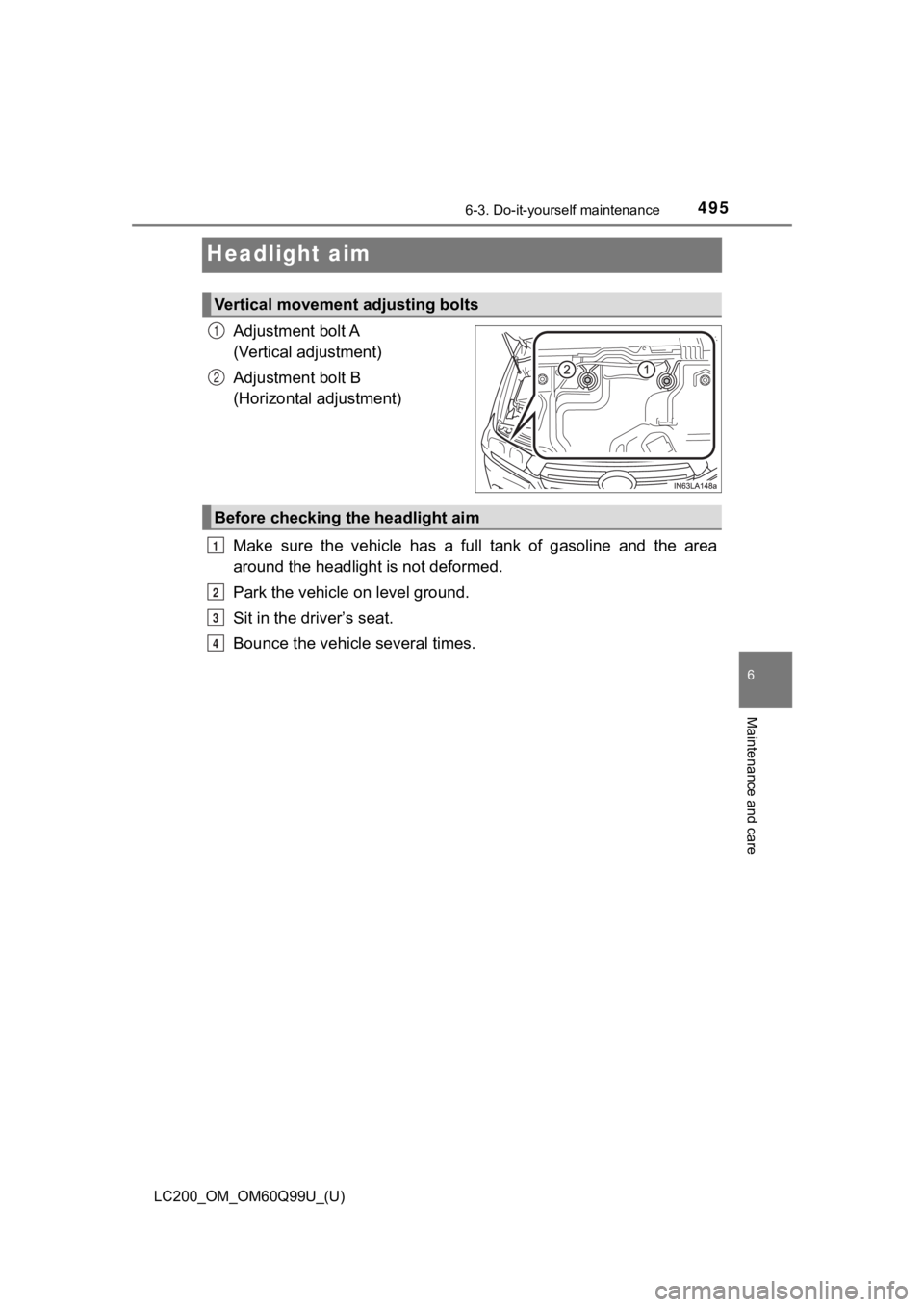

Headlight aim
Adjustment bolt A
(Vertical adjustment)
Adjustment bolt B
(Horizontal adjustment)
Make sure the vehicle has a full tank of gasoline and the area
around the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
Vertical movement adjusting bolts
1
2
Before checking the headlight aim
1
2
3
4

496
LC200_OM_OM60Q99U_(U)
6-3. Do-it-yourself maintenance

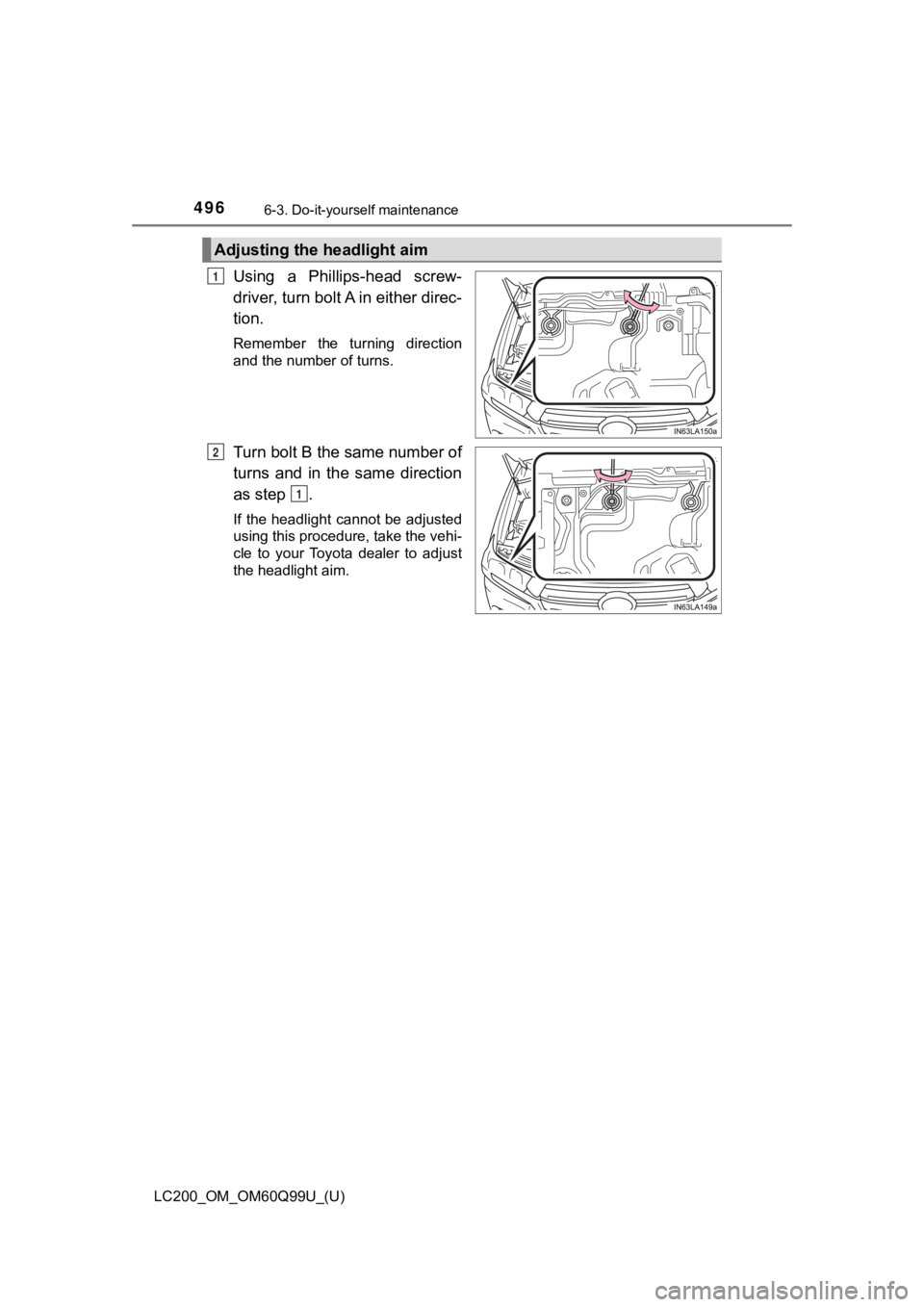

Using a Phillips-head screw-
driver, turn bolt A in either direc-
tion.
Remember the turning direction
and the number of turns.
Turn bolt B the same number of
turns and in the same direction
as step .
If the headlight cannot be adjusted
using this procedure, take the vehi-
cle to your Toyota dealer to adjust
the headlight aim.
Adjusting the headlight aim
1
2
1

497
LC200_OM_OM60Q99U_(U)
6-3. Do-it-yourself maintenance
6
Maintenance and care

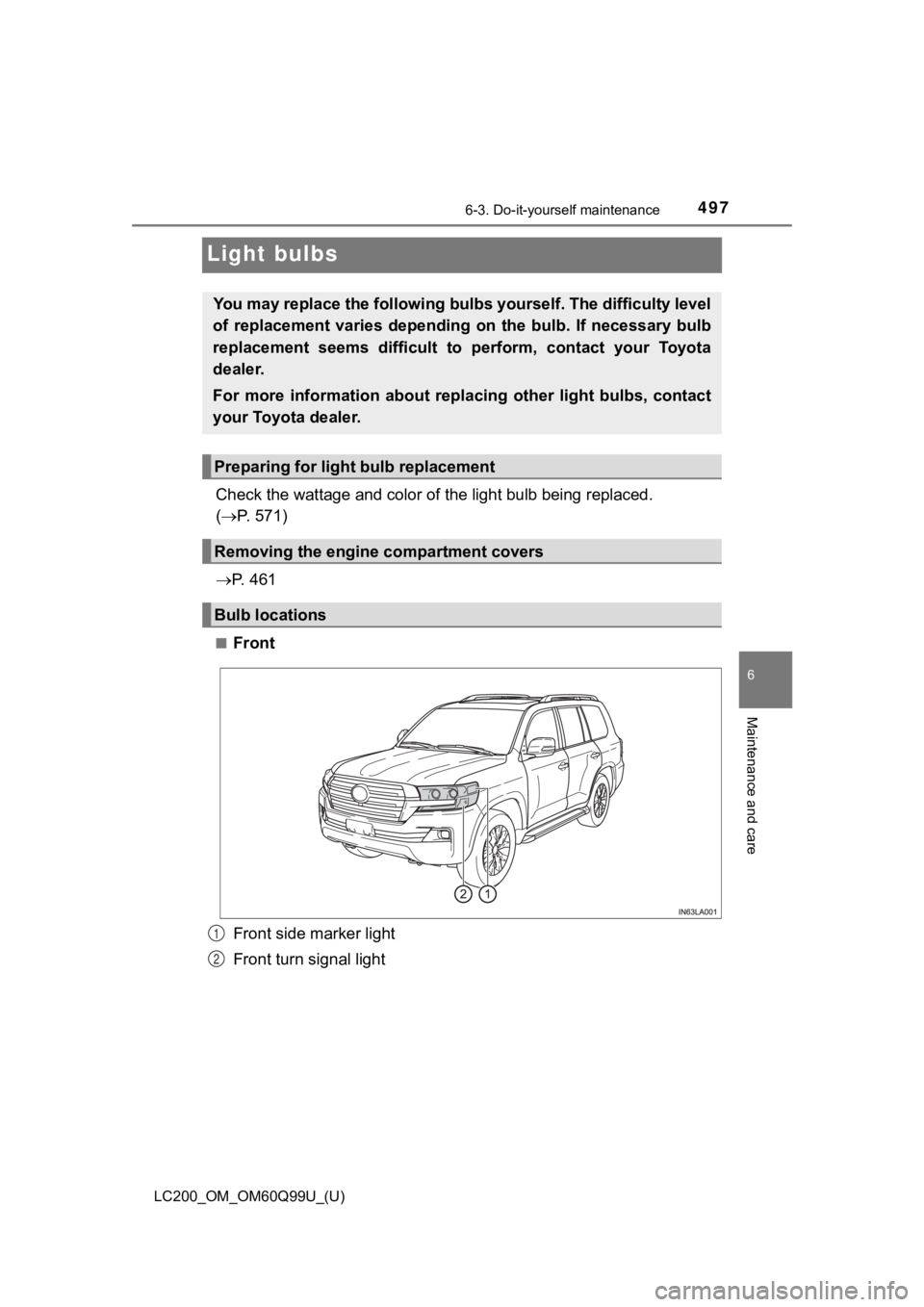

Light bulbs
Check the wattage and color of the light bulb being replaced.
(  P. 571)
 P. 4 6 1
■Front
Front side marker light
Front turn signal light
You may replace the following bu lbs yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact your Toyota
dealer.
For more information about replacing other light bulbs, contact
your Toyota dealer.
Preparing for light bulb replacement
Removing the engine c ompartment covers
Bulb locations
1
2

498
LC200_OM_OM60Q99U_(U)
6-3. Do-it-yourself maintenance

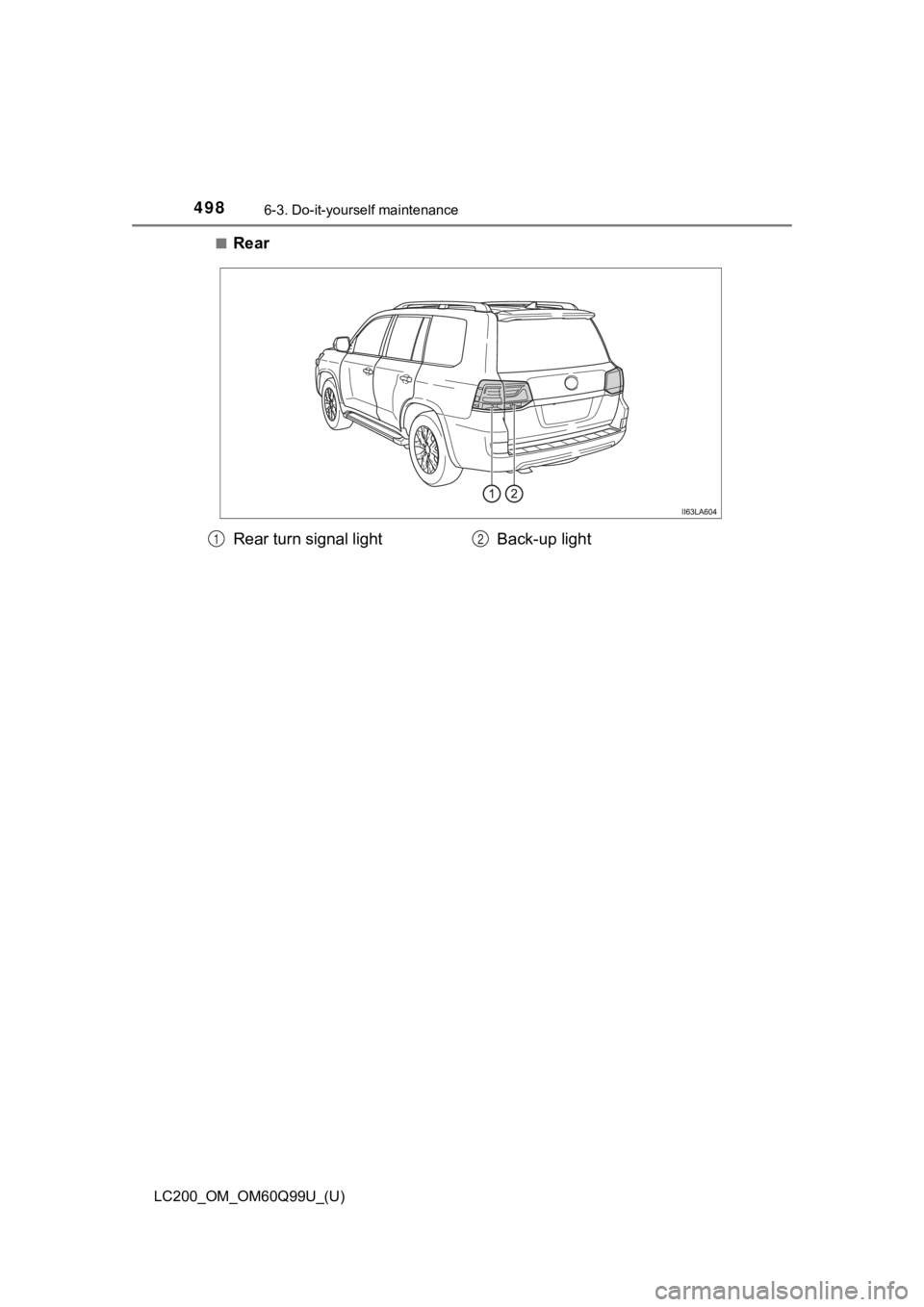

■Rear
Rear turn signal lightBack-up light12

LC200_OM_OM60Q99U_(U)
4996-3. Do-it-yourself maintenance
6
Maintenance and care

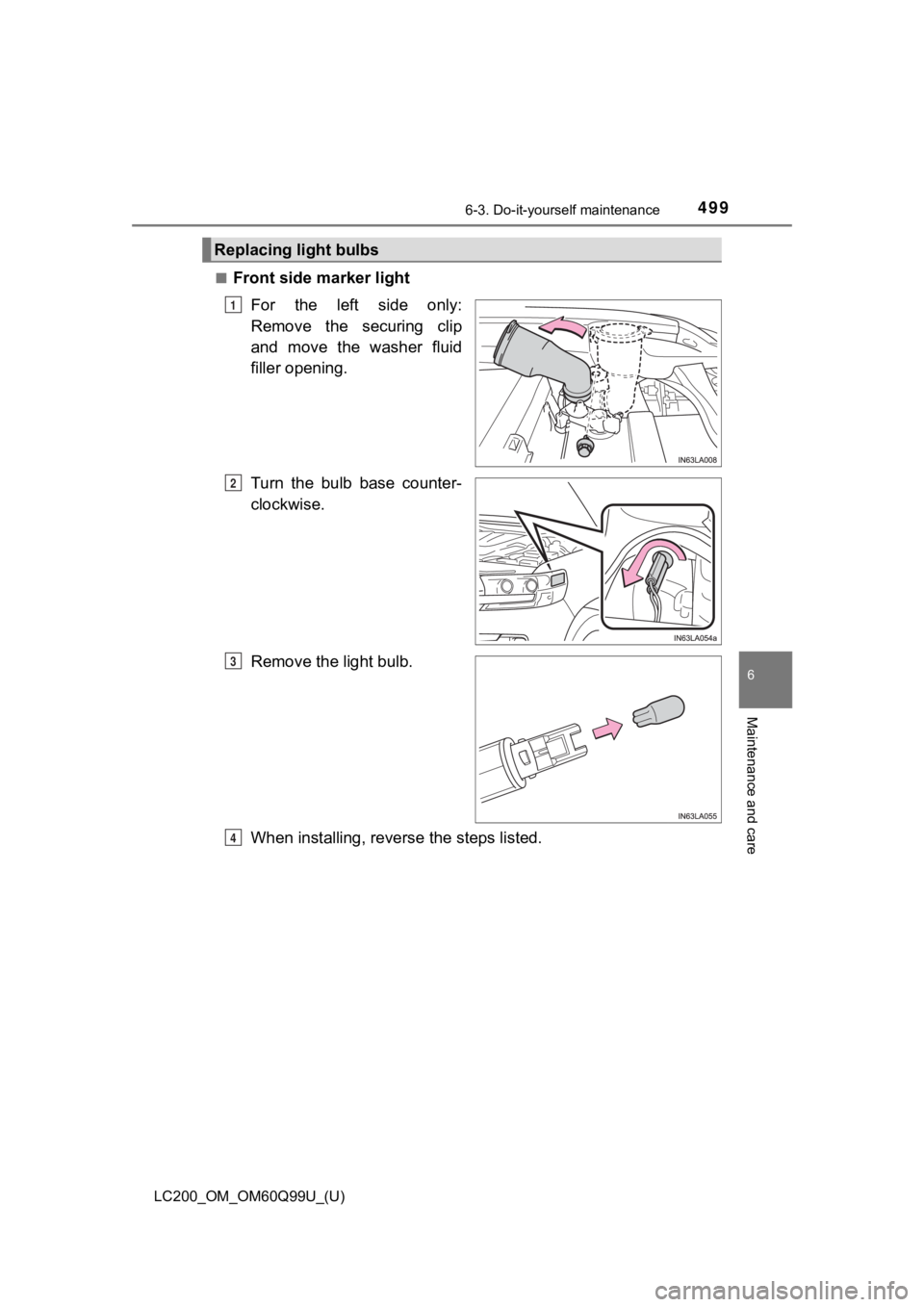

■Front side marker lightFor the left side only:
Remove the securing clip
and move the washer fluid
filler opening.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
Replacing light bulbs
1
2
3
4

500
LC200_OM_OM60Q99U_(U)
6-3. Do-it-yourself maintenance
■Front turn signal lightsFor the left side only:
Remove the securing clip
and move the washer fluid
filler opening.
To allow enough working
space, remove the bulb base
of the front side marker light.
Wrap the removed bulb base
with cloth to prevent damage to
the bulb base.
Unplug the connector while
depressing the lock release.
Turn the bulb base counter-
clockwise.
1
2
3
4
