Page 501 of 624
LC200_OM_OM60Q99U_(U)
5016-3. Do-it-yourself maintenance
6
Maintenance and care
Remove the light bulb.
When installing, reverse the steps listed.5
6
Page 502 of 624
502
LC200_OM_OM60Q99U_(U)
6-3. Do-it-yourself maintenance
■Back-up lightOpen the back door and
remove the nuts and lamp
assembly.
Unplug the connector while
pressing the lock release.
Remove the cover.
Unclip the connector wire
and turn the bulb bases
counterclockwise.
1
2
3
4
Page 503 of 624
LC200_OM_OM60Q99U_(U)
5036-3. Do-it-yourself maintenance
6
Maintenance and care
Remove the light bulb.
When installing, reverse the steps listed.5
6
Page 504 of 624
504
LC200_OM_OM60Q99U_(U)
6-3. Do-it-yourself maintenance
■Rear turn signal lightsOpen the back door and
attach protective tape under
the light unit. (Use masking
tape. Do not use any duct
tape, as duct tape may leave
markings.)
Remove the cover.
Remove the 2 bolts and lamp
assembly.
1
2
3
Page 505 of 624
LC200_OM_OM60Q99U_(U)
5056-3. Do-it-yourself maintenance
6
Maintenance and care
Unplug the connector while
pressing the lock release.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.4
5
6
7
Page 506 of 624

506
LC200_OM_OM60Q99U_(U)
6-3. Do-it-yourself maintenance
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Headlights/daytime running lights
● Parking lights
● Fog lights
● Side turn signal lights
● High mounted stoplight
● Stop/tail lights
● Stop lights
● Rear side marker lights
● License plate lights
■LED lights
The headlights/daytime running lights, parking lights, fog lights, side turn sig-
nal lights, high mounted stoplight, stop/tail lights, stop ligh ts, rear side marker
lights and license plate lights consist of a number of LEDs. If any of the LEDs
burn out, take your vehicle to your Toyota dealer to have the l ight replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction. Contact your Toyota dealer for more information in the
following situations:
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ When replacing light bulbs
P. 494
Page 507 of 624

LC200_OM_OM60Q99U_(U)
5076-3. Do-it-yourself maintenance
6
Maintenance and care
WARNING
■Replacing light bulbs
● Turn off the headlights. Do not attempt to replace the bulb imm ediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hand s. When it is
unavoidable to hold the glass portion, use and hold with a clea n dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Fa ilure to do so
may result in heat damage, fire, or water entering the headligh t unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble light bulbs, connectors , electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
■ To prevent damage or fire
● Make sure bulbs are fully seated and locked.
● Check the wattage of the bulb before installing to prevent heat damage.
Page 508 of 624
508
LC200_OM_OM60Q99U_(U)
6-3. Do-it-yourself maintenance
Page 509 of 624
509
LC200_OM_OM60Q99U_(U)
7When trouble arises
7-1. Essential informationEmergency flashers .......... 510
If your vehicle has to be stopped in
an emergency ................. 511
If the vehicle is trapped in rising water.................. 512
7-2. Steps to take in an emergency
If your vehicle needs to be towed ..................... 513
If you think something is wrong .............................. 519
Fuel pump shut off system ............................ 520
If a warning light turns on or a warning buzzer
sounds ............................ 521
If a warning message is displayed......................... 530
If you have a flat tire.......... 535
If the engine will not start ................................. 549
If the electronic key does not operate properly ........ 551
If the vehicle battery is discharged ...................... 554
If your vehicle overheats ... 557
If the vehicle becomes stuck ............................... 560
Page 510 of 624
510
LC200_OM_OM60Q99U_(U)
7-1. Essential information

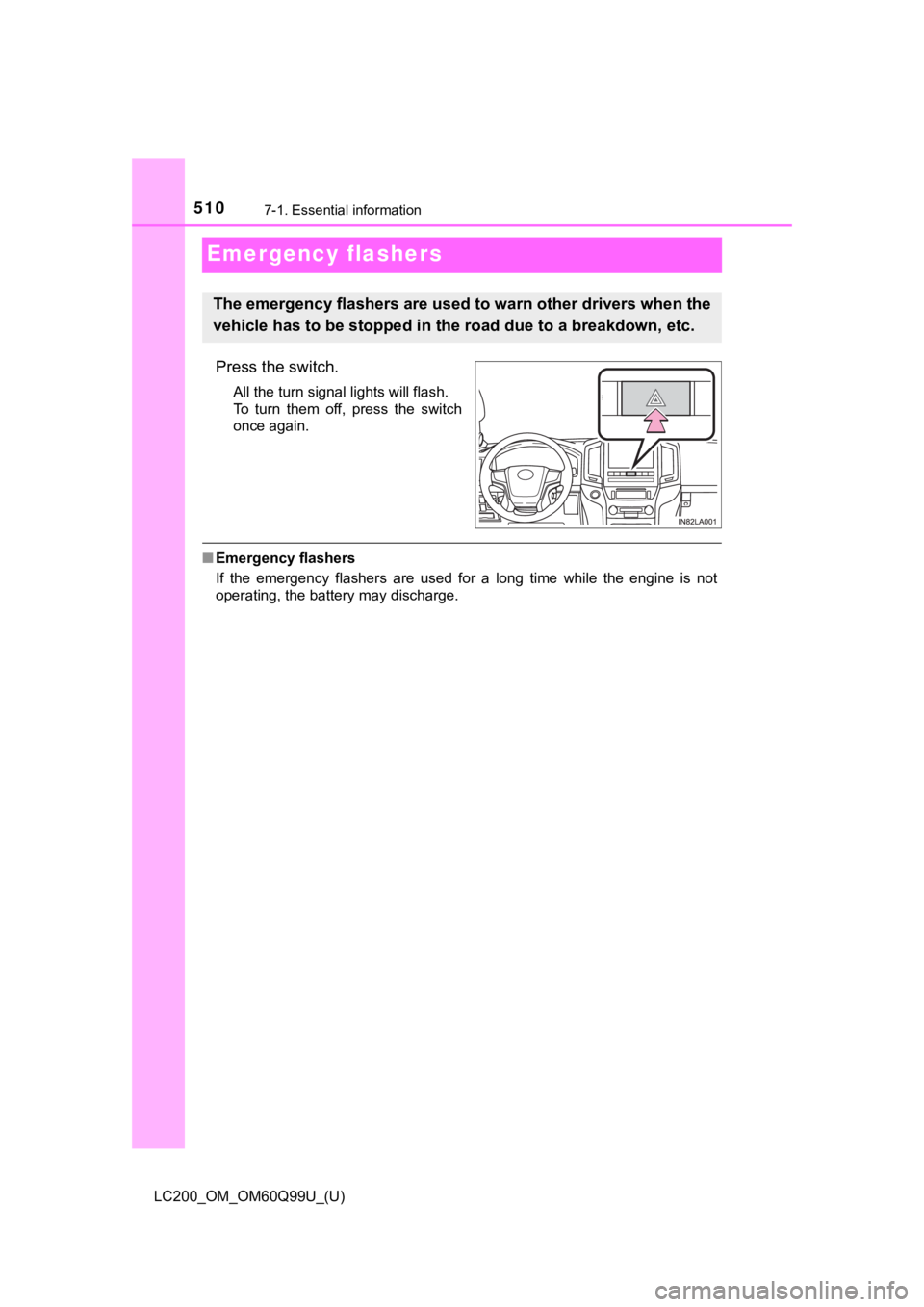

Emergency flashers
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
■Emergency flashers
If the emergency flashers are used for a long time while the en gine is not
operating, the battery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be st opped in the road due to a breakdown, etc.
