TOYOTA LAND CRUISER 2019 Owners Manual (in English)

5417-2. Steps to take in an emergency
LC200_OM_OM60Q99U_(U)
7
When trouble arises

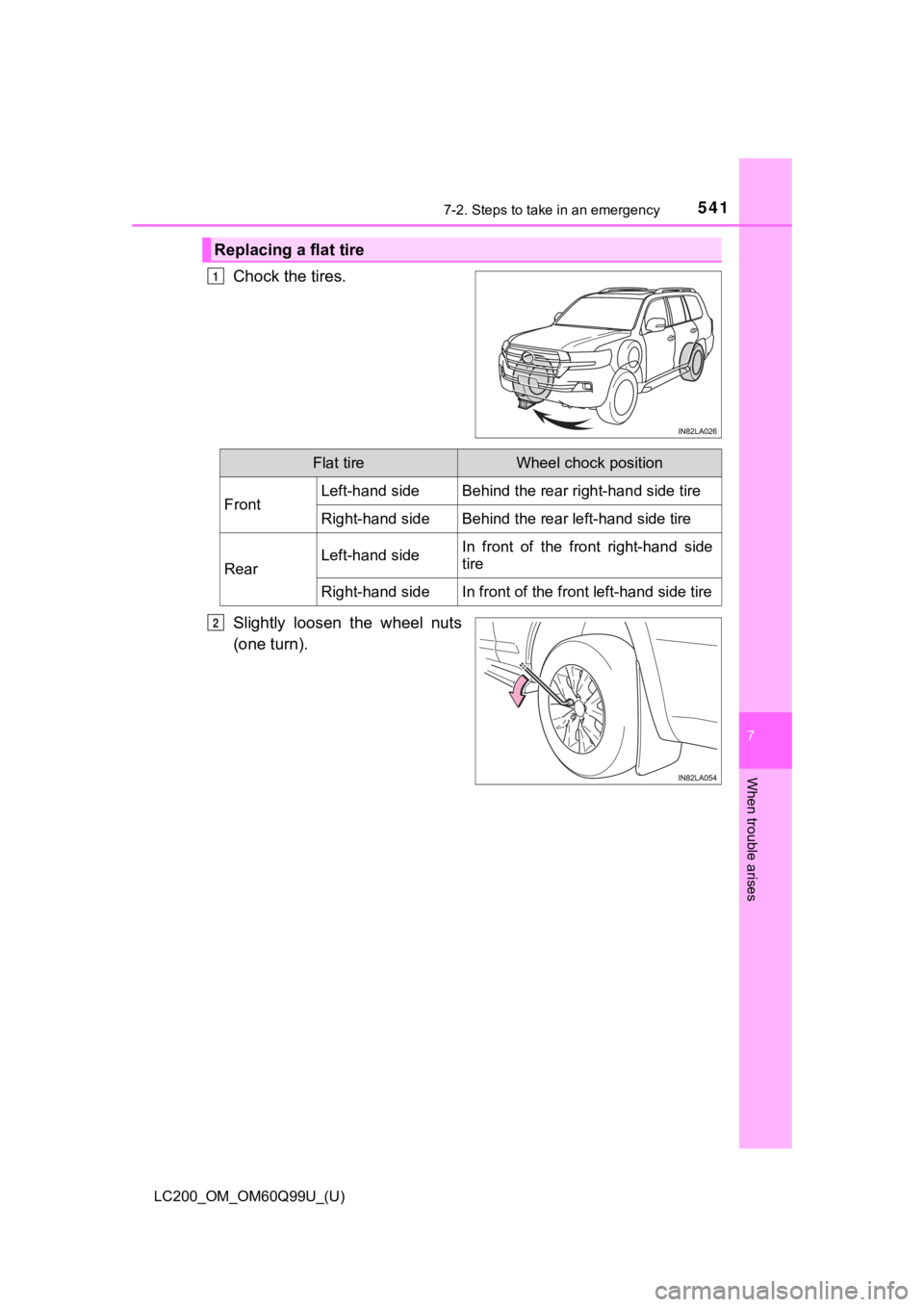

Chock the tires.
Slightly loosen the wheel nuts
(one turn).
Replacing a flat tire
1
Flat tireWheel chock position
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side
tire
Right-hand sideIn front of the front left-hand side tire
2

5427-2. Steps to take in an emergency
LC200_OM_OM60Q99U_(U)
Assembling the jack handle.

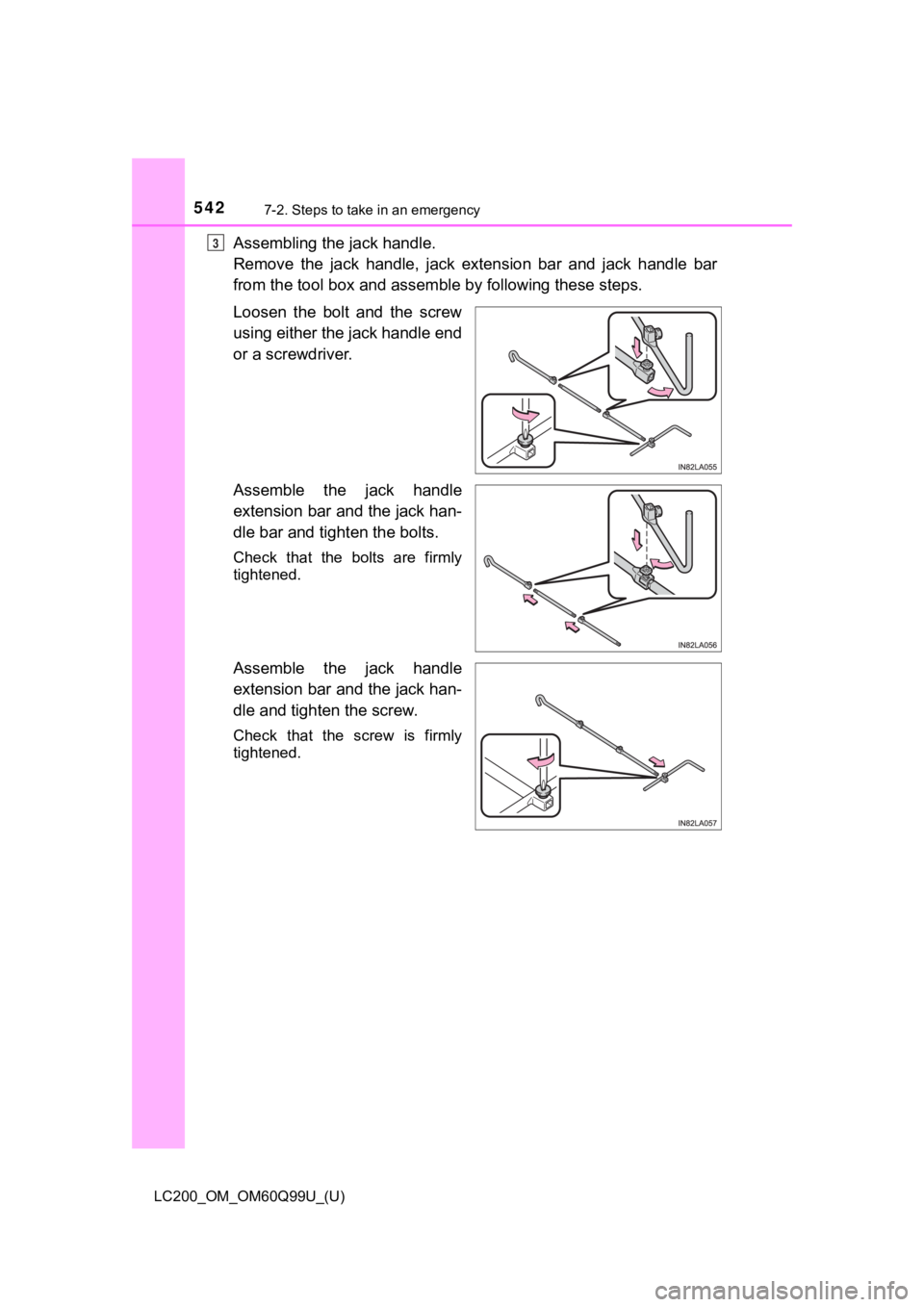

Remove the jack handle, jack extension bar and jack handle bar
from the tool box and assemb le by following these steps.
Loosen the bolt and the screw
using either the jack handle end
or a screwdriver.
Assemble the jack handle
extension bar and the jack han-
dle bar and tighten the bolts.
Check that the bolts are firmly
tightened.
Assemble the jack handle
extension bar and the jack han-
dle and tighten the screw.
Check that the screw is firmly
tightened.
3

5437-2. Steps to take in an emergency
LC200_OM_OM60Q99U_(U)
7
When trouble arises

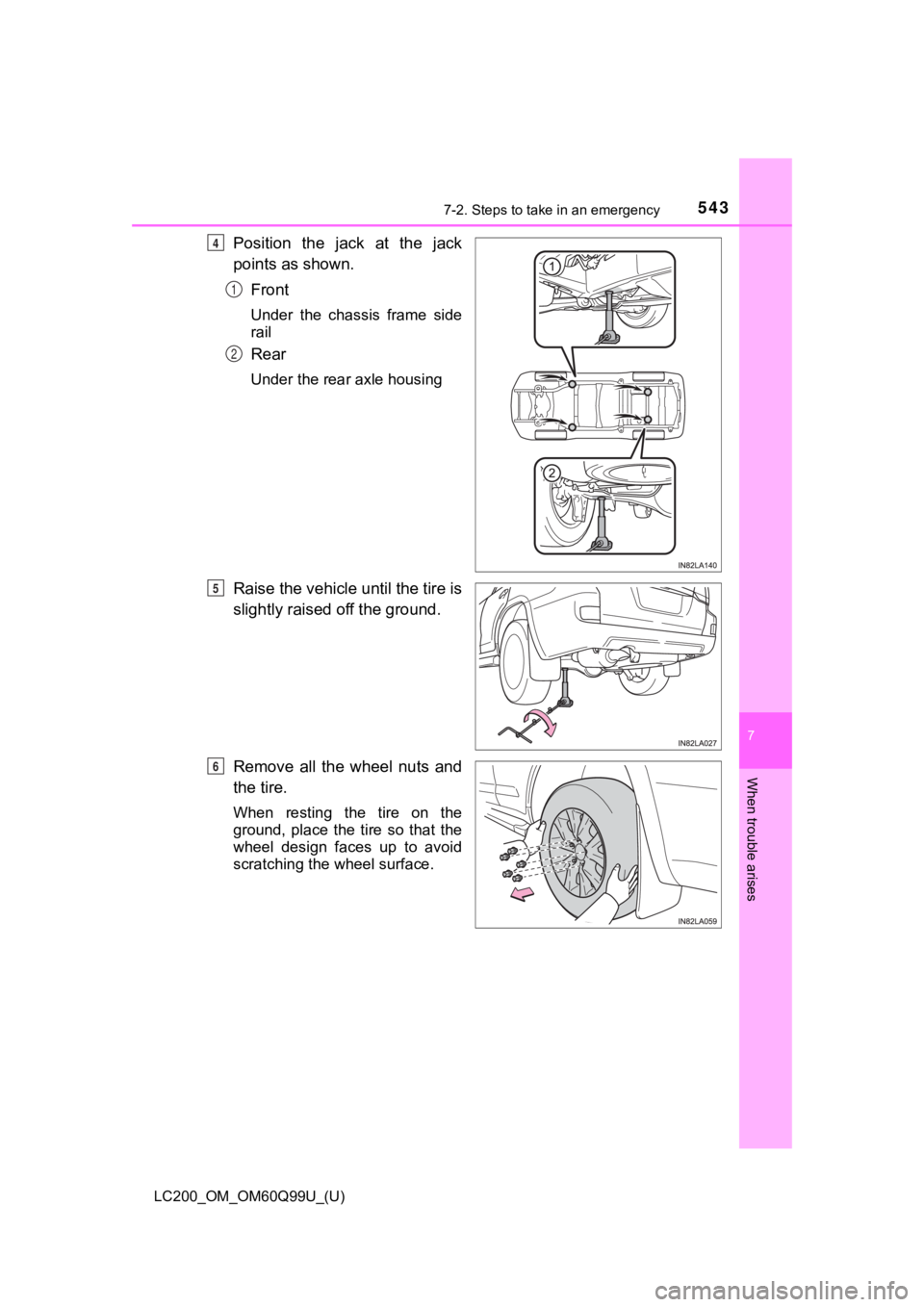

Position the jack at the jack
points as shown.Front
Under the chassis frame side
rail
Rear
Under the rear axle housing
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
4
1
2
5
6

5447-2. Steps to take in an emergency
LC200_OM_OM60Q99U_(U)
WARNING
■Replacing a flat tire
●Observe the following precautions.
Failure to do so may result in serious injury:
• Lower the spare tire completely to the ground before removing it
from under the vehicle.
• Do not try to remove the wheel ornament by hand. Take due care in
handling the ornament to avoid unexpected personal injury.
• Do not touch the disc wheels or the area around the brakes imm edi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area
around the brakes will be extreme ly hot. Touching these areas with
hands, feet or other body parts while changing a tire, etc. may result
in burns.
●Failure to follow these precautions could cause the wheel nuts to
loosen and the t ire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 97 ft•lbf (131 N•m, 13.4 kgf•m) as soon as possible after changing wheels.
• Do not attach a heavily damaged wheel ornament, as it may fly off
the wheel while the vehicle is moving.
• When installing a tire, only use wheel nuts that have been spe cifi-
cally designed for that wheel.
• If there are any cracks or defo rmations in the bolt screws, nut
threads or bolt holes of the wheel, have the vehicle inspected by
your Toyota dealer.
• When installing the wheel nuts, b e sure to install them with the
tapered ends facing inward. ( P. 486)

5457-2. Steps to take in an emergency
LC200_OM_OM60Q99U_(U)
7
When trouble arises

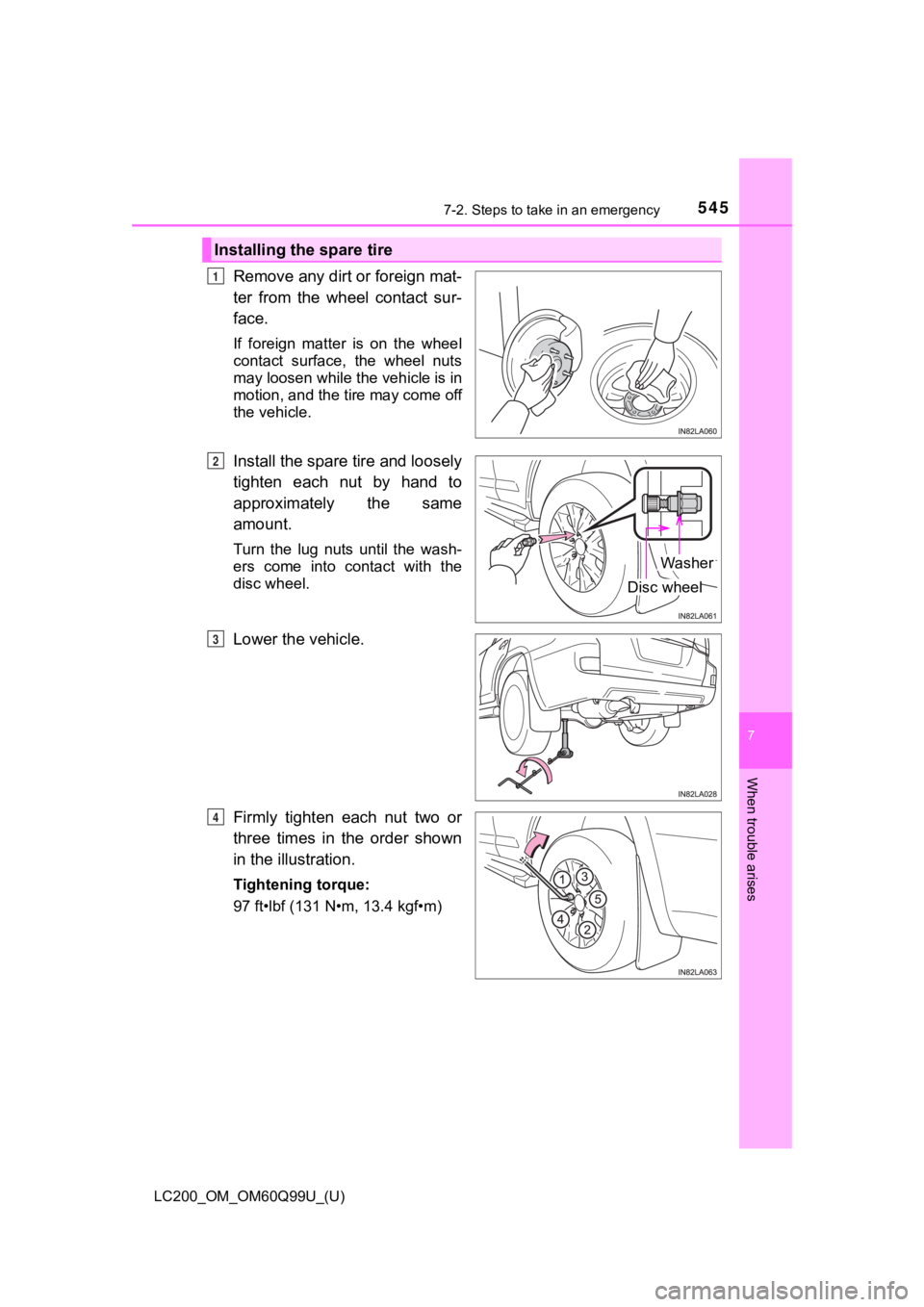

Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, and the tire may come off
the vehicle.
Install the spare tire and loosely
tighten each nut by hand to
approximately the same
amount.
Turn the lug nuts until the wash-
ers come into contact with the
disc wheel.
Lower the vehicle.
Firmly tighten each nut two or
three times in the order shown
in the illustration.
Tightening torque:
97 ft•lbf (131 N•m, 13.4 kgf•m)
Installing the spare tire
1
Washer
Disc wheel
O
P
Q

5467-2. Steps to take in an emergency
LC200_OM_OM60Q99U_(U)

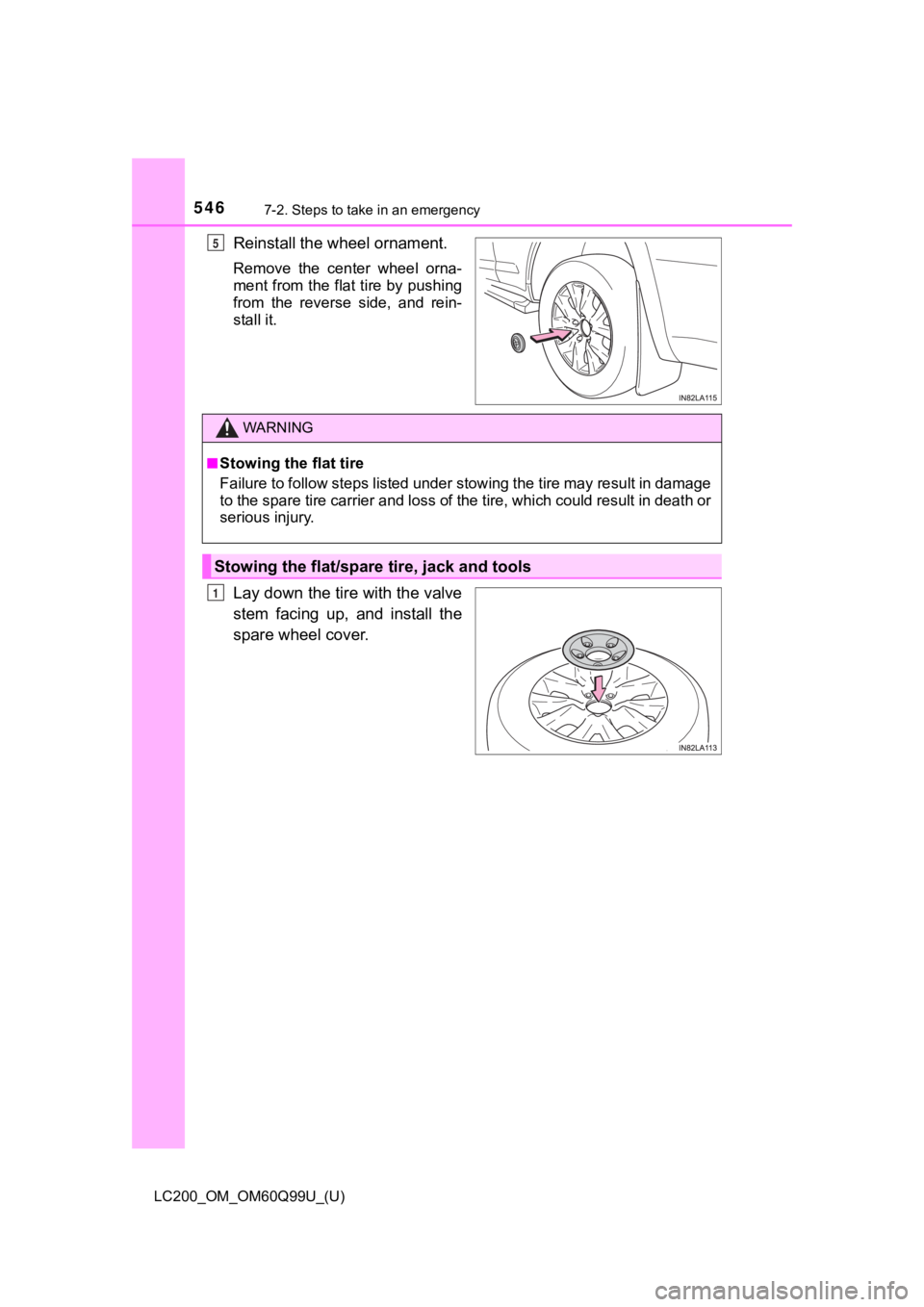

Reinstall the wheel ornament.
Remove the center wheel orna-
ment from the flat tire by pushing
from the reverse side, and rein-
stall it.
Lay down the tire with the valve
stem facing up, and install the
spare wheel cover.
5
WARNING
■Stowing the flat tire
Failure to follow steps listed under stowing the tire may result in damage
to the spare tire carrier and loss of the tire, which could res ult in death or
serious injury.
Stowing the flat/spare tire, jack and tools
1

5477-2. Steps to take in an emergency
LC200_OM_OM60Q99U_(U)
7
When trouble arises

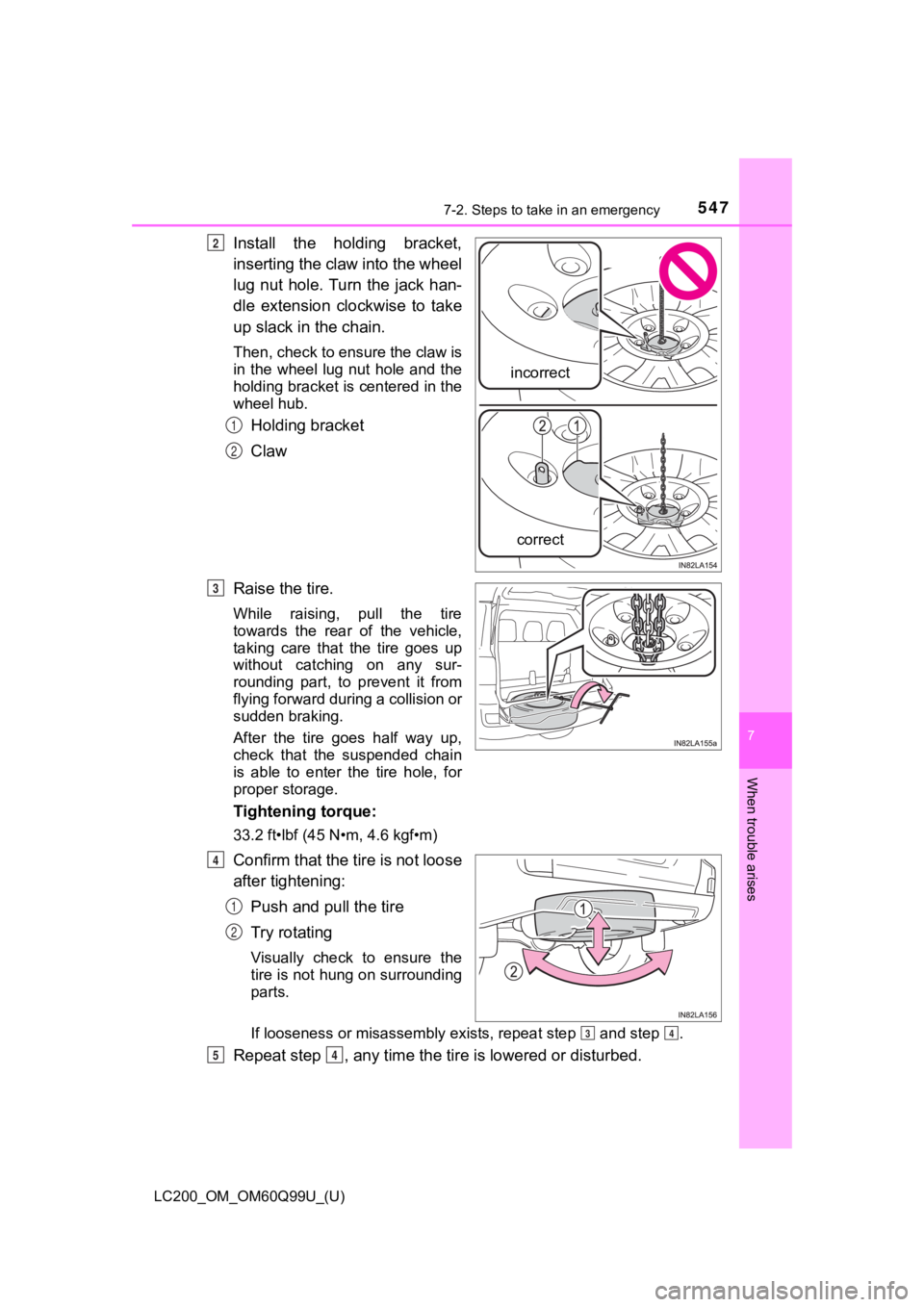

Install the holding bracket,
inserting the claw into the wheel
lug nut hole. Turn the jack han-
dle extension clockwise to take
up slack in the chain.
Then, check to ensure the claw is
in the wheel lug nut hole and the
holding bracket is centered in the
wheel hub.
Holding bracket
Claw
Raise the tire.
While raising, pull the tire
towards the rear of the vehicle,
taking care that the tire goes up
without catching on any sur-
rounding part, to prevent it from
flying forward during a collision or
sudden braking.
After the tire goes half way up,
check that the suspended chain
is able to enter the tire hole, for
proper storage.
Tightening torque:
33.2 ft•lbf (45 N•m, 4.6 kgf•m)
Confirm that the tire is not loose
after tightening: Push and pull the tire
Try rotating
Visually check to ensure the
tire is not hung on surrounding
parts.
If looseness or misassembly ex ists, repeat step and step .
Repeat step , any time the tire is lowered or disturbed.
incorrect
correct
2
1
2
3
4
1
2
34
54

5487-2. Steps to take in an emergency
LC200_OM_OM60Q99U_(U)
Stow the tools and jack securely.
■After completing the tire change
The tire pressure warni ng system must be reset. ( P. 474)
WARNING
■After using the tools and jack
Before driving, make sure all t he tools and jack are securely i n place in
their storage locatio n to reduce the possibility of personal in jury during a
collision or su dden braking.
■Replacing a flat tire for ve hicles with power back door
In cases such as when replacing tires, make sure to turn off the power
back door main switch ( P. 124). Failure to do so may cause the back
door to operate unintentionally if the power back door switch i s acciden-
tally touched, resulting in hands and fingers being caught and injured.
NOTICE
■When stowing the flat tire
Ensure that there is no object caught between the tire and the vehicle
underbody.
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Toyota dealer as the tire p ressure
warning valve and transmitter may be damaged if not handled cor rectly.
■To avoid damage to the tire pressure warning valves and transmi t-
ters
When a tire is repaired with liqui d sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sea lant is
used, contact your Toyota dealer or other qualified service shop as soon
as possible. Make sure to replac e the tire pressure warning valve and
transmitter when replacing the tire. ( P. 4 7 4 )
6

549
LC200_OM_OM60Q99U_(U)
7
When trouble arises
7-2. Steps to take in an emergency
If the engine will not star t
One of the following may be the cause of the problem:
● There may not be sufficient f uel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine again following correct starting proc edures.
(  P. 207)
● There may be a malf unction in the engine immobilizer system.
(  P. 81)
One of the following may be the cause of the problem:
● The battery may be discharged. ( P. 554)
● The battery terminal connecti ons may be loose or corroded.
The engine starting system may be malfunctioning due to an elec trical
problem such as an open circuit or a blown fuse. However, an in terim
measure is available to start the engine. ( P. 550)
If the engine will not start eve n though correct starting proce -
dures are being followed ( P. 207), consider each of the follow-
ing points:
The engine will not start even wh en the starter motor operates
normally.
The starter motor turns over slowly, the interior lights and he ad-
lights are dim, or the horn does not sound or sounds at a low
volume.
The starter motor d oes not turn over.

5507-2. Steps to take in an emergency
LC200_OM_OM60Q99U_(U)
One of the following may be the cause of the problem:
● One or both of the battery t erminals may be disconnected.
● The battery may be discharged. ( P. 554)
● There may be a malfunction i n the steering lock system.
Contact your Toyota dealer if the problem cannot be repaired, o r if repair
procedures are unknown.
When the engine does not start, the following steps can be used as an
interim measure to start the engine if the engine switch is fun ctioning
normally.
Set the parking brake.
Put the shift lever in P.
Set the engine switch to the ACCESSORY mode.
Push and hold the engine switch for about 15 seconds while
depressing the brake pedal firmly.
Even if the engine can be start ed using the above steps, the sy stem
may be malfunctioning. Have the vehicle inspected by your Toyot a
dealer.
The starter motor does not turn over, the interior lights and h ead-
lights do not turn on, o r the horn does not sound.
Emergency start function
1
2
3
4
