5217-2. Steps to take in an emergency
LC200_OM_OM60R53U_(U)
7
When trouble arises
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■When towing the vehicle
■ While towing
● When towing using cables or chains, avoid sudden starts, etc. w hich place
excessive stress on the towing hooks, cables or chains. The tow ing hooks,
cables or chains may become damaged, broken debris may hit peop le and
cause serious damage.
● Do not turn the engine switch off.
There is a possibility that the steering wheel is locked and ca nnot be oper-
ated.
Be sure to transport the vehicle with all
four wheels raised off the ground. If the
vehicle is towed with the tires contacting
the ground, the drivetrain or related parts
may be damaged, the vehicle may fly off
the truck.

5227-2. Steps to take in an emergency
LC200_OM_OM60R53U_(U)
NOTICE
■To prevent damage to the vehicle when towing using a wheel-lift type
truck
● Do not tow the vehicle from the rear when the engine switch is off. The
steering lock mechanism is not strong enough to hold the front wheels
straight.
● When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
■ To prevent damage to the vehicle when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or re ar.
■ To prevent damage to the vehic le during emergency towing
Do not secure cables or chains to the suspension components.
■ To avoid serious damage to your vehicle
Do not use the rear emergency towing
hook.

523
LC200_OM_OM60R53U_(U)
7
When trouble arises
7-2. Steps to take in an emergency
If you think something is wrong
●Fluid leaks un der the vehicle
(Water dripping from the air conditioning a fter use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temperature gauge needle continually points high er
than normal
● Engine oil pressure gauge contin ually points lower than normal.
● Voltmeter continually points higher or lower than normal.
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine
● Engine missing, stumb ling or running roughly
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one s ide when driving on a level road
● Loss of brake effectiveness, spongy feeling, pedal almost touch es
the floor
If you notice any of the followi ng symptoms, your vehicle proba -
bly needs adjustment or repair. Contact your Toyota dealer as
soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

524
LC200_OM_OM60R53U_(U)
7-2. Steps to take in an emergency
Fuel pump shut off system
Follow the procedure below to restart the engine after the system is
activated.
Turn the engine switch to ACCESSORY mode or turn it off.
Restart the engine.
To minimize the risk of fuel leakage when the engine stalls or
when an airbag inflates upon collision, the fuel pump shut off
system stops the supply of fuel to the engine.
NOTICE
■Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
1
2

525
LC200_OM_OM60R53U_(U)
7
When trouble arises
7-2. Steps to take in an emergency

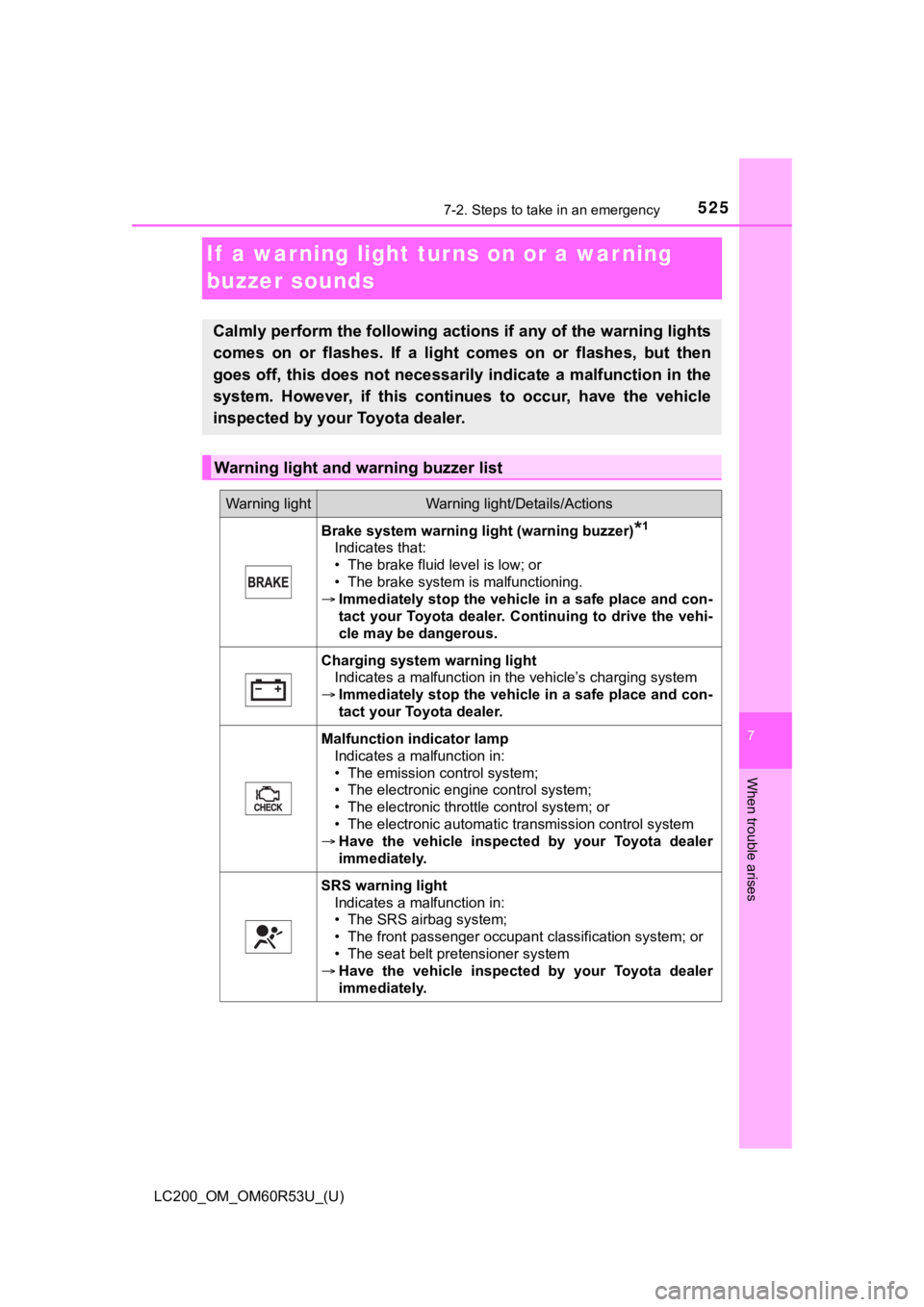

If a warning light turns on or a war ning
buzzer sounds
Calmly perform the following actions if any of the warning ligh ts
comes on or flashes. If a light comes on or flashes, but then
goes off, this does not necessarily indicate a malfunction in the
system. However, if this continues to occur, have the vehicle
inspected by your Toyota dealer.
Warning light and w arning buzzer list
Warning lightWarning light/Details/Actions
Brake system warning li ght (warning buzzer)*1
Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning.
 Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer. Continuing to drive the vehi-
cle may be dangerous.
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
 Immediately stop the vehicle in a safe place and con-
tact your Toyota dealer.
Malfunction indicator lamp
Indicates a malfunction in:
• The emission control system;
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transmission control system
 Have the vehicle inspected by your Toyota dealer
immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system
 Have the vehicle inspected by your Toyota dealer
immediately.

5267-2. Steps to take in an emergency
LC200_OM_OM60R53U_(U)

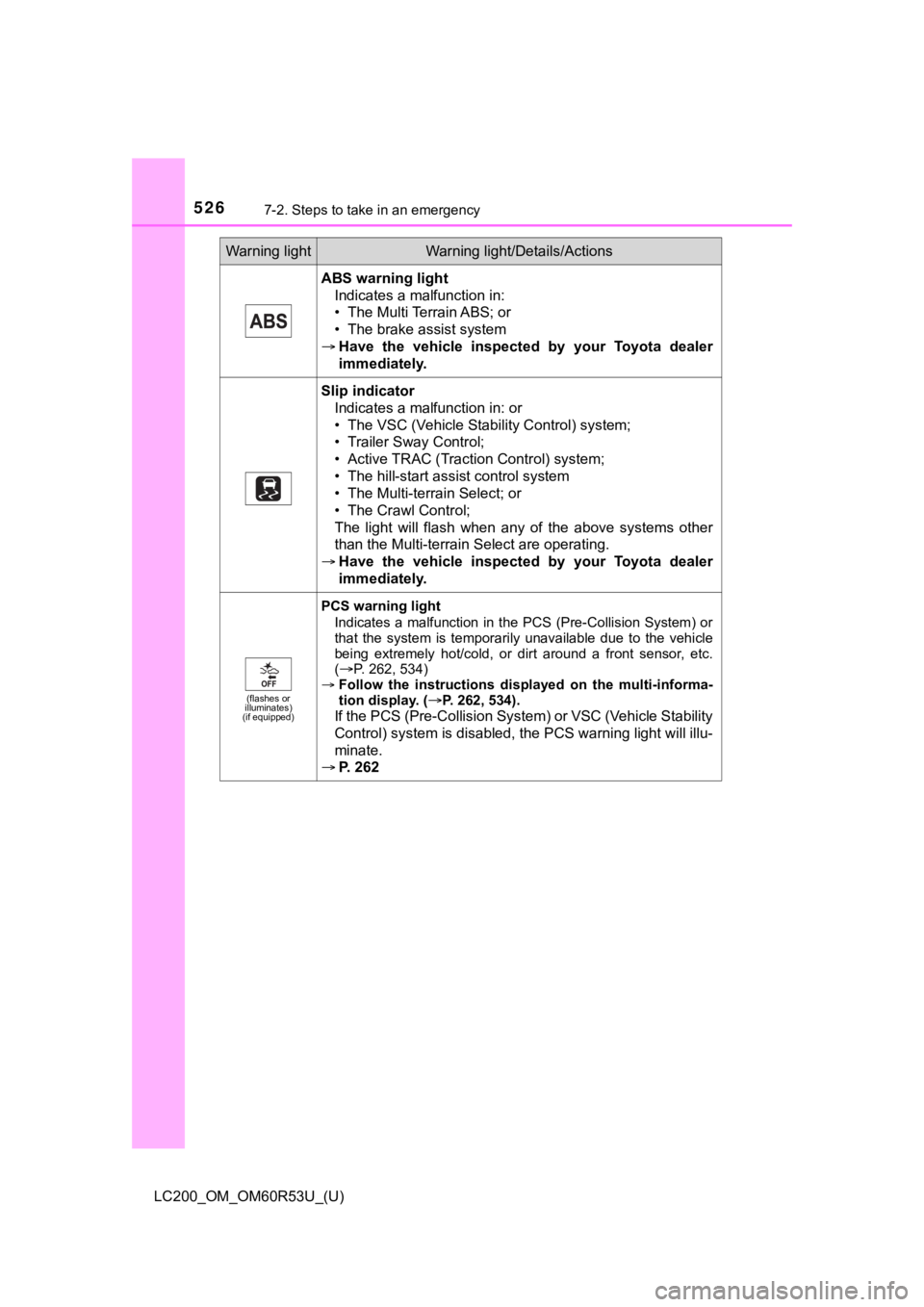

ABS warning lightIndicates a malfunction in:
• The Multi Terrain ABS; or
• The brake assist system
 Have the vehicle inspected by your Toyota dealer
immediately.
Slip indicator
Indicates a malfunction in: or
• The VSC (Vehicle Stability Control) system;
• Trailer Sway Control;
• Active TRAC (Traction Control) system;
• The hill-start assist control system
• The Multi-terrain Select; or
• The Crawl Control;
The light will flash when any of the above systems other
than the Multi-terrain Select are operating.
 Have the vehicle inspected by your Toyota dealer
immediately.
(flashes or
illuminates)
(if equipped)
PCS warning light
Indicates a malfunction in the PCS (Pre-Collision System) or
that the system is temporarily unavailable due to the vehicle
being extremely hot/cold, or dirt around a front sensor, etc.
(
P. 262, 534)
 Follow the instructions displayed on the multi-informa-
tion display. (
P. 262, 534).
If the PCS (Pre-Collision System) or VSC (Vehicle Stability
Control) system is disabled, the PCS warning light will illu-
minate.
 P. 262
Warning lightWarning light/Details/Actions

5277-2. Steps to take in an emergency
LC200_OM_OM60R53U_(U)
7
When trouble arises

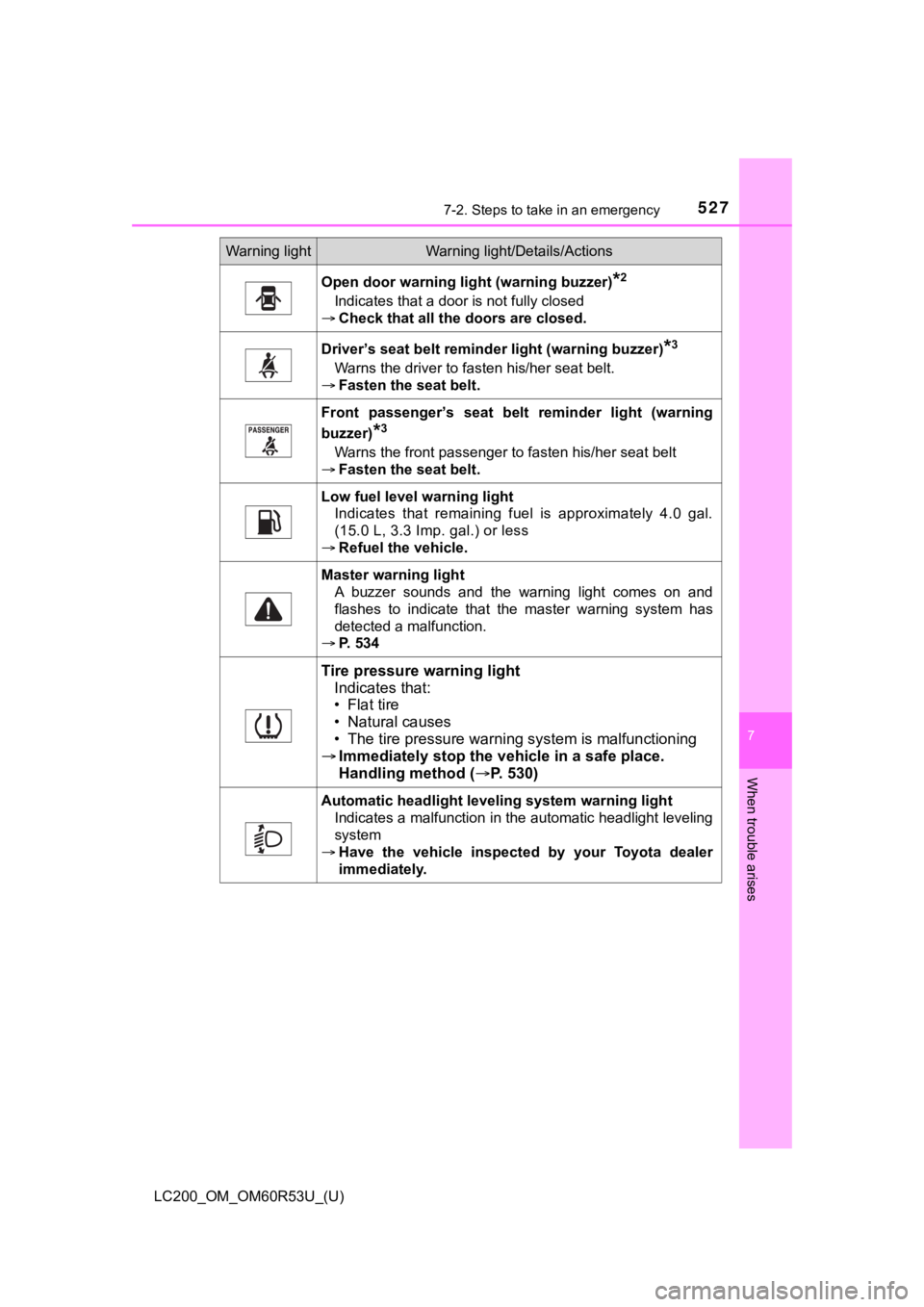

Open door warning light (warning buzzer)*2
Indicates that a door is not fully closed
 Check that all the doors are closed.
Driver’s seat belt remind er light (warning buzzer)*3
Warns the driver to fasten his/her seat belt.
 Fasten the seat belt.
Front passenger’s seat belt reminder light (warning
buzzer)
*3
Warns the front passenger to fasten his/her seat belt
 Fasten the seat belt.
Low fuel level warning light
Indicates that remaining fuel is approximately 4.0 gal.
(15.0 L, 3.3 Imp. gal.) or less
 Refuel the vehicle.
Master warning light
A buzzer sounds and the warning light comes on and
flashes to indicate that the master warning system has
detected a malfunction.
 P. 534
Tire pressure warning light
Indicates that:
• Flat tire
• Natural causes
• The tire pressure warning system is malfunctioning
 Immediately stop the veh icle in a safe place.
Handling method ( P. 5 3 0 )
Automatic headlight level ing system warning light
Indicates a malfunction in the automatic headlight leveling
system
 Have the vehicle inspected by your Toyota dealer
immediately.
Warning lightWarning light/Details/Actions

5287-2. Steps to take in an emergency
LC200_OM_OM60R53U_(U)
*1: Brake system warning buzzer:The buzzer sounds to indicate that the brake fluid level is low (with the
vehicle reached a speed of 3 mph [5 km/h]).
*2: Open door warning buzzer: The open door warning buzzer sounds to alert one or more of the doors is
not fully closed (with the vehicle having reached a speed of 3 mph [5 km/h]).
*3: Driver’s seat belt warning buzzer:
The driver’s seat belt warning buzzer sounds to alert the drive r that his or
her seat belt is not fastened. Once the engine switch is turned to the IGNI-
TION ON mode, the buzzer sounds. If the seat belt is still unfa stened, the
buzzer sounds intermittently for a certain period of time after the vehicle
reaches a certain speed.
Front passenger’s seat belt warning buzzer:
The front passenger’s seat belt warning buzzer sounds to alert the front
passenger that his or her seat belt is not fastened. If the sea t belt is unfas-
tened, the buzzer sounds intermittently for a certain period of time after the
vehicle reaches a certain speed.

5297-2. Steps to take in an emergency
LC200_OM_OM60R53U_(U)
7
When trouble arises
■SRS warning light
This warning light system monitors the airbag sensor assembly, front impact
sensors, side impact sensors (rear), side impact sensors (front door), safing
sensor (rear), driver’s seat belt buckle switch, driver’s seat position sensor,
front passenger’s seat belt buckle switch, airbags, interconnec ting wiring and
power sources, front passenger occupant classification system, “AIR BAG
ON” and “AIR BAG OFF” indicator l ights, seat belt pretensioners. (P. 40)
■ Front passenger detection sensor, seat belt reminder and warnin g
buzzer
● If luggage is placed on the front passenger seat, the front pas senger detec-
tion sensor may cause the warning light to flash and the warnin g buzzer to
sound even if a passenger is not sitting in the seat.
● If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
■ If the malfunction indicator lamp comes on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fuel tank immediately.
● Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving trips.
If the light does not go off even after several trips, contact your Toyota dealer
as soon as possible.
■ If the low speed four-wheel drive indicator light or the center differential
lock indicator light blinks
Take the specified steps. ( P. 298)
If the brake system warning light or the malfunction indicator light also comes
on, or the low speed four-wheel drive indicator light or the center differential
lock indicator light continues to blink after taking the specif ied steps, there
may be a malfunction in the engine, the brake system or the fou r-wheel drive
system. In this case, you may not be able to transfer between “ H4” and “L4”
modes, and the center differential lock may not be able to be l ocked or
unlocked. Have the vehicle inspected by your Toyota dealer imme diately.

5307-2. Steps to take in an emergency
LC200_OM_OM60R53U_(U)■
When the tire pressure warning light comes on
Inspect the tires to check if a tire is punctured.
If a tire is punctured:
P. 539
If none of the tires are punctured:
Turn the engine switch off then turn it to IGNITION ON mode. Ch eck if the
tire pressure warning light comes on or flashes.
If the tire pressure wa rning light comes on
After the temperature of the tires has lowered sufficiently, ch eck the
inflation pressure of each tire and adjust them to the specifie d level.
If the warning light does not turn off even after several minut es have
elapsed, check that the inflation pressure of each tire is at t he specified
level and perform initialization. (P. 4 7 9 )
If the warning light does not turn off even after several minut es have
elapsed, have the vehicle inspected by your Toyota dealer immed iately.
If the tire pressure warning light flashes for 1 minute then st ay on
There may be a malfunction in the tire pressure warning system. Have
the vehicle inspected by you r Toyota dealer immediately.
■The tire pressure warning light may turn on due to natural caus es
The tire pressure warning light may turn on due to natural caus es such as
natural air leaks or tire inflation pressure changes caused by tempera-
ture. In this case, adjusting the tire inflation pressure will turn off the warn-
ing light (after a few minutes).
■When a tire is replace d with a spare tire
The spare tire is also equipped with the tire pressure warning valve and
transmitter. The tire pressure warning light will turn on if the tire inflation
pressure of the spare tire is low. If a tire goes flat, even th ough the flat tire
is replaced with the spare tire, the tire pressure warning light does not
turn off. Replace the spare tire with the repaired tire and adj ust the proper
tire inflation pressure. The tire pressure warning light will t urn off after a
few minutes.
■Conditions that the tire pressure warning system may not functi on
properly
 P. 4 8 3
■Changing the engine oil
Make sure to reset oil change system.
1
2
