5417-2. Steps to take in an emergency
LC200_OM_OM60R53U_(U)
7
When trouble arises
WARNING
■Using the tire jack
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing t ires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jack s for
replacing tires on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not put any part of your body under the vehicle while it is supported
by the jack.
●Do not start or run the engine while your vehicle is supported by the
jack.
●Do not raise the vehicle w hile someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to
replace the tire.
●Use a jack stand if it is nece ssary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that n o one
working on or near the vehicle will be injured.
■Using the jack handle
Tighten all the jack handle bol ts securely using a Phillips-hea d screw-
driver, to prevent the extension parts from coming apart unexpe ctedly.

5427-2. Steps to take in an emergency
LC200_OM_OM60R53U_(U)

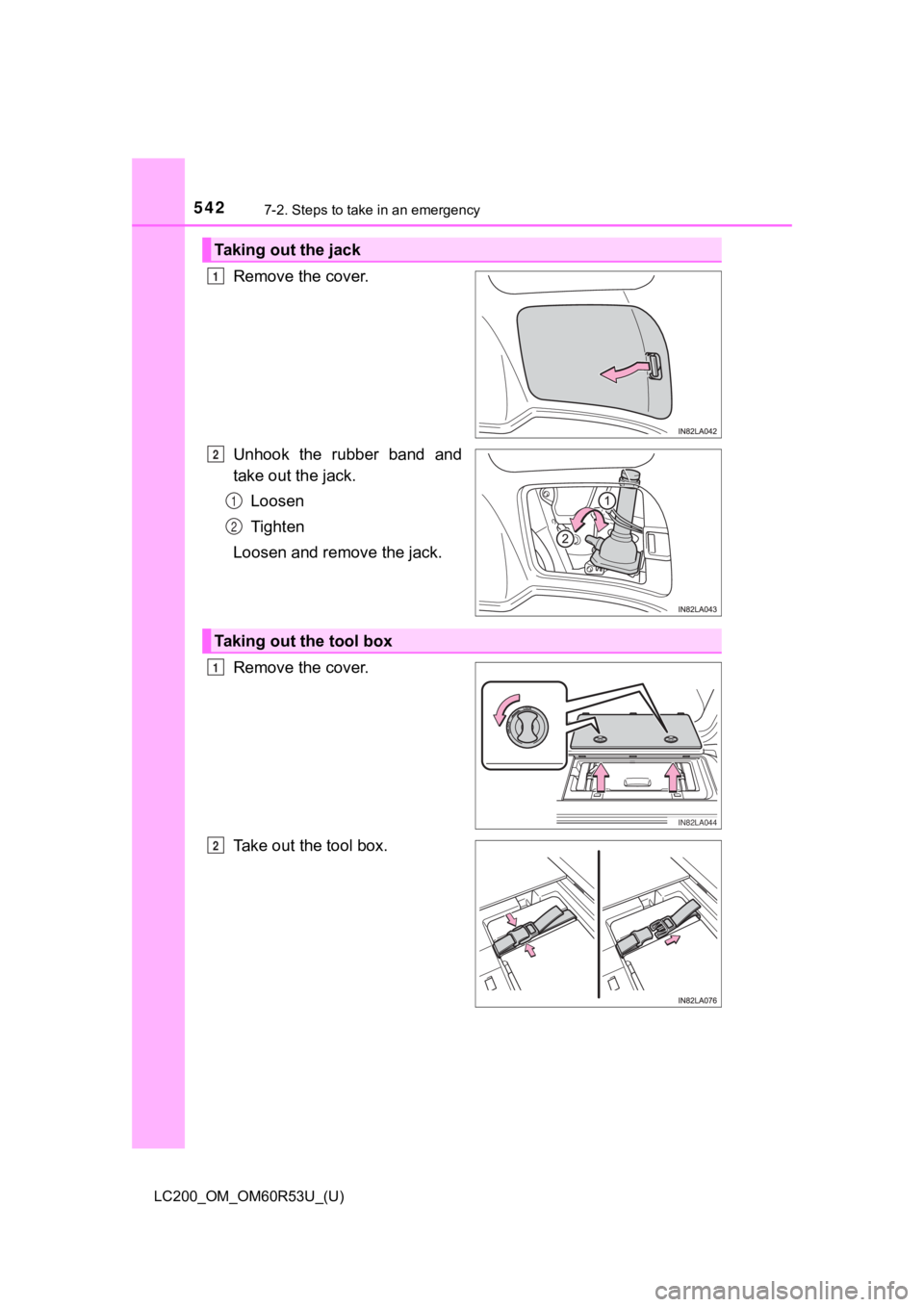

Remove the cover.
Unhook the rubber band and
take out the jack.Loosen
Tighten
Loosen and remove the jack.
Remove the cover.
Take out the tool box.
Taking out the jack
1
2
1
2
Taking out the tool box
IN82LA044
1
2

5437-2. Steps to take in an emergency
LC200_OM_OM60R53U_(U)
7
When trouble arises

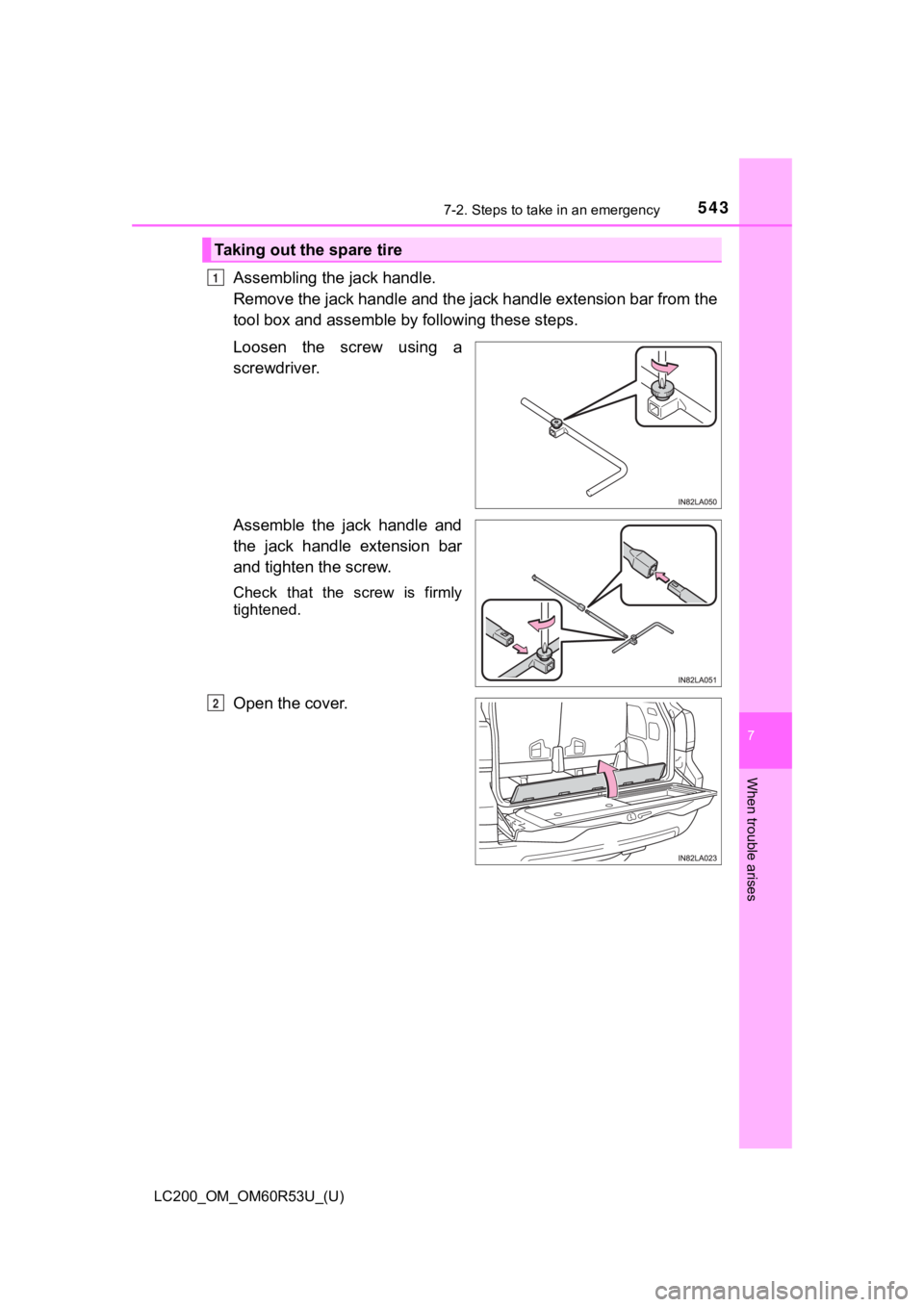

Assembling the jack handle.
Remove the jack handle and the jack handle extension bar from the
tool box and asse mble by following these steps.
Loosen the screw using a
screwdriver.
Assemble the jack handle and
the jack handle extension bar
and tighten the screw.
Check that the screw is firmly
tightened.
Open the cover.
Taking out the spare tire
1
2

5447-2. Steps to take in an emergency
LC200_OM_OM60R53U_(U)

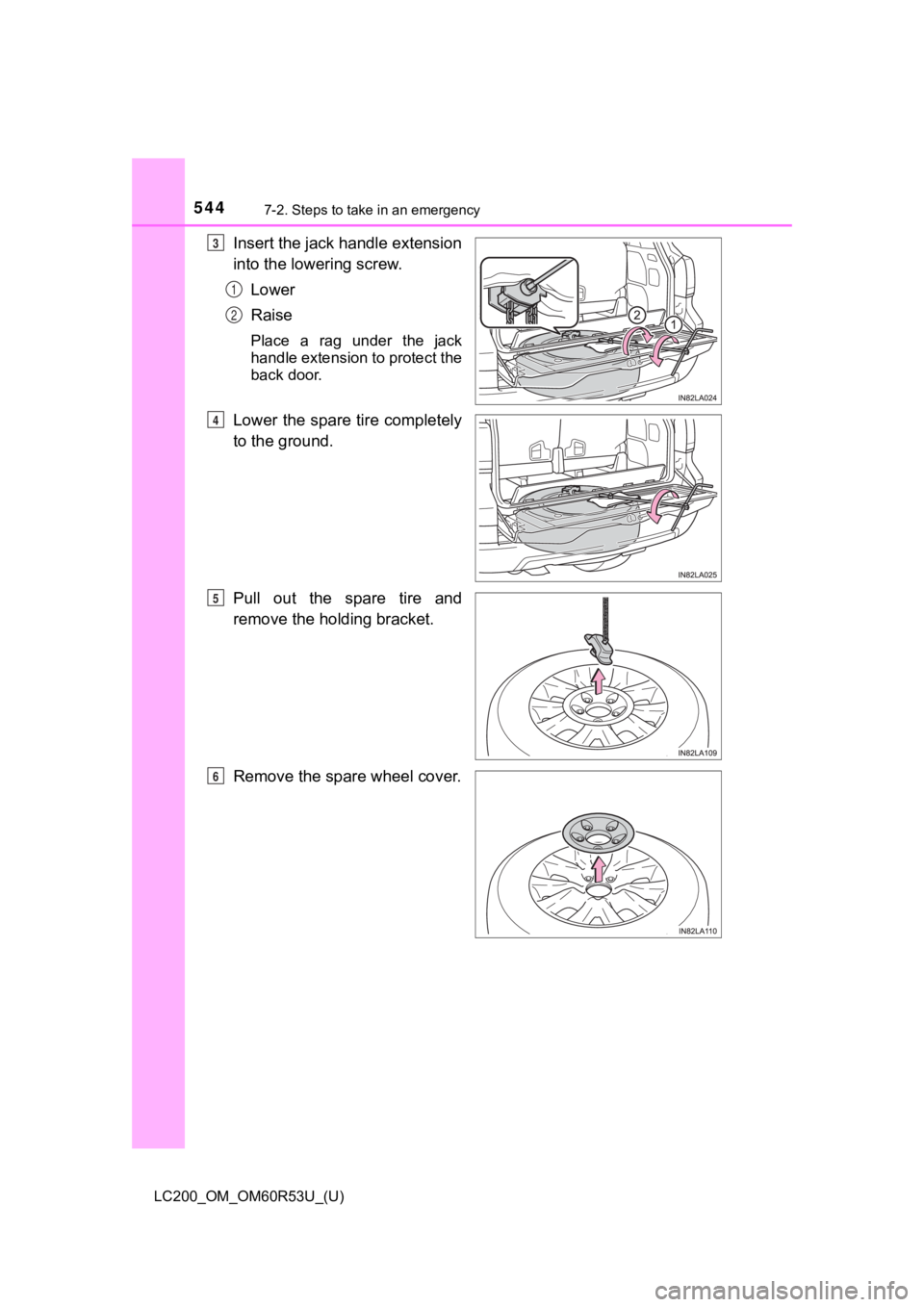

Insert the jack handle extension
into the lowering screw.Lower
Raise
Place a rag under the jack
handle extension to protect the
back door.
Lower the spare tire completely
to the ground.
Pull out the spare tire and
remove the holding bracket.
Remove the spare wheel cover.
3
1
2
4
5
6

5457-2. Steps to take in an emergency
LC200_OM_OM60R53U_(U)
7
When trouble arises

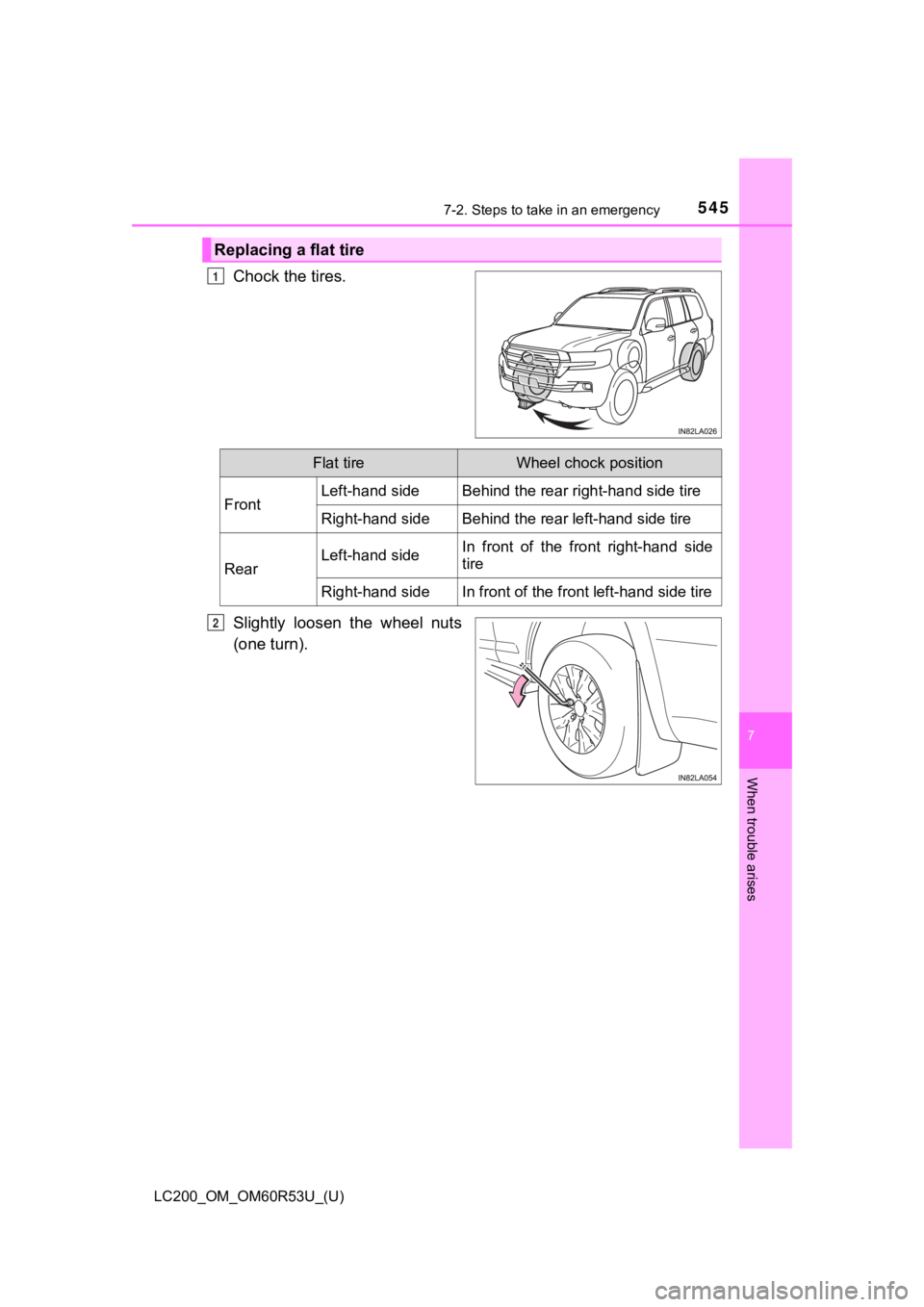

Chock the tires.
Slightly loosen the wheel nuts
(one turn).
Replacing a flat tire
1
Flat tireWheel chock position
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side
tire
Right-hand sideIn front of the front left-hand side tire
2

5467-2. Steps to take in an emergency
LC200_OM_OM60R53U_(U)

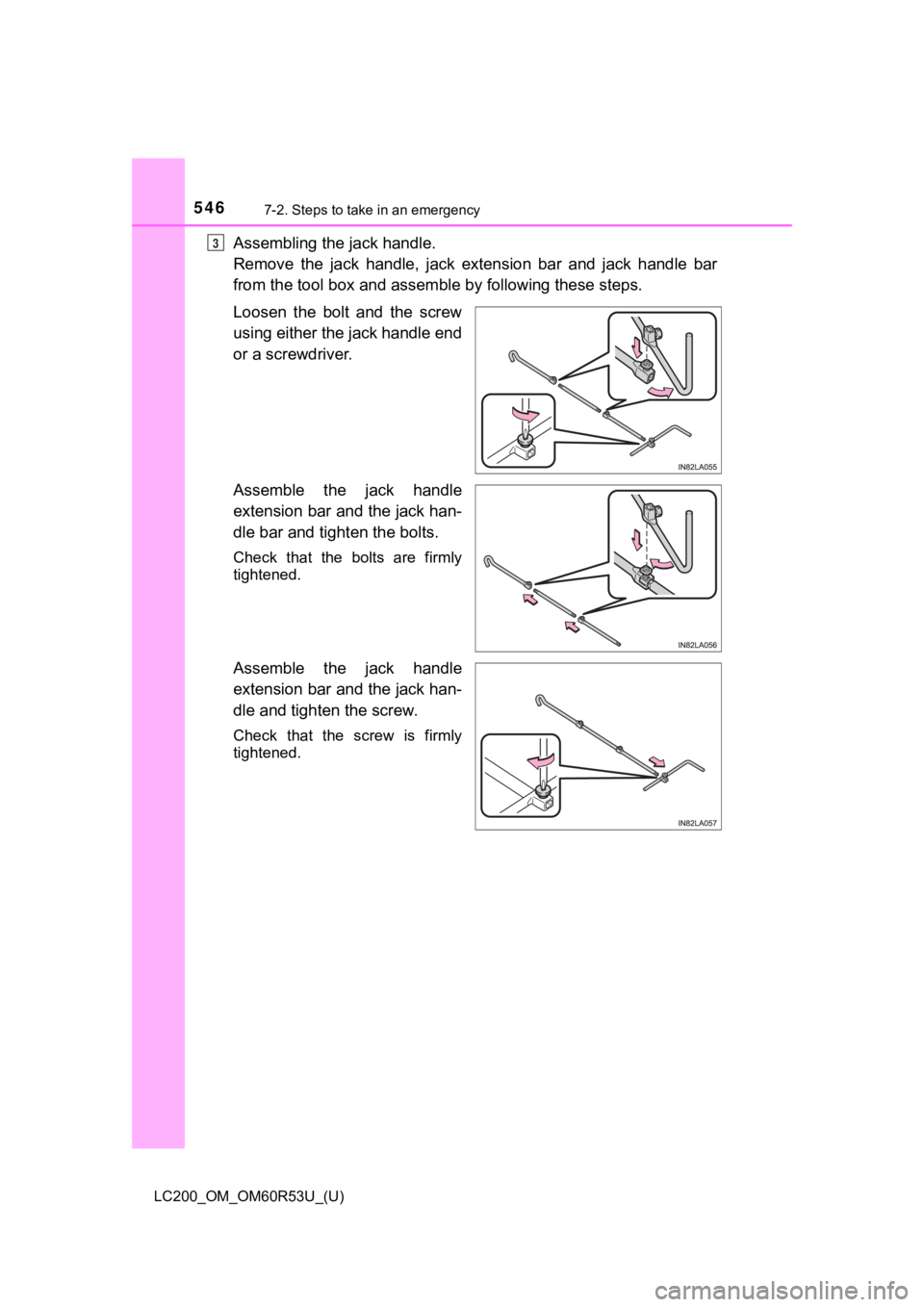

Assembling the jack handle.
Remove the jack handle, jack extension bar and jack handle bar
from the tool box and assemb le by following these steps.
Loosen the bolt and the screw
using either the jack handle end
or a screwdriver.
Assemble the jack handle
extension bar and the jack han-
dle bar and tighten the bolts.
Check that the bolts are firmly
tightened.
Assemble the jack handle
extension bar and the jack han-
dle and tighten the screw.
Check that the screw is firmly
tightened.
3

5477-2. Steps to take in an emergency
LC200_OM_OM60R53U_(U)
7
When trouble arises

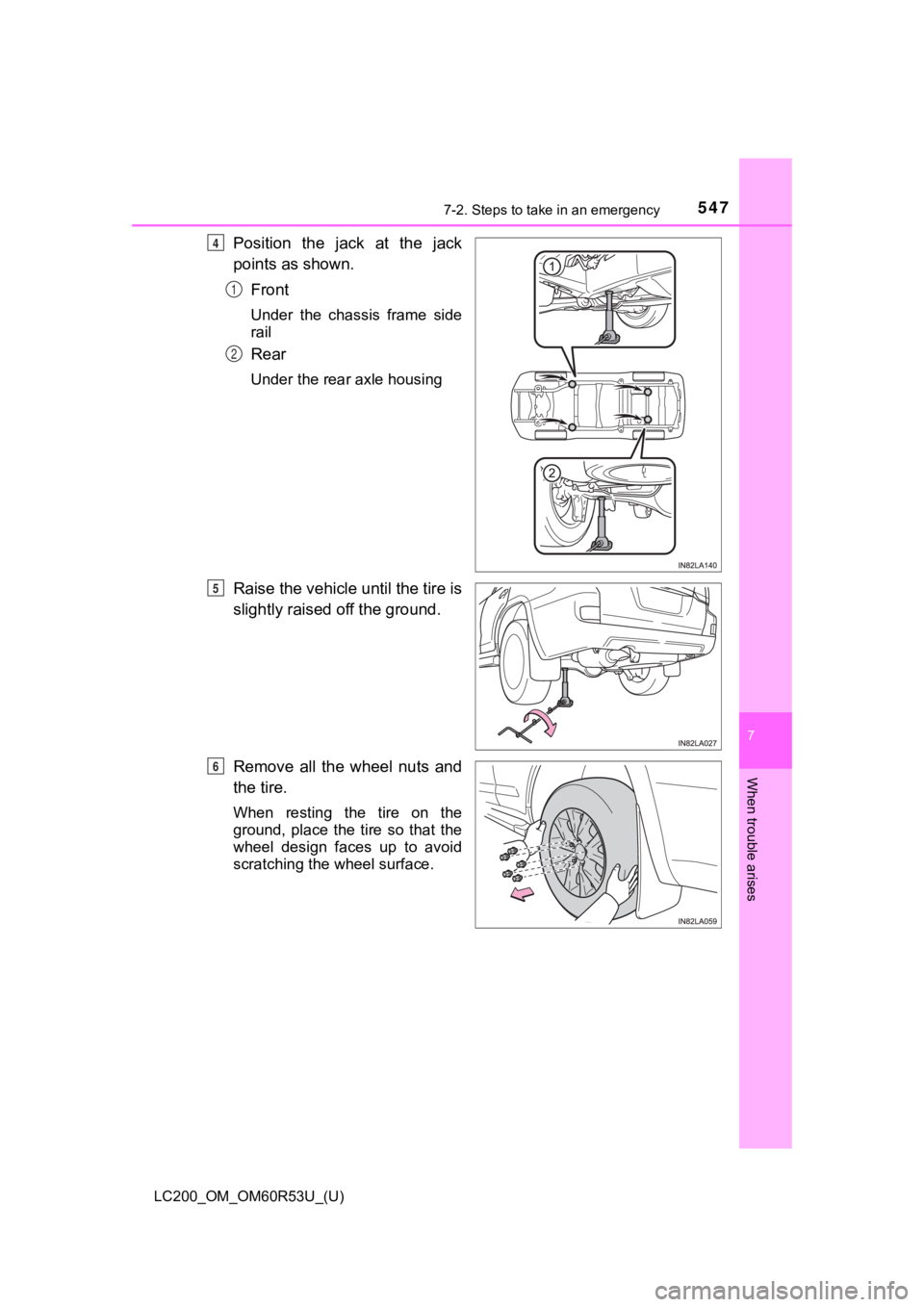

Position the jack at the jack
points as shown.Front
Under the chassis frame side
rail
Rear
Under the rear axle housing
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
4
1
2
5
6

5487-2. Steps to take in an emergency
LC200_OM_OM60R53U_(U)
WARNING
■Replacing a flat tire
●Observe the following precautions.
Failure to do so may result in serious injury:
• Lower the spare tire completely to the ground before removing it
from under the vehicle.
• Do not try to remove the wheel ornament by hand. Take due care in
handling the ornament to avoid unexpected personal injury.
• Do not touch the disc wheels or the area around the brakes imm edi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area
around the brakes will be extreme ly hot. Touching these areas with
hands, feet or other body parts while changing a tire, etc. may result
in burns.
●Failure to follow these precautions could cause the wheel nuts to
loosen and the t ire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 97 ft•lbf (131 N•m, 13.4 kgf•m) as soon as possible after changing wheels.
• Do not attach a heavily damaged wheel ornament, as it may fly off
the wheel while the vehicle is moving.
• When installing a tire, only use wheel nuts that have been spe cifi-
cally designed for that wheel.
• If there are any cracks or defo rmations in the bolt screws, nut
threads or bolt holes of the wheel, have the vehicle inspected by
your Toyota dealer.
• When installing the wheel nuts, b e sure to install them with the
tapered ends facing inward. ( P. 491)

5497-2. Steps to take in an emergency
LC200_OM_OM60R53U_(U)
7
When trouble arises
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, and the tire may come off
the vehicle.

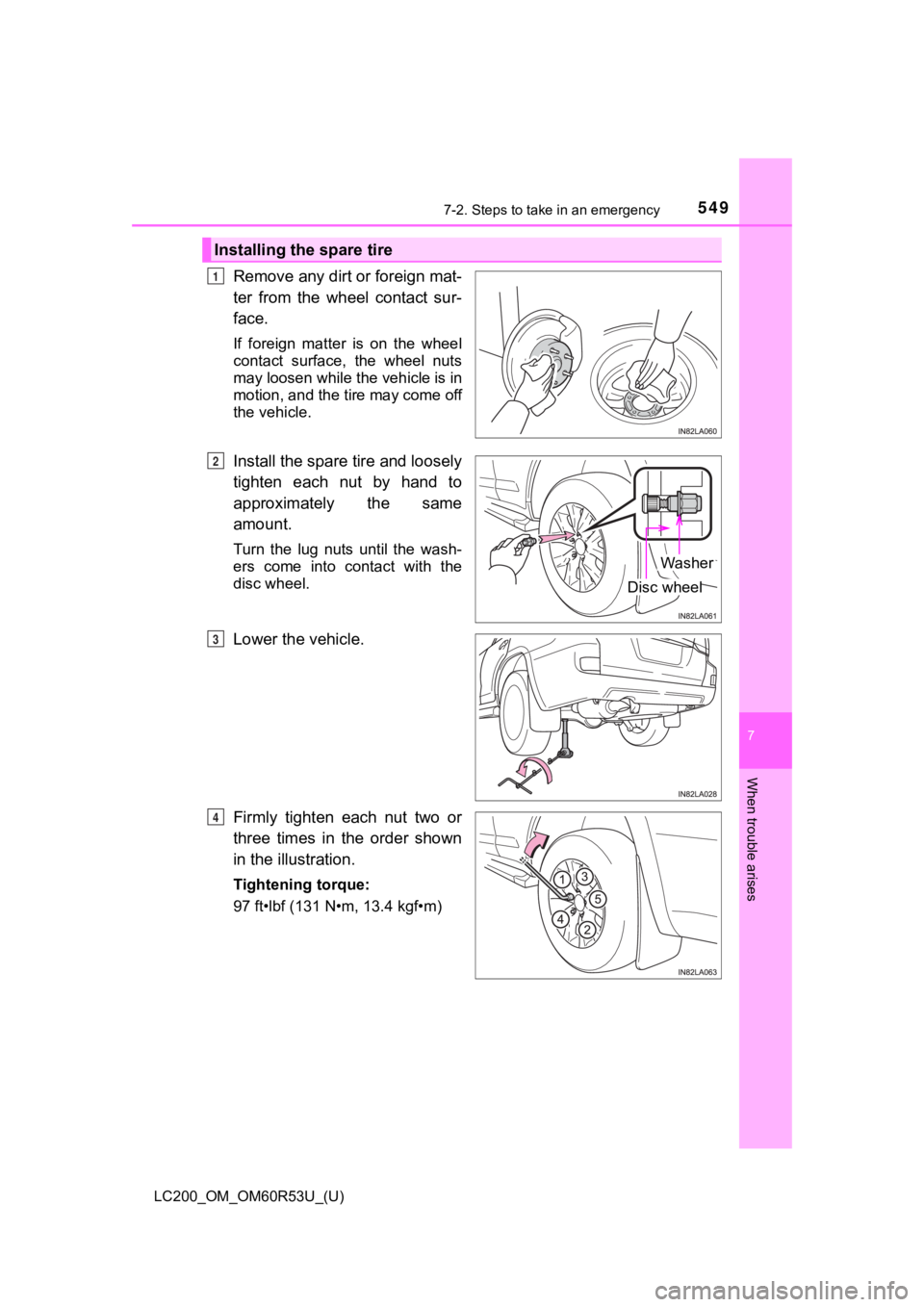

Install the spare tire and loosely
tighten each nut by hand to
approximately the same
amount.
Turn the lug nuts until the wash-
ers come into contact with the
disc wheel.
Lower the vehicle.
Firmly tighten each nut two or
three times in the order shown
in the illustration.
Tightening torque:
97 ft•lbf (131 N•m, 13.4 kgf•m)
Installing the spare tire
1
Washer
Disc wheel
O
P
Q

5507-2. Steps to take in an emergency
LC200_OM_OM60R53U_(U)
Reinstall the wheel ornament.
Remove the center wheel orna-
ment from the flat tire by pushing
from the reverse side, and rein-
stall it.
Lay down the tire with the valve
stem facing up, and install the
spare wheel cover.
5
WARNING
■Stowing the flat tire
Failure to follow steps listed under stowing the tire may result in damage
to the spare tire carrier and loss of the tire, which could res ult in death or
serious injury.
Stowing the flat/spare tire, jack and tools
1
