TOYOTA LAND CRUISER 2020 (in English) User Guide

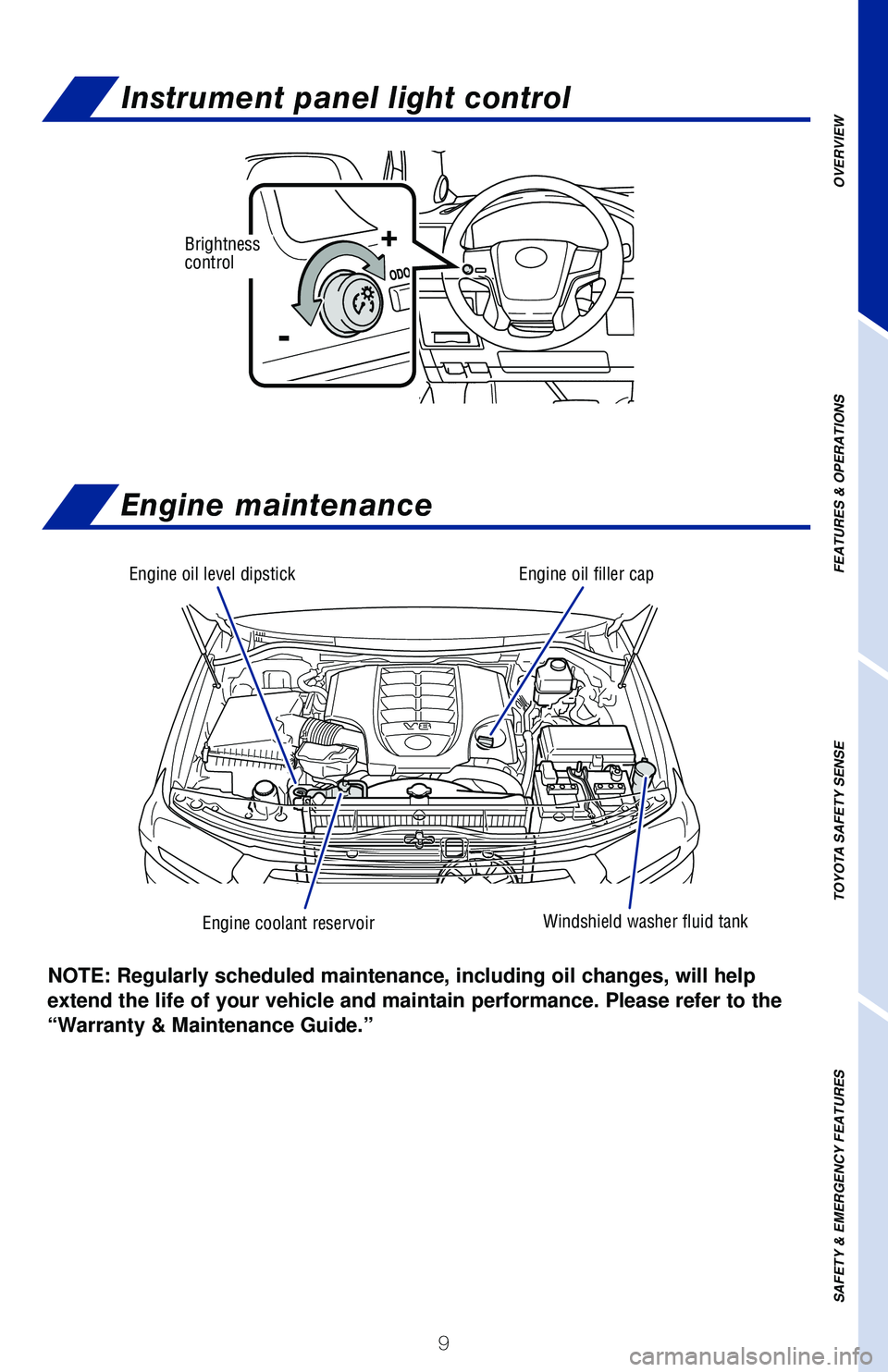

9
Engine oil level dipstick
Engine coolant reservoirWindshield washer fluid tank
Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”
Brightness
control
-
+
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Instrument panel light control
Engine maintenance

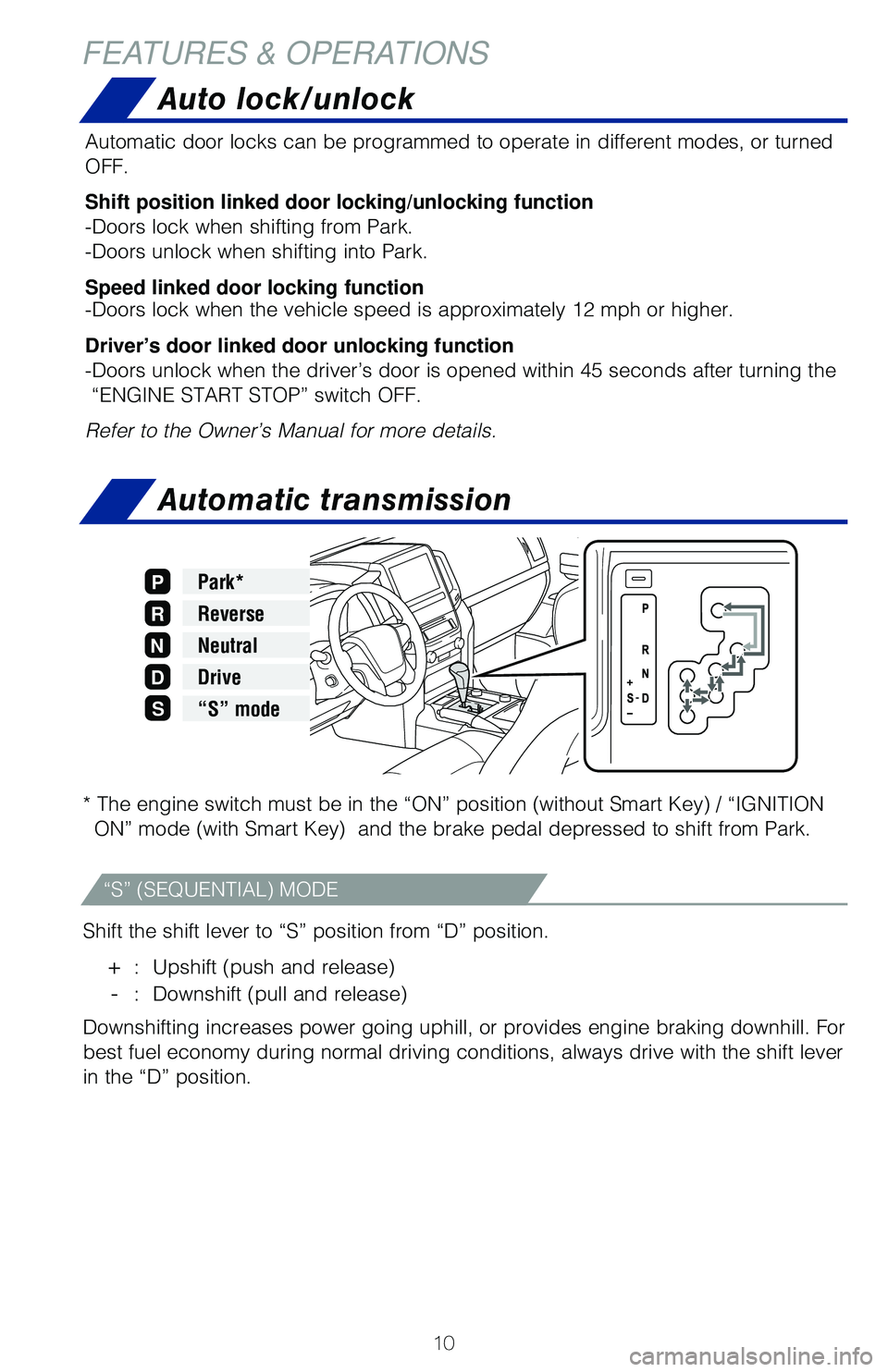

10
Auto lock/unlock
Automatic transmission
 5he engine switch must Ce in the i0/w Qosition without 4mart ,ey
 iI(/I5I0/ 0/w mode with 4mart ,ey
and the CraLe QedaM deQressed to shift from 1arL.
Shift the shift lever to “S” position from “D” position.
+  6Qshift Qush and reMease

-  %ownshift QuMM and reMease

Downshifting increases power going uphill, or provides engine braking do\
wnhill. For
best fuel economy during normal driving conditions, always drive with th\
e shift lever
in the “D” position.
Park*
Reverse
Neutral
Drive
P
R
N
D
S“S” mode
Automatic door locks can be programmed to operate in different modes, or\
turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed is approximately 12 mph or higher.
Driver’s door linked door unlocking function
-Doors unlock when the driver’s door is opened within 45 seconds after\
turning the “ENGINE START STOP” switch OFF.
Refer to the Owner’s Manual for more details.
FEATURES & OPERATIONS
i4w 4&26&/5IA-
.0%&

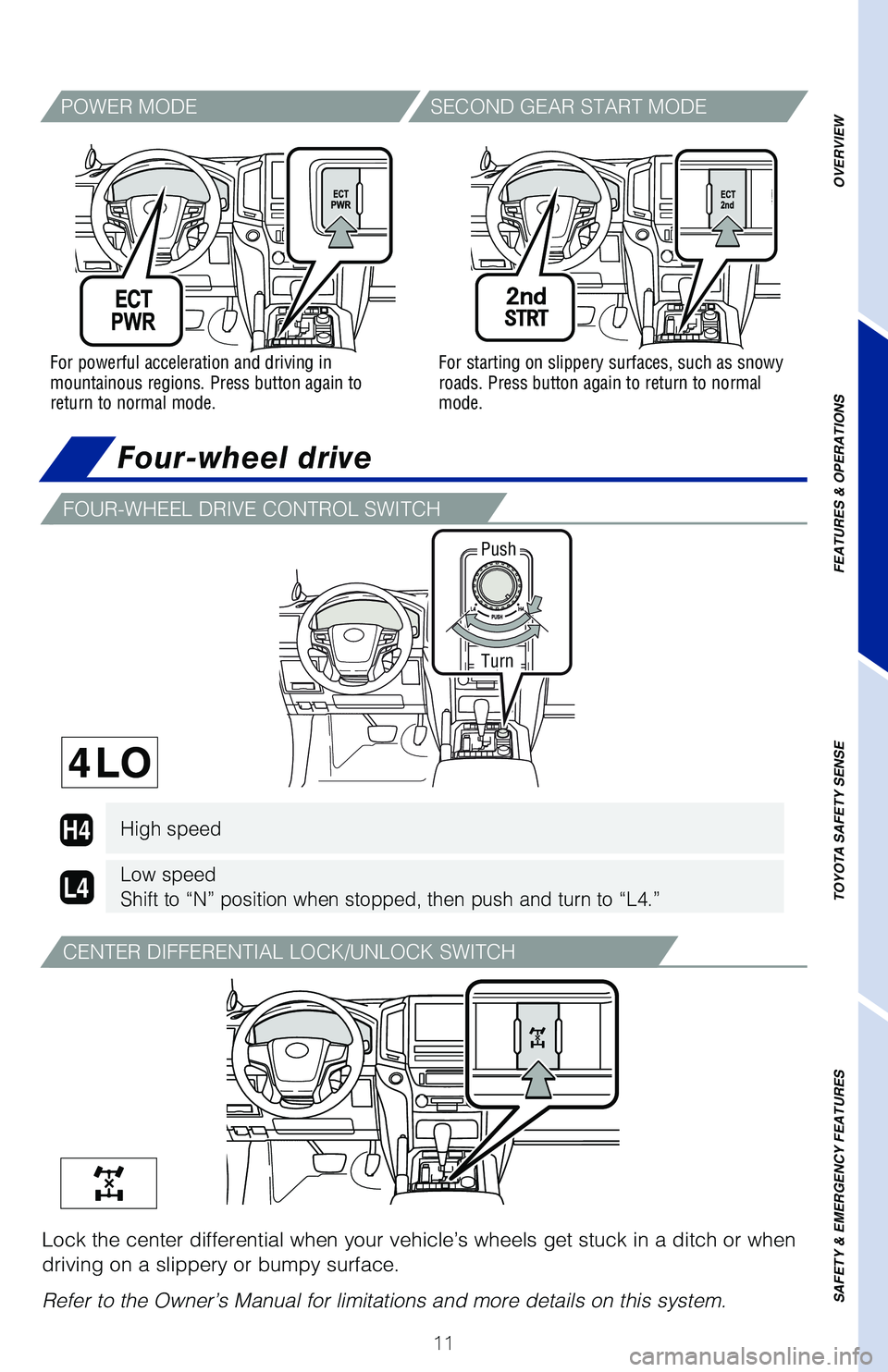

11
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Four-wheel drive
For powerful acceleration and driving in
mountainous regions. Press button again to
return to normal mode.For starting on slippery surfaces, such as snowy
roads. Press button again to return to normal
mode.
POWER MODE
SECOND GEAR START MODE
High speed
Low speed
Shift to “N” position when stopped, then push and turn to “L4.”\
H4
L4
Lock the center differential when your vehicle’s wheels get stuck in \
a ditch or when
driving on a slippery or bumpy surface.
Refer to the Owner’s Manual for limitations and more details on this \
system.
Push
Turn
FOUR-WHEEL DRIVE CONTROL SWITCH
CENTER DIFFERENTIAL LOCK/UNLOCK SWITCH

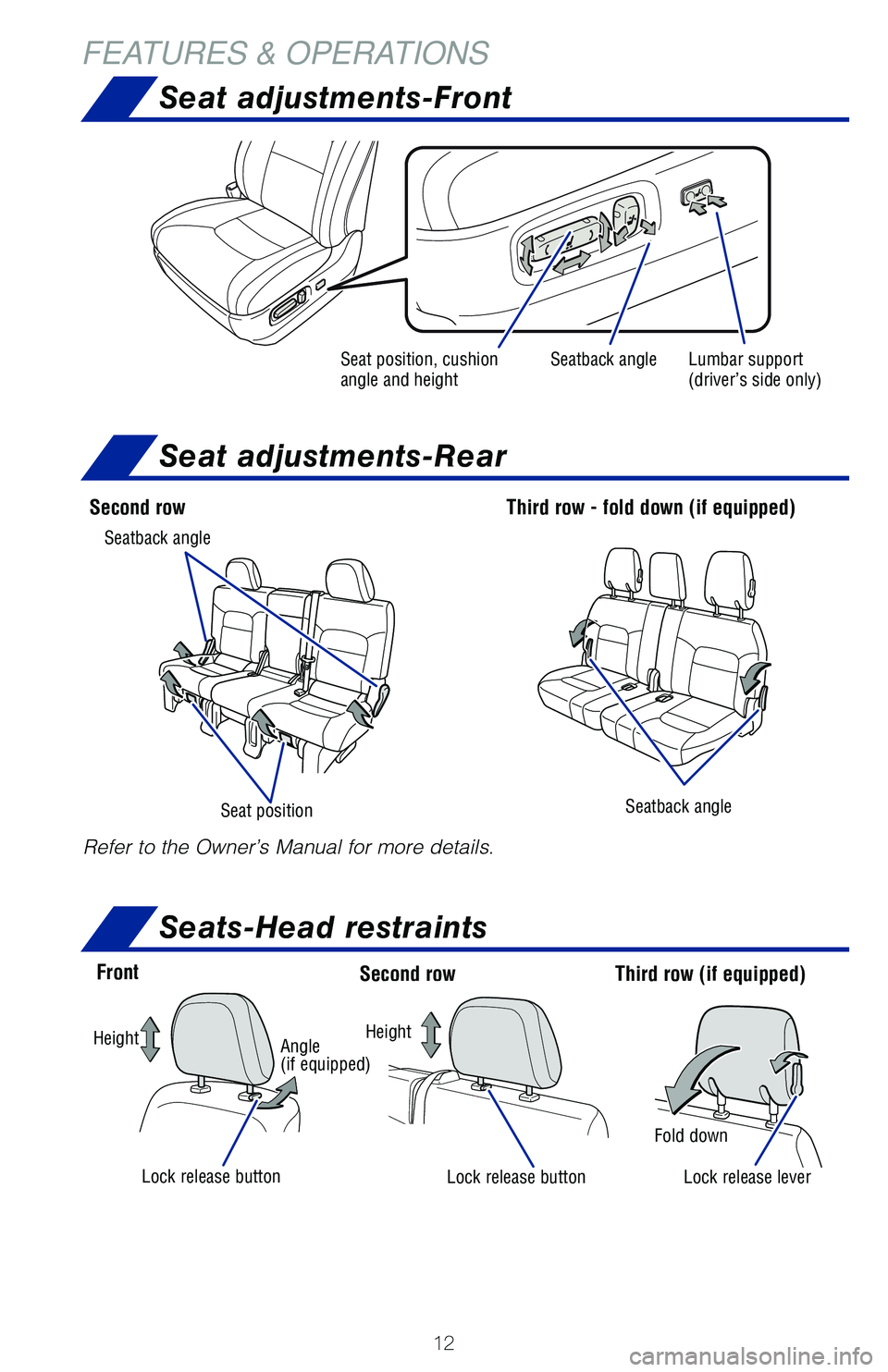

12
Seat adjustments-Front
Seat adjustments-Rear
Seats-Head restraints
FEATURES & OPERATIONS
Seat positionSeatback angleLumbar support
(driver’s side only)
Seat position, cushion
angle and height Seatback angle
Refer to the Owner’s Manual for more details.
Second row
Third row - fold down (if equipped)
Front Second rowThird row (if equipped)
Lock release button
Height
Angle
(if equipped)Lock release button
Height
Fold down
Lock release lever
Seatback angle

13

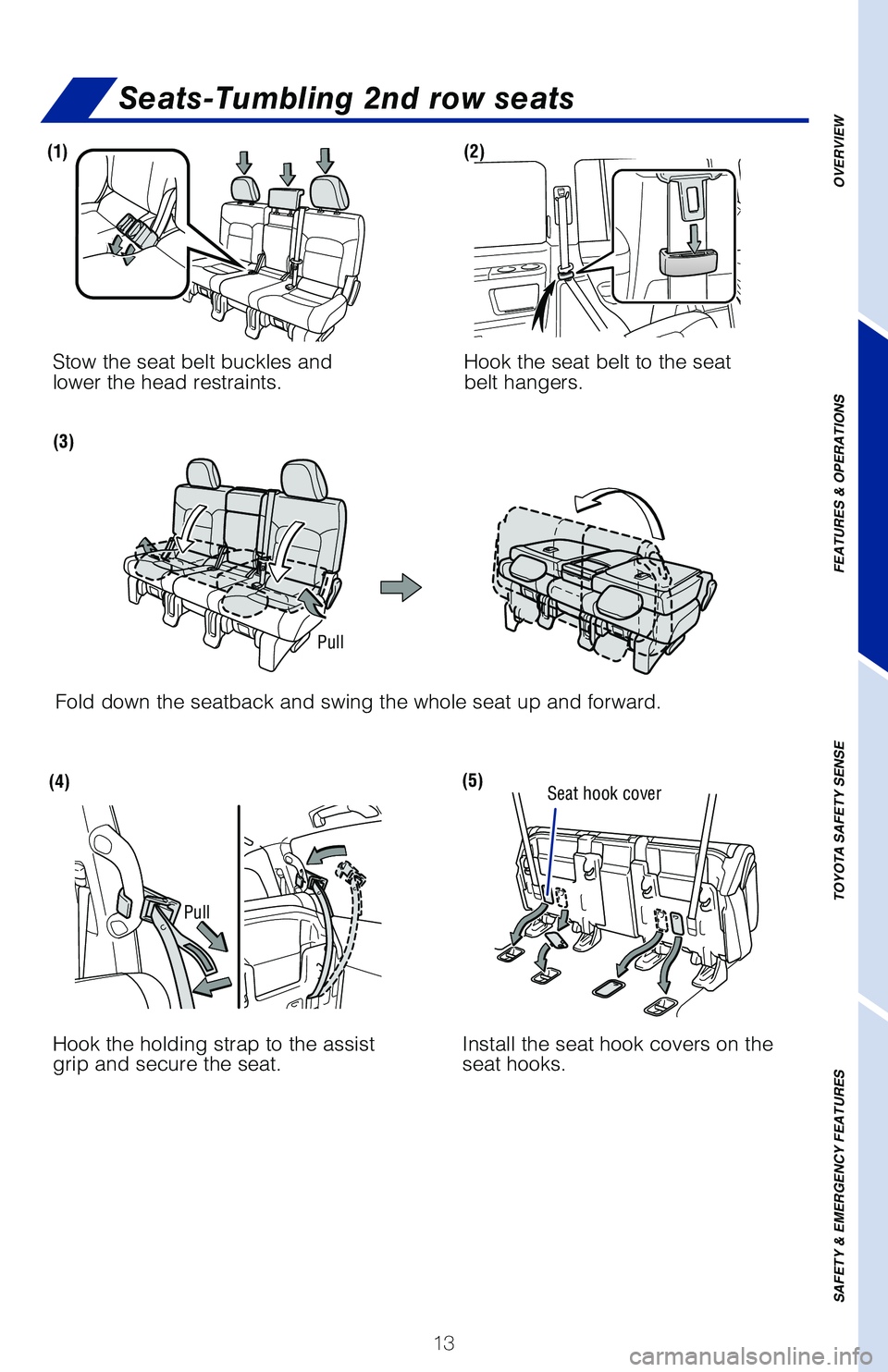

Seats-Tumbling 2nd row seats
(1)
(5)
(3)
(2)
(4)Pull Seat hook cover
Pull
Stow the seat belt buckles and
lower the head restraints.
Hook the seat belt to the seat
belt hangers.
Hook the holding strap to the assist
grip and secure the seat. Install the seat hook covers on the
seat hooks.
Fold down the seatback and swing the whole seat up and forward.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

14
Seats-Tumbling 3rd row seats (if equipped)
FEATURES & OPERATIONS
Stow the seat belt buckles.Stow the center head restraint.
Hook the seat belt to the seat belt
hangers. Fold down the outer head restraints.
Fold the seats. Lift the seats sideward.
Lock the seats. Install the seat hook covers on the
seat hooks.
Install the seat hook covers into
the back of the seat cushions. Lower the seats to their
original
position.
(1)
(5)
(3)
(2)
(4)
Push
(6)
Pull
(7)(8)
Seat hook cover
Pull
Pull
Returning seats
(1)(2)

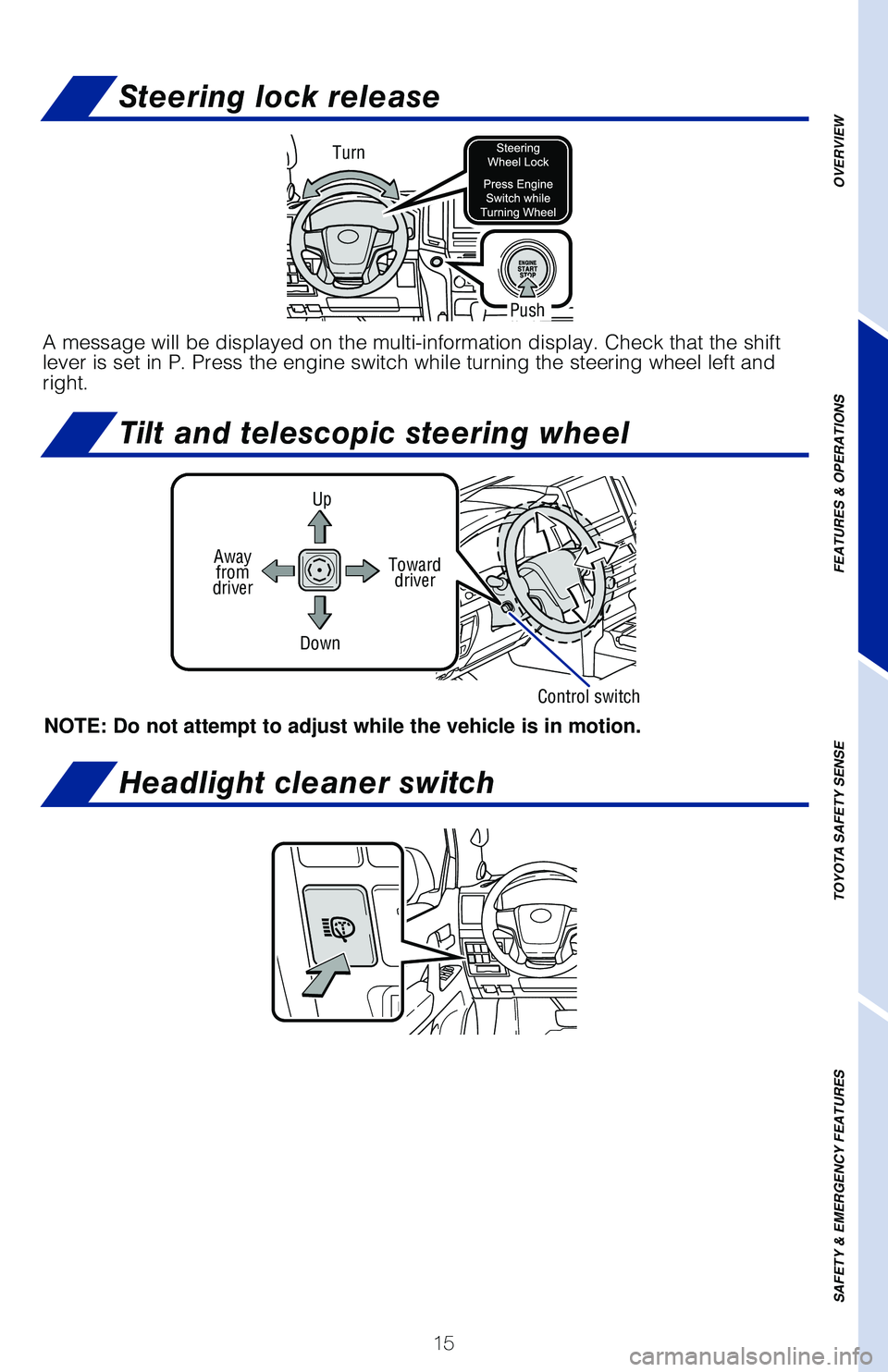

15
Steering lock release
Turn
Push
Tilt and telescopic steering wheel
Headlight cleaner switch
UpToward driver
Down
NOTE: Do not attempt to adjust while the vehicle is in motion.
Away from
driver
Control switch
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
A message will be displayed on the multi-information display. Check that\
the shift
lever is set in P. Press the engine switch while turning the steering wh\
eel left and
right.

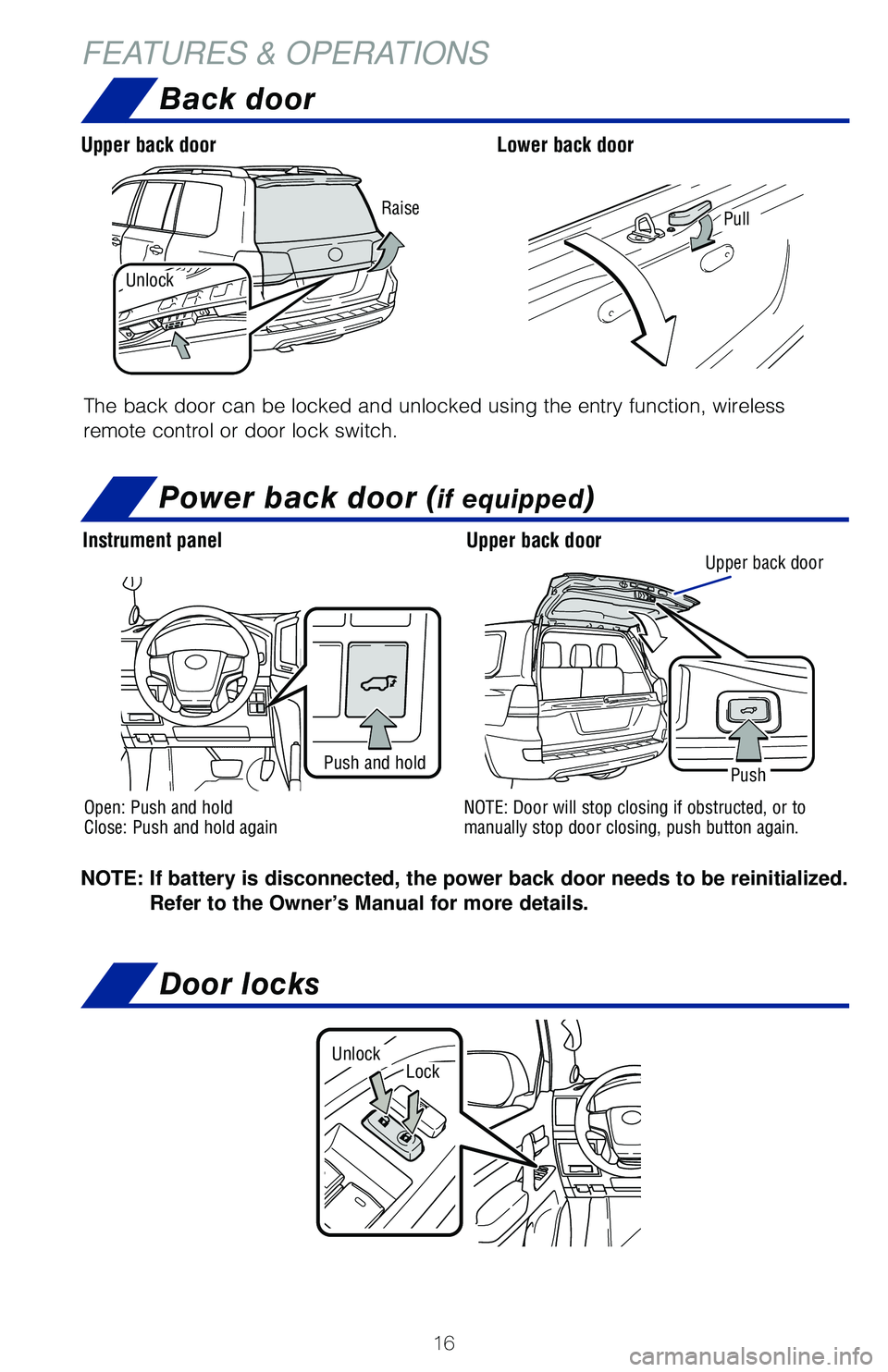

16
FEATURES & OPERATIONSBack door
Pull
Unlock
The back door can be locked and unlocked using the entry function, wirel\
ess
remote control or door lock switch.
Raise
Upper back door Lower back door
Door locks
LockUnlock
Power back door (if equipped)
Upper back door
Open: Push and hold
Close: Push and hold again
NOTE: If battery is disconnected, the power back door needs to be reinitialized.
Refer to the Owner’s Manual for more details.
Instrument panel
NOTE: Door will stop closing if obstructed, or to
manually stop door closing, push button again.
Push and holdPush
Upper back door

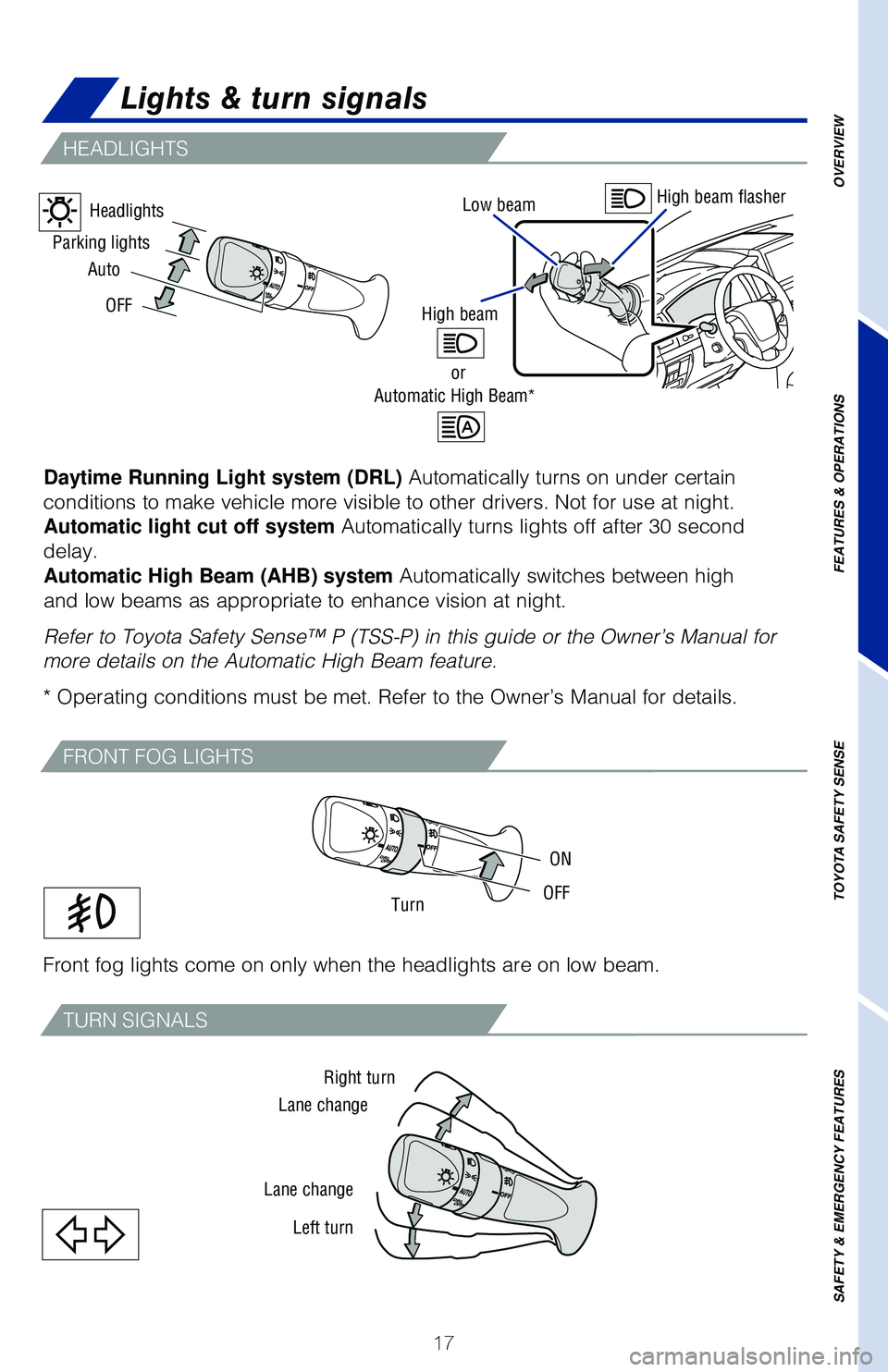

17
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Daytime Running Light system (DRL) Automatically turns on under certain
conditions to make vehicle more visible to other drivers. Not for use at\
night. Automatic light cut off system Automatically turns lights off after 30 second
delay. Automatic High Beam (AHB) system Automatically switches between high
and low beams as appropriate to enhance vision at night.

Refer to Toyota Safety Sense™ P (TSS-P) in this guide or the Owner’\
s Manual for
more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to the Owner’s Manual for d\
etails.
Right turn
Lane change
Lane change Left turn
AutoOFF
Parking lights
Headlights
TurnOFF
ON
Front fog lights come on only when the headlights are on low beam.
Low beamHigh beam flasher
or
Automatic High Beam*
High beam
Lights & turn signals
HEADLIGHTS
FRONT FOG LIGHTS
TURN SIGNALS

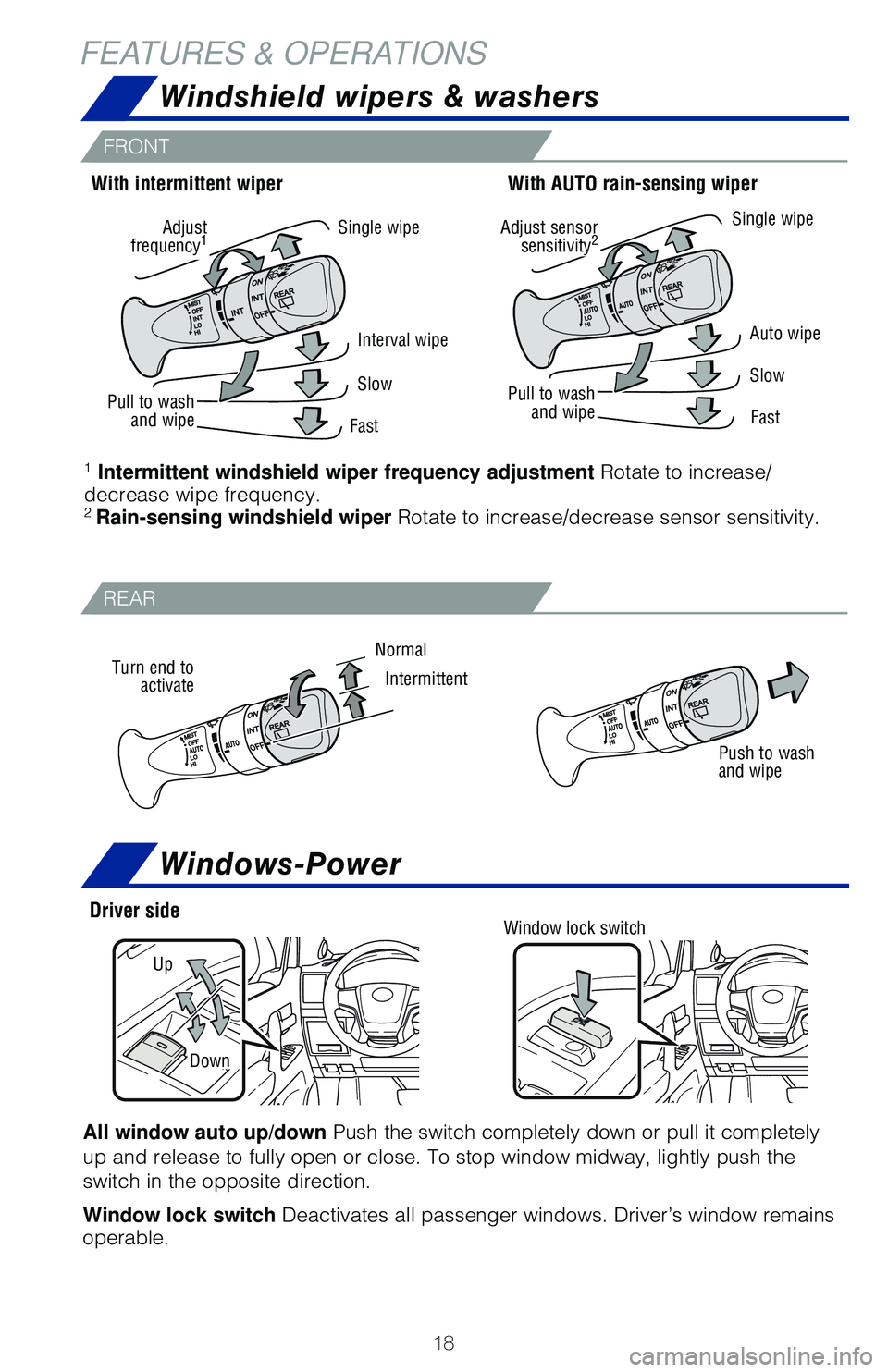

18
FEATURES & OPERATIONS
Intermittent
Normal
Adjust sensor sensitivity2
Pull to wash and wipe
Push to wash
and wipe
Single wipe
Auto wipe
Slow
Fast
1 Intermittent windshield wiper frequency adjustment Rotate to increase/
decrease wipe frequency.
2 Rain-sensing windshield wiper Rotate to increase/decrease sensor sensitivity.
With intermittent wiper
With AUTO rain-sensing wiper
Pull to wash
and wipe
Single wipe
Interval wipe
Slow
Fast
Adjust
frequency1
Turn end to activate
FRONT
REAR
Up
Down
Driver sideWindow lock switch
All window auto up/down Push the switch completely down or pull it completely
up and release to fully open or close. To stop window midway, lightly pu\
sh the
switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Windows-Power
Windshield wipers & washers
