TOYOTA LAND CRUISER 2020 (in English) Owner's Manual

19

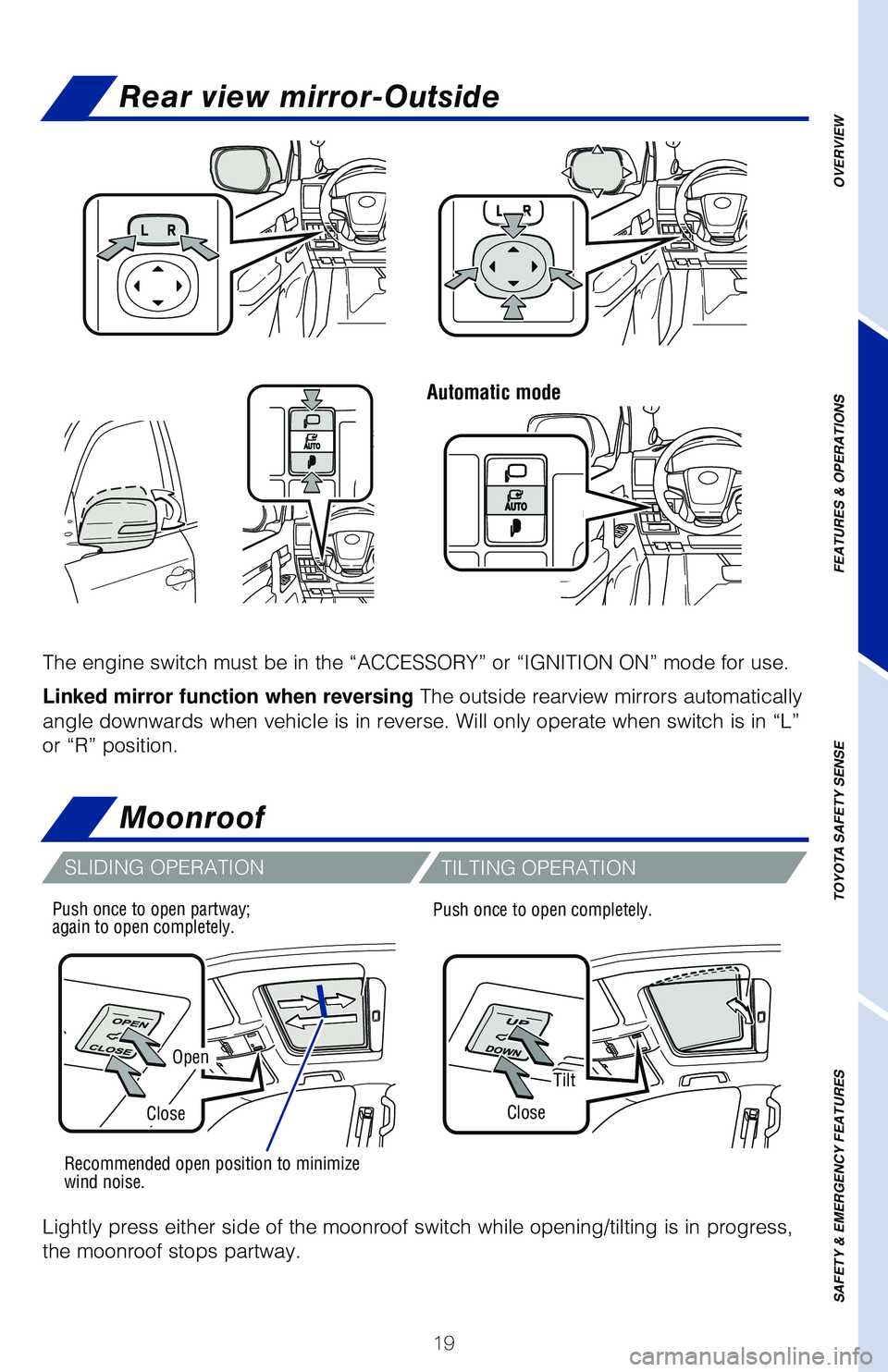

Moonroof
Automatic mode
Open
Tilt
CloseClose
Recommended open position to minimize
wind noise.
Push once to open partway;
again to open completely.
The engine switch must be in the “ACCESSORY” or “IGNITION ON”\
mode for use.
Linked mirror function when reversing
The outside rearview mirrors automatically
angle downwards when vehicle is in reverse. Will only operate when switc\
h is in “L”
or “R” position.
SLIDING OPERATION TILTING OPERATION
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Push once to open completely.
Lightly press either side of the moonroof switch while opening/tilting i\
s in progress,
the moonroof stops partway.
Rear view mirror-Outside

20

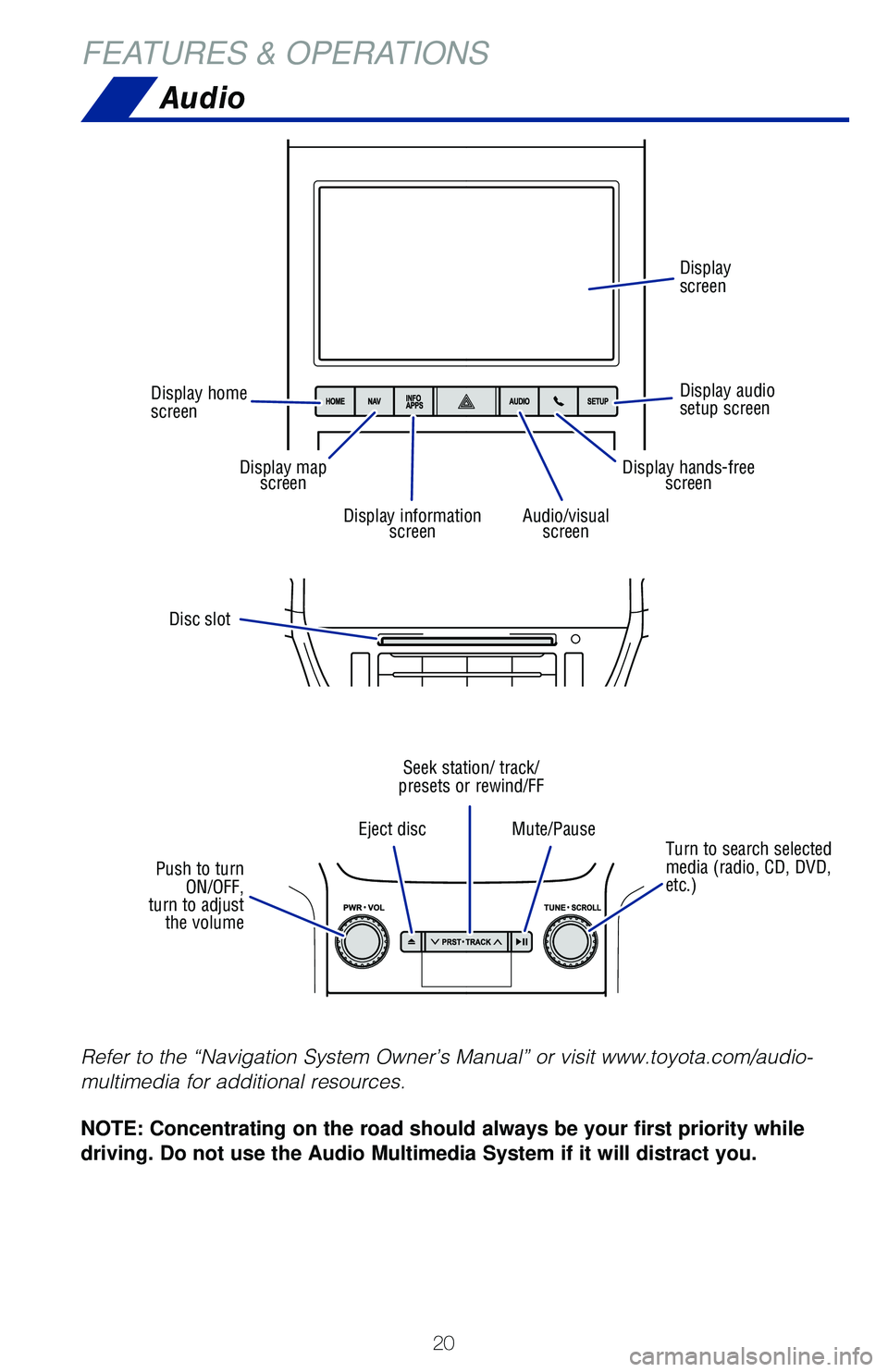

Audio
FEATURES & OPERATIONS
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Audio Multimedia System if it will distract you. Refer to the “Navigation System Owner’s Manual” or visit www.to\
yota.com/audio-
multimedia for additional resources.
Disc slot
Turn to search selected
media (radio, CD, DVD,
etc.)
Eject disc
Mute/Pause
Seek station/ track/
presets or rewind/FF
Push to turn ON/OFF,
turn to adjust the volume
Display home
screen
Display audio
setup screen Display
screen
Display map
screen
Audio/visualscreenDisplay information screen
Display hands-freescreen

21

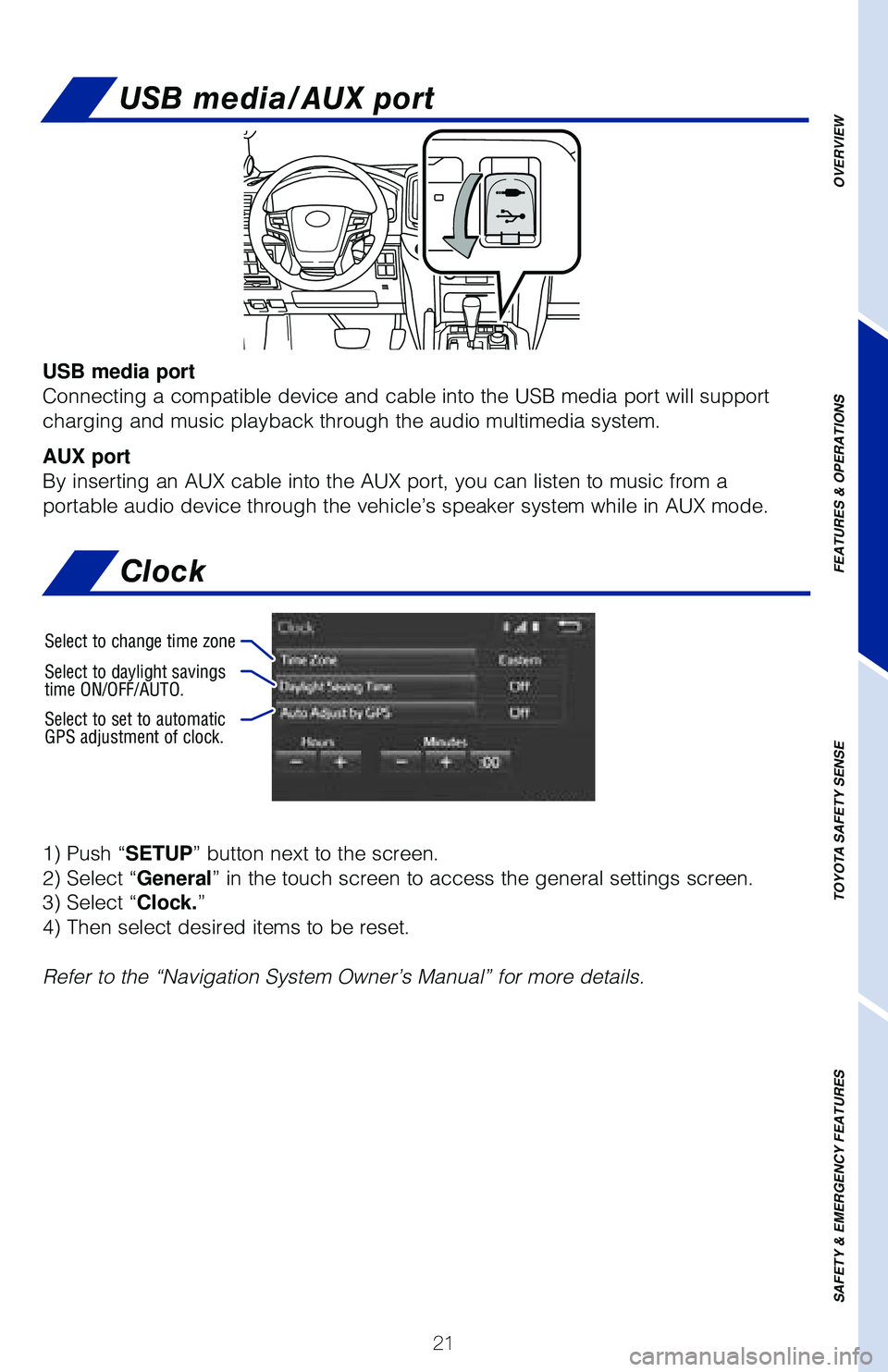

USB media port
Connecting a compatible device and cable into the USB media port will su\
pport
charging and music playback through the audio multimedia system.
AUX port
By inserting an AUX cable into the AUX port, you can listen to music fro\
m a
portable audio device through the vehicle’s speaker system while in A\
UX mode.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
USB media/AUX port
Clock

1ush iSETUP” button next to the screen.

4eMect iGeneral” in the touch screen to access the general settings screen.

4eMect iClock.”

5hen seMect desired items to Ce reset.
Refer to the “Navigation System Owner’s Manual” for more detail\
s.
Select to change time zone
Select to daylight savings
time ON/OFF/AUTO.
Select to set to automatic
GPS adjustment of clock.

22
FEATURES & OPERATIONS
Refer to the Owner’s Manual for more details.
Adjust airflow mode
feetupper body& feet upperbody
FRONT AIR CONDITIONING
feet & windshield defogger
Control screen
Control panel

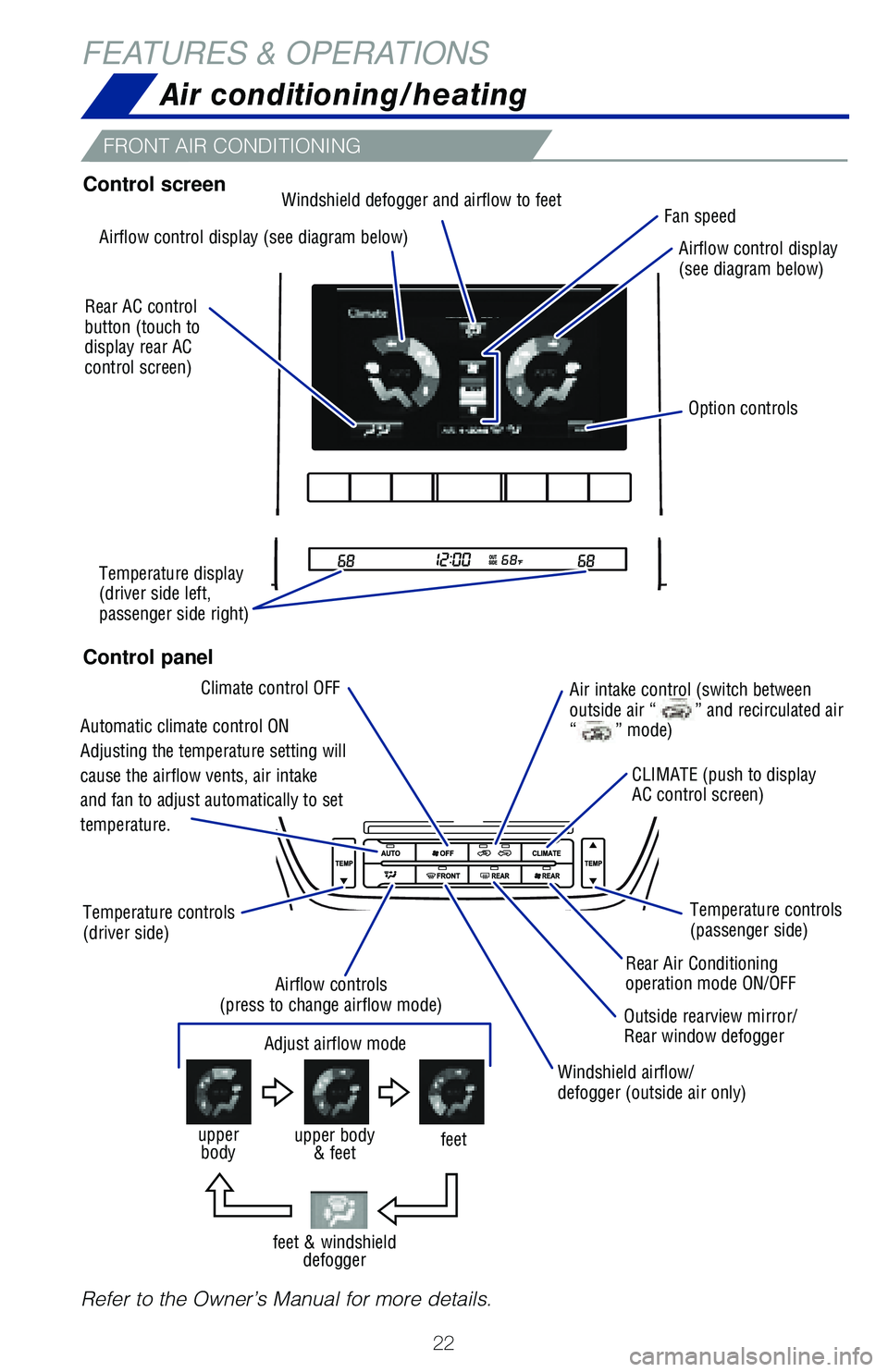

Air conditioning/heating
Airflow control display (see diagram below) Airflow control display
(see diagram below)
CLIMATE (push to display
AC control screen) Temperature controls
(passenger side)
Rear Air Conditioning
operation mode ON/OFF
Windshield airflow/
defogger (outside air only)
Airflow controls
(press to change airflow mode) Outside rearview mirror/
Rear window defogger
Temperature controls
(driver side) Windshield defogger and airflow to feet
Temperature display
(driver side left,
passenger side right)
Automatic climate control ON
Adjusting the temperature setting will
cause the airflow vents, air intake
and fan to adjust automatically to set
temperature. Air intake control (switch between
outside air “
” and recirculated air
“” mode)
Rear AC control
button (touch to
display rear AC
control screen)
Option controls
Climate control OFF Fan speed

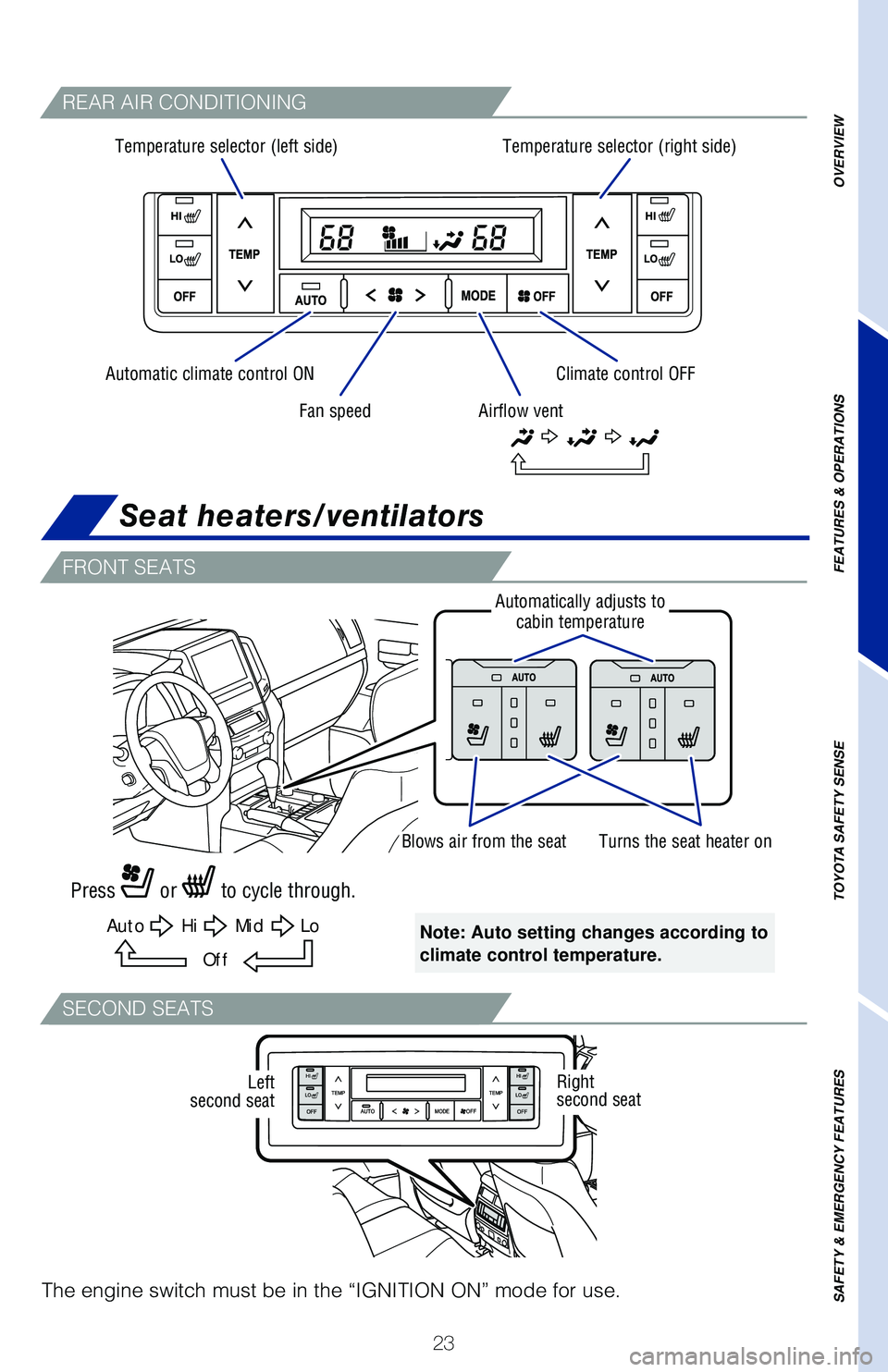

23
REAR AIR CONDITIONING
FRONT SEATS
SECOND SEATS
Press or to cycle through.
Note: Auto setting changes according to
climate control temperature.
Blows air from the seat
Temperature selector (left side)
Automatic climate control ONClimate control OFF
Fan speedAirflow vent
Temperature selector (right side)
Turns the seat heater on
Automatically adjusts tocabin temperature
Off
AutoHiMidLo
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
The engine switch must be in the “IGNITION ON” mode for use.
Seat heaters/ventilators
Left
second seatRight
second seat

24

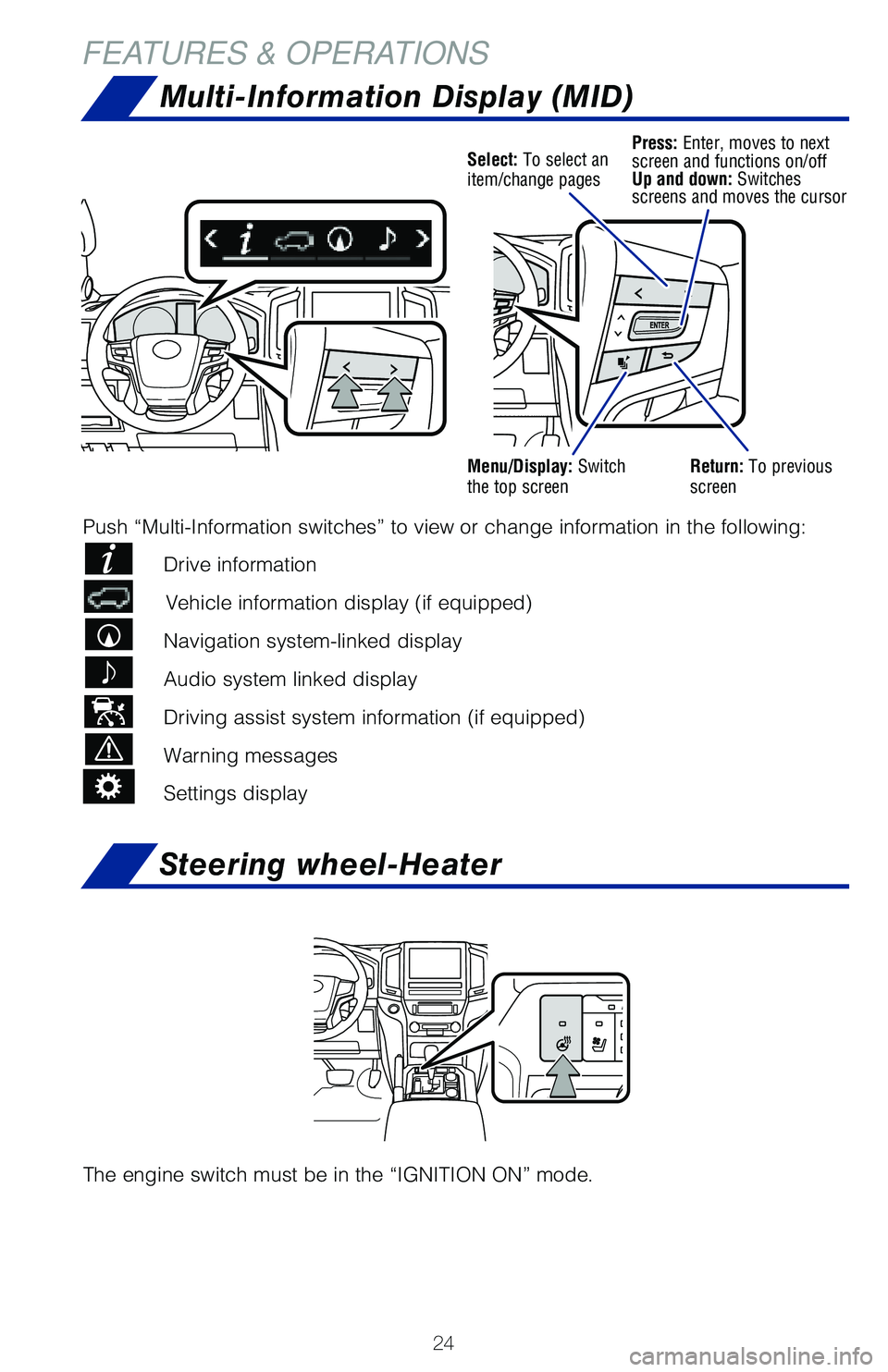

FEATURES & OPERATIONSMulti-Information Display (MID)
Select: To select an
item/change pagesPress: Enter, moves to next
screen and functions on/off
Up and down: Switches
screens and moves the cursor
Menu/Display: Switch
the top screenReturn: To previous
screen
Push “Multi-Information switches” to view or change information in\
the following:
Drive information
7ehicMe information disQMay if eRuiQQed

Navigation system-linked display
Audio system linked display
%riving assist system information if eRuiQQed

Warning messages
Settings display
The engine switch must be in the “IGNITION ON” mode.
Steering wheel-Heater

25
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Start call/
Mobile Assistant access*

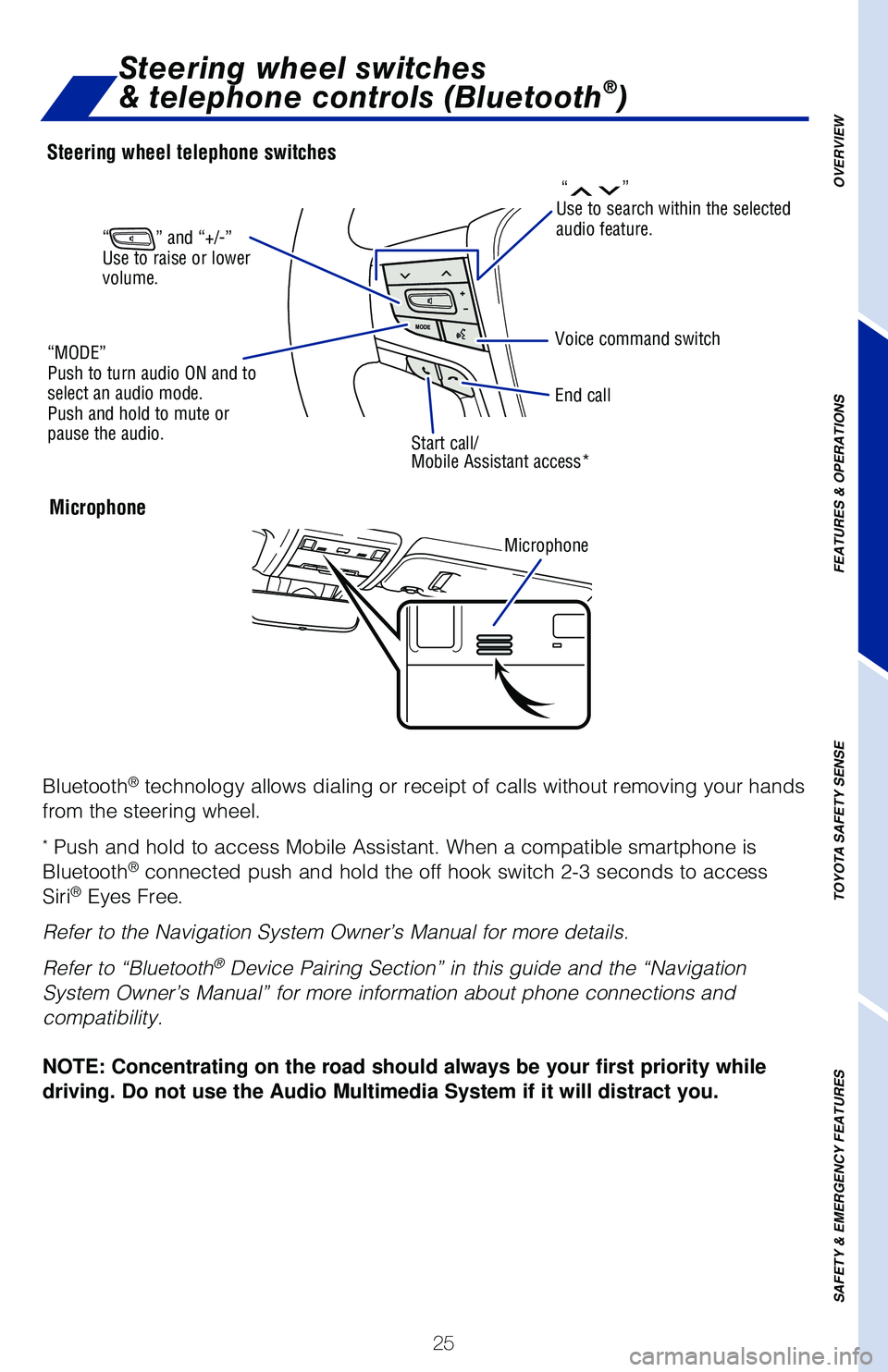

Steering wheel telephone switches
Bluetooth
® technology allows dialing or receipt of calls without removing your han\
ds
from the steering wheel.
* Push and hold to access Mobile Assistant. When a compatible smartphone \
is
Bluetooth® connected push and hold the off hook switch 2-3 seconds to access
Siri® Eyes Free.
Refer to the Navigation System Owner’s Manual for more details.
Refer to “Bluetooth
® Device Pairing Section” in this guide and the “Navigation
System Owner’s Manual” for more information about phone connection\
s and
compatibility.
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Audio Multimedia System if it will distract you.
Steering wheel switches
& telephone controls (Bluetooth®)
“” and “+/-”
Use to raise or lower
volume.
“”Use to search within the selected
audio feature.
“MODE”
Push to turn audio ON and to
select an audio mode.
Push and hold to mute or
pause the audio.Voice command switch
End call
Microphone
Microphone

26
FEATURES & OPERATIONSCrawl Control (with Turn Assist function)
Speed selection switch
LoHi
Med
Lo-MedMed-Hi
Speed modes
Crawl Control allows travel on extremely rough off-road surfaces at a fi\
xed low
speed without pressing the accelerator or brake pedal. Operating status \
displays
on the MID.
Lo to Lo-Med  3ocL, moguM downhiMM
and graveM downhiMM

Lo-Med to Med  .oguM uQhiMM

Med-Hi  4now, mud, graveM uQhiMM
, sand, dirt, moguM uQhiMM
and grass
This function assists cornering performance in accordance with steering \
operation
when driving through a tight corner. It maintains vehicle speed while dr\
iving and
reduces the number of turns needed to navigate a corner that requires tu\
rning the
wheel in the opposite direction.
Refer to the Owner‘s Manual for limitations and more details on this \
system.
CRAWL CONTROL SWITCH
TURN ASSIST FUNCTION

27
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

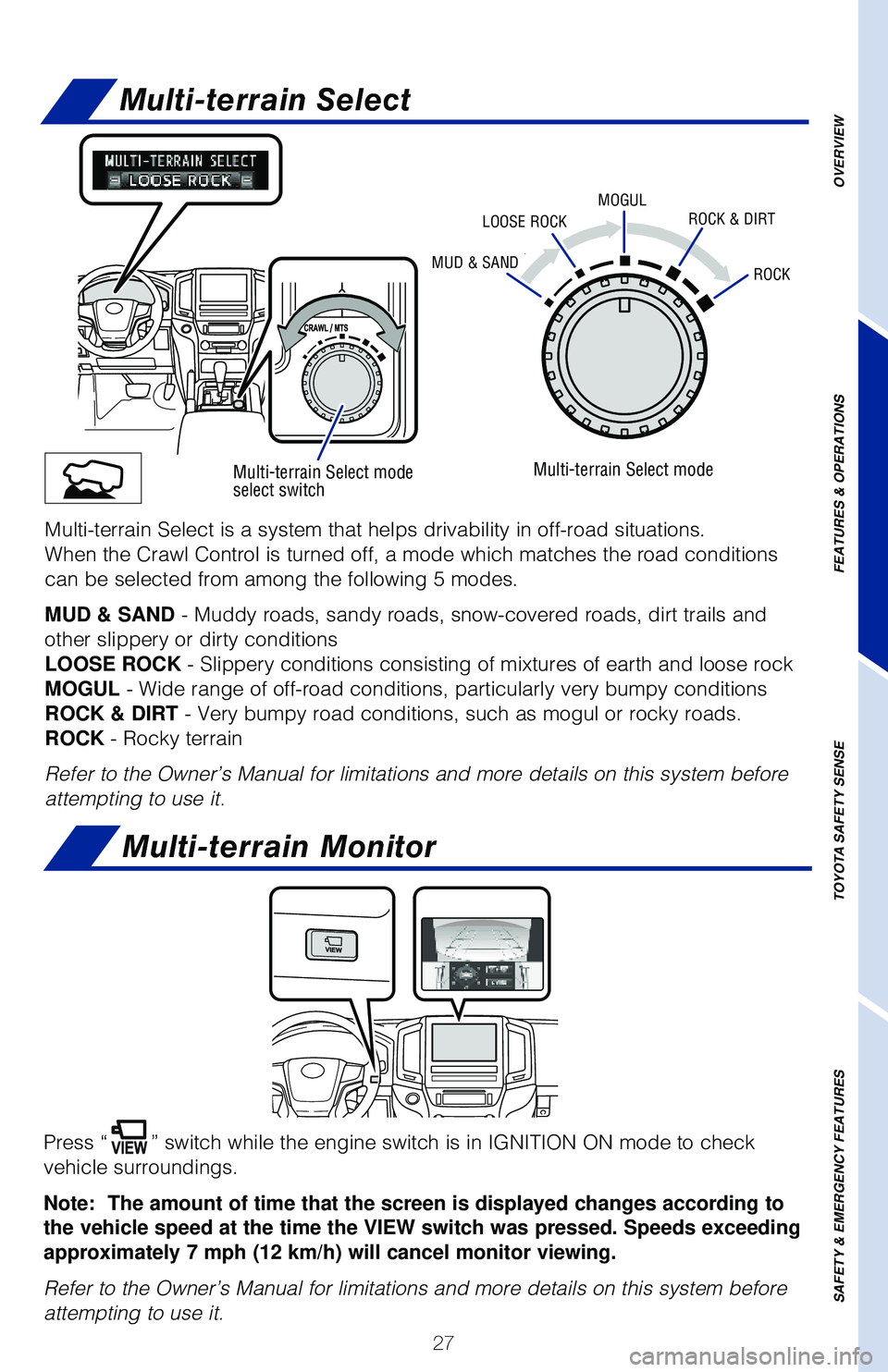

Multi-terrain Select
Multi-terrain Monitor
Press “” switch while the engine switch is in IGNITION ON mode to check
vehicle surroundings.
Note: The amount of time that the screen is displayed changes according to
the vehicle speed at the time the VIEW switch was pressed. Speeds exceeding
approximately 7 mph (12 km/h) will cancel monitor viewing.
Refer to the Owner’s Manual for limitations and more details on this \
system before
attempting to use it.
Multi-terrain Select mode
select switch
MUD & SANDROCK
MOGULLOOSE ROCKROCK & DIRT
Multi-terrain Select mode
Multi-terrain Select is a system that helps drivability in off-road situ\
ations.
When the Crawl Control is turned off, a mode which matches the road cond\
itions
can be selected from among the following 5 modes.
MUD & SAND - Muddy roads, sandy roads, snow-covered roads, dirt trails and
other slippery or dirty conditions
LOOSE ROCK - Slippery conditions consisting of mixtures of earth and loose rock
MOGUL - Wide range of off-road conditions, particularly very bumpy conditions\
ROCK & DIRT - Very bumpy road conditions, such as mogul or rocky roads.
ROCK - Rocky terrain
Refer to the Owner’s Manual for limitations and more details on this \
system before
attempting to use it.

28
FEATURES & OPERATIONS

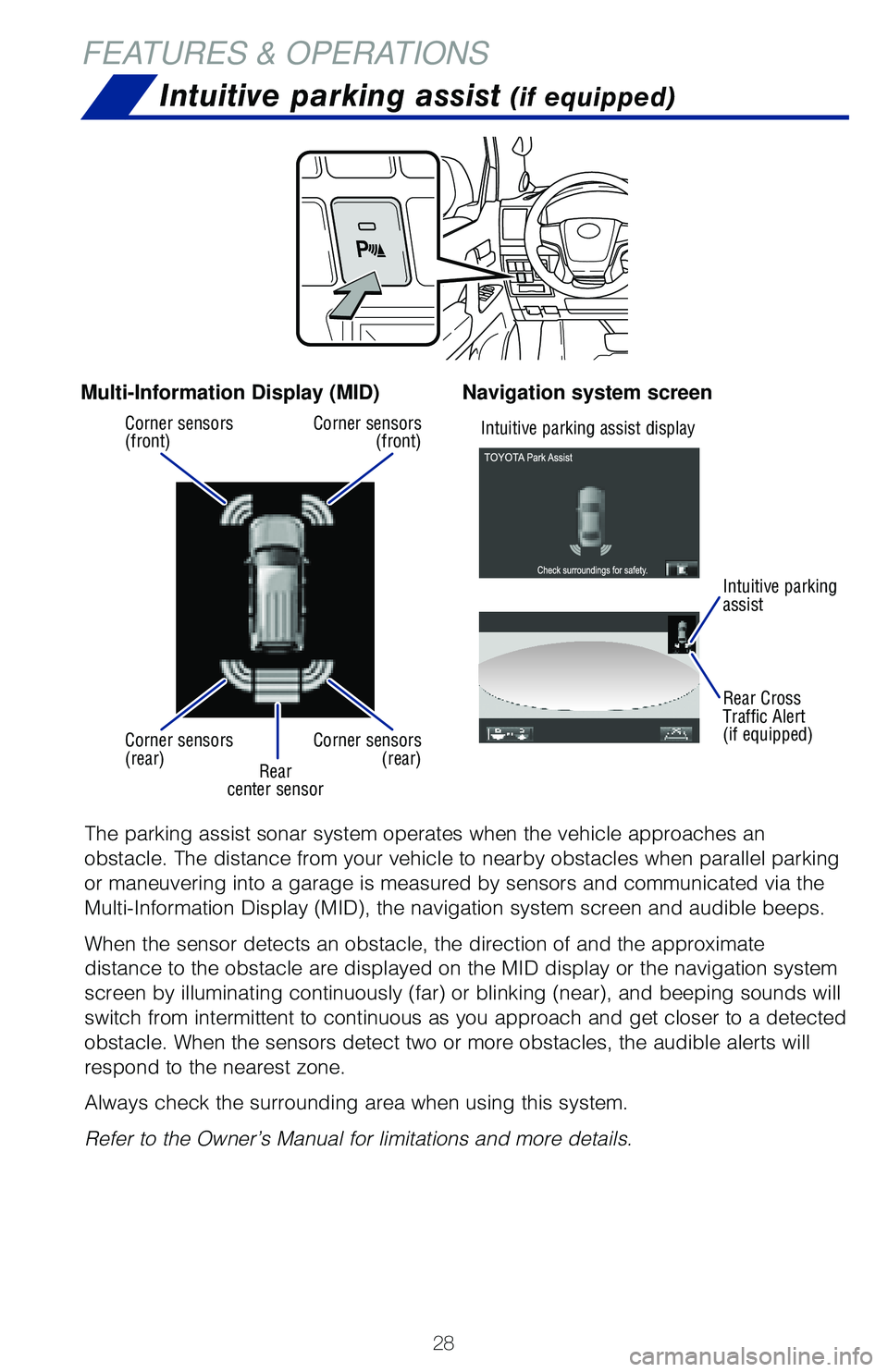

Intuitive parking assist (if equipped)
Rear
center sensor
Corner sensors
(front)
Corner sensors
(rear)
Corner sensors
(front) Intuitive parking assist display
Intuitive parking
assist
Rear Cross
Traffic Alert
(if equipped)
Corner sensors
(rear)
The parking assist sonar system operates when the vehicle approaches an \
obstacle. The distance from your vehicle to nearby obstacles when parall\
el parking
or maneuvering into a garage is measured by sensors and communicated via\
the
.uMtiInformation %isQMay .I%
, the navigation system screen and audiCMe CeeQs.
When the sensor detects an obstacle, the direction of and the approximat\
e
distance to the obstacle are displayed on the MID display or the navigat\
ion system
screen Cy iMMuminating continuousMy far
or CMinLing near
, and CeeQing sounds wiMM
switch from intermittent to continuous as you approach and get closer to\
a detected
obstacle. When the sensors detect two or more obstacles, the audible ale\
rts will
respond to the nearest zone.
Always check the surrounding area when using this system.
Refer to the Owner’s Manual for limitations and more details.
Multi-Information Display (MID)
Navigation system screen
