3114-5. Using the driving support systems
4
Driving
Operate the Multi-terrain Select
mode select switch during Multi-
terrain Select control to select a
mode.
Once the mode is confirmed, the
mode name will be displayed and
the control will switch.
■Automatic system cancelation
In the following situations, the Multi-terrain Select indicator will go off, and
Multi-terrain Select will be canceled automatically
● When the four-wheel drive control switch is in H4.
● When Active TRAC and VSC are off.
■ When it is difficult to generate traction
MUD & SAND mode provides the largest amount of tire slippage, followed by
LOOSE ROCK, MOGUL, ROCK & DIRT and ROCK mode.
Drivability can be improved by selecting a mode which provides a smaller
amount of tire slippage than the current mode when the amount o f tire slip-
page is large, or conversely selecting a mode which provides a larger amount
of tire slippage than the current mode when the amount of tire slippage is
small.
■ When the vehicle is stuck
Switching the transfer and differential
For the operation of the following functions, refer to the foll owing pages.
● Four-wheel drive system ( P. 300)
● Center differential lock ( P. 301)
Switching modes

312
LC200_OM_OM60T03U_(U)
4-5. Using the driving support systems
■When the brake system o perates continuously
The brake system may overheat. In this case, a buzzer will soun d, the TRAC
OFF indicator will flash, and Multi-terrain Select will be temp orarily inopera-
ble. In this event, stop the vehicle immediately in a safe place, and allow the
brake system to cool down sufficiently. (There is no problem wi th continuing
normal driving.)
After a short time, the TRAC OFF indicator will go off, and you will be able to
use Multi-terrain Select.
■ When there is a malfunction in the system
The slip indicator light will come on. Have the vehicle inspect ed by your
Toyota dealer immediately.
WARNING
■ When using the Multi-terrain Select
Observe the following precautions to avoid an accident that cou ld result in
death or serious injuries:
● There is a chance that the selected mode may not be the most ap propriate
in terms of road conditions such as pitch, slipperiness, undula tion, etc.
( P. 310)
● Multi-terrain Select is not intended to expand the limits of the vehicle.
Check the road conditions thoroughly beforehand, and drive safe ly and
carefully.
NOTICE
■ Precaution for use
The Multi-terrain Select is intended for use during off-road dr iving. Do not
use the system at any other time.

313
LC200_OM_OM60T03U_(U)
4-5. Using the driving support systems
4
Driving
Multi-terrain Monitor
The following screens can be selected according to driving cond itions.
• Screens that can be selected vary depending on conditions such as
shift position and vehicle speed. ( P. 319)
• Depending on the displayed screen, the display can be switched from normal to wide view display.
The Multi-terrain Monitor helps the driver to check the vehicle
surroundings. It assists in det ermining the conditions around
the driver in a vari ety of situations, su ch as when judging con di-
tions during off-road driving or checking for obstacles when
parking.
WARNING
■ When using the Multi-terrain Monitor system
Observe the following precautions to avoid an accident that cou ld result in
death or serious injuries.
● Never rely solely on the Multi-terrain Monitor. As with unequip ped vehi-
cles, drive carefully while directly confirming the safety of y our surround-
ings and the area to the rear of the vehicle. Take particular c are to avoid
parked cars and other obstacles.
● Due to the characteristics of the camera lens, the actual posit ion and dis-
tance of people and other obstacles will differ from those show n on the
Multi-terrain Monitor screen. Directly confirm the safety of yo ur surround-
ings before driving.
● Do not drive while only looking at the screen. When driving, ma ke sure to
directly confirm the safety of your surroundings, such as by visually check-
ing the area and using the vehicle’s mirrors.
● In low temperatures, the screen may darken or the images may be come
faint.
Images of moving objects in particular may distort or disappear from the
screen. Therefore, make sure to drive carefully while directly visually con-
firming the safety of your surroundings.
Multi-terrain Monitor screens

314
LC200_OM_OM60T03U_(U)
4-5. Using the driving support systems
■Screens when the four-wheel drive control switch is in L4
●When checking the area to the fr ont and sides of the vehicle
● When checking the condition of the road surface under the vehi-
cle
Front view & dual side viewFront view & dual side view
(front magnified)
 P. 3 2 2 P. 3 2 2
Under vehicle terrain view &
dual side viewUnder vehicle terrain view &
dual side view (front magni-
fied)
 P. 3 2 6 P. 3 2 6

LC200_OM_OM60T03U_(U)
3154-5. Using the driving support systems
4
Driving
●When checking the area to the rear of the vehicle
■Screens when the four-wheel drive control switch is in H4
●When checking the area to the front of the vehicle (panoramic
view & wide front view)
P. 3 3 0
● When checking the area to the side s of the vehicle (side views)
 P. 3 3 2
Rear view & dual side viewWide rear view
 P. 3 2 8 P. 3 2 8

316
LC200_OM_OM60T03U_(U)
4-5. Using the driving support systems
●When checking the area to the rear of the vehicle
● When checking the area to the sides, front and rear of the vehi cle
(with outside rear view mirrors retracted)
Panoramic view & rear viewWide rear view
 P. 3 3 5 P. 3 3 5
Wide front view & side viewRear view & side view
 P. 3 4 1 P. 3 4 1
Side views
 P. 3 4 1

LC200_OM_OM60T03U_(U)
3174-5. Using the driving support systems
4
Driving
■Displaying the Multi-terrain Monitor screen
The Multi-terrain Monitor screen will be displayed when the VIEW
switch is pressed while the engine switch is in IGNITION ON mod e.
When the vehicle speed exceeds a certain value, the display returns to
the navigation or information display screen.
The amount of time that the Multi-terrain Monitor is displayed differs
depending on conditions such as the vehicle speed. ( P. 322)
VIEW switch
Display
Using the Multi-terrain Monitor screen
1
2

318
LC200_OM_OM60T03U_(U)
4-5. Using the driving support systems

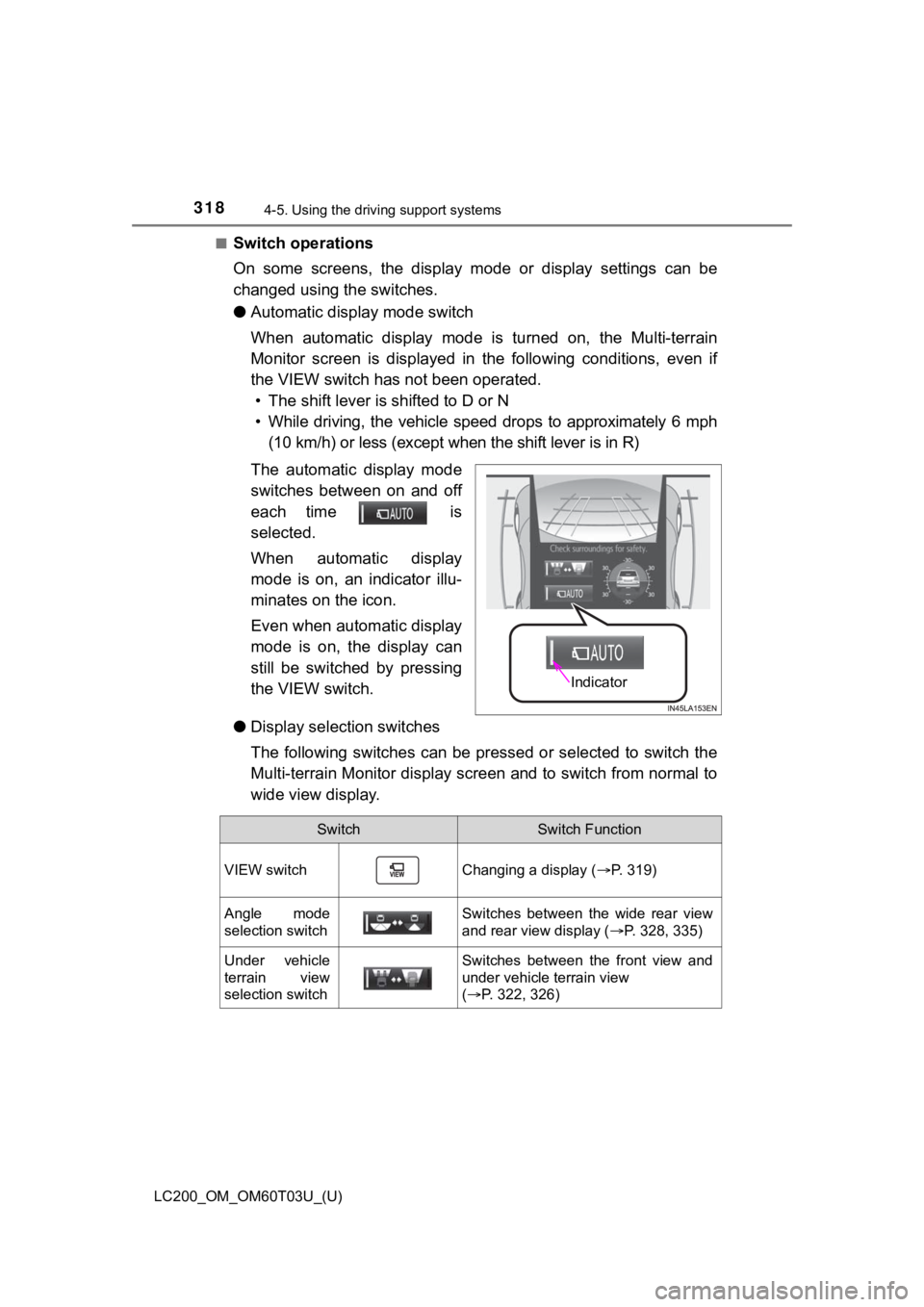

■Switch operations
On some screens, the display mode or display settings can be
changed using the switches.
● Automatic display mode switch
When automatic display mode is turned on, the Multi-terrain
Monitor screen is displayed in the following conditions, even if
the VIEW switch has n ot been operated.
• The shift lever is shifted to D or N
• While driving, the vehicle speed drops to approximately 6 mph (10 km/h) or less (except whe n the shift lever is in R)
The automatic display mode
switches between on and off
each time is
selected.
When automatic display
mode is on, an indicator illu-
minates on the icon.
Even when automatic display
mode is on, the display can
still be switched by pressing
the VIEW switch.
● Display selection switches
The following switches can be pressed or selected to switch the
Multi-terrain Monitor display screen and to switch from normal to
wide view display.
Indicator
SwitchSwitch Function
VIEW switchChanging a display ( P. 319)
Angle mode
selection switchSwitches between the wide rear view
and rear view display ( P. 328, 335)
Under vehicle
terrain view
selection switchSwitches between the front view and
under vehicle terrain view
(P. 322, 326)

LC200_OM_OM60T03U_(U)
3194-5. Using the driving support systems
4
Driving
The screen display can be switched by operating the switches as fol-
lows while the Multi-terrain Mon itor screen is displayed. (Screens that
can be displayed will vary dependi ng on the positions of the shift lever
and four-wheel drive control switch)
■Screens when the four-wheel drive control switch is in L4
:Press
: Select
: Select
: Operate the shift lever
Changing the Multi-terrain Monitor screen

320
LC200_OM_OM60T03U_(U)
4-5. Using the driving support systems
*: The screen display can be switched by touching the image from the cam-
era on the screen.
*
*
*
Front view & dual side view
(front magnified): P. 3 2 2
Under vehicle terrain view &
dual side view (front magnified):
 P. 3 2 6
Front view & dual side view:
 P. 3 2 2 Under vehicle terrain view &
dual side view:
P. 3 2 6
Rear view & dual side view:
 P. 3 2 8
Wide rear view: P. 3 2 81
2
3
4
5
6
