TOYOTA MATRIX 2011 E140 / 2.G Owners Manual

301 3-7. Other interior features
3
Interior features
NOTICE
■Grocery bag hook weight capacity
Cabin
Do not hang any object heavier than 44 lb. (20 kg) on the grocery bag hook.
Luggage compartment
Do not hang any object heavier than 7 lb. (3 kg) on the grocery bag hooks.

302
3-7. Other interior features
Seatback table
CAUTION
■Caution while driving
Observe the following precautions to avoid death or serious injury.
●Do not set up the seatback table.
●Do not sit on or place anything on the seatback table.
NOTICE
■To prevent damage to the seatback table
Do not put heavy loads on the table.
Front passenger's seatback can be used as a temporary table only
when the vehicle is stopped.
Fold down the front passen-
ger's seat to use the seatback
table. (P. 38)
: If equipped

303
3-7. Other interior features
3
Interior features
Floor mat
CAUTION
Observe the following precautions.
Failure to do so may cause the driver's floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
■When installing the driver's floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
●Only use floor mats designed for the driver's seat.
●Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
●Do not use two or more floor mats on top of each other.
●Do not place the floor mat bottom-side up or upside-down.
■Before driving
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Fix the floor mat in place using
the retaining hooks (clips) pro-
vided.
The shape of the retaining
hooks (clips) and the fixing
procedure of the floor mat for
your vehicle may differ from
those shown in the illustration.
For details, refer to the floor
mat retention clip installation
instructions supplied with the
clips.
●Check that the floor mat is securely
fixed in the right place with all the pro-
vided retaining hooks (clips). Be espe-
cially careful to perform this check after
cleaning the floor.
●With the engine stopped and the shift
lever in P (automatic transmission) or N
(manual transmission), fully depress
each pedal to the floor to make sure it
does not interfere with the floor mat.

304
3-7. Other interior features
Luggage compartment feature
■Cargo hooks
Cargo hooks are provided for
securing loose items.
■Tie-down belts
To tighten
To loosen
To hook
To unhook

305 3-7. Other interior features
3
Interior features
■Auxiliary boxes
Turn the knobs to the
“UNLOCK” position, and
remove the deck boards.

306 3-7. Other interior features

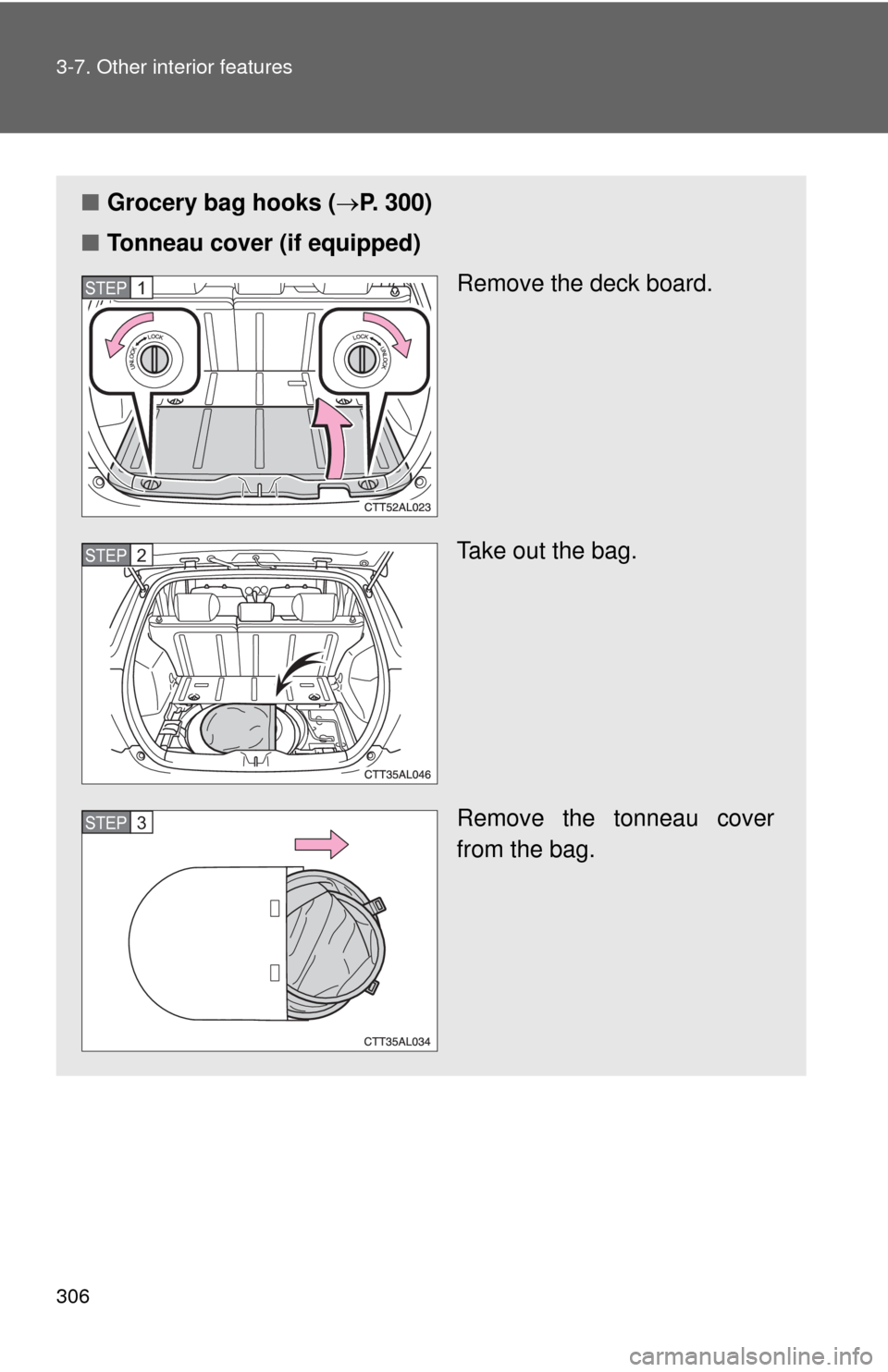

■Grocery bag hooks (P. 300)
■Tonneau cover (if equipped)
Remove the deck board.
Take out the bag.
Remove the tonneau cover
from the bag.
STEP1
STEP2
STEP3

307 3-7. Other interior features
3
Interior features

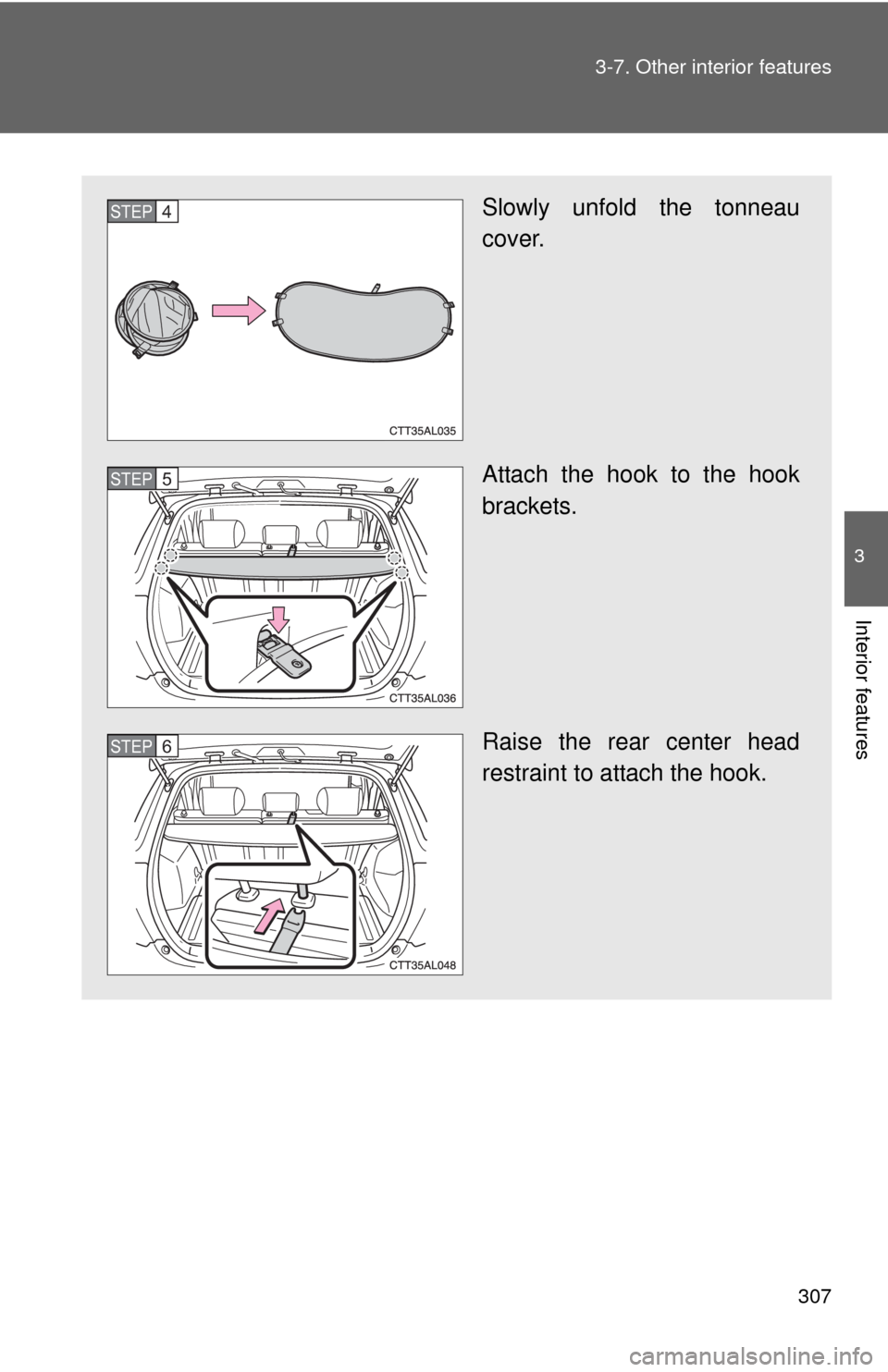

Slowly unfold the tonneau
cover.
Attach the hook to the hook
brackets.
Raise the rear center head
restraint to attach the hook.STEP4
STEP5
STEP6

308 3-7. Other interior features
Folding the tonneau cover
Hold the tonneau cover with both
hands. Point your thumbs in
opposite directions.
Bend one side of the cover
towards you.
Twist the other side in the oppo-
site direction, as shown in the
illustration.
STEP1
STEP2
STEP3

309 3-7. Other interior features
3
Interior features
Make a small circle, then fold it
inward.
Make sure the three circles are
side by side.
Put it in the bag.STEP4
STEP5
STEP6

310 3-7. Other interior features
CAUTION
■When unfolding the tonneau cover
Be careful not to hit yourself when unfolding the tonneau cover.
■Caution while driving
Keep the deck boards locked.
Injuries may result in the event of an accident or sudden braking.
