phone TOYOTA MATRIX 2011 E140 / 2.G Owners Manual

1
2
3
4
5
6
7
3
2-4. Using other driving
systems
Cruise control

...................... 141
Driving assist systems ........ 145
2-5. Driving information Cargo and luggage ............. 150
Vehicle load limits ............... 153
Winter driving tips ............... 154
Trailer towing (1.8 L 4-cylinder
[2ZR-FE] engine) .............. 158
Trailer towing (2.4 L 4-cylinder
[2AZ-FE] engine) .............. 159
Dinghy towing (automatic transmission) .................... 167
Dinghy towing (manual transmission) .................... 168
3-1.
Using the air conditioning
system a

nd defogger
Air conditioning system ....... 172
Rear window and outside rear view
mirror defoggers ............... 179
3-2. Using the audio system Audio system types ............. 180
Using the radio .................... 183
Using the CD player ............ 190
Playing MP3 and WMA discs.................................. 197
Operating an iPod ............... 206 Operating a USB
memory ............................ 213
Optimal use of the audio system .............................. 221
Using the AUX port............. 225
Using the steering wheel audio switches.................. 227
3-3. Using the Bluetooth
®
audio s

ystem
Bluetooth
® audio system .... 230
Using the Bluetooth®
audio system .................... 233
Operating a Bluetooth
®
enabled portable player.... 239
Setting up a Bluetooth
®
enabled portable player.... 241
Bluetooth
® audio system
setup ................................ 246
3-4. Using the ha
nds-free
phone system
(

for cellular phone)
Hands-free phone system (for cellular phone)
features ............................ 247
Using the hands-free phone system
(for cellular phone) ........... 252
Making a phone call ........... 262
Setting a cellular phone ...... 266
Security and system setup ................................ 271
Using the phone book ........ 275
3Interior features

15
B
Cruise control switch  P. 141
Talk switch  P. 253
Engine (ignition) switch P. 115
Audio remote control
switches
P. 227
: If equipped
Telephone switches 
P. 253

20
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the cigarette lighter, the windows, or other features of the vehicle. In addi-
tion, heat build-up or extremely cold temperatures inside the vehicle can be
fatal to children.

27 1-2. Opening, closing and locking the doors
1
Before driving
■Key battery depletion
If the wireless remote control function does not operate, the battery may be
depleted. Replace the battery when necessary. (P. 368)
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■Conditions affecting operation
The wireless remote control function may not operate normally in the follow-
ing situations.
●Near a TV tower, radio station, electric power plant, airport or other facil-
ity that generates strong radio waves
●When carrying a portable radio, cellular phone or other wireless commu-
nication devices
●When multiple wireless keys are in the vicinity
●When the wireless key has come into contact with, or is covered by, a
metallic object
●When a wireless key (that emits radio waves) is being used nearby
●When the wireless key has been left near an electrical appliance such as
a personal computer
●When the wireless key battery is depleted
●If window tint with a metallic content or metallic objects are attached to
the rear window
■Customization that can be configured at Toyota dealer
Settings (e.g. operation signal) can be changed.
(Customizable features P. 472)

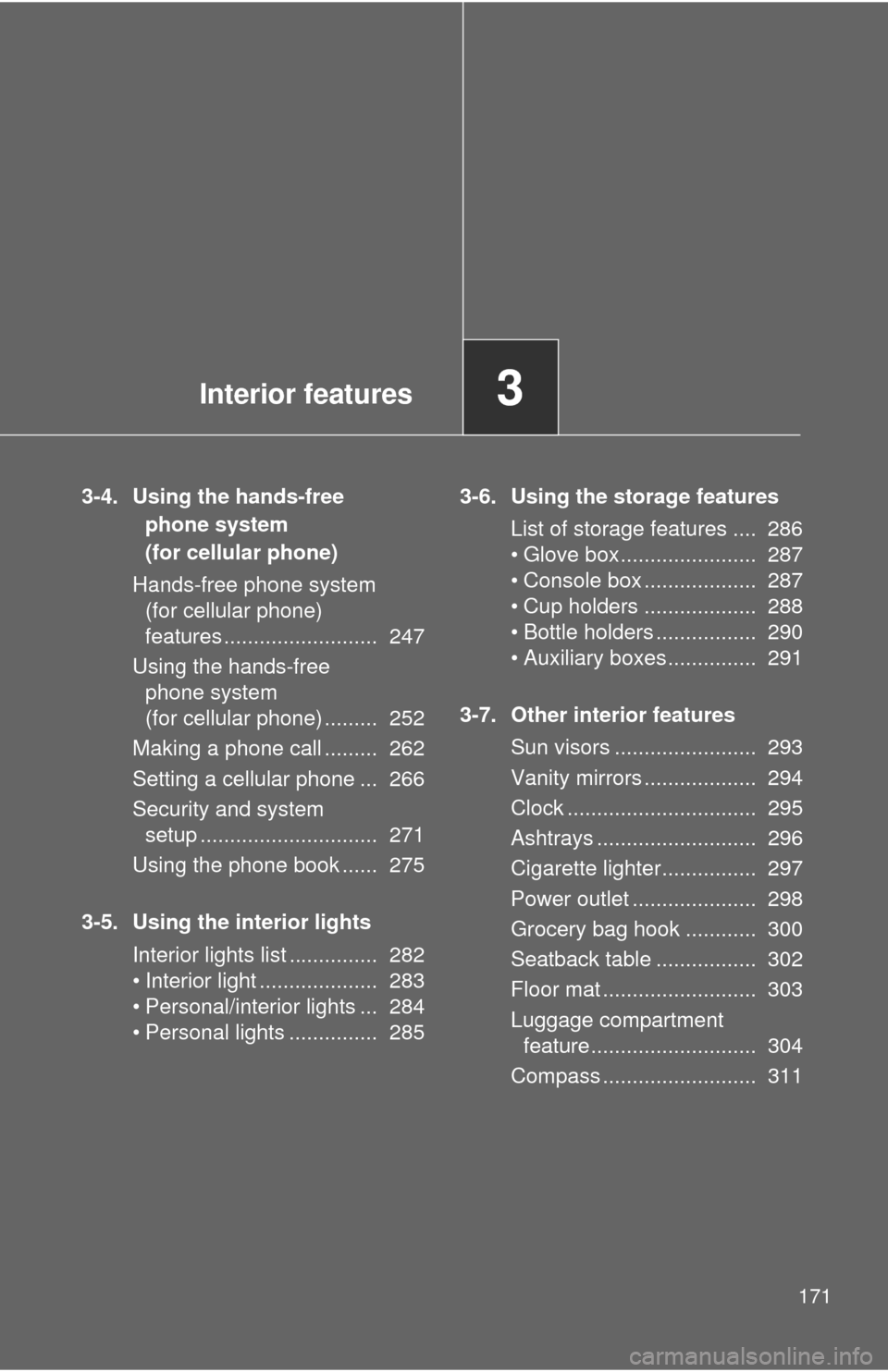

Interior features3
171
3-4. Using the hands-free
phone system
(for cellular phone)
Hands-free phone system
(for cellular phone)
features .......................... 247
Using the hands-free
phone system
(for cellular phone) ......... 252
Making a phone call ......... 262
Setting a cellular phone ... 266
Security and system
setup .............................. 271
Using the phone book ...... 275
3-5. Using the interior lights
Interior lights list ............... 282
• Interior light .................... 283
• Personal/interior lights ... 284
• Personal lights ............... 2853-6. Using the storage features
List of storage features .... 286
• Glove box....................... 287
• Console box ................... 287
• Cup holders ................... 288
• Bottle holders ................. 290
• Auxiliary boxes ............... 291
3-7. Other interior features
Sun visors ........................ 293
Vanity mirrors ................... 294
Clock ................................ 295
Ashtrays ........................... 296
Cigarette lighter................ 297
Power outlet ..................... 298
Grocery bag hook ............ 300
Seatback table ................. 302
Floor mat .......................... 303
Luggage compartment
feature............................ 304
Compass .......................... 311

181 3-2. Using the audio system
3
Interior featuresLanguage settings (type B only)
The language used for all voice guidance, voice recognition and mes-
sages may be changed.
Press .
Press (MORE).
Press (LANG).
Press that corresponds to the desired language.
For vehicles sold in the U.S.A.
“ENG” (English) or “ESP” (Spanish)
For vehicles sold in Canada
“ENG” (English) or “FRAN” (French)
■Using cellular phones
Interference may be heard through the audio system's speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
TitlePage
Using the radioP. 183
Using the CD playerP. 190
Playing MP3 and WMA discsP. 197
Operating an iPodP. 206
Operating a USB memoryP. 213
Optimal use of the audio systemP. 221
Using the AUX portP. 225
Using the steering wheel audio switchesP. 227
STEP1
STEP2
STEP3
STEP4

212 3-2. Using the audio system
■Compatible models
Depending on differences between models or software version etc., some
models listed above might be incompatible with this system.
iPod 4th generation and earlier models are not compatible with this system.
iPhone, iPod mini, iPod shuffle and iPod photo are not compatible with this
system.
Items related to standards and limitations are as follows:
●Maximum number of lists in a device: 9999
●Maximum number of songs in a device: 65025
●Maximum number of songs per list: 65025
CAUTION
■Caution while driving
Do not connect the iPod or operate the controls.
NOTICE
■To prevent damage to iPod
●Do not leave the iPod in the vehicle. The temperature inside may become
high, resulting in damage to the player.
●Do not push down on or apply unnecessary pressure to the iPod while it is
connected as this may damage the iPod or its terminal.
●Do not insert foreign objects into the port as this may damage the iPod or
its terminal.
ModelGenerationSoftware version
iPod 5th generation Ver. 1.2.0 or higher
iPod nano 1st generation Ver. 1.3.0 or higher
2nd generation Ver. 1.1.2 or higher
3rd generation Ver. 1.0.0 or higher
iPod touch 1st generation Ver. 1.1.0 or higher
iPod classic 1st generation Ver. 1.0.0 or higher

234 3-3. Using the Bluetooth
® audio system
■Microphone
Vehicles with moon roof
Vehicles without moon roof

237 3-3. Using the Bluetooth
® audio system
3
Interior features
Input the passkey into the portable player.
Refer to the manual that comes with the portable player for the oper-
ation of the portable player.
Guidance for registration completion is heard.
If the portable player has a Bluetooth
® phone, the phone can be reg-
istered at the same time. (P. 256)
Menu list of the Bluetooth® audio system
“BT Audio Setup” can be canceled by pressing the on-hook switch or
saying the voice command, “Cancel”.
First menuSecond
menuThird menuOperation details
Setup
(Setup)BT Audio
Setup
(BT audio
setup)Pair Audio
Players (Pair
audio player)Registering a portable player
Select Audio
PlayerSelecting a portable player to
be used
Change NameChanging the registered
name of a portable player
List Audio
PlayersListing the registered porta-
ble players
Set Passkey Changing the passkey
Delete Audio
PlayerDeleting a registered porta-
ble player
System
SetupGuidance Vol-
umeSetting voice guidance vol-
ume
Device NameDisplaying the Bluetooth
®
device address and name
Reset Setting Initializing the system
STEP6

238 3-3. Using the Bluetooth
® audio system
■When using a voice command
For numbers, say a combination of single digits from zero to nine.
Say the command correctly and clearly.
■Situations where the system may not recognize your voice
●When driving on rough roads
●When driving at high speeds
●When air is blowing out of the vents onto the microphone
●When the air conditioning fan emits a loud noise
■Operations that cannot be performed while driving
●Operating the system with
●Registering a portable player to the system
■Changing the passkey
P. 244
