2-4. Using other drivingsystems
Cruise control ...................... 148
Driving assist systems ........ 152
2-5. Driving information Cargo and luggage ............. 157
Vehicle load limits ............... 160
Winter driving tips ............... 161
Trailer towing (1.8 L 4-cylinder
[2ZR-FE] engine) .............. 165
Trailer towing (2.4 L 4-cylinder
[2AZ-FE] engine) .............. 166
Dinghy towing (automatic transmission) .................... 181
Dinghy towing (manual transmission) .................... 182
3-1. Using the air conditioning
system a nd defogger
Air conditioning system ....... 186
Rear window and outside rear view
mirror defoggers ............... 193
3-2. Using the audio system Audio system types ............. 194
Using the radio .................... 197
Using the CD player ............ 204
Playing MP3 and WMA discs.................................. 211
Operating an iPod ............... 220 Operating a USB
memory ............................ 227
Optimal use of the audio system .............................. 235
Using the AUX port............. 239
Using the steering wheel audio switches.................. 241
3-3. Using the Bluetooth
®
audio s ystem
Bluetooth
® audio system .... 244
Using the Bluetooth®
audio system .................... 247
Operating a Bluetooth
®
enabled portable player.... 253
Setting up a Bluetooth
®
enabled portable player.... 255
Bluetooth
® audio system
setup ................................ 260
3-4. Using the ha nds-free
phone system
( for cellular phone)
Hands-free phone system (for cellular phone)
features ............................ 261
Using the hands-free phone system
(for cellular phone) ........... 266
Making a phone call ........... 276
Setting a cellular phone ...... 280
Security and system setup ................................ 285
Using the phone book ........ 289

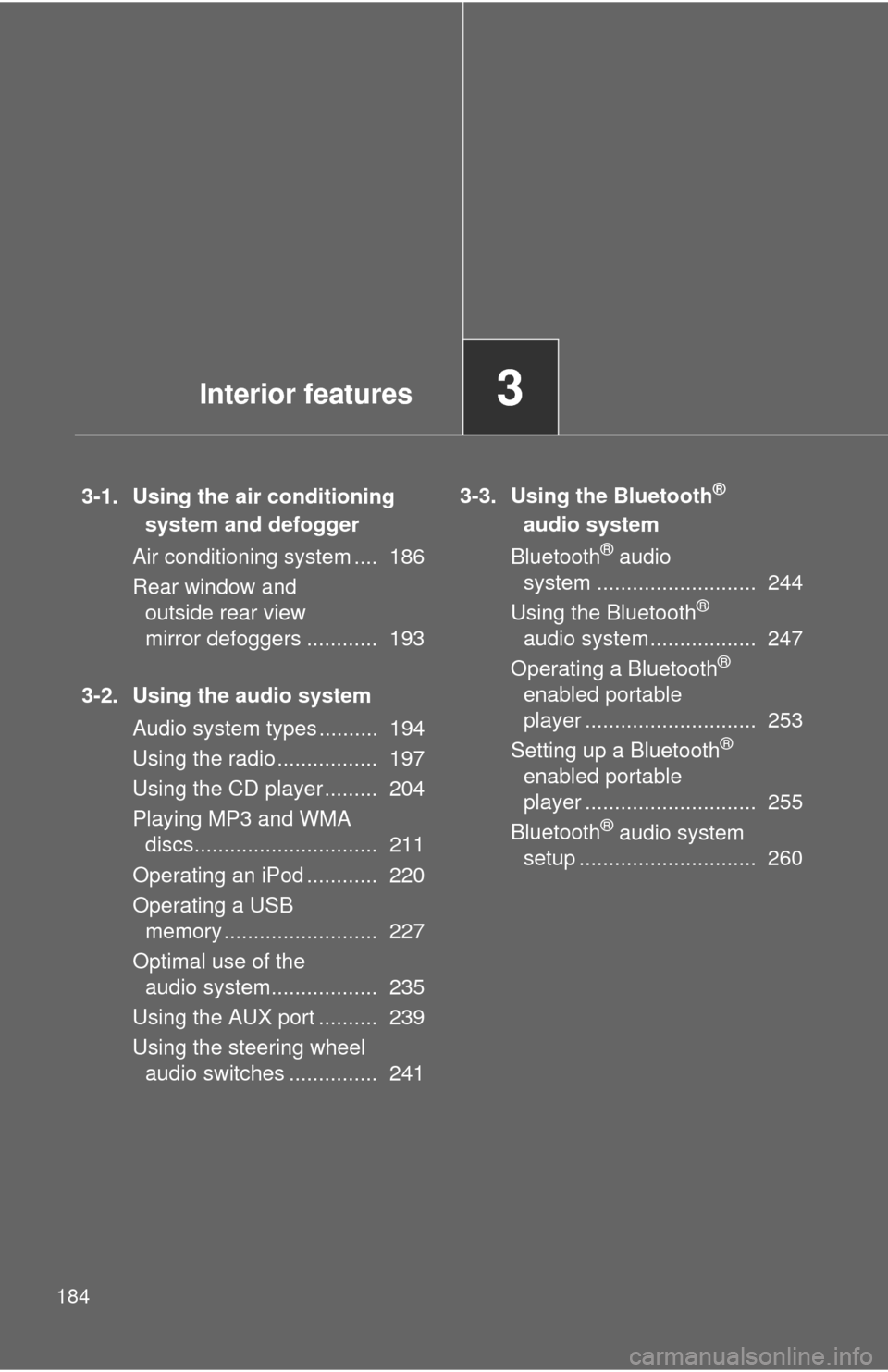

3Interior features

184
3-1. Using the air conditioningsystem and defogger
Air conditioning system .... 186
Rear window and outside rear view
mirror defoggers ............ 193
3-2. Using the audio system Audio system types .......... 194
Using the radio ................. 197
Using the CD player ......... 204
Playing MP3 and WMA discs............................... 211
Operating an iPod ............ 220
Operating a USB memory .......................... 227
Optimal use of the audio system.................. 235
Using the AUX port .......... 239
Using the steering wheel audio switches ............... 241 3-3. Using the Bluetooth®
audio system
Bluetoo

th
® audio
system ........................... 244
Using the Bluetooth
®
audio system.................. 247
Operating a Bluetooth
®
enabled portable
player ............................. 253
Setting up a Bluetooth
®
enabled portable
player ............................. 255
Bluetooth
® audio system
setup .............................. 260
Interior features3

241
3-2. Using the audio system
3
Interior features

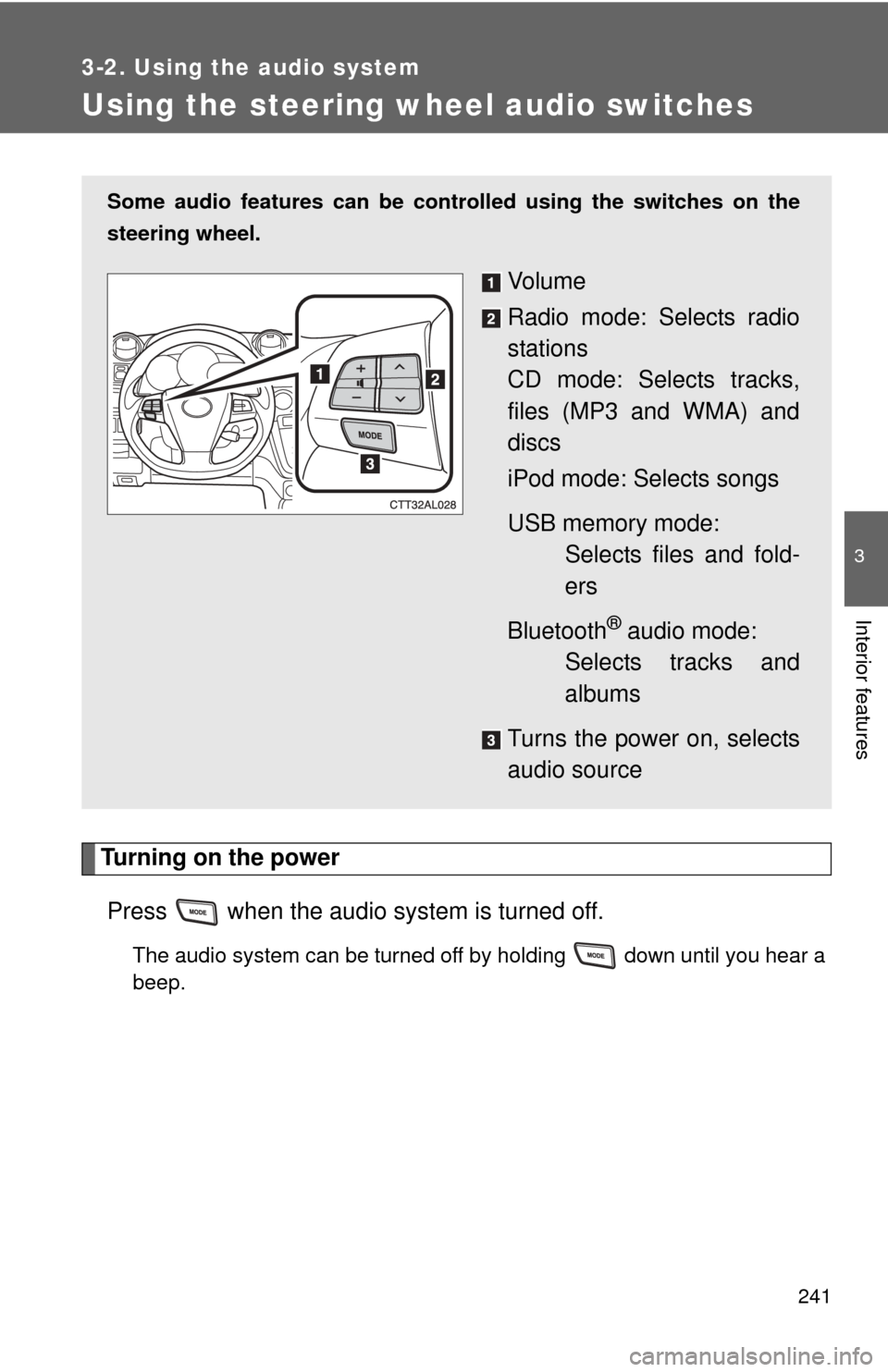

Using the steering wheel audio switches
Turning on the powerPress when the audio system is turned off.
The audio system can be turned off by holding down until you hear a
beep.
Some audio features can be cont rolled using the switches on the
steering wheel.
Vo l u m e
Radio mode: Selects radio
stations
CD mode: Selects tracks,
files (MP3 and WMA) and
discs
iPod mode: Selects songs
USB memory mode: Selects files and fold-
ers
Bluetooth
® audio mode:
Selects tracks and
albums
Turns the power on, selects
audio source

242 3-2. Using the audio system
Changing the audio sourcePress when the audio system is turned on. The audio source
changes as follows each time is pressed. Type A
FM CD CD changer (with a CD changer) AUXAM
Type B
FMSAT CDCD changer (with a CD changer)
AUX USB/iPod Bluetooth® AudioAM
Adjusting the volume
Press “+” on to increase the volume and “-” to decrease the vol-
ume.
Press and hold to continue increasing or decreasing the volume.
Selecting a radio station Press to select the radio mode.
Press to select a preset station.
To scan for receivable stations, press and hold until you hear a
beep.
STEP1
STEP2

243
3-2. Using the audio system
3
Interior features
Selecting a track/file or song
Press to select CD, iPod, USB memory or Bluetooth
®
audio mode.
Press “” or “ ” on to select the desired track/file or song.
Selecting a folder or album
Press to select CD, U SB memory or Bluetooth
® audio
mode.
Press and hold “ ” or “ ” on until you hear a beep.
Selecting a disc in the CD player (CD player with changer only)
Press to select CD mode.
Press and hold “ ” or “ ” on until you hear a beep.
CAUTION
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2

244
3-3. Using the Bluetooth® audio system

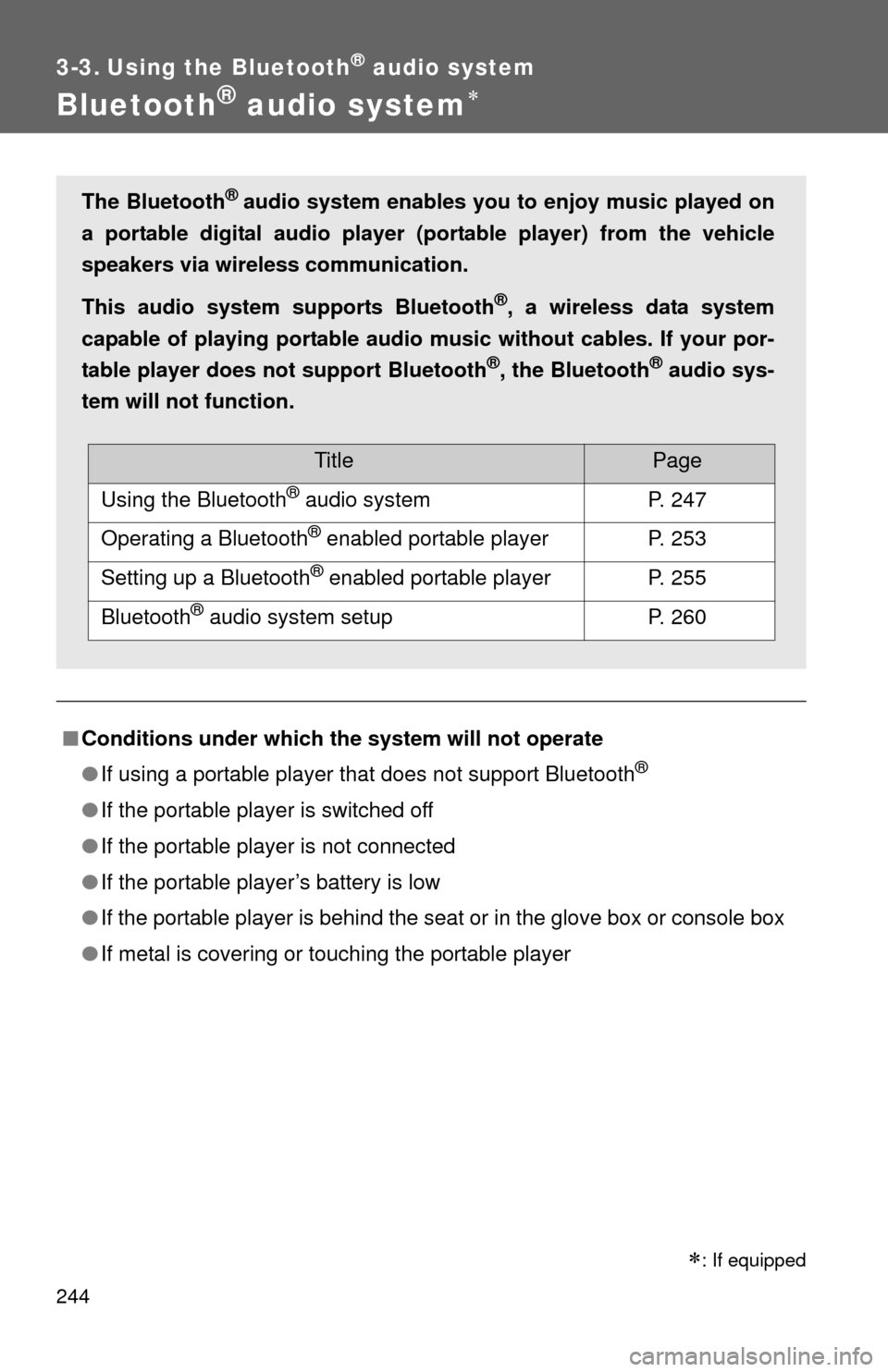

Bluetooth® audio system
■Conditions under which th e system will not operate
● If using a portable player that does not support Bluetooth
®
●If the portable player is switched off
● If the portable player is not connected
● If the portable player’s battery is low
● If the portable player is behind the seat or in the glove box or console box
● If metal is covering or touching the portable player
The Bluetooth® audio system enables you to enjoy music played on
a portable digital audio player (portable player) from the vehicle
speakers via wireless communication.
This audio system supports Bluetooth
®, a wireless data system
capable of playing portable audio music without cables. If your por-
table player does not support Bluetooth
®, the Bluetooth® audio sys-
tem will not function.
TitlePage
Using the Bluetooth® audio systemP. 247
Operating a Bluetooth® enabled portable playerP. 253
Setting up a Bluetooth® enabled portable playerP. 255
Bluetooth® audio system setupP. 260
: If equipped

245
3-3. Using the Bluetooth
® audio system
3
Interior features
■
When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed. ( P. 287)
■ About Bluetooth
®
■Compatible models
●Bluetooth
® specifications:
Ve r. 1 . 2
● Following Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (Ver.
1.3 or higher recommended)
Portable players must correspond to the above specifications in order to be
connected to the Bluetooth
® audio system. However, please note that some
functions may be limited depending on the type of portable player.
■ Certification for the Bluetooth
® audio system
FCC ID: L2C0045TR
IC ID: 3432A-0045TR
MADE IN MEXICO
This device complies with Part 15 of the FCC Rules and RSS-210 Rules.
Operation is subject to the following two conditions; (1) This device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

246 3-3. Using the Bluetooth
® audio system
CAUTION
■FCC WARNING
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
Radio Frequency Radiation Exposure. This equipment complies with FCC/
IC radiation exposure limits set forth for uncontrolled equipment and meets
the FCC radio frequency (RF) Exposure Guidelines in Supplement C to
OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This
equipment has very low levels of RF energy that it deemed to comply with-
out maximum permissive exposure evaluation (MPE). But it is desirable that
it should be installed and operated with at least 7.9 in. (20 cm) and more
between the radiator and person’s body (excluding extremities: hands,
wrists, feet and ankles).
This transmitter must not be co-located or operated in conjunction with any
other antenna or transmitter.
■ Caution while driving
Do not connect portable players or operate the controls.
NOTICE
■To prevent damage to portable players
Do not leave portable players in the vehicle. The temperature inside the
vehicle may become high, resulting in damage to the player.

247
3-3. Using the Bluetooth® audio system
3
Interior features

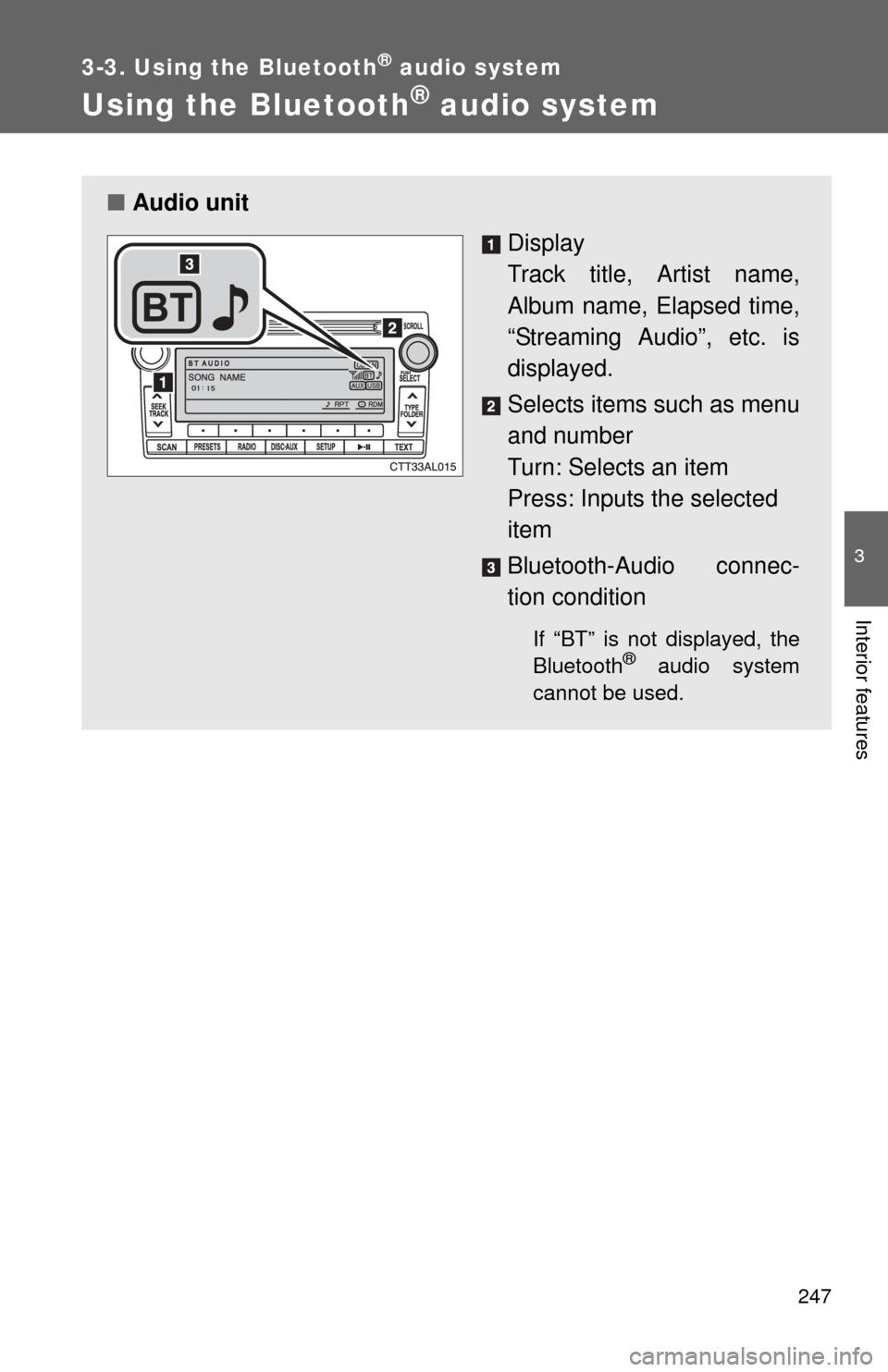

Using the Bluetooth® audio system
■Audio unit
Display
Track title, Artist name,
Album name, Elapsed time,
“Streaming Audio”, etc. is
displayed.
Selects items such as menu
and number
Turn: Selects an item
Press: Inputs the selected
item
Bluetooth-Audio connec-
tion condition
If “BT” is not displayed, the
Bluetooth® audio system
cannot be used.

248 3-3. Using the Bluetooth
® audio system

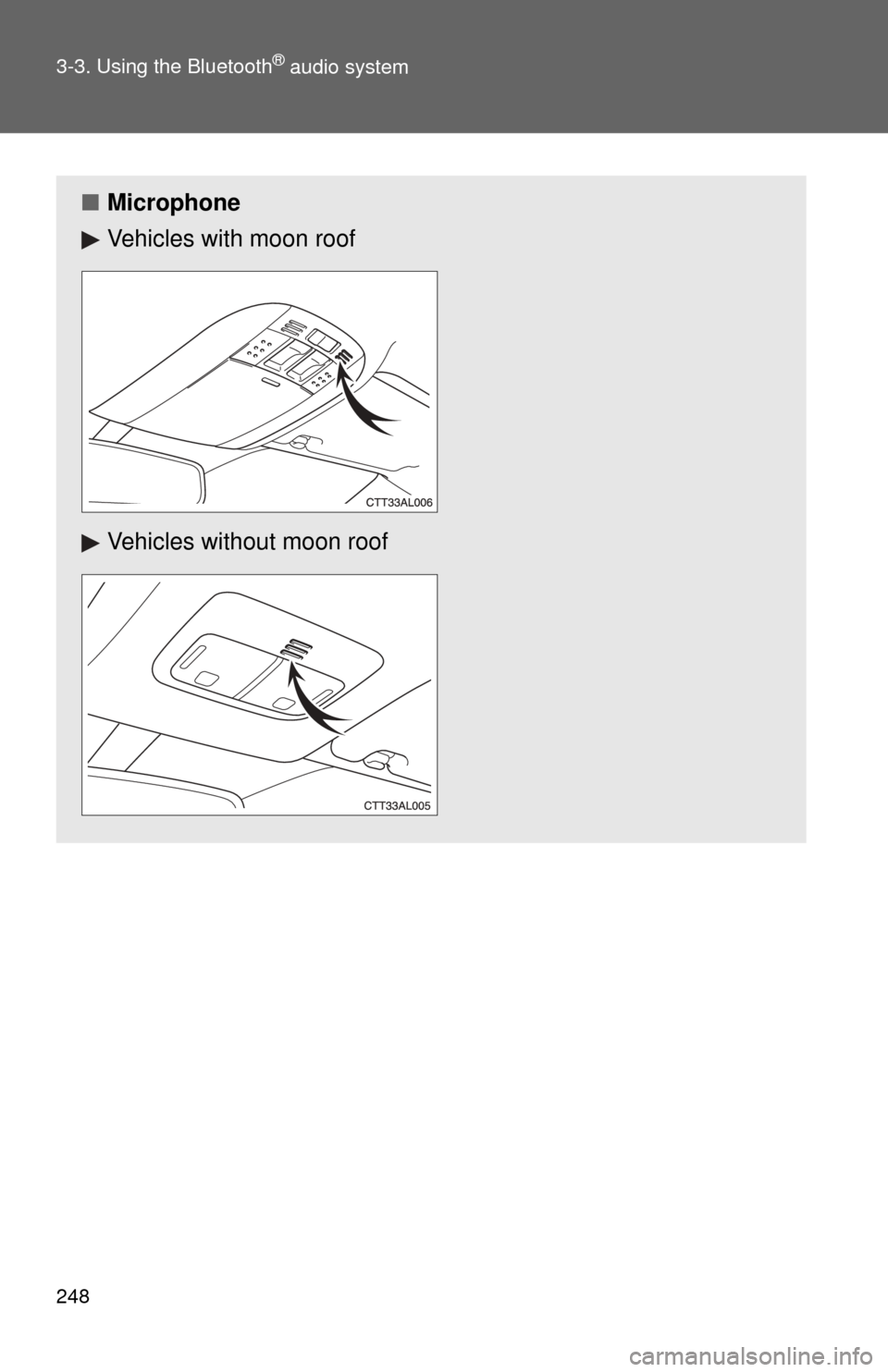

■Microphone
Vehicles with moon roof
Vehicles without moon roof
