bluetooth TOYOTA MATRIX 2013 E140 / 2.G User Guide

255 3-3. Using the Bluetooth
® audio system
3
Interior features

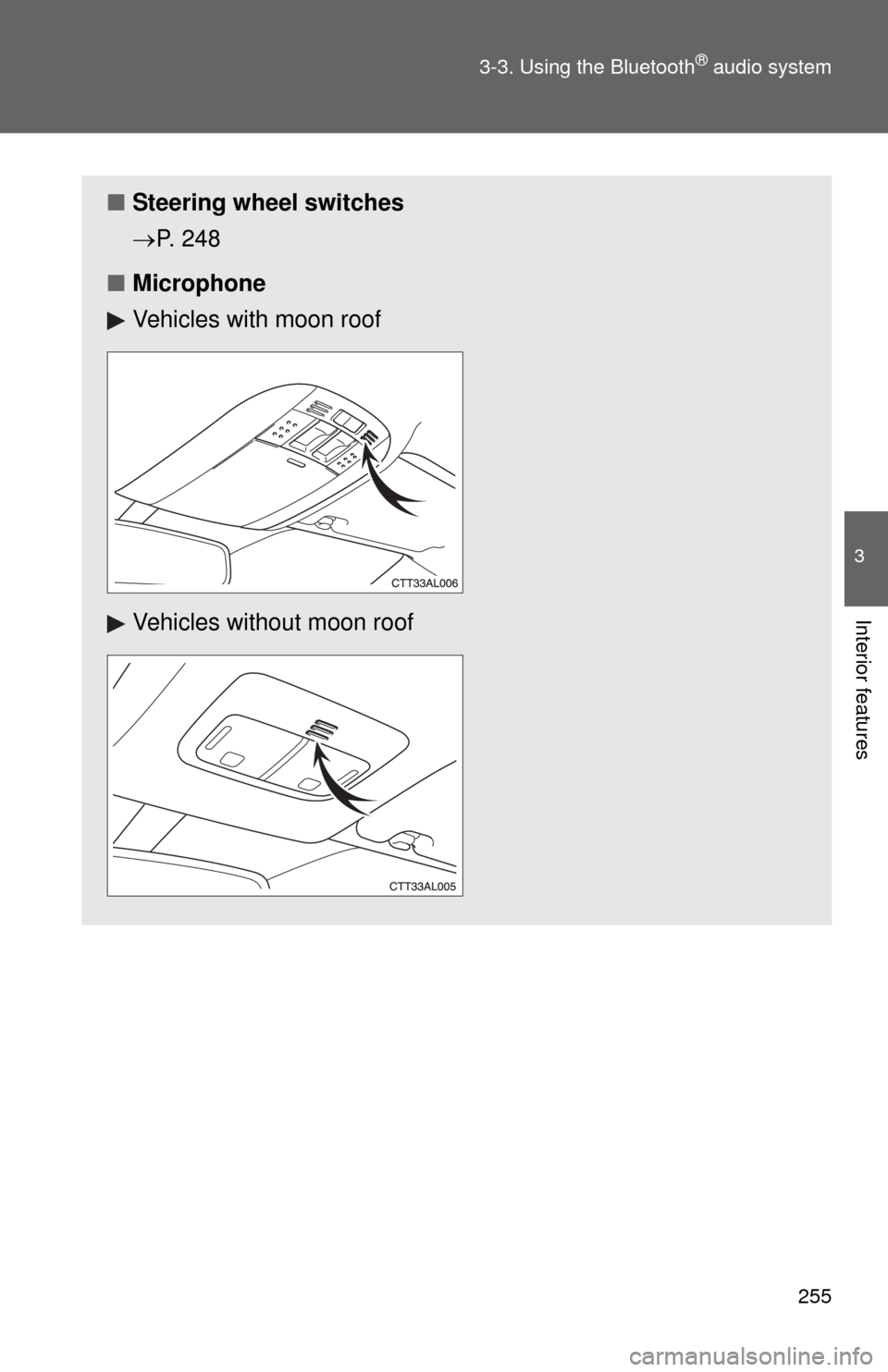

■Steering wheel switches
P. 248
■Microphone
Vehicles with moon roof
Vehicles without moon roof

256 3-3. Using the Bluetooth
® audio system
Using the Bluetooth® audio/phone for the first time
Before using the Bluetooth
® audio/phone, it is necessary to register a
Bluetooth® device in the system. Follow the procedure below to reg-
ister (pair) a device:
Press and select “Bluetooth” using .
Press and select “Pairing” using .
A passkey will be displayed.
SSP (Secure Simple Pairing) incompatible Bluetooth
®
devices: Input the passkey into the device.
SSP (Secure Simple Pairing) compatible Bluetooth® devices:
Select “Yes” to register the device. Depending on the type of
device, it may register automatically.
If a Bluetooth
® device has both music player and cellular phone func-
tions, both functions will be registered at the same time. When delet-
ing the device, both functions will be deleted at the same time.
If the off-hook switch is pressed and the “PHONE” mode is entered
when no phones have been registered, the registration screen will be
automatically displayed.
STEP1
STEP2
STEP3

257 3-3. Using the Bluetooth
® audio system
3
Interior features
Menu list of the Bluetooth® audio/phone
First menuSecond menuThird menuOperation details
“Bluetooth”“BT Pairing” -Registering a
Bluetooth
® device
“List Phone” -Listing the registered
cellular phones
“List Audio” -Listing the registered
portable players
“Passkey” - Changing the passkey
“BT Power” -Setting automatic
connection of the device
on or off
“Bluetooth info”“Device Name”
“Device
Address”Displaying the device
status
“Display
Setting”-Setting the automatic
connection confirmation
display to on or off
“Initialize” - Initializing the settings

258 3-3. Using the Bluetooth
® audio system
“Phone”“Phonebook”“Add contacts” Adding a new number
“Add SD”Registering a speed
dial
“Delete Call
History”Deleting a number
stored in the call history
“Delete
contacts”Deleting a number
stored in the
phonebook
“Delete other
PB”Deleting a phonebook’s
data
“HF Sound
Setting”“Call volume” Setting call volume
“Ring tone
volume”Setting ringtone volume
“Ringtone” Setting the ringtone
“Transfer
Histories”-Transferring the call
histories
■Bluetooth
® audio/phone system functions
Depending on the Bluetooth
® device, certain functions may not be available.
First menuSecond menuThird menuOperation details

259
3-3. Using the Bluetooth® audio system
3
Interior features

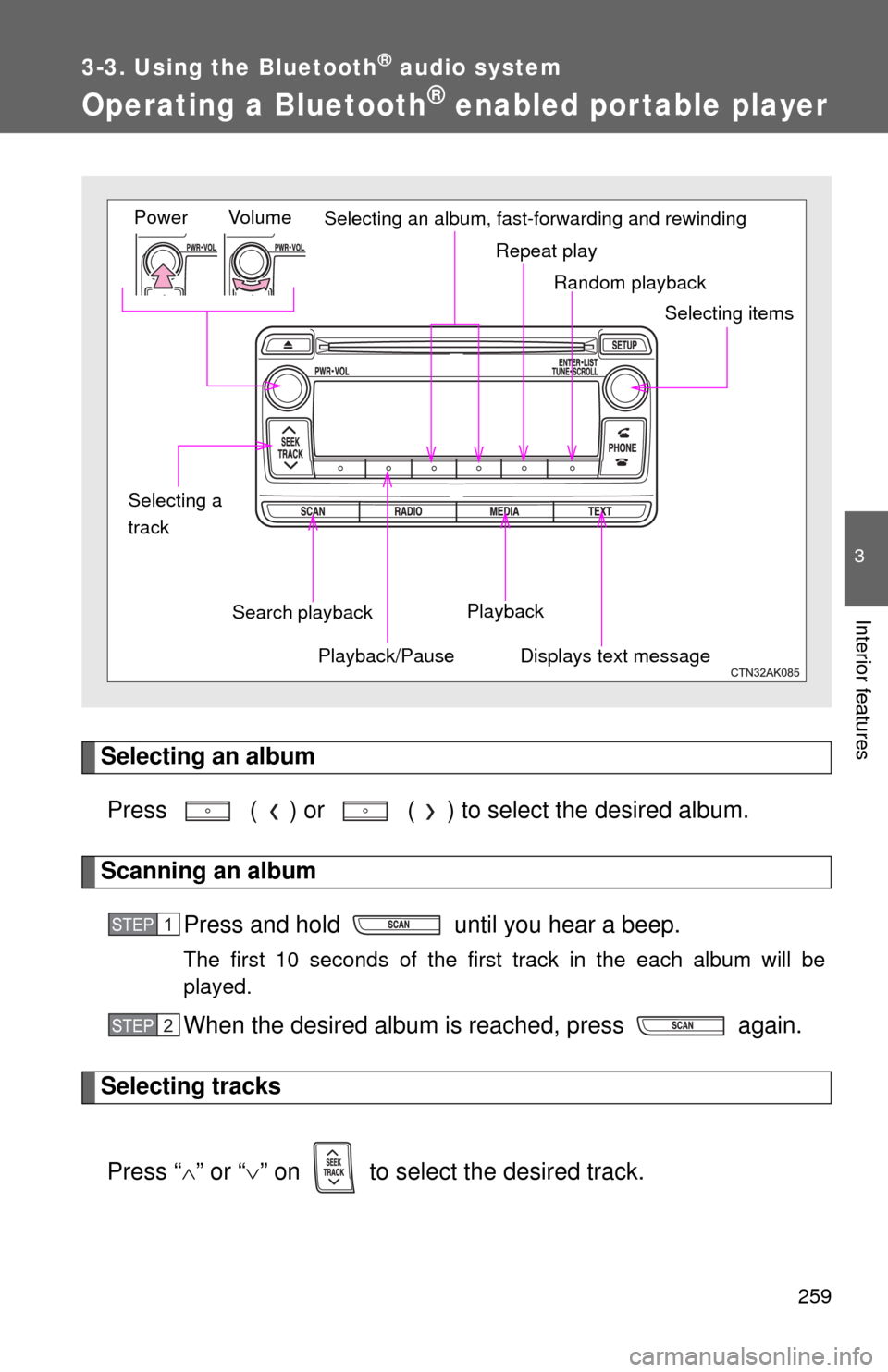

Operating a Bluetooth® enabled portable player
Selecting an album
Press ( ) or ( ) to select the desired album.
Scanning an album
Press and hold until you hear a beep.
The first 10 seconds of the first track in the each album will be
played.
When the desired album is reached, press again.
Selecting tracks
Press “” or “” on to select the desired track.
Random playback Repeat play
Playback
Playback/PauseDisplays text message
Vol u m e Power
Selecting itemsSelecting an album, fast-forwarding and rewinding
Search playback
Selecting a
track
STEP1
STEP2

260 3-3. Using the Bluetooth
® audio system
Scanning tracks
Press .
The first 10 seconds of all tracks in the album will be played.
When the desired track is reached, press again.
Playing and pausing tracks
Press ( ) to play or pause a track.
Fast-forwarding and reversing tracks
P. 2 2 9
Random playback
Pressing (RDM) changes modes in the following order:
Album random  All track random  Off
Repeat play
Pressing (RPT) changes modes in the following order:
Track repeat  Album repeat*  Off
*: Available except when RDM (random playback) is selected
Switching the display
Press .
Track title and Artist name are displayed on the display.
To return to the previous display, press or (BACK).
STEP1
STEP2

261 3-3. Using the Bluetooth
® audio system
3
Interior features
■Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain
functions may not be available.

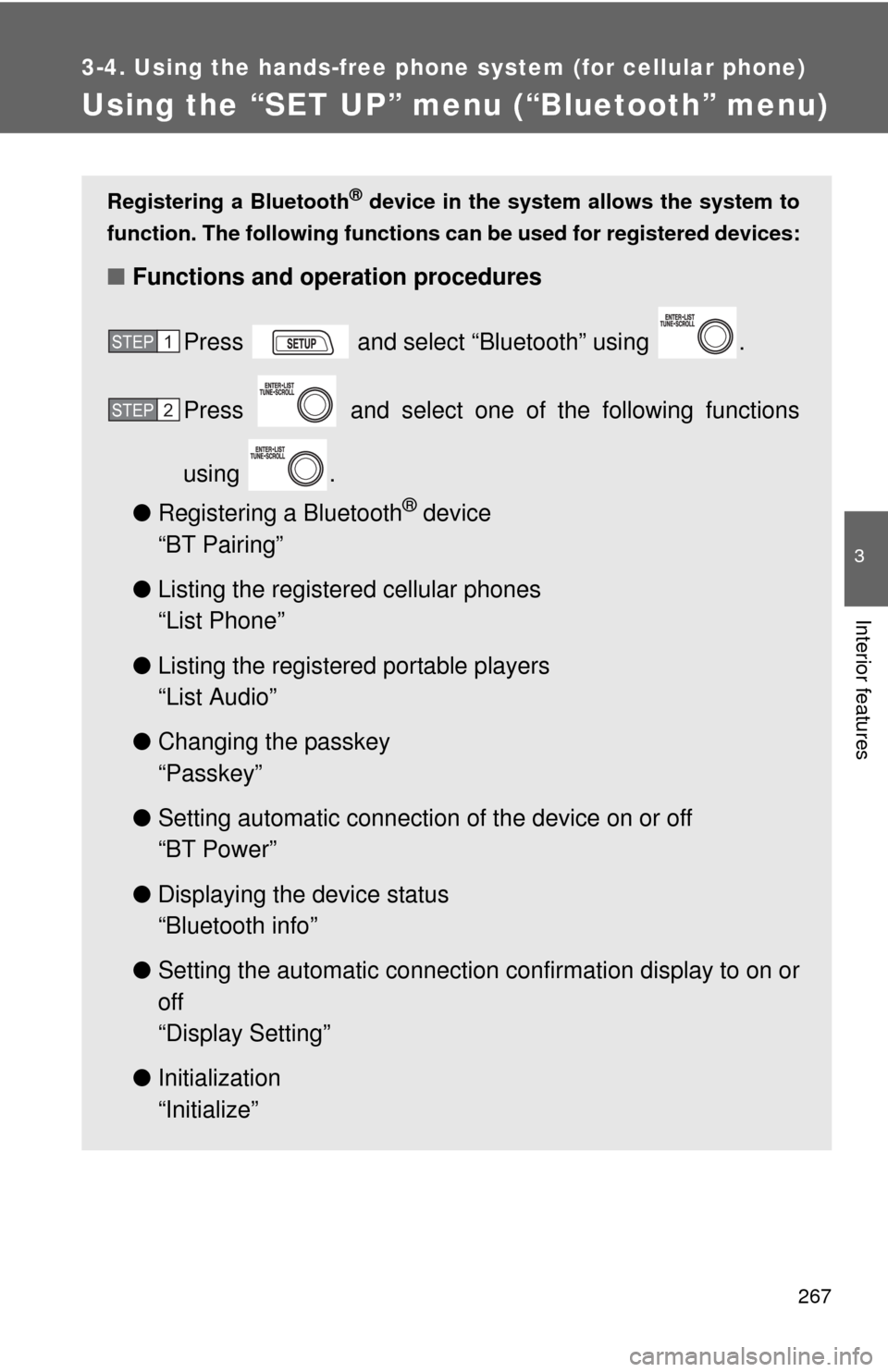

267
3-4. Using the hands-free phone system (for cellular phone)
3
Interior features
Using the “SET UP” menu (“Bluetooth” menu)
Registering a Bluetooth® device in the system allows the system to
function. The following functions can be used for registered devices:
■Functions and operation procedures
Press and select “Bluetooth” using .
Press and select one of the following functions
using .
●Registering a Bluetooth
® device
“BT Pairing”
●Listing the registered cellular phones
“List Phone”
●Listing the registered portable players
“List Audio”
●Changing the passkey
“Passkey”
●Setting automatic connection of the device on or off
“BT Power”
●Displaying the device status
“Bluetooth info”
●Setting the automatic connection confirmation display to on or
off
“Display Setting”
●Initialization
“Initialize”
STEP1
STEP2

271 3-4. Using the hands-free phone system (for cellular phone)
3
Interior features
Displaying the device status
Select “Bluetooth info” using .
●Displaying the device name
Select “Device Name” using .
●Displaying the device address
Select “Device Address” using .
Setting the automatic connection confirmation display to on or off
If the “Display Setting” is set to on, the portable player connection sta-
tus will be displayed when the engine switch is turned to the “ACC” or
“ON” position.
Select “Display Setting” using .
Select “ON” or “OFF” using .
STEP1
STEP2

272 3-4. Using the hands-free phone system (for cellular phone)
Initialization
Select “Initialize” using .
●Initializing the sound settings
Select “Sound setting” using and press (YES).
For details about sound settings (P. 242)
●Initializing the device information
Select “Car Device Info” using and press (YES).
Automatic connection of a portable device, automatic connection confir-
mation display and the passkey will be initialized.
●Initializing all the settings
Select “All Initialize” using and press (YES).
■The number of Bluetooth® devices that can be registered
Up to 5 Bluetooth
® devices can be registered in the system.
