1715-1. Before driving
5
Driving
MIRAI_OM_USA_OM62004U

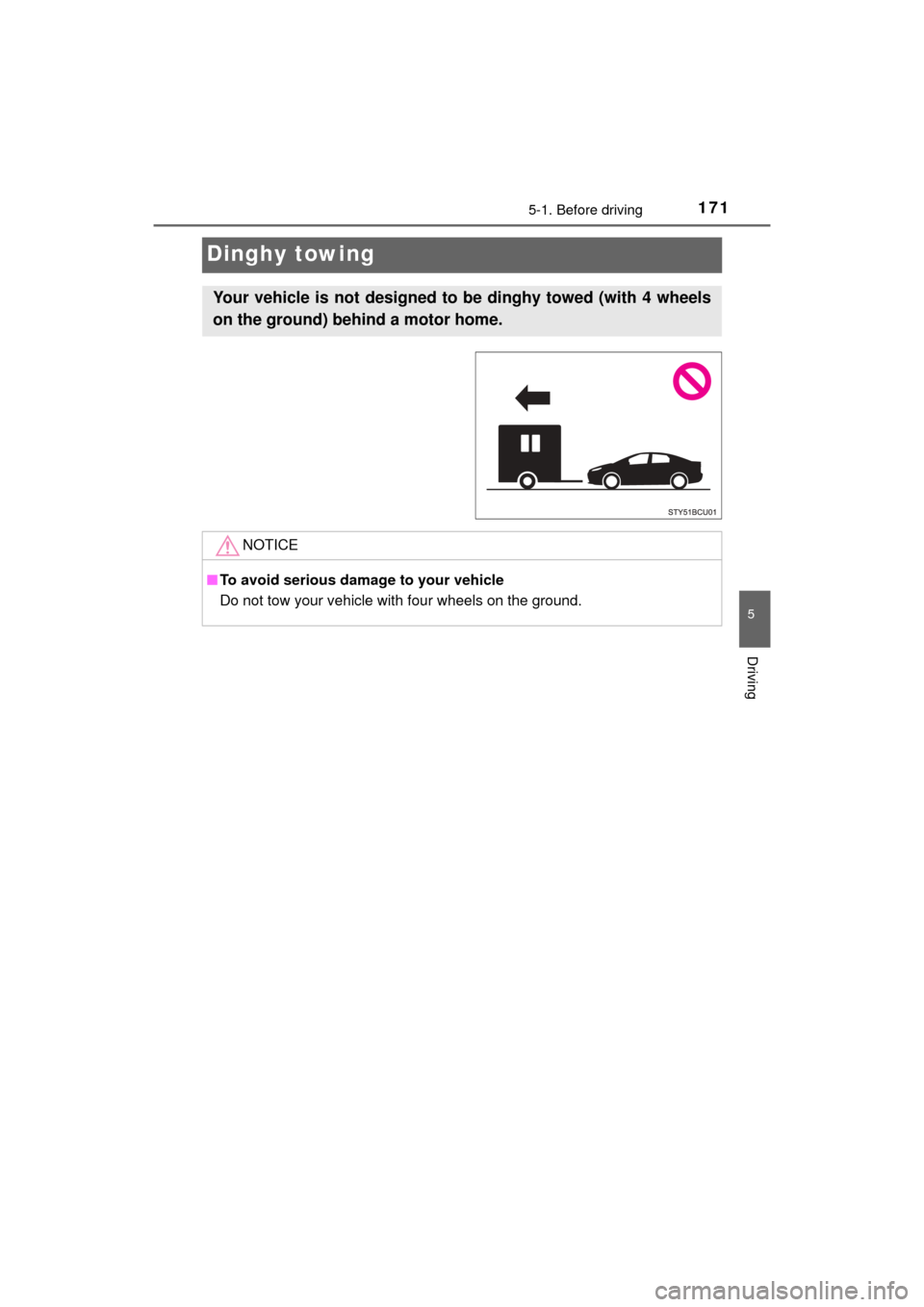

Dinghy towing
Your vehicle is not designed to be dinghy towed (with 4 wheels
on the ground) behind a motor home.
NOTICE
■To avoid serious damage to your vehicle
Do not tow your vehicle with four wheels on the ground.
Page 172 of 464

1725-2. Driving procedures
MIRAI_OM_USA_OM62004U
Power switch
Check that the parking brake is set.
Firmly depress the brake pedal.
will be displayed on the multi-information display.
If it is not displayed, the fuel cell system cannot be started.
When shift position N is selected, the fuel cell system cannot start. Select
the P position when starting the fuel cell system. (
P. 180)
Press the power switch.
If the “READY” indicator turns on,
the fuel cell system will operate
normally.
Continue depressing the brake
pedal until the “READY” indicator
is illuminated.
The fuel cell system can be started
from any power switch mode.
Check that the “READY” indicator is illuminated.
The vehicle will not move when the “READY” indicator is off.
Performing the following operati ons when carrying the elec-
tronic key on your person starts the fuel cell system or changes
power switch modes.

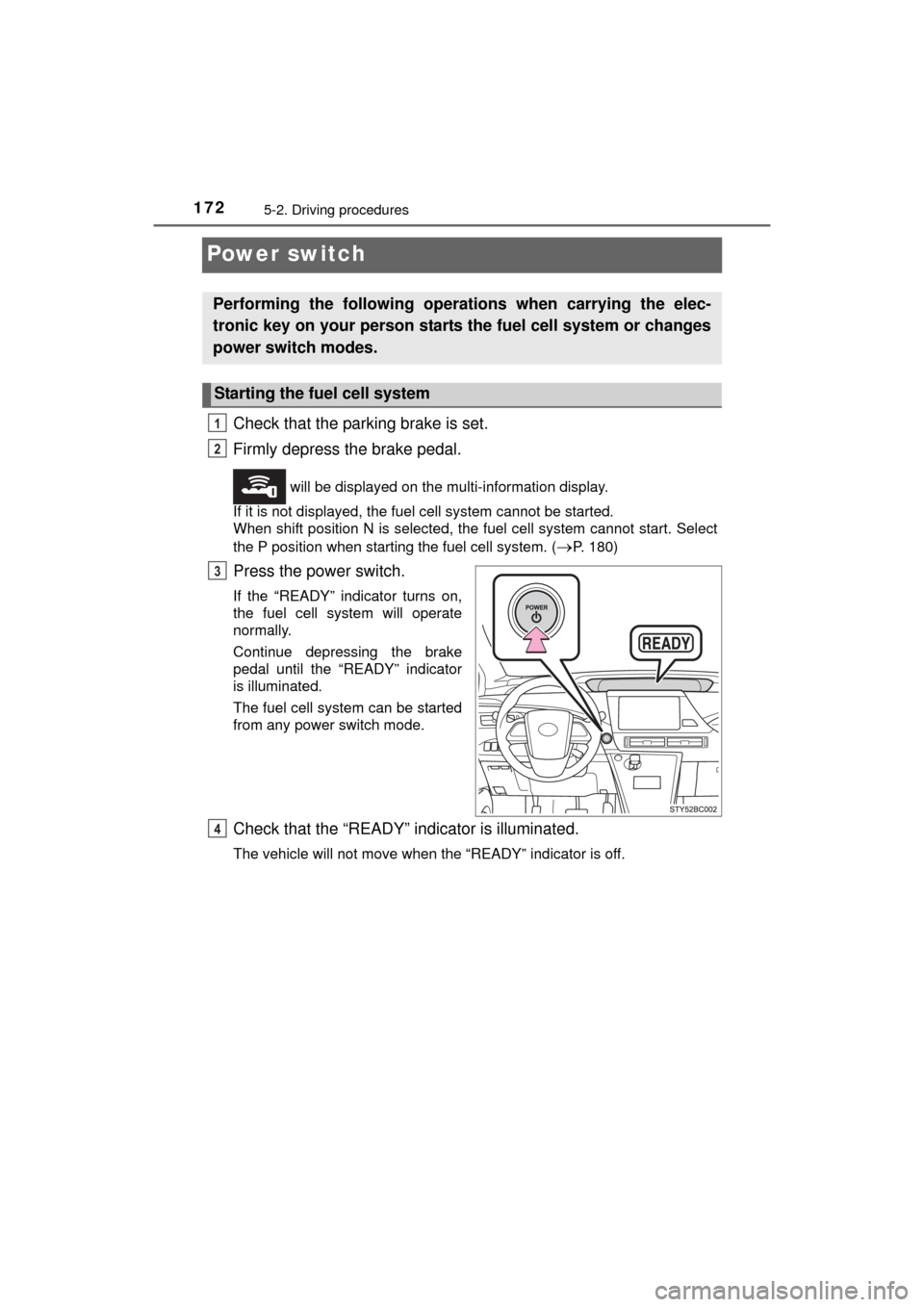

Starting the fuel cell system
1
2
3
4
Page 173 of 464

1735-2. Driving procedures
5
Driving
MIRAI_OM_USA_OM62004U
Stop the vehicle completely.
Set the parking brake. (P. 186)
Press the P position switch.
( P. 180)
Check that the shift position indica-
tor shows P. ( P. 179)
Press the power switch.
The meter display will turn off, indicating the fuel cell system has stopped.
(The shift position indicator is displayed for several seconds)
The H
2O indicator will illuminate, indicating exhaust water is being purged.
Release the brake pedal and check that the meter display is off.
When the fuel cell system is stoppe d, water is automatically purged
from the tailpipe. To minimize wate r accumulation at parking garages,
etc., purge can be done manually before parking.
While the “READY” indicator is
on, press the H
2O switch.
The H
2O indicator on the meter
turns on.
Press the switch again to stop the
purge.
Remember that water is being gen-
erated as long as the fuel cell sys-
tem is operating. So a small
amount of water will be generated
after manual purging and before
parking.
Stopping the fuel cell system
1
2
3

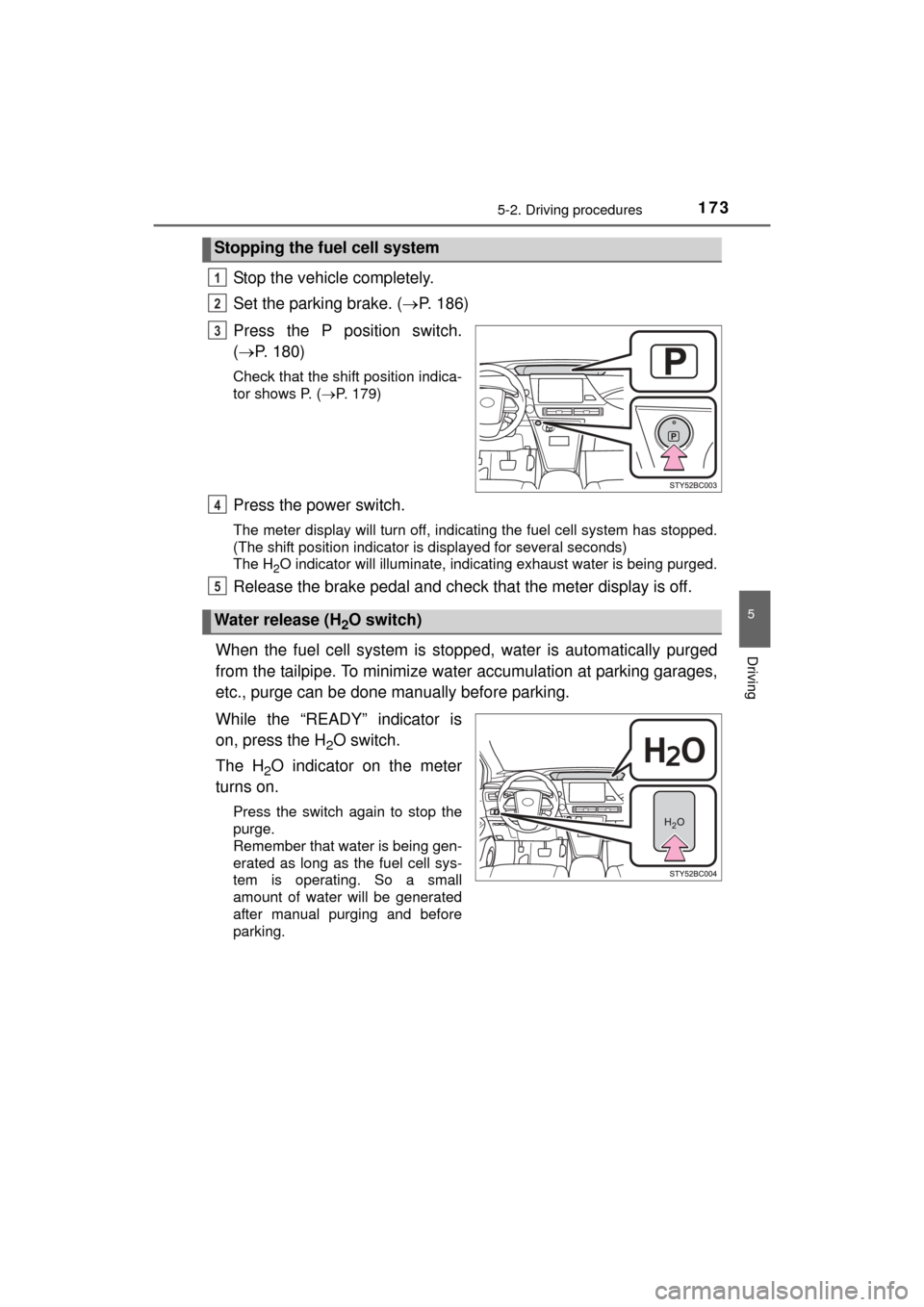

Water release (H2O switch)
4
5
Page 174 of 464

1745-2. Driving procedures
MIRAI_OM_USA_OM62004U

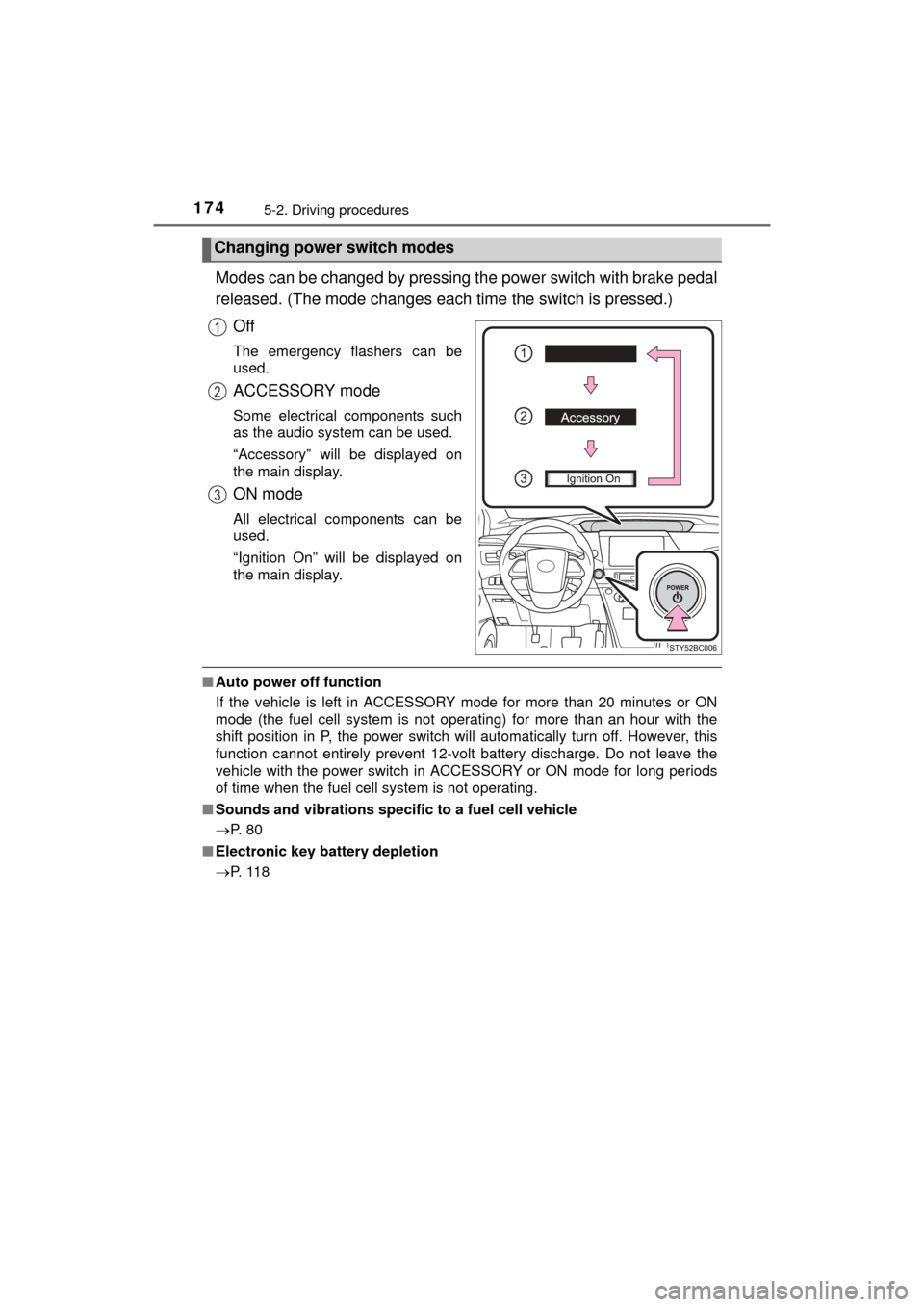

Modes can be changed by pressing the power switch with brake pedal
released. (The mode c hanges each time the switch is pressed.)
Off
The emergency flashers can be
used.
ACCESSORY mode
Some electrical components such
as the audio system can be used.
“Accessory” will be displayed on
the main display.
ON mode
All electrical components can be
used.
“Ignition On” will be displayed on
the main display.
■ Auto power off function
If the vehicle is left in ACCESSORY mode for more than 20 minutes or ON
mode (the fuel cell system is not operating) for more than an hour with the
shift position in P, the power switch will automatically turn off. However, this
function cannot entirely prevent 12-volt battery discharge. Do not leave\
the
vehicle with the power switch in ACCESSORY or ON mode for long periods
of time when the fuel cell system is not operating.
■ Sounds and vibrations specific to a fuel cell vehicle
P. 8 0
■ Electronic key battery depletion
P. 1 1 8
Changing power switch modes
1
2
3
Page 175 of 464

1755-2. Driving procedures
5
Driving
MIRAI_OM_USA_OM62004U■
Starting the fuel cell system in cold temperatures
●When the power switch is pressed and the fuel cell system starts ( P. 172)
during cold temperatures, the fuel cell stack is quickly warmed up using the
waste heat during power generation.
● When the temperatures is cold, it may take some time until the “READY”
indicator turns on.
● The power output will be temporarily limited until the fuel cell system
reaches full operating temperature.
● The fuel cell system noises may become louder when the temperature is
cold. This is the normal warm-up operation and is not a malfunction. In
some cases, operation noises may continue for a some time even after the
“READY” indicator has turned on. ( P. 80)
■ Stopping the fuel cell system in cold temperatures
●When the power switch is pressed and the fuel cell system is stopped
( P. 173) during cold temperatures, the time for water purge from the
tailpipe may be longer than usual to prevent liquid in the fuel cell stack
from freezing.
● The water purge time may also be long if the system is stopped before fuel
cell system warm-up is completed.
● It is normal to hear hissing and other sounds during purge. ( P. 80)
● The H
2O indicator on the meter will illuminate during purge.
●

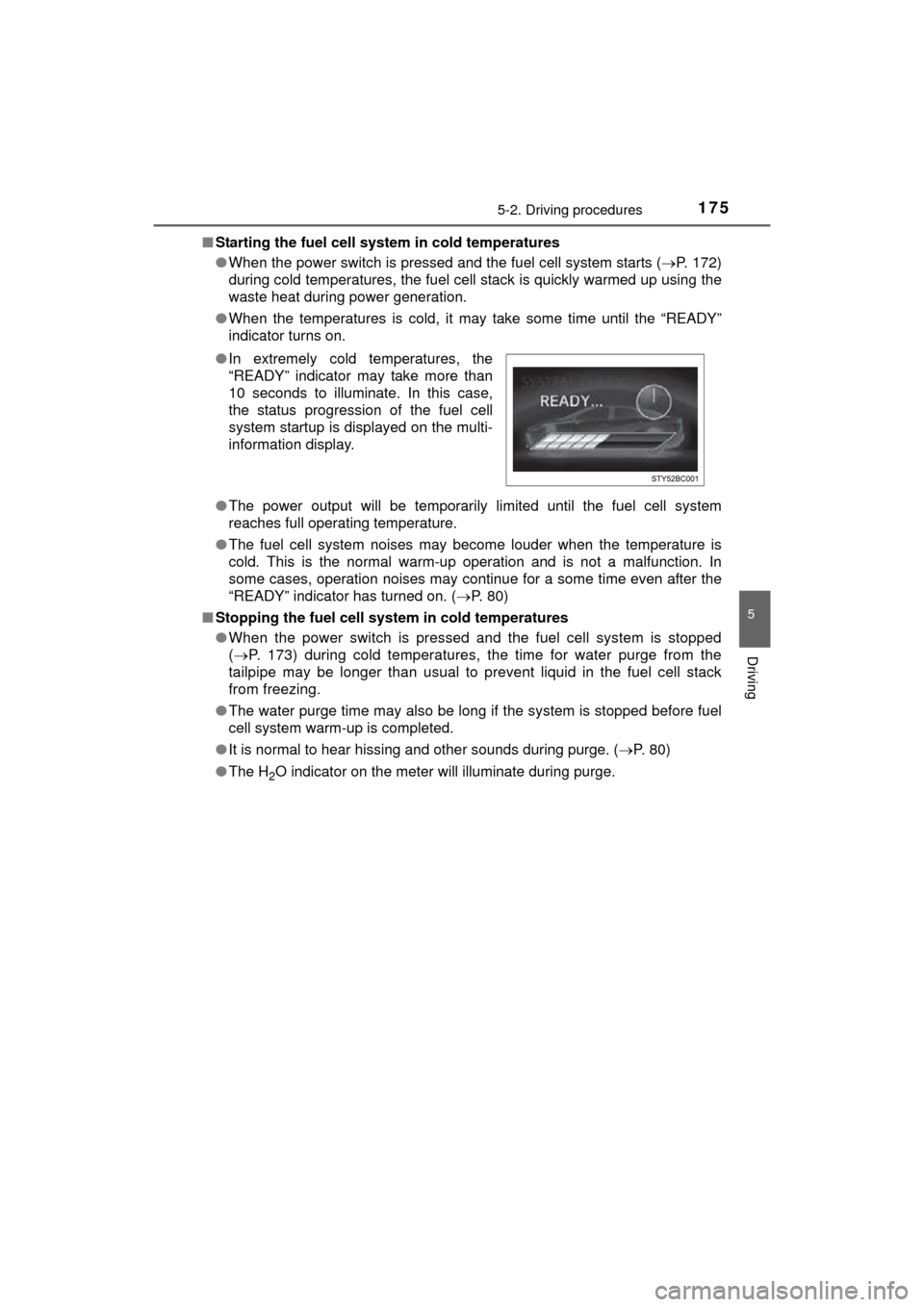

In extremely cold temperatures, the
“READY” indicator may take more than
10 seconds to illuminate. In this case,
the status progression of the fuel cell
system startup is displayed on the multi-
information display.
Page 176 of 464

1765-2. Driving procedures
MIRAI_OM_USA_OM62004U■
Parking in cold temperatures
●Water may automatically purge from the tailpipe, even when the fuel cell
system is off, in order to prevent liquid in the fuel cell stack, hydrogen pipe-
lines, etc., from freezing while parked during cold temperatures.
● It is normal to hear hissing and other sounds during purge. ( P. 80)
● The H
2O indicator on the meter will illuminate during purge.
● Before storing the vehicle for extended periods of time in a location with
freezing temperatures, perform a cold-weather manual purge:
Turn the power switch to ON mode and press the H
2O switch.
Check that the H
2O indicator on the meter turns on.
While depressing the brake, press the power switch to start the fuel cell
system.
Check that the “READY” indicator turns on.
Press the power switch to stop the fuel cell system.
The water release is automatically performed. During water purge, the
H
2O indicator turns on. (Longer than normal water purge)
■ Conditions affecting operation
P. 134
■ Notes for the entry function
P. 135
■ If the fuel cell system does not start
●The immobilizer system may not have been deactivated. ( P. 72)
Contact your Toyota dealer.
● Check that the shift position is P. ( P. 179)
The fuel cell system cannot be started when the shift position is N.
If P position is not selected, “Shift to P position to start” will be displayed on
the multi-information display.
● Check that the fuel door is closed.
When the fuel door is open, the fuel cell system cannot be started.
Close the fuel door before starting the system. ( P. 201)
■ If “Smart Entry & Start System malfunction See owner’s manual” is dis-
played on the multi-information display
The system may be malfunctioning. Have the vehicle inspected by your
Toyota dealer immediately.
■ If the “READY” indicator does not come on
In the event that the “READY” indicator does not come on even after perform-
ing the proper procedures for starting the vehicle, contact your Toyota dealer
immediately.
■ If the fuel cell system is malfunctioning
P. 376
1
2
3
Page 177 of 464

1775-2. Driving procedures
5
Driving
MIRAI_OM_USA_OM62004U■
If the electronic key battery is depleted
P. 353
■ Operation of the power switch
When operating the power switch, one short, firm press is enough. If the
switch is pressed improperly, the fuel cell system may not start or the power
switch mode may not change. It is not necessary to press and hold the
switch.
■ Automatic P position selection function
●When the shift position is other than P, pressing the power switch with the
vehicle stopped completely will cause the shift position to change to P auto-
matically, and then the power switch will turn off.
● When turning the power switch off with the shift position other than P, firmly
depress the brake pedal and confirm that the shift position* has changed to
P before slowly releasing the brake pedal.
*: Even after the instrument panel display has been turned off, the shift
position indicator will continue to be displayed for several seconds.
■ If the shift control system malfunctions
The power switch will not be able to be turned off. In this occurs, the switch
can be turned off by applying the parking brake.
If the system malfunctions, have your vehicle serviced by your Toyota dealer
immediately.
■ If the smart key system has been deactivated in a customized setting
P. 436
WARNING
■When starting the fuel cell system
Always start the fuel cell system while sitting in the driver’s seat. Do not
depress the accelerator pedal while starting the fuel cell system under any
circumstances.
Doing so may cause an accident resulting in death or serious injury.
■ Stopping the fuel cell system in an emergency
If you want to stop the fuel cell system in an emergency while driving the
vehicle, press and hold the power switch for more than 2 seconds, or press
it briefly 3 times or more in succession. ( P. 361)
However, do not touch the power switch while driving except in an emer-
gency. Turning the fuel cell system off while driving will not cause loss of
steering or braking control, however, power assist to the steering will be
lost. This will make it more difficult to steer smoothly, so you should pull over
and stop the vehicle as soon as it is safe to do so.
Page 178 of 464

1785-2. Driving procedures
MIRAI_OM_USA_OM62004U
NOTICE
■To prevent 12-volt battery discharge
Do not leave the power switch in ACCESSORY or ON mode for long peri-
ods if the fuel cell system is off.
■ When starting the fuel cell system
If the fuel cell system becomes difficult to start, have your vehicle checked
by your Toyota dealer immediately.
■ Symptoms indicating a malf unction with the power switch
If the power switch seems to be operating somewhat differently than usual,
such as the switch sticking slightly, there may be a malfunction. Contact
your Toyota dealer immediately.
Page 179 of 464

1795-2. Driving procedures
5
Driving
MIRAI_OM_USA_OM62004U
Transmission
Shift lever
Operate the shift lever gently
and ensure correct shifting
operation.
Release the shift lever after
each shifting operation to allow
it return to the position.When shifting to the D
or R positions, move
the shift lever along the
shift gate.
To shift to the N posi-
tion, slide the shift lever
to the left and hold it.
The shift position will
change to N.
To shift to the Br mode, pull th e shift lever to the rear along
the shift gate. Shifting to Br mode is only possible when the
shift position D is selected.
When shifting from P to N, D or R, from D to R, or from R to D,
ensure that the brake pedal is being depressed and that the vehicle
is stationary.
Shift position indicator
When selecting a shift position, make sure that the shift position
has been changed to the desired position by checking the shift
position indicator provided on the instrument panel.

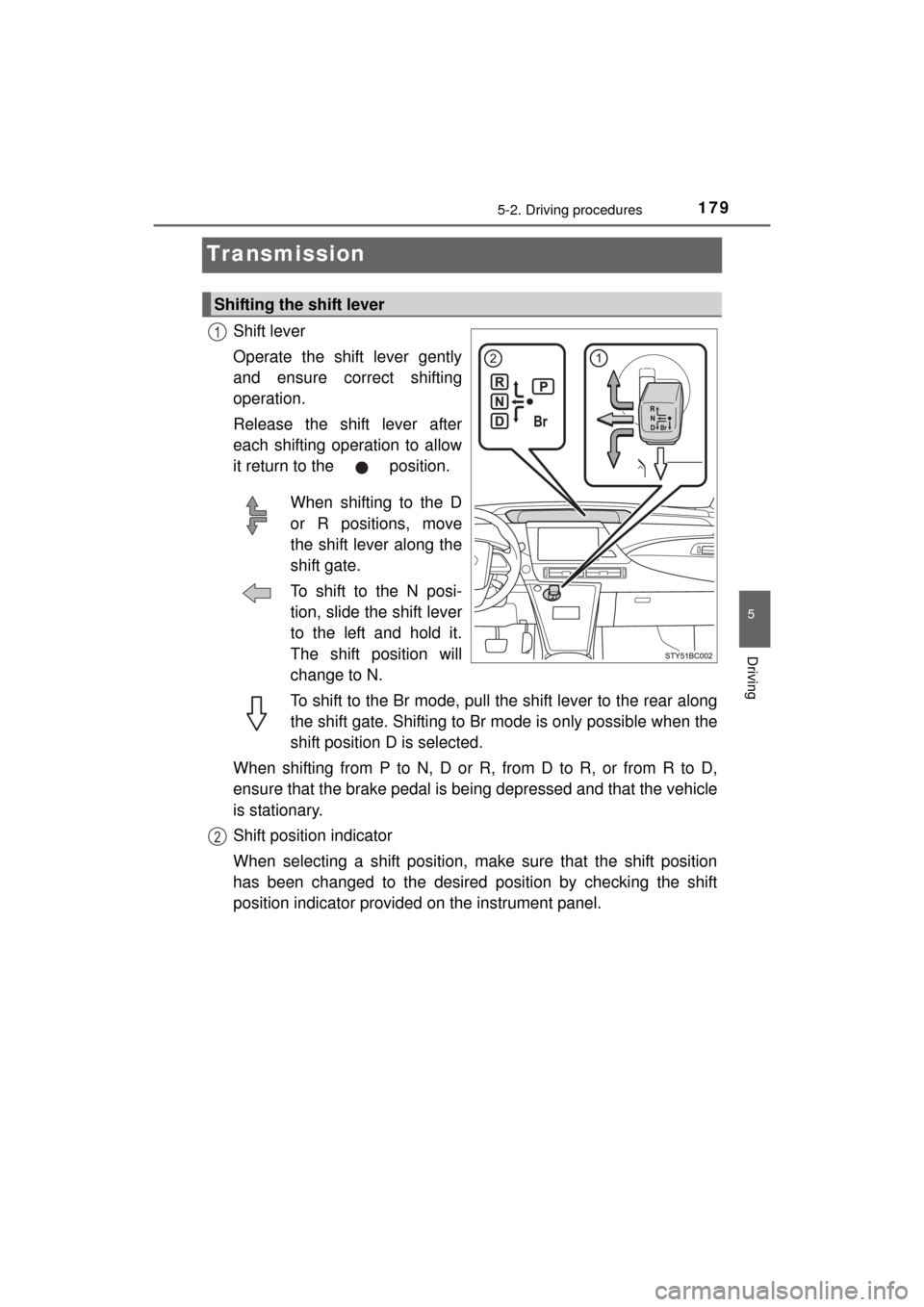

Shifting the shift lever
1
2
Page 180 of 464

1805-2. Driving procedures
MIRAI_OM_USA_OM62004U

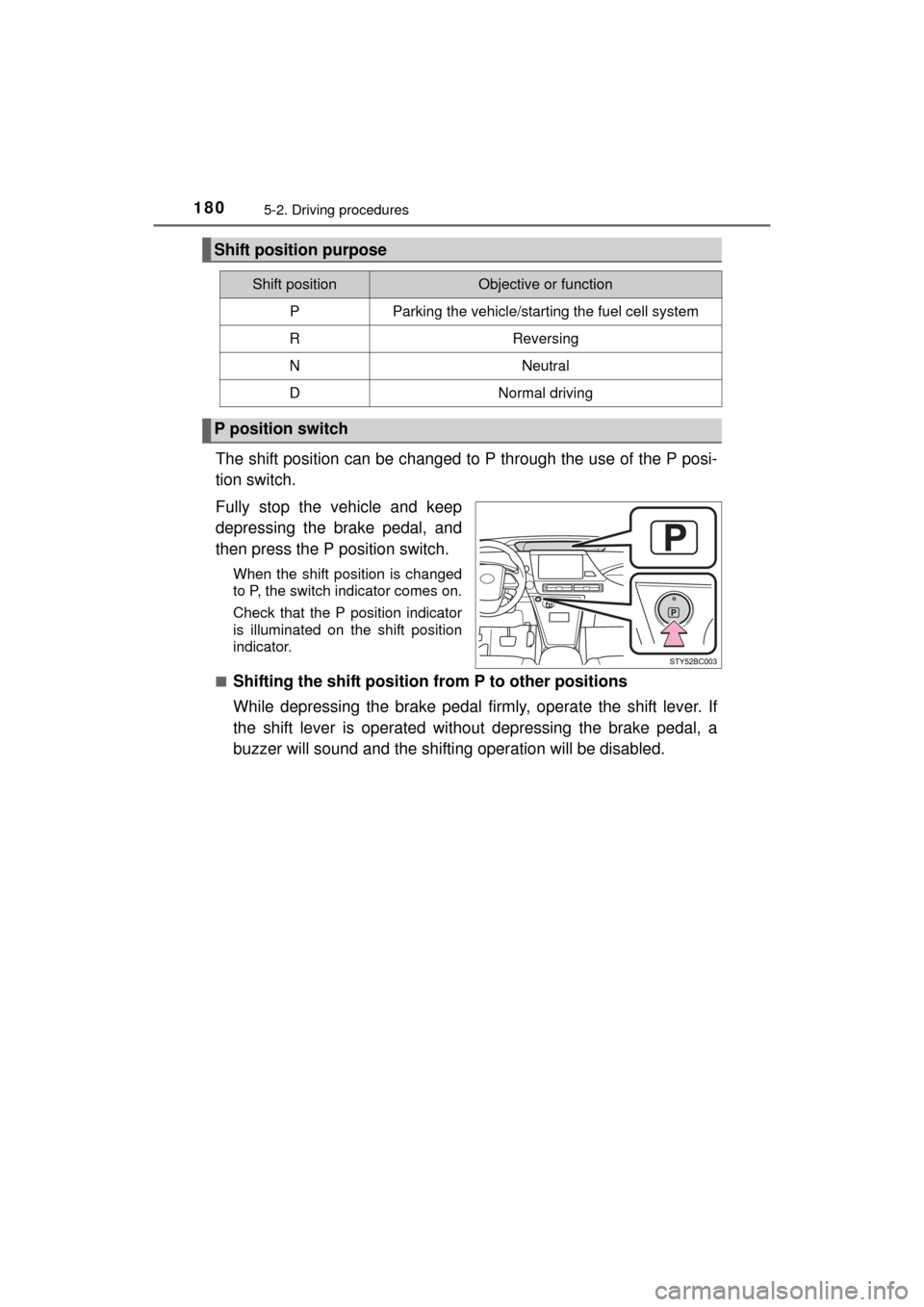

The shift position can be changed to P through the use of the P posi-
tion switch.
Fully stop the vehicle and keep
depressing the brake pedal, and
then press the P position switch.
When the shift position is changed
to P, the switch indicator comes on.
Check that the P position indicator
is illuminated on the shift position
indicator.
■
Shifting the shift position from P to other positions
While depressing the brake pedal firmly, operate the shift lever. If
the shift lever is operated without depressing the brake pedal, a
buzzer will sound and the shifti ng operation will be disabled.
Shift position purpose
Shift positionObjective or function
PParking the vehicle/starting the fuel cell system
RReversing
NNeutral
DNormal driving
P position switch
