TOYOTA MIRAI 2018 Owners Manual (in English)

2816-4. Other interior features
6
Interior features
MIRAI_OM_USA_OM62025U
Please use a power supply for e lectronic goods that use less than
12 VDC/10 A (power c onsumption of 120 W).
Push the cover of the console
box to open.
Open the lid.
The power outlet can be used when the power switch is in ACCESS ORY or
ON mode.
Power outlet
NOTICE
● To avoid the damaging the power outlet, close the power outlet lid when
the power outlet is not in use. Foreign objects or liquids that enter the
power outlet may cause a short circuit.
● To prevent 12-volt battery discharge, do not use the power outl et longer
than necessary when the fuel cell system is off.

2826-4. Other interior features
MIRAI_OM_USA_OM62025U
The USB charging ports are used to supply 2.1 A of electricity at 5 V
to external devices.
The USB charging ports are for charging only. They are not desi gned
for data transfer or other purposes.
Depending on the external device, it may not charge properly. R efer to
the manual included with the dev ice before using a USB charging
port.
■Using the USB charging ports
Push the cover of the con-
sole box to open.
Open the lid.
■The USB charging ports can be used when
The power switch is in ACCESSORY or ON mode.
■ Situations in which the USB charg ing ports may not operate correctly
● If a device which consumes more than 2.1 A at 5 V is connected
● If a device designed to communicate with a personal computer, s uch as a
USB memory device, is connected
● If the connected external device is turned off (depending on de vice)
● If the temperature inside the vehicle is high, such as after the vehicle has
been parked in the sun
■ About connected external devices
Depending on the connected external device, charging may occasi onally be
suspended and then start again. This is not a malfunction.
USB charging ports

2836-4. Other interior features
6
Interior features
MIRAI_OM_USA_OM62025U
NOTICE
■To prevent damage to the USB charging ports
● Do not insert foreign objects into the ports.
● Do not spill water or other liquids into the ports.
● When the USB charging ports are not in use, close the lids. If a foreign
object or liquid enters a port may cause a short circuit.
● Do not apply excessive force to or impact the USB charging port s.
● Do not disassemble or modify the USB charging ports.
■ To prevent damage to external devices
● Do not leave external devices in the vehicle. The temperature i nside the
vehicle may become high, resulting in damage to an external dev ice.
● Do not push down on or apply unnecessary force to an external d evice or
the cable of an external device while it is connected.
■ To prevent 12-volt b attery discharge
Do not use the USB charging ports for a long period of time wit h the fuel cell
system stopped.

2846-4. Other interior features
MIRAI_OM_USA_OM62025U
A portable device can be charged by just placing Qi standard wireless
charge compatible portable devices according to the Wireless Po wer
Consortium, such as smart phones and mobile batteries, etc., on the
charge area.
This function cannot be used with portable devices that are lar ger
than the charging area. Also, depending on the portable device, it may
not operate as normal. Please read the operation manual for por table
devices to be used.
■The “Qi” symbol
The “Qi” symbol is a trademark of the Wireless Power Consortium .
■Name for all parts
Operation indicator light
Power supply switch
Charge area
Wireless charger

2856-4. Other interior features
6
Interior features
MIRAI_OM_USA_OM62025U■
Using the wireless charger
Open the console box. (
P. 2 7 1 ) .
Press the power supply switch
of the wireless charger.
Switches on and off with each
press of the power supply switch.
When turned on, the operation
indicator light (green) comes on.
Even with the fuel cell system off,
the on/off state of the power supply
switch is memorized.
Place the charging side of the
portable device down.
When charging, the operation indi-
cator light (orange) comes on.
If charging is not occurring, try
placing the portable device as
close to the center of the charging
area as possible.
When charging is complete, the
operation indicator light (green)
comes on.
● Recharging function
• When charging is complete and after a fixed time in the charge suspension state, c harging restarts.
• When the portable device is moved, charging is stopped for a moment and then it restarts.

2866-4. Other interior features
MIRAI_OM_USA_OM62025U■

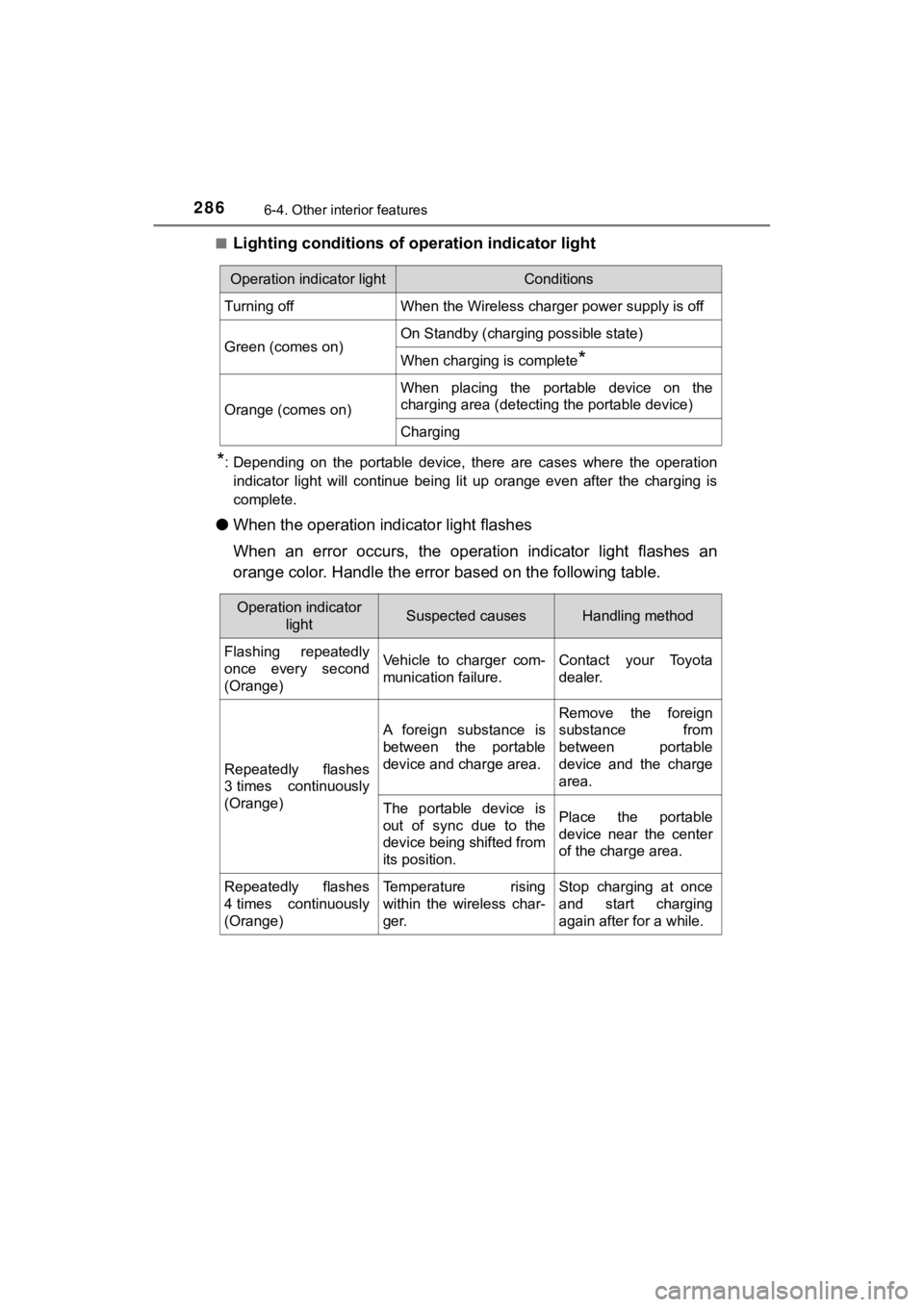

Lighting conditions of ope
ration indicator light
*: Depending on the portable device, there are cases where the op eration
indicator light will continue being lit up orange even after the charging is
complete.
● When the operation indi cator light flashes
When an error occurs, the operat ion indicator light flashes an
orange color. Handle the error based on the following table.
Operation indicator lightConditions
Turning offWhen the Wireless charger power supply is off
Green (comes on)On Standby (charging possible state)
When charging is complete*
Orange (comes on)
When placing the portable device on the
charging area (detecting the portable device)
Charging
Operation indicator
lightSuspected causesHandling method
Flashing repeatedly
once every second
(Orange)Vehicle to charger com-
munication failure.Contact your Toyota
dealer.
Repeatedly flashes
3 times continuously
(Orange)
A foreign substance is
between the portable
device and charge area.
Remove the foreign
substance from
between portable
device and the charge
area.
The portable device is
out of sync due to the
device being shifted from
its position.Place the portable
device near the center
of the charge area.
Repeatedly flashes
4 times continuously
(Orange)Temperature rising
within the wireless char-
ger.Stop charging at once
and start charging
again after for a while.

2876-4. Other interior features
6
Interior features
MIRAI_OM_USA_OM62025U
■The wireless charger can be operated when
The power switch is in ACCESSORY or ON mode.
■ Usable portable devices
Qi standard wireless charge standard can be used on compatible devices.
However, not all Qi standard devices and compatibility are guar anteed.
Starting with mobile phones and smart phones, it is aimed for l ow power elec-
trically supplied portable devices of no more than 5 W.
■ When covers and accessories are attached to portable devices
Do not charge in situations where cover and accessories not able to handle
Qi are attached to the portable device. Depending on the type o f cover and
accessory, it may not be possible to charge. When charging is not performed
even with the portable device placed on the charge area, remove the cover
and accessories.
■ While charging, noise enters the AM radio
Turn off the wireless charger and confirm that the noise has decreased. If the
noise decreases, continuously pushing the power supply switch o f the wire-
less charger for 2 seconds, the frequency of the charger can be changed and
the noise can be reduced.
Also, on that occasion, the operation indicator light will flas h orange 2 times.
■ Important points of the wireless charger
●If the electronic key cannot be detected within the vehicle int erior, charging
cannot be done. When the door is opened and closed, charging ma y be
temporarily suspended.
● When charging, the wireless charging device and portable device will get
warmer, however this is not a malfunction.
When a portable device gets warm while charging, charging may s top due
to the protection function on the portable device side. In this case, when the
temperature of the portable device drops significantly, charge again.
■ Operation sounds
When the power supply is turned on, while searching for the portable device a
sound will be produced, however this is not a malfunction.
■ Cleaning
P. 311

2886-4. Other interior features
MIRAI_OM_USA_OM62025U■

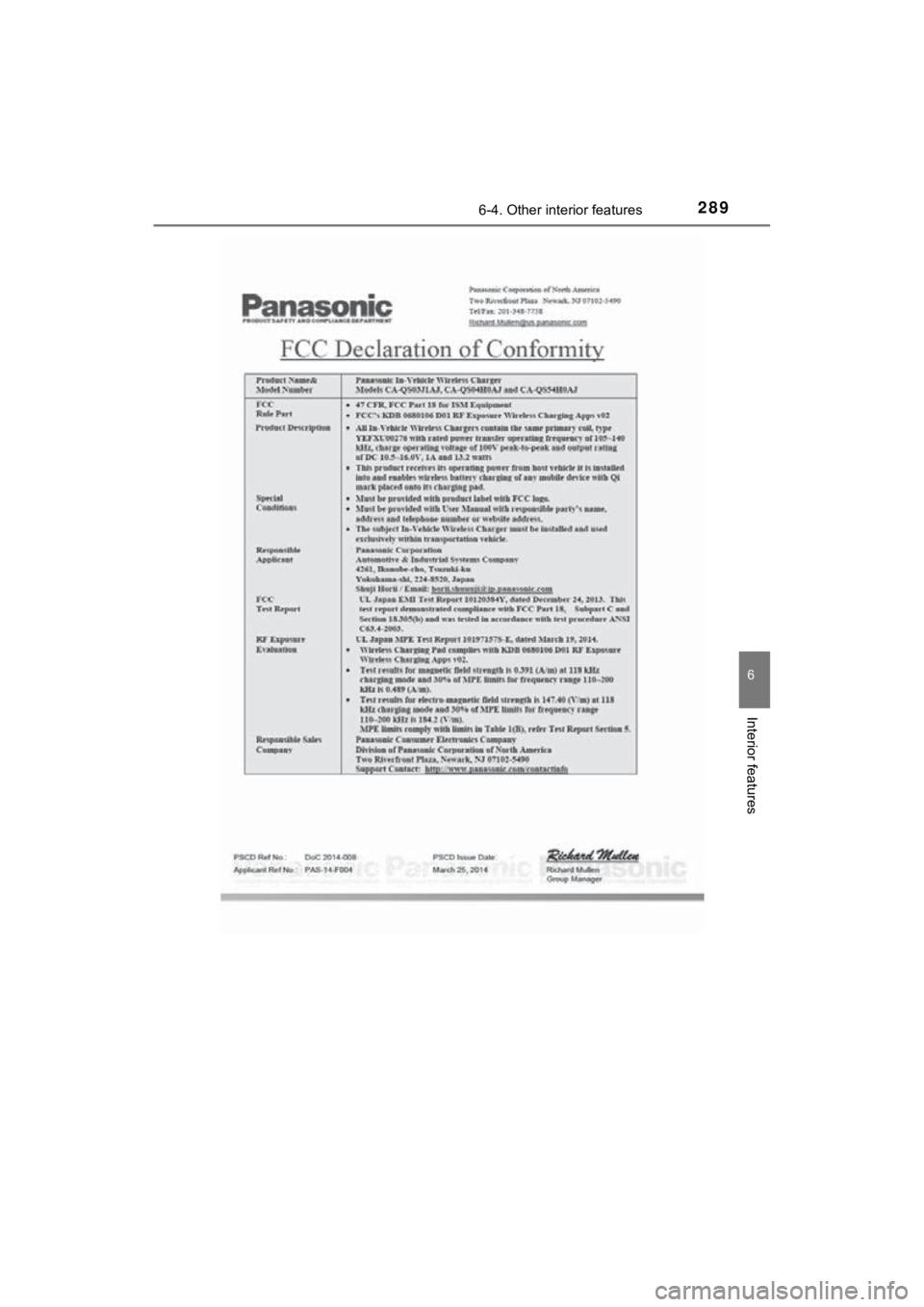

Certification for the wireless charger
FCC Note: This equipment has been tested and found to comply wi th Part 18
of the FCC Rules. These limits are designed to provide reasonab le protection
against harmful interference in a residential installation.
FCC Caution: Any changes or modifications not expressly approve d by the
party responsible for compliance could void the user’s authorit y to operate
this equipment.

2896-4. Other interior features
6
Interior features
MIRAI_OM_USA_OM62025U

2906-4. Other interior features
MIRAI_OM_USA_OM62025U
WARNING
■Caution while driving
● When charging a portable device, for safety reasons, the driver should not
operate the main part of the portable device while driving.
● Make sure to close the console box lid while driving. When sudd en brak-
ing, etc., occurs, the open lid could hit body parts, the porta ble device
could go flying, leading to an unexpected accident.
■ Caution regarding interfer ence with electronic devices
People with implantable cardiac pacemakers, cardiac resynchroni zation
therapy-pacemakers or implantable cardioverter defibrillators, as well as
any other electrical medical device, should consult their physi cian about the
usage of the wireless charger. The operations of the wireless charger may
have an affect on medical devices.
■ To prevent damage or burns
Observe the following precautions.
Failure to do so may result in a possibility of equipment failu re and damage,
catch fire, burns due to overheat.
● Do not insert any metallic objects between the charging area an d the por-
table device while charging
● Do not attach stickers, metallic objects, etc., to the charger area or porta-
ble device
● Do not cover with cloth, etc., and charge
● Do not charge portable devices other than designated
● Do not bring magnetized items nearby
● Do not charge items with the charging area covered in dust.
● When not in use close the console box lid in order to keep fore ign sub-
stances from getting in the wireless charging area as well as d rinks, etc.,
from being spilled on it.
● Do not attempt to dismantle for disassembly or modifications
● Do not hit or apply a strong force
