TOYOTA MIRAI 2019 Accessories, Audio & Navigation (in English)

8
191
1
2
3
4
5
6
7
8
9
MIRAI_Navi_USA_OM62055U_19MY

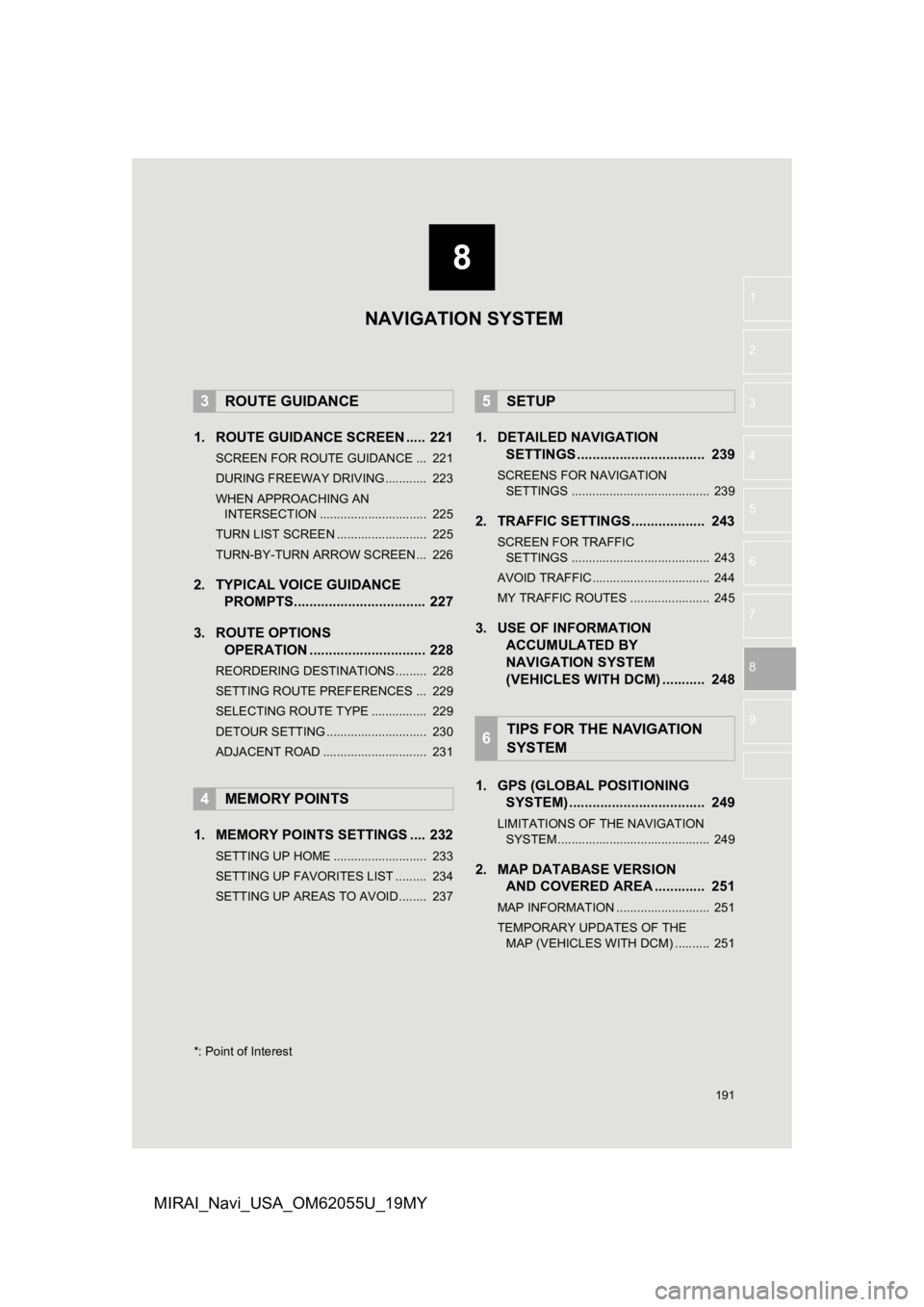

1. ROUTE GUIDANCE SCREEN ..... 221
SCREEN FOR ROUTE GUIDANCE ... 221
DURING FREEWAY DRIVING............ 223
WHEN APPROACHING AN INTERSECTION ............................... 225
TURN LIST SCREEN .......................... 225
TURN-BY-TURN ARROW SCREEN ... 226
2. TYPICAL VOICE GUIDANCE PROMPTS.................................. 227
3. ROUTE OPTIONS OPERATION .............................. 228
REORDERING DESTINATIONS ......... 228
SETTING ROUTE PREFERENCES ... 229
SELECTING ROUTE TYPE ................ 229
DETOUR SETTING ............................. 230
ADJACENT ROAD .............................. 231
1. MEMORY POINTS SETTINGS .... 232
SETTING UP HOME ........................... 233
SETTING UP FAVORITES LIST ......... 234
SETTING UP AREAS TO AVOID ........ 237
1. DETAILED NAVIGATIONSETTINGS ................................. 239
SCREENS FOR NAVIGATION
SETTINGS ........................................ 239
2. TRAFFIC SETTINGS................... 243
SCREEN FOR TRAFFIC SETTINGS ........................................ 243
AVOID TRAFFIC.................................. 244
MY TRAFFIC ROUTES ....................... 245
3. USE OF INFORMATION ACCUMULATED BY
NAVIGATION SYSTEM
(VEHICLES WITH DCM) ........... 248
1. GPS (GLOBAL POSITIONING SYSTEM) .................... ............... 249
LIMITATIONS OF THE NAVIGATION
SYSTEM ............................................ 249
2. MAP DATABASE VERSION AND COVERED AREA ............. 251
MAP INFORMATION ........................... 251
TEMPORARY UPDATES OF THE
MAP (VEHICLES WITH DCM) .......... 251
3ROUTE GUIDANCE
4MEMORY POINTS
5SETUP
6TIPS FOR THE NAVIGATION
SYSTEM
*: Point of Interest
NAVIGATION SYSTEM

192
MIRAI_Navi_USA_OM62055U_19MY

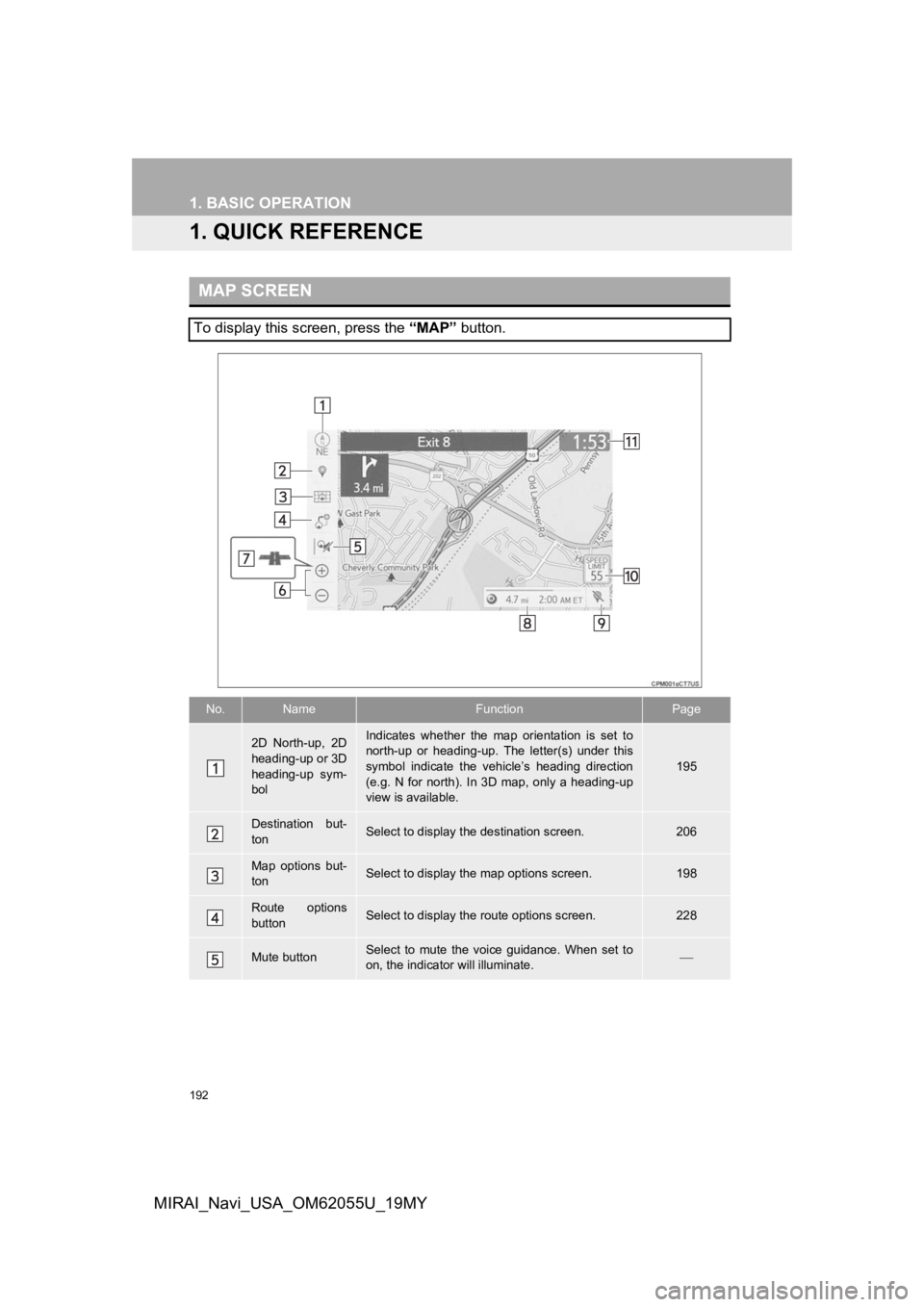

1. BASIC OPERATION
1. QUICK REFERENCE
MAP SCREEN
To display this screen, press the “MAP” button.
No.NameFunctionPage
2D North-up, 2D
heading-up or 3D
heading-up sym-
bolIndicates whether the map orientation is set to
north-up or heading-up. The letter(s) under this
symbol indicate the vehicle’s heading direction
(e.g. N for north). In 3D map, only a heading-up
view is available.
195
Destination but-
tonSelect to display the destination screen.206
Map options but-
tonSelect to display th e map options screen.198
Route options
buttonSelect to display the route options screen.228
Mute buttonSelect to mute the voice guidance. When set to
on, the indicator will illuminate.

193
1. BASIC OPERATION
NAVIGATION SYSTEM
8
MIRAI_Navi_USA_OM62055U_19MY
Zoom in/out but-
tonSelect to magnify or reduce the map scale. When
either button is selected, the map scale indicator
bar appears at the bottom of the screen.194
Micro city map
buttonSelect to display the micro city map screen.195
Route informa-
tion bar
Displays the distance with the estimated travel
time/arrival time to the destination. The route in-
formation bar fills from le ft to right as the vehicle
progresses on the route.
222
Delete destina-
tion buttonSelect to delete destinations.
Speed limit iconIndicates the speed limit on the current road. The
display of the speed limit icon can be set to on/off.198
*ClockDisplays the clock.
*: The clock is not displayed on the navigation system screen fo r this vehicle.
The clock is displayed on the meter.
No.NameFunctionPage
INFORMATION
● When the vehicle is not receiving GPS signals, such as when dri ving in a tunnel,
will be displayed at the bottom left corner of the screen.

194
1. BASIC OPERATION
MIRAI_Navi_USA_OM62055U_19MY
2. MAP SCREEN OPERATION
1Press the “MAP” button.
2Check that the current position map is
displayed.
1Select or to change the scale
of the map screen.
The scale indicator bar appears at the bot-
tom of the screen.
 Select and hold or to continue
changing the scale of the map screen.
 The scale of the map screen can also be
changed by selecting the scale bar
directly. This function is not available while
driving.
 Pinch outward on the screen to zoom in
and pinch inward to zoom out.
 In areas where the micro city map is avail-
able the map scale changes from to
when at the minimum range.
CURRENT POSITION
DISPLAY
To correct the current position manu-
ally:
P.241
INFORMATION
●While driving, the current position mark
is fixed on the screen and the map
moves.
● The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle
receives signals from the GPS.
● After the battery disconnection, or on a
new vehicle, the current position may
not be correct. As soon as the system
receives signals from the GPS, the cor-
rect current position is displayed.
MAP SCALE

195
1. BASIC OPERATION
NAVIGATION SYSTEM
8
MIRAI_Navi_USA_OM62055U_19MY
1Select on the map screen.
2Check that the micro city map is dis-
played.
To return to the normal map display, select
.
 If the map or the current position is moved
to the area which is not covered by the
micro city map, the screen scale automati-
cally changes to 150 ft. (50 m).
 On the micro city map, a one way street is
displayed by .
 Scrolling the micro city map is not avail-
able while driving.
: North-up symbol
Regardless of the direction of vehicle trav-
el, north is always up.
: Heading-up symbol
The direction of vehicle travel is always up.
: 3D Heading-up symbol
The direction of vehicle travel is always up.
 The letter(s) under this symbol indicate
the vehicle’s heading direction (e.g. N for
north).
MICRO CITY MAP
For areas covered by the micro city
map (some major cities), a micro city
map on a scale of 75 ft. (25 m) can be
selected.
When the map is scaled down to 150 ft.
(50 m), changes to and
can be selected to display the micro
city map.
Building micro cities in the database
were created and provided by HERE.ORIENTATION OF THE MAP
The orientation of the map can be
changed between 2D north-up, 2D
heading-up and 3D heading-up by se-
lecting the orientation symbol dis-
played at the top left of the screen.

196
1. BASIC OPERATION
MIRAI_Navi_USA_OM62055U_19MY
The map screen can be scrolled by touch-
ing, dragging or flicking it. ( P. 3 1 )
 Press the “MAP” button to return to the
current position.
1Select one of the 8 directional arrows
to move the cursor to the desired point
and then select “OK”.
MAP SCROLL OPERATION
The map can be scrolled to view loca-
tions that are different than your cur-
rent position.
No.Information/Function
Cursor mark
Distance from the current position to
the cursor mark.
Select to register as a memory point.
To change the icon, name, etc.:
P.234
Select to set as a destina-
tion.( P.216)
ADJUSTING LOCATION IN
SMALL INCREMENTS
The cursor location can be adjusted in
small increments. 8 directional arrows
may appear in the following cases.
• When “Adjust Location” is selected
on the map screen
• When changing the location of memory
points on the editing screen
( P.236, 238)
• When adjusting the current position mark manually on the calibration
screen ( P.242)

197
1. BASIC OPERATION
NAVIGATION SYSTEM
8
MIRAI_Navi_USA_OM62055U_19MY
1Place the cursor over an icon.
2Select “Info”.
The information screen will be displayed.
“Save”: Select to register as a memory
point.To change the icon, name, etc.
( P.234)
“Go”/“Enter” : Select to set as a destina-
tion.
: Select to call the registered
number.
“Delete” : Select to delete destination or
memory point.
“Edit” : Select to display the edit memory
point screen.
DISPLAYING INFORMATION
ABOUT THE ICON WHERE
THE CURSOR IS SET
When the cursor is placed over an icon
on the map screen, the name is dis-
played at the top of the screen. If “In-
fo” is shown to the right of the name,
detailed information can be displayed.
STANDARD MAP ICONS
IconName
Park
Business facility
Airport
Military
University
Hospital
Stadium
Shopping mall
Golf

198
1. BASIC OPERATION
MIRAI_Navi_USA_OM62055U_19MY
3. MAP OPTIONS OPERATION
1Select on the map screen.
(P.192)
2Select the desired items to be dis-
played.
To hide the map options screen, touch any
part of the map screen.
1Select on the map screen.
( P.192)
2Select “Map Mode” .
3Select the desired configuration but-
ton.
Depending on the conditions, certain
screen configuration buttons cannot be
selected.
Information such as POI icons, route
trace, speed limit, etc. can be dis-
played on the map screen.
No.FunctionPage
Select to display the de-
sired map mode.198
Select to select or
change POI icons.200
Select to display speed
limit icon.
*Select to display traffic
information.205
Select to display route
trace.201
Select to display the
map version and cover-
age area.251
*: This function is not available in some countries and areas.
SWITCHING THE MAP MODE
No.FunctionPage
Select to display the single
map screen. 
Select to display the dual
map screen.199
Select to display the com-
pass mode screen.199
Select to display the turn list
screen.225
Select to display the free-
way exit list screen.223
Select to display the inter-
section guidance screen or
the guidance screen on the
freeway.
225
Select to display the turn-
by-turn arrow screen.226

199
1. BASIC OPERATION
NAVIGATION SYSTEM
8
MIRAI_Navi_USA_OM62055U_19MY
1Select any point on the right side map.
2Select the desired item.
3Select “OK”.
DUAL MAP
The map on the left is the main map.
The right side map can be edited.
No.FunctionPage
Select to change the orien-
tation of the map.195
Select to display POI
icons.200
*Select to show traffic infor-
mation. 202
Select to change the map
scale.194
*: This function is not available in some countries and areas.
COMPASS
Information about the destination, cur-
rent position and a compass are dis-
played on the screen.
INFORMATION
● The destination mark is displayed in the
direction of the destination. When driv-
ing, refer to the longitude and latitude
coordinates, and the compass, to make
sure that the vehicle is headed in the
direction of the destination.
● When the vehicle travels out of the cov-
erage area, the guidance screen
changes to the whole compass mode
screen.

200
1. BASIC OPERATION
MIRAI_Navi_USA_OM62055U_19MY
1Select on the map screen.
(P.192)
2Select “POI Icons” .
3Select the desired POI category and
select “OK”.
1Select “Other POIs” .
2Select the desired POI categories and
select “OK”.
“List All Categories” : Select to display all
POI categories.
1Select “Around Me” .
2Select the desired POI.
“Sort/Search Area” : Select to sort (dis-
tance, name, category) POIs or search ar-
ea.
 Select “Near Here” to search for POIs
near the current position.
 Select “Along My Route” to search for
POIs along the route.
3Check that the selected POI is dis-
played on the map screen.
SELECTING THE POI ICONS
No.Information/FunctionPage
Displays up to 5 selected
POI icons on the map
screen

Select to cancel the select-
ed POI icons.
Displays up to 6 POI icons
as favorite POI categories.
If a POI category is select-
ed to be displayed on the
map, its icon will be dis-
played above.
241
Select to display other POI
categories if the desired
POIs cannot be found on
the screen.
200
Select to search for the
nearest POIs.200
SELECTING OTHER POI ICONS
TO BE DISPLAYED
DISPLAYING THE LOCAL POI
LIST
POIs that are within 20 miles (32 km) of
the current position will be listed from
among the selected categories.
