TOYOTA MIRAI 2021 Accessories, Audio & Navigation (in English)

712-4. Other settings
2
Basic function
When valet mode activates,
the system stops and a secu-
rity code (4-digit number)
standby screen is displayed.
●If the 4-digit personal code is for-
gotten, please contact your Toyota
dealer.
1 Enter the 4-digit personal
code and select “OK”.
●If an incorrect security code (4-
digit number) is entered 6 times,
the system will not accept another
security code (4-digit number) for
10 minutes.
*: 8-inch display model only. This
function is not made available in
some countries or areas.
Dealer information can be regis-
tered in the system. If the vehi-
cle alert screen is displayed,
selecting the call dealer button
on the screen will call the phone
number registered in the dealer
information.
1 Display the vehicle settings
screen. ( P.68)
2 Select “Dealer Info”. 3
Select the desired items to
be edited.
Select to enter the name of a
dealer. ( P.71)
Select to enter the name of a
dealer member. ( P.71)
Select to enter the phone
number. ( P.71)
Select to delete the dealer
information displayed on the
screen.
1 Select “Edit” next to “Dealer”
or “Contact”.
2 Enter the name and select
“OK”.
1 Select “Edit” next to “Phone
#”.
2 Enter the phone number and
select “OK”.
If the valet mode has been
activated
Setting dealer informa-
tion*
Editing dealer or contact
name
Editing phone number
A
B
C
D

722-4. Other settings

73
3
3
Navigation system
Navigation system
3-1. Basic operationNavigation ...................... 74
Map screen operation .... 76
Map screen information . 78
Traffic information .......... 84
3-2. Destination search Destination search opera-tion ............................... 87
Starting route guidance .. 94
3-3. Route guidance Route guidance screen .. 98
Typical voice guidance prompts ..................... 102
Editing route ................ 102
3-4. Setup Navigation settings...... 105
Detailed navigation settings .................................. 109
Traffic settings ............. 113
Use of information accumu- lated by navigation system
.................................. 118
3-5. Tips for operating the nav- igation system
GPS (Global Positioning System) ..................... 119
Map database version and covered area ............. 121

743-1. Basic operation
3-1.Basic operation
*: 12.3-inch display model
2D north up, 2D heading up or 3D heading up symbol (P. 7 7 )
Indicates whether the map orientation is set to north-up or hea d-
ing-up. The letter(s) under this symbol indicate the vehicle’s
heading direction (e.g. N for north). In 3D map, only a heading-up
view is available.
Destination button ( P. 8 7 )
Select to display the destination screen.
Map options button ( P.78)
Select to display the map options screen.
Route options button ( P.102)
Select to display the route options screen.
Mute button

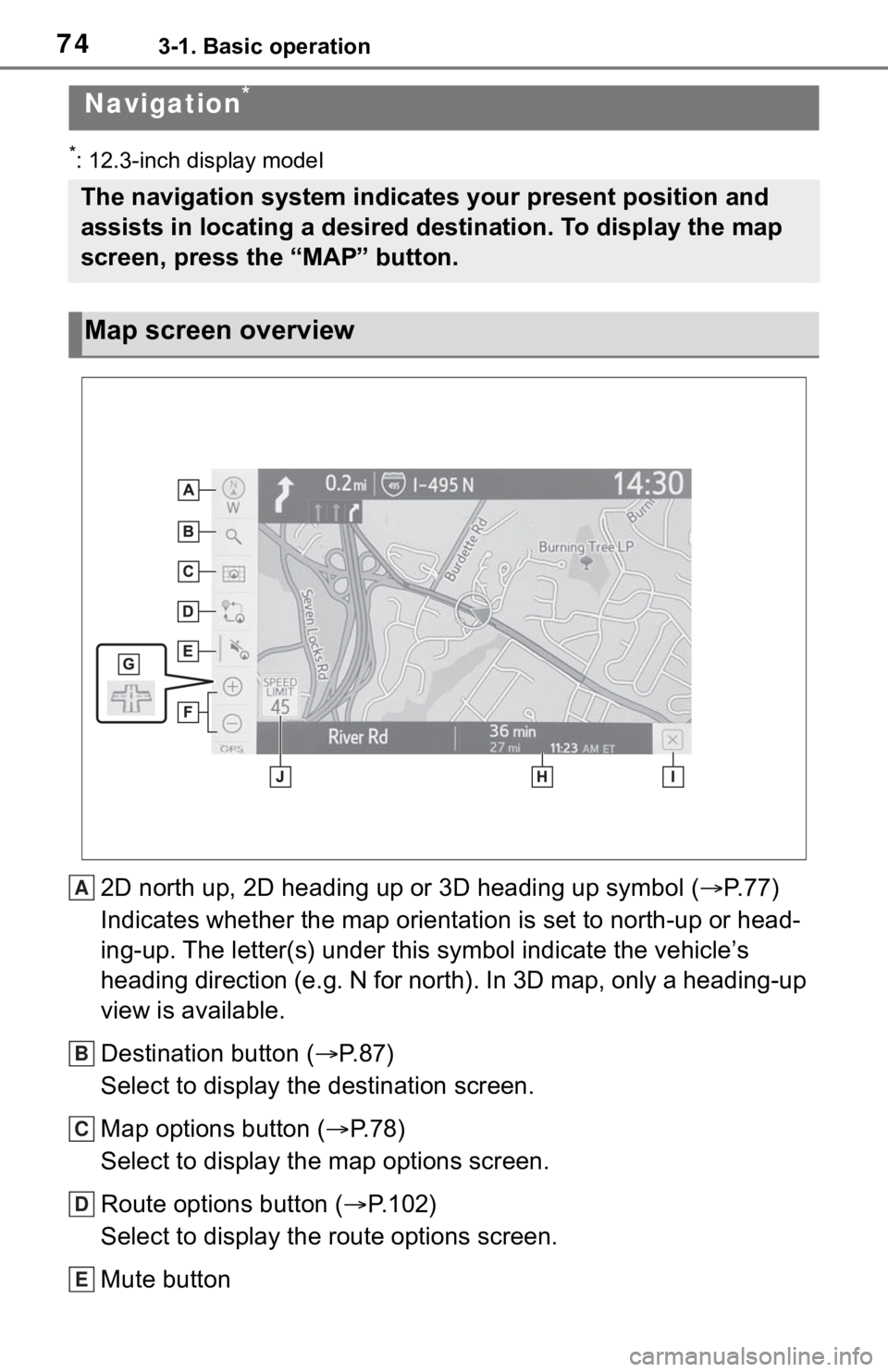

Navigation*
The navigation system indicates your present position and
assists in locating a desired destination. To display the map
screen, press the “MAP” button.
Map screen overview
A
B
C
D
E

753-1. Basic operation
3
Navigation system
Select to mute the voice guidance. When set to on, the indicator
will illuminate.
Zoom in/out button ( P. 7 6 )
Select to magnify or reduce the map scale. When either button i s
selected, the map scale indicator bar appears at the bottom of the
screen.
Micro city map button ( P. 7 6 )
Select to display the micro city map screen.
Route information bar ( P.98)
Displays the distance with the estimated travel time/arrival time to
the destination. The route information bar fills from left to r ight as
the vehicle progresses on the route.
Delete destination button ( P.21)
Select to delete destinations.
Speed limit icon ( P.78)
Indicates the speed limit on the current road. The display of t he
speed limit icon can be set to on/off.
●When the vehicle is no t receiving GPS signals, such as when dri ving in a
tunnel, will be displayed at the bottom l eft corner of the screen.
●Press the “MAP” button to display the address of the current position on
the map screen or r epeat voice guidance.
F
G
H
I
J

763-1. Basic operation
1Press the “MAP” button.
2 Check that the current posi-
tion map is displayed.
 To correct the current posi-
tion manually:  P. 1 1 1
●While driving, the cu rrent position
mark is fixed on the screen and
the map moves.
●The current position is automati-
cally set as the vehicle receives
signals from the GPS (Global
Positioning System). If the current
position is not correct, it is auto-
matically corrected after the vehi-
cle receives signals from the GPS.
●After the 12-volt battery discon-
nection, or on a new vehicle, the
current position may not be cor-
rect. As soon as the navigation
system receives signals from the
GPS, the correct c urrent position
is displayed.
1 Select or to change
the scale of the map screen.
●The scale indicator bar appears at
the bottom of the screen.
●Select and hold or to con-
tinue changing the scale of the
map screen.
●The scale of the map screen can
also be changed by selecting the
scale bar directly. This function is
not available while driving.
●Pinch outward on the screen to
zoom in and pinch inward to zoom
out.
●In areas where a micro city map is
available, will change to
when the map screen is set to the
smallest scale.
For areas covered by the micro
city map (some major cities), a
micro city map on a scale of 75
ft. (25 m) can be selected.
When the map is scaled down to
150 ft. (50 m), changes to
and can be selected to dis-
play the micro city map.
Map screen operation
Current position display
Map scale
Micro city map

773-1. Basic operation
3
Navigation system
1Select on the map
screen.
2 Check that the micro city
map is displayed.
●To return to the normal map dis-
play, select .
●If the map or the c urrent position
is moved to the are a which is not
covered by the micro city map, the
screen scale automatically
changes to 150 ft. (50 m).
●On the micro city map, a one way
street is displayed by .
●Scrolling the micro city map is not
available while driving.
●Certification
Building micro cities in the database
were created and provided by
HERE.
The orientation of the map can
be changed between 2D north-
up, 2D heading-up and 3D
heading-up by selecting the ori-
entation symbol displayed at the
top left of the screen.
: North-up symbol
Regardless of the direction of
vehicle travel, north is always up.
: Heading-up symbol
The direction of vehicle travel is
always up.
: 3D Heading-up symbol
The direction of vehicle travel is
always up.
 The letter(s) under this sym-
bol indicate the vehicle’s
heading direction (e.g. N for
north).
The map can be scrolled to view
locations that are different than
your current position.
1 Select the desired point on
the map screen.
 Move the desired point on the
center of the map screen.
Cursor mark
Distance from the current
position to the cursor mark
Select to set as a destination.
( P.94)
Select to register as a mem-
ory point. To change the icon,
name, etc.:  P.105
Orientation of the map
Map scroll operation
A
B
C
D

783-1. Basic operation
●The map screen can be scrolled
by touching, dragging or flicking it.
( P. 2 7 )
●Press the “MAP” button to return
to the current position.
1 Select on the map
screen. ( P. 7 4 )
2 Select the desired items to
be displayed.
Select to display the desired
map mode. ( P.79)
Select to select or change
POI icons. ( P.79)
Select to display speed limit
icon.
Map screen informa-
tion
Information such as POI
icons, route trace, speed
limit, etc. can be displayed
on the map screen.
Displaying the map
options screen
A
B
C

793-1. Basic operation
3
Navigation system
Select to display traffic infor-
mation.
* ( P.84)
Select to display the predic-
tive efficient drive icons.
*
( P. 8 1 )
Select to display route trace.
( P. 8 2 )
Select to display the map
version and coverage area.
( P.121)
*: This function is not made avail-
able in some countries or areas.
1 Select on the map
screen. ( P.74)
2 Select “Map Mode”.
3 Select the desired configura-
tion button.
Select to display the single
map screen.
Select to display the dual
map screen. ( P.79)
Select to display the com-
pass mode screen. ( P. 8 0 )
Select to display the turn list screen. (
P.101)
Select to display the freeway
exit list screen. ( P.99)
Select to display the intersec-
tion guidance screen or the
guidance screen on the free-
way. ( P.100)
Select to display the turn-by-
turn arrow screen. ( P.101)
 Depending on the conditions,
certain screen configuration
buttons cannot be selected.
The map on the left is the main
map. The right side map can be
edited.
1 Select any point on the right
side map.
2 Select the desired item.
Select to change the orienta-
Switching the map mode
D
E
F
G
A
B
C
D
'XDOPDS
E
F
G
A

803-1. Basic operation
tion of the map. (P. 7 7 )
Select to display POI icons.
( P. 8 0 )
Select to show traffic infor-
mation.
* (  P.84)
Select to change the map
scale. ( P.76)
*: This function is not made avail-
able in some countries or areas.
3 Select “OK”.
Information about the destina-
tion, current position and a com-
pass are displayed on the
screen.
●The destination mark is displayed
in the direction of the destination.
When driving, refer to the longi-
tude and latitude coordinates, and
the compass, to make sure that
the vehicle is headed in the direc-
tion of the destination.
●When the vehicle travels out of
the coverage area, the guidance
screen changes to the whole com-
pass mode screen.
1 Select on the map
screen. ( P.74)
2 Select “POI Icons”. 3
Select the desired POI cate-
gory and select “OK”.
Displays up to 5 selected POI
icons on the map screen.
Select to cancel the selected
POI icons.
Displays up to 6 POI icons as
favorite POI categories.
( P.111) If a POI category is
selected to be displayed on
the map, its icon will be dis-
played above.
Select to display other POI
categories if the desired POIs
cannot be found on the
screen.
Select to search for the near-
est POIs. ( P.81)
1 Select “Other POIs”.
2 Select the desired POI cate-
gories and select “OK”.
“List All Categories”: Select to
display all POI categories.
Compass
Selecting the POI icons
B
C
D
6HOHFWLQJRWKHU32,LFRQVWR
EHGLVSOD\HG
A
B
C
D
E
