TOYOTA MIRAI 2021 (in English) User Guide

9
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

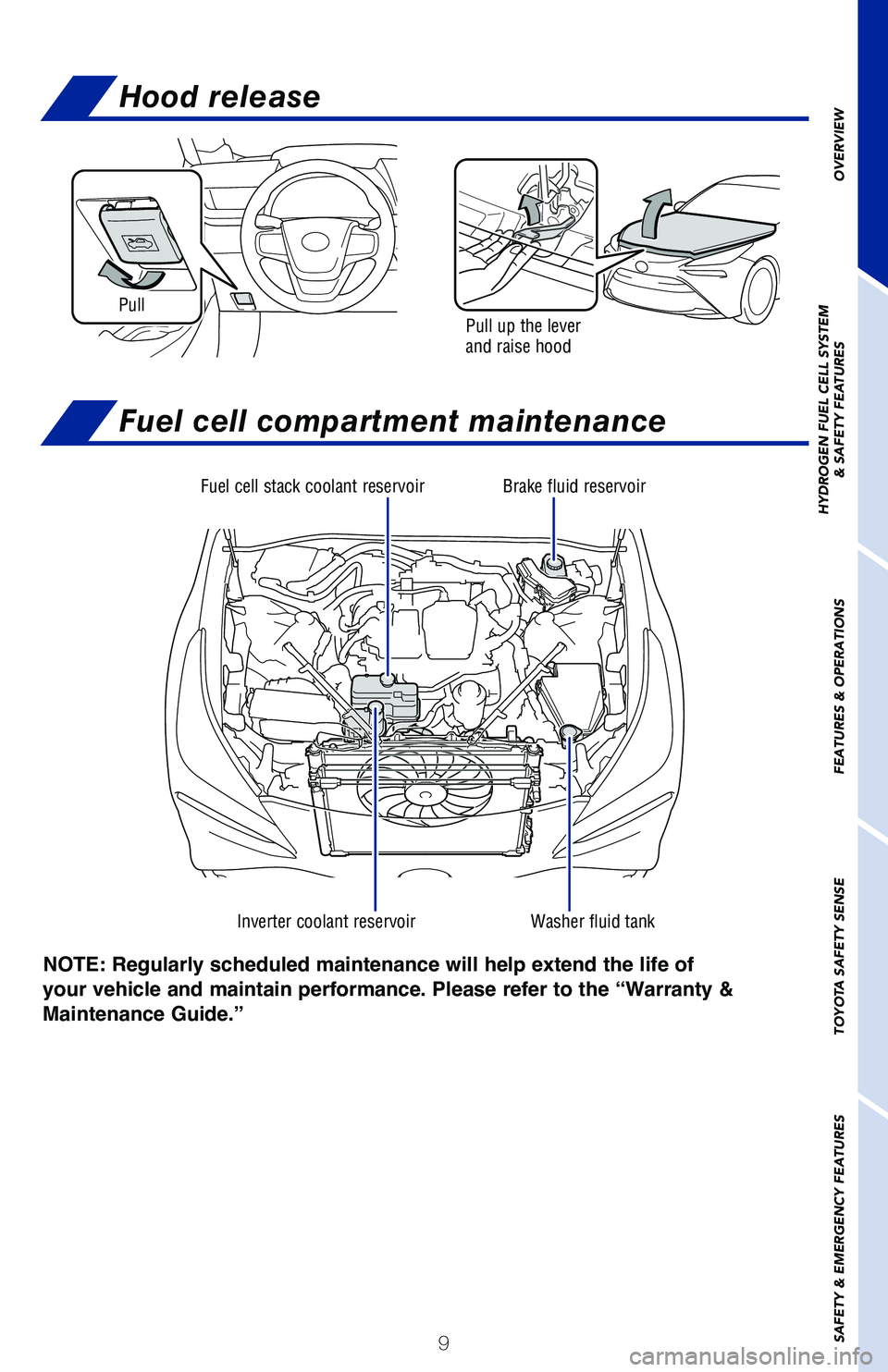

Hood release
Fuel cell compartment maintenance
Pull up the lever
and raise hoodPull
Fuel cell stack coolant reservoir
Inverter coolant reservoir Brake fluid reservoir
Washer fluid tank
NOTE: Regularly scheduled maintenance will help extend the life of
your vehicle and maintain performance. Please refer to the “Warranty &
Maintenance Guide.”

10

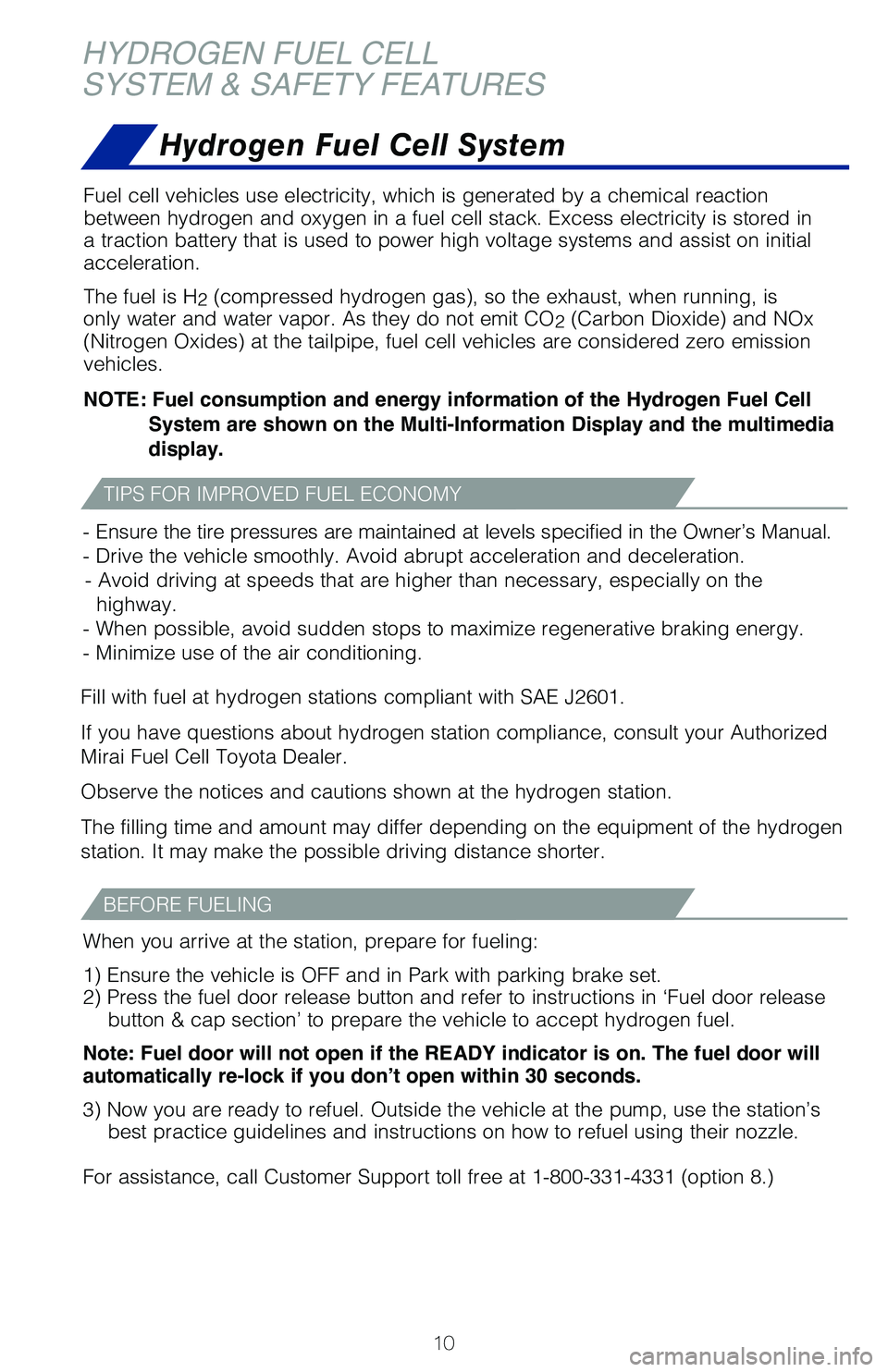

Fuel cell vehicles use electricity, which is generated by a chemical rea\
ction
between hydrogen and oxygen in a fuel cell stack. Excess electricity is \
stored in
a traction battery that is used to power high voltage systems and assist\
on initial
acceleration.
The fuel is H
2 (compressed hydrogen gas), so the exhaust, when running, is
only water and water vapor. As they do not emit CO
2 (Carbon Dioxide) and NOx
(Nitrogen Oxides) at the tailpipe, fuel cell vehicles are considered z\
ero emission
vehicles.
NOTE: Fuel consumption and energy information of the Hydrogen Fuel Cell
System are shown on the Multi-Information Display and the multimedia
display.
Fill with fuel at hydrogen stations compliant with SAE J2601.
If you have questions about hydrogen station compliance, consult your Au\
thorized
Mirai Fuel Cell Toyota Dealer.
Observe the notices and cautions shown at the hydrogen station.
The filling time and amount may differ depending on the equipment of the\
hydrogen
station. It may make the possible driving distance shorter. -
Ensure the tire pressures are maintained at levels specified in the Owne\
r’s Manual.
- Drive the vehicle smoothly. Avoid abrupt acceleration and deceleration\
. - Avoid driving at speeds that are higher than necessary, especially on \
the highway.
- When possible, avoid sudden stops to maximize regenerative braking ene\
rgy.
- Minimize use of the air conditioning.
When you arrive at the station, prepare for fueling:
1) Ensure the vehicle is OFF and in Park with parking brake set.
2) Press the fuel door release button and refer to instructions in ‘\
Fuel door release button & cap section’ to prepare the vehicle to accept hydrogen fuel.\
Note: Fuel door will not open if the READY indicator is on. The fuel door will
automatically re-lock if you don’t open within 30 seconds.
3) Now you are ready to refuel. Outside the vehicle at the pump, use th\
e station’s best practice guidelines and instructions on how to refuel using their n\
ozzle.
For assistance, call Customer Support toll free at 1-800-331-4331 (opti\
on 8.)
HYDROGEN FUEL CELL
SYSTEM & SAFETY FEATURES Hydrogen Fuel Cell System
TIPS FOR IMPROVED FUEL ECONOMY
BEFORE FUELING

11
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

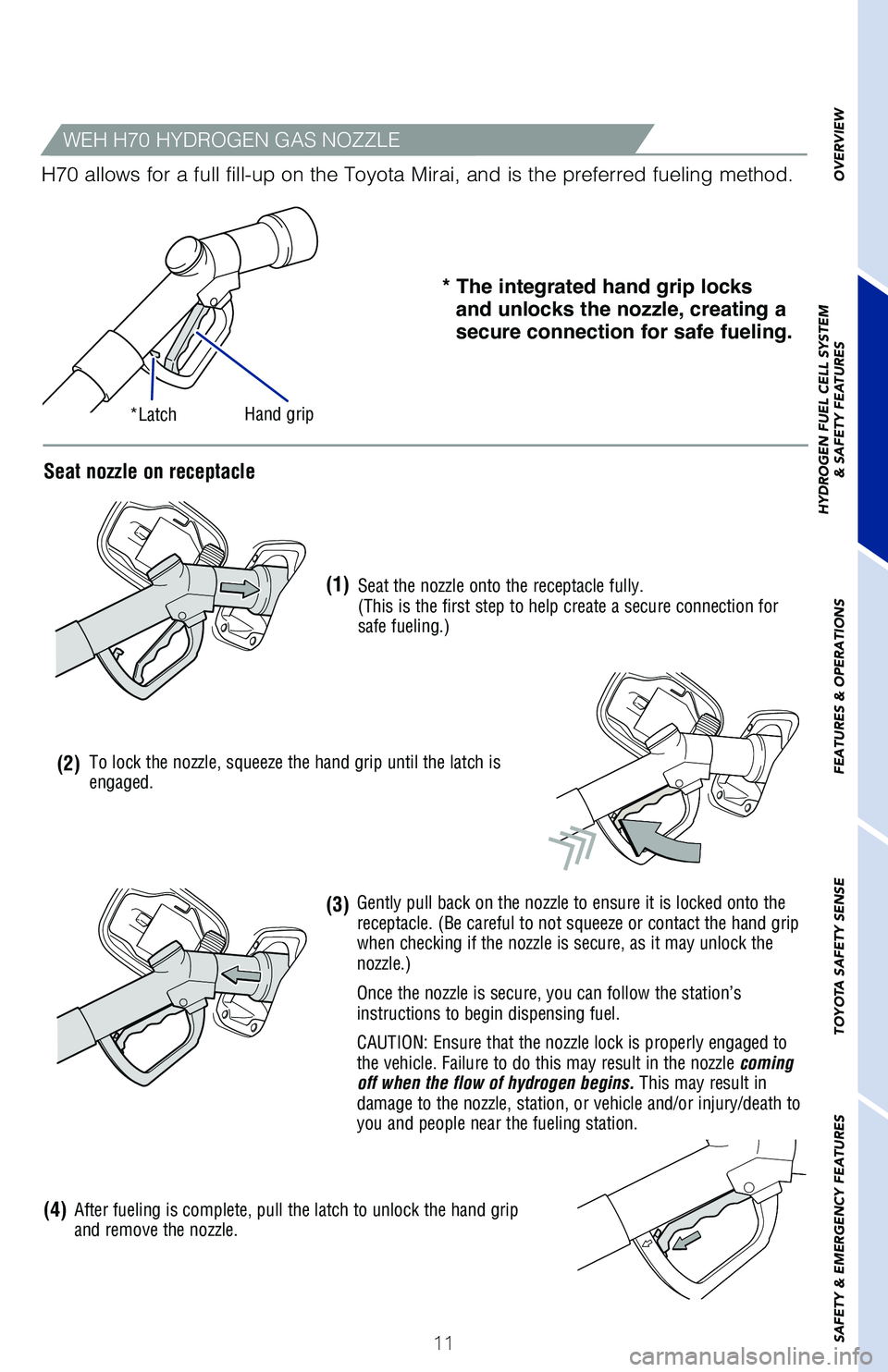

* The integrated hand grip locks
and unlocks the nozzle, creating a
secure connection for safe fueling.
Once the nozzle is secure, you can follow the station’s
instructions to begin dispensing fuel.
CAUTION: Ensure that the nozzle lock is properly engaged to
the vehicle. Failure to do this may result in the nozzle coming
off when the flow of hydrogen begins. This may result in
damage to the nozzle, station, or vehicle and/or injury/death to
you and people near the fueling station.
Seat the nozzle onto the receptacle fully.
(This is the first step to help create a secure connection for
safe fueling.)(1)
After fueling is complete, pull the latch to unlock the hand grip
and remove the nozzle.(4)
To lock the nozzle, squeeze the hand grip until the latch is
engaged.(2)
Gently pull back on the nozzle to ensure it is locked onto the
receptacle. (Be careful to not squeeze or contact the hand grip
when checking if the nozzle is secure, as it may unlock the
nozzle.)(3)
H70 allows for a full fill-up on the Toyota Mirai, and is the preferred \
fueling method.
*LatchHand grip
Seat nozzle on receptacle
WEH H70 HYDROGEN GAS NOZZLE

12
HYDROGEN FUEL CELL
SYSTEM & SAFETY FEATURES

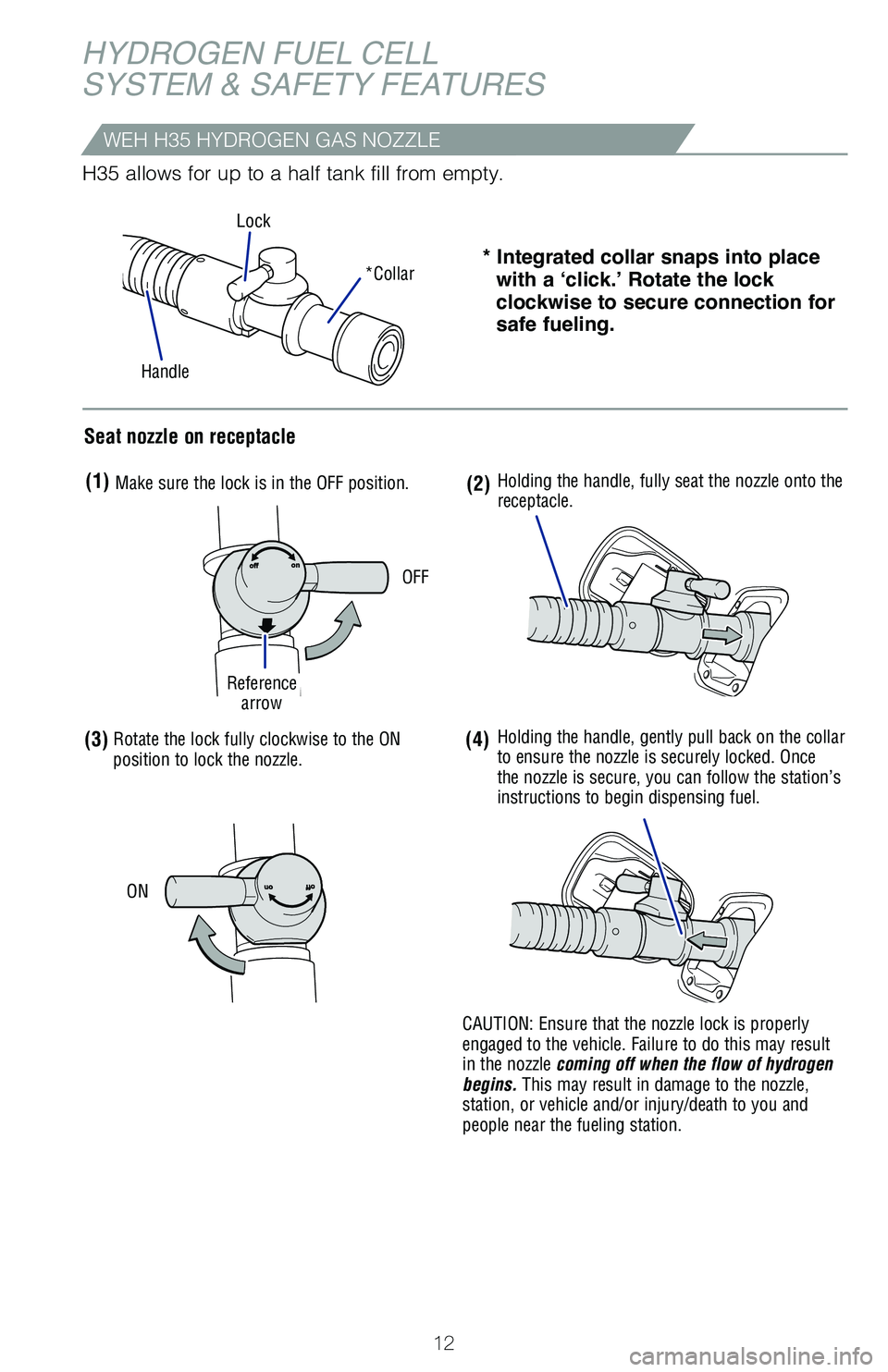

* Integrated collar snaps into place with a ‘click.’ Rotate the lock
clockwise to secure connection for
safe fueling.*Collar
OFF
ON
Lock
Seat nozzle on receptacle
Handle
H35 allows for up to a half tank fill from empty.
CAUTION: Ensure that the nozzle lock is properly
engaged to the vehicle. Failure to do this may result
in the nozzle coming off when the flow of hydrogen
begins. This may result in damage to the nozzle,
station, or vehicle and/or injury/death to you and
people near the fueling station.
Reference
arrow Holding the handle, fully seat the nozzle onto the
receptacle.
Holding the handle, gently pull back on the collar
to ensure the nozzle is securely locked. Once
the nozzle is secure, you can follow the station’s
instructions to begin dispensing fuel.
Make sure the lock is in the OFF position.
Rotate the lock fully clockwise to the ON
position to lock the nozzle.
(1)
(3)
(2)
(4)
WEH H35 HYDROGEN GAS NOZZLE

13
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

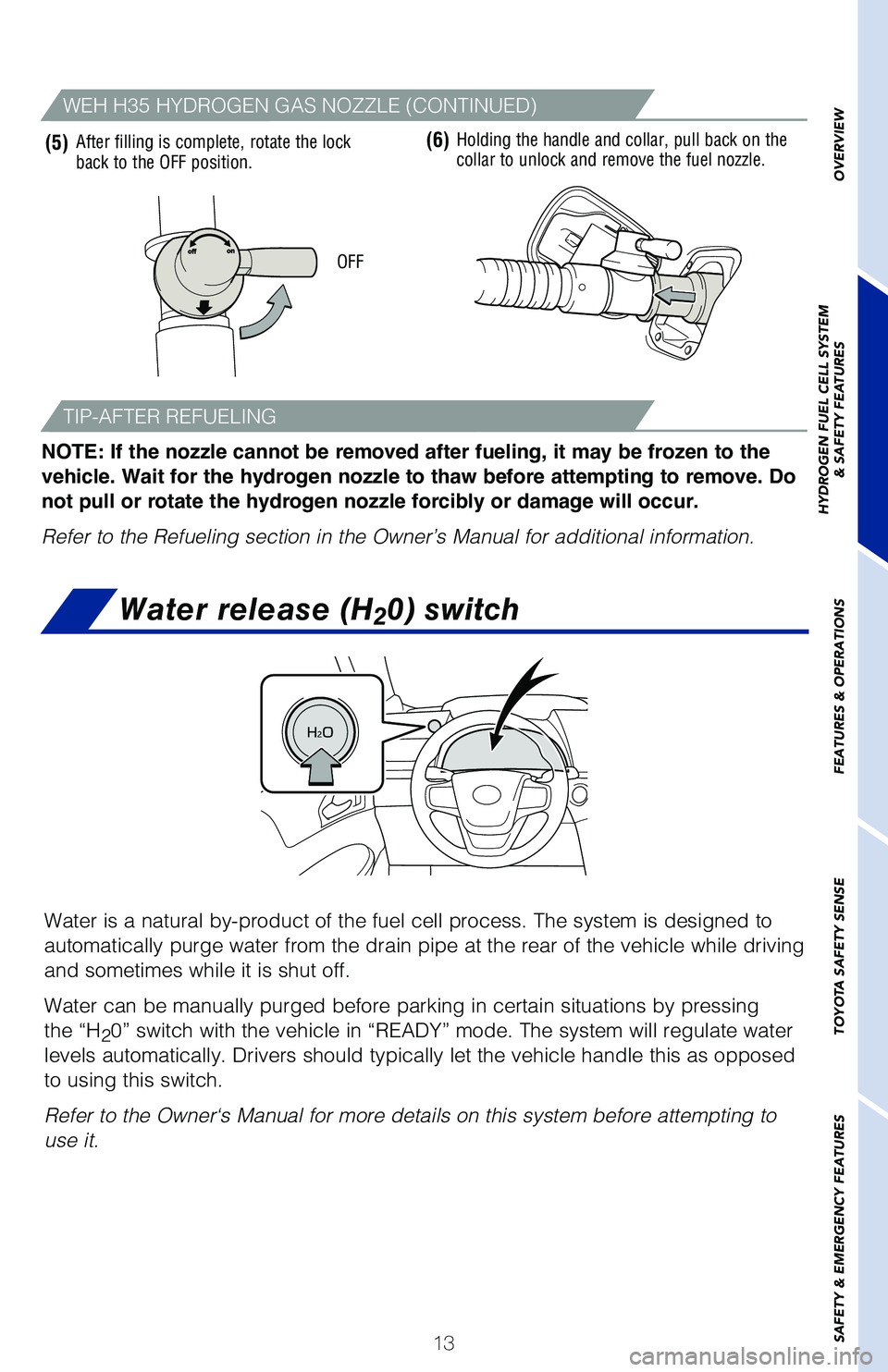

Water is a natural by-product of the fuel cell process. The system is de\
signed to
automatically purge water from the drain pipe at the rear of the vehicle\
while driving
and sometimes while it is shut off.
Water can be manually purged before parking in certain situations by pre\
ssing
the “H
20” switch with the vehicle in “READY” mode. The system will reg\
ulate water
levels automatically. Drivers should typically let the vehicle handle th\
is as opposed
to using this switch.
Refer to the Owner‘s Manual for more details on this system before attempting to
use it.
Water release (H20) switch
OFF Holding the handle and collar, pull back on the
collar to unlock and remove the fuel nozzle.
NOTE: If the nozzle cannot be removed after fueling, it may be frozen to the
vehicle. Wait for the hydrogen nozzle to thaw before attempting to remove. Do
not pull or rotate the hydrogen nozzle forcibly or damage will occur.
Refer to the Refueling section in the Owner’s Manual for additional i\
nformation.
After filling is complete, rotate the lock
back to the OFF position.(5)(6)
WEH H35 HYDROGEN GAS NOZZLE (CONTINUED)
TIP-AFTER REFUELING

14

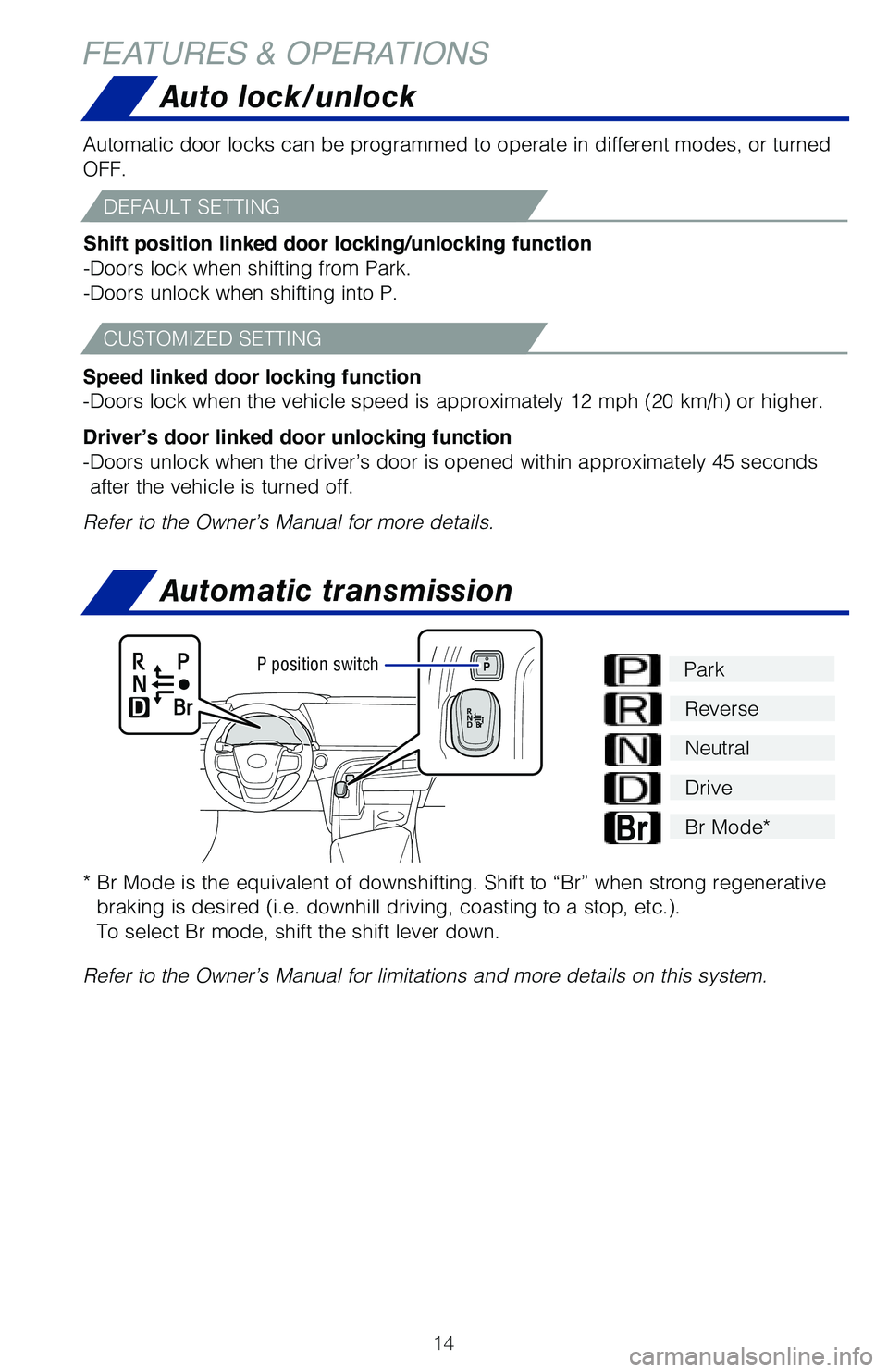

Auto lock/unlock
Automatic door locks can be programmed to operate in different modes, or\
turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into P.
Speed linked door locking function
-Doors lock when the vehicle speed is approximately 12 mph (20 km/h) o\
r higher.
Driver’s door linked door unlocking function
-Doors unlock when the driver’s door is opened within approximately 4\
5 seconds after the vehicle is turned off.
Refer to the Owner’s Manual for more details.
FEATURES & OPERATIONS
DEFAULT SETTING
CUSTOMIZED SETTING
Automatic transmission
* Br Mode is the equivalent of downshifting. Shift to “Br” when st\
rong regenerative braking is desired (i.e. downhill driving, coasting to a stop, etc.).
To select Br mode, shift the shift lever down.
Refer to the Owner’s Manual for limitations and more details on this system.
Park
Reverse
Neutral
Drive
Br Mode*
P position switch

15

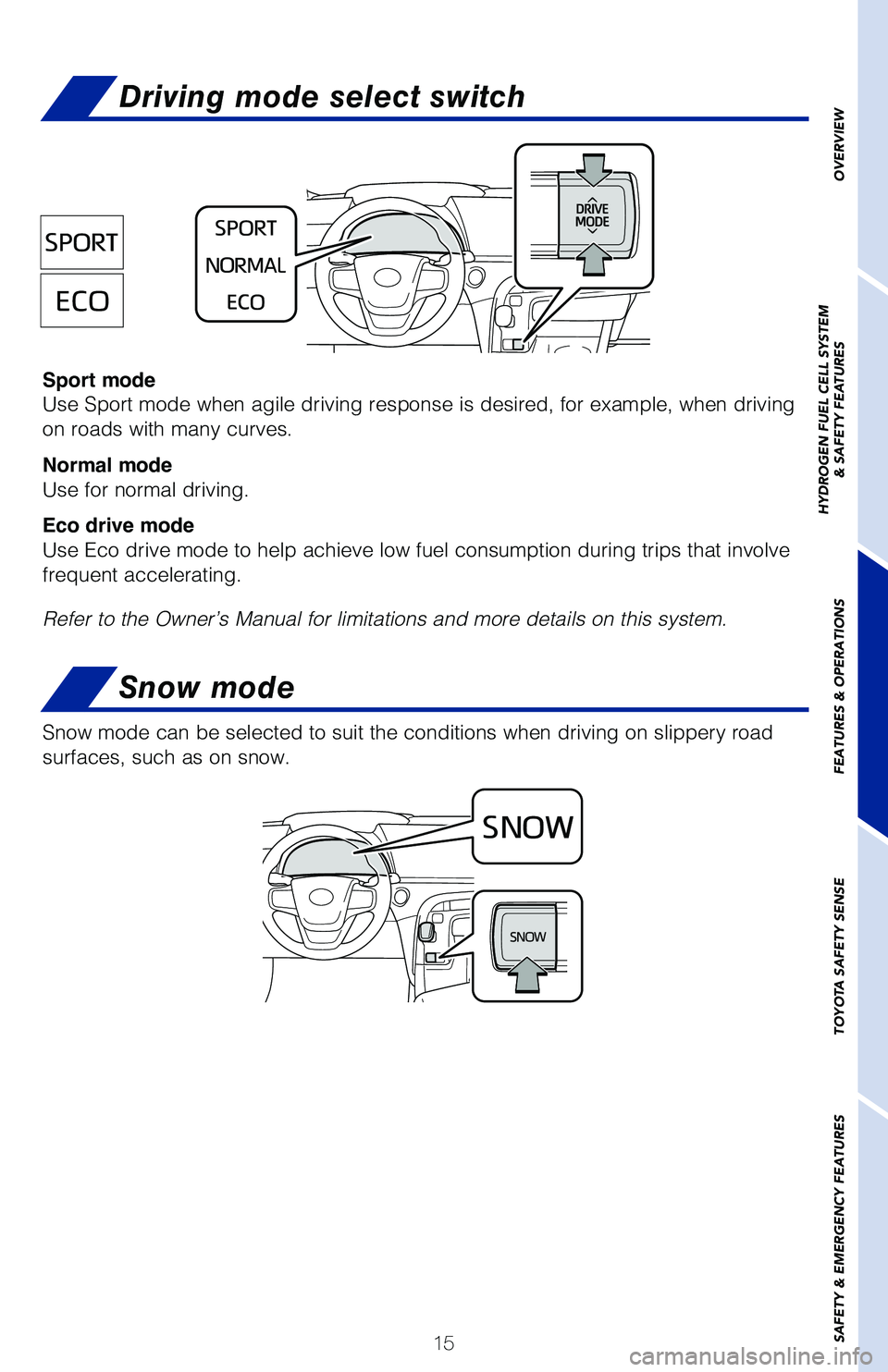

Driving mode select switch
Snow mode
Snow mode can be selected to suit the conditions when driving on slipper\
y road
surfaces, such as on snow.
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Sport mode
Use Sport mode when agile driving response is desired, for example, when\
driving
on roads with many curves.
Normal mode
Use for normal driving.
Eco drive mode
Use Eco drive mode to help achieve low fuel consumption during trips tha\
t involve
frequent accelerating.
Refer to the Owner’s Manual for limitations and more details on this system.

16

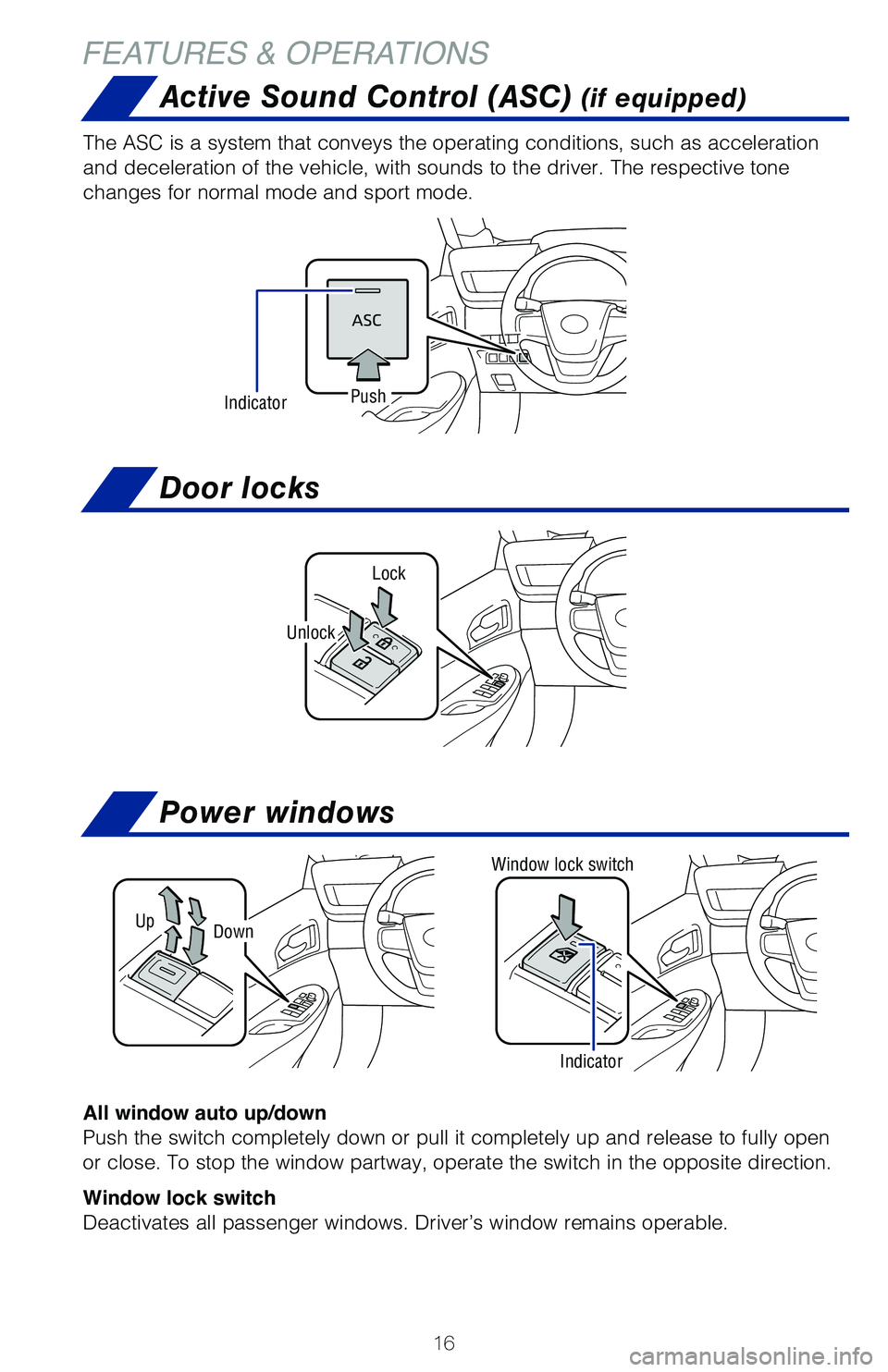

FEATURES & OPERATIONSActive Sound Control (ASC)
(if equipped)
The ASC is a system that conveys the operating conditions, such as accel\
eration
and deceleration of the vehicle, with sounds to the driver. The respecti\
ve tone
changes for normal mode and sport mode.
Push
Door locks
Unlock Lock
Power windows
Up
Window lock switch
All window auto up/down

Push the switch completely down or pull it completely up and release to \
fully open
or close. To stop the window partway, operate the switch in the opposite\
direction.
Window lock switch
Deactivates all passenger windows. Driver’s window remains operable. \
Down
Indicator
Indicator

17
OVERVIEW
HYDROGEN FUEL CELL SYSTEM
& SAFETY FEATURES
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

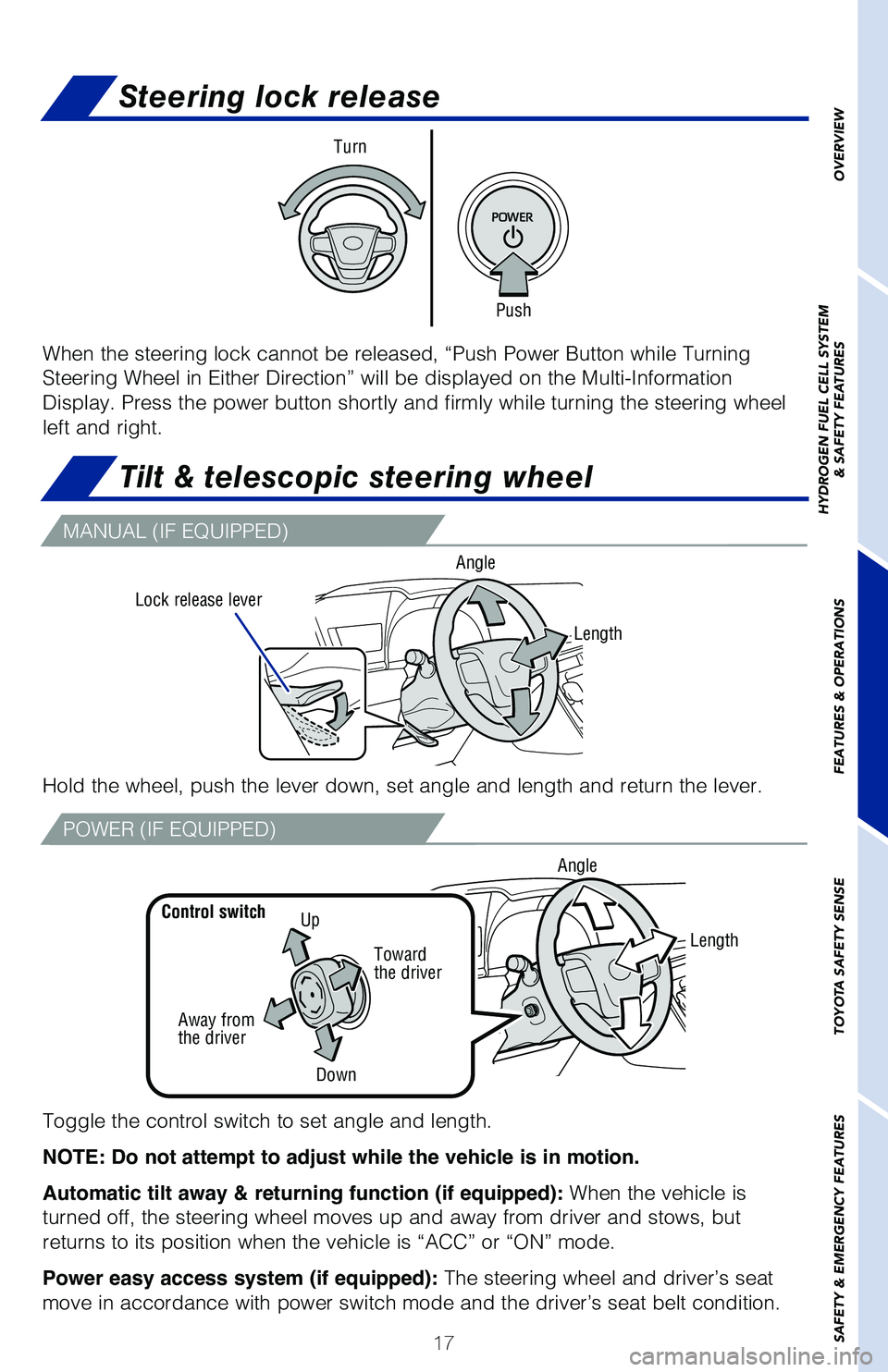

Turn
Push
Steering lock release
When the steering lock cannot be released, “Push Power Button while T\
urning
Steering Wheel in Either Direction” will be displayed on the Multi-In\
formation
Display. Press the power button shortly and firmly while turning the ste\
ering wheel
left and right.
MANUAL (IF EQUIPPED)
POWER (IF EQUIPPED)
Hold the wheel, push the lever down, set angle and length and return the\
lever.
Lock release lever Angle
Toggle the control switch to set angle and length.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Automatic tilt away & returning function (if equipped):
When the vehicle is
turned off, the steering wheel moves up and away from driver and stows, \
but
returns to its position when the vehicle is “ACC” or “ON” mo\
de.
Power easy access system (if equipped): The steering wheel and driver’s seat
move in accordance with power switch mode and the driver’s seat belt \
condition.
UpControl switch
Away from
the driver
Length
Toward
the driver
Down Angle
Length
Tilt & telescopic steering wheel

18

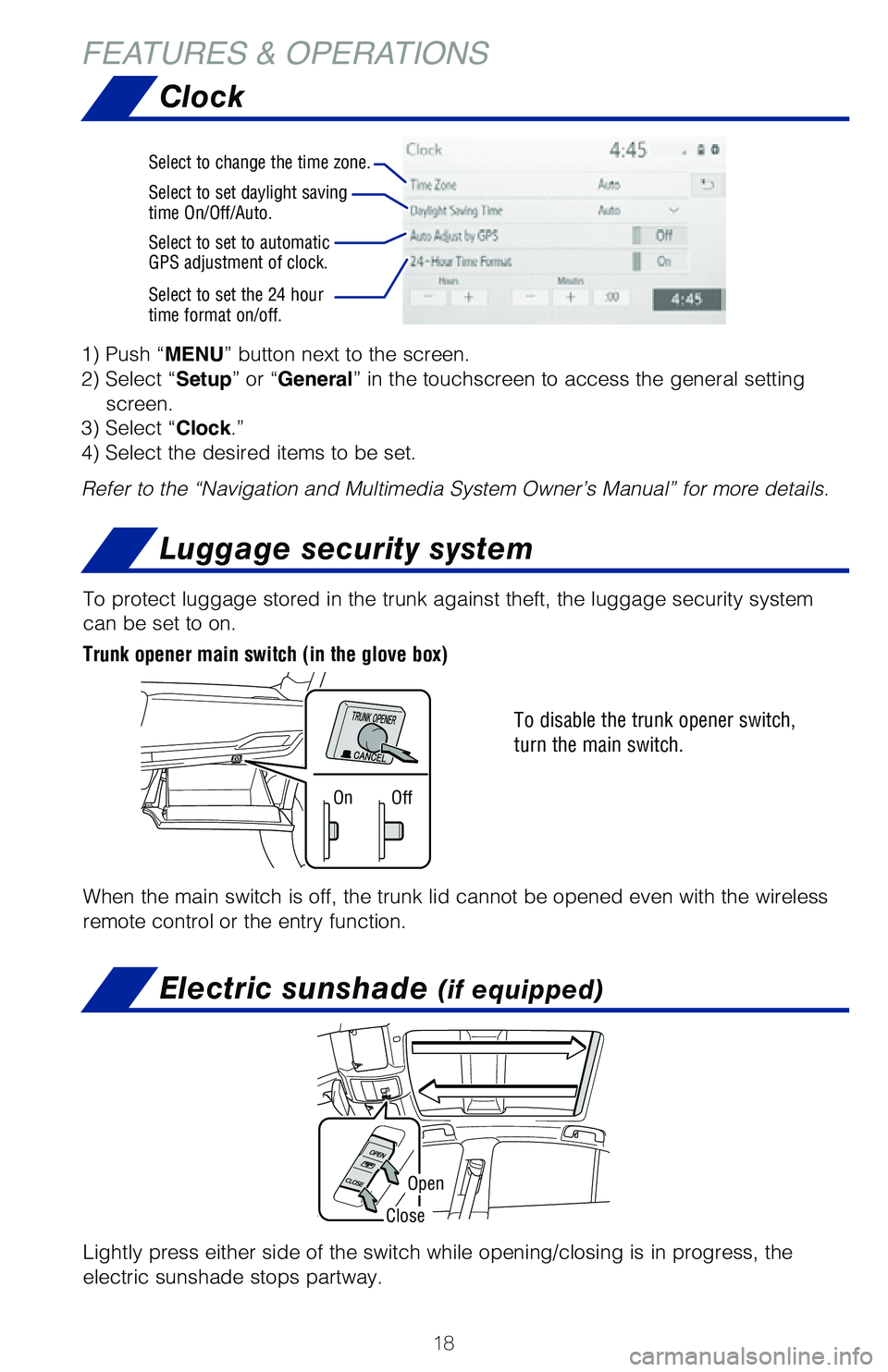

FEATURES & OPERATIONSLuggage security system
To disable the trunk opener switch,
turn the main switch.
To protect luggage stored in the trunk against theft, the luggage securi\
ty system
can be set to on.
When the main switch is off, the trunk lid cannot be opened even with th\
e wireless
remote control or the entry function.
On Off
Trunk opener main switch (in the glove box)
Clock
Electric sunshade (if equipped)
1) Push “MENU” button next to the screen.
2) Select “Setup” or “General” in the touchscreen to access the general setting screen.
3) Select “Clock.”
4) Select the desired items to be set.

Refer to the “Navigation and Multimedia System Owner’s Manual” \
for more details.
Select to change the time zone.
Select to set daylight saving
time On/Off/Auto.
Select to set to automatic
GPS adjustment of clock.
Select to set the 24 hour
time format on/off.
Lightly press either side of the switch while opening/closing is in prog\
ress, the
electric sunshade stops partway.
Open
Close
