Page 11 of 333
11
Your vehicle is equipped with push but-
ton start. The hybrid system will start
automatically by pressing the “POWER”
switch briefly with the brake pedal de-
pressed.

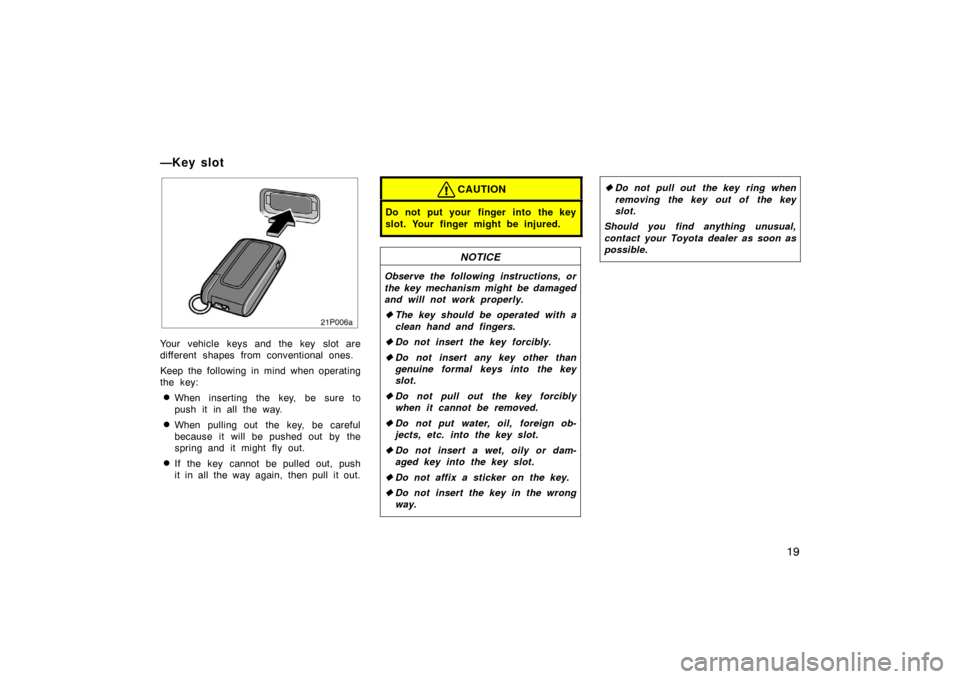

Without smart function1. Insert the key.
2. Press the “POWER” switch briefly with the brake pedal depressed.
With smart function
1. Carry the key with you.
2. Press the “POWER” switch briefly with the brake pedal depressed.
The “READY” light flashes and stays on.
A beep sounds after a few seconds, and
the hybrid system will start. (If the ambi-
ent temperature is low such as during
winter, it may take time until the “READY”
light comes on.) You cannot start your
vehicle when the brake pedal is not de-
pressed. (For details, see “How to start
the hybrid system—” on page 230.)
The engine may not start even with the
“READY” light on. Drive your vehicle with a smooth accel-
eration and deceleration.
While driving, energy is recovered
through the regenerative brake as the
vehicle decelerates. However, for more
efficient use, do not accelerate or de-
celerate your vehicle more than neces-
sary.
Avoid abrupt acceleration and decelera-
tion.
The remaining capacity of the hybrid
vehicle battery can be confirmed on
the energy monitor screen of the multi
−
information display. See “Information”
on page 150 for details. Gradual or
non− abrupt acceleration or deceleration
will more effectively use the benefits of
an electric motor without having to use
gasoline engine power. When parking, be sure to put the hy-
brid transaxle in “P”. While driving, use
the hybrid transaxle in “D”.
In “N”, the gasoline engine operates
but electricity cannot be generated. The
battery will be discharged requiring un-
necessary engine power to recharge.
The hybrid system automatically re-
charges the hybrid vehicle battery
when the remaining battery power is
reduced. However, the charging is not
available if the hybrid transaxle is “N”.
Starting your vehicle
For efficient use of your
vehicle
Page 12 of 333
12
INFORMATION:
The gasoline engine starts and stops
automatically. (It stops during a low
load driving, deceleration or when the
vehicle is stopped.)
If the “READY” light remains on, you
can start your vehicle using the electric
motor even with the gasoline engine
stopped.
The gasoline engine may not stop auto-
matically in the following conditions:
During gasoline engine warm up
During hybrid vehicle battery charg-
ing
During low or high hybrid vehicle
battery temperature The vehicle runs in combination with
the gasoline and electric power. Pay
special attention to the following items.

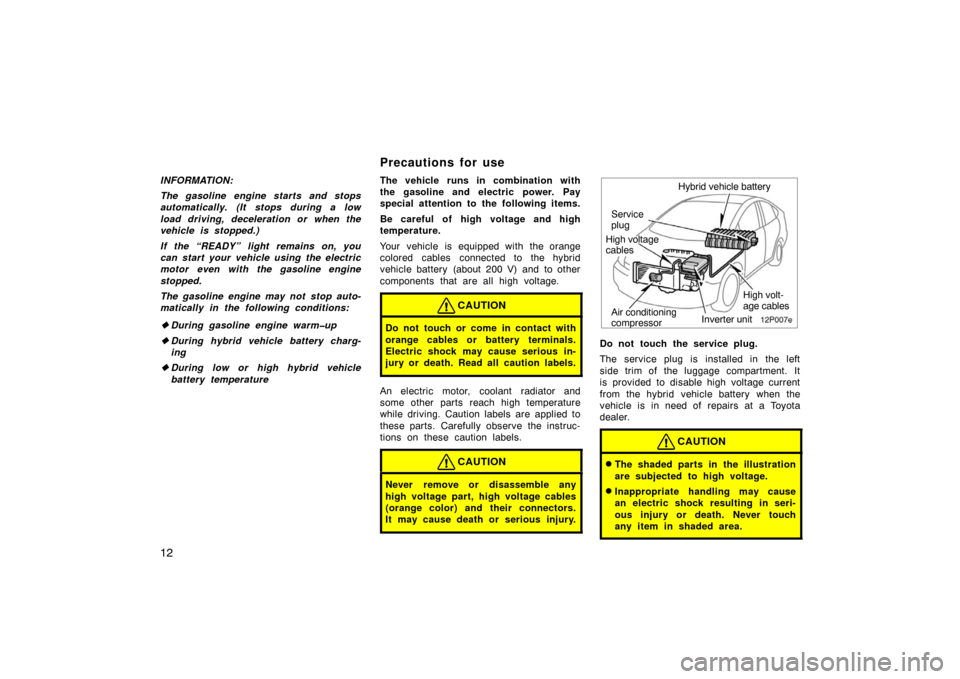

Be careful of high voltage and high
temperature.
Your vehicle is equipped with the orange
colored cables connected to the hybrid
vehicle battery (about 200 V) and to other
components that are all high voltage.
CAUTION
Do not touch or come in contact with
orange cables or battery terminals.
Electric shock may cause serious in-
jury or death. Read all caution labels.
An electric motor, coolant radiator and
some other parts reach high temperature
while driving. Caution labels are applied to
these parts. Carefully observe the instruc-
tions on these caution labels.
CAUTION
Never remove or disassemble any
high voltage part, high voltage cables
(orange color) and their connectors.
It may cause death or serious injury.
12p007d
Inverter unit
Hybrid vehicle battery
Service
plug
High volt-
age cables
Air conditioning
compressor
High voltage
cables
Do not touch the service plug.
The service plug is installed in the left
side trim of the luggage compartment. It
is provided to disable high voltage current
from the hybrid vehicle battery when the
vehicle is in need of repairs at a Toyota
dealer.
CAUTION
The shaded parts in the illustration
are subjected to high voltage.
Inappropriate handling may cause
an electric shock resulting in seri-
ous injury or death. Never touch
any item in shaded area.
Precautions for use
