TOYOTA PRIUS 2005 2.G Owner's Manual

21

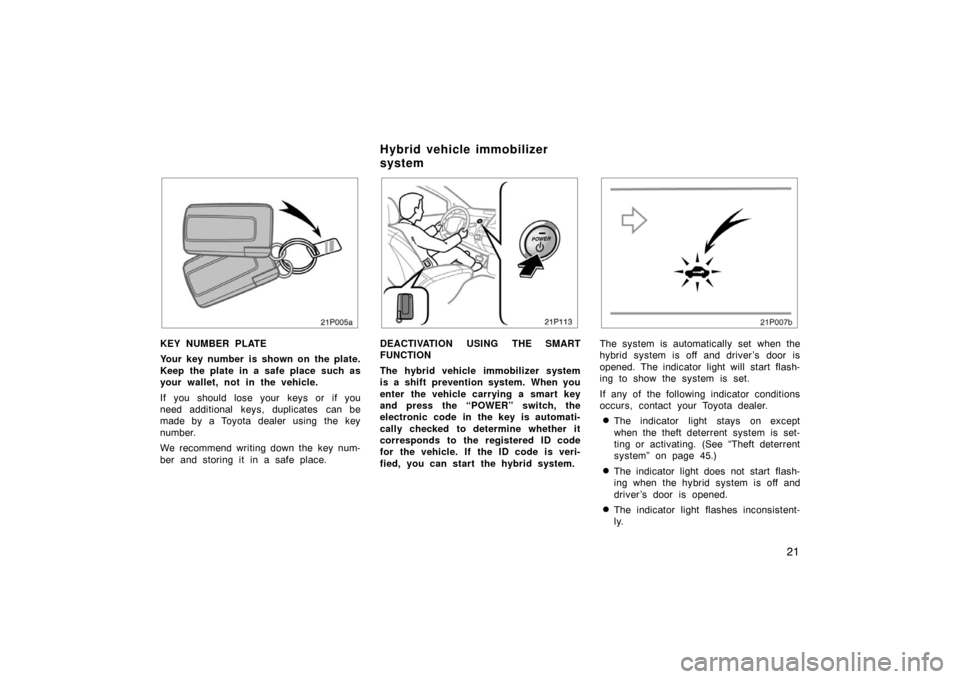

21p005a
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
21p113
DEACTIVATION USING THE SMART
FUNCTION
The hybrid vehicle immobilizer system
is a shift prevention system. When you
enter the vehicle carrying a smart key
and press the “POWER” switch, the
electronic code in the key is automati-
cally checked to determine whether it
corresponds to the registered ID code
for the vehicle. If the ID code is veri-
fied, you can start the hybrid system.
21p007b
The system is automatically set when the
hybrid system is off and driver ’s door is
opened. The indicator light will start flash-
ing to show the system is set.
If any of the following indicator conditions
occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system” on page 45.)
The indicator light does not start flash-
ing when the hybrid system is off and
driver ’s door is opened.
The indicator light flashes inconsistent-
ly.
Hybrid vehicle immobilizer
system

22
Carrying a smart key and pressing the
“POWER” switch automatically cancels the
system, which enables the hybrid system
to start. The indicator light will go off.
For your Toyota dealer to make you a
new key with built −in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
NOTICE
Do not modify, remove or disas-
semble the hybrid vehicle immobilizer
system. If any unauthorized changes
or modifications are made, proper op-
eration of the system cannot be guar-
anteed.

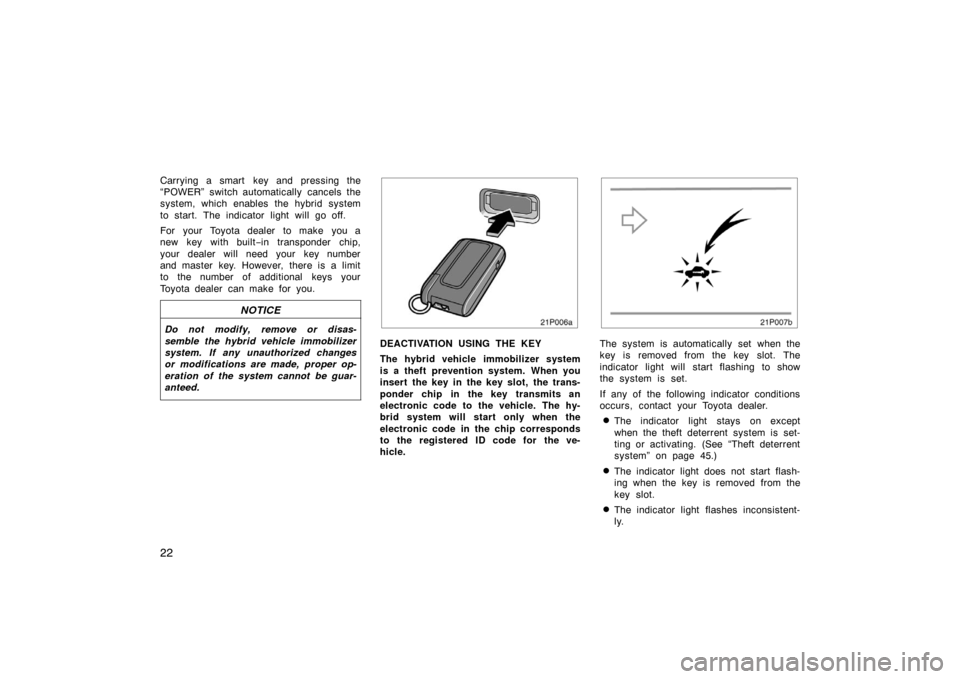

21p006a
DEACTIVATION USING THE KEY
The hybrid vehicle immobilizer system
is a theft prevention system. When you
insert the key in the key slot, the trans-
ponder chip in the key transmits an
electronic code to the vehicle. The hy-
brid system will start only when the
electronic code in the chip corresponds
to the registered ID code for the ve-
hicle.
21p007b
The system is automatically set when the
key is removed from the key slot. The
indicator light will start flashing to show
the system is set.
If any of the following indicator conditions
occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system” on page 45.)
The indicator light does not start flash-
ing when the key is removed from the
key slot.
The indicator light flashes inconsistent-
ly.

23
Inserting the registered key in the key slot
automatically cancels the system, which
enables the hybrid system to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built−in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
NOTICE
Do not modify, remove or disas-
semble the hybrid vehicle immobilizer
system. If any unauthorized changes
or modifications are made, proper op-
eration of the system cannot be guar-
anteed.

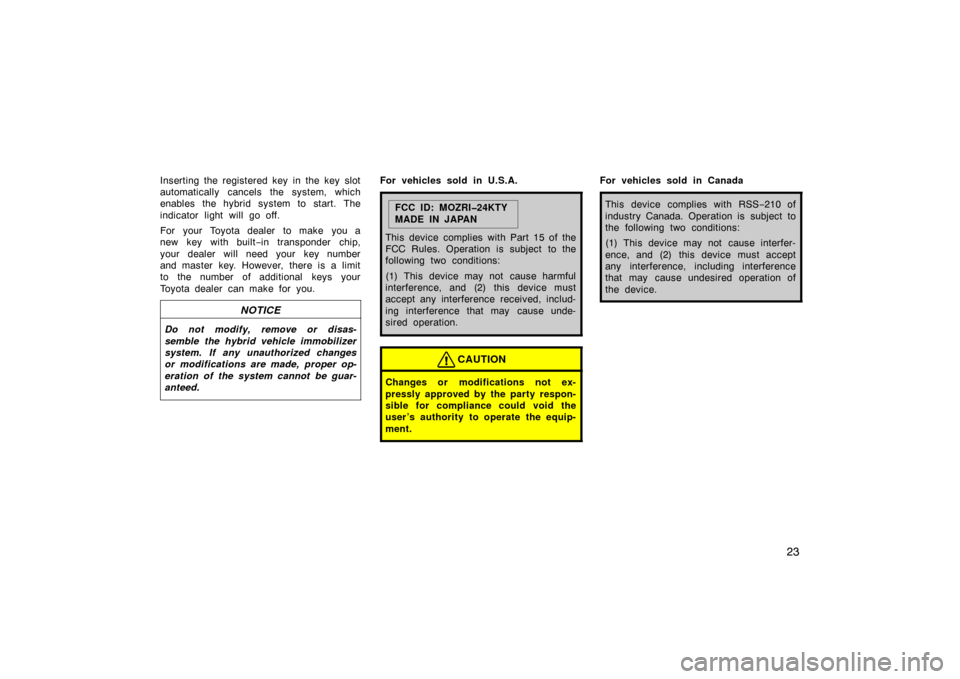

For vehicles sold in U.S.A.
FCC ID: MOZRI24KTY
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS −210 of
industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.

24
21p120
1. Locking and unlocking
2. Starting the hybrid system
By carrying a smart key, you can lock
and unlock the doors and start the hy-
brid system.
For locking the doors, see “Locking the
doors with smart function” on page 29.
For unlocking the doors, see “Unlocking
the door(s) with smart function” on page
30. For starting the hybrid system, see
“Push button start system” on page 130.
If the smart key battery is discharged, the
smart function cannot be used. Use the
mechanical key attached to the smart key
by inserting it in the driver’s door keyhole
to lock or unlock door. To start the hybrid
system, insert the smart key into the key
slot. In order to activate the smart func-
tion, the battery should be replaced. For
details, see “—Replacing battery” on page
37.
You can deactivate the smart function by
using the cancel switch. In this case, all
the smart function will be deactivated. For
details, see “Deactivating the smart func-
tion” on page 33.INFORMATION
Be sure to take the smart key with
you.
In the following cases, the smart
function or wireless remote control
feature may not operate properly. (If
this happens, use a mechanical key
to lock or unlock the driver’s door
and a smart key to start the hybrid
system.) When facilities issuing strong
electromagnetic waves such as
TV towers, electric power sta-
tions, broadcasting stations are
nearby.
 When you are carrying a smart
key together with a mobile com-
munications system such as a
twoway radio or cellular phone.
 When the smart key is in contact
with or covered by a metallic ob-
ject.
 When another person is operating
a wireless remote control func-
tion on another vehicle near your
vehicle.
Smart entry and start system

25

If you do not drive your vehicle,
store the smart key, keeping it at
least 5 m (16 ft.) away from the ve-
hicle.

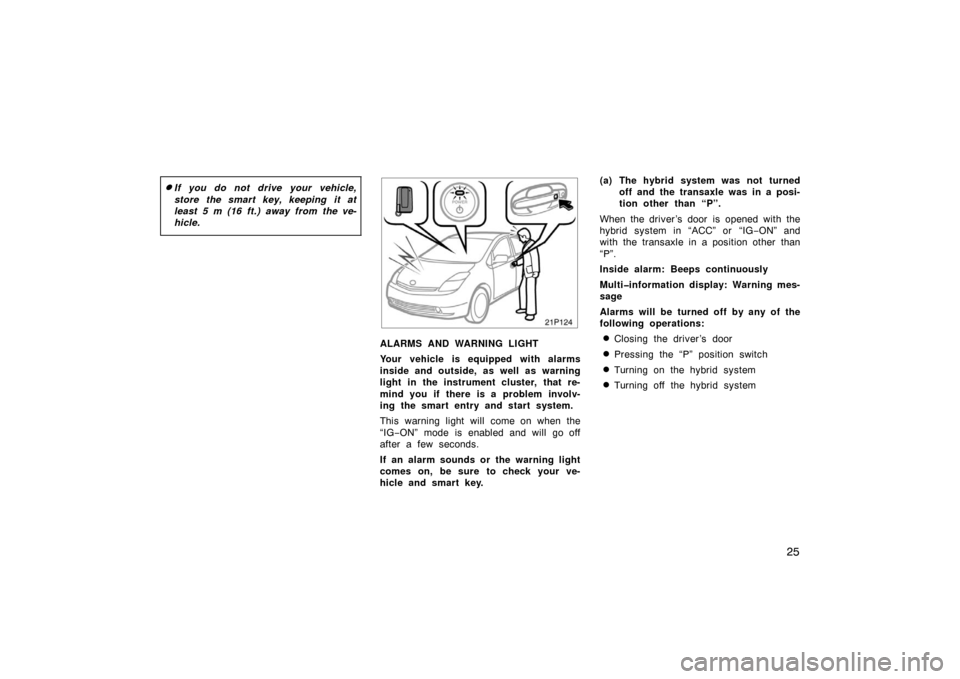

ALARMS AND WARNING LIGHT
Your vehicle is equipped with alarms
inside and outside, as well as warning
light in the instrument cluster, that re-
mind you if there is a problem involv-
ing the smart entry and start system.
This warning light will come on when the
“IG
−ON” mode is enabled and will go off
after a few seconds.
If an alarm sounds or the warning light
comes on, be sure to check your ve-
hicle and smart key. (a) The hybrid system was not turned
off and the transaxle was in a posi-
tion other than “P”.
When the driver ’s door is opened with the
hybrid system in “ACC” or “IG −ON” and
with the transaxle in a position other than
“P”.
Inside alarm: Beeps continuously
Multiinformation display: Warning mes-
sage
Alarms will be turned off by any of the
following operations:Closing the driver ’s door
Pressing the “P” position switch
Turning on the hybrid system
Turning off the hybrid system

26
(b) The smart key was brought outsidethe vehicle with the transaxle in a
position other than “P”.
When the driver ’s door is opened or
closed with the hybrid system not to be
turned off and with the transaxle in a
position other than “P”, it is determined
that the smart key is not in the vehicle.
Inside alarm: Beeps continuously
Outside alarm: Beeps continuously
Warning light: On
Alarms will be turned off by any of the
following operations:
Pressing the “P” position switch
Bringing the smart key inside the ve-
hicle
Turning off the hybrid system
(c) The hybrid system was not turned off with the transaxle in “P”.
When the driver ’s door is opened with the
hybrid system in “ACC” and with the
transaxle in “P”.
Inside alarm: 3 Beeps
In the “IG −ON” mode, an alarm will not
sound. (d) The smart key was brought outside
the vehicle.
When the driver ’s door is opened or
closed with the hybrid system not to be
turned off (and with the transaxle in “P”),
it is determined that the smart key is not
in the vehicle.
Inside alarm: One beep
Outside alarm: 3 beeps
Warning light: On
(e) Locking with smart function was at- tempted with the hybrid system not
to be turned off.
When you attempt to lock all the doors
using smart locking function with the hy-
brid system not to be turned off and with
the transaxle in a position other than “P”.
Outside alarm: One beep (sounds for 2
seconds.)
Warning light: On
At this time, the doors cannot be
locked. (f) The smart key was brought outside
the vehicle.
When a door other than the driver ’s door
is opened or closed with the hybrid sys-
tem not to be turned off, it is determined
that the smart key is not in the vehicle.
Inside alarm: One beep
Outside alarm: 3 beeps
Warning light: On

27
(g) Preventing the key from beinglocked inside the vehicle
When you close the door with the hybrid
system off but with the smart key left in
the vehicle, and attempt to lock all the
doors using smart locking function, it is
determined that the smart key is in the
vehicle.
Outside alarm: One beep (sounds for 2
seconds)
INFORMATION
 This function may not operate when
the smart key is left on the instru-
ment panel, luggage cover, floor or
in the glove box.
 The function may operate if the
smart key is brought outside but it
is very close to the door window or
door handle.
(h) Low smart key battery
When the hybrid system is turned to
“ACC” or “OFF” about 20 minutes after
the hybrid system is turned on or to “IG −
ON”, it is determined that the smart key
battery voltage is low.
Inside alarm: One beep (i) Outside of effective range
When the “POWER” switch is pressed, it
is determined that the smart key is not in
the vehicle.
Inside alarm: One beep
Warning light: On (for 5 seconds)
(j) Open door warning
When you attempt to lock all the doors
using smart locking function with the hy-
brid system turned off but with any door
open.
Outside alarm: One beep (sounds for 10
seconds)
Alarms will be turned off by either of
the following operations:
Closing all the doors
Pressing the unlock button on the
smart key

28
Warning and its meaningInside warning alarm
Outside warning alarmWarning lightCauses
One beep
(sounds continuously)——The driver ’s door was opened when the hybrid system was in “ACC”
or “IG −ON” and when the transaxle was in a position other than “P”.
One beep
(sounds continuously)One beep
(sounds continuously)OnThe driver brought out the smart key from the vehicle with the hybrid
system not to be turned off and with the transaxle in a position other
than “P”.
Beeps
(sound intermittently)——The driver ’s door was opened when the hybrid system was in “ACC”
and when the transaxle was in “P”.
One beep3 beepsOnThe driver brought out the smart key from the vehicle with the hybrid
system not to be turned off and with the transaxle in “P”.
—One beep
(sounds for 2 seconds)OnThe lock switch was pressed with the hybrid system not to be turned
off and with the transaxle in “P”.
One beep3 beepsOnThe passenger brought out the smart key from the vehicle with the
hybrid system not to be turned off.
—One beep
(sounds for 2 seconds)—The lock switch was pressed when the hybrid system was off but with
the smart key left in the vehicle.
One beep——The key battery voltage become about 2 V. (3 V for normal operation)
One beep—On
(for 5 seconds)The “POWER” swi t c h was pr es s ed when the smar t key was not in the
effective range of the system.
—One beep
(sounds for 10 seconds)—The lock switch was pressed when the hybrid system was off but any
door was opened.

29

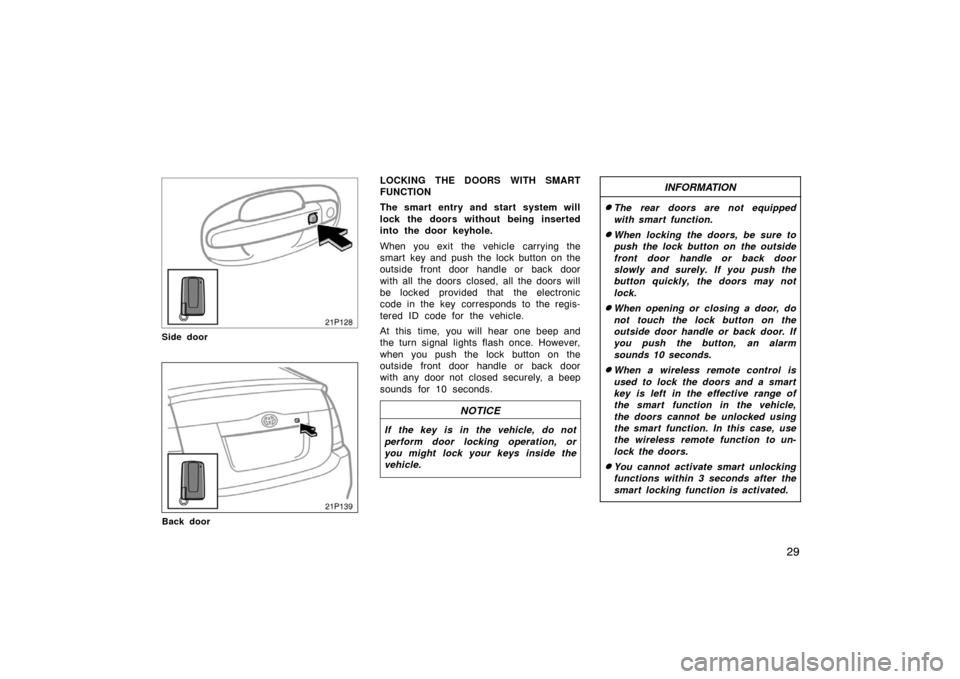

21p128
Side door
21p139
Back door
LOCKING THE DOORS WITH SMART
FUNCTION
The smart entry and start system will
lock the doors without being inserted
into the door keyhole.
When you exit the vehicle carrying the
smart key and push the lock button on the
outside front door handle or back door
with all the doors closed, all the doors will
be locked provided that the electronic
code in the key corresponds to the regis-
tered ID code for the vehicle.
At this time, you will hear one beep and
the turn signal lights flash once. However,
when you push the lock button on the
outside front door handle or back door
with any door not closed securely, a beep
sounds for 10 seconds.
NOTICE
If the key is in the vehicle, do not
perform door locking operation, or
you might lock your keys inside the
vehicle.
INFORMATION
The rear doors are not equipped
with smart function.
When locking the doors, be sure to
push the lock button on the outside
front door handle or back door
slowly and surely. If you push the
button quickly, the doors may not
lock.
When opening or closing a door, do
not touch the lock button on the
outside door handle or back door. If
you push the button, an alarm
sounds 10 seconds.
When a wireless remote control is
used to lock the doors and a smart
key is left in the effective range of
the smart function in the vehicle,
the doors cannot be unlocked using
the smart function. In this case, use
the wireless remote function to un-
lock the doors.
You cannot activate smart unlocking
functions within 3 seconds after the
smart locking function is activated.

30

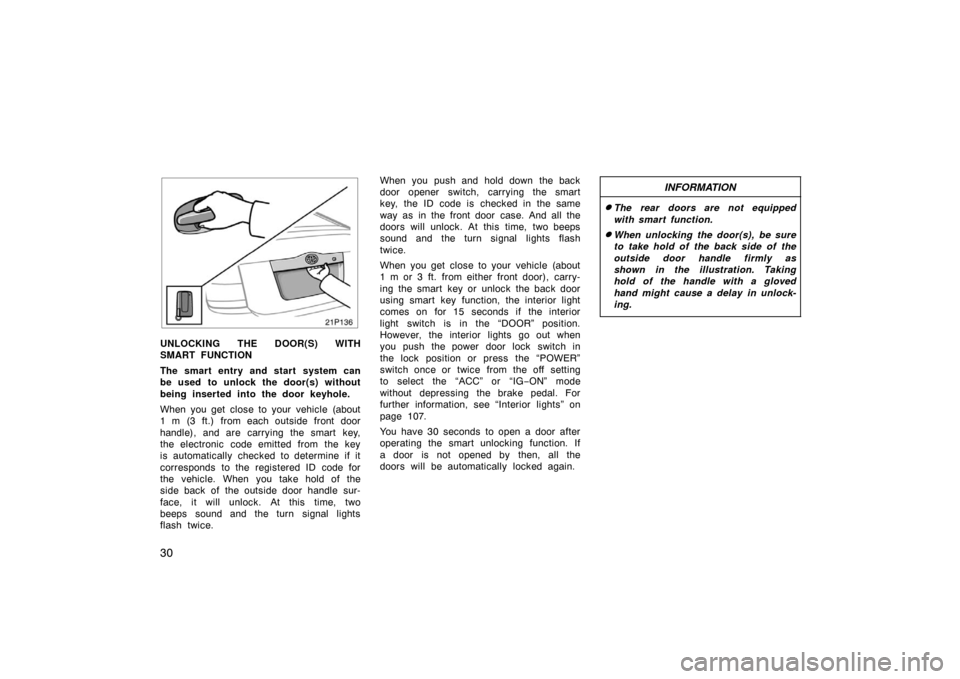

21p136
UNLOCKING THE DOOR(S) WITH
SMART FUNCTION
The smart entry and start system can
be used to unlock the door(s) without
being inserted into the door keyhole.
When you get close to your vehicle (about
1 m (3 ft.) from each outside front door
handle), and are carrying the smart key,
the electronic code emitted from the key
is automatically checked to determine if it
corresponds to the registered ID code for
the vehicle. When you take hold of the
side back of the outside door handle sur-
face, it will unlock. At this time, two
beeps sound and the turn signal lights
flash twice.When you push and hold down the back
door opener switch, carrying the smart
key, the ID code is checked in the same
way as in the front door case. And all the
doors will unlock. At this time, two beeps
sound and the turn signal lights flash
twice.
When you get close to your vehicle (about
1 m or 3 ft. from either front door), carry-
ing the smart key or unlock the back door
using smart key function, the interior light
comes on for 15 seconds if the interior
light switch is in the “DOOR” position.
However, the interior lights go out when
you push the power door lock switch in
the lock position or press the “POWER”
switch once or twice from the off setting
to select the “ACC” or “IG
−ON” mode
without depressing the brake pedal. For
further information, see “Interior lights” on
page 107.
You have 30 seconds to open a door after
operating the smart unlocking function. If
a door is not opened by then, all the
doors will be automatically locked again.
INFORMATION
The rear doors are not equipped
with smart function.
When unlocking the door(s), be sure
to take hold of the back side of the
outside door handle firmly as
shown in the illustration. Taking
hold of the handle with a gloved
hand might cause a delay in unlock-
ing.
