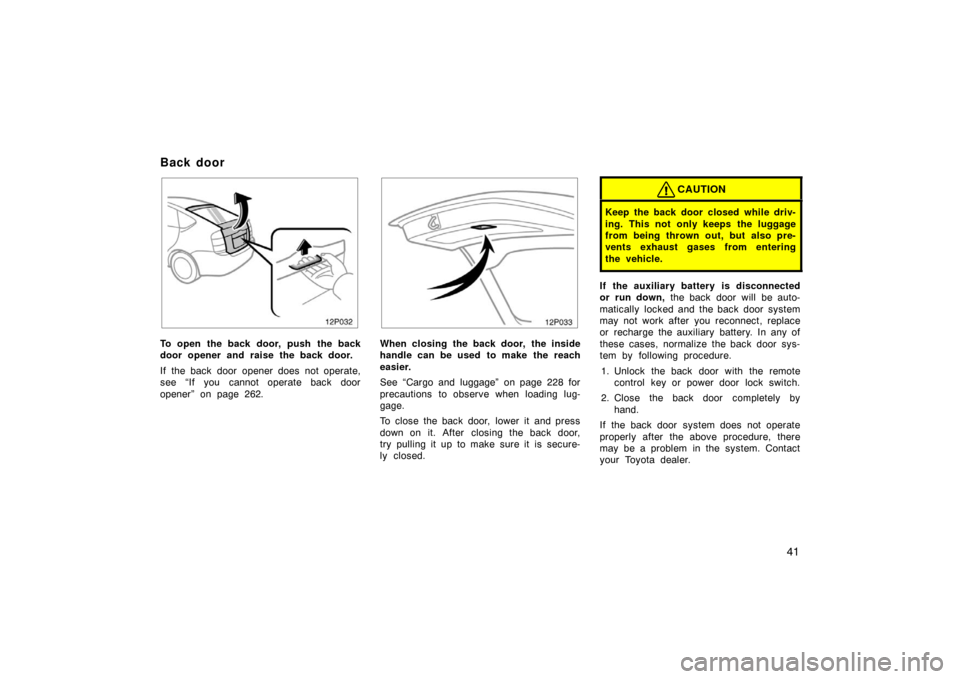

12p032
To open the back door, push the back
door opener and raise the back door.
If the back door opener does not operate,
see “If you cannot operate back door
opener” on page 262.
12p033
When closing the back door, the inside
handle can be used to make the reach
easier.
See “Cargo and luggage” on page 228 for
precautions to observe when loading lug-
gage.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
CAUTION
Keep the back door closed while driv-
ing. This not only keeps the luggage
from being thrown out, but also pre-
vents exhaust gases from entering
the vehicle.
If the auxiliary battery is disconnected
or run down, the back door will be auto-
matically locked and the back door system
may not work after you reconnect, replace
or recharge the auxiliary battery. In any of
these cases, normalize the back door sys-
tem by following procedure.
1. Unlock the back door with the remote control key or power door lock switch.
2. Close the back door completely by hand.
If the back door system does not operate
properly after the above procedure, there
may be a problem in the system. Contact
your Toyota dealer.
Back door

42

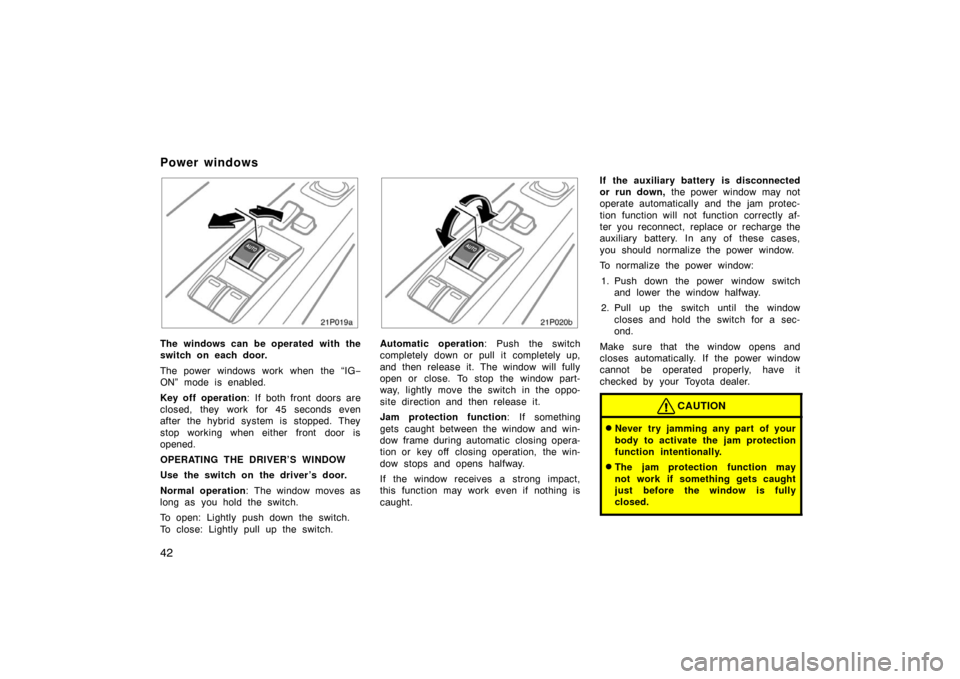

21p019a
The windows can be operated with the
switch on each door.
The power windows work when the “IG−
ON” mode is enabled.
Key off operation : If both front doors are
closed, they work for 45 seconds even
after the hybrid system is stopped. They
stop working when either front door is
opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation : The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
21p020b
Automatic operation : Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window part-
way, lightly move the switch in the oppo-
site direction and then release it.
Jam protection function: If something
gets caught between the window and win-
dow frame during automatic closing opera-
tion or key off closing operation, the win-
dow stops and opens halfway.
If the window receives a strong impact,
this function may work even if nothing is
caught. If the auxiliary battery is disc
onnected
or run down, the power window may not
operate automatically and the jam protec-
tion function will not function correctly af-
ter you reconnect, replace or recharge the
auxiliary battery. In any of these cases,
you should normalize the power window.
To normalize the power window:
1. Push down the power window switch and lower the window halfway.
2. Pull up the switch until the window closes and hold the switch for a sec-
ond.
Make sure that the window opens and
closes automatically. If the power window
cannot be operated properly, have it
checked by your Toyota dealer.
CAUTION
Never try jamming any part of your
body to activate the jam protection
function intentionally.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.
Power windows

43

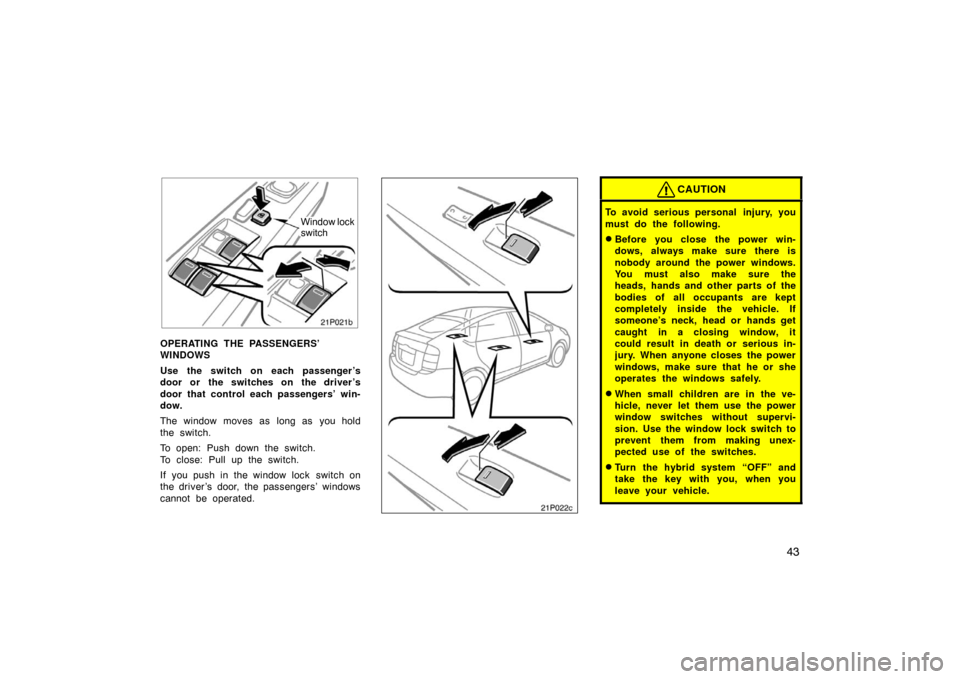

21p021b
Window lock
switch
OPERATING THE PASSENGERS’
WINDOWS
Use the switch on each passenger ’s
door or the switches on the driver ’s
door that control each passengers’ win-
dow.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.21p022b21p022c
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure that he or she
operates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Turn the hybrid system “OFF” and
take the key with you, when you
leave your vehicle.

44
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the key still inserted
or with the hybrid system other
than “OFF”. Otherwise, he/she
could use the power window
switches and get trapped in a win-
dow. Unattended person (particular-
ly a small child) can be involved in
a serious accident.
21p026b

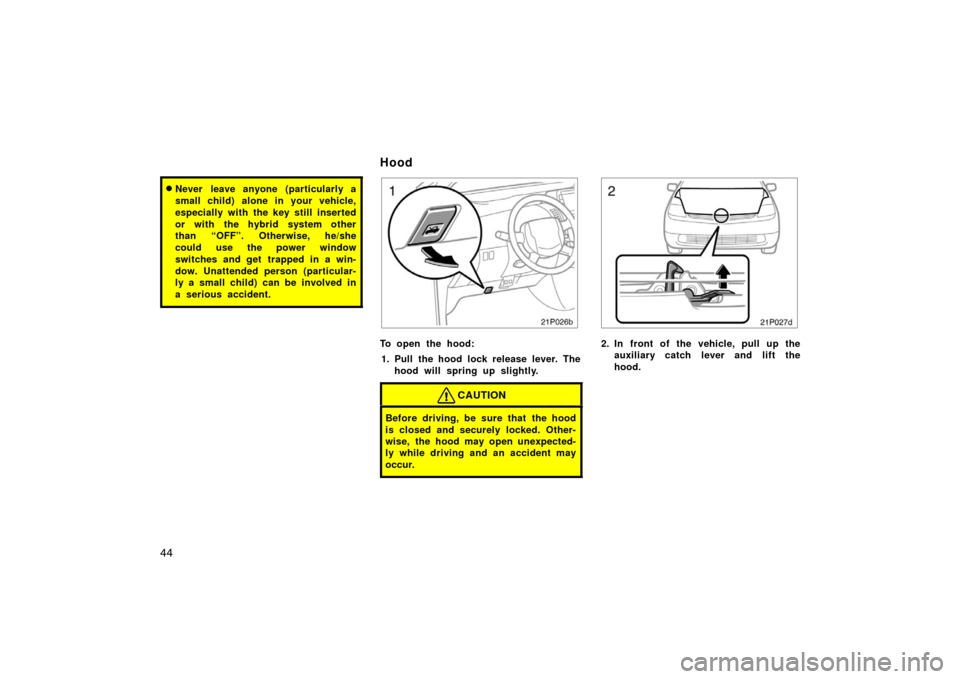

To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
21p027d
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Hood

45
21p032e

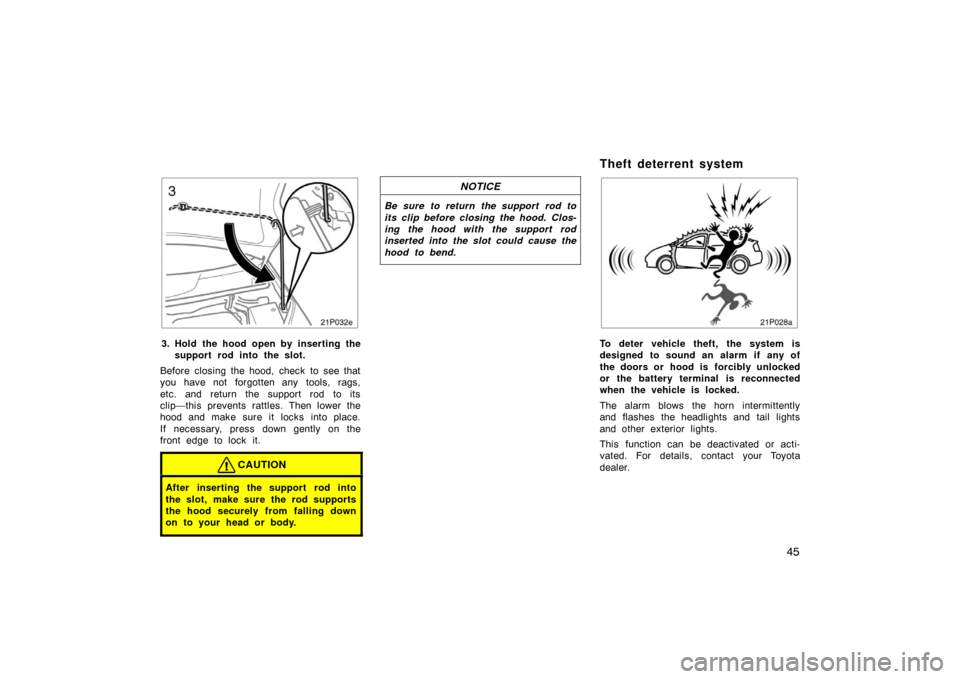

3. Hold the hood open by inserting thesupport rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood and make sure it locks into place.
If necessary, press down gently on the
front edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
NOTICE
Be sure to return the support rod to
its clip before closing the hood. Clos-
ing the hood with the support rod
inserted into the slot could cause the
hood to bend.
Theft deterrent system
21p028a
To deter vehicle theft, the system is
designed to sound an alarm if any of
the doors or hood is forcibly unlocked
or the battery terminal is reconnected
when the vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights and tail lights
and other exterior lights.
This function can be deactivated or acti-
vated. For details, contact your Toyota
dealer.

46
21p007b
SETTING THE SYSTEM
When the key is inserted into the key
slot:1. Remove the key.
In case of the smart entry and start
system: 1. Stop the hybrid system and open the driver ’s door
The indicator light will start flashing. (See
“Hybrid vehicle immobilizer system” on
page 21 for details.) 2. Have all passengers get out of the vehicle.
3. Close and lock all the doors and hood. The indicator light will come on when all
the doors and hood are closed and
locked.
The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will sound the alarm under
the following conditions:
If any of the doors is unlocked or if
the hood is forcibly opened without the
mechanical key, wireless remote control
transmitter or smart function.
If the battery terminal is disconnected
and then reconnected.
The indicator light will come on when the
system is activated. If any of the doors are unlocked without
the mechanical key, wireless remote con-
trol transmitter or smart function and the
key is not in the key slot, all the doors
will be automatically locked again.
After 1 minute, the alarm will automatically
stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
two ways:
Turn the hybrid system to “IG
−ON”.
Unlock any of the doors with the me-
chanical key, wireless remote control
transmitter or smart function.
If the auxiliary battery becomes dis-
charged due to the vehicle being unused
for a long time, etc., when the battery is
recharged or replaced, the system will
sound the alarm. If this happens, immedi-
ately stop the alarm.

47
CANCELLING THE SYSTEM
The system will be cancelled by the
above mentioned two ways.
If the tail lights come on for 2 seconds,
the theft deterrent system has been
alarmed. Check to see if there is any
abnormality on your vehicle.
TESTING THE SYSTEM1. Open all the windows.
2. Set the system as described above. The doors should be locked with the
mechanical key, wireless remote control
transmitter or smart function. Be sure
to wait until the indicator light goes off
or starts flashing.
3. Unlock any door from the inside. The system s hould activate the alarm.
4. Stop the alarm as described above.
5. Repeat this operation for the other doors and hood. When testing the back
door, also check that the system is
activated when the auxiliary battery ter-
minal is disconnected and then recon-
nected. When testing the hood, release
the lock with the hood lock release
lever and raise the hood.
If the system does not work properly,
have it checked by your Toyota dealer.
21p117

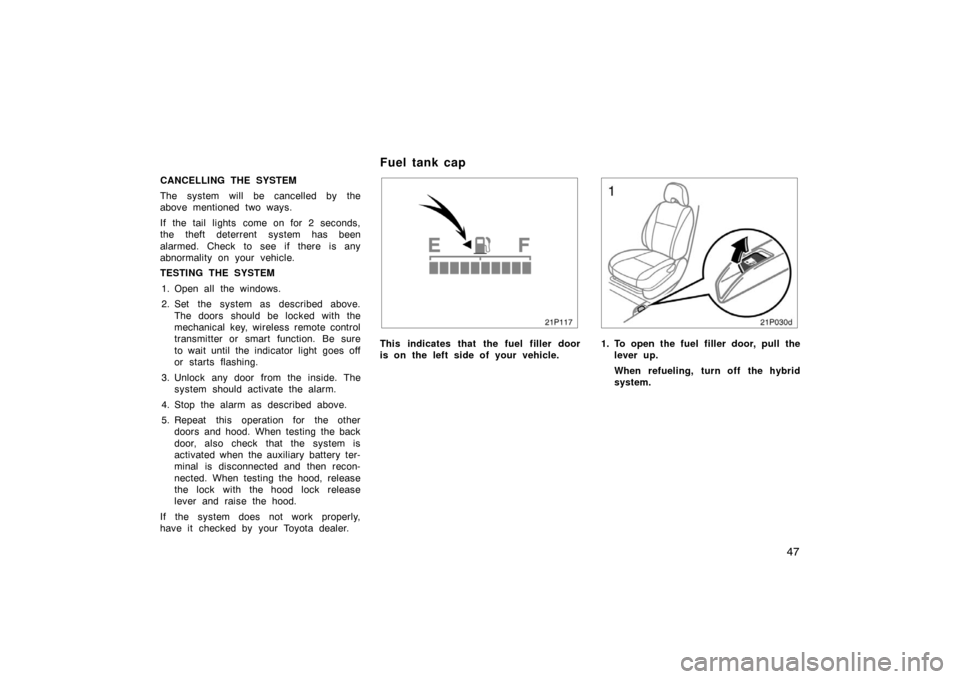

This indicates that the fuel filler door
is on the left side of your vehicle.
21p030d
1. To open the fuel filler door, pull the lever up.
When refueling, turn off the hybrid
system.
Fuel tank cap

48
CAUTION
Do not smoke, cause spark or allow
open flames when refueling. The
fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out the filler
neck if the cap is suddenly re-
moved.
Insert the fuel nozzle fully, or fuel
may splash out.

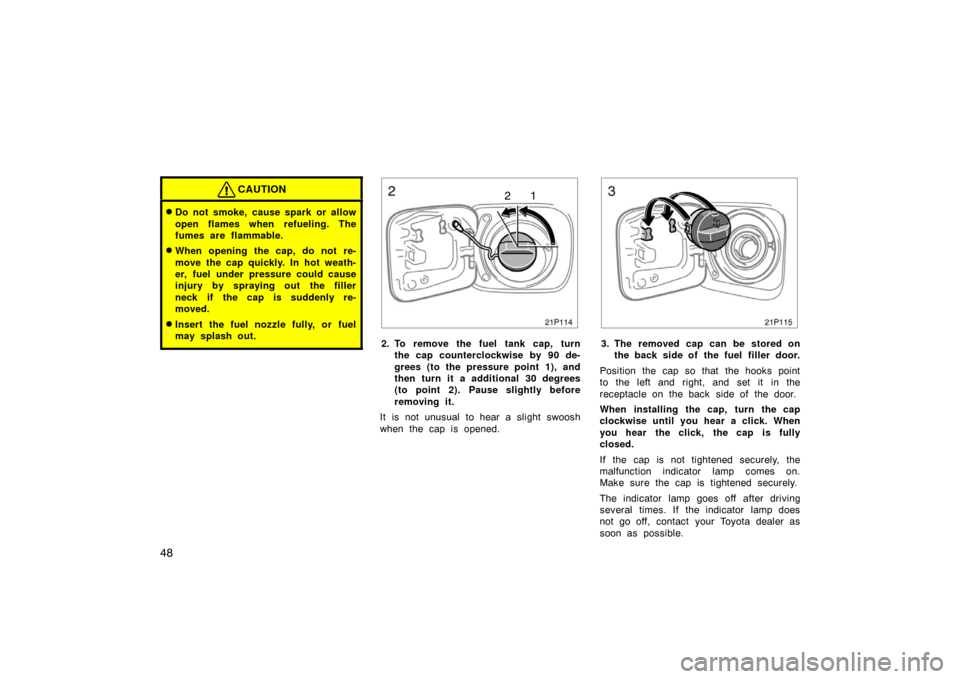

21p114
12
2. To remove the fuel tank cap, turnthe cap counterclockwise by 90 de-
grees (to the pressure point 1), and
then turn it a additional 30 degrees
(to point 2). Pause slightly before
removing it.
It is not unusual to hear a slight swoosh
when the cap is opened.
21p115
3. The removed cap can be stored on the back side of the fuel filler door.
Position the cap so that the hooks point
to the left and right, and set it in the
receptacle on the back side of the door.
When installing the cap, turn the cap
clockwise until you hear a click. When
you hear the click, the cap is fully
closed.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.

49
CAUTION
Make sure the cap is installed se-
curely to prevent fuel spillage in
the event of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
NOTICE
To prevent damage to the cap, apply
force only in the turning direction to
the cap. Do not pull or pry it.

50
