Page 131 of 458

TOYOTA PRIUS 2007 2.G Owners Manual 131
(j) Engine Oil Replacement ReminderLight (for vehicles sold in the
U.S.A.)
This light acts as a reminder to replace
the engine oil.
This light will come on when the “IG −ON”
mode is enabled,

Page 132 of 458

TOYOTA PRIUS 2007 2.G Owners Manual 132
CAUTION
If the “VSC” warning light remains on
together with the red brake system
warning light, immediately stop your
vehicle at a safe place and contact
your Toyota dealer.
In this case, not

Page 133 of 458

TOYOTA PRIUS 2007 2.G Owners Manual 133
CHECKING SERVICE REMINDER INDICA-
TORS (except the low fuel level indica-
tor light)1. Apply  the parking brake.
2. Open one of the doors. The open door warning light should
come on.
3. Close the

Page 134 of 458

TOYOTA PRIUS 2007 2.G Owners Manual 134
If the indicator comes on...Do this.
(a)Stop immediately and contact Toyota dealer.
(b)Stop and check.
(c)Stop and check.
(d)orTake vehicle to Toyota dealer.
(e)Take vehicle to Toyota dealer immed

Page 135 of 458

TOYOTA PRIUS 2007 2.G Owners Manual 135
(a) Charging System Warning Light
When there are problems in the charging
system while the hybrid system is running,
the warning light comes on.
NOTICE
When the charging system warning
light comes

Page 136 of 458

TOYOTA PRIUS 2007 2.G Owners Manual 136
(d) Electric Power Steering SystemWarning Light
This light comes on when the power
steering control system fails.
CAUTION
If this light comes on, take your ve-
hicle to the Toyota dealer as soon a

Page 137 of 458

TOYOTA PRIUS 2007 2.G Owners Manual 137

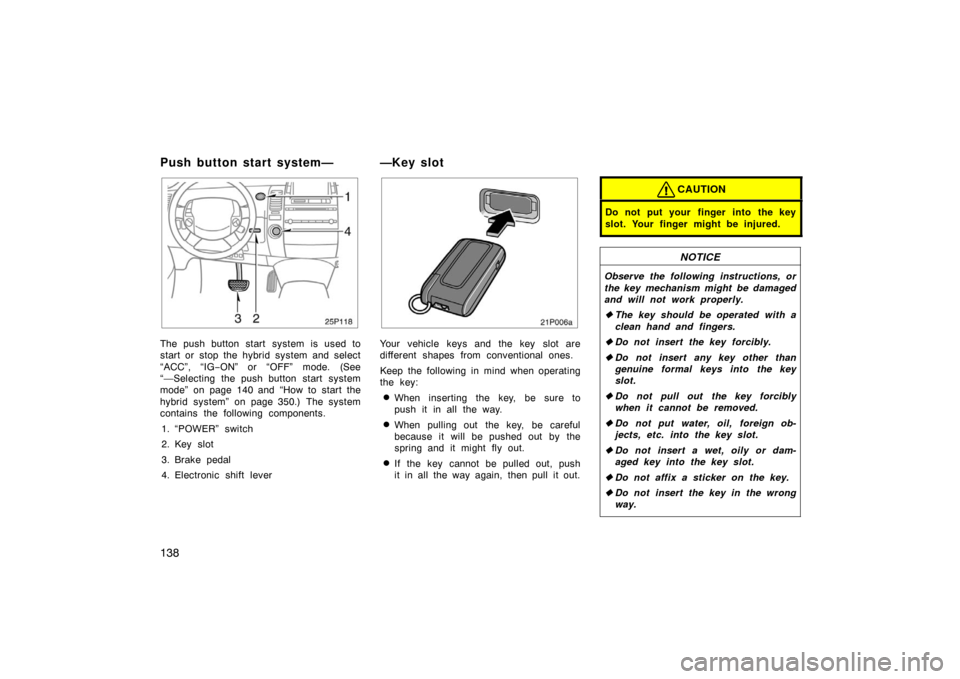

OPERATION OF INSTRUMENTS AND
CONTROLS
“POWER” switch, Transmission and Parking brake
Push button start system138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Hybri

Page 138 of 458

TOYOTA PRIUS 2007 2.G Owners Manual 138
25p118
The push button start system is used to
start or stop the hybrid system and select
“ACC”, “IG−ON” or “OFF” mode. (See
“—Selecting the push button start system
mode” on p

Page 139 of 458

TOYOTA PRIUS 2007 2.G Owners Manual 139
Do not pull out  the key ring when
removing the key out of  the key
slot.
Should you find anything unusual,
contact your Toyota dealer as soon as
possible.

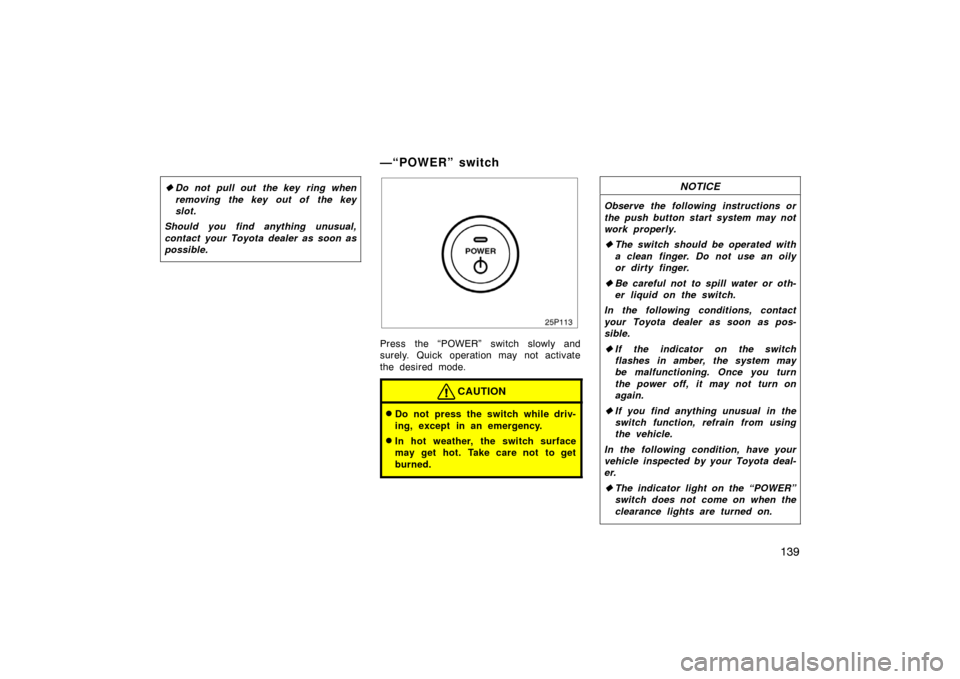

25p113
Press the “POWER” switch slo

Page 140 of 458

TOYOTA PRIUS 2007 2.G Owners Manual 140

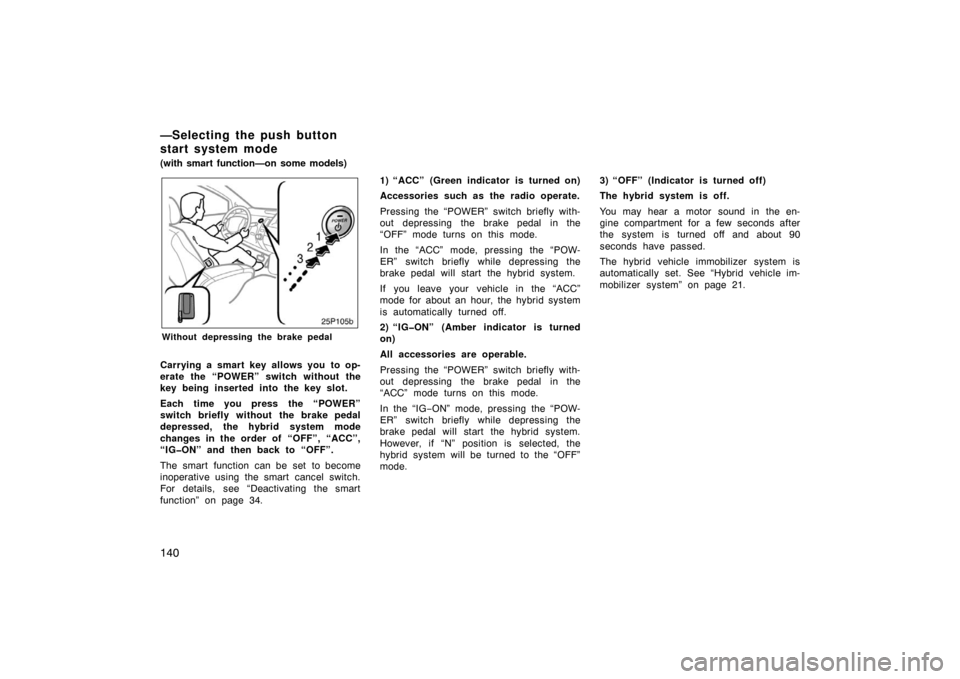

25P105b
Without depressing the brake pedal
Carrying a smart key allows you to op-
erate the “POWER” switch without the
key being inserted into the key slot.
Each time you press the “POWER”
