TOYOTA PRIUS 2007 2.G Owners Manual

171

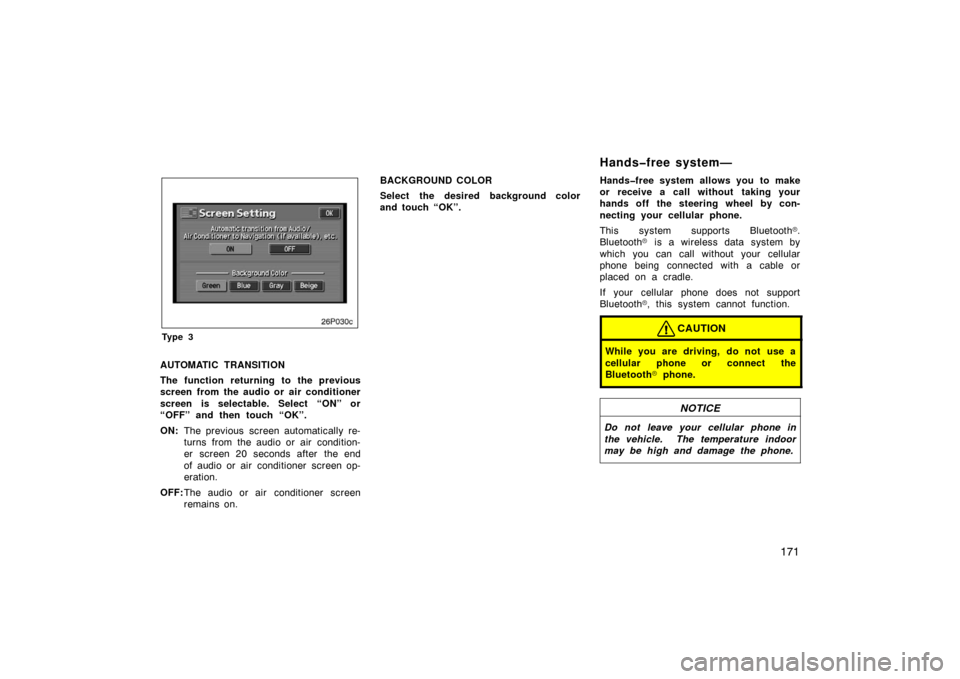

26p030c
Ty p e 3
AUTOMATIC TRANSITION
The function returning to the previous
screen from the audio or air conditioner
screen is selectable. Select “ON” or
“OFF” and then touch “OK”.
ON:The previous screen automatically re-
turns from the audio or air condition-
er screen 20 seconds after the end
of audio or air conditioner screen op-
eration.
OFF: The audio or air conditioner screen
remains on. BACKGROUND COLOR
Select the desired background color
and touch “OK”.
Handsfree system allows you to make
or receive a call without taking your
hands off the steering wheel by con-
necting your cellular phone.
This system supports Bluetooth
.
Bluetooth  is a wireless data system by
which you can call without your cellular
phone being connected with a cable or
placed on a cradle.
If your cellular phone does not support
Bluetooth , this system cannot function.
CAUTION
While you are driving, do not use a
cellular phone or connect the
Bluetooth  phone.
NOTICE
Do not leave your cellular phone in
the vehicle. The temperature indoor
may be high and damage the phone.
Handsfree system—

172
INFORMATION
In the following conditions, the sys-
tem may not function.
The cellular phone is turned off.
The current position is outside the
communication area.
The cellular phone is not connected.
The cellular phone has a low bat-
tery.

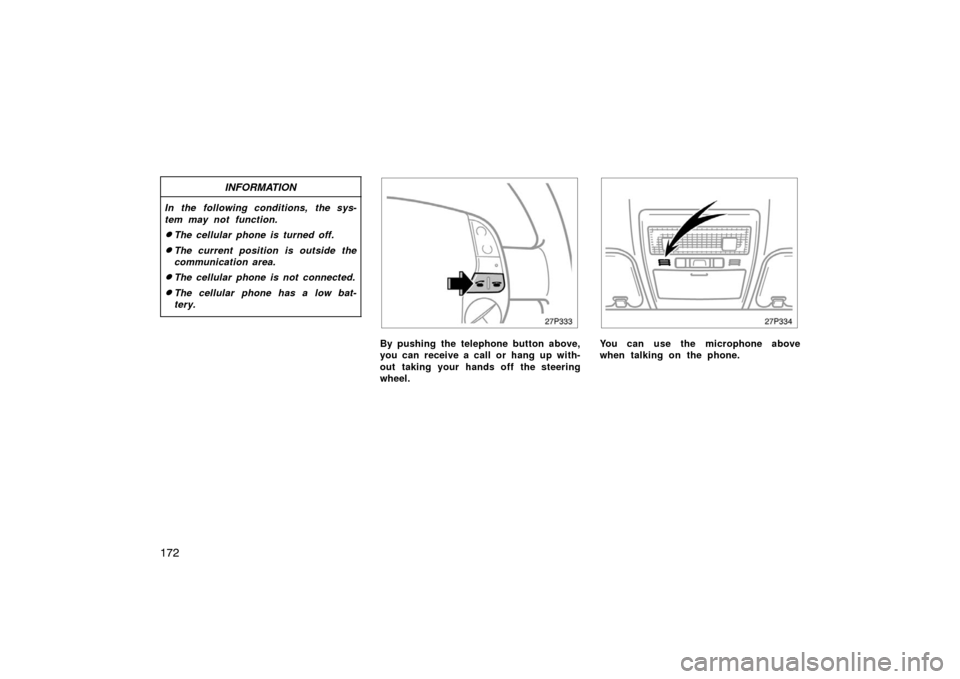

27p333
By pushing the telephone button above,
you can receive a call or hang up with-
out taking your hands off the steering
wheel.
27p334
You can use the microphone above
when talking on the phone.

173
The other party’s voice outputs from the
driver ’s speaker. When the received calls
or received voice outputs, the audio from
the audio system will be muted.
INFORMATION
Talk alternately with the other party
on the phone. If you talk at the
same time, the voice may not reach
each other. (It is not a malfunc-
tion.)
Keep the volume of receiving voice
down. Otherwise, echo is coming
up. When you talk on the phone,
speak clearly towards the micro-
phone.
In the following situations, your
voice may not reach the other party. Driving on unpaved road. (Mak-
ing a traffic noise.)
 Driving at the high speed.
 The window is open.
 Turning the air conditioning vents
towards the microphone.
 The sound of the air conditioning
fan is loud.

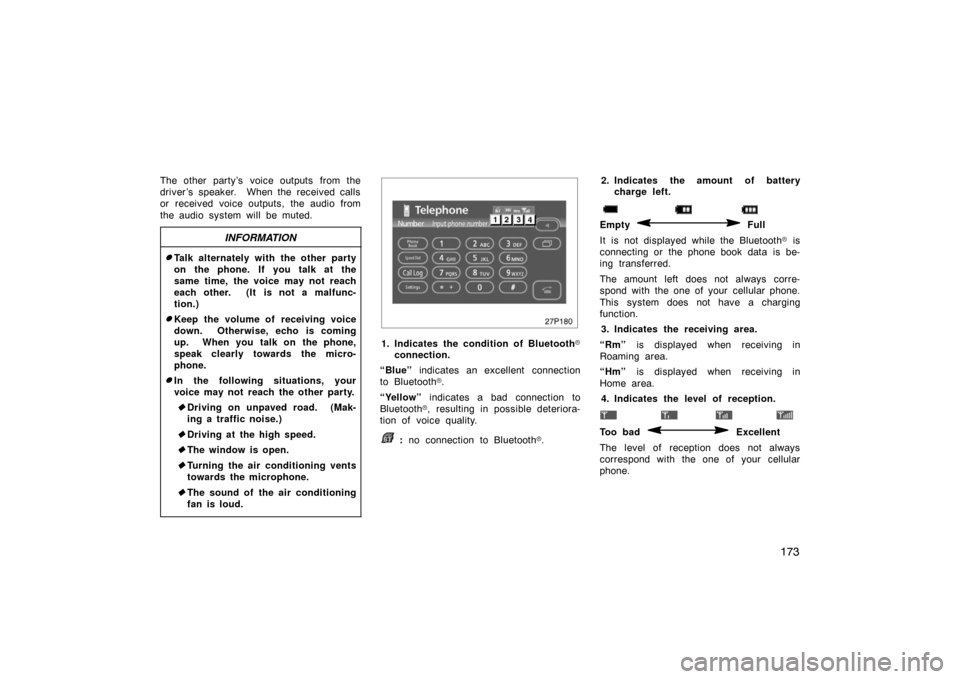

27p180
1. Indicates the condition of Bluetooth
connection.
“Blue” indicates an excellent connection
to Bluetooth .
“Yellow” indicates a bad connection to
Bluetooth , resulting in possible deteriora-
tion of voice quality.
: no connection to Bluetooth . 2. Indicates the amount of battery
charge left.
Empty Full
It is not displayed while the Bluetooth  is
connecting or the phone book data is be-
ing transferred.
The amount left does not always corre-
spond with the one of your cellular phone.
This system does not have a charging
function.
3. Indicates the receiving area.
“Rm” is displayed when receiving in
Roaming area.
“Hm” is displayed when receiving in
Home area.
4. Indicates the level of reception.

Too bad Excellent
The level of reception does not always
correspond with the one of your cellular
phone.

174
INFORMATION
This system supports the following
service.
HFP (Hands Free Profile) Ver. 1.0
OPP (Object Push Profile) Ver. 1.1
If your cellular phone does not sup-
port HFP, you cannot enter the
Bluetooth  phone, and take OPP ser-
vice individually.
An antenna for the Bluetooth  connec-
tion is built in the display. The indica-
tion of the Bluetooth  connection may
turn yellow and the system may not
function when you use the Bluetooth
phone in the following conditions and
places.
Your cellular phone is hiding behind the
display (behind the seat or in the glove
box and console box).
Your cellular phone touches or is cov-
ered with metal materials.
Leave the Bluetooth  phone on the place
where “Blue” indication is displayed.
Bluetooth is a registered trademark of
Bluetooth SIG. Inc. When you release your vehicle:
A lot of personal data is registered
when you use the handsfree system.
When you release your vehicle, initial-
ize your data.
If you initialize it, the former state will
never come back again. Pay much atten-
tion when initializing the data.
You can initialize the following data in the
system.
phone book data
dialed numbers and received calls
speed dial
Bluetooth
 phone data
security code

175

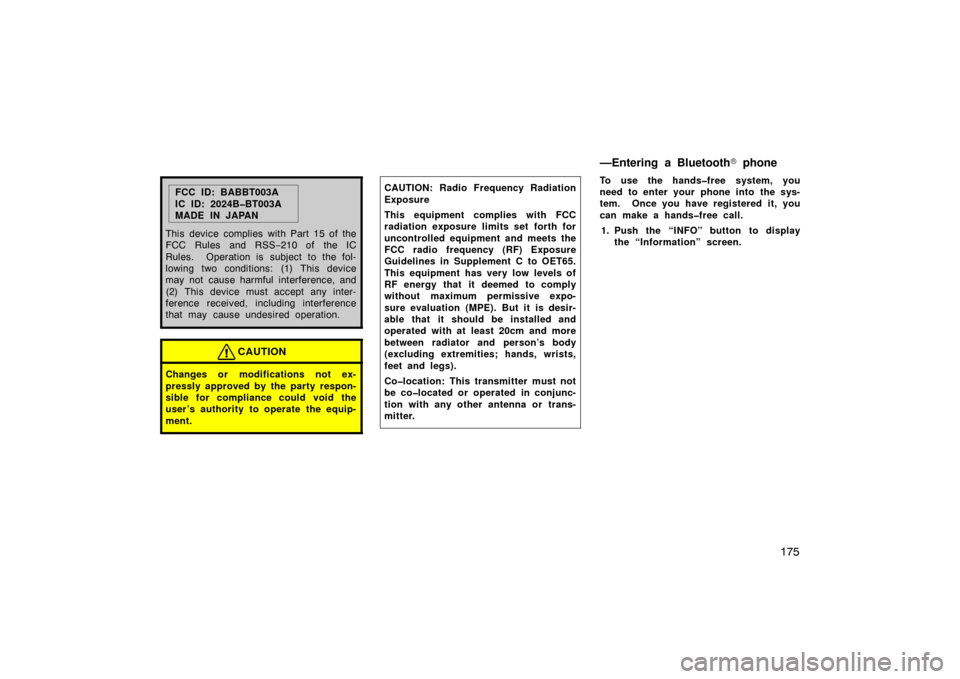

FCC ID: BABBT003A
IC ID: 2024BBT003A
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules and RSS −210 of the IC
Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) This device must accept any inter-
ference received, including interference
that may cause undesired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
CAUTION: Radio Frequency Radiation
Exposure
This equipment complies with FCC
radiation exposure limits set forth for
uncontrolled equipment and meets the
FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65.
This equipment has very low levels of
RF energy that it deemed to comply
without maximum permissive expo-
sure evaluation (MPE). But it is desir-
able that it should be installed and
operated with at least 20cm and more
between radiator and person’s body
(excluding extremities; hands, wrists,
feet and legs).
Colocation: This transmitter must not
be colocated or operated in conjunc-
tion with any other antenna or trans-
mitter.To use the handsfree system, you
need to enter your phone into the sys-
tem. Once you have registered it, you
can make a handsfree call.

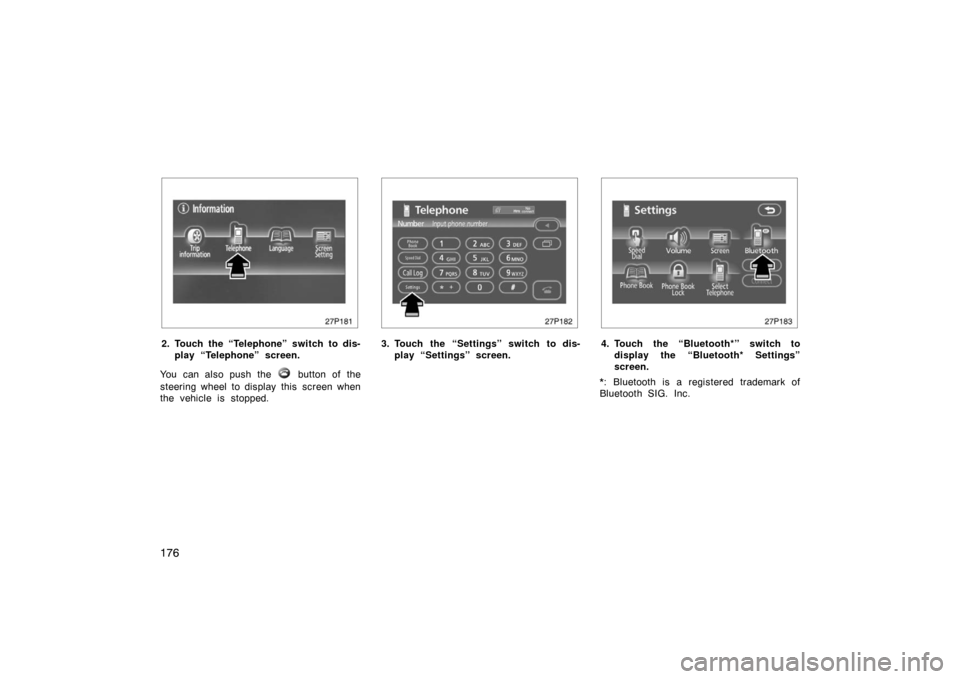

1. Push the “INFO” button to display the “Information” screen.
—Entering a Bluetooth phone

176
27p181
2. Touch the “Telephone” switch to dis-play “Telephone” screen.
You can also push the
button of the
steering wheel to display this screen when
the vehicle is stopped.
27p182
3. Touch the “Settings” switch to dis- play “Settings” screen.
27p183
4. Touch the “Bluetooth*” switch todisplay the “Bluetooth* Settings”
screen.
*: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

177

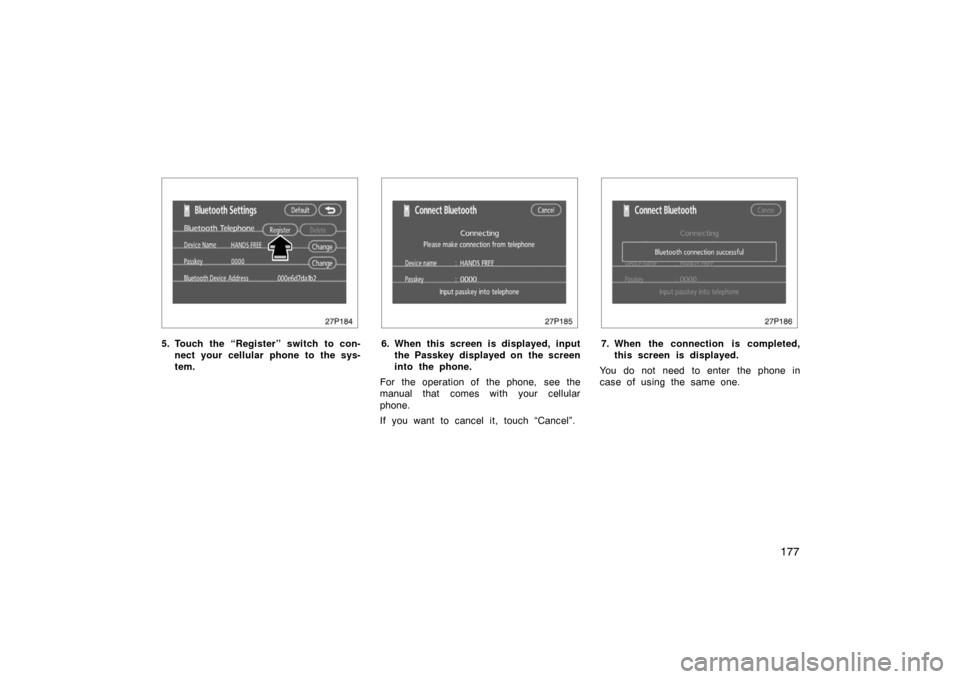

27p184
5. Touch the “Register” switch to con-nect your cellular phone to the sys-
tem.
27p185
6. When this screen is displayed, inputthe Passkey displayed on the screen
into the phone.
For the operation of the phone, see the
manual that comes with your cellular
phone.
If you want to cancel it, touch “Cancel”.
27p186
7. When the connection is completed, this screen is displayed.
You do not need to enter the phone in
case of using the same one.

178
27p187

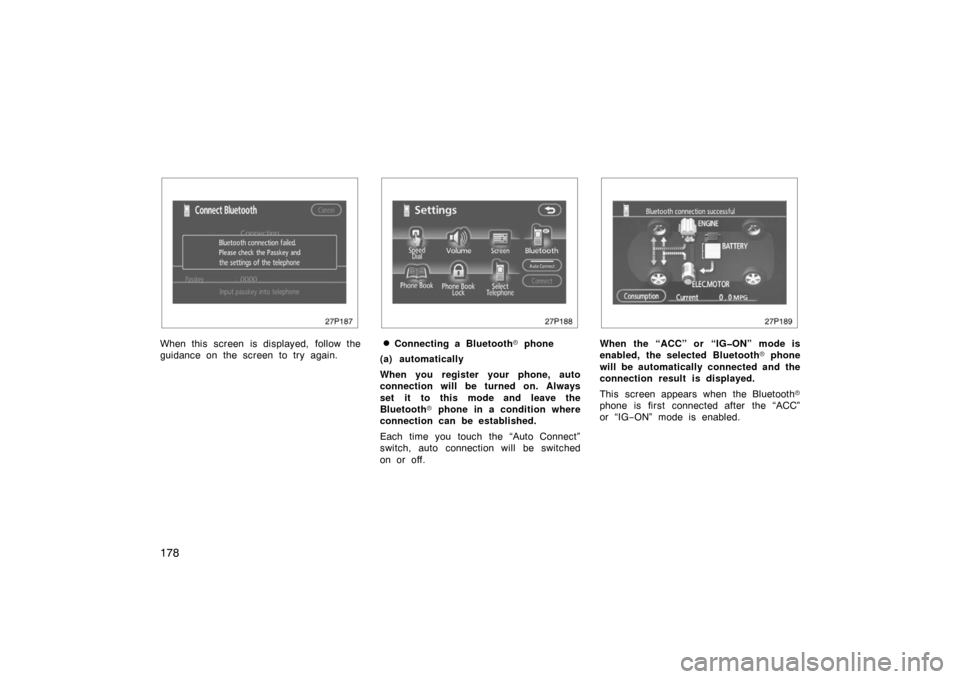

When this screen is displayed, follow the
guidance on the screen to try again.
27p188
Connecting a Bluetooth phone
(a) automatically
When you register your phone, auto
connection will be turned on. Always
set it to this mode and leave the
Bluetooth  phone in a condition where
connection can be established.
Each time you touch the “Auto Connect”
switch, auto connection will be switched
on or off.
27p189
When the “ACC” or “IGON” mode is
enabled, the selected Bluetooth  phone
will be automatically connected and the
connection result is displayed.
This screen appears when the Bluetooth
phone is first connected after the “ACC”
or “IG −ON” mode is enabled.

179

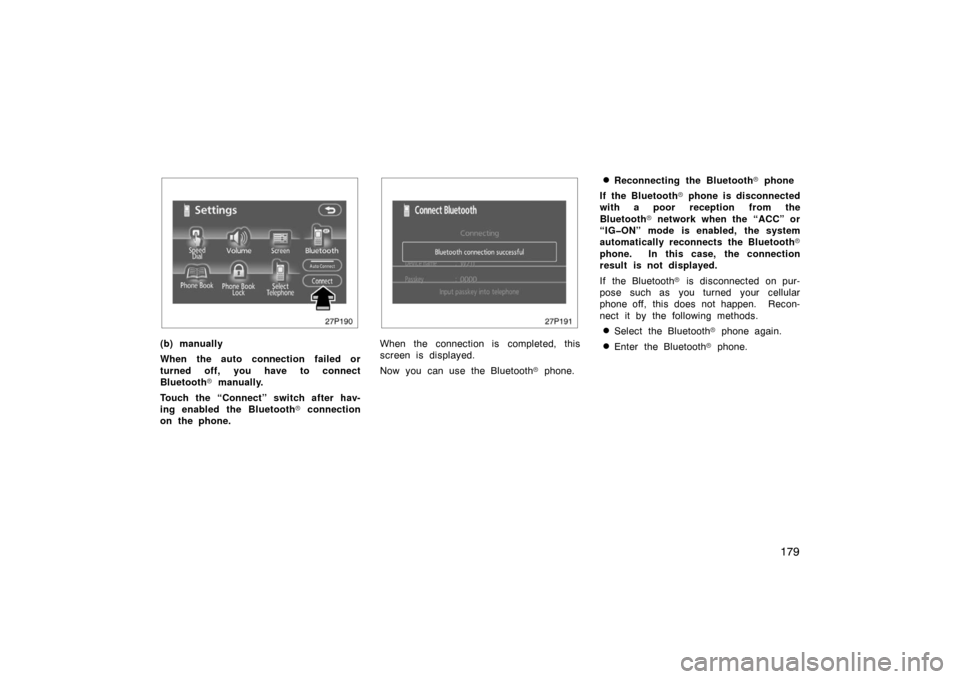

27p190
(b) manually
When the auto connection failed or
turned off, you have to connect
Bluetooth manually.
Touch the “Connect” switch after hav-
ing enabled the Bluetooth  connection
on the phone.
27p191
When the connection is completed, this
screen is displayed.
Now you can use the Bluetooth  phone.
Reconnecting the Bluetooth  phone
If the Bluetooth  phone is disconnected
with a poor reception from the
Bluetooth  network when the “ACC” or
“IGON” mode is enabled, the system
automatically reconnects the Bluetooth
phone. In this case, the connection
result is not displayed.
If the Bluetooth  is disconnected on pur-
pose such as you turned your cellular
phone off, this does not happen. Recon-
nect it by the following methods.
Select the Bluetooth  phone again.
Enter the Bluetooth  phone.

180
After you enter the Bluetooth phone,
you can call by using handsfree sys-
tem. You can call using the 7 methods
described below.

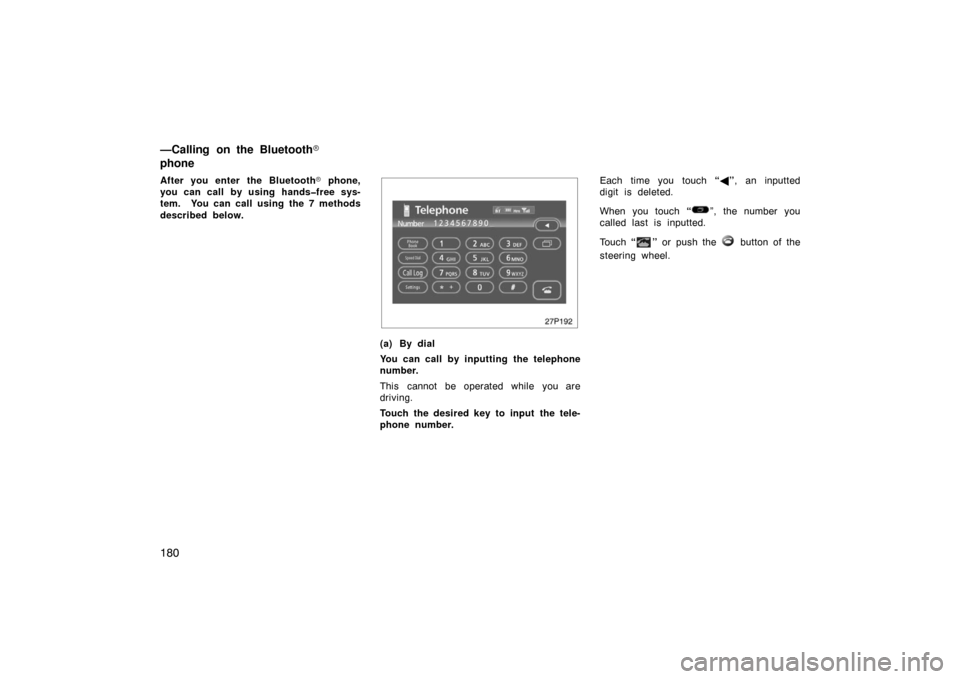

27p192
(a) By dial
You can call by inputting the telephone
number.
This cannot be operated while you are
driving.
Touch the desired key to input the tele-
phone number. Each time you touch
“ ”, an inputted
digit is deleted.
When you touch “
”, the number you
called last is inputted.
Touch “
” or push the button of the
steering wheel.
—Calling on the Bluetooth
phone
