TOYOTA PRIUS 2009 2.G Owners Manual

131
2-1. Driving procedures
2
When driving
PRIUS_U_(OM47614U)
NOTICE
■
If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering
wheel firmly and gradually press the brake pedal to slow down the vehicle.
● It may be difficult to control your vehicle.
● The vehicle will make abnormal sounds.
● The vehicle will behave abnormally.
Replace a flat tire with a new one. ( P. 439)
■ When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may
cause the following serious damage to the vehicle.
● Engine stalling
● Short in electrical components
● Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be
sure to have your Toyota dealer check the following.
● Brake function
● Changes in quantity and quality of engine oil, transmission fluid for the
hybrid system, etc.
● Lubricant condition for the bearings and suspension joints (where possi-
ble) and the function of all joints, bearings, etc.

132
2-1. Driving procedures
PRIUS_U_(OM47614U)

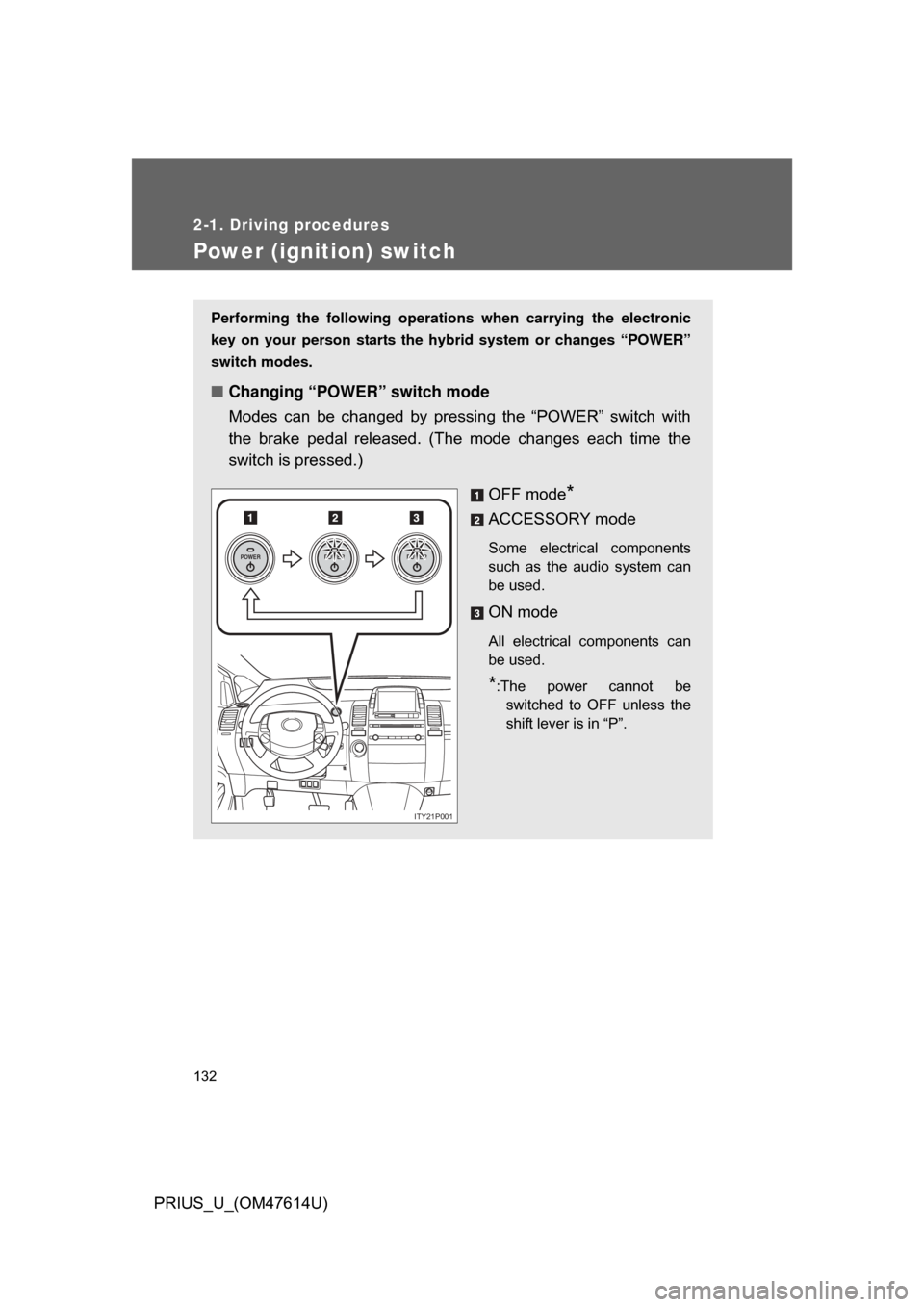

Power (ignition) switch
Performing the following operations when carrying the electronic
key on your person starts the hybr id system or changes “POWER”
switch modes.
■ Changing “POWER” switch mode
Modes can be changed by pres sing the “POWER” switch with
the brake pedal released. (The mode changes each time the
switch is pressed.)
OFF mode
*
ACCESSORY mode
Some electrical components
such as the audio system can
be used.
ON mode
All electrical components can
be used.
*:The power cannot beswitched to OFF unless the
shift lever is in “P”.
POWERPOWERPOWER
ITY21P001

133
2-1. Driving procedures
2
When driving
PRIUS_U_(OM47614U)
■

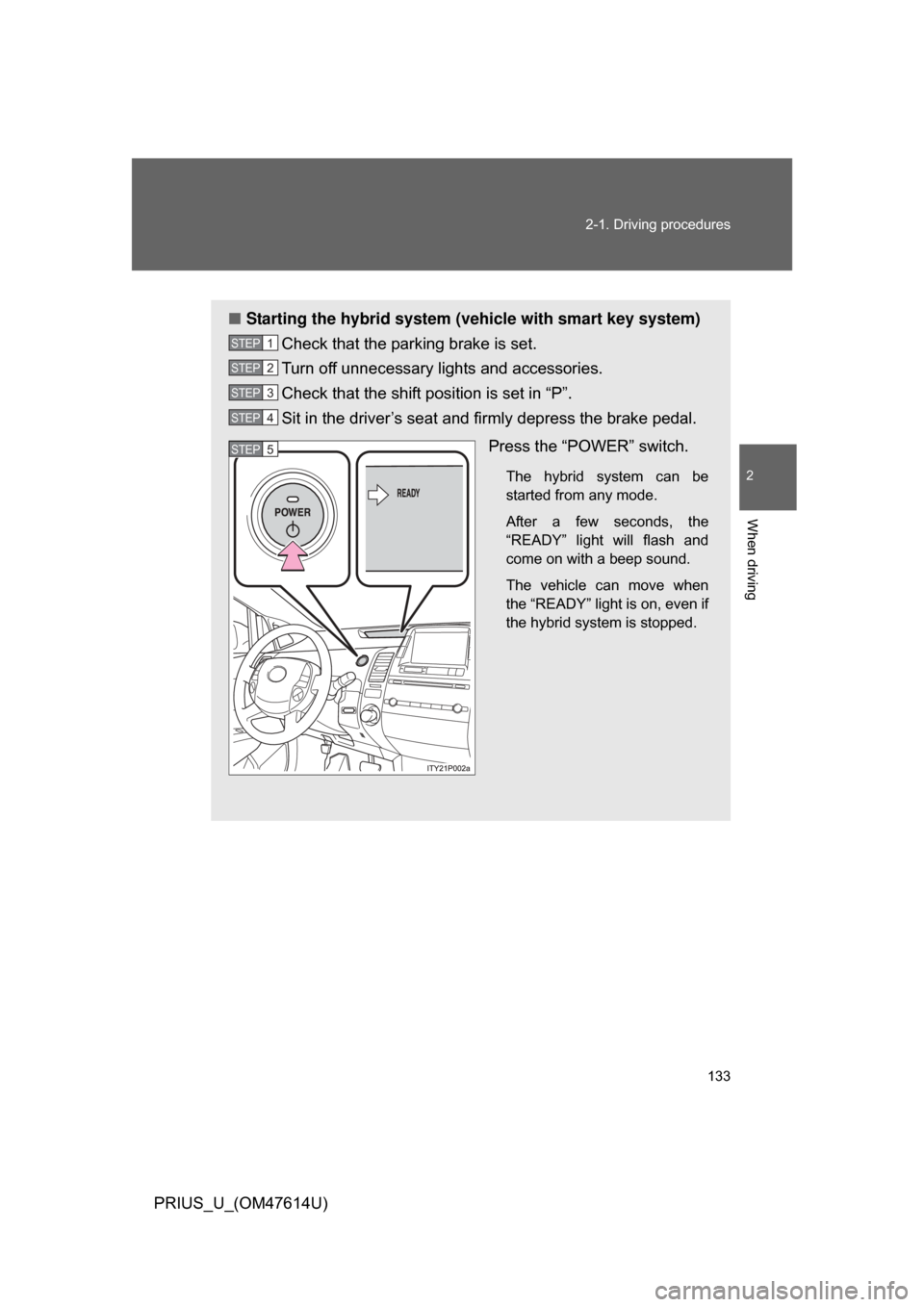

Starting the hybrid system (vehicle with smart key system)
Check that the parking brake is set.
Turn off unnecessary lights and accessories.
Check that the shift position is set in “P”.
Sit in the driver’s seat and firmly depress the brake pedal.
Press the “POWER” switch.
The hybrid system can be
started from any mode.
After a few seconds, the
“READY” light will flash and
come on with a beep sound.
The vehicle can move when
the “READY” light is on, even if
the hybrid system is stopped.
STEP1
STEP2
STEP3
STEP4
STEP5

134 2-1. Driving procedures
PRIUS_U_(OM47614U)

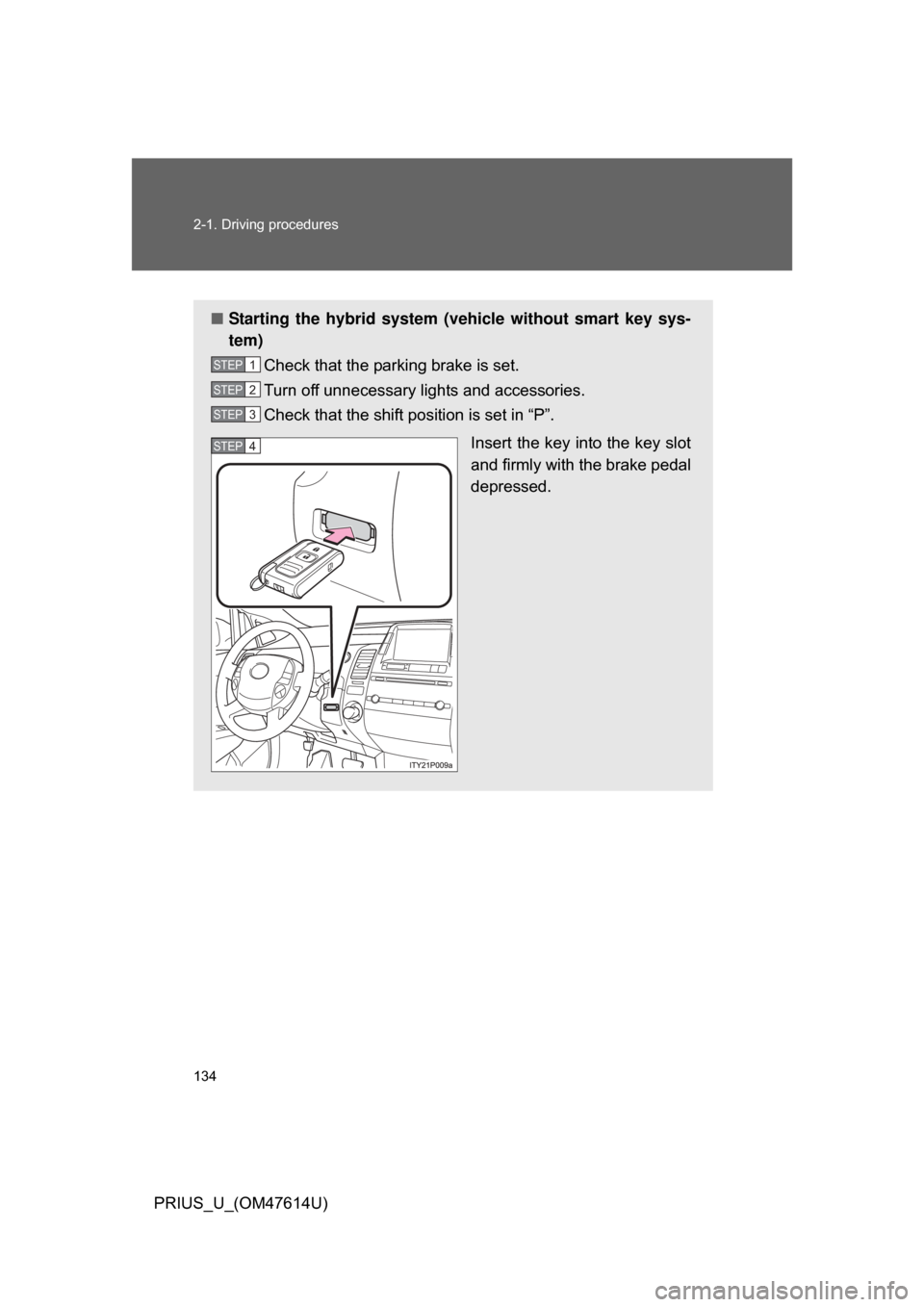

■Starting the hybrid system (v ehicle without smart key sys-
tem)
Check that the parking brake is set.
Turn off unnecessary lights and accessories.
Check that the shift position is set in “P”.
Insert the key into the key slot
and firmly with the brake pedal
depressed.
STEP1
STEP2
STEP3
STEP4

135
2-1. Driving procedures
2
When driving
PRIUS_U_(OM47614U)

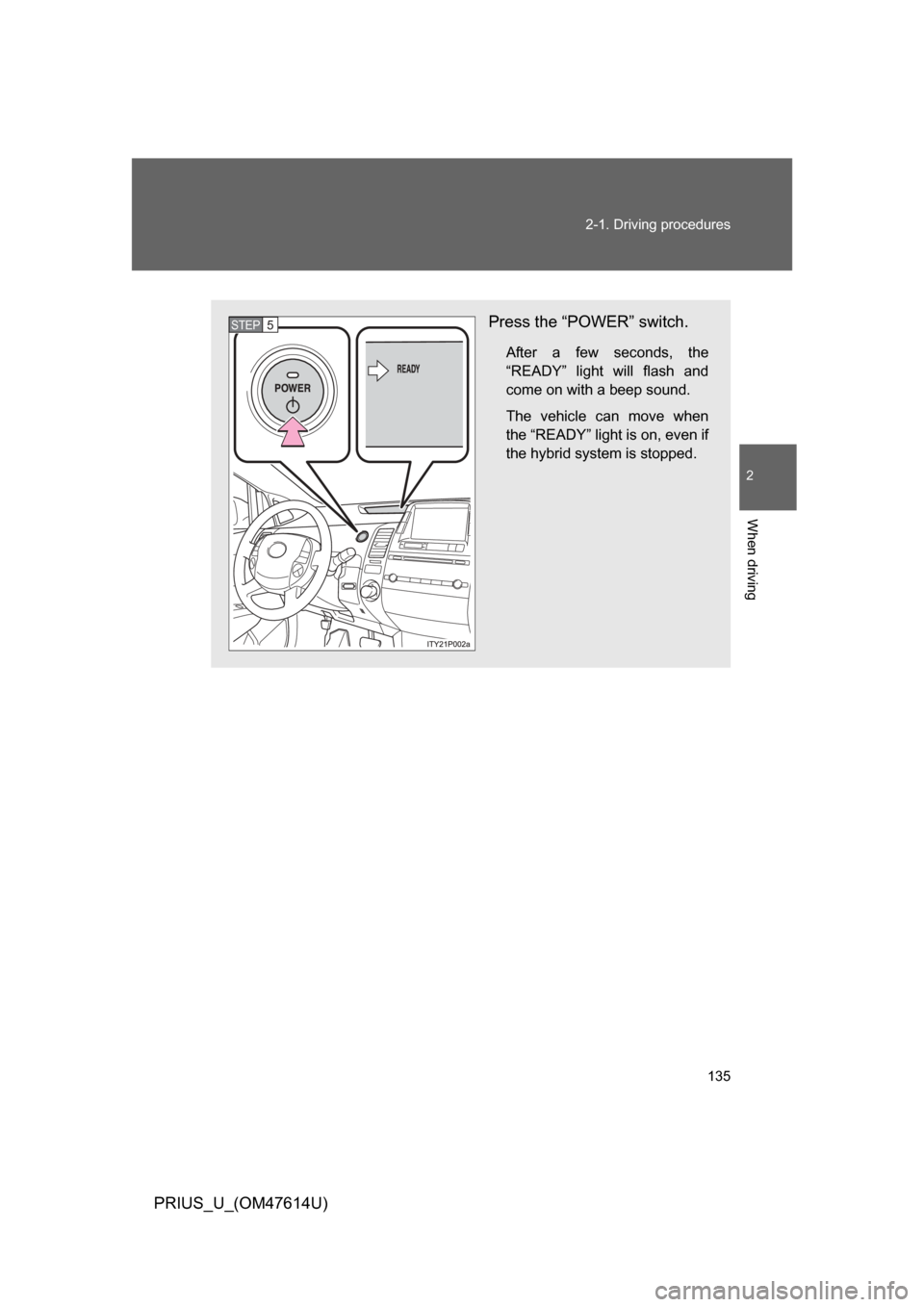

Press the “POWER” switch.
After a few seconds, the
“READY” light will flash and
come on with a beep sound.
The vehicle can move when
the “READY” light is on, even if
the hybrid system is stopped.
STEP5

136 2-1. Driving procedures
PRIUS_U_(OM47614U)
■If the hybrid system does not start
The hybrid system immobilizer system may not have been deactivated.
(P. 82)
■ If the “READY” light does not come on
If the “READY” light does not come on when you press the power switch with
the shift lever in “P” and the brake pedal pressed, contact your Toyota dealer
immediately.
■ When the “POWER” switch in dicator flashes in amber
The system may be malfunctioning. Have the vehicle inspected by your Toy-
ota dealer immediately.
■ Auto power OFF function
The “POWER” switch will automatically turn OFF when left in ACCESSORY
mode for 1 hour or more.
■ Electronic key battery depletion
 P. 4 4
■ When the electronic key battery is discharged
 P. 392
■ Conditions affecting operation
 P. 4 2
■ Leak detection pump
Several hours after the engine is turned off, you may hear a sound coming
from underneath the luggage compartment for several minutes.
This is normal operation and does not indicate a malfunction.

137
2-1. Driving procedures
2
When driving
PRIUS_U_(OM47614U)
CAUTION
■
When starting the hybrid system
Always start the hybrid system while sitting in the driver’s seat. Do not press
the accelerator pedal while starting the hybrid system under any circum-
stances.
Doing so may cause an accident resulting in death or serious injury.
■ Stopping the hybrid system in an emergency
If you want to stop the hybrid system in an emergency while driving the vehi-
cle, push and hold the “POWER” switch for more than 3 seconds.
However, do not touch the “POWER” switch while driving except in an emer-
gency. If the hybrid system stops while the vehicle is being driven, this could
lead to an unexpected accident.
NOTICE
■To prevent 12 volt battery discharge
Do not leave the “POWER” switch in ACCESSORY or ON mode for long
periods if the hybrid system is not operating.
■ When starting the hybrid system
● Do not race the hybrid system.
● If the hybrid system becomes difficult to start or stalls frequently, have the
hybrid system checked immediately.

138
2-1. Driving procedures
PRIUS_U_(OM47614U)

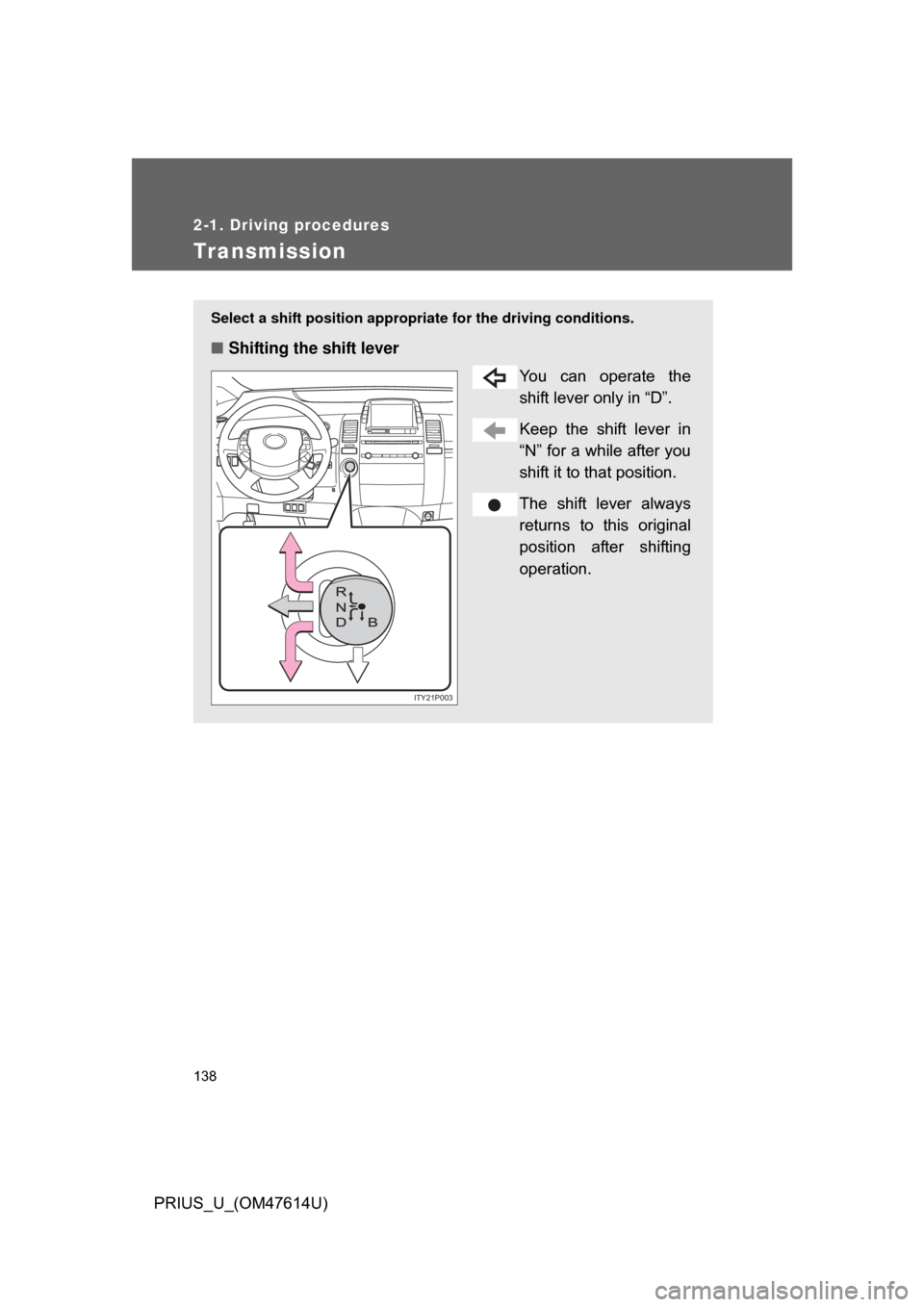

Transmission
Select a shift position appropriate for the driving conditions.
■Shifting the shift lever
You can operate the
shift lever only in “D”.
Keep the shift lever in
“N” for a while after you
shift it to that position.
The shift lever always
returns to this original
position after shifting
operation.
ITY21P003

139
2-1. Driving procedures
2
When driving
PRIUS_U_(OM47614U)

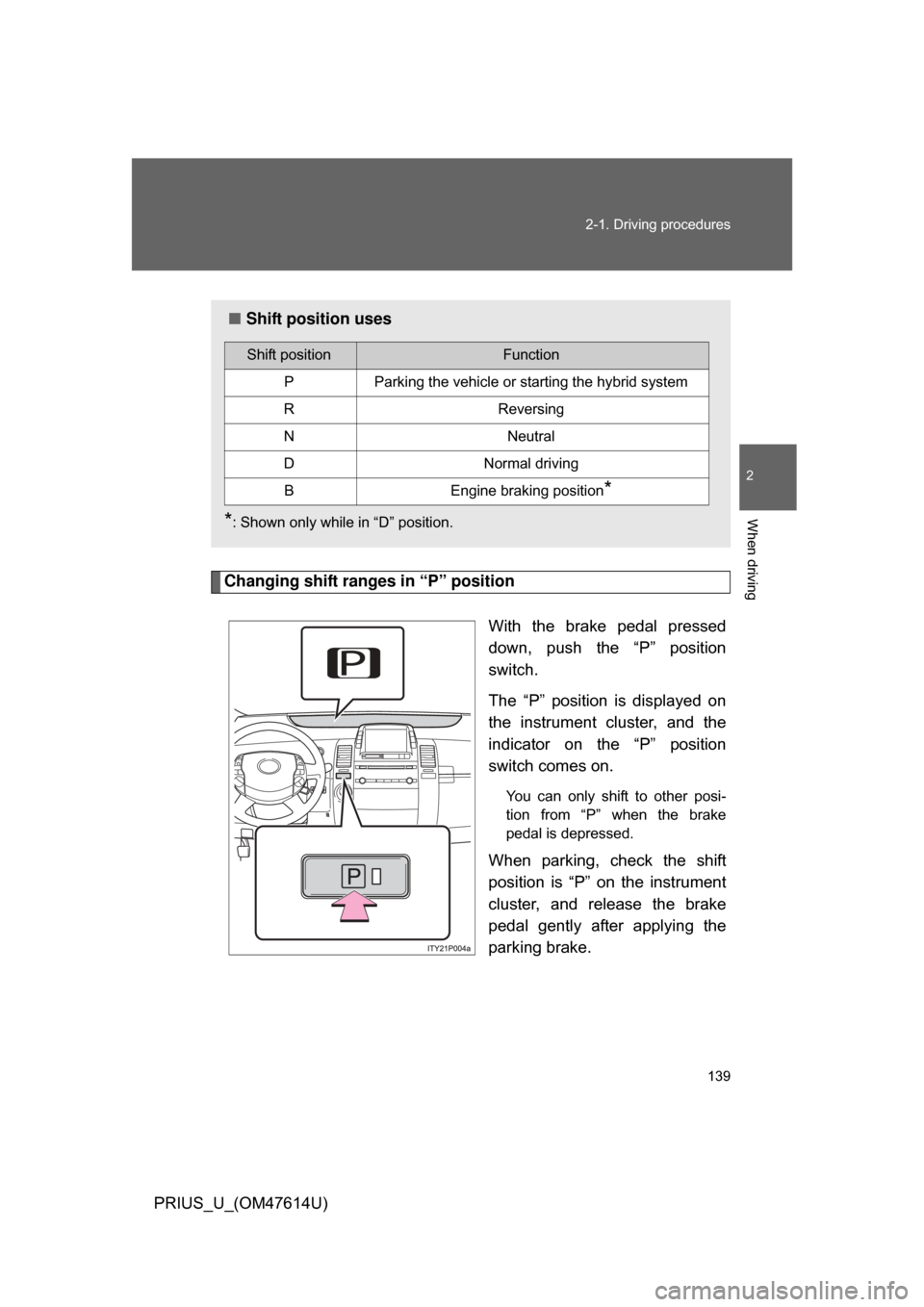

Changing shift ranges in “P” position
With the brake pedal pressed
down, push the “P” position
switch.
The “P” position is displayed on
the instrument cluster, and the
indicator on the “P” position
switch comes on.
You can only shift to other posi-
tion from “P” when the brake
pedal is depressed.
When parking, check the shift
position is “P” on the instrument
cluster, and release the brake
pedal gently after applying the
parking brake.
■Shift position uses
*: Shown only while in “D” position.
Shift positionFunction
PParking the vehicle or starting the hybrid system
RReversing
NNeutral
DNormal driving
BEngine braking position*

140 2-1. Driving procedures
PRIUS_U_(OM47614U)
■Using engine brake
To use the engine braking, shift the shift lever to “B” position.
● During high speed driving, you may feel that deceleration by engine brak-
ing is less than that of a typical vehicle.
● Do not continue normal driving with the transmission in “B” for a long
time.
This may cause decreased fuel economy. To prevent this, use “D” for
normal driving.
■ Reverse warning buzzer
When shifting into “R”, a buzzer will sound to inform the driver that the shift
lever is in “R”.
■ If the system malfunctions
The following conditions, there is some problem in the system.
Immediately stop the vehicle in a safe place and contact your Toyota dealer.
● The indicator on the “P” position switch flashes. However, this does not
indicate a malfunction unless a warning message appears in the touch
screen.
● All frames of shift position indicators in the instrument cluster flash.
● The parking system error message appears on the touch screen.
● The instrument cluster and touch screen does not come on when the
“POWER” switch is in ON mode.
