TOYOTA PRIUS 2009 2.G Owners Manual

281
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
PRIUS_U_(OM47614U)■
Calling using voice recognition
Using voice recognition, you c an call by name from the “Phone
Book” screen, call by number fr om the “Telephone” screen, and
send tones from the “Call” screen.( P. 285)
Talk switch
● Calling by name from the “Phone Book” screen
Press the talk switch.
Following the system guidance, wait until the beep and then
say the desired name.
If there are multiple entries fo r the same name, “Next” will be
displayed.
To select the next candidate, touch or say “Next candi-
date”.
Following the system guidance , press the talk switch.
Following the system guidance, wait until the beep and then
say “Dial”.
ITY34P016
STEP1
STEP2
STEP3
STEP4

282 3-4. Using the hands-free system (for cellular phone)
PRIUS_U_(OM47614U)●
Calling by number from the “Telephone” screen
Press the talk switch.
Following the system guidance, wait until the beep and then
say the desired number.
Following the system guidance , press the talk switch.
Following the system guidance, wait until the beep and then
say “Dial”.
● Sending tones from the “Call” screen
Press the talk switch.
Following the system guidance, wait until the beep and then
say the desired number.
Following the system guidance , press the talk switch.
Following the system guidance, wait until the beep and then
say “Yes”.
■ Calling using POI
You can make a call using a Point Of Interest. ( “Navigation Sys-
tem Owner’s Manual”)
ITY34P017
STEP1
STEP2
STEP3
STEP4
ITY34P018
STEP1
STEP2
STEP3
STEP4

283
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
PRIUS_U_(OM47614U)
■Made/Received call history list
● If you make a call to or receive a call from a number registered in the
phone book, the name is displayed in the call history.
● If you make multiple calls to the same number, only the last call made is
displayed in the made calls history.
● is displayed to the left of phone number for unanswered calls.
● Calls where the number is unavailable, such as public telephones, are
not stored in the call history.
■ When driving
● The functions “Dialing”, “Dialing from the phone book”, and “Dialing from
history” are unavailable.
● If you press the on the steering wheel, the “Speed Dial” screen is
displayed. At this time phone numbers will not be displayed. Choose
from the names displayed to make a call.
■ International calls
You may not be able to make international calls, depending on the mobile
phone in use.
■ To display the voice recognition command list
After pressing the talk switch,
touch . If the “Operat-
ing Guide” screen is display-
ing, touch .
Touch .
ITY34P019
STEP1
STEP2

284 3-4. Using the hands-free system (for cellular phone)
PRIUS_U_(OM47614U)
Receiving a callWhen a call is received, the following screen is displayed together
with a sound. Touch or press the
on the steering wheel.
■To display the voice recognition operating guide
■ To cancel voice recognition
● Press and hold the talk switch.
● Press on the steering wheel.
● Say “Cancel”.
● Touch . (excluding command verification)
■ When using voice recognition
Use correct commands and speak clearly, otherwise the system may not
correctly recognize the command. Wind or other noises may also cause the
system not to recognize the desired command.
After pressing the talk switch,
touch . If the “Com-
mand List” screen is display-
ing, touch .
Touch .
ITY34P020
STEP1
STEP2
ITY34P021

285
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
PRIUS_U_(OM47614U)■
To refuse a call
Touch and hold .
■ To adjust the received call volume
Touch the or . You can also adjust the volume using the
steering switches.
Speaking on the phone
The following screen is displayed when speaking on the phone.
■ To adjust the received call volume
Touch the or . You can also adjust the volume using the
steering switches.
■ To prevent the other party from hearing your voice
Touch the .
■ International calls
Received international calls may not be displayed correctly, depending on
the mobile phone in use.
ITY34P022

286 3-4. Using the hands-free system (for cellular phone)
PRIUS_U_(OM47614U)■
Inputting a key
When using phone services such as an answering service or a
bank, you can store phone numbers and code numbers in the
phone book.
Touch . Input the number.
If repeated tone symbols* are
stored in the phone book,
and are displayed on the
right side of the screen.
*:Repeated tone symbols are symbols or numbers displayed
as p or w, that come after the
phone number.
(e.g. 056133p0123w#1
✽)
Confirm the number displayed on screen, and touch .
If you touch , operation is completed without making a call.
■ To transfer a call
To u c h .
■ To hang up
Touch or press the on the steering wheel.
STEP1
ITY34P018
STEP2
STEP3

287
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
PRIUS_U_(OM47614U)
■Transferring calls
● It is not possible to transfer from hands-free to the mobile phone while
driving.
● If you transfer from the mobile phone to hands-free, the hands-free
screen will be displayed, and you can operate the system using the
screen.
● Transfer method and operation may vary according to the mobile phone
used.
● For operation of the mobile phone in use, see the phone’s manual.
■ To send a tone by speed tone
Touch then touch . Choose the desired number from the
speed tone list displayed.
■ While driving
Key input is unavailable.

288
3-4. Using the hands-free system (for cellular phone)
PRIUS_U_(OM47614U)

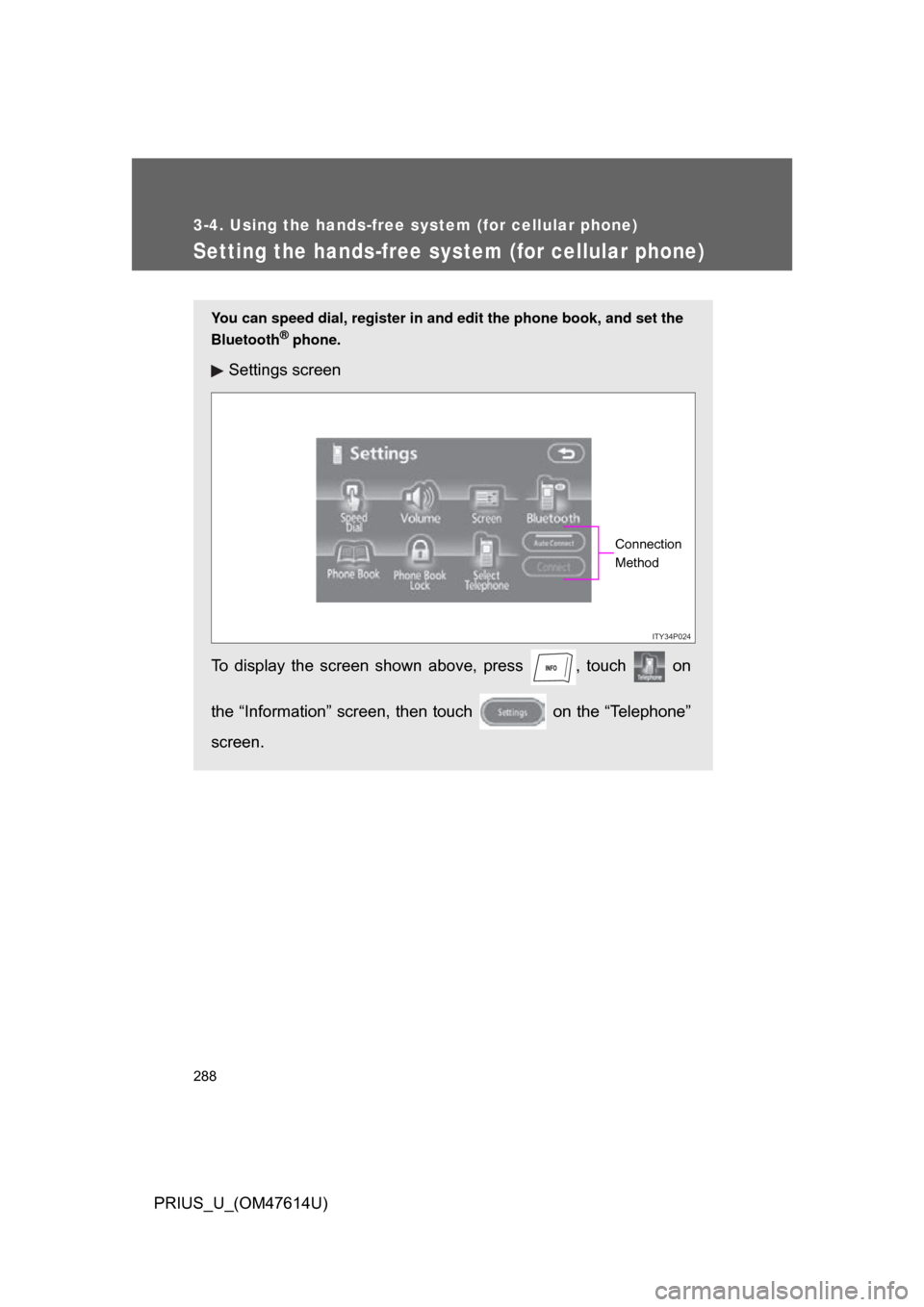

Setting the hands-free system (for cellular phone)
You can speed dial, register in and edit the phone book, and set the
Bluetooth
® phone.
Settings screen
To display the screen shown above, press , touch on
the “Information” screen, then touch on the “Telephone”
screen.
ITY34P024
Connection
Method

289
3-4. Using the hands-free
system (for cellular phone)
3
Interior features
PRIUS_U_(OM47614U)
Registering/Deleting a speed dial item
■ Registering a speed dial item
You can register a number from the phone book or the call history.
Up to 17 entries may be stored.
Press .
Touch on the “Information” screen.
Touch the switch on the “Telephone” screen.
Touch on the “Settings” screen.
Touch in the “Speed Dial”
section of the “Speed Dial Set-
tings” screen.
Select the data to be registered.
STEP1
STEP2
STEP3
STEP4
ITY34P025
STEP5
ITY34P026
STEP6

290 3-4. Using the hands-free system (for cellular phone)
PRIUS_U_(OM47614U)Select the number to be regis-
tered.
Press the desired switch.
The last dialed number will be
registered in position 6.
■
Deleting a speed dial item
Press .
Touch on the “Inf ormation” screen.
Touch the switch on the “Telephone” screen.
Touch on the “Settings” screen.
Touch in the “Speed Dial” section of the “Speed Dial Settings” screen.
Select the data to be deleted.
A confirmation message will be di splayed. If everything is cor-
rect, touch .
ITY34P027
STEP7
ITY34P028
STEP8
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
STEP7
