Page 331 of 508
331
3-7. Other interior features
3
Interior features
PRIUS_U_(OM47614U)
Armrest
NOTICE
■To prevent damage to the armrest
Do not place too much strain on the armrest.
Pull the armrest down for use.
ITY37P006
Page 332 of 508
332
3-7. Other interior features
PRIUS_U_(OM47614U)
Floor mats
CAUTION
■When inserting the floor mat
Observe the following precautions.
Failure to do so may result in the floor mat slipping and interfering with the
movement of the pedals during driving, resulting in an accident.
● Make sure the floor mat is properly placed on the vehicle carpet and the
correct side faces upward.
● Do not place floor mats on top of existing mats.
Securely place a mat that matches the size of the space on the car-
pet.
Secure the floor mat using the
hooks provided.
Page 333 of 508
333
3-7. Other interior features
3
Interior features
PRIUS_U_(OM47614U)

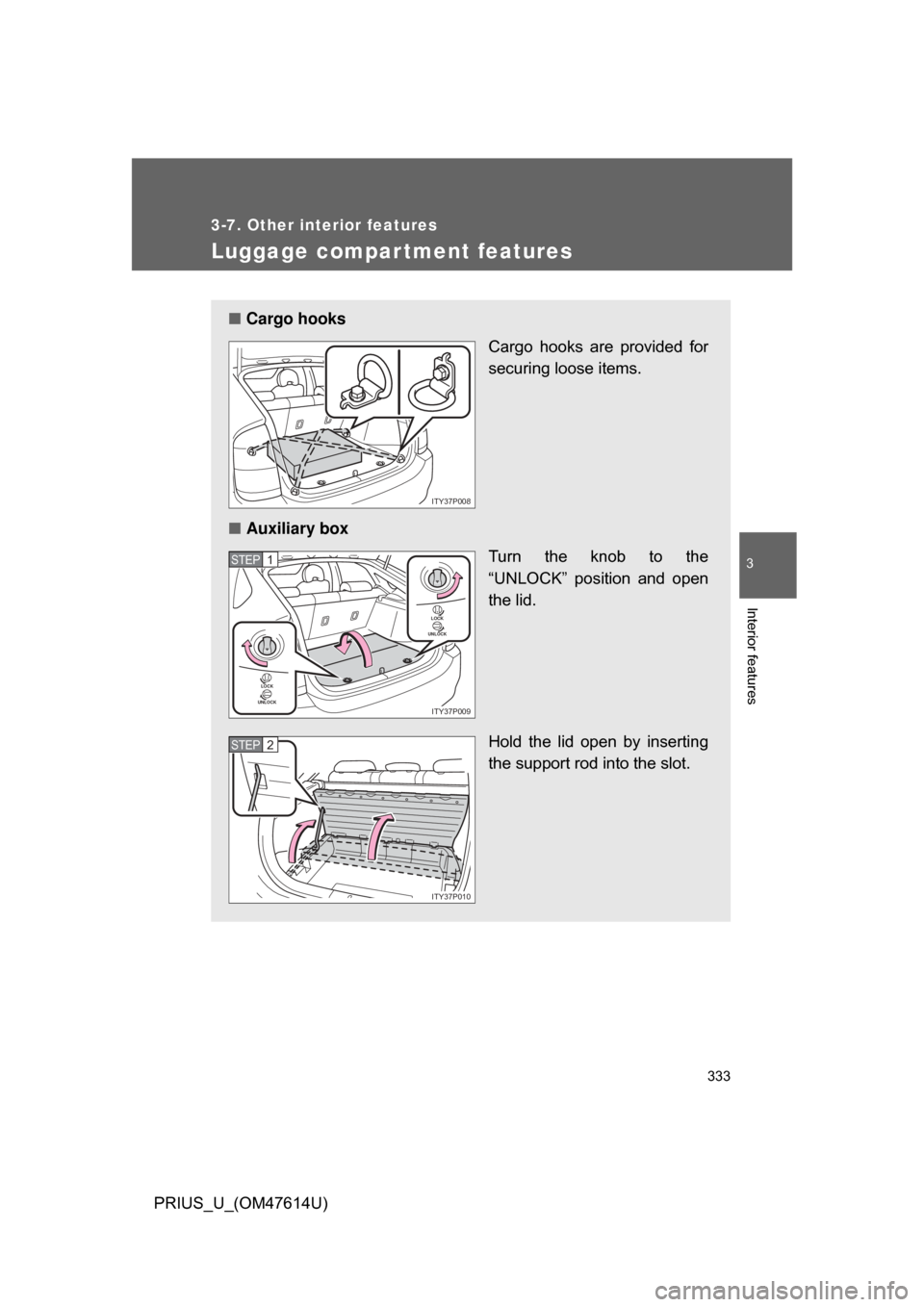

Luggage compar tment features
■Cargo hooks
Cargo hooks are provided for
securing loose items.
■ Auxiliary box
Turn the knob to the
“UNLOCK” position and open
the lid.
Hold the lid open by inserting
the support rod into the slot.
ITY37P008
LOCK
UNLOCK
LOCK
UNLOCK
ITY37P009
STEP1
ITY37P010
STEP2
Page 334 of 508
334 3-7. Other interior features
PRIUS_U_(OM47614U)

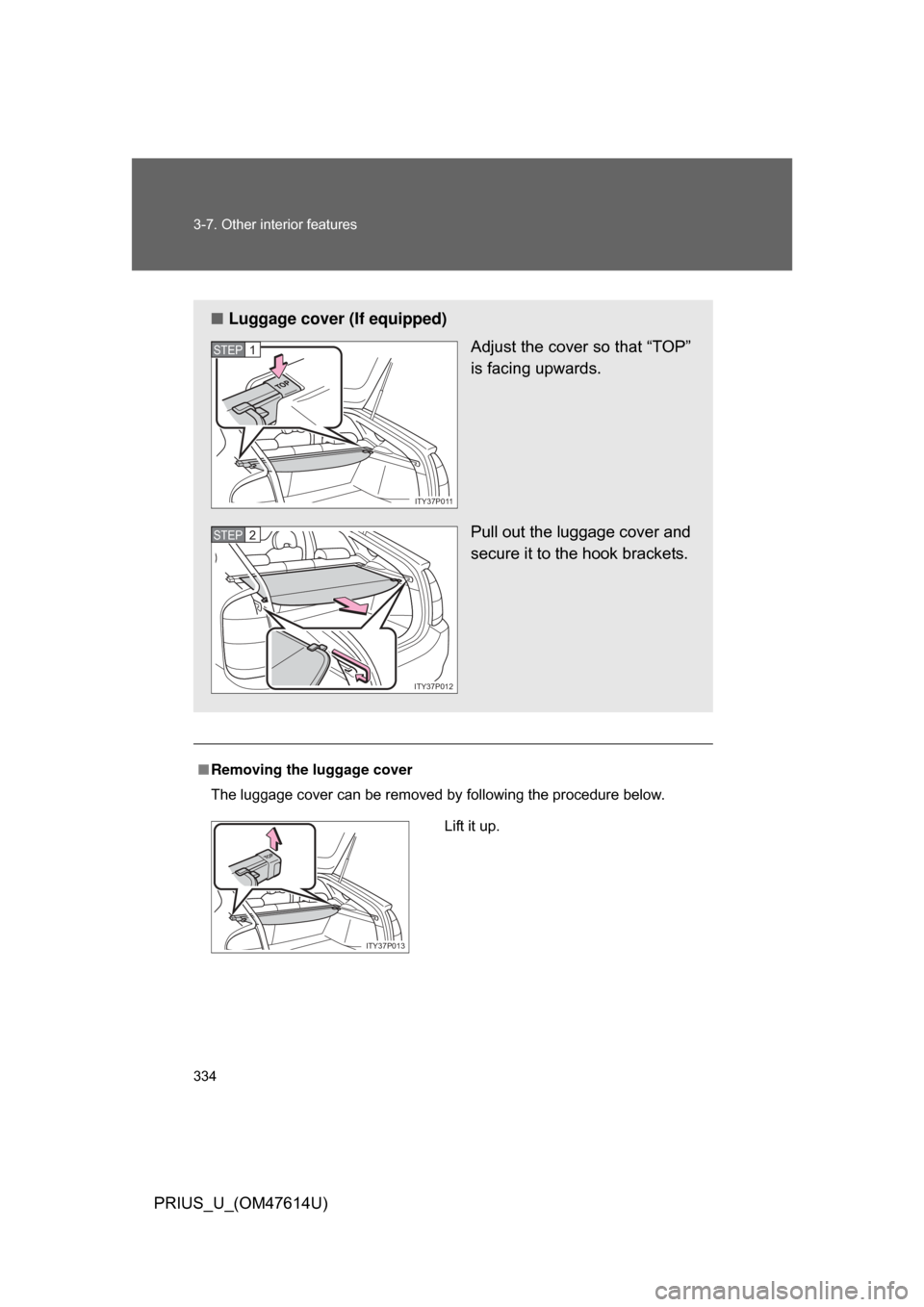

■Removing the luggage cover
The luggage cover can be removed by following the procedure below.
■ Luggage cover (If equipped)
Adjust the cover so that “TOP”
is facing upwards.
Pull out the luggage cover and
secure it to the hook brackets.
ITY37P011
STEP1
ITY37P012
STEP2
Lift it up.
TOP
ITY37P013
Page 335 of 508
335
3-7. Other interior features
3
Interior features
PRIUS_U_(OM47614U)
■
Stowing the luggage cover
CAUTION
■While driving
To avoid injury, always return the cargo hooks to their positions when they
are not in use.
Remove the side deck boards and
open the auxiliary box.
Adjust the cover so that “TOP” is facing
up.STEP1
ITY37P015
STEP2
Page 336 of 508
336
3-7. Other interior features
PRIUS_U_(OM47614U)
Garage door opener
The garage door opener (HomeLink Universal Transceiver) is manufac-
tured under license from HomeLink.
Programming the HomeLink (for U.S.A. owners)
The HomeLink
compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Buttons
Indicator
■ Programming the HomeLink
Point the remote control for the
device 1 to 3 in. (25 to 75 mm)
from the HomeLink
control but-
tons.
Keep the indicator light on the
HomeLink in view while pro-
gramming.
The garage door opener can be programmed to operate garage
doors, gates, entry doors, door locks, hom e lighting systems, and
security systems, and other devices.
