TOYOTA PRIUS 2009 2.G Owners Manual

5
When trouble arises
441
5-2. Steps to take in an emergency
PRIUS_U_(OM47614U)
Installing the spare tire
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, and the tire may
come off the vehicle.
Install the spare tire and loosely
tighten each nut by hand to
approximately the same amount.
Tighten the wheel nuts until the
tapered portion comes into
loose contact with the disc
wheel sheet.
Lower the vehicle.
ITY52P010
STEP1
ITY52P011
STEP2
Disc
wheel
sheet
Tapered portion
ITY52P012
STEP3

442 5-2. Steps to take in an emergency
PRIUS_U_(OM47614U)Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, the tire jack and all tools.
4
1
2
3
5
ITY52P013
STEP4
■If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on the rear of the vehicle. Perform the fol-
lowing steps and fit tire chains to the front tires.
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of
the vehicle.
Fit tire chains to the front tires.
■After completing the tire change
The tire pressure warnin g system must be reset. ( P. 376)
STEP5
STEP1
STEP2
STEP3

5
When trouble arises
443
5-2. Steps to take in an emergency
PRIUS_U_(OM47614U)
CAUTION
■Using the tire jack
Improper use of the tire jack may lead to death or injuries due to the
vehicle suddenly falling off the jack.
●Do not use the tire jack for any pu
rpose other than replacing tires or
installing and removing tire chains.
●Only use the tire jack that comes wi th this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not raise the vehicle while someone is in it.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a hei ght greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●Do not put any part of your body under the vehicle supported by a jack.
●Do not start or operate the hybrid system while your vehicle is sup-
ported by the jack.
Take particular care when lowering the vehicle to ensure that no one
working on or near the vehicle may be injured.
■Replacing a flat tire
Observe the following precautions to reduce the risk of death or serious
injury.
●Never use oil or grease on the wheel bolts or wheel nuts.
The oil or grease can cause the wheel nuts to loosen, causing a seri-
ous accident. Remove any oil or grease on the wheel bolts or wheel
nuts.
●Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103
N•m, 10.5 kgf•m) as soon as possible after changing wheels.
Failure to follow these precautions could cause the nuts to loosen and
the wheels may fall off, which could lead to an accident causing death
or serious injury.

444 5-2. Steps to take in an emergency
PRIUS_U_(OM47614U)
CAUTION
■When using the compact spare tire
●Remember that your spare tire is specifically designed for use with
your vehicle. Do not use your spare tire on another vehicle.
●Do not use two spare tires simultaneously.
●Replace the compact spare tire with a standard tire as soon as possi-
ble.
●Avoid sudden acceleration, deceleration and braking, as well as sharp
cornering.
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failing
to observe this precaution may lead to an accident causing death or seri-
ous injury.
■When the spare tire is attached
The vehicle speed may not be correctly detected, and the following sys-
tems may not operate correctly:
●ABS & Brake assist
●Enhanced VSC
●Navigation system

5
When trouble arises
445
5-2. Steps to take in an emergency
PRIUS_U_(OM47614U)
NOTICE
■Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
■Be careful when driving over bumps with the compact spare tire
installed on the vehicle
The vehicle becomes lower when driving with the compact spare tire
compared to when drivin
g with standard tires. Be careful when driving
over uneven road surfaces.
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving
performance.
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Toyota dealer as the tire pressure
warning valve and transmitter may be damaged if not handled correctly.
■To avoid damaging the tire pressure warning valves and transmit-
ters
Do not use liquid sealants on flat tires.

446
5-2. Steps to take in an emergency
PRIUS_U_(OM47614U)
If the hybrid system will not start
If the hybrid system will not start even though correct starting proce-
dures are being followed (
P. 132), consider each of the following
points.
■ The hybrid system will not start even when the starter motor
operates normally.
One of the following may be the cause of the problem.
●The electronic key battery may be discharged. ( P. 448)
● The hybrid system may be flooded.
Try to restart the hybrid system once more following correct
starting procedures. (P. 132)
● There may be a malfunction in the immobilizer system.
( P. 8 2 )
■ The interior lights and headlight s are dim, or the horn does
not sound or sounds at a low volume
One of the following may be the cause of the problem.
● The 12 volt battery may be discharged. ( P. 449)
● The 12 volt battery terminal c onnections may be loose or cor-
roded.
■ The interior lights and headlights do not turn on, or the horn
does not sound
One of the following may be the cause of the problem.
●One or both of the 12 volt battery terminals may be discon-
nected.
● The 12 volt battery may be discharged. ( P. 449)
Contact your Toyota dealer if the problem cannot be repaired,
or if repair procedures are unknown.

5
When trouble arises
447
5-2. Steps to take in an emergency
PRIUS_U_(OM47614U)
If you lose your keys
New genuine Toyota keys can be made by your Toyota dealer using
master key and the key number stamped on your key number plate.

448
5-2. Steps to take in an emergency
PRIUS_U_(OM47614U)
If the electronic key does not operate properly
Locking and unlocking the doorsUsing the mechanical key
( P. 34) in order to perform
the following operations:
Locks all doors
Unlocks the door
Turning the key rearward unlocks
the driver’s door. Turning the key
once again unlocks the other
doors.
Starting the hybrid system
To start the hybrid system, insert
the key into the key slot.
( P. 134)
If the electronic key battery is di scharged, the doors can be opened
by the mechanical key. The hybrid system can be still started by fol-
lowing the procedure.
■ Replacing the key battery
As this procedure is the temporary measure, it is recommended that the
electronic key battery be replaced immediately. ( P. 392)

5
When trouble arises
449
5-2. Steps to take in an emergency
PRIUS_U_(OM47614U)

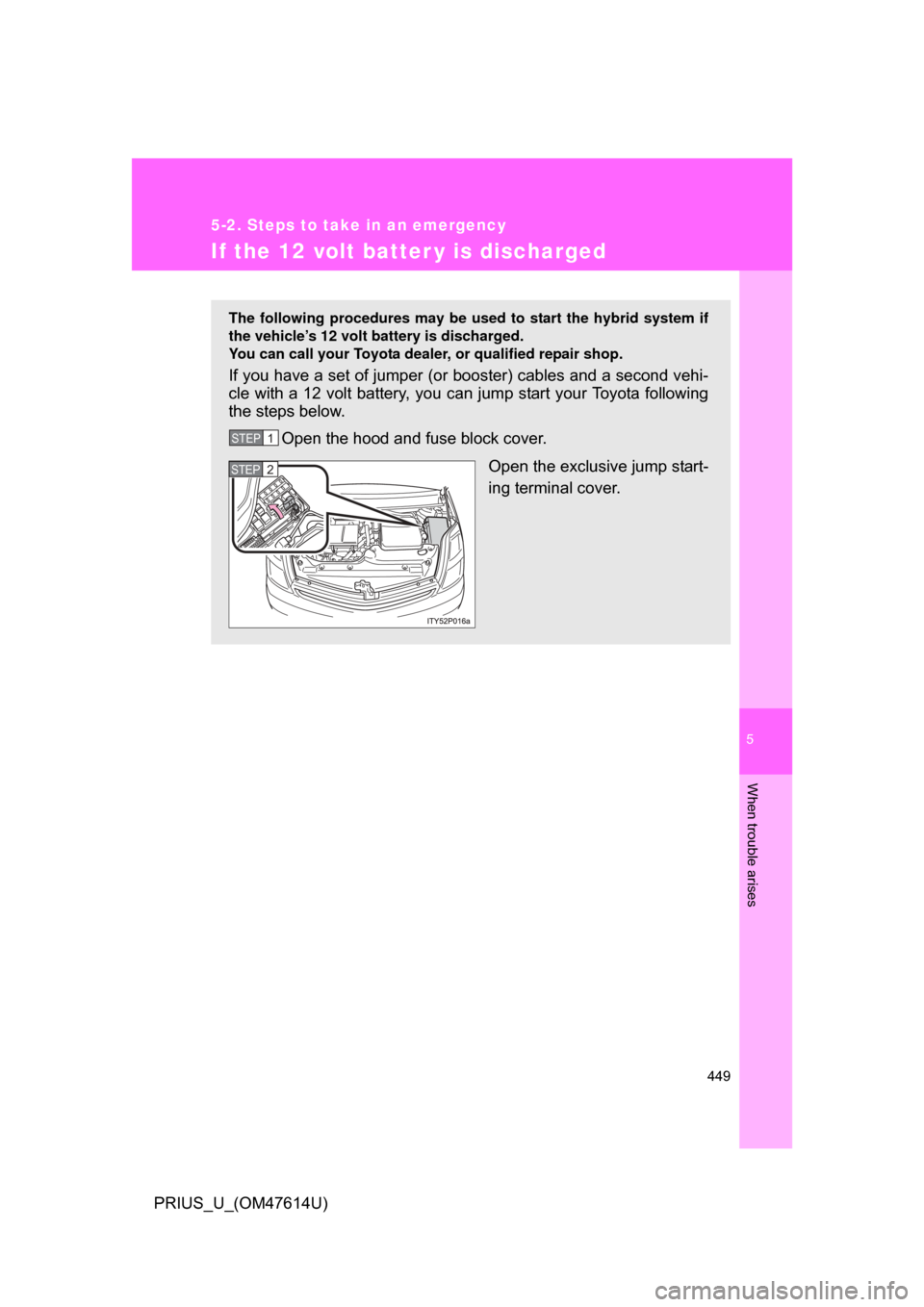

If the 12 volt batter y is discharged
The following procedures may be used to start the hybrid system if
the vehicle’s 12 volt battery is discharged.
You can call your Toyota dealer, or qualified repair shop.
If you have a set of jumper (or boo ster) cables and a second vehi-
cle with a 12 volt battery, you can jump start your Toyota following
the steps below.
Open the hood and fuse block cover.
Open the exclusive jump start-
ing terminal cover.
STEP1
STEP2

450 5-2. Steps to take in an emergency
PRIUS_U_(OM47614U)

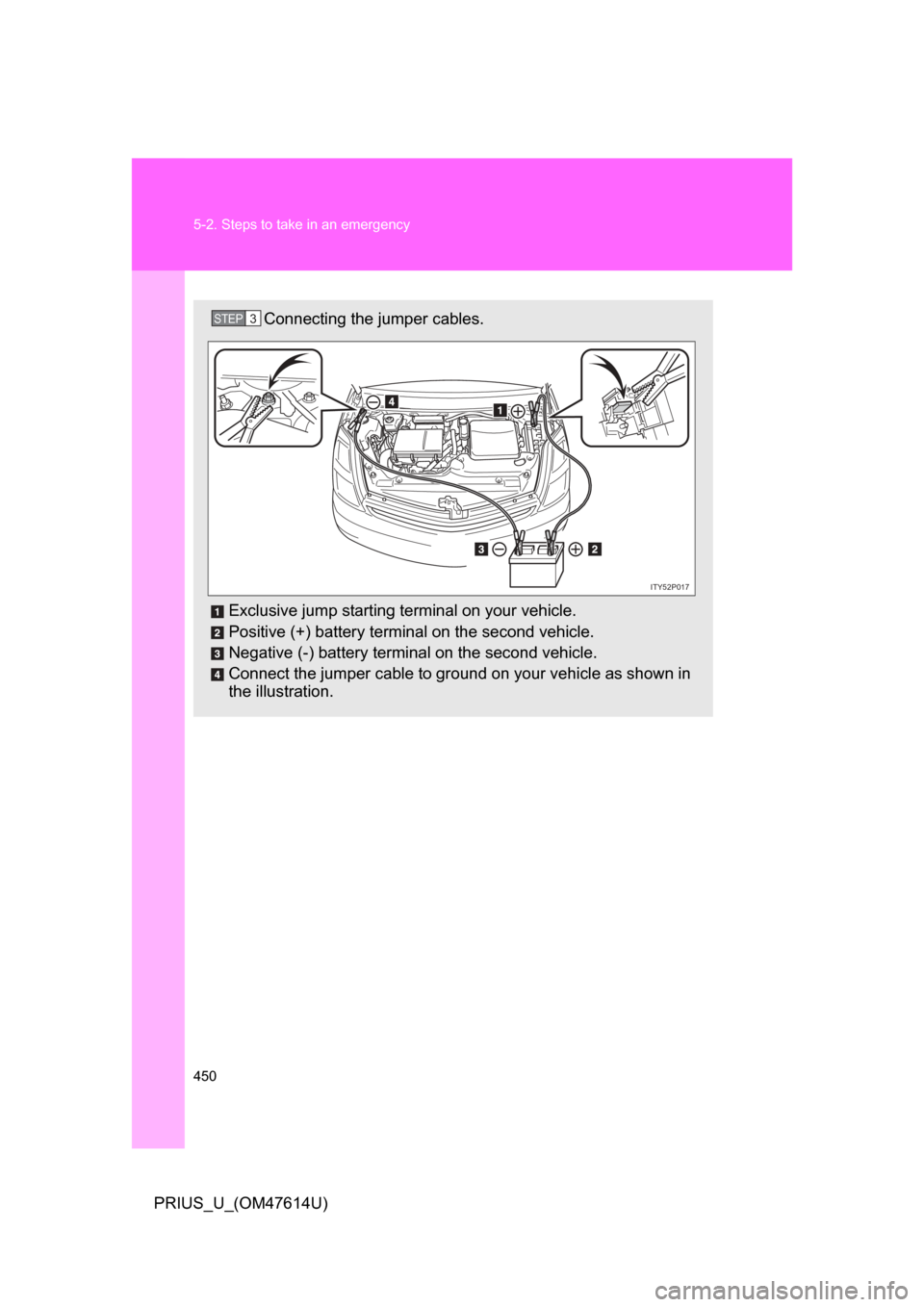

Connecting the jumper cables.
Exclusive jump starting terminal on your vehicle.
Positive (+) battery terminal on the second vehicle.
Negative (-) battery terminal on the second vehicle.
Connect the jumper cable to ground on your vehicle as shown in
the illustration.STEP3
ITY52P017
