TOYOTA PRIUS 2009 2.G Owners Manual

401
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(OM47614U)
■
Luggage compartment
FuseAmpereCircuit
49 DC/DS-S 5 A Inverter and converter
50 MAIN 120 A Hybrid system

402 4-3. Do-it-yourself maintenance
PRIUS_U_(OM47614U)
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
● Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Toy-
ota dealer.

403
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(OM47614U)
Light bulbs
You may replace the following bulbs yourself. For more information
about replacing other light bulbs, contact your Toyota dealer.
■Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 469)
■ Remove the engine compartment cover if necessary.
 P. 3 6 1
■ Front bulb locations
■ Rear bulb locations
ITY43P038
Parking and front
side marker lights
Headlight
Front turn signal light
ITY43P039
Rear turn signal light
Back-up light Licence plate lights
Tail and rear side
marker lights

404 4-3. Do-it-yourself maintenance
PRIUS_U_(OM47614U)

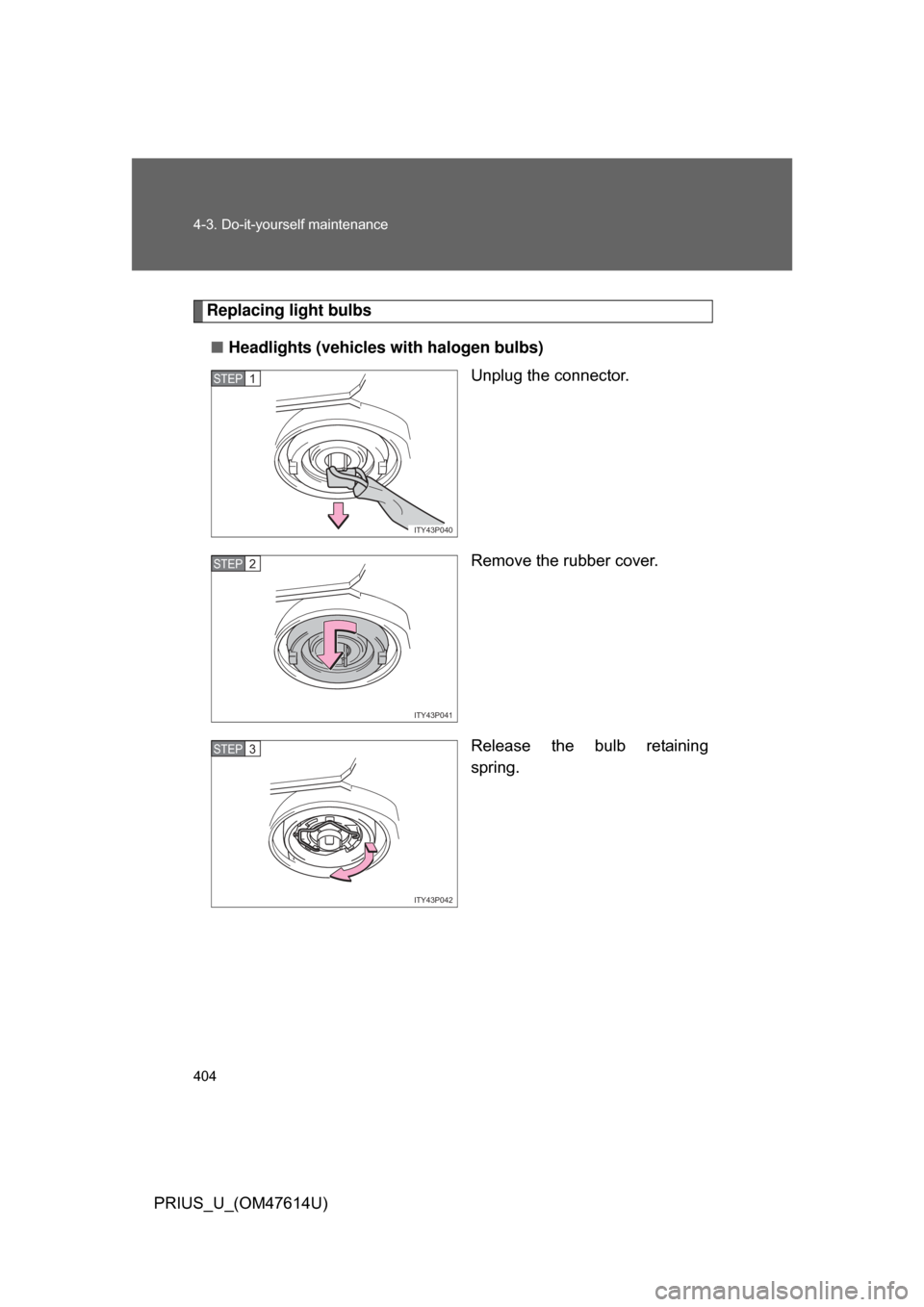

Replacing light bulbs■ Headlights (vehicles with halogen bulbs)
Unplug the connector.
Remove the rubber cover.
Release the bulb retaining
spring.
ITY43P040
STEP1
ITY43P041
STEP2
ITY43P042
STEP3

405
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(OM47614U)

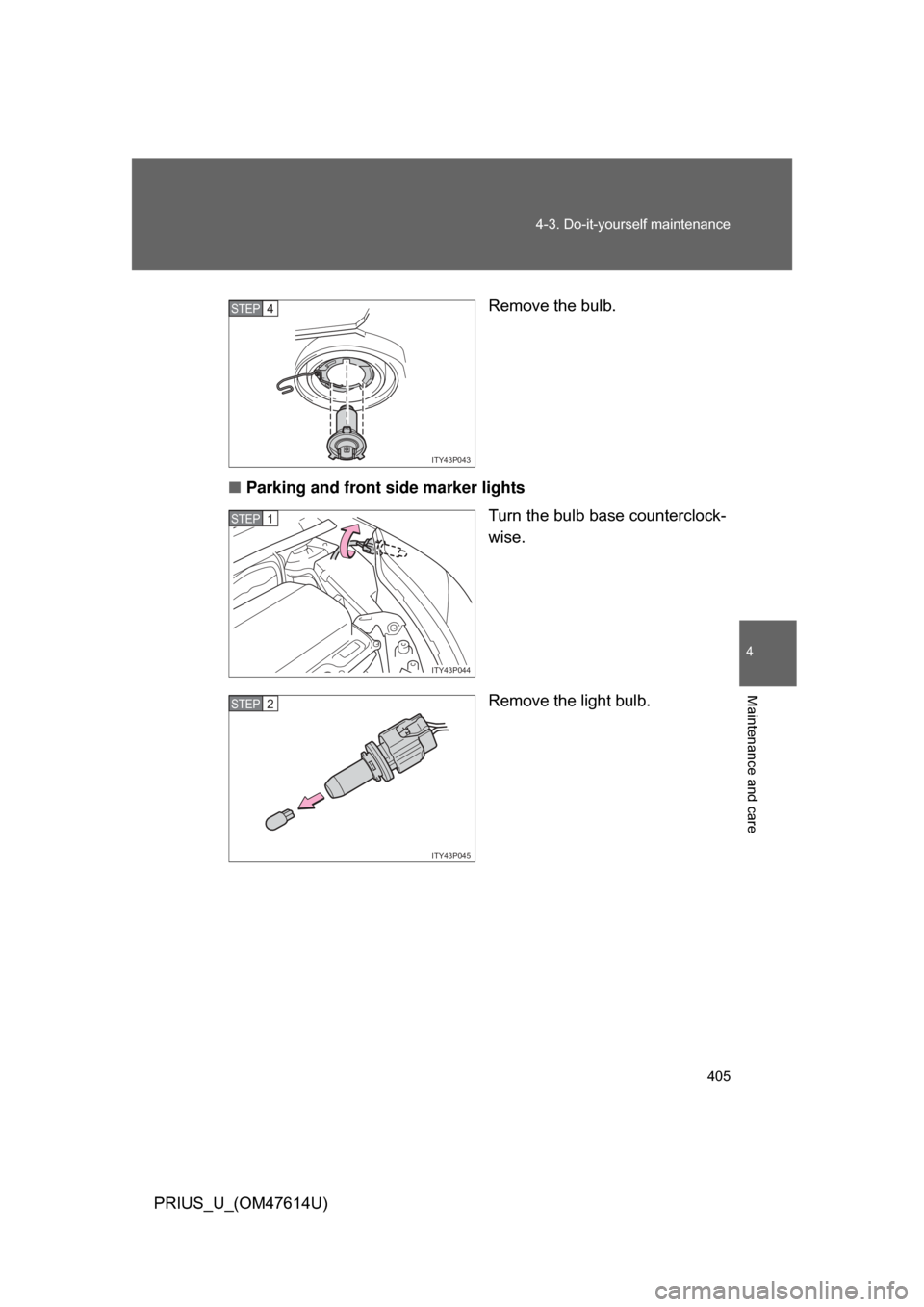

Remove the bulb.
■ Parking and front side marker lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
ITY43P043
STEP4
ITY43P044
STEP1
ITY43P045
STEP2

406 4-3. Do-it-yourself maintenance
PRIUS_U_(OM47614U)■

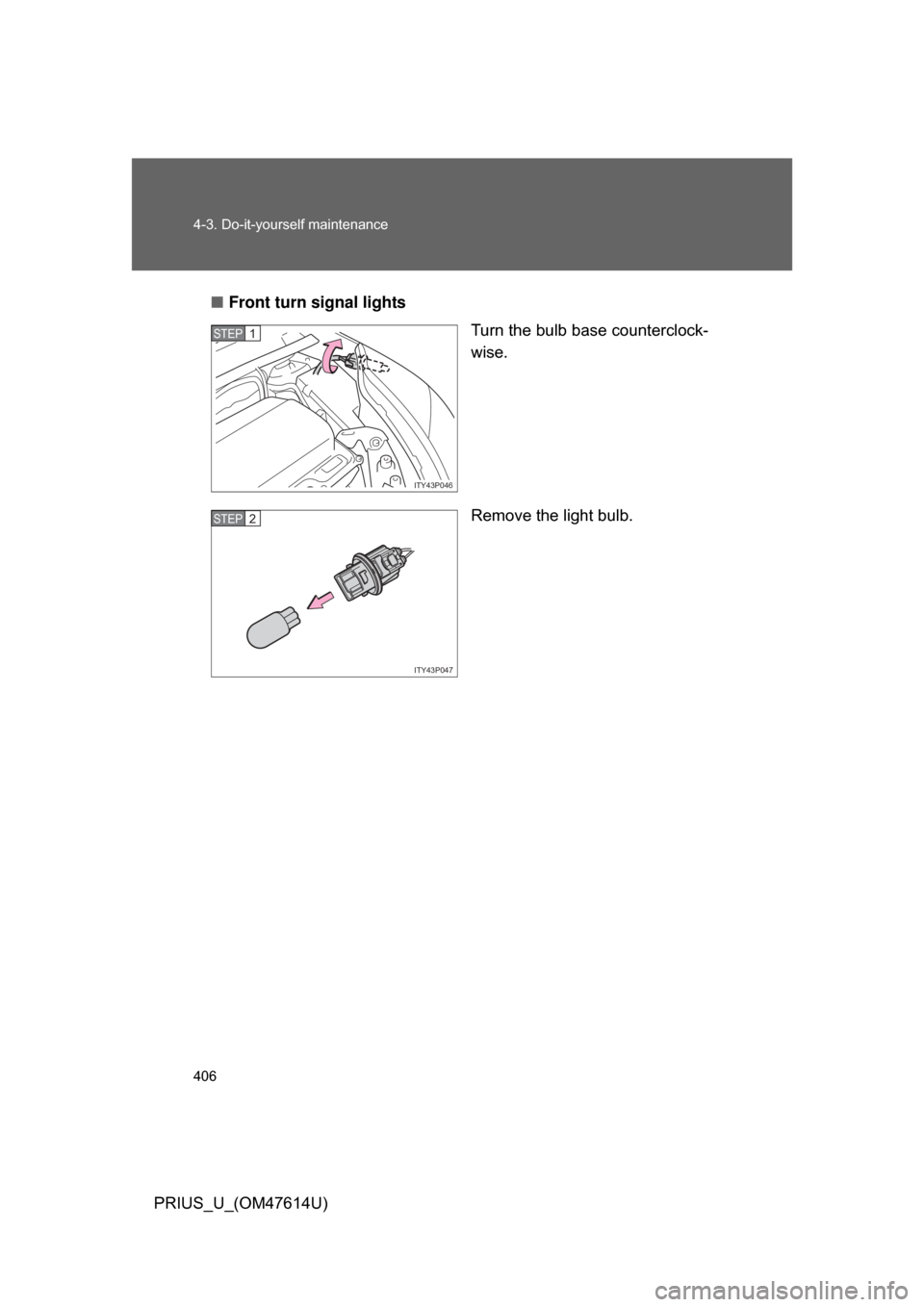

Front turn signal lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
ITY43P046
STEP1
ITY43P047
STEP2

407
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(OM47614U)
■

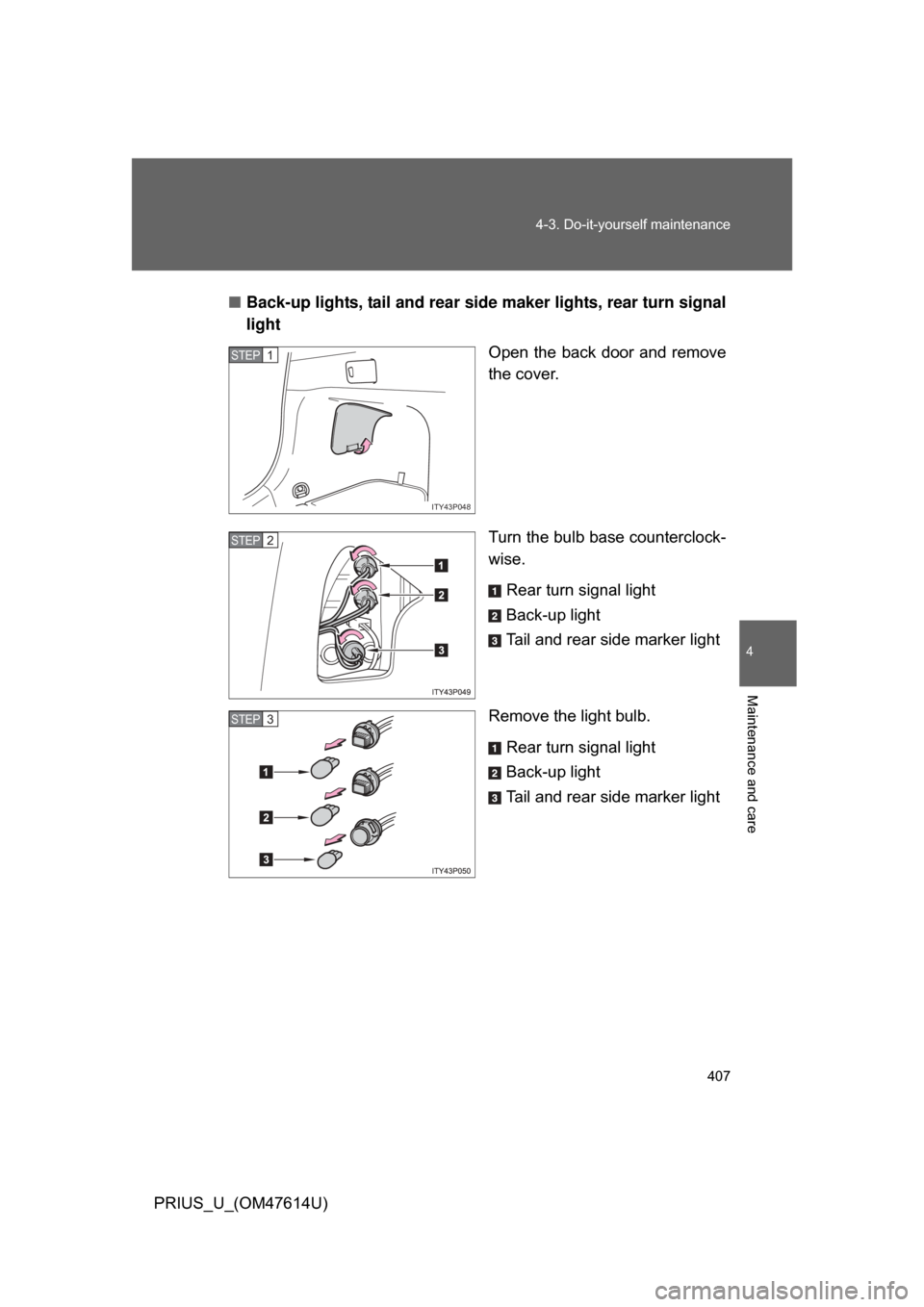

Back-up lights, tail and rear side maker lights, rear turn signal
light
Open the back door and remove
the cover.
Turn the bulb base counterclock-
wise.
Rear turn signal light
Back-up light
Tail and rear side marker light
Remove the light bulb. Rear turn signal light
Back-up light
Tail and rear side marker light
ITY43P048
STEP1
STEP2
STEP3

408 4-3. Do-it-yourself maintenance
PRIUS_U_(OM47614U)■

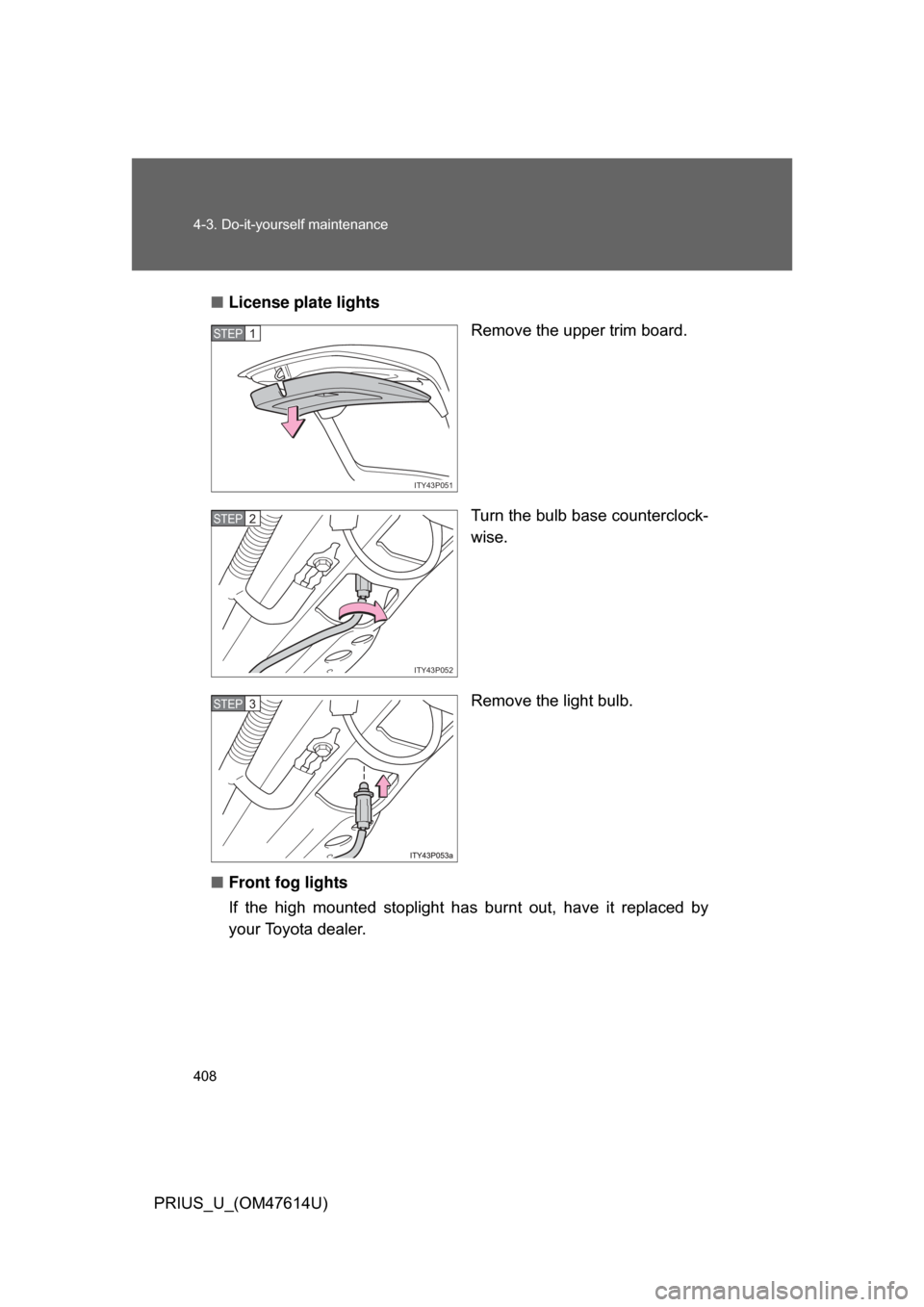

License plate lights
Remove the upper trim board.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Front fog lights
If the high mounted stoplight has burnt out, have it replaced by
your Toyota dealer.
ITY43P051
STEP1
ITY43P052
STEP2
STEP3

409
4-3. Do-it-yourself maintenance
4
Maintenance and care
PRIUS_U_(OM47614U)
■
Condensation build-up on th e inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED light bulbs
The stop and high mounted stoplights consist of a number of LEDs. If any of
the LEDs burn out, take your vehicle to your Toyota dealer to have the light
replaced.
If two or more LEDs in a stoplight burn out, your vehicle may not conform to
local laws (SAE).
■ High-intensity dischar ge (HID) headlights
If voltage to the high-intensity discharge bulbs is insufficient, the light may
not come on, or may go out temporarily. The high-intensity discharge bulbs
will come on when normal power is restored.

410 4-3. Do-it-yourself maintenance
PRIUS_U_(OM47614U)
CAUTION
■Replacing light bulbs
● Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not take apart or repair the low beam discharge headlight bulbs, con-
nectors, power supply circuits, or related components.
Doing so could result in electric shock and death or serious injury.
■ High-intensity discharge (HID) headlights
● Contact your Toyota dealer before replacing high-intensity discharge
headlights (including light bulbs).
● Do not touch the high-intensity discharge headlight’s high voltage socket
when the headlights are turned on. An extremely high voltage of 20000V
will be discharged and could result in death or serious injury by electric
shock.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.
