climate control TOYOTA PRIUS 2012 3.G Quick Reference Guide

2
OVERVIEW
Instrument panel

Steering wheel controls
Steering wheel audio controls2,3
Voice command button1,2,3
Steering wheel climate controls
Multi-Information Display button
“TRIP” button
Cruise control
1
“LKA” switch1
Distance switch1
Telephone controls2,3
Headlight and turn signal controls/Headlight, turn signal and front fog light
controls1
Wiper and washer controls
Mph or km/h button
Head-up display switches
1
Power button
Multi-Information Display
Navigation system
1,2/Display audio system1,3
Air Conditioning controls

16
FEATURES/ OPERATIONS
Air Conditioning/ Heating
Temperature selector
Temperature setting display
Air outlet display
Fan speed display
Fan speed control
Windshield defogger
Micro dust and pollen filter mode (turns off automatically after 3 minutes)
Air Conditioning ON/OFF
Airflow vent
Use “ ” or “ ” mode to reduce window fogging.
Recirculate cabin air (fresh air when OFF)
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake
and fan to adjust automatically.
Climate control OFF
Seat heaters (if equipped)
Push
Push
Driver seat
Front passenger seat

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
19

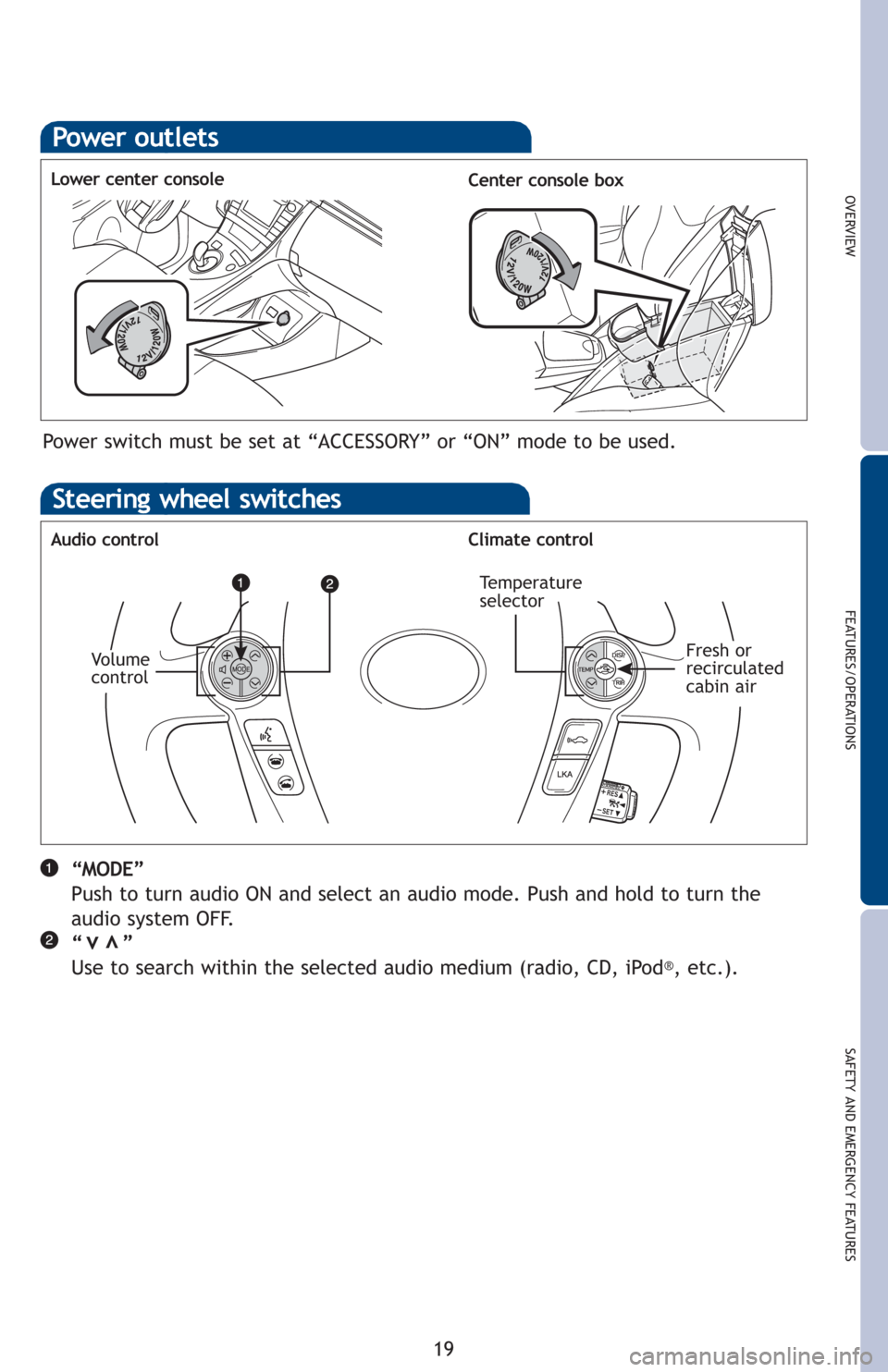

Power out l et s
Lower center console
Center console box
Power switch must be set at “ACCESSORY” or “ON” mode to be used.
Steering wheel switches
Audio controlClimate control
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn the
audio system OFF.
“ ”
Use to search within the selected audio medium (radio, CD, iPod
®, etc.).
vv
Vo l u m e
controlTemperature
selectorFresh or
recirculated
cabin air
